Mounting Bracket AZURA® S
The mounting bracket can be mounted onto the side panel of AZURA® devices with a S foot-
print. It is used to mount a manual injection valve.
Allen screwdriver, size 2 mm
Allen screwdriver, size 3 mm
Ablauf Abbildung
1. Position the mounting bra-
cket onto the bore holes in
the side panel. In this posi-
tion, the mounting bracket
must sit flatly on the surface.
2. Slide the washers 1each
over the thread of the two
smaller cylinder bolts. Using
the Allen screwdriver, size 2,
screw the mounting bracket
onto the housing.

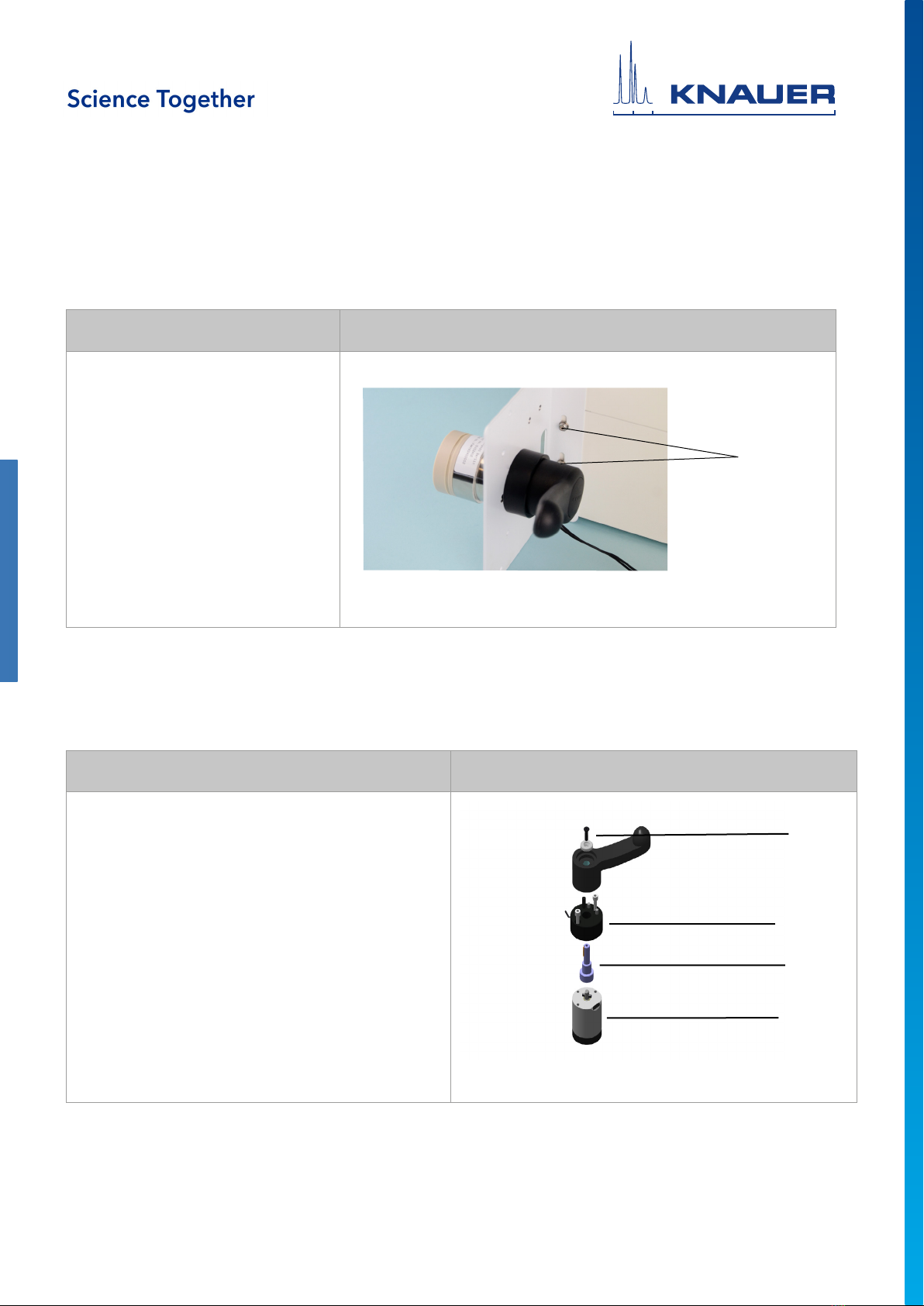

Fig. 1: Rear view: Mounting bracket with valve
Mounting a valve
Allen screwdriver, size 3 mm
Allen screwdriver, size 2.5 mm
Process Figure
1. Remove the lid from the lever.
2. Loosen the screw of the lever 1with the
screwdriver size 2.5 mm.
3. Pull off the lever from the adapter plate
2.
4. Loosen the 2 screws of the adapter plate
2with the screwdriver size 3 mm.
5. Detach the adapter plate 2from the
feather key 3.
6. Detach the feather key 3from valve head
4.
Fig. 2: Exploded view
Tools
Tools
1
1
2
3
4
Supplement AZURA® Mounting Bracket S, V6848, version 2.0 Page 1

Process Figure
1. Place the valve head on the front
of the mounting bracket so that the
mark 5points upwards and the
groove 6points to the left.
Fig. 3: Rear view valve
Process Figure
2. Mount the feather key 7pointing to
the AZURA® S system onto the groove
6.
3. Mount the adapter plate 8with the
cable pointing down onto the feather
key 7and tighten it with the screw-
driver size 3 mm.
4. Tighten the lever with the screwdriver
size 2.5 mm and mount the lid onto
the lever. Fig. 4: Mounting a valve
Fig. 5: Front view
Note: In open position, the 6-port valve is connected: port 1 with port 6, port 2 with
port 3 and port 4 with port 5.
5
6
78
