knd ATVI-H8604 User manual

1
4/8/16 CH
1080P HALF REAL-TIME AND
1080P REAL-TIME
ATVI DVR
User’s Manual
V. 1.0

2
Regulatory Information
Safety Precautions
˙To reduce risk of fire or electric shock, do not expose this appliance to rain or moisture.
˙Do not place the appliance near to heaters, other heat sources or under direct solar irradiation.
˙Make sure the ventilation slot on the appliance is not covered during operating.
˙To prevent risk of electric shock, connect only to a proper earth grounded outlet. Do not operate appliance
with other none specified power supplies.
˙Do not attempt to modify or use the supplied AC power cord if it is not the exact type and rating required.
˙Do not attempt to disassemble the appliance. Contact qualified service personnel for maintenance.
˙Handle the appliance with care. Do not strike or shake, which may damage the appliance.
Notice
˙Information in this document is subject to change without notice.
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
Users will be required to correct the interference at his own expense.
FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Attention! This is a class A product which may cause radio interference in domestic environment; in this case, the Users
may be urged to take adequate measures.

3
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................................................................6
1.1 FEATURES..................................................................................................................................................................6
1.2 PRODUCT SPECIFICATION...........................................................................................................................................7
1.3 FRONT PANELAND REAL PANEL OF 4/8/16 1080PATVI DVR....................................................................................8
1.4 HARD DISK INSTALLATION ......................................................................................................................................14
2. GENERAL OPERATION...........................................................................................................................................17
2.1 LOGIN......................................................................................................................................................................17
2.2 LIVE VIEWING .........................................................................................................................................................19
2.2.1 Basic Operation..............................................................................................................................................19
3. SEARCH (PLAYBACK) OPERATION....................................................................................................................22
3.1 BASIC OPERATION....................................................................................................................................................22
3.2 CALENDAR ..............................................................................................................................................................23
3.3 PLAYBACK OPERATION............................................................................................................................................23
3.3.1 Search by Time................................................................................................................................................23
3.3.2 Search by Channel ..........................................................................................................................................24
3.3.3 Search by Event...............................................................................................................................................24
3.4 PLAYBACK OPERATION.............................................................................................................................................25
4. RECORDING..............................................................................................................................................................26
4.1 SCHEDULE RECORDING SETTINGS ...........................................................................................................................26
4.2 RECORD SETTINGS...................................................................................................................................................27
5. PTZ CONTROL..........................................................................................................................................................28
6. EXPORT (BACKUP) VIDEO....................................................................................................................................29
6.1 EXPORT VIDEO ........................................................................................................................................................29
7. EXPORT PLAYER......................................................................................................................................................30
7.1 PLAYER INSTALLATION ...........................................................................................................................................30
7.2 STARTING THE PLAYER PROGRAM AND VIEWING EXPORTED VIDEO FILE ................................................................30
8. MAIN MENU OPERATIONS....................................................................................................................................33
8.1 CAMERA..................................................................................................................................................................33
8.1.1 Camera Settings..............................................................................................................................................33
8.2 NETWORK................................................................................................................................................................42
8.2.1 Network Settings .............................................................................................................................................42

4
8.2.2 Notification .....................................................................................................................................................45
8.2.3ALARM NOTIFICATION..........................................................................................................................................46
8.3ALARM SETTINGS ....................................................................................................................................................46
8.3.1 Alarm Input Settings........................................................................................................................................46
8.3.2 Exception Management...................................................................................................................................47
8.4 SYSTEM SETTINGS...................................................................................................................................................48
8.4.1 Device Setting .................................................................................................................................................48
8.4.2 User Settings...................................................................................................................................................50
8.4.3 Date/Time Settings ..........................................................................................................................................51
8.4.4 Display............................................................................................................................................................54
8.4.5 HDD................................................................................................................................................................57
8.4.6 Miscellaneous .................................................................................................................................................59
8.4.7 Configuration..................................................................................................................................................61
8.5 INFORMATION ..........................................................................................................................................................62
8.5.1 General Information .......................................................................................................................................62
8.5.2 App QR Code ...............................................................................................................................................62
8.5.3 P2P ..............................................................................................................................................................63
8.6 LOG .........................................................................................................................................................................64
9. WEB VIEWER OPERATION ...................................................................................................................................65
9.1 CONNECTING TO ATVI DVR ...................................................................................................................................65
9.2 LOGIN......................................................................................................................................................................65
9.3 REMOTE LIVE VIEW.................................................................................................................................................66
9.4 REMOTE SEARCH AND PLAYBACK ...........................................................................................................................70
9.4.1 Search by Time................................................................................................................................................70
9.4.2 Search by Channel ..........................................................................................................................................70
9.4.3 Search by Event...............................................................................................................................................71
9.4.4 Web Viewer Playback Operation.....................................................................................................................72
9.4.5 Web Viewer Setup Menu..................................................................................................................................73
9.4.6 Remote Export.................................................................................................................................................74
9.4.7 Remote PTZ Control .......................................................................................................................................76
9.4.8 Remote Snapshot.............................................................................................................................................77
9.4.9 Remote Digital Zoom......................................................................................................................................78
10. MOBILEAPPS..........................................................................................................................................................79
10.1ANDROID SYSTEM .................................................................................................................................................79
10.1.1 Download VS Viewer Pro II Android App.....................................................................................................79
10.1.2 Main Menu.................................................................................................................................................81
10.1.3 Live View....................................................................................................................................................82

5
10.1.4 Playback mode..............................................................................................................................................88
10.2 IOS SYSTEM........................................................................................................................................................91
10.2.1 Download VS Viewer Pro II from Apple App................................................................................................91
10.2.2 Main Menu....................................................................................................................................................93
10.2.3 Live view .......................................................................................................................................................94
10.2.4 Playback mode..............................................................................................................................................98
11. CMS PRO OPERATION........................................................................................................................................102
11.1 BEGIN INSTALLATION...........................................................................................................................................102
11.2 START CMS PRO FROM THE PC............................................................................................................................106
11.3 CMS PRO UI OVERVIEW......................................................................................................................................107
11.4 LOGIN..................................................................................................................................................................108
11.5ADD DEVICE TO CMS PRO...................................................................................................................................109
11.6ADD DEVICE MANUALLY.....................................................................................................................................109
11.6.1 Remove or Edit or configure device setting................................................................................................. 110
11.6.2 CMS Pro Group Video..................................................................................................................................111
11.7 LIVE VIDEO..........................................................................................................................................................114
11.8 PLAYBACK VIDEO ...............................................................................................................................................117
11.8.1 Search for Playback Videos......................................................................................................................... 118
11.8.2 Search operation .........................................................................................................................................120
11.9 CMS PLAYBACK OPERATION...............................................................................................................................122
11.10 CMS EXPORT ....................................................................................................................................................123
11.11 USING EMAP......................................................................................................................................................124
11.12 USING PTZ CONFIGURATION.............................................................................................................................129
11.13 MULTIPLE MONITOR SUPPORT ..........................................................................................................................130
11.14 CMS SYSTEM ....................................................................................................................................................130

6
1. Introduction
The 4/8/16CH 1080P ATVI DVR transmits Full HD (1080P) / 720P or Analog video image
over coaxial cables. It performs the high definition image with zero loss and low latency of
image data when viewing the video. The ATVI DVR provides the easy-to-install benefit that
allows users to view the HD megapixel image without requiring having the complicated
knowledge of IP based system. It is the ultimate solution for high-quality and reliable
surveillance system.
1.1 Features
ATVI 1080P DVR supports ATVI 1080P/720P/Analog cameras seamless
inputs
Dual -Core CPU demonstrates the extreme and industry-leading performance in recording,
playback and networking
Support maximum 16ch 1080p30 real-time recording and simultaneous real-time
playback
Support maximum up to 240fps recording with 1080p30 of each channel
Dual stream support for remote access from a PC and/or a cell phone at low bandwidth
Programmable dual monitor
Bi-directional audio
Remote access through Web, CMS, Mobile App (Android or iOS VS Viewer Pro II Apps)
Easy data export via USB drive, webpage and USB external HDD
Search control by date/time, alarm, channel search
Free bundle CMS for multiple device management
Free DDNS server provided for Dynamic IP address

7
1.2 Product Specification
4CH 1080P ATVI DVR
System
ATVI-H8604
ATVI-H8704
Operation System
Embeded Linux
Operations
Live，Recording，Playback，Backup&Remote access
Control Modes
USB mouse，Webpage，CMS
Video
Input
4CH ATVI 1080P/720P/960H/D1/HalfD1/CIF
Output
1xHDMI，1xVGA，1xCVBS
Dual Stream
Support
Frame Rate
VBR：30fps (NTSC)/25fps (PAL)，CBR：30fps (NTSC)/25fps (PAL)
Audio
Input
4 x RCA
Output
1 x RCA
2-way Audio
Support
Display
Display Mode
Full screen /Multi-screen/Sequence
OSD
GUI
Remote View
Via IE Web Viewer，CMS
Mobile System Support
IOS，Android
Recording
Recording Mode
Continuous，Scheduled，Alarm，Motion
Recording Capability
60fps@1080P，120fps@720P/ 960H/D1/HalfD1/CIF
Pre Recording
5 seconds
Post Recording
Max. 255 seconds
Network
Support
TCP/IP，SMTP，DHCP，DDNS，PPPoE，UDP，SSL，RTP，RTSP，NTP
Ethernet
1x10/100 Mbps
Playback & Backup
Display Mode
Full screen / Multi-screen
Playback Capability
4ch simultaneous playback
Playback Control
Play/Pause/Step/Fast forward/Rewind/Fast rewind
Search Control
By Date/Time，Events，Channel
Export
Through USB/Webpage/CMS
Internal Storage
1 SATA Port 6TB HDD
2 SATA Ports, 6TB capacity for each HDD
最高達 6TB 的容量
Alarm I/O
USB
2; 1for mouse controland 1 for backup
Alarm
No
4 input /1 output
RS485
No
1; Support Pelco D，Pelco P
OSD & DVR Control Mode
Watermark
Yes
User Privilege
3 Levels of User Access Support
Environmental
Power
DC12V (AC100-240V 50/60HZ) / 42w
Dimension
258mm(L)x222(W)x45mm(H)
325mm(L)x242(W)x51(H)
Operating Temperature
0℃~40℃
Note: The specifications are subject to change without any notice.

8
8CH 1080P ATVI DVR
System
ATVI-H8608
ATVI-H8708
Operation System
Embeded Linux
Operations
Live，Recording，Playback，Backup&Remote access
Control Modes
USB mouse，Webpage，CMS
Video
Input
8CH ATVI 1080P/720P/960H/D1/HalfD1/CIF
Output
1xHDMI，1xVGA，1xCVBS
Dual Stream
Support
Frame Rate
VBR: 30fps (NTSC)/25fps (PAL)，CBR: 30fps (NTSC)/25fps (PAL)
Audio
Input
4 x RCA
Output
1 x RCA
2-way Audio
Support
Display
Display Mode
Full screen /Multi-screen/Sequence
OSD
GUI
Remote View
Via IE Web Viewer，CMS
Mobile System Support
IOS，Android
Recording
Recording Mode
Continuous，Scheduled，Alarm，Motion
Recording Capability
120fps@1080P，240fps@720P/960H/ D1/HalfD1/ CIF
Pre Recording
5 seconds
Post Recording
Max. 255 seconds
Network
Support
TCP/IP，SMTP，DHCP，DDNS，PPPoE，UDP，SSL，RTP，RTSP，NTP
Ethernet
1x10/100 Mbps
Playback & Backup
Display Mode
Full screen / Multi-screen
Playback Capability
8ch simultaneous playback
Playback Control
Play/Pause/Step/Fast forward/Rewind/Fast rewind
Search Control
By Date/Time，Events，Channel
Export
Through USB/Webpage/CMS
Internal Storage
1 SATAPort 6TB capacity for each HDD
2 SATA Ports, 6TB capacity for each HDD
最高達 6TB 的容量
Alarm I/O
USB
2; 1for mouse controland 1 for backup
Alarm
No
4 input /1 output
RS485
No
1; Support Pelco D，Pelco P
OSD & DVR Control Mode
Watermark
Yes
User Privilege
3 Levels of User Access Support
Environmental
Power
DC12V / 42W
DC12V / 42W
Dimension
325mm(L)x242(W)x51(H)
Operating Temperature
0℃~40℃
Note: The specifications are subject to change without any notice.

9
16CH 1080P ATVI DVR
System
ATVI-H8716
ATVI-H8716-4H
Operation System
Embeded Linux
Operations
Live，Recording，Playback，Backup&Remote access
Control Modes
USB mouse，Webpage，CMS
Video
Input
16CH ATVI 1080P/720P/960H/D1/HalfD1/CIF
Output
1xHDMI，1xVGA，1xCVBS
Dual Stream
Support
Frame Rate
VBR: 30fps (NTSC)/25fps (PAL)，CBR: 30fps (NTSC)/25fps (PAL)480fps@1080P
240fps@720P/960H/ D1/HalfD1/ CIF
Audio
Input
4 x RCA
Output
1 x RCA
2-way Audio
Support
Display
Display Mode
Full screen /Multi-screen/Sequence
OSD
GUI
Remote View
Via IE Web Viewer，CMS
Mobile System Support
IOS，Android
Recording
Recording Mode
Continuous，Scheduled，Alarm，Motion
Recording Capability
240fps@1080P，480fps@720P/960H/ D1/HalfD1/ CIF
Pre Recording
5 seconds
Post Recording
Max. 255 seconds
Network
Support
TCP/IP，SMTP，DHCP，DDNS，PPPoE，UDP，SSL，RTP，RTSP，NTP
Ethernet
1x10/100/1000 Mbps
Playback & Backup
Display Mode
Full screen / Multi-screen
Playback Capability
8ch simultaneous playback
Playback Control
Play/Pause/Step/Fast forward/Rewind/Fast rewind
Search Control
By Date/Time，Events，Channel
Export
Through USB/Webpage/CMS
Internal Storage
2 SATA Ports each disk up to 6TB capacity
4 SATA Ports each disk up to 6TB capacity
Alarm I/O
USB
2; 1for mouse controland 1 for backup
Alarm
16input/4output
RS485
1; Support Pelco D，Pelco P
OSD & DVR Control Mode
Watermark
Yes
User Privilege
3 Levels of User Access Support
Environmental
Power
DC12V (AC100-240V 50/60HZ) 84w
Dimension
420mm(L) x 305mm(W) x 65mm(H)
Operating Temperature
0℃~40℃
Note: The specifications are subject to change without any notice.

10
1.3 Front Panel and real panel of 4/8/16 1080PATVI DVR
4/8CH 1080PATVI DVR Front Panel
The front panel includes:
1. Power/ Alarm: Power indicator turns on when ATVI DVR turns on. Alarm
indicator blinks when the alarm is detected.
2. Network : Network indicator turns on when ATVI DVR network access is
connected.
3. REC Record : Rec indicator turns on when ATVI DVR is recording.
4. USB Port: USB2.0 port for connecting devices, such as USB mouse or
USB flash drive.

11
4/8CH 1080PATVI DVR Rear Panel
4CH 1080PATVI DVR Rear Panel
8CH 1080PATVI DVR Rear Panel
Item
I/O
Description
1
Reserved Port
Reserved for expansion function.
2
Video In
Connect Analog or ATVI cameras’ video output to
the ATVI DVR video input connectors.
3
CVBS Out
Connect a CVBS Monitor to the CVBS output
connector.
4
Audio In
Connect the microphone or camera audio output to
the audio input connectors.
5
VGA
Connect a VGA Monitor to the VGA output
connector.
6
Network
For RJ-45 network connection.
7
Power
Plug the DV12V power source into the power socket.
8
Alarm In/Alarm Out
Connect up to 4 alarm inputs to the alarm input
connectors. N.C or N.O type alarm signal out.
9
Audio Out
Connect a speaker or other audio output device to the
audio output connectors.
10
HDMI
Connect a HDMI monitor to the HDMI output
connector.
11
USB Port
USB 2.0 port for connecting devices, such as USB
mouse or USB flash drive.
12
RS485
Connect a Pan/Tilt/Zoom camera to the RS485 port.

12
4/8CHATVI DVR Packing Content
The package contains the following items:
-ATVI DVR x 1
-Quick Install Paper x1
-SATA connection cable x 2 (The quantities might vary based on different models.)
-Screws for mounting hard drive x 10 pcs (The quantities might vary based on different models.)
-HDD mounting bracket x 4 pcs (The quantities might vary based on different models.)
-Screws for mounting bracket x 10 pcs (The quantities might vary based on different models.)
-User manual/Quick Install/CMS disc x 1
-Power adapter x1
16CH 1080PATVI DVR Front Panel
The front panel includes:
1. REC Record : Rec indicator turns on when ATVI DVR is recording.
2. NET Network : Network indicator turns on when ATVI DVR network access is
connected.
3. POWER/ALARM Power/ Alarm: Power indicator turns on when ATVI DVR turns
on.
Alarm indicator blinks when the alarm is detected.
4. USB Port: USB2.0 port for connecting devices, such as USB mouse or USB flash
drive.

13
16CH 1080PATVI DVR Rear Panel
16CH 1080PATVI DVR Rear Panel
Item
I/O
Description
1
Reserved Port
Reserved for expansion function.
2
CVBS Out
Connect a CVBS Monitor to the CVBS output connector for
4/8/16ch ATVI DVR.
3
Audio In
Connect the microphone or camera audio output to the audio
input connectors.
4
Video In
Connect Analog or ATVI cameras’ video output to the ATVI
DVR video input connectors.
5
Alarm Out
N.C or N.O type alarm signal out.
6
Alarm In
Connect up to 16 alarm inputs to the alarm input connectors.
7
RS485
Connect a Pan/Tilt/Zoom camera to the RS485 port.
8
VGA
Connect a VGA Monitor to the VGA output connector.
9
Network
For RJ-45 network connection.
10
Power
Plug the DV12V power source into the power socket.
11
Audio Out
Connect a speaker or other audio output device to the audio
output connector.
12
HDMI
Connect a HDMI monitor to the HDMI output connector.
13
USB Port
USB 2.0 port for connecting devices, such as USB mouse or
USB flash drive.
※
Reserved Port
Reserved for expansion function.
※
※

14
16CHATVI DVR Packing Content
The package contains the following items:
-ATVI DVR x 1
-Quick Install Paper x1
-SATA connection cable x 4 (The quantities might vary based on different models.)
-Screws for mounting hard drive x 20 pcs (The quantities might vary based on different models.)
-HDD mounting bracket x 4 pcs (The quantities might vary based on different models.)
-Screws for mounting bracket x 10 pcs (The quantities might vary based on different models.)
-User manual/Quick install/CMS disc x1
-Power adapter x1
1.4 Hard Disk Installation
4/8CH 1080PATVI DVR HDD Installation
Follow the steps to install or replace the hard disk.
Step1. Take out the screws on the cover of the unit.
Step2. Slide opens the top cover.
Step3. Use the HDD mounting screws attached in the accessory pack to fix the mounting
brackets to the hard drive.
Step4. Connect SATA & Power wire to Hard Disk and put it on right position of the case.
Use the HDD mounting screws attached in the accessory pack to fix the hard drive with
bracket firmly on to the chassis.

15
16CH 1080PATVI DVR HDD Installation
Follow the steps to install or replace the hard disk.
Step1. Take out the hard disk mounting bracket and hard disk screws from
the accessory pack.
Step2. Fix the harddisk on to the harddisk mounting bracket and fix the screws on to the
screw holes as indicated in the diagram. Each set of harddisk brackets can mount 2
harddisks.
Step3. Use the HDD mounting screws attached in the accessory pack to fix
the mounting brackets to the hard drive.

16
Step4. Connect SATA & Power wire to Hard Disk and put it on right position of the case.
Use the HDD mounting screws attached in the accessory pack to fix the hard drive with
bracket firmly on to the chassis.

17
2. General Operation

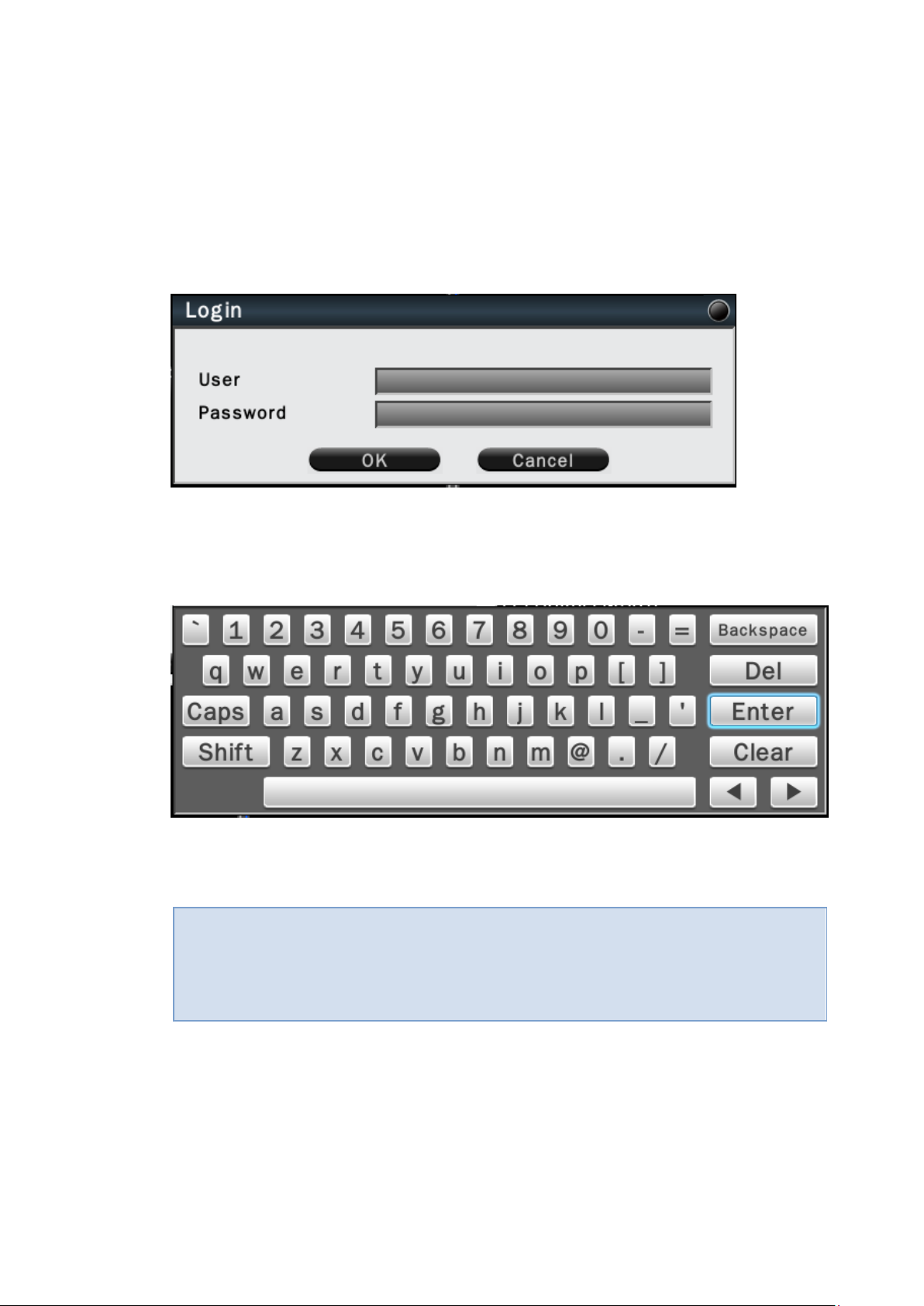

2.1 Login
It is requested to login after boot up if the user authentication is enabled.
Click on the User name and Password column to bring up the virtual keyboard to enter the
user account and password to login to the system.
The default user name/password is:
Note
Administrator: admin/admin
Operator: operator/operator
Guest: guest/guest
If Auto logout is enabled, the system will automatically logout after the preset time. To
login to the system, left click on the mouse to bring up the login menu.
The functions available can be limited by setting passwords.
Access to the unit’s functions is determined by the user level of the user logged in.

18
Authority Instructions based on 3 levels of Users
Administrator
Operator
Guest
View live
Yes
Yes
Yes
OSD
Yes
Yes
Yes
Live Multiple-up
Yes
Yes
Yes
Zoom
Yes
Yes
Yes
Pan/Tilt/Zoom (PTZ)
Yes
Yes
No
Playback
Yes
Yes
No
Export
Yes
Yes
No
Acknowledge Alarm
Yes
Yes
No
Configuration
Yes
No
No

19

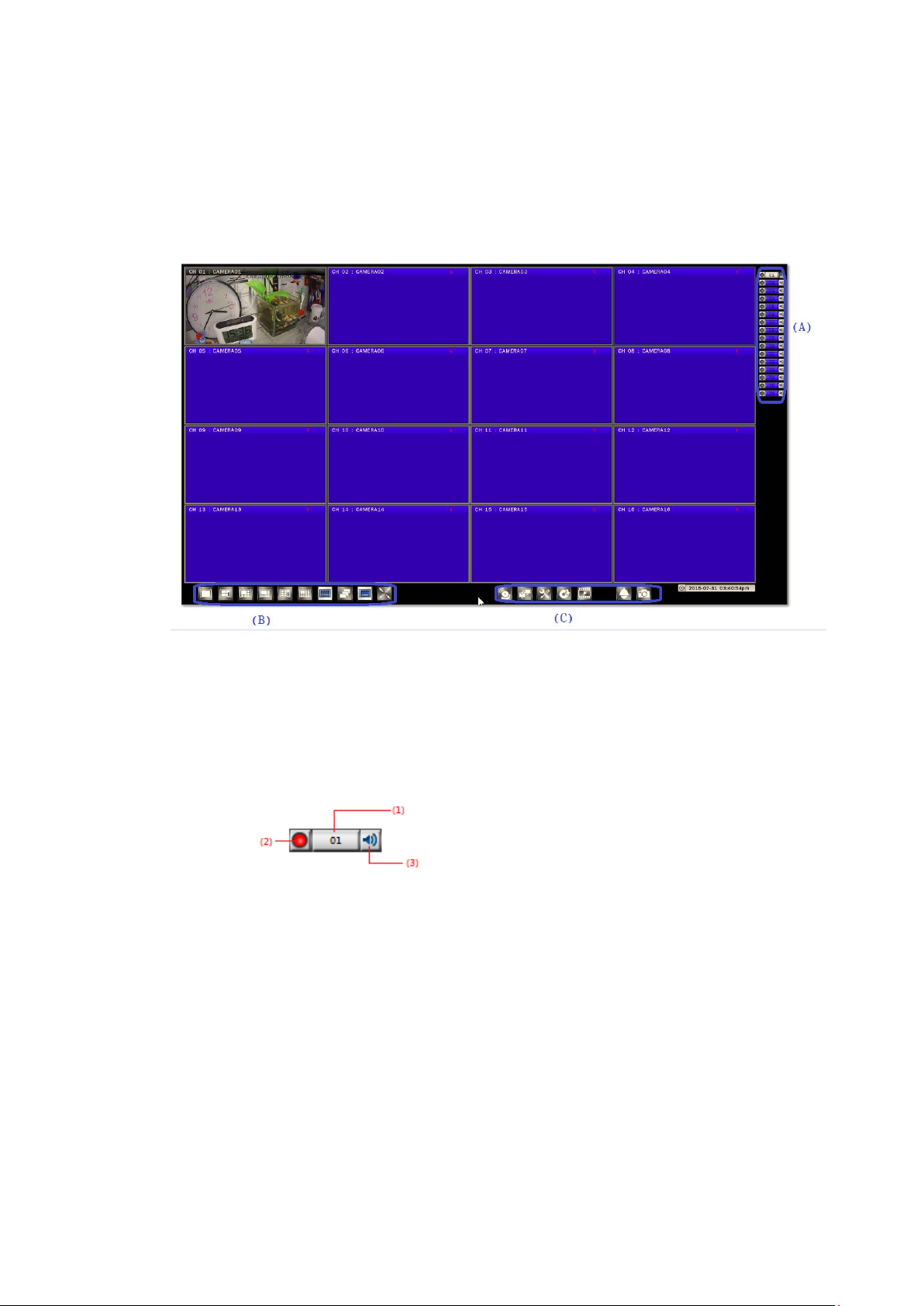

2.2 Live Viewing
2.2.1 Basic Operation
The ATVI DVR will enter into the Live View mode after users login to the system.
Use mouse to double click on any video channel to bring it up to full screen display.
The basic operation icons are showing on the main screen, the functions are:
(A)System indicators, Channel selection and Audio output selection
The system indicator is showing general system status for each input channel.
(1) The color of the button stands for the status for each channel as listed:
White –Normal, the camera input is installed and enabled.
Grey –The video input is disabled.
Blue –Video Lost.
Yellow –Motion triggered.
Red –Alarm triggered.
(2) Recording status indicator
Red –Recording
White –Not Recording
(3) Audio output selection

20
Click on the Audio icon on the channel you would like to display, the audio
output will switch to the selected channel.
(4) To switch channel in the display window, move the focus channel to the selected
window, click on the channel button you wish to display, the channel will be
switched.
(B)Display mode control :
Single view display mode
Quad display mode
First/Second/Third/Forth Quad display mode
1+5 display mode
1+7 display mode
9-up display mode
First/Second 9-up display mode
1+12 display mode
16-up display mode
Sequence display mode
Show/Hide OSD
Switch display to full screen display mode
(C)Function Control
Alarm acknowledge, click to disable buzzer when alarm is triggered
Click to bring up Call Monitor Setup menu
