Protos 3400(X)
Process Analysis System
User Manual
English
Latest Product Information: www.knick.de

Trademarks
The following trademarks are used in this manual without further marking:
CalCheck®, Calimatic®, Protos®, Sensocheck®, Sensoface®, ServiceScope®, Unical®, VariPower®, Ceramat®,
SensoGate®
are registered trademarks of Knick Elektronische Messgeräte GmbH & Co. KG, Germany
Memosens®
is a registered trademark of
Endress+Hauser Conducta GmbH & Co. KG, Germany
Knick Elektronische Messgeräte GmbH & Co. KG, Germany
SMARTMEDIA®
is a registered trademark of Toshiba Corp., Japan
©2017 Subject to change without notice
Return of Products under Warranty
Please contact our Service Team before returning a defective device. Ship the cleaned device to
the address you have been given. If the device has been in contact with process fluids, it must be
decontaminated/disinfected before shipment. In that case, please attach a corresponding certificate,
for the health and safety of our service personnel.
Disposal
Please observe the applicable local or national regulations concerning the disposal of
“waste electrical and electronic equipment”.
Knick
Elektronische Messgeräte GmbH & Co. KG
Beuckestr. 22
14163 Berlin, Germany
Phone: [phone] - 0
Fax: [phone] - 200
Web: www.knick.de
Email: [email protected]

3
Table of Contents
COMPA 3400(X)-081 Module
Return of Products under Warranty .................................................................................... 2
Disposal ......................................................................................................................................... 2
Trademarks ................................................................................................................................... 2
Intended Use................................................................................................................................ 5
Conformity with FDA 21 CFR Part 11.................................................................................. 5
Safety Information ..................................................................................................................... 6
Application in Hazardous Locations: COMPA 3400X-081 Module........................... 6
Software Version ........................................................................................................................ 7
Modular Concept ....................................................................................................................... 9
Short Description .......................................................................................... 10
Short description: FRONT module.....................................................................................10
Short Description: Menu Structure....................................................................................11
Short Description: BASE Module........................................................................................13
PROFIBUS Technology................................................................................... 14
Terminal Plate................................................................................................ 16
Inserting the Module .................................................................................... 17
PROFIBUS PA Installation ............................................................................. 18
Communication Model..........................................................................................................20
Physical Block (PB) ...................................................................................................................20
Analog Input Blocks ................................................................................................................21
For Copy: Individual Settings...............................................................................................24
Integration to Project Planning Tools ...............................................................................25
Cyclic Data Communication.................................................................................................26
Structure of Cyclic Input Data Telegram..........................................................................26
DI Function Blocks ...................................................................................................................27
DI 1: Unical Status............................................................................................................27
DI 2: CONTACTS / LOCK Status / ENABLE Request ..............................................27
DI 3: Unical Messages.....................................................................................................28
Explanation of Unical Messages: Maintenance request....................................28
Explanation of Unical Messages: Failure.................................................................29
DI 4: Unical Step...............................................................................................................29
DO Function Blocks .................................................................................................................30
DO 1: HOLD Control .......................................................................................................30
DO 2: PARSET.....................................................................................................................30

4
Table of Contents
COMPA 3400(X)-081 Module
DO 3: Unical Control.......................................................................................................31
DO 4: LOCK Control.........................................................................................................31
Configuration Data..................................................................................................................32
Analog Input Blocks (1 ... 8) ..................................................................................................33
Discrete Input Blocks (1 ...4) .................................................................................................34
Discrete Output Blocks (DO1 ... 4), Analog Output Block AO1................................35
COMPA Slot Model...................................................................................................................36
PB Block Parameters................................................................................................................37
TB Analyser Block Parameters .............................................................................................39
AI Function Block Parameters..............................................................................................41
DI Function Block Parameters..............................................................................................44
DO Function Block Parameters...........................................................................................46
AO Function Block Parameters ...........................................................................................48
Calibration Record Parameters............................................................................................49
Menu Selection.............................................................................................. 61
Passcode Entry............................................................................................... 62
Changing a passcode.....................................................................................................62
Function Control Matrix ........................................................................................................63
Pressure Compensation via Bus (AO1) ........................................................ 64
Diagnostics: Bus Monitor.......................................................................................................65
Bus Monitor ...............................................................................................................................66
Specifications................................................................................................. 67
Process Variables (PROFIBUS) ...................................................................... 69
Module Types PH:.....................................................................................................................69
Calculation Block pH / pH .....................................................................................................69
Module Types O2:.....................................................................................................................70
Calculation Block O2/ O2.....................................................................................................70
Module Types COND:..............................................................................................................71
Calculation Block COND/COND ..........................................................................................71
Module Types CONDI:.............................................................................................................72
Calculation Block CONDI / CONDI......................................................................................72
Index............................................................................................................... 73

5
Intended Use
In their directive “Title 21 Code of Federal Regulations, 21 CFR Part 11,
Electronic Records; Electronic Signatures“ the US American health agency FDA
(Food and Drug Administration) regulates the production and processing of
electronic documents for pharmaceutical development and production. This
results in requirements for measuring devices used for corresponding applica-
tions. The following features ensure that the Protos 3400(X) modular process
analysis system meets the demands of FDA 21 CFR Part 11:
Electronic Signature
Access to the device functions is regulated and limited by individually adjust-
able codes – “Passcodes“. This prevents unauthorized modification of device
settings or manipulation of the measurement results. Appropriate use of these
passcodes makes them suitable as electronic signature.
Audit Trail Log
Every change of device settings can be automatically recorded and
documented in the Audit Trail Log on the SmartMedia card.
The recording can be encrypted.
Conformity with FDA 21 CFR Part 11
The module is a communication unit for PROFIBUS-PA and allows digital
communication via current modulation.
The COMPA 3400X-081 module is intended for operation in locations subject to
explosion hazards which require equipment of Group II, device category 2(1),
gas/dust.

6
Safety Information
Application in Hazardous Locations
Caution!
Never try to open the module! If a repair should be required, return the module
to our factory.
If the specifications in the instruction manual are not sufficient for assessing
the safety of operation, please contact the manufacturer to make sure that your
intended application is possible and safe.
Application in Hazardous Locations: COMPA 3400X-081 Module
The module is approved for operation in hazardous locations.
Observe all applicable local codes and standards for the installation of electrical
equipment in hazardous locations. For orientation, please refer to
IEC 60079-14, EU directives 2014/34/EU and 1999/92/EC (ATEX), NFPA 70 (NEC),
ANSI/ISA-RP12.06.01.
• When installing the device in a hazardous location, observe the specifica-
tions of the EC-Type-Examination Certificate and, if applicable, of the Control
Drawing (download: www.knick.de).
• Before commissioning you must prove that the device may be connected
with other equipment, such as a supply unit including cables and wires.
• In hazardous locations the device shall only be cleaned with a damp cloth to
prevent electrostatic charging.
• Devices and modules which have already been used shall be subjected to
a professional routine test before they may be operated in another zone or
another type of protection.
Be sure to observe during installation:
• Switch off power supply before replacing or inserting a module.
• Before commissioning it must be proved that the device may be connected
with other equipment.

7
Software Version
COMPA 3400(X)-081 Module
Device Software Protos 3400(X)
The COMPA 3400(X)-081 module is supported by software version 5.0 or higher.
Module software version 2.x requires device software version 7.x.
Module Software COMPA 3400(X)-081
Software version 1.3 June 1, 2004
Software version 2.2 April 2, 2007
Software version 2.4 December 10, 2015
Query Actual Device/Module Software
When the analyzer is in measuring mode:
Press menu key, open Diagnostics menu: Device description
Menu Display Device description
Device hardware and software
version
Provides information on all modules
installed: Module type and function,
serial number, hardware and software
version and device options.
Select the different modules (FRONT,
BASE, slots 1 - 3) using the arrow keys.
Device description
Return
22.7 °C
7.00 pH
Operating panel Protos
Module FRONT 3400-011
Hardware: 1.1, Software: A.2
Serial number: 08150815
BASE
Module FRONT
Options
Device description
Return
22.7 °C
7.00 pH
PROFIBUS-PA
Module COMPA 3400-081
Hardware: 1, Software: 2.4
Serial number: 471101147
BASE
Module FRONT
Options
Query module software
Module COMPA 3400-081,
hardware and software version,
serial number –
here installed in slot3.

8

9
Modular Concept
Basic unit, measuring modules, additional functions
Documentation
The basic unit is accompanied by a CD-ROM containing the complete
documentation.
Latest product information as well as user manuals for earlier software
releases are available at
www.knick.de.
The Protos 3400(X) is an expandable modular process analysis system.
The basic unit (FRONT and BASE modules) provides three slots which can be
equipped by the user with any combination of measuring or communication
modules. The software capabilities can be expanded by additional functions
(options). Additional functions must be ordered separately. They are supplied
with a device-specific TAN for function release.
3 module slots
for free combination of
measuring and communication
modules
Measuring modules
• pH / ORP / Temp
• O2/ Temp
• Noncontacting conductivity / Temp
• Contacting conductivity / Temp
• Memosens sensors
Additional functions
Activation via
device-specific TAN
SmartMedia card
Data recording
ProgaLog 3000
Windows® software for
parameter setting and
data evaluation
Protos 3400(X) Modular Process Analysis System
Communication modules
• OUT (additional switching and current
outputs)
• PID (analog and digital controller)
• Profibus PA
• Foundation Fieldbus
• FIU (Memosens, Unical)
(software occupies 2 slots)
• Unical/Uniclean probe controller

10
Short Description

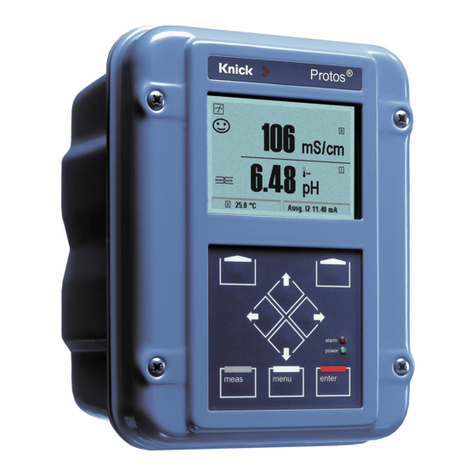

Short description: FRONT module
Transflective LC graphic display
(240 x 160 pixels)
white backlighting, high resolution and
high contrast.
Red LED
signals failure (On) or
maintenance request/function check
(flashing) according to NE 44.
4 captive screws
for opening the analyzer
(Notice! Make sure that the gasket between FRONT and
BASE is properly seated and clean!)
Green LED
Voltage supply okay
5 self-sealing cable glands
M20 x 1.5
for entry of voltage supply and signal lines
2 softkeys
with context-sensitive functions.
User interface
with plaintext menus as recom-
mended by NAMUR.
Menu texts can be switched to:
German, English, French, Italian,
Swedish/Portuguese or Spanish.
Intuitively acquirable menu logic,
based on Windows standards.
Control panel
3 function keys
(menu, meas, enter)
and 4 arrow keys for menu selection
and data entry
Measurement display
Secondary displays
%Air
°C
24.0°C 25.8°C

11
Measure
Short Description: Menu Structure
Basic functions: Calibration, Maintenance, Parameter setting, Diagnostics
Calibration
Maintenance Parameter setting Diagnostics
Menu groups
1
2
3
1147 2958 1246
Operator level
1989
Administrator level
Passcode:
Selection of
further
menu items:
Module 1
Module 2
Module 3
BASE
Module 1
Module 2
Module 3
SYSTEM
FRONT
BASE
Module 1
Module 2
Module 3
Message list
Point of meas
description
Logbook
Device description
FRONT
BASE
Module 1
Module 2
Module 3
4
56
Legend:
1) Pressing the menu key accesses menu selection.
2) Pressing the meas key returns to measurement.
3) Menu groups are selected using the arrow keys
4) Press enter to confirm, enter passcode
5) Further menu items are displayed
6) Selected functions of the Diagnostics menu can be recalled
via softkey even when in measuring mode

12
Short Description: FRONT Module

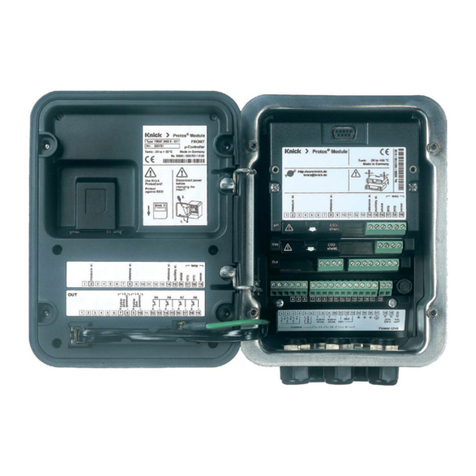

View into the open device (FRONT module)
Terminal plates
of “hidden” modules
Each module comes with an adhesive label
containing the contact assignments. This
label should be sticked to the inner side
of the front (as shown). Then, the terminal
assignments remain visible even if further
modules are inserted.
Slot for SmartMedia card
• Data recording
The SmartMedia card expands the
measurement recorder capacity to
> 50000 records.
• Exchange of parameter sets
5 parameter sets can be stored on the
SmartMedia card, 2 of them can be
loaded simultaneously to the analyzer
and be switched by remote control.
Parameter sets can be transmitted
from one analyzer to the other.
• Function expansions
are possible with additional software
modules, which are released using
transaction numbers (TAN).
• Software updates
The circumferential sealing
guarantees IP 65 protection and allows spray
cleaning / disinfection.
Caution! Keep clean!
Replacing the front module
Pull off power cord and ground wire.
To separate the FRONT module from
the BASE module, turn the retaining screws
of the pivot hinge by 90°.

13
Short Description: BASE Module
View into the open device (BASE module, 3 function modules installed)
BASE module
2 current outputs (free assignment of pro-
cess variable) and 4 relay contacts,
2 digital inputs.
VariPower broad-range power supply unit,
20 ... 265 V AC/DC, suitable for all public
mains supplies in the world.
Power supply units, Ex version:
100 ... 230 V AC or
24 V AC/DC
Important notice concerning SmartMedia Card
The SmartMedia card may be inserted or replaced with the power supply
switched on. Before a memory card is removed, it must be “closed” in the main-
tenance menu. When closing the device, make sure that the sealing is properly
seated and clean.
Module equipment
Module identification: Plug & Play.
Up to 3 modules can be combined as
desired. Several input and communication
modules are available.
Warning!
Do not touch the terminal compartment,
there may be dangerous contact voltages!
Notice
Only one module can be
connected in addition to a
FIU 3400(X)-140/141 module.

14
PROFIBUS Technology
PROFIBUS is a digital communication system that connects different field
devices over a common cable and integrates them into a control system.
In the long term, PROFIBUS will replace the 4-20mA technology, which only
supplies pure measured values. Advantages of the PROFIBUS technology are:
• easy and cost-saving cabling
• convenient operation over a central control station
• transmission, evaluation, and control of high amounts of data from
fielddevice to control station.
• devices installed in hazardous locations are configured and maintained from
the control station
PROFIBUS is the leading open fieldbus system in Europe. Its application range
covers manufacturing, process, and building automation. As open fieldbus
standard to EN 50170 and IEC 61158, PROFIBUS ensures communication of dif-
ferent devices over one bus. The PROFIBUS User Organization (PNO) provides
for further development and maintenance of the PROFIBUS technology.
It combines the interests of users and manufacturers.
Variants and Basic Characteristics
PROFIBUS determines the technical and functional characteristics of a serial bus
system. There are two PROFIBUS variants:
• PROFIBUS-DP (decentralized peripherals)
Tailored for communication of automation systems and distributed
peripherals.
RS-485 standard with transmission rates up to 12 MBits/sec
• PROFIBUS-PA (process automation)
Dedicated to the process industry. It permits connection of sensors and
actuators to a common bus even in hazardous locations. PROFIBUS-PA has a
transmission rate of 31.25 kBits/sec.

15
PROFIBUS Technology
PROFIBUS distinguishes between two types of devices:
• Masters
Control the data traffic on the bus.
They send messages without external request.
• Slaves
Peripheral devices such as valves, drives, transmitters, and analyzers.
They can react acyclically to servicing, configuration, and diagnostic tasks of
the master. The central controller cyclically reads the measurement data with
status.
Definitions for PROFIBUS-PA
The bus protocol defines type and speed of the data exchange between master
and slave devices and determines the transmission protocol of the respective
PROFIBUS system.
PROFIBUS-PA permits cyclic and acyclic services.
• Cyclic services are used for transmission of measurement data and actuating
commands with status information.
• Acyclic services are used for device configuration, maintenance and
diagnostics during operation.
The PA 3.0 device profile defines the device class and typical functionalities
with parameters, ranges, and limit values.
The FISCO model developed by the German PTB for hazardous locations per-
mits connection of several devices to one common bus and defines permissible
limits for device and cable parameters.

16
Terminal Plate
Attaching the Terminal Plates
The terminal plates of the lower modules can
be sticked to the inner side of the door.
This facilitates maintenance and service.
Terminal Plate COMPA 3400-081 Module:

17
Inserting the Module
Switch off power supply
Open the device (loosen the 4 screws at the front)
Place module in slot (D-SUB connector)
Tighten fastening screws of the module
Connect signal lines
Close device, tighten screws at the front
Switch on power supply
Assigning process variables to AI blocks on the device
Set parameters
Make sure that the cable
glands are tightly closed to
protect against humidity.
Thanks to the staggered arrangement of con-
nectors and fastening screws the terminal
strips of all modules are easy to access.
1.
2.
3.
4.
5.
6.
7.
8.
9.

18
PROFIBUS PA Installation
Basic build-up of a PROFIBUS system:
e.g. Protos 3400(X)
with module
COMPA 3400(X)-081
Shield
12
13
COMPA 3400(X)-081 module
PROFIBUS cable
PA- (green)
PA+ (red)
14
Electrical connection between module and PROFIBUS PA is in accordance with
the PROFIBUS Guideline, Order No. 2.092 (www.profibus.com).
PROFIBUS DP
PROFIBUS PA
Slave 1
Control room
Slave 2 Slave n
...... ..... .....

AI 1
Analog Input
Function Block
Physical Block
Global Status
AI 2
Analog Input
Function Block
AI 3
Analog Input
Function Block
AI 4
Analog Input
Function Block
Module Selection
Process Variable Selection
Records
Calibration
AO
Analog Output
DI 1
DI 2
DI 3
DI 4
DO 1
DO 2
DO 3
DO 4
Meas. Value Correction
Unical Status
CONTACT Status
UNICAL Message
Unical Step
HOLD Control
PARSET
Unical Control
LOCK Control
PROFIBUS PA
Module I
Module II
Calc. Block I
Calc. Block II
ATB 1
Analyzer Transducer
Block
ATB 2
Analyzer Transducer
Block
ATB 3
Analyzer Transducer
Block
ATB 4
Analyzer Transducer
Block
AI 5
Analog Input
Function Block
AI 6
Analog Input
Function Block
AI 7
Analog Input
Function Block
AI 8
Analog Input
Function Block
Module Selection
Process Variable Selection
Records
Calibration
Module I
Module II
Calc. Block I
Calc. Block II
ATB 5
Analyzer Transducer
Block
ATB 6
Analyzer Transducer
Block
ATB 7
Analyzer Transducer
Block
ATB 8
Analyzer Transducer
Block

20
Communication Model
See diagram on previous side
The device parameters are sorted in three types of blocks:
Physical Block (PB)
This block contains the general parameters which apply to the whole device.
Transducer Blocks (TB 1 ... TB 8)
8 analog blocks. They contain measurement parameters (process variable,
temperature) according to the PROFIBUS-PA Profile 3.0 specification.
Function Blocks
8 analog input blocks (AI1..4, AI5..8)
4 digital output blocks (DO 1 ... DO 4, for control signals)
4 digital input blocks (DI 1 ... DI 4, for status messages)
1 analog output block (AO 1) for analog compensation signals,
e.g. O2process pressure.
Physical Block (PB)
This block contains the device-specific parameters (model designation,
manufacturer ID, serial number...) and controls basic device functions
such as:
• Write protection
(“WRITE_LOCKING” parameter)
Enables or locks acyclic services (maintenance, configuration).
• Blocking operator access to the device
(“LOCAL_OP_ENA” parameter)
Enables or locks access via the user interface on the device.
Please note: When communication fails for more than 30 seconds,
the device automatically switches to local access.
• Reset
(“FACTORY_RESET” parameter)
Caution – data loss!
Resets all configuration values to factory setting.
