1. Front Adjustable Armrests (Rotate knob to set arm resting point)
%DFNUHVW$GMXVWHU/LIW/HYHUWRUHOHDVHDQG¿QGFRPIRUWDEOHSRVLWLRQ
,&38VHWRLQVWDOOWHWKHUEHOWV\VWHPWRWUXFNÀRRU
4. Valve Controls
(Press and hold “+” to increase pressure, Press and hold “-“ to decrease pressure)
5. Isolator Lockout Control (Push left to Lock; Push right to unlock) (
NOTE: Isolator does not work if there is no air in the suspension)
6. Cushion Extension and Angle Adjustment
(Lift up and pull out to adjust in 3 positions, Lift up and push in to shorten cushion)
7. Seat fore and Aft Adjustment
Pull lever to left to unlock and slide seat to desired position.
(Be sure seat is locked into position after adjusting.)
WWW.KNOEDLER.COM
NOTE:
If you opted for the 2” lower seat, then subtract 2” from
the height dimensions shown above.

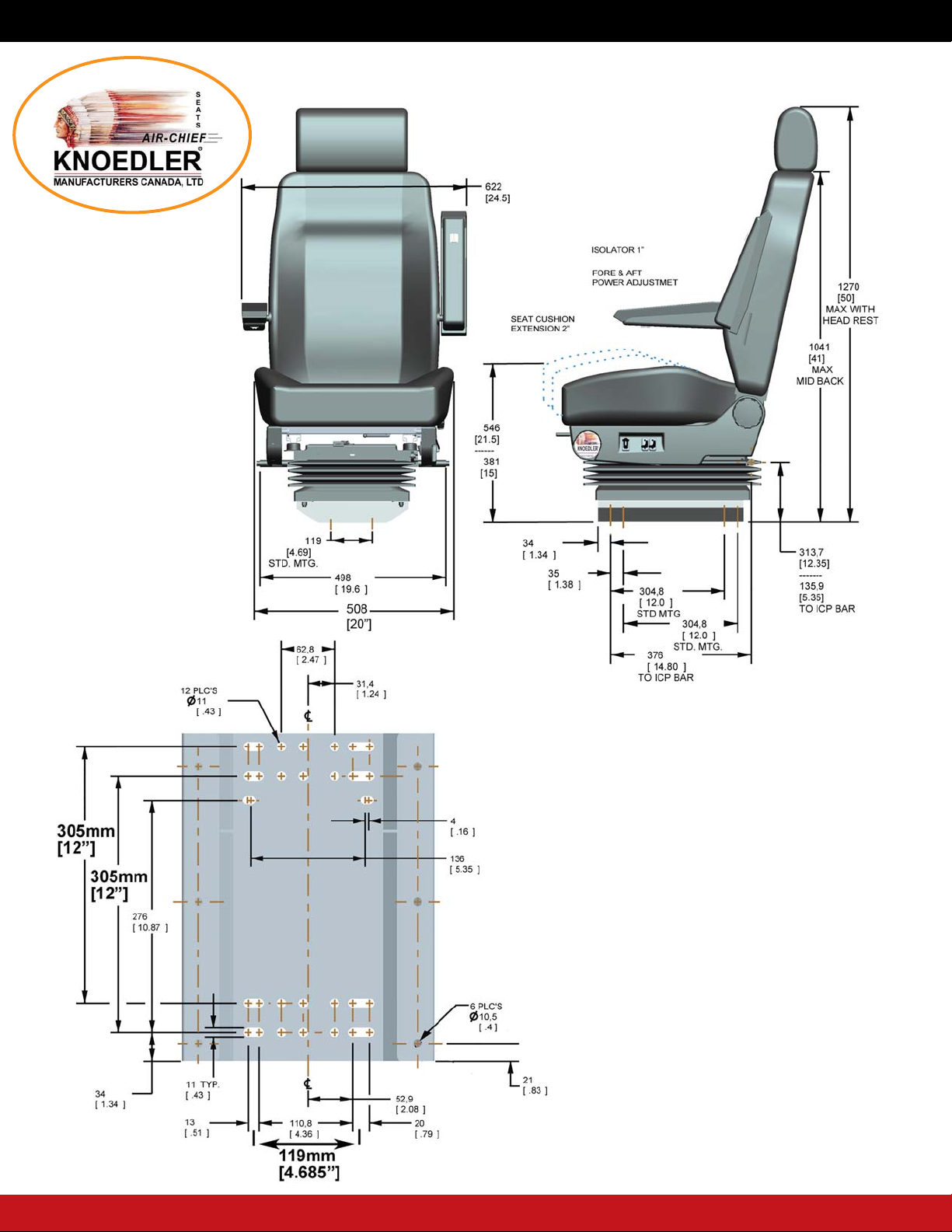

NOTE: It is the responsibility of the installer to deter-
mine the suitability for use of this product in each appli-
cation. e drawings are for reference purpose only
WARNING: Serious injury may occur if head
clearance is not adequate.
Aer installing seat and before riding or driv-
ing the vehicle, ensure there is adequate head
clearance at maximum upward travel of seat.
In order to reach the highest position of the
seat, while sitting in seat, slowly raise the seat
to its maximum height by actuating the sus-
pension air control valve.
