Knog Qudos action light User manual

Includes:

English

Page 1 / 2

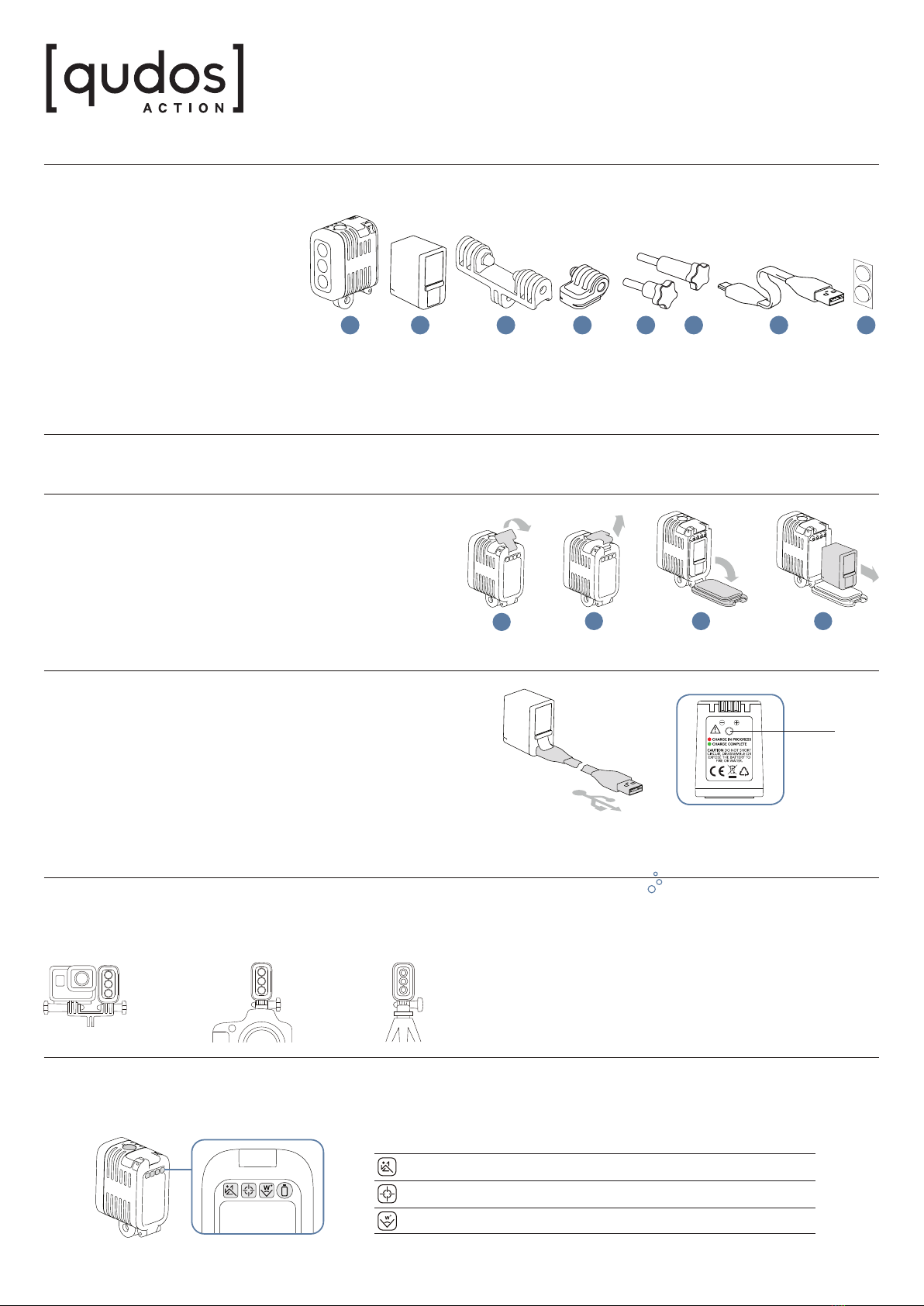

A. Light Unit

B. Rechargeable LiPo Battery 1

C. Action Camera Mount 2

D. Cold shoe + Tripod Adaptor 3

E. Mount Hardware (short)

F. Mount Hardware (long)

G. USB Extension Cord

H. 2 x Anti-Vibration Pads 4

Notes: 1 Rechargeable LiPo battery already assembled into the Light Unit. 2 Suitable for use with Go Pro Hero 2, Hero 2+, Hero 3 and Hero

3+ models or any action camera with a GoPro-style mount. 3 Cold shoe + Tripod Adaptor suitable for mounting onto a variety of Digital SLR

models and can also be used for mounting directly to a tripod. 4 Anti-vibration pads of varying heights have been provided for optional use and

assembly onto the Light Unit surface that is mounted closest to the Action Camera.

Before first use:

Please fully charge the battery before you use the [qudos] Action Light for the first time.

Modes of use:

The On/O switch is located on the top of the Light Unit. Press/hold for 2 seconds to turn it on and o. To switch between modes press the button

for 1 second or less.

Removing the Battery:

Battery removal and insertion should be carried out in a clean, dust-

free environment. Ensure your hands are clean. Should the area

around the seal become dirty whilst handling, the seal will become

compromised. Please refer to “waterproof seal care” section for

further details and to ensure your product warranty is not voided.

Mounting [qudos] Action Light:

There are a variety of mounting options and models that will enable

you to capture images and video at night.

Action Cameras:

Use parts C and E

DSLR Cameras:

Use parts D and E

Tripods:

Use parts D and E

Scuba Diving applications:

Using the standard Action cam mount whilst scuba diving may

produce undesirable ‘backscatter’. For a more desirable result, use of

a dedicated dive camera tray, placing the [qudos] Action light at least

30-50cm away from the Action Camera, is suggested.

1. Rotate tab, 2. Lift tab to release battery door, 3. Open battery

door, 4. Remove battery from Light Unit.

1. Connect battery to USB Extension cord provided.

2. Connect USB to a computer USB port or other electronic device

with USB port.

A full charge cycle will take 5-6 hours. Battery charge status LED

located at bottom of the battery.

Wall charger Specifications:

If using a wall charger, use an approved USB charger only. AC input: 90-260VAC 50/60Hz. DC Output: 5VDC (+0.25V/-0.1V) 2A.

Use chargers with suitable approvals and certifications only. Charging conditions: Indoors only in temperatures above 10°C (50°F).

Note: Repeat steps in reverse to replace battery in Light Unit.

Recharging the Battery:

A B C D E HF G

Beam Angle

Wide

Narrow

Ultra wide

Mode

Action

Target Spot

Ambient

Lumens

400 High / 225 Low

175 High / 100 Low

270 High / 70 Low

Runtime (hrs)

0.7 High / 1.3 Low

1.5 High / 2.8 Low

1.1 High / 4.3 Low

Icon

12 3 4

LED

Washing the light

With the Light Unit battery door firmly closed, clean visible particles of debris from the body of the light with assistance

of running water. If the light has stubborn stains, use a damp cloth.

Phillips head detail

Product Maintenance

English

Page 2 / 2

Secure mounting:

Whichever way your light is being used, make sure to check that all mounting

points are fastened tightly before use. Mount hardware parts have phillips head

screwdriver details to assist you with tightening each fastener adequately.

Waterproof seal care:

If you’re using your [qudos] Action Light in extreme sports like diving, downhilll mountain-biking or in any environment that it’s likely to become

dirty or saturated, there are two things you must do regularly, if not after every use.

Saltwater applications:

It is essential to rinse the light after use to reduce degradation caused by corrosion.

Checking and cleaning the seal area:

With the battery door open, check that all visible sealing surfaces are clear of dirt and debris. If dirt and debris are

visible, remove and clean the seal, door and housing sealing surfaces with a clean/dry lint-free cloth.

The sealing area of the light has a factory-applied silicone grease. We recommend you re-apply a quality silicone

grease to all sealing surfaces before reassembling and using the light.

Battery Storage:

When the light is not used for extended periods (more than fourteen daysv) users should implement Storage Mode. Use of this feature will

optimise the life of the battery. After storage, recharge the battery to full before use.

Run time variations:

The [qudos] Action Light runtimes stated are based on tests carried out at room temperature. The light will operate best between 0oC (32oF) and 40oC (104oF).

Runtimes will vary depending on the external temperature. LiPo batteries have a chemistry that is vulnerable to environment and temperature, therefore runtimes will

vary depending on these prevailing conditions.

Disclaimer and more information:

All information is correct at time of printing. Specifications are subject to change without notice. Please visit www.knog.com.au for more information and updates.

Warranty Terms

The [qudos] Action Light is guaranteed against manufacturing defects only. Damage from use, accident, misuse or normal wear and tear is not covered. Except for

such repair or replacement, this product is without warranty, condition or other liability even though the defect or loss is caused by negligence or other fault. Knog

assumes no liability for any accident, injury, death, loss, or other claim related to or resulting from the use of this product. In no event shall Knog be liable for incidental

or consequential damages relating to or resulting from the use of this product or any of its parts. This product is not warrantied against waterhousing leakage or any

resulting damage due to possible user error. Please follow the instructions carefully when sealing the Light Unit. 6 month battery warranty for manufacturing defects
