Kobalt KTL 124B-03 User manual

SC22001
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-3KOBALT (888-356-2258), 8 a.m.-8 p.m., EST,
Monday-Sunday. You could also contact us at [email protected].
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Español p. 17
ITEM #4913887
CORDLESS TOWER LIGHT
MODEL #KTL 124B-03
NOISNETXE
KOBALT and logo design are trademarks or
registered trademarks of LF, LLC. All rights
reserved.

2
TABLE OF CONTENTS
Product Specications...................................................................................... 2
Packaging Contents.........................................................................................3
Safety Information............................................................................................ 5
Preparation....................................................................................................... 8
Operating Instructions...................................................................................... 9
Care and Maintenance...................................................................................15
Troubleshooting.............................................................................................. 15
Warranty.........................................................................................................16
PRODUCT SPECIFICATIONS
COMPONENT SPECIFICATION
Rated voltage 24V
Luminous ux (brightness) 3000/1800/900 lm
Light direction angle range 0-270°(rotation), 0-180°(pivot)
Upper extension tube rotation range 0-180°
Maximum Height 7 ft (2.13m)
Mounting Screw 1/4”-20UNC
Recommended Operating, Charging and
Storage Temperature
41°F (5°C) - 104°F (40°C)

3
PACKAGE CONTENTS
I
A
B
D
F
H
J
K
O
N
M
L
G
E
C

4
PACKAGE CONTENTS
PART DESCRIPTION PART DESCRIPTION
ALight Head I Center Pole
B 1/4”-20UNC Mounting Screw J Leg
C Cap K Extension Lock Knob
DUpper Extension Tube L Tripod Release Button
E Upper Clamp M Carrying Handle
FLower Extension Tube N Power Button
G Lower Clamp O Battery Pack Port
HTray
WARNING
• Remove the product from the package and examine it carefully. Do not discard the carton or
any packaging material until all parts have been examined.
• If any part of the product is missing or damaged, do not attach the battery pack or use the
product until the part has been repaired or replaced. Failure to heed this warning could
result in serious injury.

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or operate
this product. If you have any questions regarding the product, please call customer service
at 888-3KOBALT (888-356-2258) , 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
WARNING
• The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power-tool operation, always wear
safety goggles or safety glasses with side shields and a full-face shield, when needed. We
recommend using a wide vision safety mask over eyeglasses or standard safety glasses
with shields. Always use eye protection marked to comply with ANSI Z87.1.
Know the Tower Light
To operate this tool, carefully read this manual and all labels afxed to the tower light before
using it. Keep this manual available for future reference.
Important
This product should be serviced only by a qualied service technician.
Read All Instructions Thoroughly

6
SAFETY INFORMATION
Some of the following symbols may be used on this tool. Please study them and their meaning.
Proper interpretation of these symbols will allow you to operate the tool better and more safely.
SYMBOL DEFINITION SYMBOL DEFINITION
V Volts lm Lumen
W Watts or d.c. Direct Current
A danger, warning, or
caution. It means ‘Attention!
Your safety is involved.’
To reduce the risk of injury,
user must read instruction
manual.
To reduce the risk of injury,
do not stare at operating
lamp. Serious eye injury
could occur.
To reduce the risk of injury,
avoid placing hands, ngers,
or arms in these areas.
Important Safety Warnings
WARNING
• Read all safety warnings, instructions, illustrations and specications provided with
this appliance. Failure to follow all instructions listed below may result in electric shock, re
and/or serious injury.
• Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to battery pack, picking up or carrying the appliance. Carrying the
appliance with your nger on the switch or energizing the appliance that has the switch on
invites accidents.
• Disconnect the appliance from power source before making any adjustments,
changing accessories or storing the appliance. Such preventive safety measures reduce
the risk of starting the appliance accidentally.
• Do not direct the light beam at persons or pets and avoid staring into the light even
from a distance. Serious eye injury could occur.
• To reduce the risk of injury, do not stare at operating lamp. Serious eye injury could
occur.
• To reduce the risk of burns, do not touch hot lens.
• Do not operate this light in explosive atmospheres, such as in the presence of
ammable liquids, gases, or dust. The light generates heat which may ignite the dust or
fumes.
• Recharge battery packs only with the charger specied by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of re when used with
another battery pack.
• Use appliances only with specically designated battery packs. Use of any other
battery packs may create a risk of injury and re.

7
SAFETY INFORMATION
• When battery pack is not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery terminals together may
cause burns or a re.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modied. Damaged or
modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of
injury.
• Do not expose a battery pack or appliance to re or excessive temperature. Exposure
to re or temperature above 265°F (130°C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specied in the instructions. Charging improperly or
at temperatures outside of the specied range may damage the battery and increase the
risk of re.
• The service should only be performed by a qualied repair person using only
identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as
indicated in the instructions for use and care.
• To reduce the risk of injury, close supervision is necessary when a product is used
near children.
• Do not contact hot parts.
• Only use attachments recommended or sold by the manufacturer. The tripod is only
designed to work with KOBALT light. Do not use the tripod for any other purpose.
• Risk of electric shock. Do not use in the rain.
• To reduce the risk of electrical shock, do not put the appliance in water or other
liquid. Do not place or store the appliance where it can fall or be pulled into a tub or
sink.
• Before using the tripod, be sure all clamps and knobs are secure. Unsecured parts of
the tripod may move causing damage and possible injury.
• When moving the tripod, fold it rst.
• When transporting the tripod in a vehicle, securely tie it down to prevent it from
moving. Unsecured tripod may fall causing damage and possible injury.
• Check to make sure the tripod does not rock, slide or move prior to use. Unstable
tripod may fall causing damage and possible injury.
• Place the tripod on a rm level surface where there is plenty of room to handle and
properly support it. Unstable tripod may fall causing damage and possible injury.
• Do not use the tripod in strong winds. The tripod may fall causing damage and possible
injury.
• When the tripod is not in use, be sure to disconnect it from power supply. Remove the
battery pack.
FCC Caution
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1）This device may not cause harmful interference.
2）This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

8
SAFETY INFORMATION
NOTICE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
DANGER
• People with electronic devices, such as pacemakers, should consult their
physician(s) before using this product. Operation of electrical equipment in close
proximity to a heart pacemaker could cause interference or failure of the pacemaker.
Additional Warnings
• Use only with the battery packs and chargers listed below:
BATTERY PACK BATTERY CHARGER
KB 224-03; KB 424-03; KB 524-03;
KB 624-03; KXB 424-03; KXB 824-03
KRC 2445-03; KRC 2490-03;
KRC 2404-03; KDPC 124-03;
KCH 2401-03; KCH 2411-03
PREPARATION
Know Your Tower Light
Before attempting to use the tower light, familiarize yourself with all of its operating features
and safety requirements.
WARNING
• Do not allow familiarity with the tower light to cause carelessness. Remember that one
careless moment is enough to cause severe injury. Before attempting to use any tool, be
sure to become familiar with all of the operating features and safety instructions.
• Do not attempt to modify this product or create accessories not recommended for use with
this product. Any such alteration or modication is misuse and could result in a hazardous
condition leading to possible serious personal injury.

9
OPERATING INSTRUCTIONS
1. To Attach Battery Pack
a. Align the raised portion on the battery pack
with the grooves in the battery pack port (O),
and then slide the battery pack into the port as
shown.
b. Make sure that the latch on the battery pack
snaps into place and the battery pack is
secured to the battery port before beginning
operation.
NOTICE: When placing the battery pack into the
battery port, be sure that the raised rib on battery
pack aligns with the groove in the battery port and
the latches snap into place properly. Improper
assembly of the battery pack can cause damage to
internal components.
To Detach Battery Pack
a. Press the battery-release buttons to release the battery pack.
b. Pull the battery pack backward to remove it from the battery port.
WARNING
• Battery tools are always in operating condition. Therefore, always remove the battery pack
when the tool is not in use or when transporting the tower light.
2. Power Button
The power button (N) can be used to turn on/off
the tower light and switch between the brightness
levels.
Each press of the power button performs functions
in the following order:
switch on (high brightness) → switch to medium
brightness → switch to low brightness → switch off.
NOTE:
• This product features a “low battery” indicator.
If your light starts ashing intermittently and
then turns off, recharge the battery pack or use
another fully charged battery pack.
N
2
N
1
Battery-release
buttons
O

10
OPERATING INSTRUCTIONS
3. Expanding/Collapsing the Tripod Legs
WARNING
• To reduce the risk of injury from unexpected
movement, check to make sure that the tripod
does not rock, slide, or move prior to use.
• To reduce the risk of injury and damage,
do not use the tripod on uneven or inclined
surfaces. If you must use the tripod on an inclined
surface, secure it in place as instructed in the
chapter “To Expand the Tripod Legs” below.
• To reduce the risk of injury, when folding the
tripod, keep the other hand away from the
tripod legs and be careful not to pinch your
ngers.
To Expand the Tripod Legs
a. Stand the tripod upright on its base.
b. Press the tripod release button (L) and slide down the carrying handle (M) to expand the
legs (J) as far as they will go.
c. Hold the carrying handle (M) with one hand to keep the legs spread, grab the tray (H) with
the other hand and lift the tray up until you hear a “click”, which indicates that the legs are
secured.
NOTE: Each leg can be further extended to level the tripod. The adjustable height range for
the tower light is 0-1.5 inches (0-38mm).
d. To further extend the legs to level the tripod, turn the extension lock knob (K)
counterclockwise to loosen the leg extension, then slide the knob up slowly along the leg.
When the tripod is level, tighten the extension lock knob clockwise to secure the leg in
place. If necessary, repeat this step with the other legs.
TIP: It is much easier to extend a leg if the tripod is tipped slightly on the other two legs. This
will relieve the weight on the leg being extended. Hold the tripod by the carrying handle (M) to
prevent it from falling.
NOTE:
• There is a 1/4” (6.5 mm) hole in the foot of each leg. When using the tripod on an uneven
surface, nails or screws can be driven through these holes to secure the tripod.
To Collapse the Tripod Legs
a. Remove all items from the tray, if any.
b. Turn the extension lock knobs (K) counterclockwise to unlock the legs (J). Adjust the each
leg extension to their original positions (the lock knobs are at the bottom) and turn the lock
knobs clockwise to lock the legs.
c. Press the tripod release button (L) and slide the carrying handle (M) up to collapse the legs (J).
3H
J
K
O
N
M
L
I

11
OPERATING INSTRUCTIONS
NOTICE:
• The tripod can be collapsed only when all the legs’ extensions are adjusted to their original
positions.
• Do not loosen the extension lock knob(s) too far, the lock knob will fall off. If it falls off, reinstall it.
WARNING
• When the tripod release button (L) is pressed to collapse the legs, the base of the
tripod will sink to the ground. Be careful not to pinch your hands or feet.

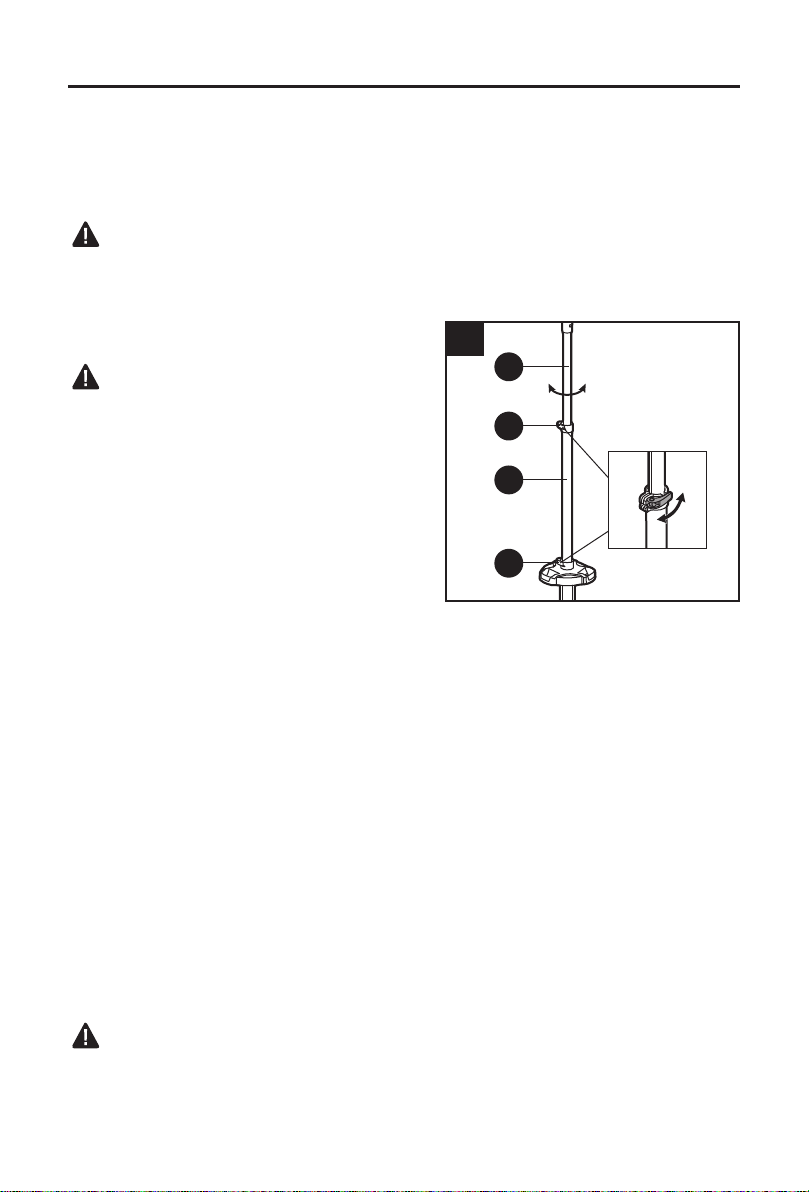

4. To Extend the Height
WARNING
• When extending the height of the tripod,
hold the upper or lower extension tube with
one hand and unlock the clamp with the
other. If not held properly, the top portion of
the tripod and any tool mounted to the tripod
could descend rapidly and cause serious
personal injury or property damage.
• Keep everyone - helpers, bystanders,
children, and animals - a safe distance from
the extended tripod. Serious personal injury
or property damage could occur if the tripod is
tipped. Unless you are adjusting or mounting a tool to the tripod, keep a safe distance away
from the tripod.
The maximum height of the tower light is 7 ft. (2.13m).
To Pull out the Extension Tubes:
a. Unlock the lower clamp (G), raise the lower extension tube (F) to the desired height. Lock
the tube in place.
b. Unlock the upper clamp (E), raise the upper extension tube (D) to the desired height. Lock
the tube in place.
NOTE:
• Raise the upper extension tube gradually. Do not extend the tripod beyond a stable height.
• The upper extension tube can be rotated 0-180° and the entire light holder will be rotated
with the tube.
To Collapse the Extension Tubes:
a. Hold the lower extension tube (F) rmly with one hand, loosen the lower clamp (G) with the
other. Then slowly lower the tube to the lowest position and lock it in place.
b. Hold the upper extension tube (D) rmly with one hand, loosen the upper clamp (E) with
the other. Then slowly lower the tube to the lowest position and lock it in place.
WARNING
• Avoid pinching your hand or ngers! If the extension tube is not supported by hand
during the collapse operation, the extension tube may fall rapidly, causing the tower
light to topple or other personal injury.
180°
4
D
E
F
G

12
OPERATING INSTRUCTIONS
5. To Position the Light Heads
Each light head (A) can be rotated (side-to-side)
0-270° and pivoted 0-180°(up-down).
Rotate and pivot the light head(s) to the desired
angle and the light head will be automatically
secured. Each head can be operated
independently.
NOTICE: Do not rotate the light head (A)
aggressively. Exceeding the 270° range may
cause light head damage.
270°
5a
A
180°
5b
A

13
OPERATING INSTRUCTIONS
6. Mounting a Tool onto the Tripod
WARNING
• To reduce the risk of a tipping hazard, always
ensure the tripod is stable before and after
mounting tools or leaving the tripod unattended.
To stabilize the tripod, reposition the legs, adjust
the leveling. Do not use the tripod if it is not
stable or not level.
• Do not mount tools that exceed the maximum
weight capacity of the tripod or cause the tripod
to tip excessively. Just because the tool can be
attached to your tripod, it does not assure safe
operation.
a. Adjust the height and secure the legs.
b. Fold each light head (A) down.
c. Open the cap (C) of the mounting screw (B). Place the tool on the tripod mounting screw.
Make sure the screw properly engages the threaded hole on the tool.
d. Rotate the tool clockwise to secure it to the tripod.
NOTICE:
• Only tools with a 1/4”-20UNC threaded mounting hole can be secured to the tripod.
• The total weight of the mounted tool (with battery attached) not exceed 8.1 lbs (3.7 kg).
7. Tray
The tray (H) of the tower light can be used
to conveniently place small items, such as,
screwdriver, screws, tape, etc.
6
C
B
A
Mounting
hole
7
H

14
OPERATING INSTRUCTIONS

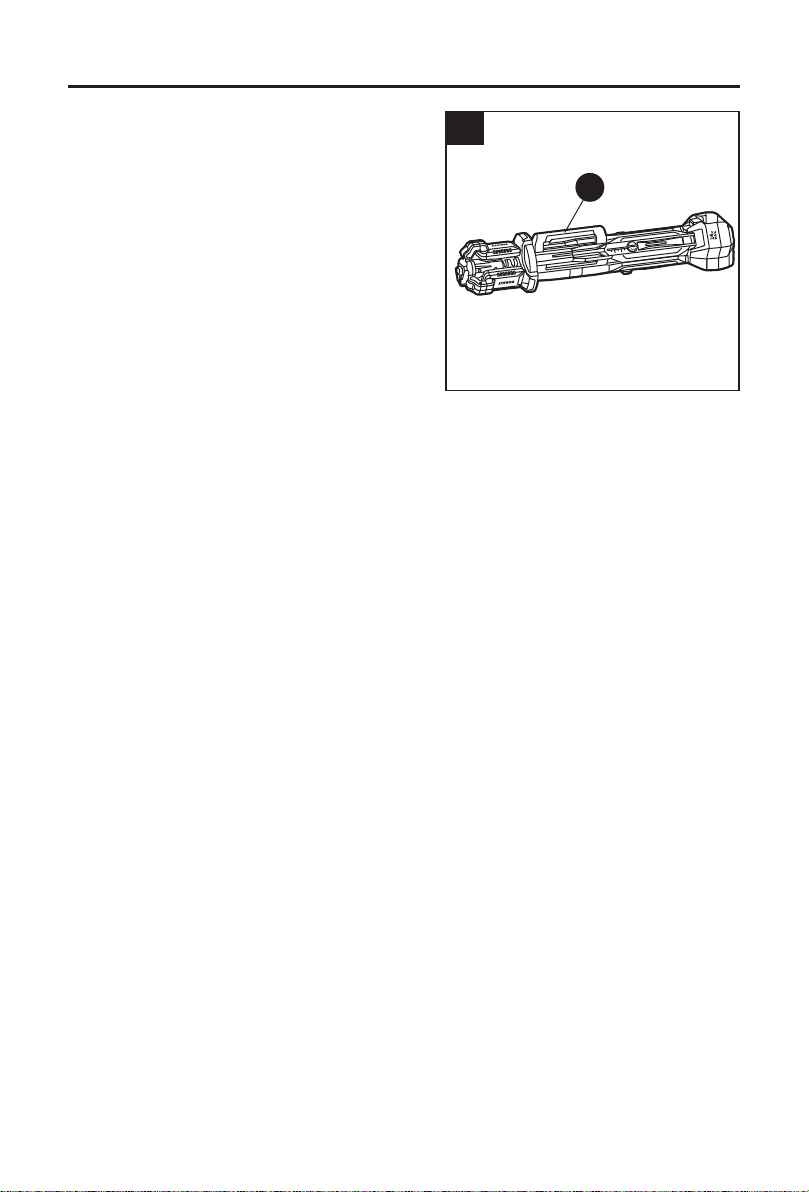

8. Transporting the Tower Light
a. Disconnect the battery pack.
b. Detach the mounted tool, if any.
c. Fold light heads, legs, extension tubes
completely, and tighten the cap of mounting
screw.
d. Use carrying handle (M) to transport the tower
light.
EXTENSION
8
M

15
CARE AND MAINTENANCE
All maintenance should only be carried out by a qualied service technician.
Cleaning
Before cleaning or performing any maintenance, remove the battery pack from the tower
light.
Always use only a soft, dry cloth to clean your tower light; never use detergent or alcohol.
Storage
WARNING
• Do not store the tower light vertically when the legs are collapsed. The tower light
could tip over causing injury or damage.
When the legs are collapsed, store your tower light lying at.
TROUBLESHOOTING
WARNING
• Turn the tower light off and detach the battery pack from the tower light before performing
troubleshooting procedures.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The light does not
work.
Battery pack charge is
depleted.
Charge the battery pack.
The light ashes
intermittently and
then turns off.
Low battery pack charge. Charge the battery pack.
The tripod legs
cannot be collapsed.
The extension lock knobs
on the legs are not in the
original positions.
Slide all extension lock knobs to their
original positions and try to collapse
the legs again.
The tower light is
unstable.
The tripod legs are not fully
secured.
Lift the tripod by the tray until you hear
a “click”.
Unevenness of support
surface.
- Use the light on at ground.
- Level the tripod using the extension
lock knobs.
- Secure the feet of tripod legs to the
ground using screws or nails.
The weight of the mounted
tool is too heavy.
Do not exceed the maximum weight.

16
WARRANTY
For 5 years from the date of purchase, the power tool is warranted and for 3 years from date of
purchase the battery & charger are warranted for the original purchaser to be free from defects
in material and workmanship. This guarantee does not cover damage due to abuse, normal
wear, improper maintenance, neglect, unauthorized repair/alteration, or expendable parts and
accessories expected to become unusable after a reasonable period of use.
If you think your product meets the above guarantee criteria, please return it to the place of
purchase with valid proof of purchase and the defective product will be repaired or replaced at
no charge. This guarantee gives you specic legal rights, and you may also have other rights
that vary from state to state.
Printed in China
Lowe’s Home Centers LLC.
Mooresville, NC 28117

ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
ARTÍCULO #4913887
LUZ DE TORRE
INALÁMBRICA
MODELO #KTL 124B-03
NOISNETXE
KOBALT y el diseño del logotipo son marcas
comerciales o marcas registradas de LF, LLC.
Todos los derechos reservados.
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 888-3KOBALT (888-356-2258), de lunes a
domingo de 8 a.m. a 8 p.m., hora estándar del Este. También puede ponerse en contacto
con nosotros en [email protected]

18
ÍNDICE
Especicaciones del producto........................................................................ 18
Contenido del paquete................................................................................... 19
Información de seguridad............................................................................... 21
Preparación....................................................................................................25
Instrucciones de funcionamiento.................................................................... 26
Cuidado y mantenimiento ..............................................................................32
Solución de problemas................................................................................... 33
Garantía .........................................................................................................33
ESPECIFICACIONES DEL PRODUCTO
COMPONENTE ESPECIFICACIONES
Voltaje nominal 24V
Flujo luminoso (brillo) 3000/1800/900 lm
Rango de ángulo de dirección de la luz 0-270° (rotación), 0-180° (pivote)
Rango de rotación del tubo de extensión
superior
0-180°
Altura máxima 2,13 m (7 pies)
Tornillo de montaje 1/4"-20UNC
Temperatura recomendada de
funcionamiento, carga y almacenamiento
De 5 °C (41 °F) a 40 °C (104 °F)

19
CONTENIDO DEL PAQUETE
I
A
B
D
F
H
J
K
O
N
M
L
G
E
C

20
CONTENIDO DEL PAQUETE
PIEZA DESCRIPCIÓN PIEZA DESCRIPCIÓN
ACabezal de la luz I Varilla central
BTornillo de montaje de 1/4”-
20UNC J Pata
C Tapa K Perilla de bloqueo de extensión
DTubos de extensión superiores L Botón de liberación del trípode
EAbrazadera superior M Manija de transporte
FTubos de extensión inferiores N Botón de encendido
GAbrazadera inferior O Puerto del paquete de baterías
HBandeja
ADVERTENCIA
• Retire el producto del paquete y examínelo cuidadosamente. No deseche la caja ni ningún
material de embalaje hasta después de examinar todas las piezas.
• Si falta alguna pieza del producto o si alguna pieza está dañada, no coloque el paquete de
baterías ni use el producto hasta reparar o reemplazar la pieza. No seguir esta advertencia
podría provocar lesiones graves.
