KOBE CNL223 User manual

OPERATOR’S MANUAL
AIR COMPRESSOR
Kobe and the Rising Sun logo are trade marks of Kobe Power Tools.
© The Kennedy Group Ltd. 05/13
QUA ITY GUARANTEE & WARRANTY
KOBE AIR TOOLS carry one years manufacturers warranty.
KOBE AIR TOOLS are designed & produced
to the highest standards & specifications
KOBE AIR TOOLS are fully guaranteed against
faulty materials & workmanship
Should they be found to be defective, they will either be repaired or replaced
free of charge (fair wear and tear and/or misuse excepted).
This does not affect your legal rights.
Please retain supplier invoice as proof of purchase.
AVAI AB E FROM YOUR DISTRIBUTOR
Please retain this information for future reference.
WARNING:
THE SAFETY INFOR ATION
GIVEN INSIDE UST BE READ AND
UNDERSTOOD BY ANY PERSON
USING, INSTALLING, REPAIRING
OR AINTAINING THIS ACHINE.
Model CNL223
ORDER CODE
KBE-273-1050K
lOil free use
lPressure cut-off switch
lMounted on wheels for
portability
lFully automatic stop/start
control
lFitted air outlet pressure
regulator
line pressure gauge and
safety valve
lEasy start up
lOperates from a standard
13amp plug
Kobe Tools continually strives to improve its products, specifications may change without prior notice.
23 Litre
DECLARATION OF CONFORMITY
We hereby certify that the Kobe
Air Compressor - 23L - CNL223
complies with all the releva t provisio s of the followi g Europea U io Directives:
Machi ery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
Electromag etic Compatibility Directive 2004/108/EC
Simple Pressure Vessels Directive 2009/105/EC
Signed:
Name: Keith Read
Position: HSQE Group Manager
KOBE TOOL Official Agents:
JAPAN: IKI TOOL TRADING CO. IKI CITY, JAPAN.
EUROPE, IDDLE EAST, A ERICA & AFRICA:
THE KENNEDY GROUP LTD, WIGSTON, ENGLAND LE18 2FS.
Supplied by an ISO9001 approved company

2 7
KOBE
P R O F E S S I O N A L
AIR TOOLS
SAFETY INSTRUCTIONS
You have purchased a quality professional product that is designed for high
performance and long service life. If correct use, safety and maintenance
procedures are observed this machine will last for many years.
KOBE PROFESSIONAL AIR TOOLS have been specifically designed to help you work
SAFELY and EFFICIENTLY. Your care and good judgement are the best protection against injury, but
always ensure that the appropriate safety equipment is worn. All possible hazards cannot be covered here,
but the most important ones have been highlighted.
lAlways adhere to the processes and safety
warnings, which are stated in the instruction
manual of your air tools which are used in
conjunction with your air compressor.
GENERAL OPERATING HA ARDS
lAlways ensure the mains power supply
corresponds to the power rating on the data label
on the machine.
lAlways p l u g t h e air c o m p r e s s o r i n t o an
appropriate outlet that is properly installed and
grounded. Check with a qualified electrician if
you are in doubt as to whether the outlet is
properly grounded.
lAlways disconnect from the electrical power
supply and ensure that all the compressed air
has been released from the receiver tank before
cleaning or carrying out user maintenance.
lAlways stay alert and watch what you are doing.
lAlways ensure the maintenance of electrical
components is carried out by a suitably qualified
person.
lNever operate the air compressor or any air tool
when tired or under the influence of alcohol or
prescription/non-prescription drugs.
lNe v er opera t e i f any part s a r e missin g o r
damaged.
lNever touch the metal plug pins when connecting
or removing the electrical plug.
WORKPLACE HA ARDS
lAlways keep the high pressure hose and electric
cable away from heat and sharp edges.
lAlways use a RCD (Residual Current Device) to
provide protection against electric shock.
lNever use plastic pipe for high pressure air line
as it could shatter,resulting in serious injury.
lNever leave inflammable objects near the
compressor.
lNever run the air compressor in areas exposed
to water or in damp conditions.
lNever direct jets of water or flammable liquids
over the air compressor.
lNever use the air compressor near naked
flames.
PERSONAL PROTECTION
lAlways wear approved eye protection during
operation.
lAlways ensure that all long hair and loose clothing,
ties, scarves, jewellery, etc., are secured or
removed.
lNever direct air at yourself, anyone else or at
animals.
SPECIFIC OPERATING HA ARDS
lAlways use recommended attachments or parts.
lAlways use the handle to move the compressor.
Do not move it by any other means.
lAlways place the air compressor on a firm and
level surface.
lAlways ensure the electric cable is not damaged
before connecting the air compressor to the
electricity supply.
lAlways switch off using the on/off lever when the
air compressor is not in use. This will avoid any
unintentional starting.
lAlways close the tap and discharge residual
pressure in the air hose before disconnecting the
air hose from the compressor.
lAlways check for damaged or loose hoses and
fittings. Whipping hoses can cause serious
injury.
lAlways be careful when handling the compressor
as components such as the delivery pipe and the
cooling fins of the cylinder head can become very
hot and remain hot for some time after use.
lNever tamper with, or attempt to adjust the
pressure switch or the safety valve. The air
compressor must always be serviced by an
authorised agent.
lNever use the air compressor without the air
filter attached.
lNever use the air compressor for filling breathing
tanks, diving tanks or for pharmaceutical, food or
health applications.
SYMBOLS USED ON THE AIR COMPRESSOR
Warning Hot components Shock hazard WEEE Symbol Read the operator’s manual
KOBE
P R O F E S S I O N A L
AIR TOOLS
TROUBLESHOOTING Continued
KOBE
P R O F E S S I O N A L
AIR TOOLS
SERVICE & REPAIR
A comprehensive repair and service
facility is available through your
local agent.
KOBE
P R O F E S S I O N A L
AIR TOOLS
SPARES
For spare parts or servicing please contact your nearest agent. Remember to quote tool model number and
spare part number when ordering spares. The use of other than genuine Kobe replacement parts may
result in safety hazards, decreased tool performance and increased maintenance. When disposing of
components, etc. ensure that relevant environmental procedures are carried out.
Air Intake Filter unit KBE-298-4846Y
Filter Eelement KBE-298-4847Z
Drain valve KBE-298-4866T
Check Valve set KBE-298-4873A

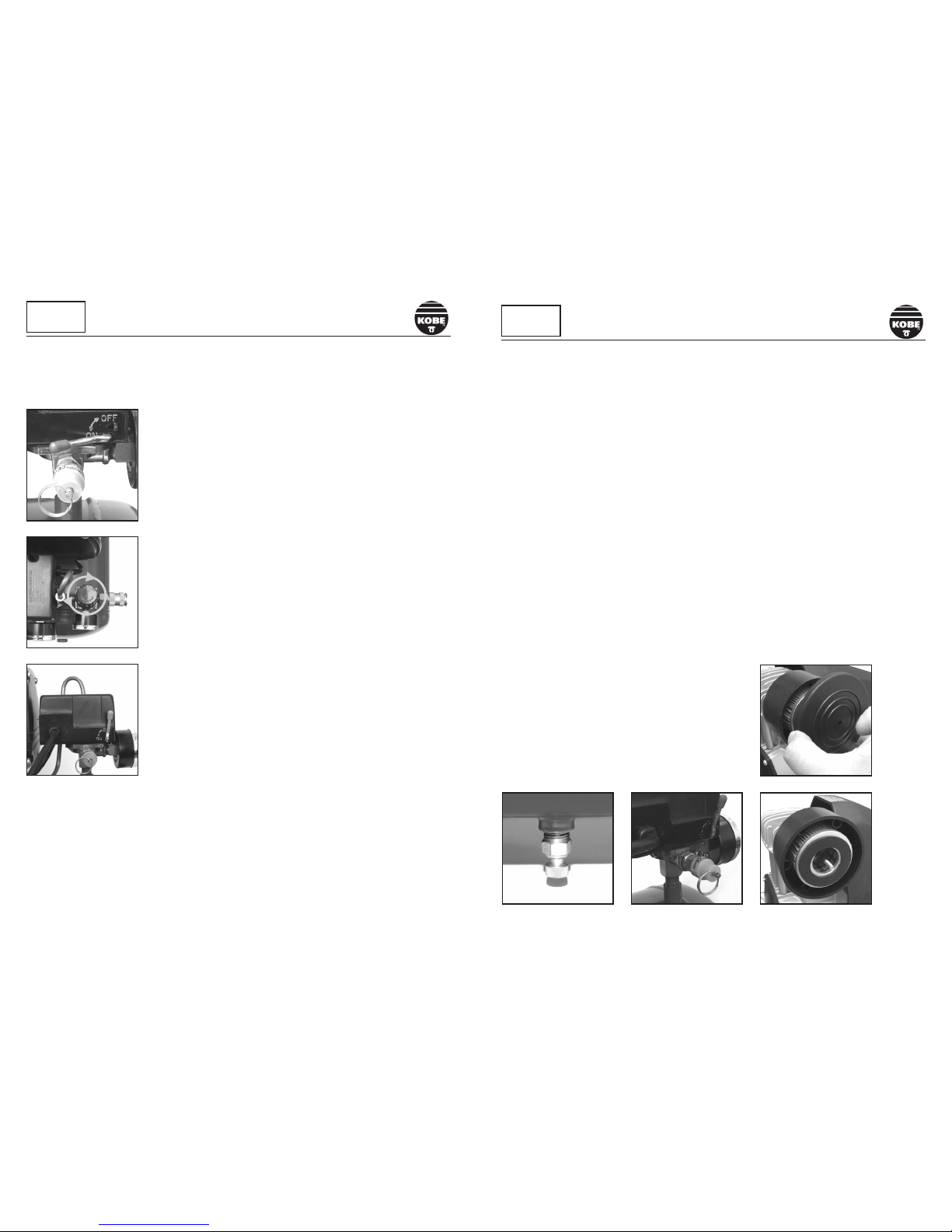

Fig. 10
Valve seat
POSSIBLE CAUSE
The pre-set pressure
switch is defective or
needs adjusting.
Faulty safety blow off
valve.
SOLUTION
Stop the air compressor immediately and
contact your local Kobe agent.
Contact your local Kobe agent.
FAULT
The motor pump unit does
not stop when the tank
pressure reaches its
maximum working
pressure (116PSI) and the
safety valve vents air.
Safety blow off valve
operates below the
maximum pressure.

Drain valve
63
KOBE
P R O F E S S I O N A L
AIR TOOLS
ELECTRICAL INFORMATION
In the United Kingdom, the ELECTRICITY AT WORK ACT 1989 requires all portable electrical appliances, if
used on business premises, to be tested by a qualified electrician, using a Portable Appliance Tester (PAT), at
least once a year. The HEALTH & SAFETY AT WORK ACT 1974 makes owners of electrical appliances
responsible for the safe condition of the appliance and the safety of its operator. If in any doubt about
electrical safety, contact a qualified electrician.
KOBE
P R O F E S S I O N A L
AIR TOOLS
SPECIFICATIONS
WORKING PRESSURE (max.)..........8Bar/115PSI
PU P AIR DISPLACE ENT (min.).............................
.............................................................................................8FM/230 tr
AIR RECEIVER TANK CAPACITY...................... 23 tr
OTOR CAPACITY....................................................1.49KW
OTOR ROTATION SPEED.............................2850rpm
OTOR SUPPLY VOLTAGE.......................230V/50Hz
OTOR HP..................................................................................2HP
ACOUSTIC PRESSURE LWA (max.)............84dBa
NET DI ENSIONS..................60(H) x 36(W) x 57(D)cm
NET WEIGHT................................................................................30kg
QUICK CONNECT COUPLER.............1/
4” BSP Female
The room temperature for its correct efficiency is 0°C
to +25°C (Max 45°C).
KOBE
P R O F E S S I O N A L
AIR TOOLS
ASSEMBLY
Fig.1 Fig. 2
TOOLS NEEDED:
Snipe nose plier.
Remove the temporary air filter cap (See fig. 1) and
install the air filter assembly (See fig. 2). Never use the
air compressor without having the air filter installed.
KOBE
P R O F E S S I O N A L
AIR TOOLS

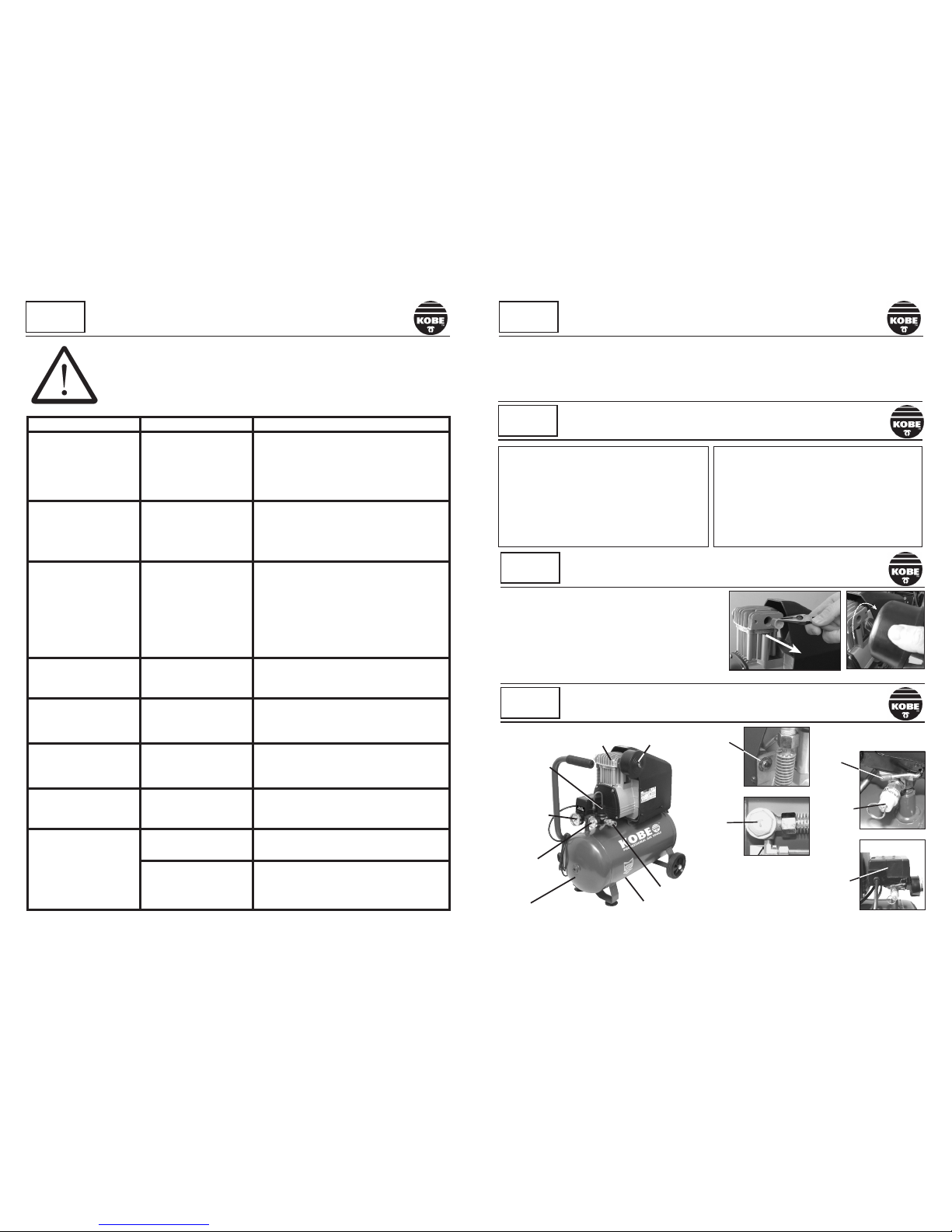

COMPONENTS
Non
return-valve
on/off
lever
Safety
blow off
valve
Pre-set
pressure
switch
Thermal
overload
protection
cutout
Motor and
pump unit
Air receiver tank
Tank
pressure
gauge
ine
pressure
gauge
Air outlet
pressure
regulator
Quick connect
coupler
Air filter
assembly
KOBE
P R O F E S S I O N A L
AIR TOOLS
TROUBLESHOOTING
POSSIBLE CAUSE
Air leaks at connections.
The non-return valve seal
is defective.
The overload cut-out has
operated because of the
motor overheating or the
voltage supply to the
motor is low.
The motor windings have
burnt out.
The capacitor has burnt
out.
The air compressors head
gasket has broken or the
valve is faulty.
The air compressors head
gasket has broken or the
valve is faulty.
The pressure switch needs
adjusting.
The tank is full of water
due to condensation.
SOLUTION
et the compressor build pressure in the tank;
to the maximum pressure if possible. Switch
off. Brush soapy water on air connections and
look carefully for air bubbles. Tighten leaking
connections. If the fault persists, contact your
local Kobe agent.
et the air in the tank flow out until all the
pressure is released. Then remove the non
return-valve plug and clean the valve seat. If
necessary replace the ‘O’ ring seal and then re-
mount all the components (See fig. 10).
Check that the mains voltage corresponds to
the specifications. An extension cable, which is
too thin and too long, can cause the motor to
overheat. eave the air compressor to cool
down as the thermal cut out has operated. Use
heavy duty extension cables. Ensure that the
compressor is plugged into a socket as near to
the consumer unit/fuse box as possible.
Contact your local Kobe agent.
Replace the starter capacitor.
Stop the air compressor and contact your local
Kobe agent.
Stop the air compressor and contact your local
Kobe agent.
Stop the air compressor and contact your local
Kobe agent.
Connect an air hose with a low gun fitted and
release the pressure. Open the drain valve
underneath the air compressor and release the
water within the tank.
FAULT
Pressure drops.
The pressure switch valve
leaks when the
compressor is idle.
The compressor has
stopped, does not start or
starts slowly
The compressor has
stopped, does not start.
The motor does not start
and makes a humming
noise.
The air compressor is
noisy with metallic clangs.
The air compressor does
not reach the maximum
pressure.
The air compressor
doesn’t seem to provide
as much air as it did when
new and the air
compressor cuts off within
a much shorter time
period.
Repairs must be performed in a dirt-free environment by a qualified person who is familiar
with this type of equipment. Make sure the air receiver tank is de-pressurised before
carrying out any repairs.

4 5
PLEASE NOTE: This air compressor is not designed for continuous use.
The air compressor is oil free and therefore does not require any lubricants for it to run. (Please note: the
air tool itself, will still need to be lubricated. Please see your air tool instruction manual for the individual
tool requirement).
The air compressor should not be used in dusty environments. The warranty does not cover damage
caused by a blocked air filter.
It is important that the air compressor is positioned so that there is an
adequate airflow around the machine. The compressor should be situated
so that it has a 50cm of obstacle free space around its air receiver tank and
pump/motor unit.
Use extra lengths of hose rather than extension leads. Extension leads
which are too long, can cause the motor to overheat.
The air tool that you attach to the air compressor should have a preferred
PSI operating level. 2.5 bar is recommended for spraying and 6.0 is
recommended for air tools. To determine the correct working pressure and
air flow requirements for any piece of equipment, check the corresponding
manual. Be aware that the air flow figure stated on tools and accessories
refers to ‘Free Air Delivery’ and not the piston displacement of the
compressor.
STARTING UP
Make sure the on/off lever is in the off position (See fig. 5) before
connecting to the power supply. Connect the compressor to the power
supply.
Move the on/off lever to the on position, the compressor will start
(See fig. 3). Rotate the air outlet pressure regulator to the desired output
(See fig. 4) clockwise to increase the pressure or counter clockwise to
decrease the pressure and fix with locking ring.
Air is now drawn from the compressor. Check that the motor/pump unit
automatically starts, when the pressure falls by approximately 2 bar. If the
motor does not cut in and out, but runs continuously when using an air
appliance, the capacity of the compressor may be too small for the
equipment or tool.
Under normal use when the air compressor is running correctly you will hear
the following:
a) When the air compressor starts from no pressure within the tank, there is
a whistle of ‘leaking’ air from the pressure switch for about 20 seconds
(With the air outlet tap closed).
b) Whenever the motor stops there would be a quick sudden discharge of air
(This is the discharge of air from the head).
SAFETY BLOW OFF VALVE
The safety blow off valve (See fig. 7) is preset to release air if the tank exceeds its maximum pressure.
DO NOT try to adjust the safety blow off valve pressure setting.
SHUTTING DOWN
Never stop the air compressor by unplugging it. Turn the on/off lever to the OFF position to switch the air
compressor off (See fig. 5). The on/off switch must always be used as this ensures that air is discharged
from the head. This makes the starting easier for the motor and prevents motor damage.
KOBE
P R O F E S S I O N A L
AIR TOOLS
OPERATION
Fig. 3
Fig. 4
OFF
Fig. 5
+
—
Ensure the air compressor is disconnected from the electrical supply and cannot operate accidentally when
servicing or cleaning. If a guard or safety feature needs to be removed during maintenance, be sure to
replace the guards or safety feature before resuming operation of the air compressor.
THE AIR RECEIVER TANK
Compressing air causes moisture, which is present in the air to condensate on the inside of the air
receiver tank. This water can damage your air tools and produce a poor finish when spraying paint. It also
damages the inside of the compressor and reduces its performance. It is important that the air receiver
tank is drained daily to increase the life span of the compressor and air tools. This is done by first opening
the air outlet pressure regulator to discharge the pressure. Place a container under the brass drain valve
on the underside of the air receiver tank and then unscrew the thumbscrew on the drain valve
anticlockwise (See fig. 6). Any water present in the air receiver tank should now flow out. As there is no
lubrication used in this compressor, the water is not polluted and can be disposed of in the sewer system.
THE AIR FILTER
The air filter must be cleaned or replaced monthly, or more frequently if the compressor is in regular use.
The air filter element can be accessed easily by unscrewing the wingnut holding the air filter cover
assembly and removing the filter element (see Figs.8 & 9). To clean a lightly soiled air filter, use soapy
water and leave to dry thoroughly.
SAFETY BLOW OFF VALVE
Occasionally check that the safety blow off valve is working properly by firstly cleaning any dirt or dust from
around the valve and then pull the metal ring to ensure the valve will release air (See fig. 7). The pressure
safety valve must be replaced if it cannot be pulled, or it leaks after releasing pressure. Releasing the
safety blow off valve can be extremely loud. ake sure you wear hearing protection.
CLEANING
Clean the air compressor with a soft brush or a cloth moistened with a suitable biodegradable solvent. Do
not use inflammable liquids like petrol or alcohol, they are a fire risk and will also damage the paint finish
and plastic components.
CHECK FOR DA AGED PARTS
Check for breakage of parts, mountings and other conditions that may affect the operation of the air
compressor. An authorised service and repair centre should
properly repair a damaged part, unless indicated otherwise in
this operator’s manual.
STORAGE
When not in use, run the air tool to relieve the air pressure in
the hose, then remove the tool and the air hose. The air
compressor should be stored in the dry, out of reach of children
and in a frost-free environment.
KOBE
P R O F E S S I O N A L
AIR TOOLS
MAINTENANCE
Fig. 6 Fig. 7 Fig. 9
Fig. 8
