KOBE CH9730SQB Troubleshooting guide

KOBE Brand Range Hood
Model No. / N
os
de modèles / Modelo No.
CH9730SQB
CH9736SQB
CH9742SQB
CH9748SQB
CH-97 SERIES – 10” HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH]................................................................................................................................. 1
[FRENCH]................................................................................................................................ 29
[SPANISH]............................................................................................................................... 57

1
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 2
COMPONENTS OF PACKAGE.................................................................................................. 4
INSTALLATION.......................................................................................................................... 5
OPERATION INSTRUCTIONS................................................................................................. 12
MAINTENANCE....................................................................................................................... 13
SPECIFICATIONS ................................................................................................................... 15
MEASUREMENTS & DIAGRAMS............................................................................................ 16
PARTS LIST............................................................................................................................. 18
CIRCUIT DIAGRAM.................................................................................................................22
TROUBLE SHOOTING............................................................................................................ 24
DISCLAIMER........................................................................................................................... 25
WARRANTY ............................................................................................................................ 26
PRODUCT REGISTRATION.................................................................................................... 28
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

2
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.

4

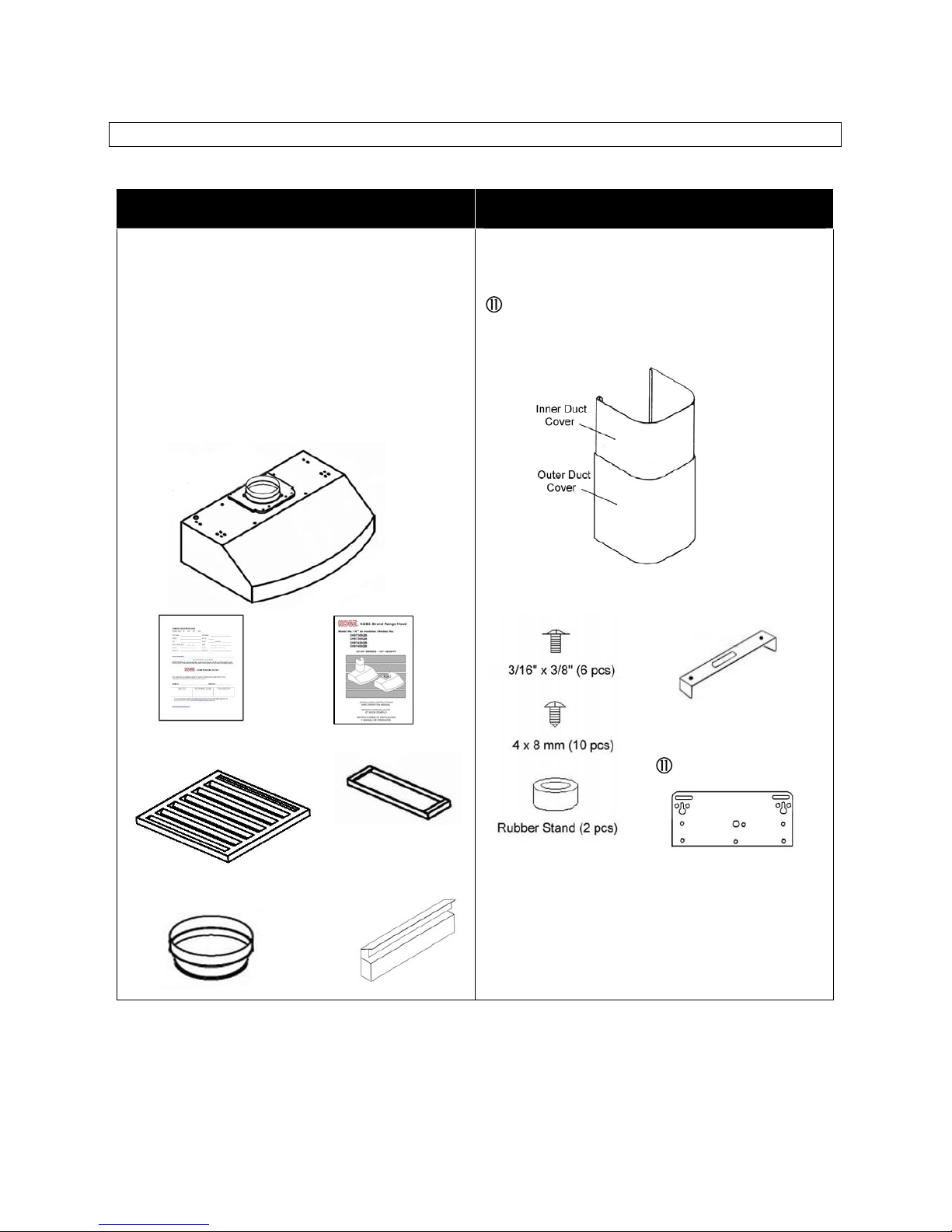

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box Duct Cover Box – Model No. RA1020DC
(Sold Separately)
 KOBE Range Hood - 1
 Warranty Registration Card - 1
 Instructions Manual - 1
 Baffle Filter - 2 (for 30”, 36”, 42” hood)
- 3 (for 48” hood)
 Bottom Casing - 1 (for 30” hood)
- 3 (for 36” & 42” hood)
- 2 (for 48” hood)
 7” Round Adapter – 1
 Oil Tunnel – 1





KOBE Adjustable Duct Cover - 1
 Screws Package – 1
 Duct Cover-Mounting Bracket – 1
Hood-Mounting Bracket – 1



- OPTIONAL RECIRCULATING KIT – Model No. RA1020RD IS AVAILABLE.
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation

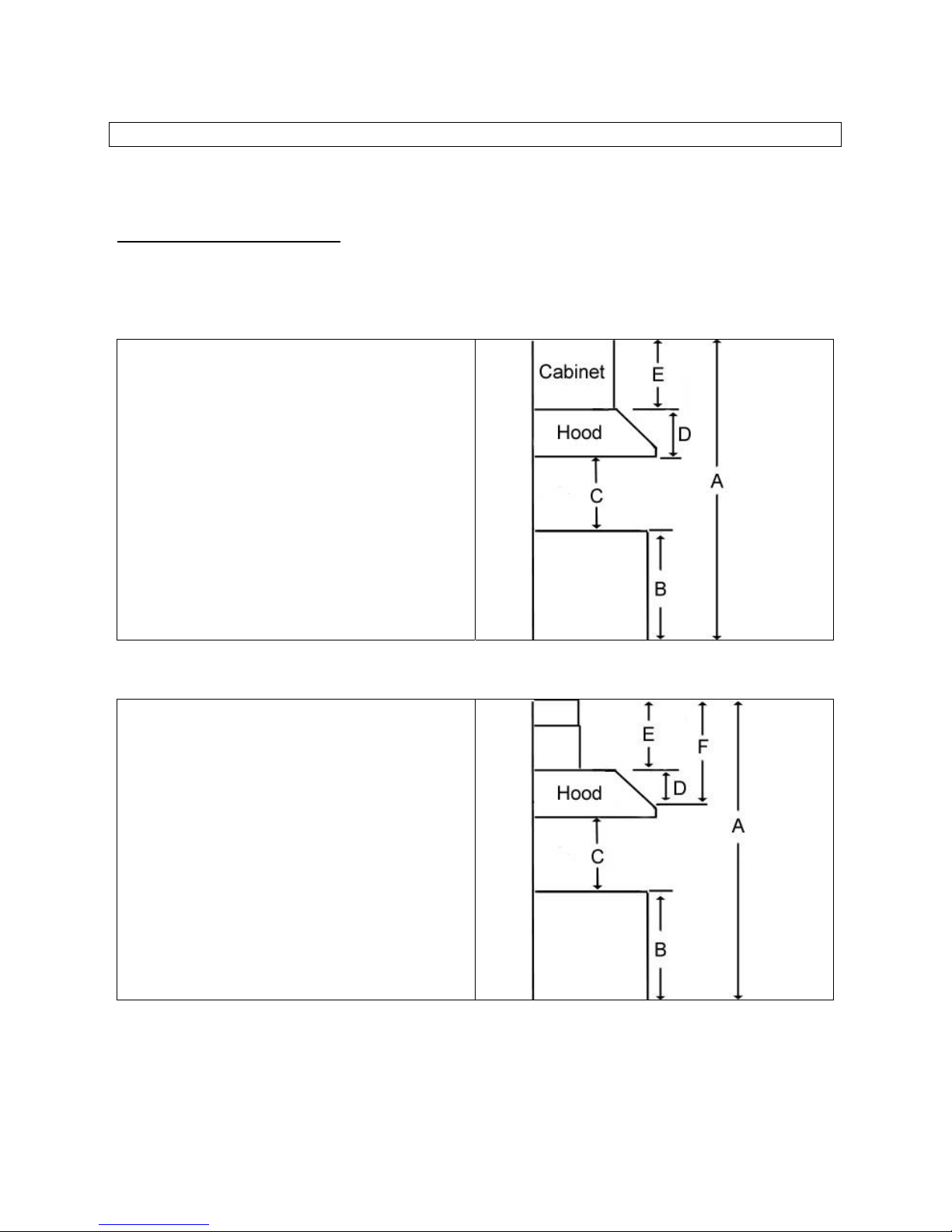

To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of the Cabinet
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]

6
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
Installation Contents
UNDER THE CABINET INSTALLATION ............................................................................................... 7
STAND ALONE INSTALLATION ........................................................................................................... 9

7
UNDER THE CABINET INSTALLATION
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.

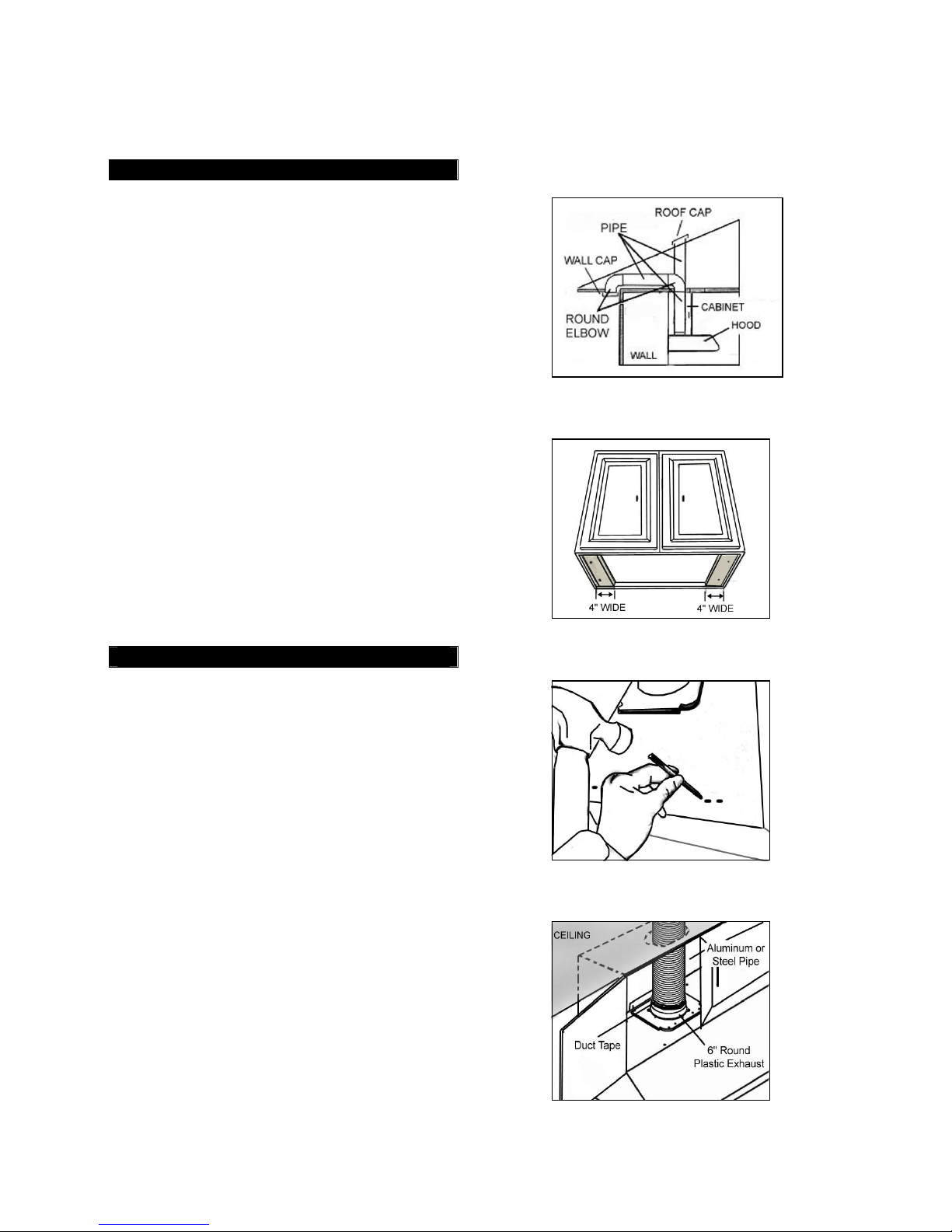

• Decide the location of the venting pipe
from the hood to the outside. Refer to
Figure 1.
• A straight, short venting run will allow
the hood to perform more efficiently.
• Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
• Temporarily wire the hood to test for
proper operation before installing.
• Important: Peel protective film off
the hood (if any).
• For installing under the cabinet with
recessed bottom, attach 4-inch wide
wood filler strips (not included) on each
side. Refer to Figure 2.
• Measure and create access opening for
electrical wires and 6” round plastic
exhaust under the cabinet.
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power
on an electric range at the main electrical
box. SHUT OFF THE GAS BEFORE MOVING
A GAS RANGE.
1. Puncture the knockout holes on the hood
as shown in Figure 3.
2. Using references on Table 1 and
measurements on page 16 center the
hood in place beneath the cabinet and
flush with the front of the cabinet.
3. Draw electrical wires through cabinet
access opening.
4. From the bottom of the hood, place screw
(not provided) into the exact center of
each knockout hole. Make sure all screws
are in place before tightening screws.
CAUTION: MAKE
SURE THE HOOD IS SECURE BEFORE
RELEASING.
Figure 1
Figure 2
.
Figure 3
Figure 4

8
Ductwork Installation
5. Use aluminum or steel pipe to connect the
6” round plastic exhaust on the hood to
the ductwork above. Use duct tape to
make all joints secure and air tight. Refer
to Figure 4.
6. To convert ductwork to 7” round, attached
7” round adapter (provided) to the 6”
round plastic exhaust.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
7. Connect the electrical wires.
- Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green
to green as shown on Figure 5.
- If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire connections
underneath the hood. Make sure wires
do not slip between motor or any
moving parts to prevent any damage.
Accessories
8. Attach oil tunnel. Refer to Figure 6.
9. Refer to Figure 7. Slide the baffle filter
into the hood. Push the baffle filter
upward. Slide forward. Pull
downward. Fit into place.
10. For bottom casing, repeat above steps.
Refer to page 17.
Final Assembly
11. Turn power ON in control panel. Check
all lights and fan operation.
12. Make sure to leave this manual for the
homeowner.
Figure 5
Figure 6
Figure 7

9
STAND ALONE INSTALLATION
***This installation only applied with the
purchase of a duct cover (Model No.
RA1020DC).
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR
HOOD, PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.
• Decide the location of the venting pipe
from the hood to the outside. (Figure 8)
• A straight, short venting run will allow
the hood to perform more efficiently.
• Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
• Use duct tape to seal the joints between
pipe sections.
• If necessary, prepare back wall frame
with cross framing lumber for secure
installation.
• Using references on Table 2 and
measurements on page 16, decide the
level of the lumber. (Figure 9)
Hood Preparation before Installation
• Temporarily wire the hood to test for
proper operation before installing.
• Important: Peel protective film off
the hood and the duct cover (if any).
• If necessary, attach two rubber stands
(provided) with two (4 x 8 mm) screws
(provided) to the back of the hood.
• Attach the hood-mounting bracket to the
back of the hood with six (3/16” x 3/8”)
screws (provided) as shown In Figure
10.
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power
on an electric range at the main electrical
box. SHUT OFF THE GAS BEFORE MOVING
A GAS RANGE.
1. Using references on Table 2 and
measurements on page 16-17, mark the
leveling point of the hood. Position two
Figure 8
Figure 9
Figure 10
Figure 11

10
mounting screws (not provided) on the
wall, leaving 1/8” away from the wall.
2. Align hood-mounting bracket to the screws
on the wall and hook hood into place as
shown in Figure 11. Tighten screws to
secure hood to the wall.
3. For safety purposes, extra knockout holes
on the back of the hood are provided.
Knockout the holes. Remove the baffle
filters and attach screws to the wall by
accessing underneath the hood.
CAUTION: MAKE SURE HOOD IS
SUCURE BEFORE RELEASING
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
4. Connect the electrical wires.
- Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green
to green as shown on Figure 12.
- If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire connections
underneath the hood. Make sure wires
do not slip between motor or any
moving parts to prevent any damage.
Duct Cover Installation
5. Mark the position of the duct cover-
mounting bracket. Use reference Efrom
Table 2 and measurements on page 16-
17. Attach and secure duct cover-
mounting bracket with two screws (not
provided). Refer to Figure 13. NOTE:
Inner duct cover will cover the duct cover-
mounting bracket.
Figure 12
Figure 13
Figure 14
Figure 15

11
6. Use aluminum or steel pipe to connect the
plastic exhaust on the hood to the
ductwork above. Use duct tape to make
all joints secure and air tight as shown on
Figure 14.
7. To convert ductwork to 7” round, attached
7” round adapter (provided) to the 6”
round plastic exhaust.
8. Slide the inner duct cover up 2 inches
before sliding the entire duct cover onto
the hood. Refer to Figure 15.
9. Adjust the height of the inner duct cover to
the duct cover-mounting bracket. Secure
the inner duct cover with two (4x8 mm)
screws (provided).
10. Fasten outer duct cover to plastic plate on
the hood with four (4x8 mm) screws
(provided) as shown in Figure 16.
Accessories
11. Attach oil tunnel. Refer to Figure 17.
12. Refer to Figure 18. Slide the baffle
filter into the hood. Push the baffle filter
upward. Slide forward. Pull
downward. Fit into place.
13. For bottom casing, repeat above steps.
Refer to page 17.
Final Assembly
14. Turn power ON in control panel. Check
all lights and fan operation.
15. Make sure to leave this manual for the
homeowner.
Figure 16
Figure 17
Figure 18

12
OPERATION INSTRUCTIONS
This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-
second delay shutoff, two powerful centrifugal turbine impellers with baffle filters, and two bright 12-volt
20-watt halogen lights/LED (if available).

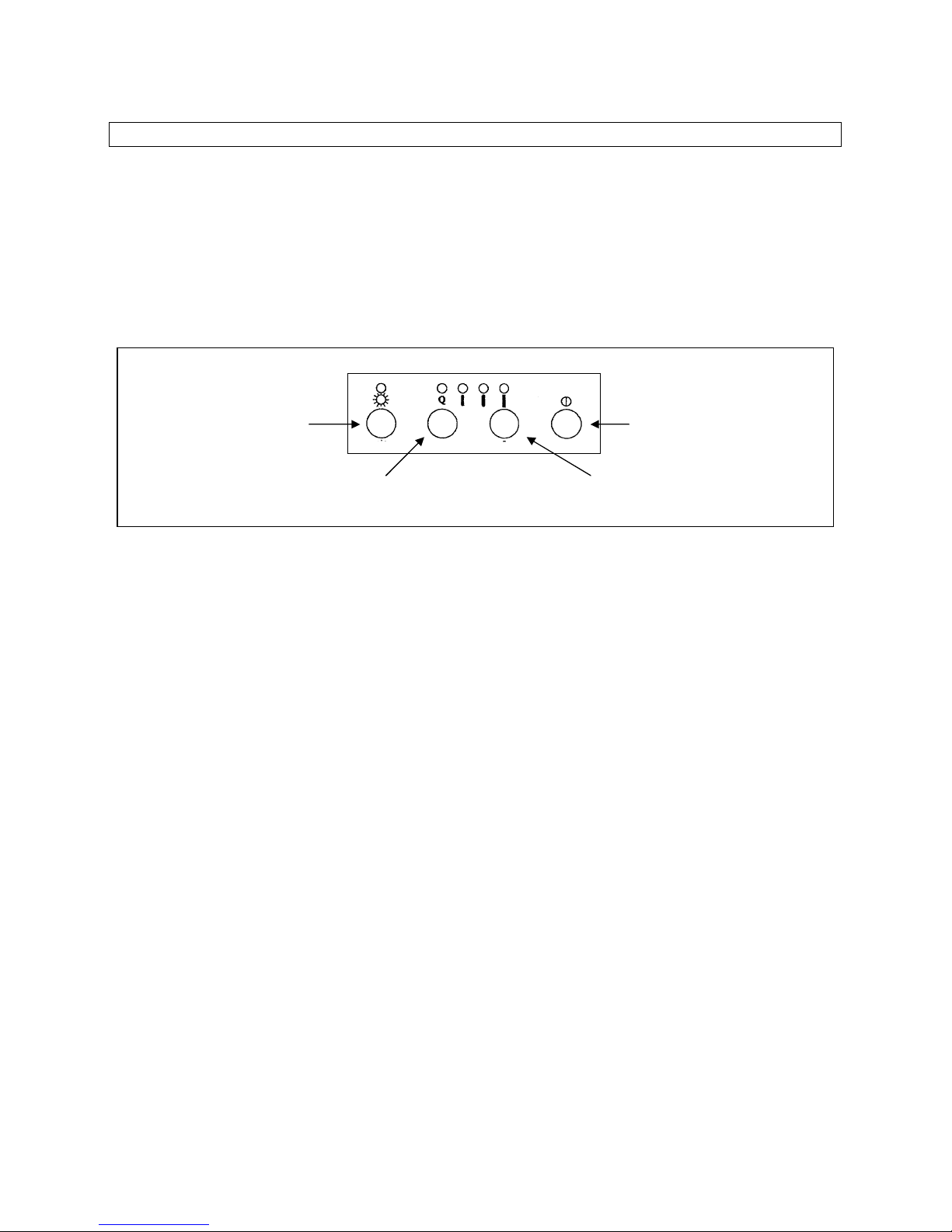

The four electronic controls are Light Control, Speed Control A, Speed Control B and the Power Control
(On/Off). Refer to Figure 19.
Figure 19
TURN ON:
• Press Power Control (On/Off) button once.
(Note: If any control button is not pressed within 10 seconds, power will be automatically
turned off).
• The KOBE hood will start on Low speed. Each press of the Speed Control button will
cycle through the various speeds.
• Press Speed Control A button to cycle from Low, Medium, High, or QuietMode™.
Press Speed Control B button to cycle from Low, QuietMode™, High or Medium.
(Note: Speed Control A or B will operate both fans. These two speed buttons vary the
speed quicker.)
• Press Light Control button to turn halogen light on.
TURN OFF:
• Press Power Control (On/Off) button once, panel lights will flash and power will be
completely shut off after 30 seconds.
OR
• Press Power Control (On/Off) button twice, all power will be shut off immediately.
• If only the lights are on, pressing Power Control (On/Off) button once will turn power
off after 30 seconds.
Speed Control A
Power Control
Speed Control B
Light Control

13
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals,
which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER & OIL TUNNEL BEFORE OIL WILL OVERFLOW.
1. Remove all the baffle filters and oil tunnel.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
(Note: Baffle Filters are top rack dishwasher safe.)

14

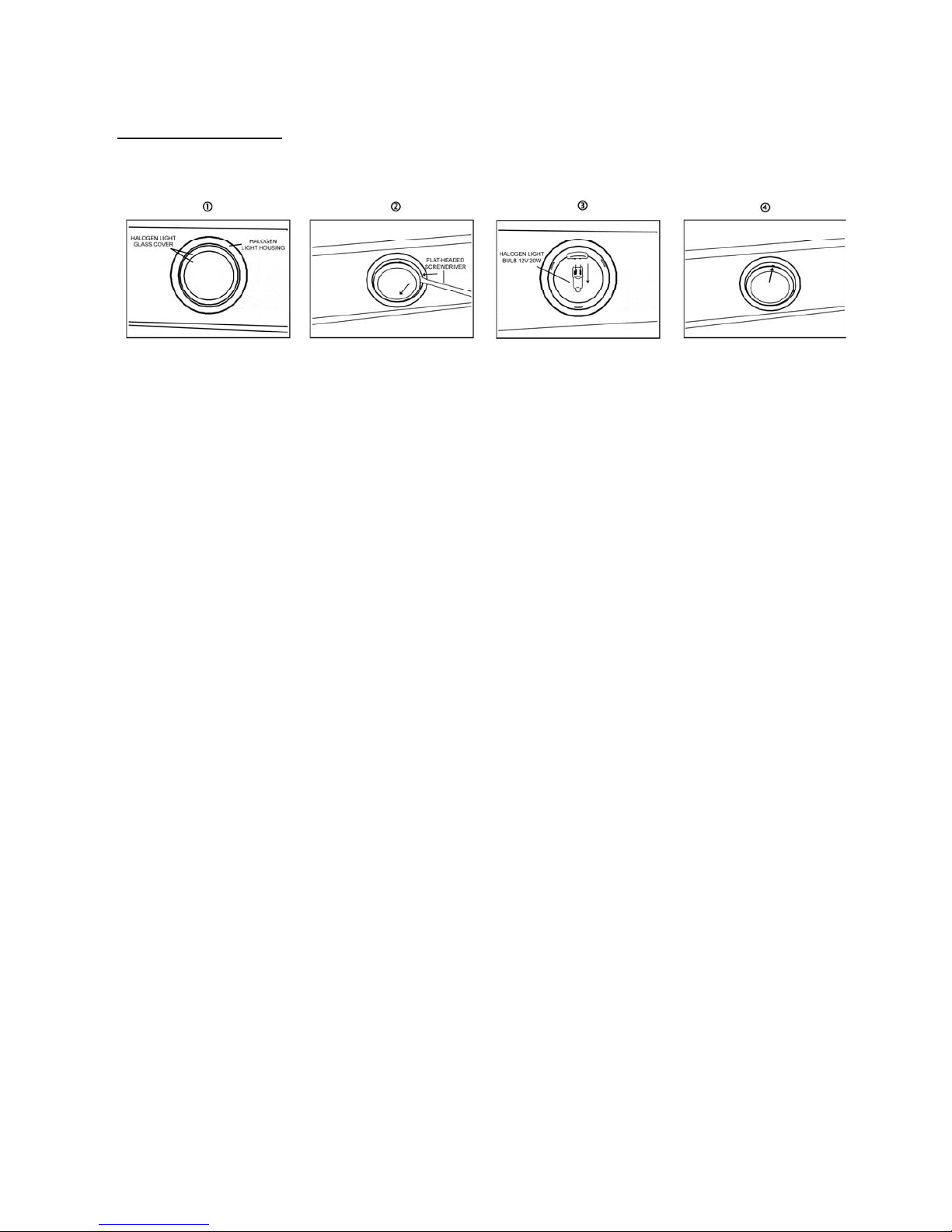

To Replace Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and the
housing.

3. Pop out the halogen light glass covering. 
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W maximum.

5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing.

7. Turn range hood ON to test for operation.

15
SPECIFICATIONS
MODEL / SIZE CH9730SQB / 30”
CH9736SQB / 36"
CH9742SQB / 42”
CH9748SQB / 48”
COLOR Commercial Grade Stainless Steel
CONSUMPTION / AMPERE CH9730SQB – 232W / 2.21A
CH9736SQB – 232W / 2.21A
CH9742SQB – 253W / 2.38A
CH9748SQB – 258W / 2.41A
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 2
DESIGN 18-Gauge Seamless / Satin Finish
FAN TYPE Twin Turbine Impeller
EXHAUST Top 6” Round
Top 7” Round Adapter
CONTROLS Electronic Control (4 Buttons) –
10-Second Standby Startup
30-Second Delay Shutoff
HALOGEN LIGHTS
Or LED (if Available) 12V20W x 2 – 30” , 36”
12V20W x 3 – 42” , 48”
HOOD DIMENSION
(W x D x H) (CH9730SQB) 29-3/4” x 24” x 10”
(CH9736SQB) 35-3/4” x 24” x 10”
(CH9742SQB) 41-3/4” x 24” x 10”
(CH9748SQB) 47-3/4” x 24” x 10”
OPTIONAL ACCESSORIES
(W x D x H)
1) Original Kit - Model No. RA1020DC
Adjustable Duct Cover 10-5/8” x 9-1/8” x (20-5/8” ~ 39-5/8”)
2) Model No. SSP30
30” Stainless Steel Back Panel 30” x 1/10” x 32”
3) Model No. SSP36
36” Stainless Steel Back Panel 36” x 1/10” x 32”
Net Gross
(CH9730SQB) 53.0 68.0
(CH9736SQB) 59.0 77.0
(CH9742SQB) 68.0 88.0
WEIGHT (lbs)
(CH9748SQB) 77.0 101.0
SPEED QuietMode™Low Medium High
Air Capacity (cfm) 280 430 580 720
Sone* 1.0* 2.8 4.2 4.5
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

16

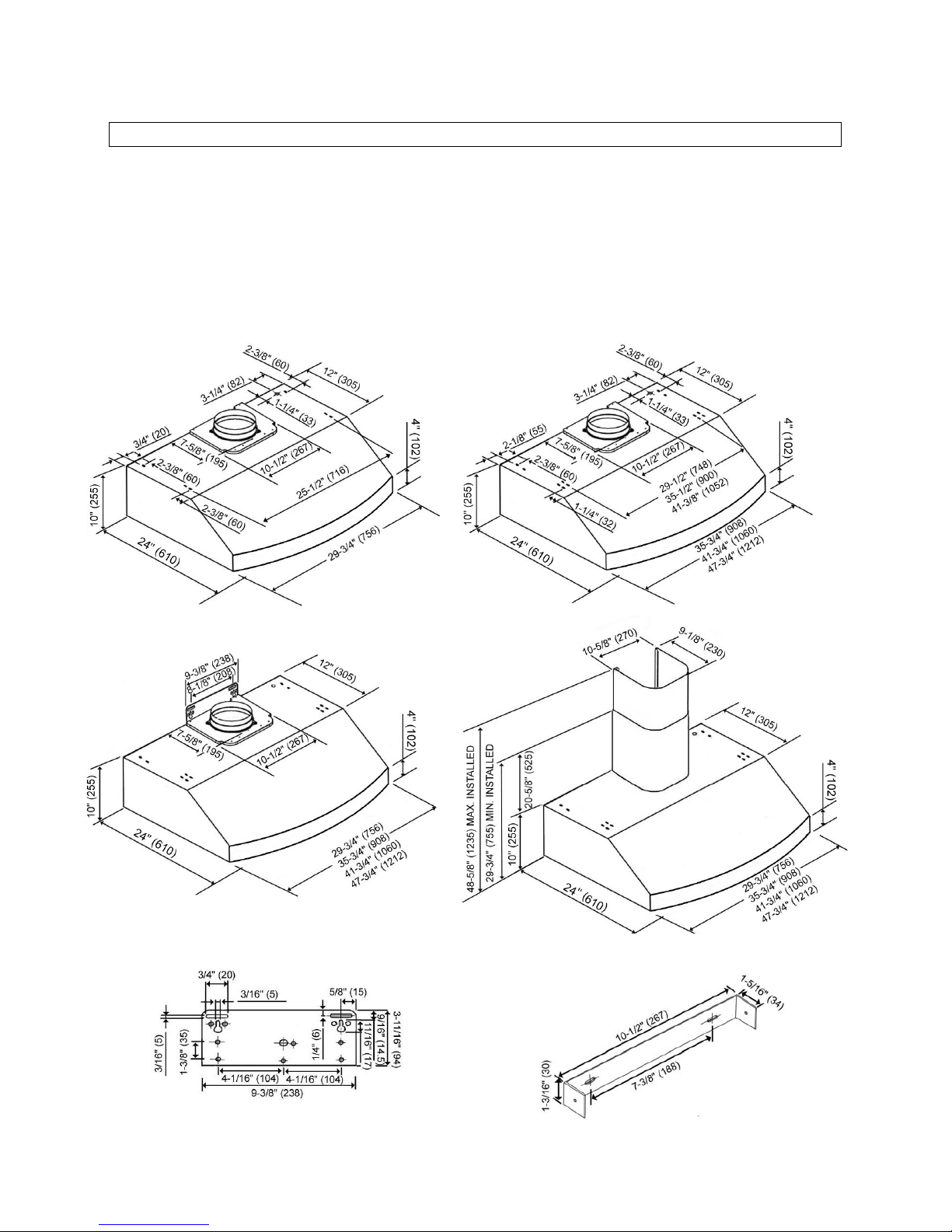

MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are
estimated.
- FOR UNDER THE CABINET –
MODEL NO.: CH9730SQB MODEL NO.: CH9736SQB
CH9742SQB
CH9748SQB
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) –
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket

17
***Rear Knockout Holes
MODEL NO.: CH9730SQB MODEL NO.: CH9736SQB
CH9742SQB
CH9748SQB

18
PARTS LIST
MODEL NO.: CH9730SQB
CH9736SQB
CH9742SQB
CH9748SQB
NO. DESCRIPTION MODEL /SIZE PART NO.
1 7” Round Adapter C1-0505-0004
2 6” Round Plastic Exhaust C1-0505-0001
3 Plastic Plate C1-0507-0382
CH9730SQB 10-9730B-51
CH9736SQB 10-9736B-51
CH9742SQB 10-9742B-51
4 Hood Casing
CH9748SQB 10-9748 B-51
5 Halogen Light Unit (12V 20W Max.) C1-0403-0101
6 Control Unit C1-0501-0101
7 Control Board C1-0404-4001-A
8 Transformer Support C1-0201-1930
9 Transformer (Motor) C1-0402-A120-01
Air Chamber
CH9730SQB C1-0101-0880
CH9736SQB C1-0101-0880
CH9742SQB C1-0101-1942
Air Chamber (Top)
CH9748SQB C1-0101-1942
CH9730SQB C1-0102-1930
CH9736SQB C1-0102-1930
CH9742SQB C1-0102-1942
10
A
B Air Chamber (Side)
CH9748SQB C1-0102-1942
CH9730SQB
CH9736SQB
C1-0402-0120-40
CH9742SQB
11 Transformer (Light)
CH9748SQB
C1-0402-0120-60
12 Capacitor C1-0401-0120-01
13 Processor Board Box C1-0501-0102
14 Processor Board C1-0400-4001-B
15 Screw (1/8” x 3/8”) C1-0708-0003
16 Screw (TS 1/4 x 7/16) C1-0703-0330
17 Motor (Right) C1-0301-0120-29B
18 Motor (Left) C1-0301-0120-29A
19 Turbine Impeller (Right) C1-0251-0880-B
20 Turbine Impeller (Left) C1-0251-0880-A
21 Oil Tunnel Seal C1-0502-0301
22 Oil Tunnel C1-0502-0104
23 Impeller Plastic Cover C1-0251-0001
24 Safety Screen C1-0602-0103
25 Safety Screen Screw C1-0705-0001
Bottom Casing
4” Wide CH9730SQB B101-1930-09
3” Wide CH9736SQB B101-1936-09

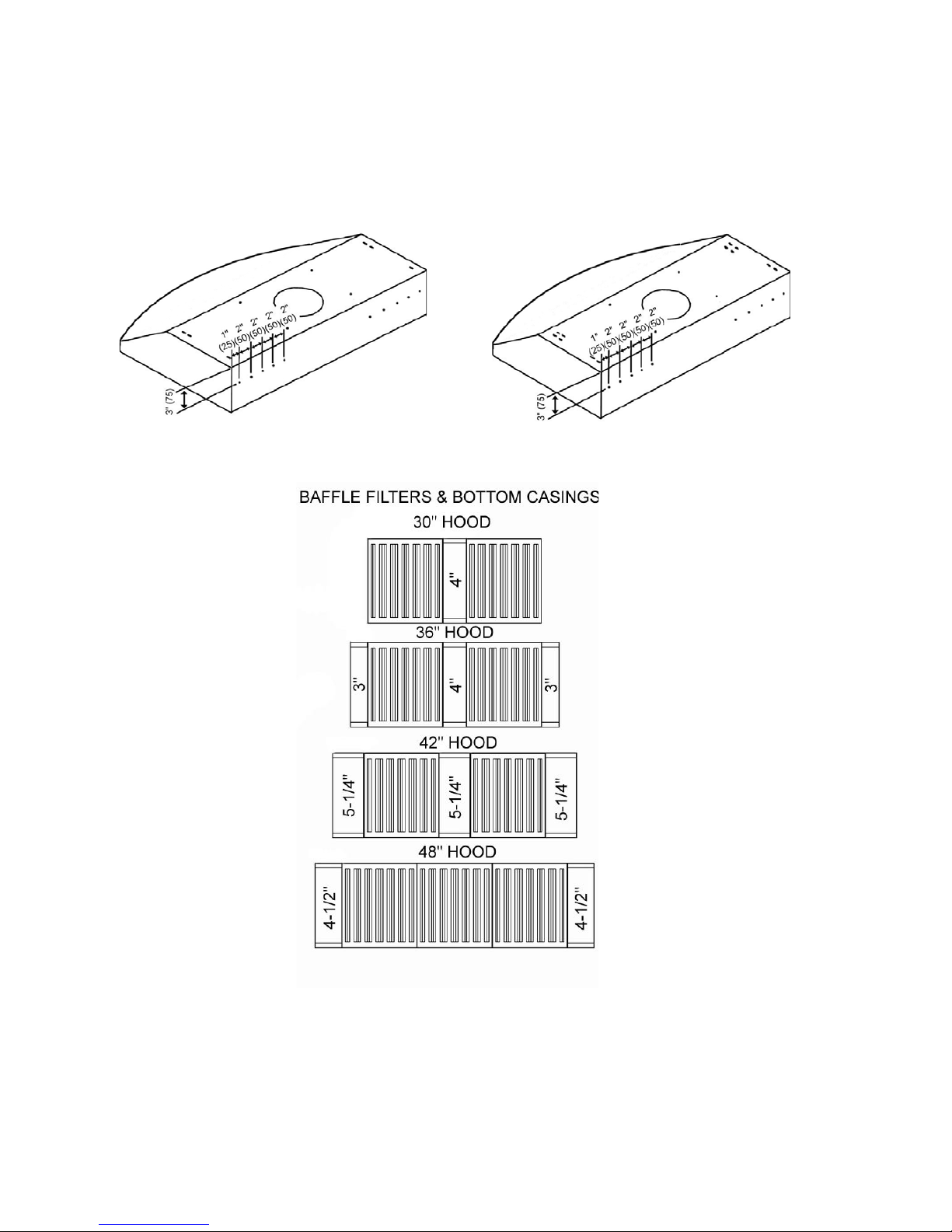

5-1/4” Wide CH9742SQB B101-1942-09
4-1/2” Wide CH9748SQB B101-1948-09
26
A
B 4” Wide CH9736SQB B101-1930-09
27 Baffle Filter B101-1930-15
CH9730SQB B101-1930-14
CH9736SQB B101-1936-14
CH9742SQB B101-1942-14
28 Oil Tunnel
CH9748SQB B101-1948-14
