KOBE RA9230SQB Troubleshooting guide

KOBE Brand Range Hood
Model No. / Nos de modèles / Modelo No.
RA9230SQB
RA9236SQB
RA-092 SERIES –12"HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
NOTICE D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN Y
MANUAL DE OPERACIÓN

[ENGLISH] ......................................................................................................................1
[FRENCH].....................................................................................................................21
[SPANISH] ....................................................................................................................43

1
READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor/electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original proof of purchase and product serial
number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected] to report the problem.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR
PARTS
IMPORTANT
READ THIS
FIRST

2
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.........................................................................2
COMPONENTS OF PACKAGE.......................................................................................4
INSTALLATION...............................................................................................................5
OPERATION INSTRUCTIONS........................................................................................9
MAINTENANCE............................................................................................................10
SPECIFICATIONS.........................................................................................................12
MEASUREMENTS & DIAGRAMS.................................................................................13
PARTS LIST..................................................................................................................14
CIRCUIT DIAGRAM......................................................................................................16
TROUBLE SHOOTING.................................................................................................17
WARRANTY..................................................................................................................18
PRODUCT REGISTRATION.........................................................................................20
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL W IRING MUST B E DO NE BY A PROFE SSI O NAL AN D IN
ACCORDAN CE W ITH NATI O NAL AND LOCAL ELE C TRICAL CO DES

2
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE
-
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
- Always turn hood ON when cooking.
- Use high settings on cooking range ONLY when necessary.
- Do not leave cooking range unattended when cooking.
- Always use cookware and utensils appropriate for the type and amount of food prepared.
- Use this unit only in the manner intended by the manufacturer.
- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
- Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
•NEVER PICK UP A BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.
•Use an extinguisher ONLY if:
a) You have a ClassA, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If
equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to Local,
State, and Federal Codes.

4
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
Model No. RA9230SQB
RA9236SQB
(1) KOBE Range Hood –1
(2) Warranty Registration Card –1
(3) Instructions Manual –1
(4) Hood-Mounting Bracket –2
(5) Screws Package –1
(1)
(2) (3)
(4) (5)
*Attached to Hood
(6) Baffle Filter
- 2 (30")
- 3 (36")
(7) Baffle Handle
- 2 (30")
- 3 (36")
(8) Screws Package –1
(6)
(7)
(8)
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone]

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of the Hood Installation
[A –(B+C)]
F = Height of Duct Cover
[E –D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

6
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from
the hood to the outside. (Figure 1)
- A straight, short venting run will allow the
hood to perform more efficiently.
- Try to avoid as many transitions, elbows,
and long run as possible. This may reduce
the performance of the hood.
- Temporarily wire the hood to test for proper
operation before installing. Refer to step 8
& 9 and figure 8 on page 7.
- Important: Peel any protective film off the
hood.
- Use duct tape to seal the joints between
pipe sections.
- If necessary, prepare back wall frame with
cross framing lumber for secure installation.
Refer to Table 1 and measurements on
Page 13 to decide the level of the lumber.
(Figure 2)
- Loosen hood-mounting brackets at the back
of the hood, adjust brackets and tighten
screws as shown in Figure 3.
- If necessary, remove the rubber stand on
the back of the hood and discard. (Figure
4)
Hood Installation
CAUTION: If it is necessary to move the
cooking range to install the hood, be sure to
turn off the power on an electric range at the
main electrical box. SHUT OFF THE GAS
BEFORE MOVING A GAS RANGE.
1. Using references in Table 1 and
measurements on Page 13, mark the
leveling locations point for hood-mounting
bracket on the wall.
2. Secure two mounting screws (not provided)
to the wall, leaving an 1/8” space from the
wall. (Figure 5)
3. Align the hood-mounting bracket to the
mounting screws on the wall and hang hood
into place.
Figure 1
Figure 2
Figure 3
Figure 4

7
4. Secure and tighten the mounting screws.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Ductwork Installation
5. Using Reference Efrom Table 1 and
measurements on Page 13, mark the
leveling point for duct cover-mounting
bracket.
6. Secure the duct cover-mounting bracket to
the wall with two screws (not provided).
(Figure 6) Make sure all screws are
tightened. NOTE: Inner duct cover will
cover the duct cover-mounting bracket.
7. Use aluminum or steel pipe (not provided)
to connect the plastic exhaust on the hood
to the ductwork above. Use duct tape to
ensure all joints are secure and air tight as
shown in Figure 7.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY A
SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
8. Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green to
green as shown in Figure 8
9. Test the operation of the hood before
performing the next step. Make sure power
is supplied to the hood.
Duct Cover Installation
10.Slide inner duct cover up 2 inches
before sliding entire duct cover onto the
hood. (Figure 9)
11.Align the inner duct cover to the duct
cover-mounting bracket. Secure
Figure 5
Figure 6
Figure 7
Figure 8

8
inner duct cover with two (4x8 mm) screws
(provided).
12. Fasten outer duct cover to plastic plate on
the hood with four (4x8 mm) screws
(provided).
Install Accessories
13.Place baffle filters underneath the hood.
Refer to Figure 10.
Final Assembly
14.Turn power ON in control panel. Check
all lights and fan operation.
15.Leave this Installation Instructions and
Operation Manual for the homeowner.
Figure 9
Figure 10

9
OPERATION INSTRUCTIONS
This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-
second delay shutoff, double horizontal squirrel cage with baffle filters, and two bright 12-volt 20-watt
halogen lights.
The four electronic controls are Light Control, Speed Control A, Speed Control B and the Power Control
(On/Off). Refer to Figure 11.
Figure 11
TURN ON:
Press Power Control (On/Off) button once.
(Note: If any control button is not pressed within 10 seconds, power will be automatically
turned off).
The KOBE hood will start on Low speed. Each press of the Speed Control button will
cycle through the various speeds.
Press Speed Control A button to cycle from Low, Medium, High, or QuietMode.
Press Speed Control B button to cycle from Low, QuietMode, High or Medium.
(Note: Speed Control A or B will operate both fans.)
Press Light Control button to turn on halogen light.
TURN OFF:
Press Power Control (On/Off) button once, panel lights will flash and power will be
completely shut off after 30 seconds.
OR
Press Power Control (On/Off) button twice, and all power will be completely shut off
immediately.
If only the lights are on, pressing Power Control (On/Off) button once will turn power
off after 30 seconds.
Speed Control A
Power Control
Speed Control B
Light Control

10
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT
USE PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container
regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the
surface of the hood. Avoid getting cleaning solution onto or into the control panel. Follow
directions of the stainless steel cleaner. Caution: Do not leave on too long as this may
cause damage to hood finish. Use soft towel to wipe off the cleaning solution, gently rub
off any stubborn spots. Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain
chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a
clean lint free cloth.
To Clean Baffle Filter
CAUTION: DRAIN OIL FROM BAFFLE FILTERS BEFORE OIL OVERFLOW.
1. Remove all the baffle filters.
2. Wash with warm soapy water. Dry completely before returning into place.
(Note: Baffle Filters are top rack dishwasher safe.)

11

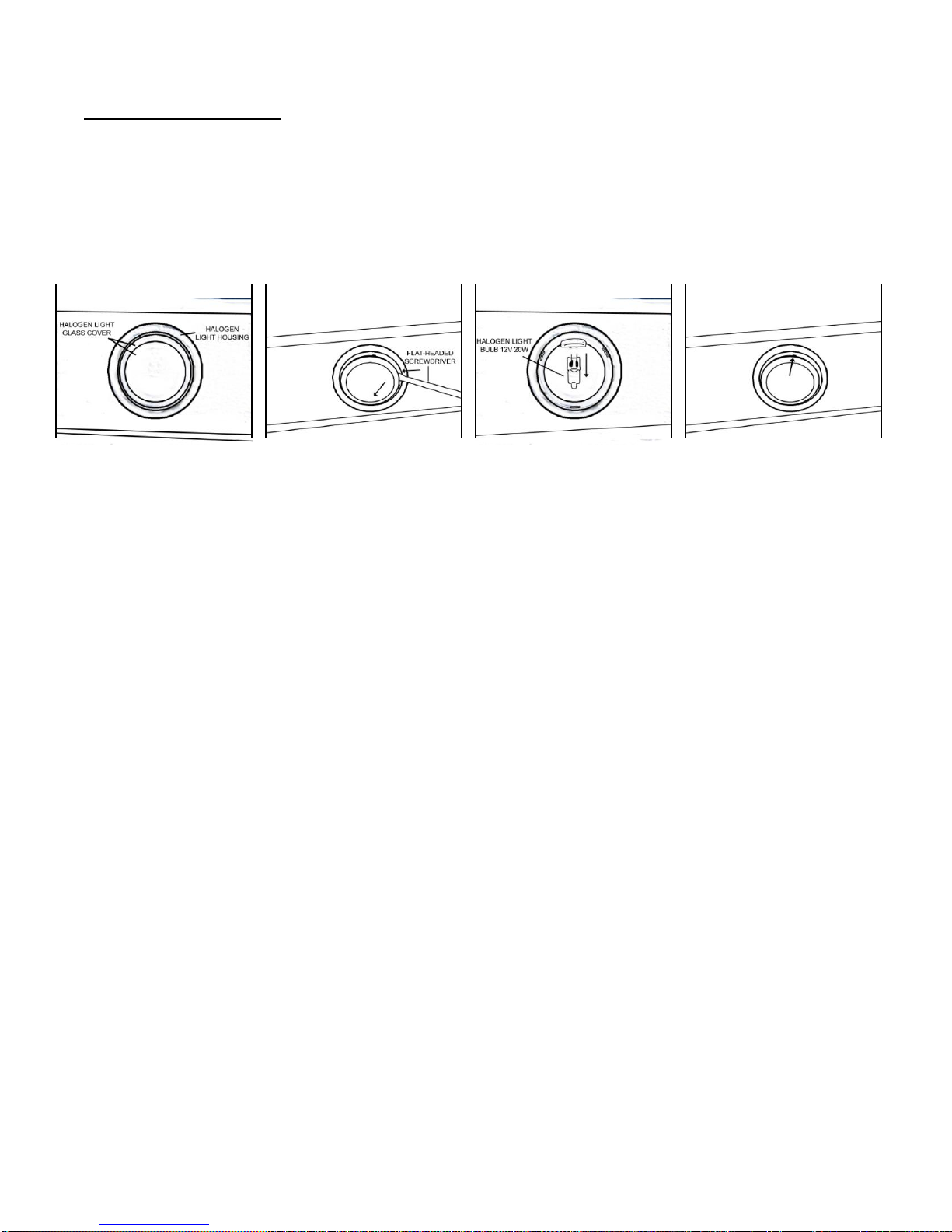

To Replace Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
NOTE: DO NOT TOUCH HALOGEN LIGHT WITH BARE HANDS, WHICH MIGHT CAUSE
OVER HEAT AND SHORTEN THE LIFT OF LIGHT BULBS.

1. Make sure all controls are OFF, and range hood is unplugged.
2. Place the flat-head screwdriver into the groove between the halogen light glass covering
and the housing .
3. Gently separate glass covering from the housing .
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W
maximum.
5. Wear a glove or use a cloth to hold the new light bulb and push securely into light
socket. NOTE: DO NOT PUSH TOO HARD OR YOU MAY BREAK THE BULB
CONNECTOR.
6. Put back halogen light glass cover .
7. Plug back power cord and turn on range hood to test for operation.

12
SPECIFICATIONS
MODEL / SIZE
RA9230SQB / 30"
RA9236SQB / 36"
COLOR
Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
RA9230SQB - 215W / 1.79A
RA9236SQB - 215W / 1.79A
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
DESIGN
18-Gauge Seamless / Satin Finish
FAN TYPE
Double Horizontal Squirrel Cage
EXHAUST
Top 6" Round
CONTROLS
Electronic Control (4 Buttons) –
10-Second Standby Startup
30-Second Delay Shutoff
HALOGEN LIGHTS
RA9230SQB - 12V 20W x 2
RA9236SQB - 12V 20W x 2
HOOD DIMENSION
(W x D x H)
(RA9230SQB) 29-3/4" x 20-1/2" x 12-1/4"
(RA9236SQB) 35-1/4" x 20-1/2" x 12-1/4"
OPTIONAL ACCESSORIES
(W x D x H)
Model No. RA0930DC
1-Piece Extension Duct Cover
Model No. RA0946DC
1-Piece Extension Duct Cover
Model No. SSP36
SSP30
30" Stainless Steel Back Panel (30" x 1/10" x 32")
36" Stainless Steel Back Panel (36" x 1/10" x 32")
WEIGHT (lbs)
Net
Gross
(RA9230SQB)
42.0
62.0
(RA9236SQB)
46.0
68.0
SPEED
QuietMode
Low
Medium
High
Air Capacity (cfm)
280
420
580
760
Sone*
1.2*
2.0
2.8
4.5
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications information is subject to change without notice.

13
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are
estimated.
Front View Bottom View

14
PARTS LIST
MODEL NO.:
RA9230SQB
RA9236SQB
NO.
DESCRIPTION
MODEL /
SIZE
PART NO.
1
Duct Cover-Mounting Bracket
C1-0203-0092
2
Duct Cover
RA9236DC
B102-0192
3
Plastic Plate
C1-0506-0092
4
6"Round Plastic Exhaust
C1-0505-0001
5
Hood-Mounting Bracket
C1-0221-0001
6
Rubber Stand
C1-0510-0101
7
Hood Casing
RA9230SQB
RA-2530-A
RA9236SQB
RA-25900-A
8
Halogen Lights (12V 20W)
C1-0403-0001
9
Control Panel
C1-0404-4110-B
10
Control Panel Bracket
C11-0207-5300-A
11
Air Chamber & Motor
C1-0302-A120-01
12
Safety Screen
C1-0602-0103
13
Electric Component Support
RA9230SQB
C1-0201-2530
RA9236SQB
C1-0201-2590
14
Motor Bracket
C1-0105-2590
15
Transformer (Light)
C1-0402-0120-40
16
Processor Board
C1-0404-0401-B
17
Transformer (Motor)
C1-0402-A120-01
18
Capacitor
C1-0401-0240-03
19
Baffle Filter
B101-2590-15

15
MODEL NO.:
RA9230SQB
RA9236SQB

16
CIRCUIT DIAGRAM
MODEL NO.:
RA9230SQB
RA9236SQB

17
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After Installation,
both motors and
lights are not
working.
The power is not on.
Make sure the circuit breaker and the unit’s power is
ON. Use a voltage meter to check the power supply.
The wire connection is not secure.
Check and tighten wire connection.
The control panel and processor board
wiring are disconnected.
Check wire continuity from control panel to processor
board.
The motor transformer is defective.
Check the power input and power output on the
motor transformer.
If it’s needed, replace the motor transformer.
The control panel and processor board is
defective.
Replace the control panel or processor board.
Lights are
working, but
motor(s) is not.
The motor(s) is defective.
Replace the motor.
The capacitor(s) is defective.
Replace capacitor(s).
The control panel or processor board is
defective.
Replace the control panel or processing board.
The range
hood is
vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air
chamber.
The turbine impeller/squirrel cage is
not balanced.
Replace the turbine impeller/squirrel cage.
Hood is not secured in place.
Check the installation of hood, tighten the
mounting bracket.
The motor is
working, but
the lights are
not working.
Halogen Light bulb(s) is defective.
Try placing the trouble light bulb(s) to a working
socket, if the bulb(s) still doesn’t work; replace
the halogen light bulb(s).
The light wiring(s) is loose.
Check wire continuity from processor board to
light transformer to halogen light housing(s).
Light transformer is defective.
Check power input and power output on the light
transformer. If it’s needed, replace the light
transformer.
The control panel or processor board is
defective.
Replace the control panel or processing board.
The range
hood is not
venting out
correctly.
The range hood is installed outside of
the manufacture recommended
clearance.
Adjust the clearance between the range hoods
and cook top to 27” to 30”. For Island range
hood, the clearance between the range hoods
and cook top is 30” to 36”.
There is no make-up air inside the
house.
Open the window to enhance the performance
of the range hood by creating a sufficient make-
up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the
manufacture suggestion.
Cold air is
coming into the
home.
The pipe connection is not properly
sealed.
Check the pipe installation.
