KOBE CX1830GS-8 Troubleshooting guide

KOBE Brand Range Hood
Model No. CX1830GS-8 (30”)
CX1836GS-8 (36”)
CX1842GS-8 (42”)
CX-183 SERIES – 4” HEIGHT STAND ALONE
“GLASS CANOPY WITH LED SCREEN”
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................................1
COMPONENTS OF PACKAGE.................................................................................................................3
INSTALLATION........................................................................................................................................5
Preparations before Installation ...............................................................................................................5
Hood Installation.....................................................................................................................................6
Wiring to Power Supply..........................................................................................................................8
Recirculating Conversion ........................................................................................................................8
Ductwork Installation..............................................................................................................................9
Duct Cover Installation............................................................................................................................9
Final Assembly........................................................................................................................................9
OPERATING INSTRUCTION.................................................................................................................10
MAINTENANCE .....................................................................................................................................12
SPECIFICATIONS...................................................................................................................................14
MEASUREMENTS & DIAGRAMS.........................................................................................................15
PARTS LIST.............................................................................................................................................16
CIRCUIT DIAGRAM...............................................................................................................................18
DISCLAIMER..........................................................................................................................................19
WARRANTY ...........................................................................................................................................20
PRODUCT REGISTRATION...................................................................................................................22
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S .
V e r . 0 3 2 1 0 6

1
IMPORTANT SAFETY INSTRUCTIONS
-PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in
accordance with all applicable codes and standards, including fire-rated
construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical
wiring or other hidden utilities.
3) Ducted hood must be vented to the outside.
a) Before servicing or cleaning unit, SWITCH POWER OFF AT SERVICE PANEL.
b) Clean fan, filter, if any, and grease laden surfaces frequently. To reduce the risk
of fire and properly disperse air, make sure to vent air outside. DO NOT vent exhaust
air into wall spaces, attics, crawl spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s
receipt or if unit is damaged due to misuse, poor installation,
improper use, mistreatment, negligence or any other
circumstances beyond the control of KOBE RANGE
HOODS authorized agents. Any repair carried out without
the supervision of KOBE RANGE HOODS authorized
agents will automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any
damages to personal property or real estate or any bodily
injuries whether caused directly or indirectly by the range
hood.
WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A
RANGE TOP GREASE FIRE:
•Keep fan, filter, if any, and grease-laden surfaces clean.
•Alwaysturn hood ON when cooking at high heat.
•Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to
mediumsetting.
•Do not leave cooking range unattended when cooking.
•Always use cookware and utensils appropriatefor the type and amount of food prepared.
•Use this unit only in the manner intended by the manufacturer.
•Before servicing, switch power off at service panel and lock service panel (if possible) to
prevent power from switching on accidentally.
•Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

2
What to Do In The Event Of a Range Top Grease Fire
- SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the
burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the
flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE
DEPARTMENT or 911.
- NEVER PICK UP A BURNING PAN – You may get burned.
- DO NOT USE WATER, including wet dishclothsor towels – a violent steamblast will result.
- Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas
Company and Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials
and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper
combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to
prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
4) published by the National Fire Protection Association (NFPA), and the American Society for
5) Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
6) Two installers are recommended because of the large size and weight of this hood.
7) Activating any switch may cause ignition or an explosion.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or
death. Disconnect appliance from electric power before servicing. If
equipped, the fluorescent light bulb contains small amounts of mercury,
which must be recycled or disposed of according to Local, State, and
Federal Codes.

3

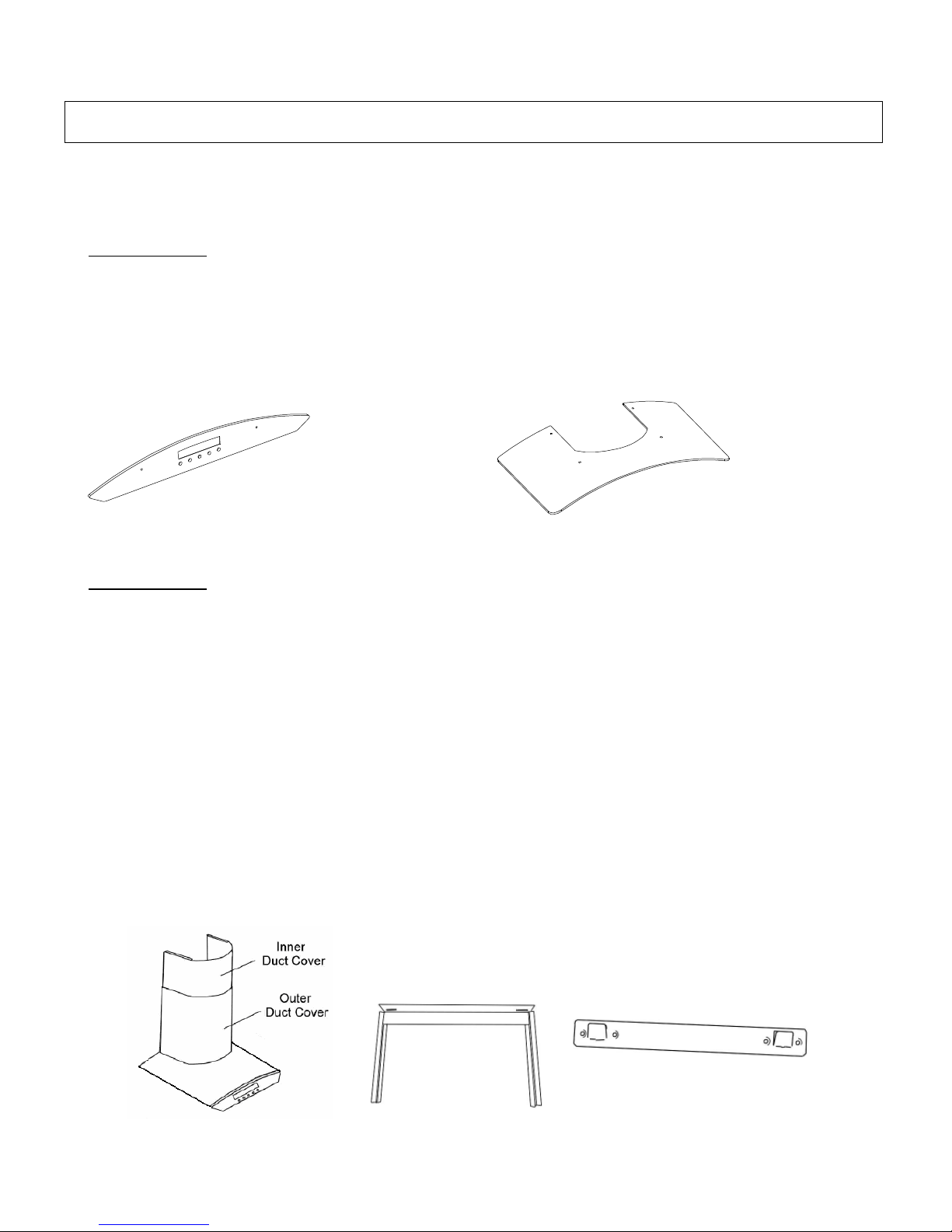

COMPONENTS OF PACKAGE
( M u s t k e e p a l l m a t e r i a l f o r r e t u r n s o r r e f u n d s )
Box 1 Of 2
{A} LED Screen And Control Panel
{B} Glass Canopy
{A} {B}
Box 2 Of 2
{A} KOBE Range Hood with Two-Piece Duct Cover
{B} Duct Cover-Mounting Bracket
{C} Hood-Mounting Bracket
{D} Warranty Registration Card
{E} Instructions Manual
{F} Plastic Damper
{G} Screws Package
{H} Rubber Seal
{ } Glass Canopy Screws Set
{J} Oil Container
{A} {B} {C}

4

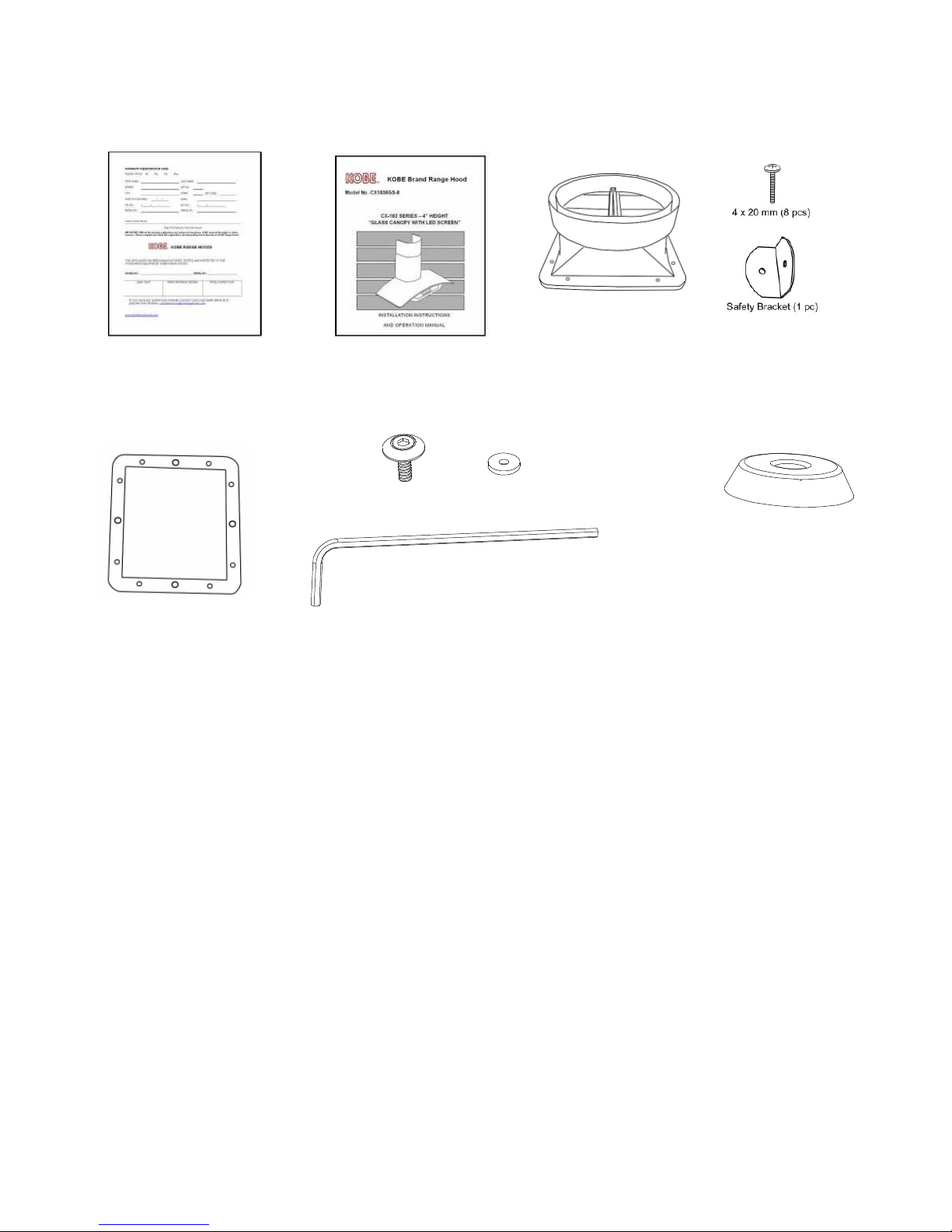

{D} {E} {F} {G}
{H} { } {J}
Hexagon screws (6 pc) Spacer (6 pc)
Hexagon wrench (1 pc)

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to Table 1. (All calculation in inches.)
Preparations before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.
- Decide the location of the venting pipe from the hood to the outside. Refer to Figure
1.
- A straight, short venting run will allow the hood to perform more efficiently.
- Try to avoid as many transitions, elbows, and long run as possible. This may reduce
the performance of the hood.
- Use duct tape to seal the joints between pipe sections.
- If necessary, prepare back wall frame with cross framing lumber for secure installation.
Using references in Table 1 and measurements on page 15, decide the level of the
lumber. Refer to Figure 2.
- Important: peel protective film off the duct cover and the hood (if any).
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter
Top (Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Recommended 27”
to 30”)
D = Height of Hood
E = Height of the Hood
Installation [A – (B + C)]
F = Height of Duct Cover [E – D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

6
Hood Installation
CAUTION: If required to move the cooking range to install the hood, turn off the power in an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. Peel protective film off duct cover and hood, if any. Pull out
duct cover (inner and outer) from range hood.
Shown in Figure 3
Figure 3
2. Align glass canopy to hood body. Shown in Figure 4. Attach the glass canopy to body
with four hexagon screws and four spacers (provided). Tighten with hexagon wrench
(provided). Shown in Figure 5
Figure 4 Figure 5
3. Attach the LED screen and control panel with two hexagon
screws and two spacers (provided). Tighten with hexagon
wrench (provided).
Shown in Figure 6
Figure 6
Figure 1 Figure 2

7
4. Place rubber seal on hood venting area; make sure the openings on rubber seal are aligned
with openings in vent area. Shown in Figure 7. Align plastic damper on rubber seal and
attach to hood using eight 4x20 mm screws (provided). Refer to Figure 8
Figure 7 Figure 8
5. If necessary, remove the two rubber stands at the back of the
hood. For a more secure installation, KOBE recommends
not removing the rubber stands.
6. Using references in Table 1 and Measurement & Diagrams on
page15, mark the leveling line for hood-mounting bracket.
Secure hood-mounting bracket to wall with screws (not
provided). Refer to Figure 9.
Figure 9
7. Align hood to the hood-mounting bracket on the wall and hook hood into place as shown in
Figure 10 & 11. CAUTION: MAKE SURE THE HOOD IS SECURE BEFORE RELEASING.
Figure 10 Figure 11
8. For safety purposes, install the safety bracket (provided) with one
screw (not provided) to the wall as shown in Figure 12.
Figure 12

8

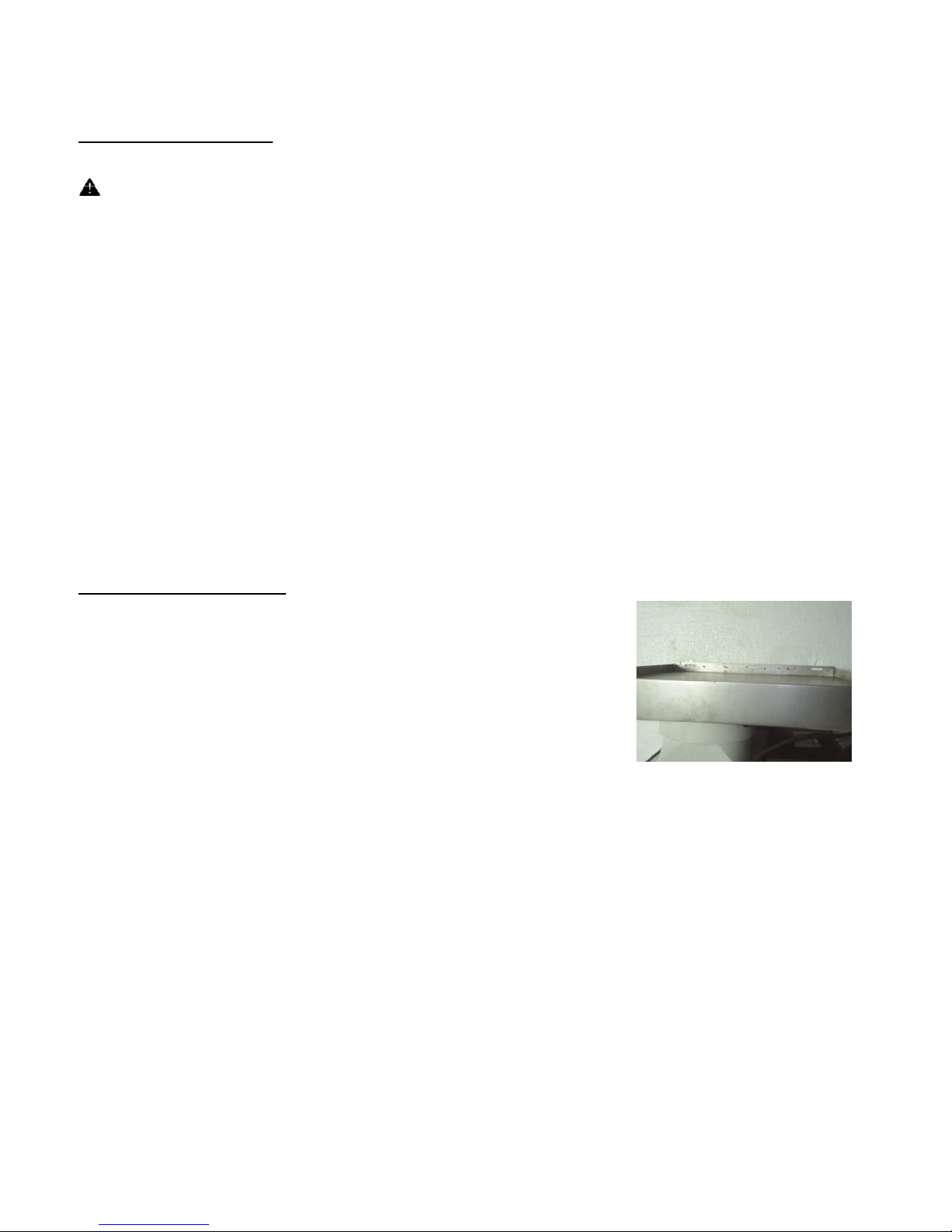

Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
9. Connect three wires (black, white and green) to house wires.
10. Connect according to color: black to black, white to white, and green to green and cap with
wire connectors.
11. Test the operation of the hood before moving on to the next step. Make sure power is supplied
to the hood.
12. If venting outside, skip to Step 19, Ductwork Installation.
Recirculating Conversion
Requires Purchase of Recirculating Kit Model No. RD-0183.
13. For the recirculating installation, replace the duct cover-mounting
bracket with the T-Box. Using references in Table 1 and
Measurement & Diagrams on page 15 to mark the leveling line for
the T-Box. Secure the T-Box with 3 screws (not provided) to the
wall. Use duct tape to seal joints from plastic damper to T-Box.
(Recirculating Duct Cover will hook onto T-Box.)
Refer to Figure 13.
14. Measure the distance from the top of the plastic damper to the ceiling and prepare a 7” round
metal duct pipe with 4” shorter than measured distance.
15. Use the prepared 7” round metal duct pipe to connect the T-Box to the plastic damper. Use
duct tape to make all joints secure and air tight. Make sure pipe is in the groove of the plastic
damper. Refer to Figure 14
16. Remove stainless steel filters and install the carbon filters. (Refer to Figure 20)
17. Re-attach the stainless steel filters.
18. Skip to Step 21, Duct Cover Installation
Figure 13

9
Ductwork Installation
19. Use 7” round aluminum or steel pipe to connect the plastic
damper on the hood to the ductwork above.
20. Use duct tape to make all joints secure and air tight. Make sure
pipe is in the groove of the plastic damper. Refer to Figure 14
Duct Cover Installation
21. (SKIP STEP 22 and 23 IF USING THE RECIRCULATING CONVERSION KIT. YOU WILL
NOT NEED THE DUCT COVER-MOUNTING BRACKET.) Using references in Table 1 and
measurements on page 17, mark the leveling point for duct cover-mounting bracket.
22. Secure the duct cover-mounting bracket to the wall with two screws (not provided). Refer to
Figure 15. Make sure all screws are tightened.

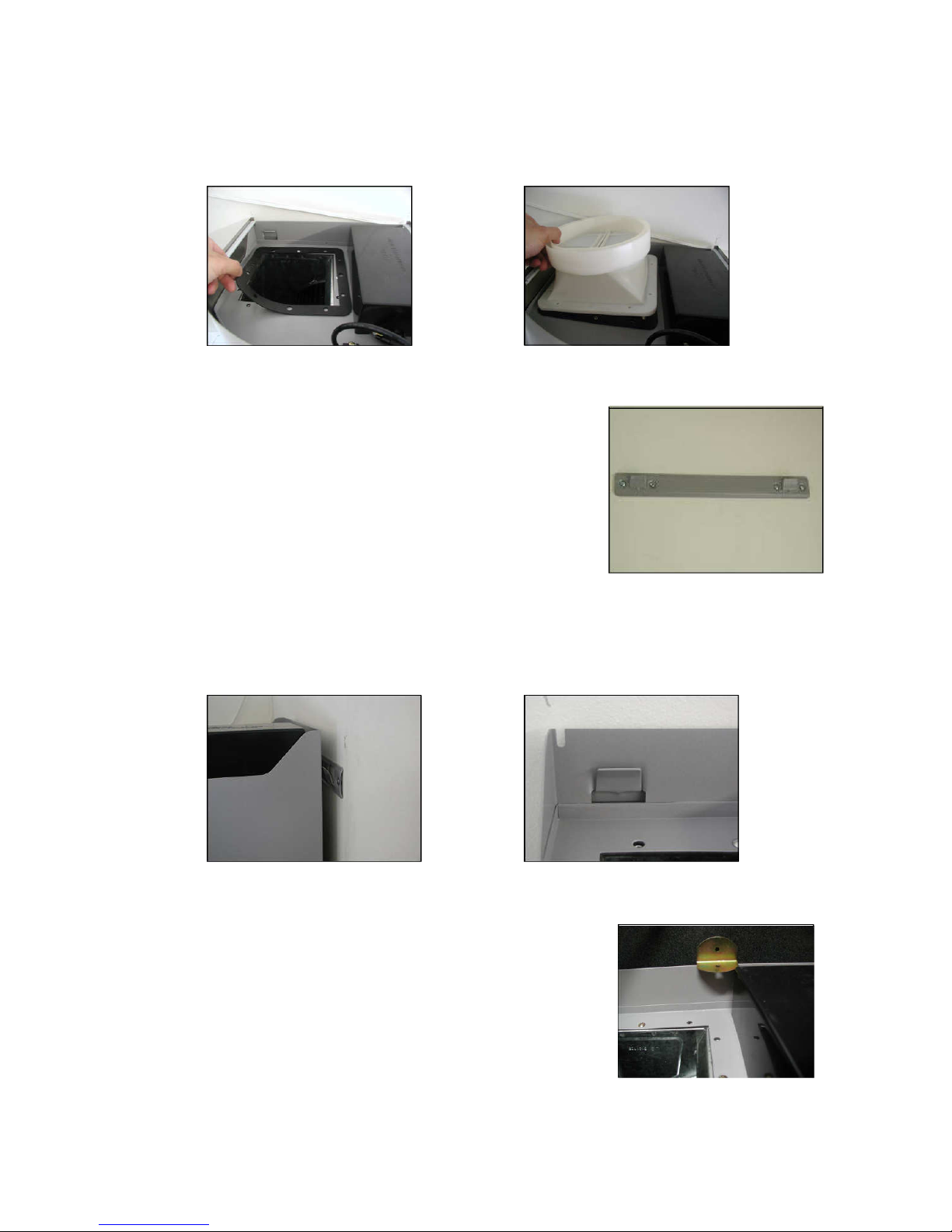

23. Hook the inner duct cover onto the duct cover-mounting bracket and release the outer duct
cover to fit onto the hood as shown in Figure 15 and 16.
Final Assembly
24. Rotate the oil container clockwise to install it.
Shown in Figure 17.
25. Turn power ON in control panel. Check alllightsand fan operation.
26. Make sure to leave this manual for the homeowner.
Figure 14
Figure 15 Figure 16
Figure 17

10
OPERATING INSTRUCTION
This KOBE hood is equipped with five electroniccontrols with LED screen, one powerful centrifugal
squirrel cage with stainless steel filter, two bright 12-volt 20-watt halogen lights, and one oil
container.
The five control buttons are Power Control (On/Off), Auto Control, Speed Control (Low & High
Speed), Light Control and Timer Control. Refer toFigure 18.
Figure 18
Power Control
Press Power Control to turn On/Off the hood.
Output Display:
Auto Control
Press Auto Control to set the hood on auto sensor. When smoke, gas, or fluctuating
temperature* is detected, hood automatically turns on at prior speed setting.
(*Temperature: Higher than normal room temperature.)

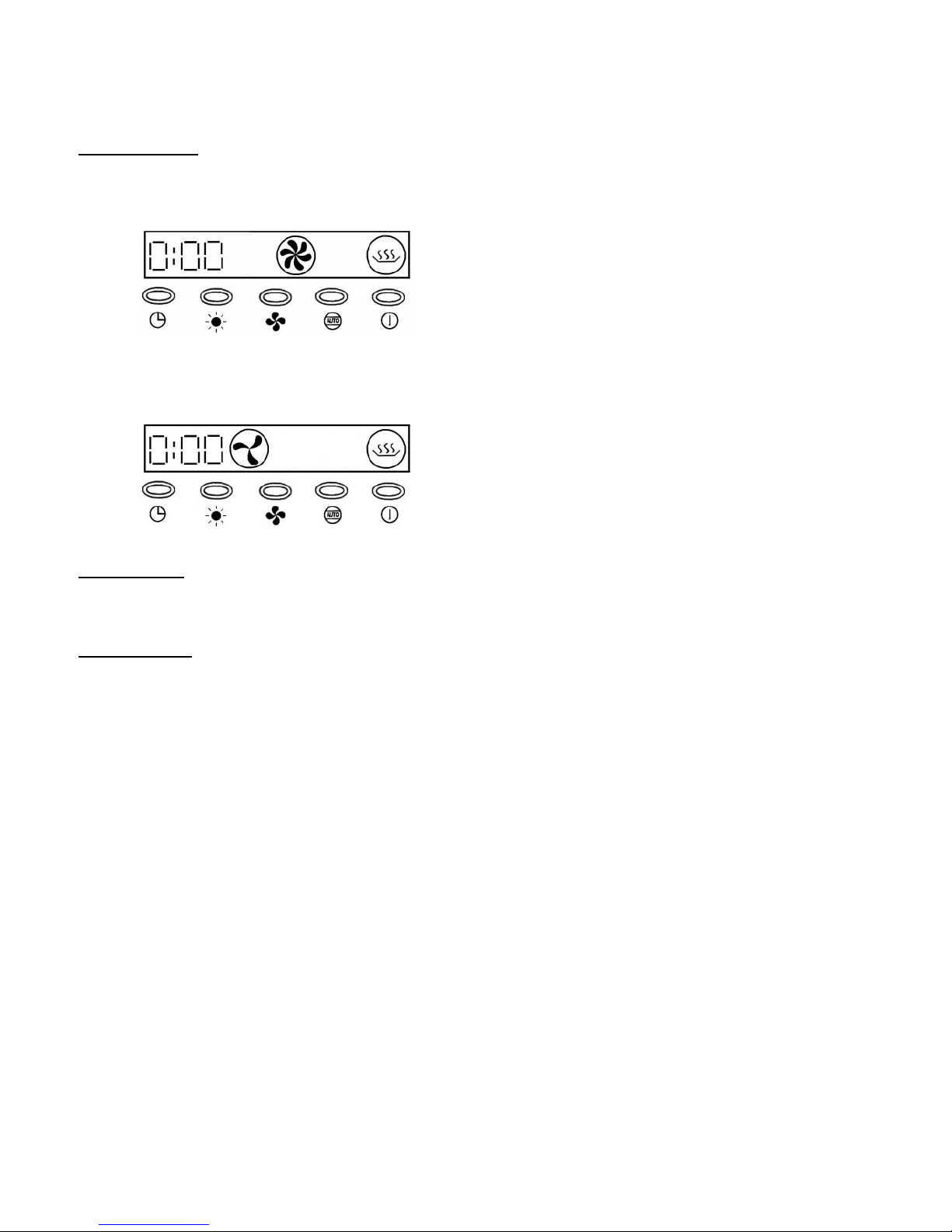

Output Display:

11
Speed Control
Press once for High speed to start.
Output Display:
Press twice for Low speed to start.
Output Display:
Light Control
Press Light Control to turn on the two halogen lights.
Timer Control
Press Timer Control to start timer. When Timer Control is pressed, fan will automatically
shut off after set time. Timer range from 1 min. to 99 mins.
To clear the timer, press Power Control OFF; and then press Power Control ON again.

12
MAINTENANCE
CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE
FAN IS OPERATING.
For optimal operation, clean range hood surface, stainless steel filter, and oil container
regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
-Regular care will help preserve its appearance.
1) Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2) If hood looks splotchy (stainless steel hood), use an orange base cleaner to clean the
surface of the hood. Avoid getting cleaner on the control switches. Spread a light coating
over the surface of the hood and leave on for a few minutes (do not leave on too long or
this may cause damage to hood finish). Use soft towel to wipe off the cleaning solution,
gently rub away stubborn spots. Use a slightly damp towel to get rid of any cleaning
solution. Use dry soft towel to dry the hood.
3) To bring glow back into a stainless steel finish, use a stainless steel cleaner.
4) DO NOT allow deposits to remain for long periods of time.
5) DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface causing rust.
6) DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain
in contact with stainless steel for extended periods. Many of these compounds contain
chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a
clean cloth.
To Clean Stainless Steel Filter / Oil Container
CAUTION: DRAIN OIL CONTAINER BEFORE OIL CAN OVERFLOW.
1) The oil container attached underneath stainless steel filter can be removed by turning
counter-clockwise.
2) To clean the stainless steel filter, remove the screws (leave in a safe place), and slide
stainless steel filter out.
3) Both oil container and stainless steel filter should be washed with warm soapy water
and dry thoroughly before returning in place. Both are top rack dishwasher safe.

13
To Clean Carbon Filter (Optional Recirculating Kit)
1) Turn oil container counter-clockwise. Shown in Figure 18.
2) Use a Philips screwdriver to take out the screws (2 pcs). Shown in Figure 19.
Figure 18 Figure 19
3) Remove the carbon filter from the two stainless steel filters.
Shown in Figure 20.
4) Place carbon filter into warm water with neutral detergent
and clean thoroughly. Dry and replace.
5) Re-install the carbon filter and the stainless steel filters.
To Replace Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
1) Make sure all control switches are off, and range hood is unplugged.
2) Use a flat head screwdriver to pop out protective covering as shown in Figure 21.
3) Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W
maximum. Refer to Figure 22. Push bulb securely into light socket.
4) Replace protective cover.
5) Plug in range hood.
Figure 21 Figure 22
Figure 20

14
SPECIFICATIONS
MODEL / SIZE CX1830GS-8 / 30”
CX1836GS-8 / 36”
CX1842GS-8 / 42”
COLOR # 304 Commercial Grade Stainless Steel
CONSUMPTION 189.4W / 1.57A(Wattage / Ampere)
VOLTAGE 120V 60Hz
NUMBER OF MOTOR 1
DESIGN 18-Gauge
FAN TYPE Centrifugal Squirrel Cage
EXHAUST 7” Round w/Damper
CONTROLS Electronic Touch Button (5 buttons) -
Power Control, AutoControl, Speed Control (Low & High Speed),
Light Control, & Timer Control
HALOGEN LIGHTS 12V 20W x 2
HOOD DIMENSION (W x D x H) (Model No.: CX1830GS-8) 29-1/2” x 19-3/4” x 3”
(Model No.: CX1836GS-8) 35-1/2” x 19-3/4” x 4-1/2”
(Model No.: CX1842GS-8) 41-7/8” x 19-3/4” x 6-1/2”
DUCT COVER / BLOWER
DIMENSION
(W x D x H)
(Model No.: CX183-8S) 14-7/8” x 13” x(15-3/4” ~ 37”)
1) 21” Inner Duct Cover Extension
(Model No.: CX183
-
21DC) 14
-
1/8” x 13” x 15
-
3/4” x 37”
2)
30” Stainless Steel Back Panel
(Model No.: SSP30) 30” x 1/10” x32”
3) 36” Stainless Steel Back Panel
(Model No.: SSP36) 36” x 1/10” x32”
OPTIONAL ACCESSORIES
(W x D x H)
4) Recirculating Kit (Model No.: RD-0183)
Weight (lbs) NET GROSS
CX1830GS-8 9 14
CX1836GS-8 14 18
CX1842GS-8 16 22
CX183-8S 35 46
SPEED LOW HIGH
AIR CAPACITY (CFM)*
400 600
SONE
1.3 2.8
* In House Test Static Pressure“0”.
** Specifications subject to change without notice.

15
MEASUREMENTS & DIAGRAMS
***Inch figures converted from millimeters measurements. Inch measurements estimated.
***Millimeter measurements in ( ).

16

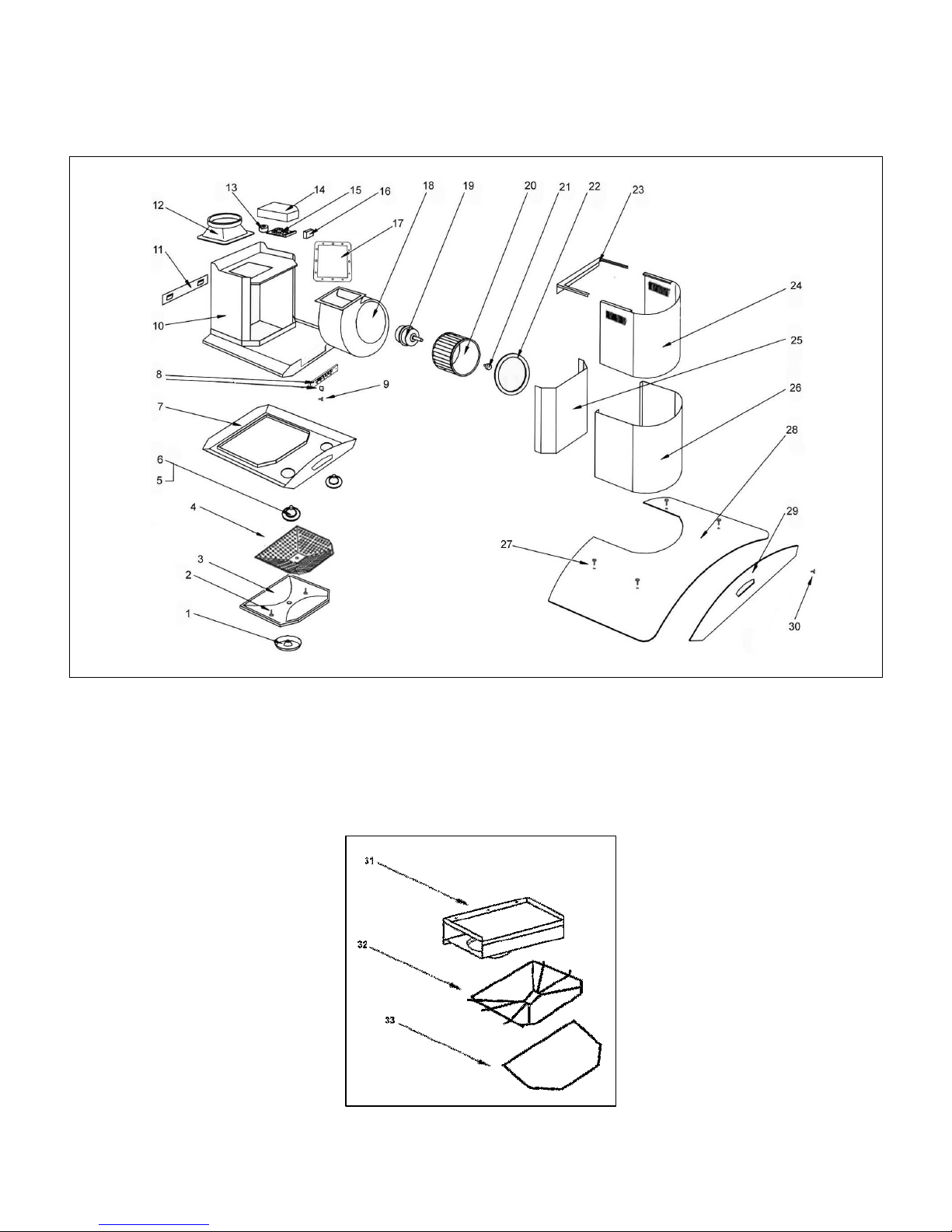

PARTS LIST
MODEL NO.: CX1830GS-8
CX1836GS-8
CX1842GS-8
NO. DESCRIPTION MODEL /SIZE PART NO.
1 Oil Container (Round) 1-HAN-M001
2 Stainless Steel Filter Screw FT-S-1
3 Stainless Steel Filter 1-FBL-A009
4 Stainless Steel Mesh Filter 1-HGF-A100
5 Halogen Light Support 1-FAV-J703
6 Halogen Light (12V 20W Max.) 1-FAV-ZJ01
7 Bottom Casing 1-FAZ-A001
8 Control Board ,
Control Button
1-HDC-G100,
1
-
FAZ
-
J
1
00
9 Control Box Screw FT-S-2
10 Hood Casing 1-FAZ-A100
11 Hood-Mounting Bracket 1-FAZ-M002
12 Plastic Damper 1-FAV-M011
13 Transformer 1-HAN-J101
14 Electrical Wire Box 1-FAV-G001
15 Processor Board 1-FAX-G100
16 Capacitor 1-HAN-G001
17 Rubber Seal 1-FAV-M005
18 Air Chamber 1-FAV-F160
19 Motor 1-HAN-F110
20 Blower 1-FAV-F170
21 Locknut 1-FAA-F205
22 Blower Cover 1-FAV-F120
23 Duct Cover-Mounting Bracket 1-FAV-M020
24 Inner Duct Cover 1-HJS-M001
25 Air Chamber Cover 1-FAV-A006
26 Outer Duct Cover 1-HJS-A100
27 Glass Canopy Screw FT-S-4
30” CX183-30G
36” CX183-36G
28 Glass Canopy
42” CX183-42G
29 LED Screen 1-FAZ-A002
30 Control Panel Screw FT-S-3
RECIRCULATING KIT
(Optional)
Model No.: RD
-
01
83
NO. DESCRIPTION MODEL/SIZE PART NO.
31 T-Box 1-HGF-M100
32 Carbon Filter Frame 1-HGF-A100
33 Carbon Filter 1-HJT-F101

17
MODEL NO.: CX1830GS-8
CX1836GS-8
CX1842GS-8
RECIRCULATING KIT (OPTIONAL)
Model No.: RD-0183

18
CIRCUIT DIAGRAM
MODEL NO.: CX1830GS-8
CX1836GS-8
CX1842GS-8
