KOBE CHX9130SB Troubleshooting guide

KOBE Range Hoods
Model No. / N
os
de modèles / Modelo No.
CHX9130SB CHX9130SB-W
CHX9136SB CHX9136SB-W
CHX9142SB CHX9142SB-W
CHX9148SB CHX9148SB-W
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

1
[ENGLISH]………………………………………………………1
[FRENCH]………………………………………………………26
[SPANISH]…………………………………………………….57

1
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 2
COMPONENTS OF PACKAGE.................................................................................................. 4
INSTALLATION.......................................................................................................................... 5
OPERATION INSTRUCTIONS..................................................................................................12
MAINTENANCE........................................................................................................................13
SPECIFICATIONS ....................................................................................................................14

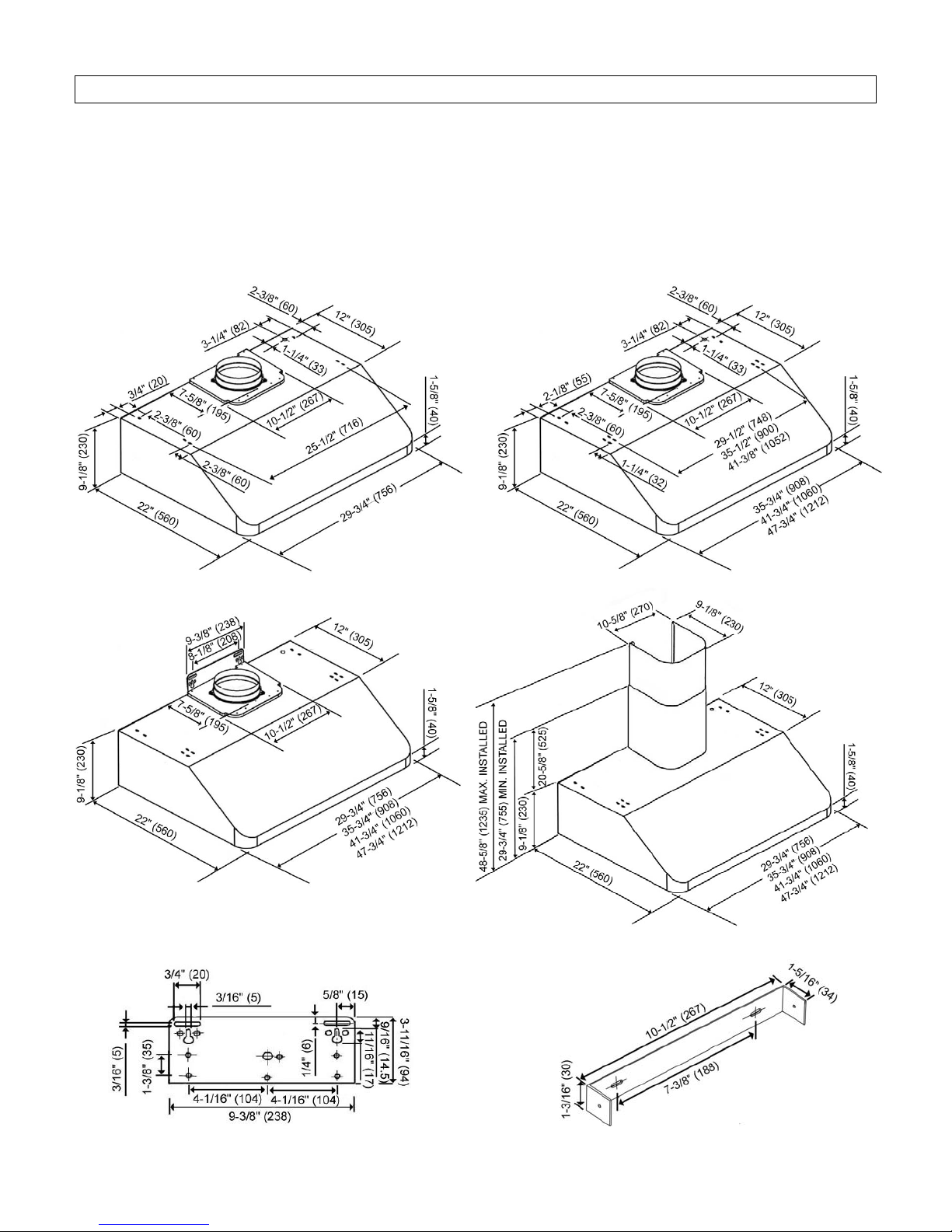

MEASUREMENTS & DIAGRAMS.............................................................................................15

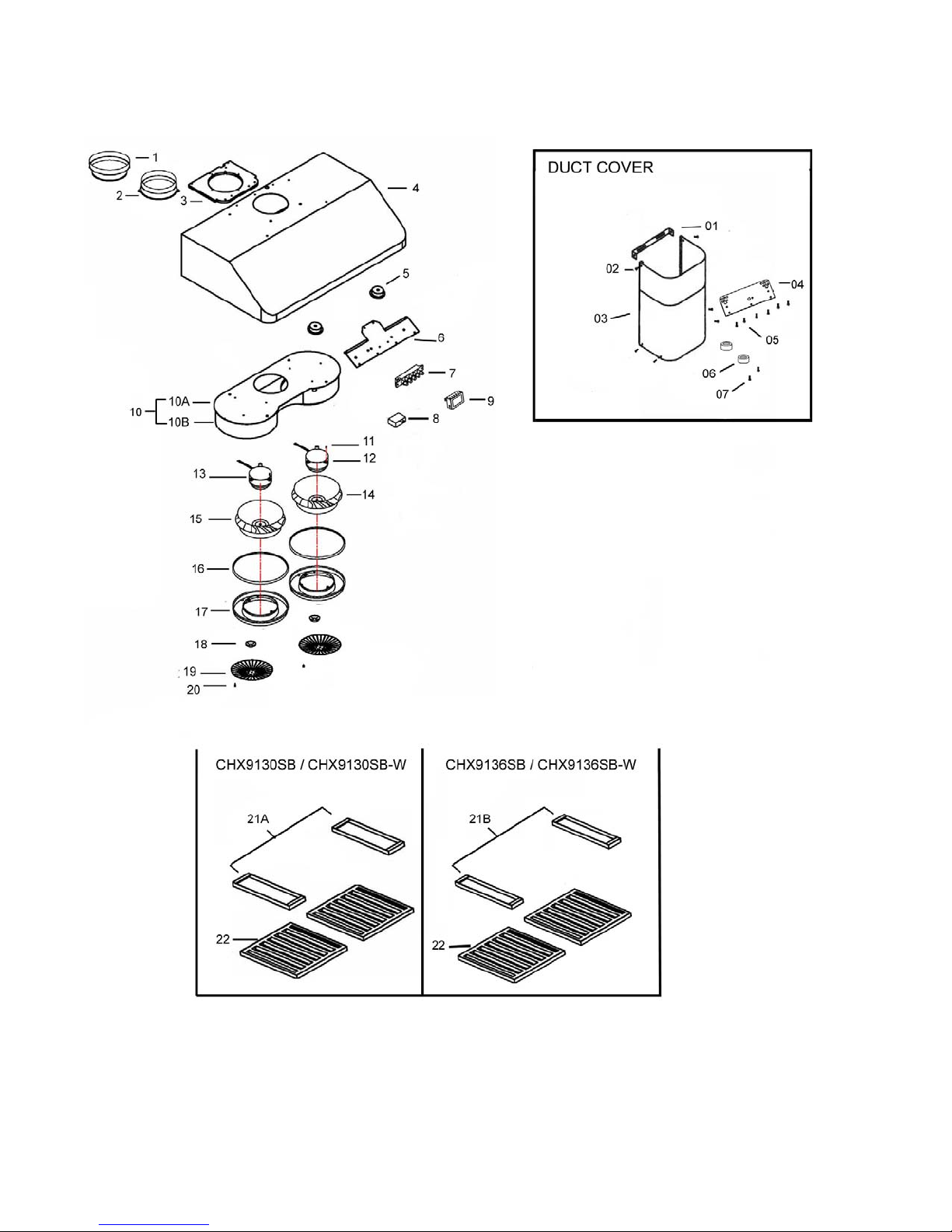

PARTS LIST..............................................................................................................................17
CIRCUIT DIAGRAM..................................................................................................................20
TROUBLE SHOOTING.............................................................................................................21
DISCLAIMER............................................................................................................................22
WARRANTY .............................................................................................................................23
PRODUCT REGISTRATION.....................................................................................................25
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

2
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of EPC
Trading Inc.
- EPC Trading Inc. will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
•Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
•Always turn hood ON when cooking.
•Use high settings on cooking range ONLY when necessary.
•Do not leave cooking range unattended when cooking.
•Always use cookware and utensils appropriate for the type and amount of food prepared.
•Use this unit only in the manner intended by the manufacturer.
•Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
•Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
• Extinguish any open flame.
• Do not try to turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped, the
fluorescent light bulb contains small amounts of mercury, which must be
recycled or disposed of according to Local, State, and Federal Codes.

4
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
Duct Cover Box
(Included for Wall Mount Style)
{A} Brillia Range Hood - 1
{B} Warranty Registration Card - 1
{C} Instructions Manual - 1
{D} Baffle Filter - 2 (for 30”, 36” hood)
- 3 (for 42”, 48” hood)
(E} Bottom Casing - 2
{F} 7” Round Adapter – 1
{G} Oil Tunnel – 1
{A}
{B} {C}
{D} {E}
{F} {G}
{H} Adjustable Duct Cover - 1
{I} Screws Package – 1
{J} Duct Cover-Mounting Bracket – 1
{K} Hood-Mounting Bracket – 1
{H}
{I} {J}
{K}
- FOR MORE INFORMATION, PLEASE CONTACT BRILLIA BY KOBE AT [phone].

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

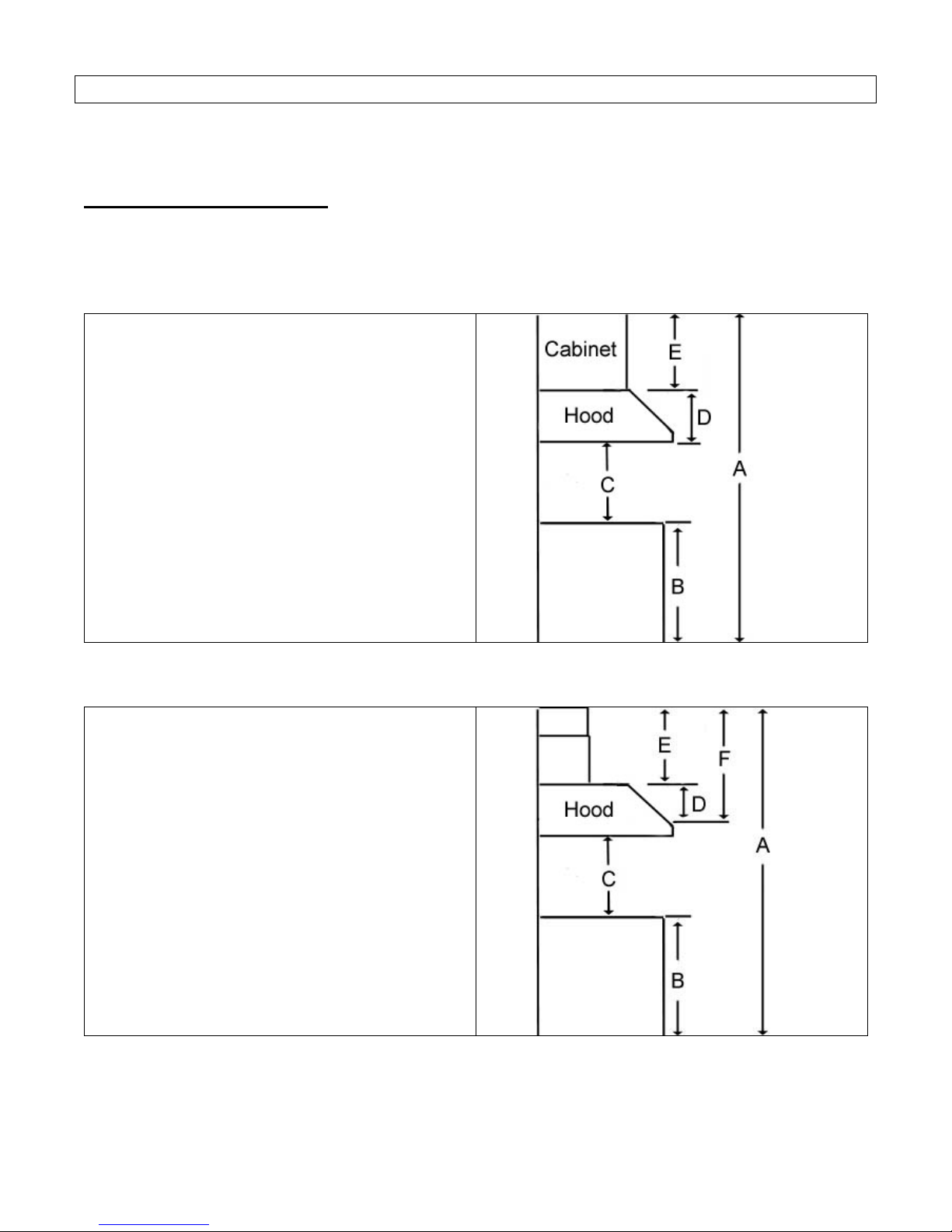

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of the Cabinet
- FOR WALL MOUNT-
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]

6
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
Installation Contents
UNDER THE CABINET INSTALLATION ............................................................................................... 7
WALL MOUNT INSTALLATION............................................................................................................. 9

7
UNDER THE CABINET INSTALLATION
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.
•Decide the location of the venting pipe
from the hood to the outside. Refer to
Figure 1.
•A straight, short venting run will allow
the hood to perform more efficiently.
•Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
•Temporarily wire the hood to test for
proper operation before installing.
•Important: Peel protective film off
the hood (if any).
•For installing under the cabinet with
recessed bottom, attach 4-inch wide
wood filler strips (not included) on each
side. Refer to Figure 2.
•Measure and create access opening for
electrical wires and 6” round plastic
exhaust under the cabinet.
Hood Installation
CAUTION: If required to move the
cooking range to install the hood, turn off
the power on an electric range at the main
electrical box. SHUT OFF THE GAS
BEFORE MOVING A GAS RANGE.

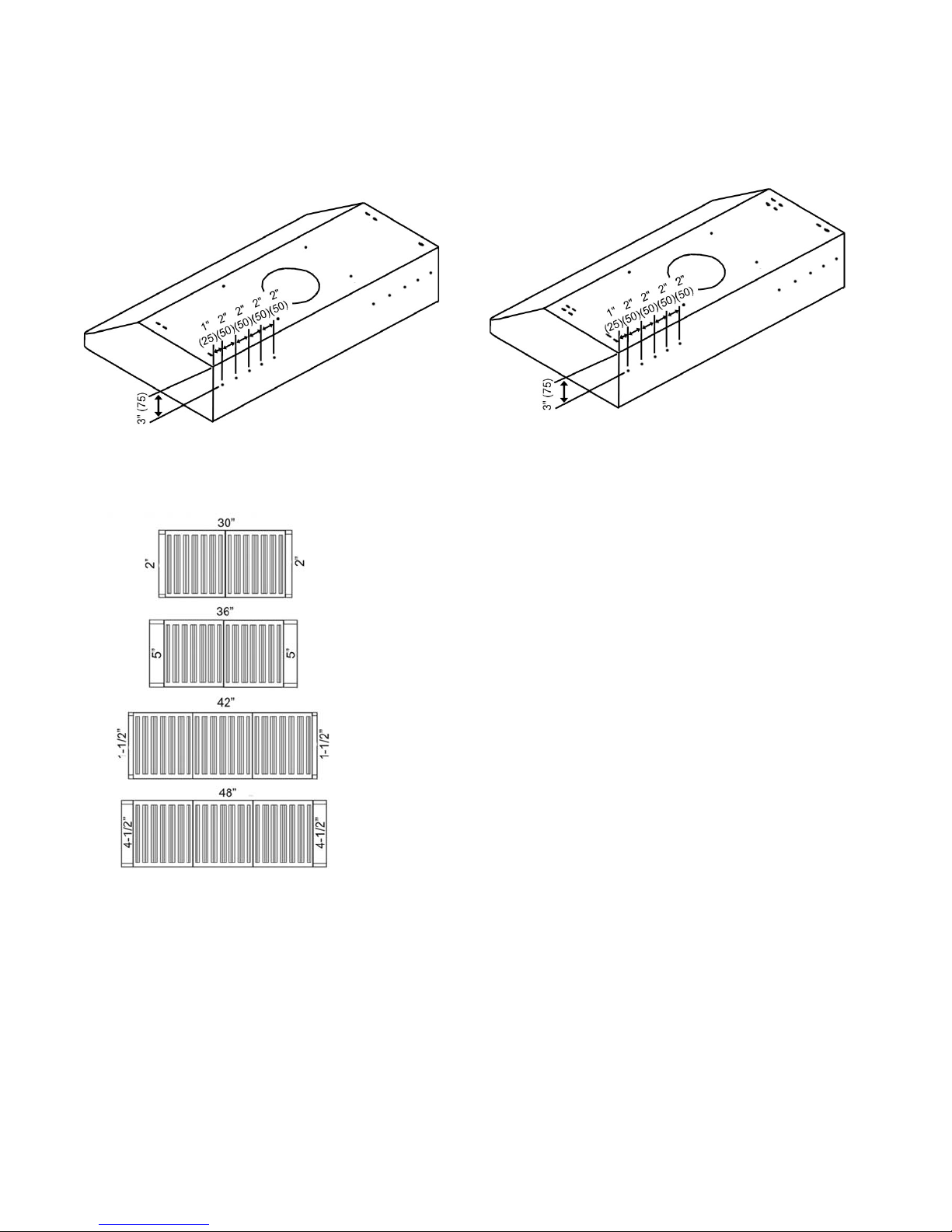

1. Puncture the knockout holes on the hood
as shown in Figure 3.
2. Using references on Table 1 and
measurements on page 15 center the
hood in place beneath the cabinet and
flush with the front of the cabinet.
3. Draw electrical wires through cabinet
access opening.
4. From the bottom of the hood, place screw
(not provided) into the exact center of
each knockout hole. Make sure all screws
are in place before tightening screws.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Figure 1
Figure 2
.
Figure 3
Figure 4

8
Ductwork Installation
5. Use aluminum or steel pipe to connect the
6” round plastic exhaust on the hood to
the ductwork above. Use duct tape to
make all joints secure and air tight. Refer
to Figure 4.
6. To convert ductwork to 7” round, attached
7” round adapter (provided) to the 6”
round plastic exhaust.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
7. Connect the electrical wires.
-Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green
to green as shown on Figure 5.
-If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire connections
underneath the hood. Make sure wires
do not slip between motor or any
moving parts to prevent any damage.

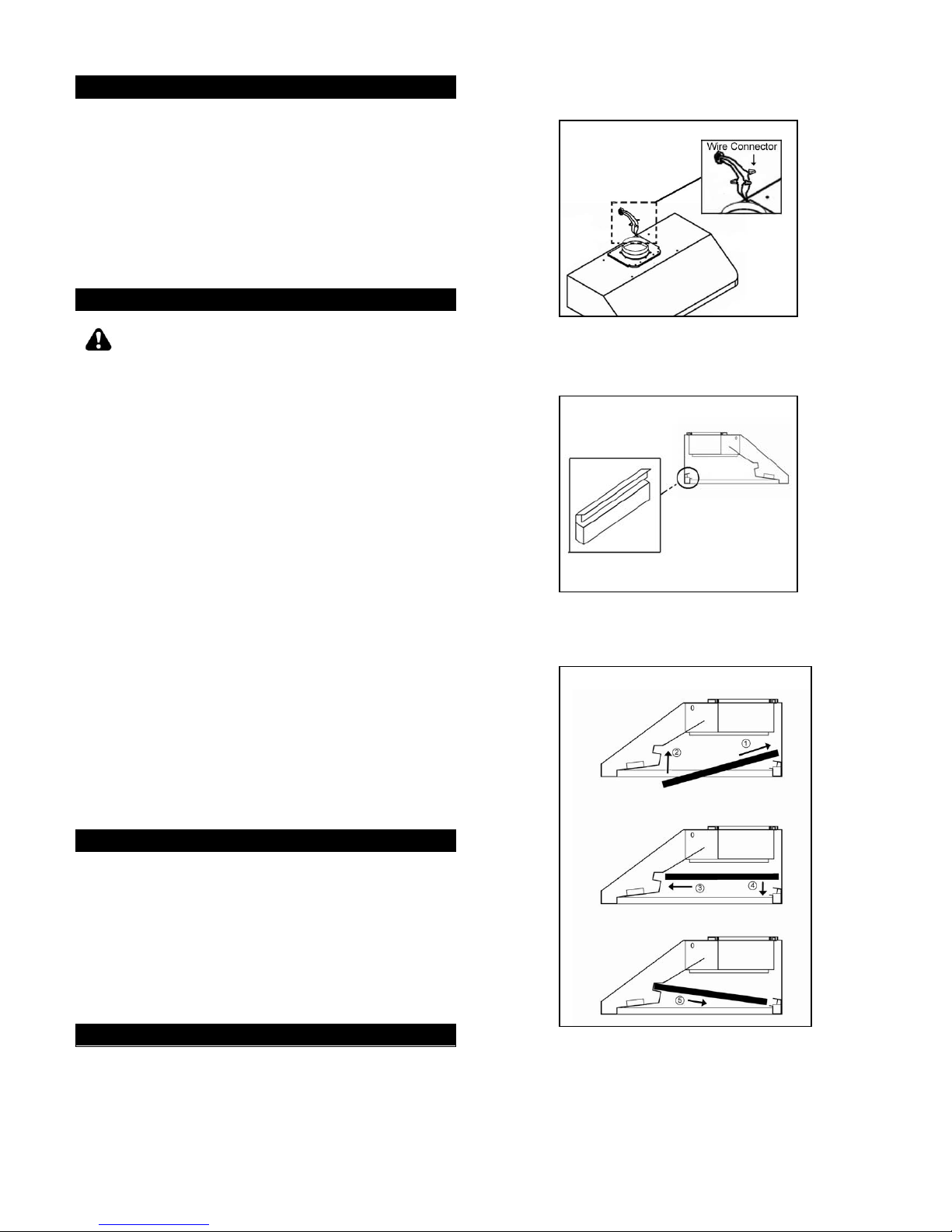

Accessories
8. Attach oil tunnel. Refer to Figure 6.
9. Refer to Figure 7. Slide the baffle filter
into the hood. Push the baffle filter
upward. Slide forward. Pull
downward. Fit into place.
10. For bottom casing, repeat above steps.
Refer to page 16.
Final Assembly
11. Turn power ON in control panel. Check
all lights and fan operation.
12. Make sure to leave this manual for the
homeowner.
Figure 5
Figure 6
Figure 7

9

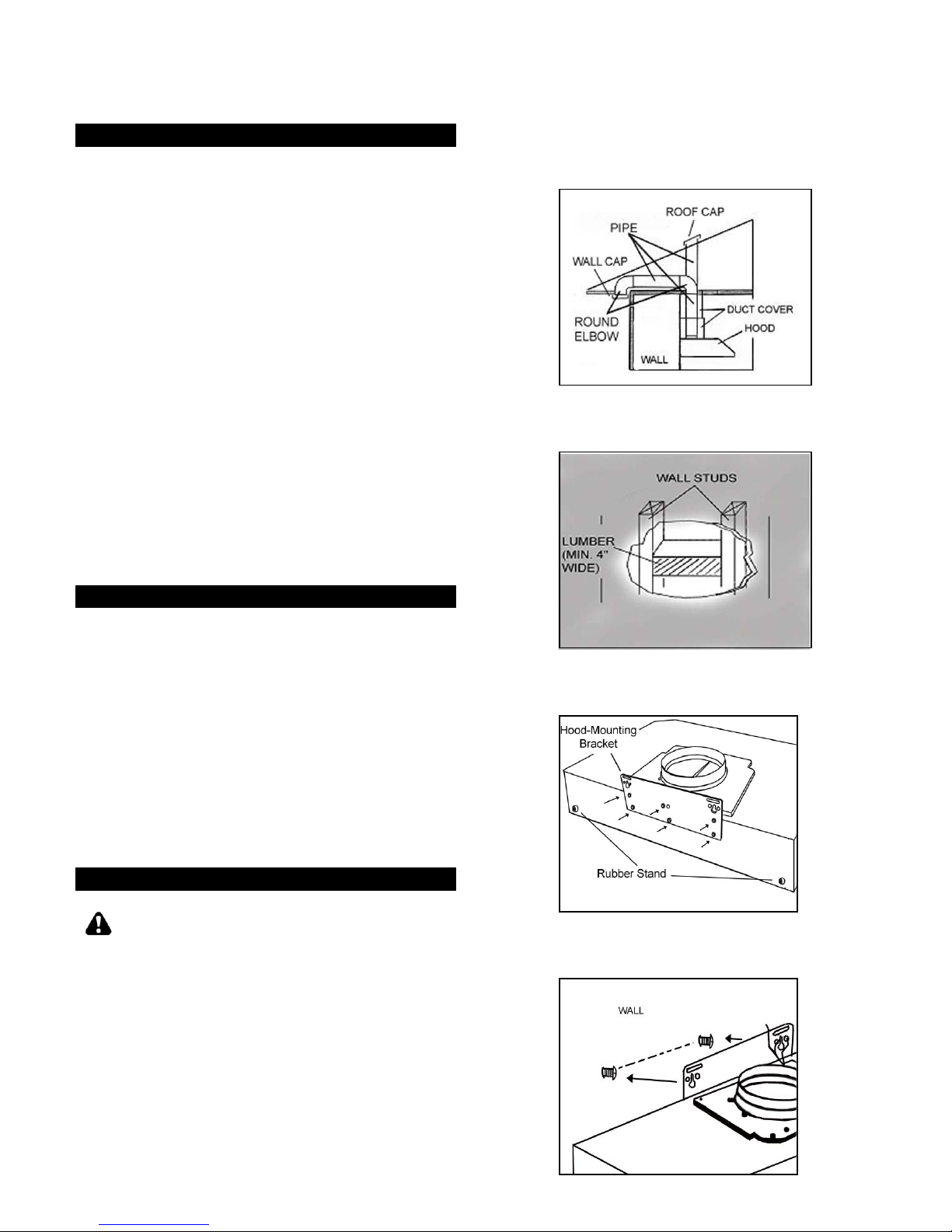

WALL MOUNT INSTALLATION
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR
HOOD, PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.
•Decide the location of the venting pipe
from the hood to the outside. (Figure 8)
•A straight, short venting run will allow
the hood to perform more efficiently.
•Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
•Use duct tape to seal the joints between
pipe sections.
•If necessary, prepare back wall frame
with cross framing lumber for secure
installation.
•Using references on Table 2 and
measurements on page 15, decide the
level of the lumber. (Figure 9)
Hood Preparation before Installation
•Temporarily wire the hood to test for
proper operation before installing.
•Important: Peel protective film off
the hood and the duct cover (if any).
•If necessary, attach two rubber stands
(provided) with two (4 x 8 mm) screws
(provided) to the back of the hood.

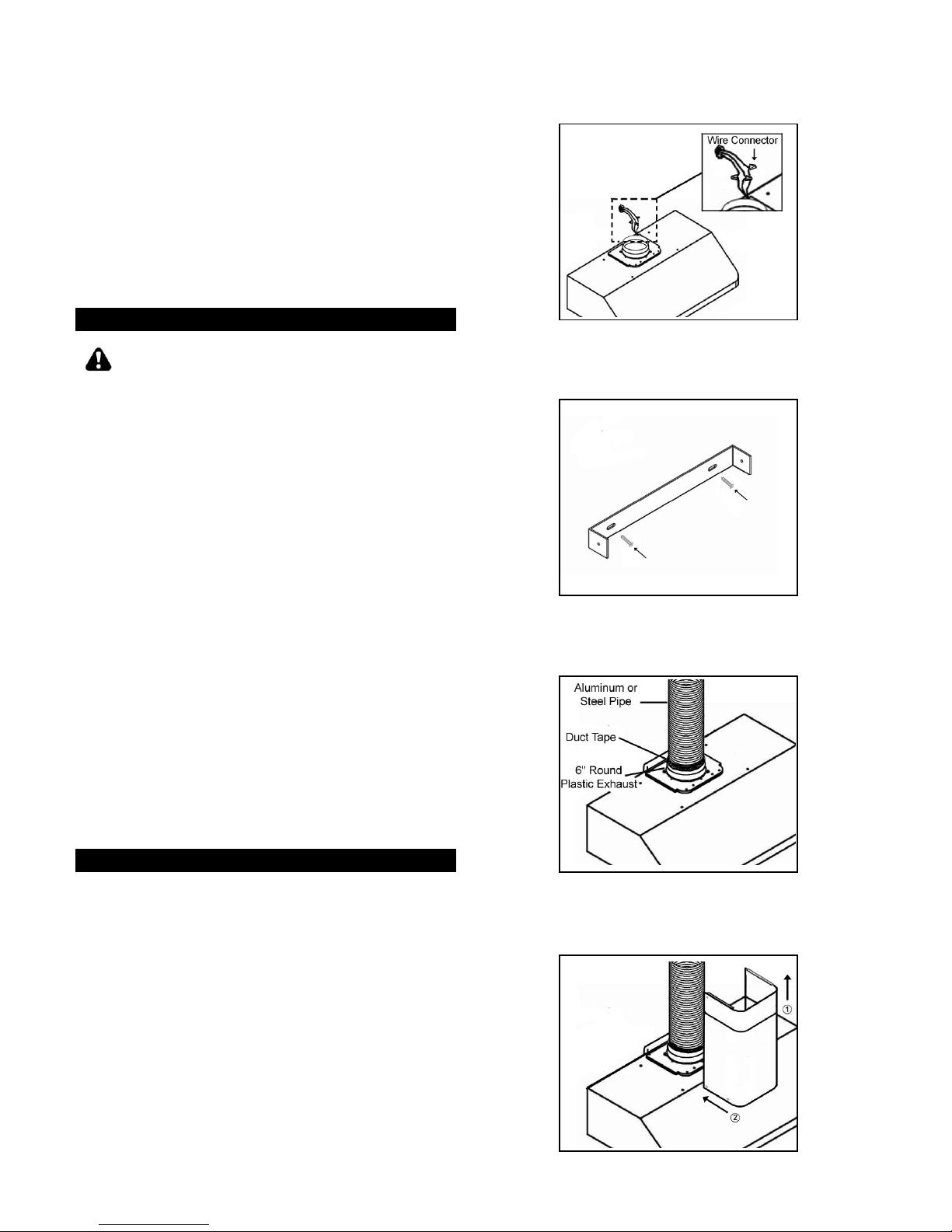

•Attach the hood-mounting bracket to the
back of the hood with six (3/16” x 3/8”)
screws (provided) as shown In Figure
10.
Hood Installation
CAUTION: If required to move the
cooking range to install the hood, turn off
the power on an electric range at the main
electrical box. SHUT OFF THE GAS
BEFORE MOVING A GAS RANGE.
1. Using references on Table 2 and
measurements on page 15-16, mark the
leveling point of the hood. Position two
mounting screws (not provided) on the
wall, leaving 1/8” away from the wall.
Figure 8
Figure 9
Figure 10
Figure 11

10
2. Align hood-mounting bracket to the
screws on the wall and hook hood into
place as shown in Figure 11. Tighten
screws to secure hood to the wall.
3. For safety purposes, extra knockout holes
on the back of the hood are provided.
Knockout the holes. Remove the baffle
filters and attach screws to the wall by
accessing underneath the hood.
CAUTION: MAKE SURE HOOD IS
SUCURE BEFORE RELEASING.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
4. Connect the electrical wires.
-Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green
to green as shown on Figure 12.
-If necessary to hide the electrical wire
connections, push wires back into the
wiring box. Access the wire connections
underneath the hood. Make sure wires
do not slip between motor or any
moving parts to prevent any damage.
Duct Cover Installation
5. Mark the position of the duct cover-
mounting bracket. Use reference Efrom
Table 2 and measurements on page 15-
16. Attach and secure duct cover-
mounting bracket with two screws (not
provided). Refer to Figure 13. NOTE:
Inner duct cover will cover the duct cover-
mounting bracket.
6. Use aluminum or steel pipe to connect the
plastic exhaust on the hood to the
ductwork above. Use duct tape to make
all joints secure and air tight as shown on
Figure 14.
Figure 12
Figure 13
Figure 14
Figure 15

11
7. To convert ductwork to 7” round, attached
7” round adapter (provided) to the 6”
round plastic exhaust.
8. Slide the inner duct cover up 2 inches
before sliding the entire duct cover onto
the hood. Refer to Figure 15.
9. Adjust the height of the inner duct cover to
the duct cover-mounting bracket. Secure
the inner duct cover with two (4x8 mm)
screws (provided).
10. Fasten outer duct cover to plastic plate on
the hood with four (4x8 mm) screws
(provided) as shown in Figure 16.
Accessories
11. Attach oil tunnel. Refer to Figure 17.
12. Refer to Figure 18. Slide the baffle
filter into the hood. Push the baffle filter
upward. Slide forward. Pull
downward. Fit into place.
13. For bottom casing, repeat above steps.
Refer to page 16.
Final Assembly
14. Turn power ON in control panel. Check
all lights and fan operation.
15. Make sure to leave this manual for the
homeowner.
Figure 16
Figure 17
Figure 18

12
OPERATION INSTRUCTIONS
To operate the fan function
•Press button to choose from speed.
oI= Low speed
oII = Medium speed
oIII = High speed
•Press “OFF” to turn fan off.
To operate the light function
•Press the Light Control to turn lights on and off.

13
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE
PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals,
which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER & OIL TUNNEL BEFORE OIL WILL
OVERFLOW.
1. Remove all the baffle filters and oil tunnel.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
(Note: Baffle Filters are top rack dishwasher safe.)

14
SPECIFICATIONS
MODEL / SIZE CHX9130SB / 30” CHX9130SB-W / 30”
CHX9136SB / 36" CHX9136SB-W / 36”
CHX9142SB / 42” CHX9142SB-W / 42”
CHX9148SB / 48” CHX9148SB-W / 48”
COLOR Commercial Grade Stainless Steel
CONSUMPTION / AMPERE 226W / 2.16A
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 2
DESIGN 18-Gauge Seamless / Satin Finish
FAN TYPE Twin Turbine Impeller
EXHAUST Top 6” Round
Top 7” Round Adapter
CONTROLS Mechanical Push Button
LED LIGHTS 30” - 3W x 2
36” - 3W x 2
42” - 3W x 3
48” - 3W x 3
HOOD DIMENSION
(W x D x H)
(CHX9130SB / CHX9130SB-W) 29-3/4” x 22” x 9-1/8”
(CHX9136SB / CHX9136SB-W) 35-3/4” x 22” x 9-1/8”
(CHX9142SB / CHX9142SB-W) 41-3/4” x 22” x 9-1/8”
(CHX9148SB / CHX9148SB-W) 47-3/4” x 22” x 9-1/8”
OPTIONAL ACCESSORIES
(W x D x H)
1) Model No. SSP30
30” Stainless Steel Back Panel 30” x 1/10” x 32”
2) Model No. SSP36
36” Stainless Steel Back Panel 36” x 1/10” x 32”
WEIGHT (lbs)
Net Gross
(CH
X
9130SB
/
CHX9130SB-W) 53.0 / 62.0 58.0 / 70.0
(CH
X
9136SB
/
CHX9136SB-W) 59.0 / 68.0 64.0 / 76.0
(CH
X
9142SB
/
CHX9142SB-W) 68.0 / 77.0 72.0 / 84.0
(CH
X
9148SB
/
CHX9148SB-W) 77.0 / 86.0 80.0 / 92.0
SPEED Low Medium High
Air Capacity (cfm) 330 510 640
Sone 1.5 3.0 4.8
Specifications information is subject to change without notice.

15
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are estimated.
- FOR UNDER CABINET -
- FOR WALL MOUNT-
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket
MODEL NO.: CH
X
9130SB MODEL NO.: CH
X
9136SB
CH
X
9142SB
CH
X
9148SB

16
MODEL NO.: CH
X
9130SB-W MODEL NO.: CH
X
9136SB-W
CH
X
9142SB-W
CH
X
9148SB-W
***Rear Knockout Holes
BAFFLE FILTERS & BOTTOM CASINGS

17
PARTS LIST
MODEL NO.: CH
X
9130SB
CHX9136SB
CHX9142SB
CHX9148SB
CH
X
9130SB-W
CHX9136SB-W
CHX9142SB-W
CHX9148SB-W
HOOD
NO. DESCRIPTION MODEL /SIZE PART NO.
1 7” Round Adapter C1-0505-0004
2 6” Round Plastic Exhaust C1-0505-0001
3 Plastic Plate C1-0507-0201
4 Hood Casing CHX9130SB/ CHX9130SB-W BR10-1930A
CHX9136SB/ CHX9136SB-W BR10-1936A
CHX9142SB/ CHX9142SB-W BR10-1942A
CHX9148SB/ CHX9148SB-W BR10-1948A
5 LED Light C1-0403-0306
6 Transformer Support C1-0201-1930
7 Control Unit C1-0405-0303
8 Capacitor C1-0401-0120-02
9 Light Transformer C01-0402-D001
10
A
B
Air Chamber
Air Chamber (Top) CHX9130SB/ CHX9130SB-W C1-0101-0880
CHX9136SB/ CHX9136SB-W
CHX9142SB/ CHX9142SB-W C1-0101-1542
CHX9148SB/ CHX9148SB-W
Air Chamber (Side) CHX9130SB/ CHX9130SB-W C1-0102-1930
CHX9136SB/ CHX9136SB-W
CHX9142SB/ CHX9142SB-W C1-0102-1942
CHX9148SB/ CHX9148SB-W
11 Screw (TS 1/4 x 7/16) C1-0703-0001
12 Motor (Right) BRC1-0301-0120-17A
13 Motor (Left) BRC1-0301-0120-18A
14 Turbine Impeller (Right) C1-0251-0880-01
15 Turbine Impeller (Left) C1-0251-0880-02
16 Oil Tunnel Seal C1-0502-0301
17 Oil Tunnel C1-0502-0203
18 Impeller Plastic Cover C1-0251-0001
19 Safety Screen C1-0602-0103
20 Safety Screen Screw C1-0705-0001
21
A
B
C
D
Bottom Casing
2” Wide CHX9130SB/ CHX9130SB-W B101-1930-09
5” Wide CHX9136SB/ CHX9136SB-W B101-1936-09
1-1/2” Wide CHX9142SB/ CHX9142SB-W B101-1942-09
4-1/2” Wide CHX9148SB/ CHX9148SB-W B101-1948-09
22 Baffle Filter B101-1930-15
DUCT COVER
NO. DESCRIPTION MODEL /SIZE PART NO.
01 Duct Cover-Mounting Bracket C1-0203-0002
02 Screw (TS 4 x 8 mm) C1-0708-0006
03 Duct Cover 12-02000-430-51
04 Hood-Mounting Bracket C1-0221-0330
05 Screw (3/16” x 3/8”) C1-0707-0001
06 Rubber Stand C1-0511-0201
07 Screw (TS 4 x 8 mm) C1-0708-0006

18
MODEL NO.: CH
X
9130SB
CHX9136SB
CH
X
9130SB-W
CHX9136SB-W
