KOBE RAX9430SQB-2 Troubleshooting guide

KOBE Range Hoods
Brillia Series
ISX21 SQB-2 Series
Model No.
RAX9430SQB-2 (30”)
RAX9430SQB-DC30-2 (30”)
RAX9430SQB-DC47-2 (30”)
RAX9436SQB-2 (36”)
RAX9436SQB-DC30-2 (36”)
RAX9436SQB-DC47-2 (36”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

IMPORTANT
READ THIS FIRST
READ BEFORE INSTALLATION
1. Carefully check all contents of package(s).
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, email [e-mail]
or call 1-626-775-8880, toll free 1-877-289-5623.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1.PRODUCT HAS BEEN INSTALLED
2.KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3.MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 1
COMPONENTS OF PACKAGE.................................................................................................. 3
INSTALLATION.......................................................................................................................... 4
OPERATING INSTRUCTIONS................................................................................................... 7
MAINTENANCE......................................................................................................................... 8
SPECIFICATIONS ..................................................................................................................... 9
MEASUREMENTS & DIAGRAMS.............................................................................................10
PARTS LIST..............................................................................................................................11
CIRCUIT DIAGRAM..................................................................................................................13
TROUBLE SHOOTING.............................................................................................................14
WARRANTY .............................................................................................................................15
WARRANTY INFORMATION FORM.........................................................................................17
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRI NG MU S T BE DO NE BY A PRO FESSIO NAL AND IN
ACCORD ANCE W I TH NATIO NAL A N D LO CAL E L ECTRI CAL CO DES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE
-
This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS’ authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING:TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
•NEVER PICK UP A BURNING PAN – You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

3
CONTENTS OF PACKAGE
(Must keep all material for returns or refunds)
RAX94 SQB-2 Series Range Hood Box
{A} Range Hood Body –1
{B} 2-pc Duct Cover –1
{C} Duct Cover Mounting Bracket –2
{D} Warranty Registration Card –1
{E} Quick Reference Guide –1
{F} Baffle Filters x 2 (30” hood)
x 3 (36” hood)
{G} 6” Round Vent Adapter
(for vertical venting)
{H} Aluminum Duct Pipe
{I} Flapper (2 pcs)
{J} Screw Package
{A}
{B} {C}
{D} {E}
{F} {G}
{H} {I}
{J}

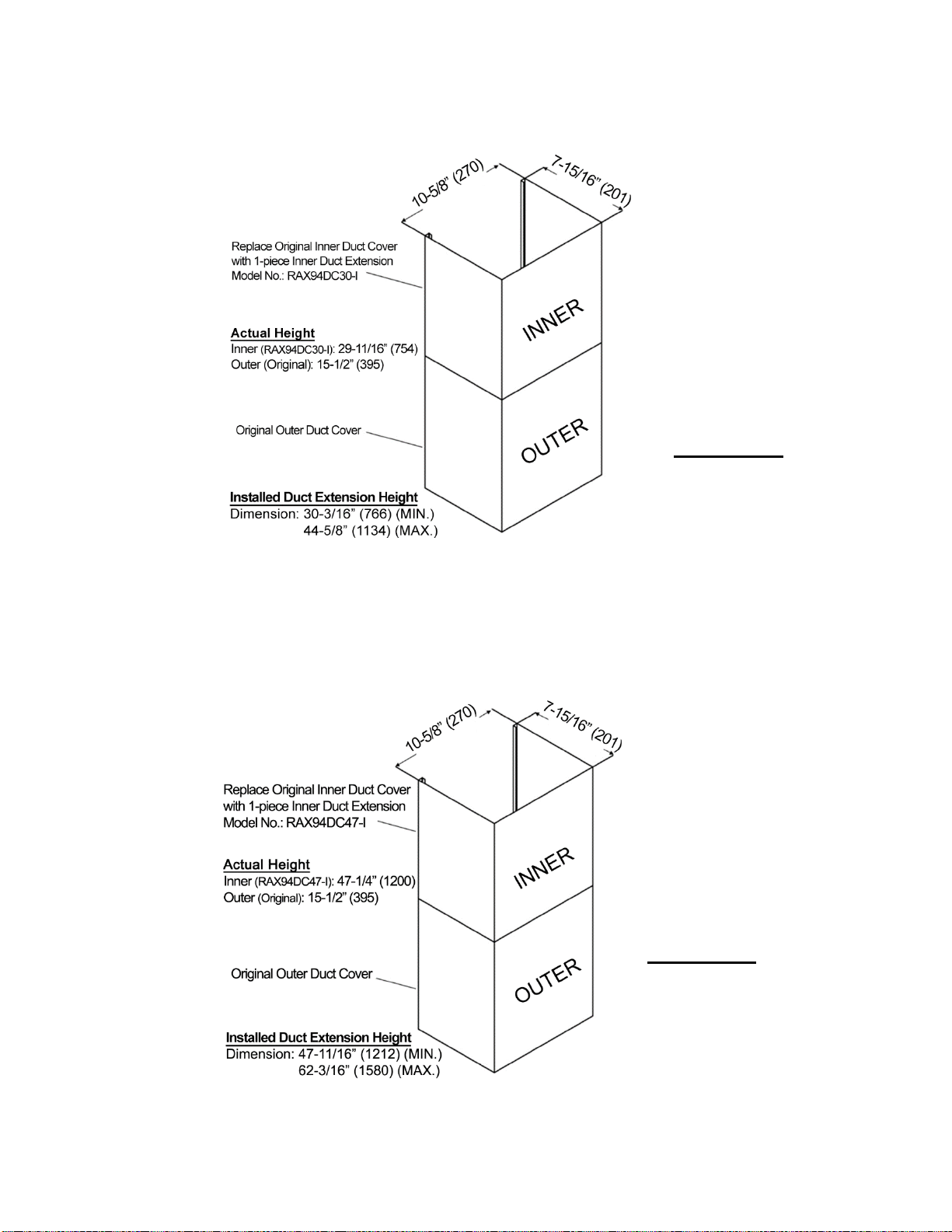

RAX94DC30-I (1-piece Inner Duct Extension)
(Included in RAX94 SQB-DC30-2 only)
{K} 1-piece Inner Duct Extension
Model No.: RAX94DC30-I
{K}
RAX94DC47-I (1-piece Inner Duct Extension)
(Included in RAX94 SQB-DC47-2 only)
{L} 1-piece Inner Duct Extension
Model No.: RAX94DC47-I
{L}
⧫FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com.
Inner duct cover
Outer duct cover
4 x 8 mm
QTY: 6 PCS
(Pre-attached to Vent
Adapter)
4 x 35 mm
QTY: 6 PCS
12 x 40 mm
QTY: 6 PCS
(For sheet rock only)
5 x 12 mm
QTY: 6 PCS
Pre-attached to
Vent Adapter

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1 (all calculations are in inches.)
- FOR WALL MOUNT -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Preferred Height of Counter Top
to Hood Bottom (Minimum
26"to 30")
D = Height of Hood
E = Height of Duct Cover [F –D]
F = Height of the Hood Installation
[A –(B+C)]
SAFETY WARNING
•HOOD MAY HAVE SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING
ANY PARTS FOR INSTALLING, CLEANING, OR SERVICING.
•BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY
OCCUR. USING HAND TOOLS IS RECOMMENDED. DO NOT OVER TIGHTEN SCREWS.
•MAKE SURE TO PREVENT ANY DEBRIS FROM ENTERING THE VENT OPENING TO AVOID
DAMAGE OR MALFUNCTION.
WALL MOUNT INSTALLATION
**Installation videos available at www.koberangehoods.com**
1. Read any provided document(s).
2. Test the range hood by temporarily connecting to an outlet and turning ON the fan and lights.
3. If you run into any problems, contact KOBE Range Hoods.
4. This range hood has top 6” round exhaust.
5. Decide the location of the venting pipe from the hood to the outside. A straight, short vent run will
allow the hood to perform more efficiently. Try to avoid elbows, transitions, and long run as much
as possible as this may reduce the performance of the hood. Make sure that the duct work leads
to the outside.
Before Installation
Venting Requirements

5
6. It is recommended to use metal/aluminum duct/pipe with a
uniform size (ex. 6” round pipe from range hood to the outside).
7. If an elbow is necessary, a minimum of 12” straight run is
necessary before the elbow.
8. Clearance is the distance between the cooktop and the bottom
of the range hood. The recommended minimum clearance for
this model is 26” and the maximum clearance is 30”.
9. It is important to install the hood at the recommended
clearance. Installing too low could result in damage and/or fire
hazard while installing too high may result in reduced
performance and efficiency.
10. The first step is to secure the mounting screws on the wall. It
is important that the screws are hitting the wall studs. If
necessary, install a cross lumber frame in the wall as shown in
figure 1.
11. Attach the mounting screws on the wall, leaving about 1/8 of
an inch between the wall and the end point of the screws since
this is where you will hang your hood. Refer to figure 2.
12. Align the hood-mounting bracket to the screws on the wall and
hook into place. Then tighten the screws to secure the hood to
the wall.
CAUTION: MAKE SURE THE HOOD IS SECURE
BEFORE RELEASING.
13. Attach the vent adapter to the exhaust opening using the 4 x 8
mm screws.
14. Connect the pipe onto the vent adapter and seal the joint with
duct tape. Make sure that it is completely air tight.
15. Attach the two ductcover mounting bracket on the wall as seen
on figure 4.
16. Place the inner duct cover and outer duct cover over the range
hood.
17. Secure the outer duct cover to the range hood body with the 5
x 12 mm screws provided.
18. Pull the inner duct cover up until it aligns properly to the duct
cover mounting bracket, then secure to the duct cover
mounting bracket with 5 x 12 mm screws. Refer to figure 3 and
4.
19. Connect the range hood to an outlet.
20. If hardwired is desired, cut off the plug and connect three wires
(black, white, green) to the outlet wires and cap with wire
connectors. Connect the wires according to color (ex: black to
black).
Clearance
Hood Installation
Ductwork
Duct Cover
Electrical Wire
Figure 1
Figure 2
Figure 3
Figure 4
Duct Cover
Mounting Bracket

6
21. Remove any protective film off the hood, if any.
22. Before using, make sure that any accessories such as filters are properly installed where
applicable.
23. Test the range hood to see if it is working properly.
THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
Finish

7
OPERATING INSTRUCTIONS
3-Speed Mechanical Control
Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while
cooking. Adjust speed as necessary.

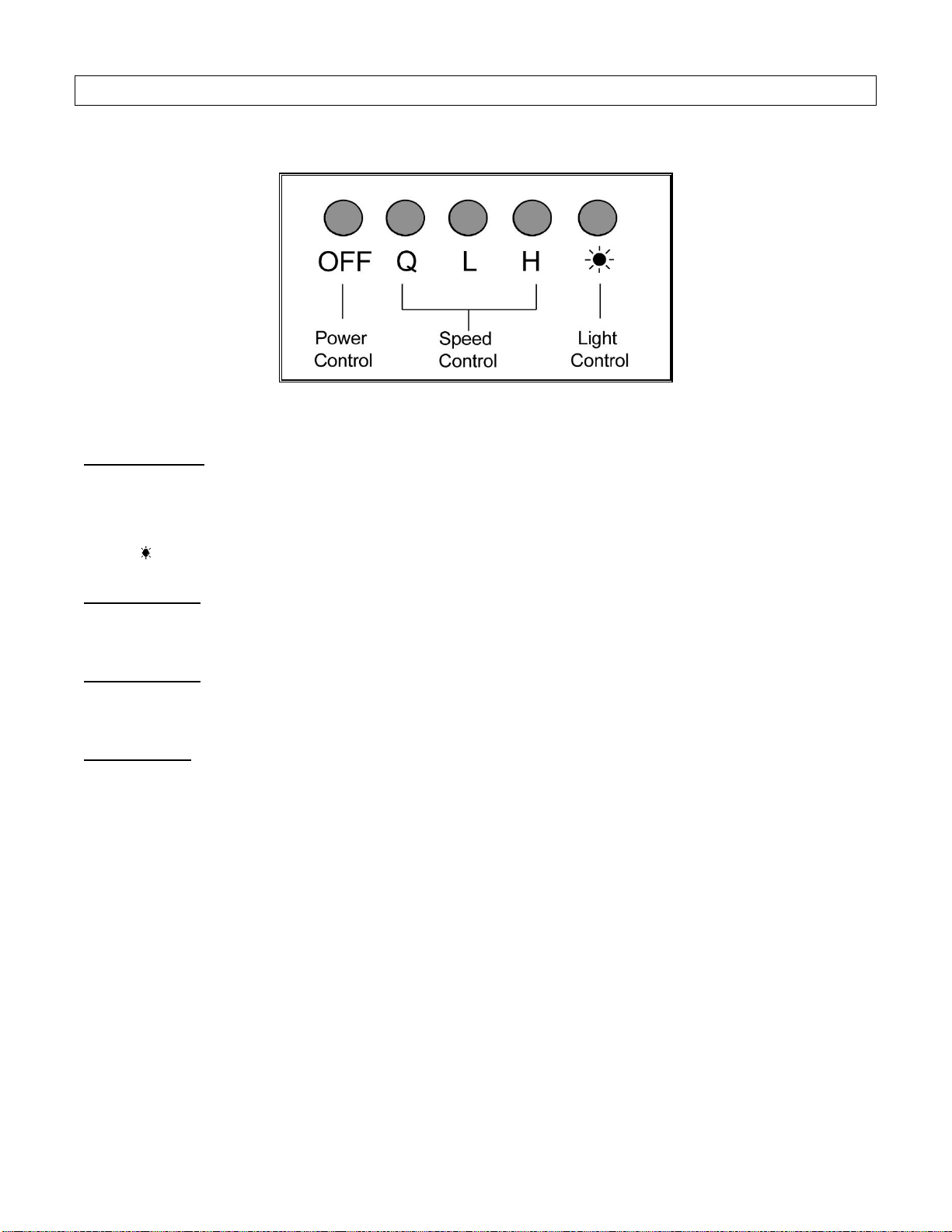

Button Control
OFF = Turns the range hood OFF.
Q = Lowest fan speed (QuietMode).
L = Middle fan speed (Low).
H = Highest fan speed (High).
= Turns the lights ON/OFF.
Power Control
To turn the hood off, press the OFF button once while it is ON.
Speed Control
Press the speed buttons (Q, L, and H) to increase/decrease the fan speed level.
Light Control
Press the light button to turn ON/OFF the lights.

8
MAINTENANCE
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to hood
finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use
dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO
PREVENT OVERFLOW.
1. Remove all the baffle filters, spacers and oil tunnel. Note: Not all models have spacers and oil
tunnels.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES (Note: Baffle Filters are top rack dishwasher safe.)

9
SPECIFICATIONS
MODEL / SIZE
For 30” model For 36” model
RAX9430SQB-2 RAX9436SQB-2
RAX9430SQB-DC30-2 RAX9436SQB-DC30-2
RAX9430SQB-DC47-2 RAX9436SQB-DC47-2
MATERIAL
20-Gauge Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
120W / 2.5A
NUMBER OF BLOWER
1
DESIGN
Seamless / Satin Finish
BLOWER TYPE
Single Horizontal Squirrel Cage
EXHAUST
Top:
6"Round (available only with a 6” Round Vent Adapter [provided])
CONTROLS
Mechanical Push Button (3-Speed)
LIGHTS
3-watt LED light x 2
HOOD BODY DIMENSION
(W x D x H)
RAX9430SQB-2 / RAX9430SQB-DC30-2 / RAX9430SQB-DC47-2
29-3/4” x 20-1/2” x 12-3/16”
RAX9436SQB-2 / RAX9436SQB-DC30-2 / RAX9436SQB-DC47-2
35-1/4” x 20-1/2” x 12-3/16”
DUCT COVER DIMENSION
(W x D x H)**
Standard Duct Cover (2 pc. adjustable)
RAX94DC-2 10-5/8” x 7-15/16” x (16-1/8” ~ 30-5/16”)
Inner Duct Extension (1 pc. - Replaces Standard Inner Duct Cover)
RAX94DC30-I 10-5/8” x 7-15/16” x (30-3/16”~ 44-5/8”)
Duct Extension Set (1 pc. - Replaces Standard Inner Duct Cover)
RAX94DC47-I 10-5/8” x 7-15/16” x (47-11/16” ~ 62-3/16”)
HOOD WEIGHT (lbs)***
Net
Gross
RAX9430SQB-2 (30”)
39.0
49.0
RAX9436SQB-2 (36”)
42.0
54.0
SPEED
QuietMode™
Low
High
Air Capacity (CFM)
280
450
680
Sone* (dB)
1.0 (40)
2.2 (51)
5.0 (63)
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Duct cover height when duct cover is installed.
***Hood weight includes standard duct cover.
****Specifications subject to change without notice.

10
MEASUREMENTS & DIAGRAMS
***All inch measurements are converted from millimeters. Inch measurements are estimated.
***All measurements in ( ) are millimeters.
MODEL NO.:
RAX9430SQB-2 (30”)
RAX9436SQB-2 (36”)

11
MODEL NO.:
RAX9430SQB-DC30-2 / RAX9436SQB-DC30-2
MODEL NO.:
RAX9430SQB-DC47-2 / RAX9436SQB-DC47-2
Extension Duct Cover
RAX94DC30-I
* For the diagram of hood
dimension, please refer to
Page 9.
Extension Duct Cover
RAX94DC47-I
* For the diagram of hood
dimension, please refer to
Page 9.

12
PART LIST
MODEL NO.:
RAX9430SQB-2 (30”)
RAX9430SQB-DC30-2 (30”)
RAX9430SQB-DC47-2 (30”)
RAX9436SQB-2 (36”)
RAX9436SQB-DC30-2 (36”)
RAX9436SQB-DC47-2 (36”)
NO.
DESCRIPTION
MODEL / SIZE
PART NO.
1
Duct Cover-Mounting Bracket
02-009
2
Duct Cover
RAX-02-002
3
6” Exhaust Vent
02-003
4
Control Unit
02-006
5
Blower System
YYC-148-3
6
Baffle Filter
02-007
7
LED Lights (3W)
02-005
8
Capacitor (12uF, 250 VAC)
02-004
9
LED Driver
02-001

13
MODEL NO.:
RAX9430SQB-2 (30”)
RAX9430SQB-DC30-2 (30”)
RAX9430SQB-DC47-2 (30”)
RAX9436SQB-2 (36”)
RAX9436SQB-DC30-2 (36”)
RAX9436SQB-DC47-2 (36”)

14

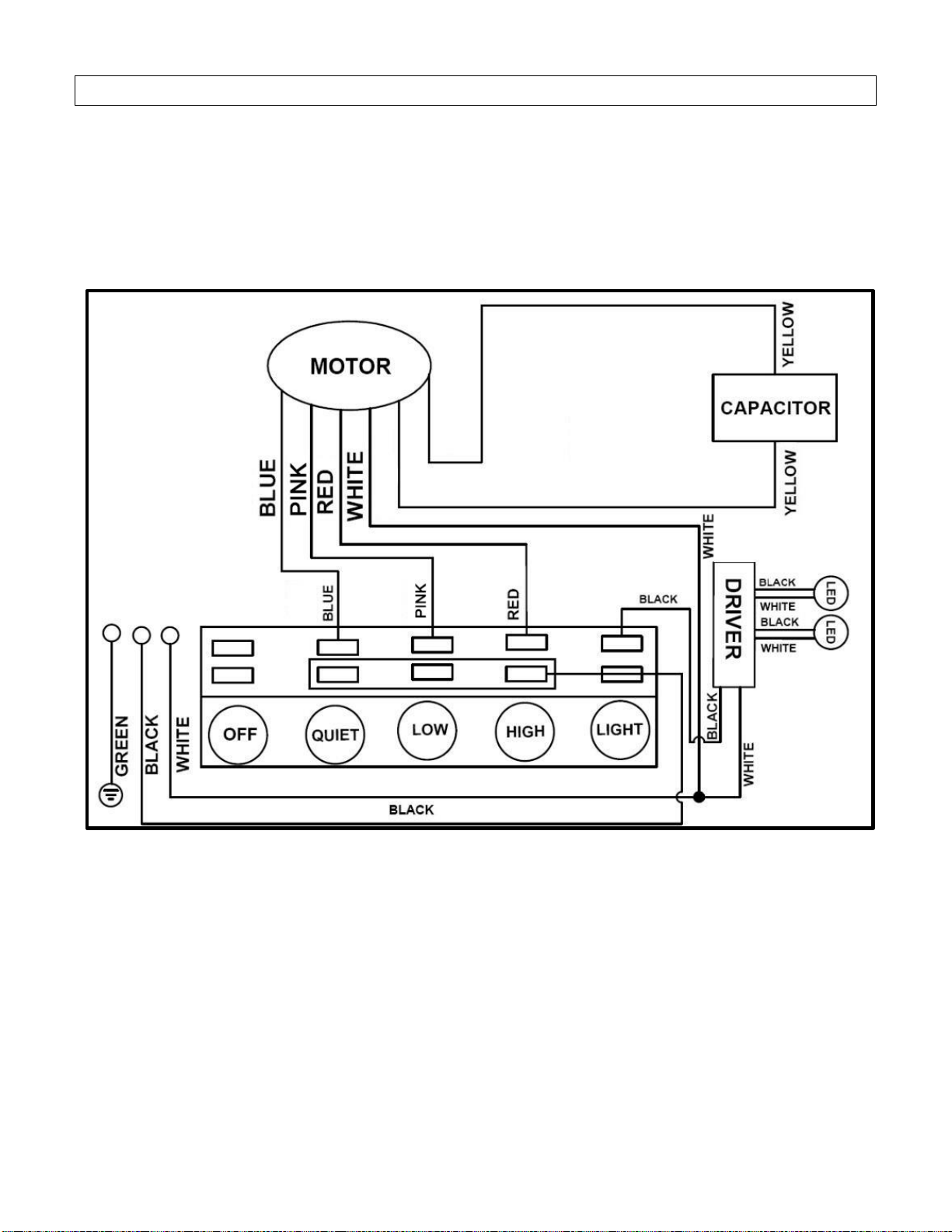

CIRCUIT DIAGRAM
MODEL NO.:
RAX9430SQB-2 (30”)
RAX9430SQB-DC30-2 (30”)
RAX9430SQB-DC47-2 (30”)
RAX9436SQB-2 (36”)
RAX9436SQB-DC30-2 (36”)
RAX9436SQB-DC47-2 (36”)

15
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After
Installation,
both motors
and lights are
not working.
The power is not on.
Make sure the circuit breaker and the
unit’s power is ON. Use a voltage meter
to check the power supply.
The wire connection is not secure.
Check and tighten wire connection.
The control switch is defective.
Replace the control switch.
Lights are
working, but
motor(s) is
not.
The motor(s) is defective.
Replace the motor.
The capacitor(s) is defective.
Replace capacitor(s).
The control switch is defective.
Replace the control switch.
The range
hood is
vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage
and air chamber.
The turbine impeller/squirrel cage is
not balanced.
Replace the turbine impeller/squirrel
cage.
Hood is not secured in place.
Check the installation of hood, tighten
the mounting bracket.
The motor is
working, but
the lights are
not working.
LED light fixture(s) is defective.
Replace LED light fixture(s)
The light wiring(s) is loose.
Check wire continuity from Control
Switch to LED Driver to LED light
fixture(s).
The control switch or LED light
driver is defective.
Replace the control switch or LED light
driver.
The range
hood is not
venting out
correctly.
The range hood is installed outside
of the manufacture recommended
clearance.
Adjust the clearance between the range
hoods and cook top to 26” to 30”. For
Island range hood, the clearance
between the range hoods and cook top
is 30” to 36”.
There is no make-up air inside the
house.
Open the window to enhance the
performance of the range hood by
creating a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct
work.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the
manufacture suggestion.
Cold air is
coming into
the home.
The pipe connection is not properly
sealed.
Check the pipe installation.
The damper is not properly installed
or is missing from the installation.
Check the damper installation.
The damper is not installed.
Installing the damper will help eliminate
air backflow.

16
WARRANTY
WARRANTY CERTIFICATE
In order to obtain warranty service, you must provide proof of original purchase from a
KOBE authorized Dealer. Please keep a copy of your original invoice as proof of
purchase.
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES:
For one year from the date of your original invoice from a KOBE authorized dealer, we will repair
any parts or components free of charge that failed due to manufacturing defects. KOBE reserves
the right to replace, rather than repair the product free of charge at our sole discretion.
It is your sole responsibility to ensure the product is readily accessible for the service technician
to perform repairs. The service technician will not, under any circumstance, remove, alter
or modify any fixture built around and/or connected to the product to gain access to
perform repairs.
TWO-YEAR LIMITED PARTS WARRANTY ON KOBE BRILLIA SERIES:
For two years from the date of your original invoice from a KOBE authorized dealer, we will
provide non-consumable replacement parts or components free of charge that failed due to
manufacturing defects. Consumable parts such as lights bulbs, filters, fuses, and oil cups are
not covered by this warranty.
WHAT IS COVERED:
This warranty is valid in the United States and Canada. It is non-transferable and applies only to
the original purchaser and does not extend to subsequent owner of this product. In Hawaii,
Alaska and Canada, this warranty is limited. There may be additional shipping charges for parts
and service technician travel costs in remote areas or locations 30 miles outside of KOBE
authorized service area.
WHAT IS NOT COVERED:
1. Normal wear and tear, regular service and maintenance required for the product.
2. Consumable parts such as light bulbs, filters, fuses, and oil cups.
3. Chips, scratches or dents due to abuse or misuse of the product, use of corrosive and
abrasive cleaning products.
4. Damages caused by accident, fire, flood and other Acts of God.
5. Services in remote areas or locations 30 miles outside of KOBE authorized service area.
6. Labor cost incurred in connection with the removal of range hood, and reinstallation of
replacement range hood, nor does it cover any other contingent expenses.
7. Scratches inside the hood, back of the baffle filter, and inside the duct cover.

17
THIS WARRANTY WILL BE VOIDED WHEN:
1. Improper installation and failure to follow installation instructions.
2. Any repair, alteration, modification not authorized by KOBE.
3. Duct alteration, modification and connection.
4. Incorrect electric current, voltage or wiring.
5. Improper usage of the product such as commercially, outdoor or other usage other than
its intended purpose which is residential indoor usage only.
6. Product is purchased from an unauthorized KOBE dealer.
7. Product is damaged due to negligence, misuse, abuse, accident.
If we determine that the warranty exclusions listed above applies or if you fail to provide all
necessary documentation for warranty service, you will be responsible for all expenses
associated with the requested service, including parts, labor, shipping, travelling, and any other
expense related to the service request.
TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS
SERVICE CENTER:
From the 48 contiguous states:
Email (best): [email protected]
Phone: [phone]
Toll Free: 1-877-BUY-KOBE (289-5623)
From Alaska, Hawaii, and Canada:
Email (best): [email protected]
Phone: [phone]
