KOBE RA3830SQ Troubleshooting guide

KOBE Brand Range Hood
Model No. RA3830SQ
RA3836SQ
RA-038 SERIES – 5” HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS..................................................................................1

COMPONENTS OF PACKAGE.................................................................................................3 
INSTALLATION ........................................................................................................................4 
UNDER THE CABINET INSTALLATION ...........................................................................5 
STAND ALONE INSTALLATION........................................................................................8 

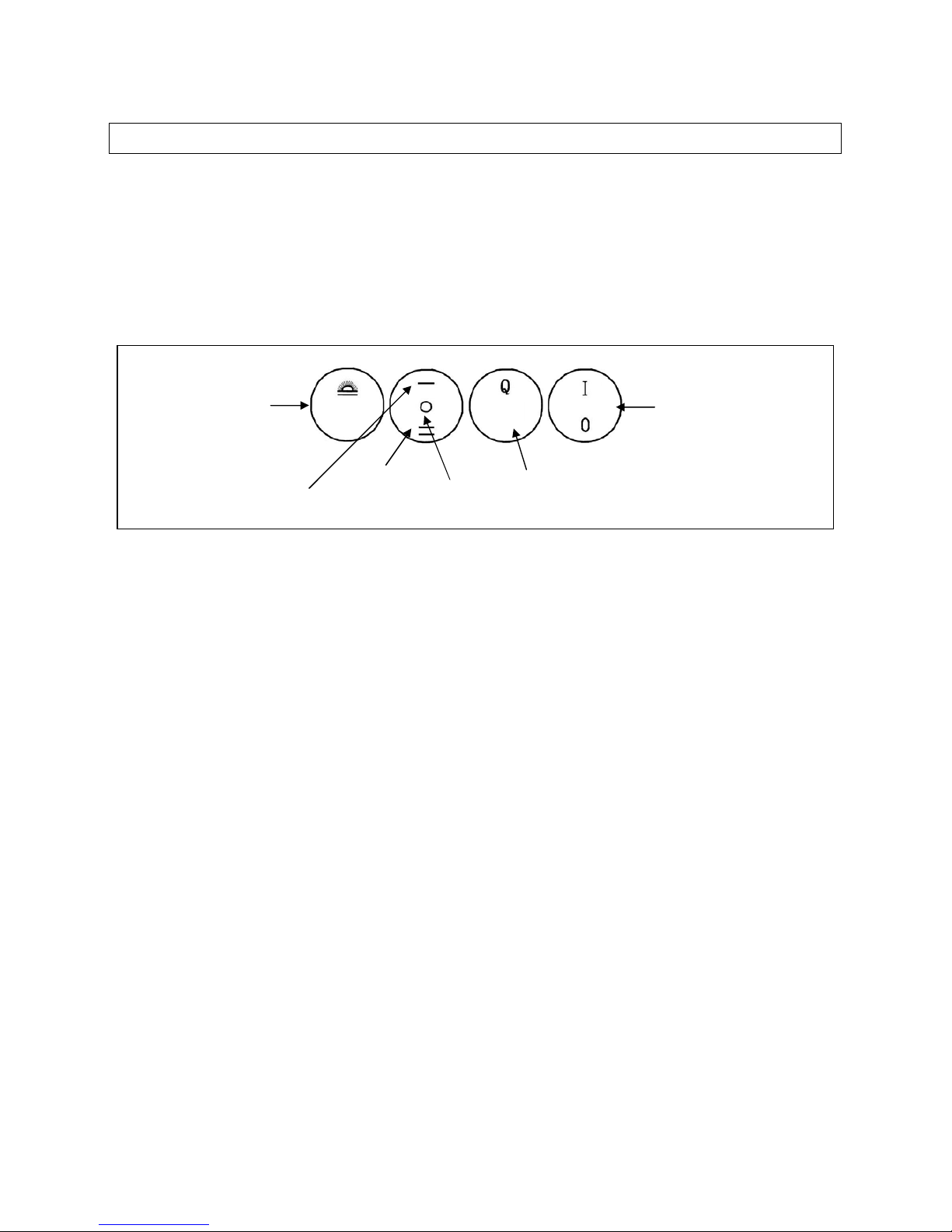

OPERATING INSTRUCTIONS ...............................................................................................11 

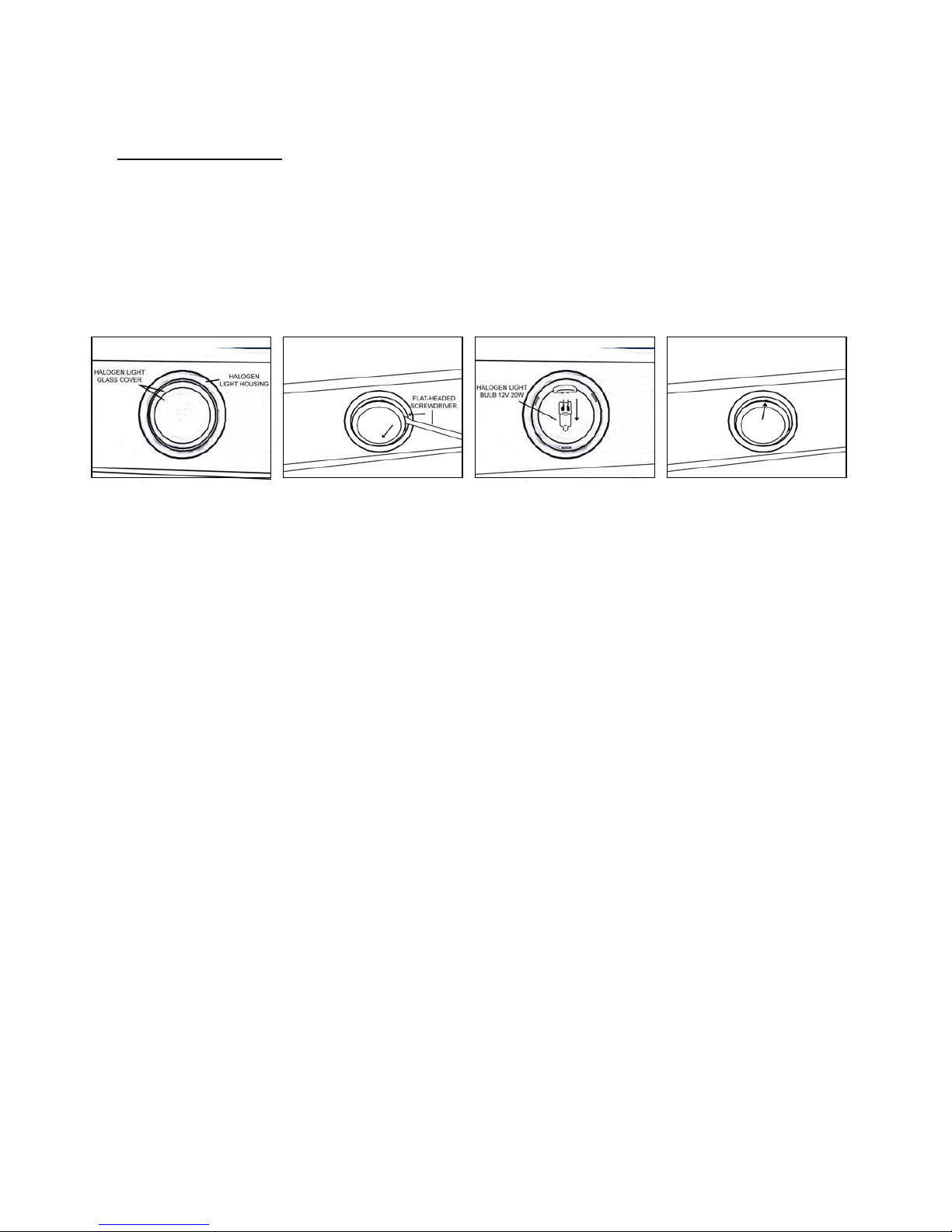

MAINTENANCE .....................................................................................................................12 
SPECIFICATIONS ...................................................................................................................14 
MEASUREMENTS & DIAGRAMS.........................................................................................15 
PARTS LIST.............................................................................................................................16 
CIRCUIT DIAGRAM...............................................................................................................18 
TROUBLE SHOOTING ...........................................................................................................19 
DISCLAIMER..........................................................................................................................20 
WARRANTY............................................................................................................................21 
PRODUCT REGISTRATION ...................................................................................................23 
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE -
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

3

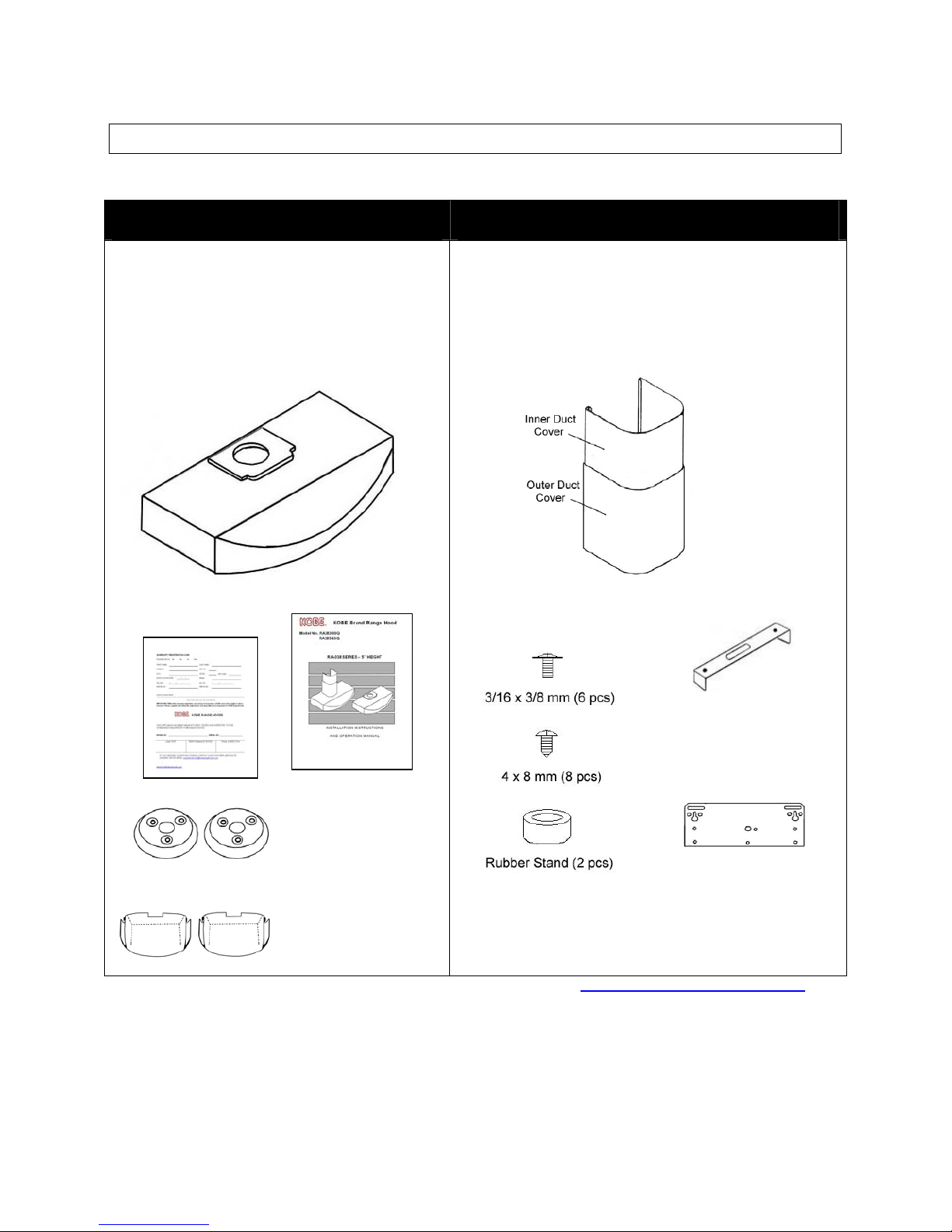

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box Duct Cover Box (Sold Separately)
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Instructions Manual
{D} Oil Containers (Round)
{E} Oil Containers (Oval)
{A}
{B} {C}
{D}
{E}
{F} KOBE Duct Cover (Model No. RA1020DC)
{G} Screws Package
{H} Duct Cover-Mounting Bracket
{I} Hood-Mounting Bracket
{F}
{G} {H}
{I}
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

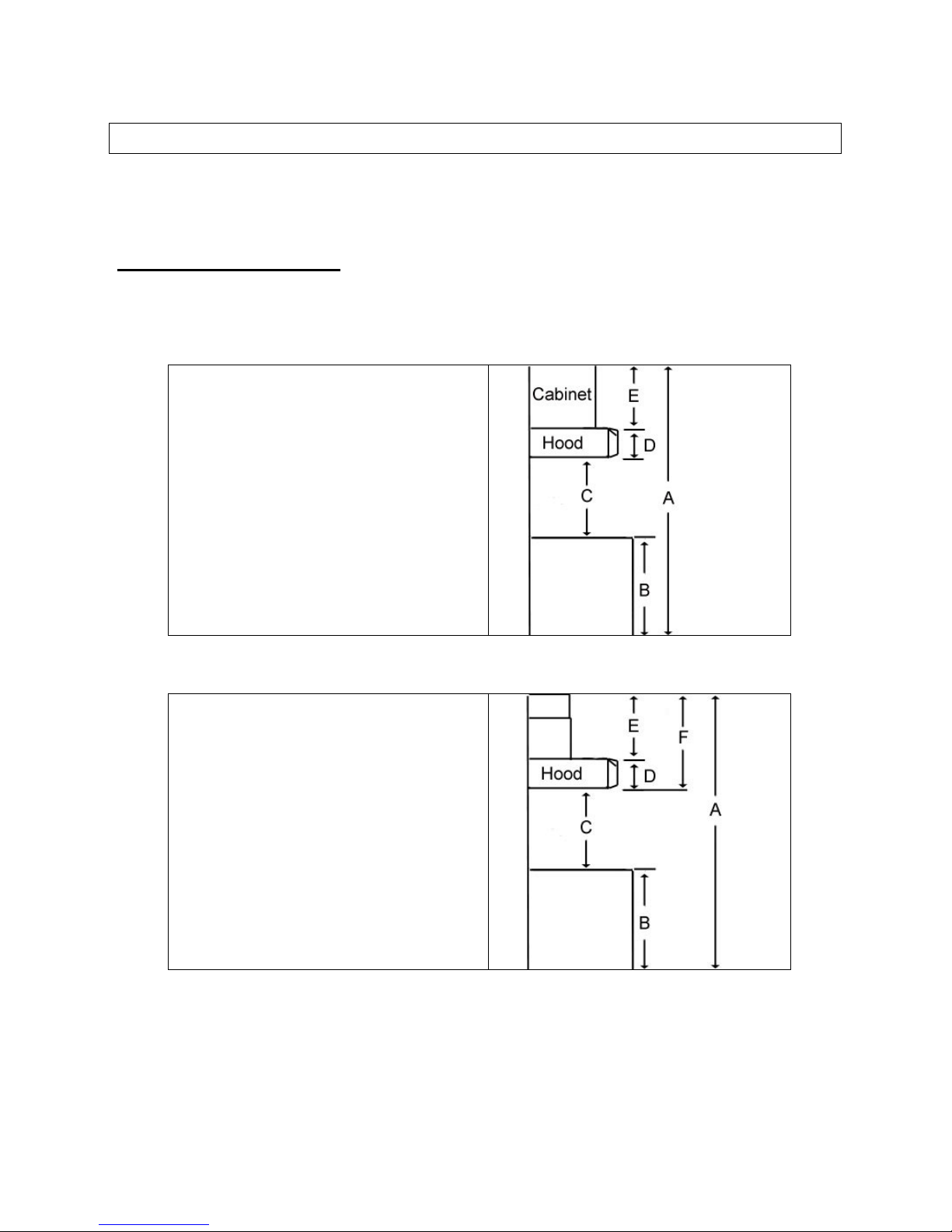

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Recommended
27” to 30”)
D = Height of Hood
E = Height of the Cabinet
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Recommended
27” to 30”)
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]

5

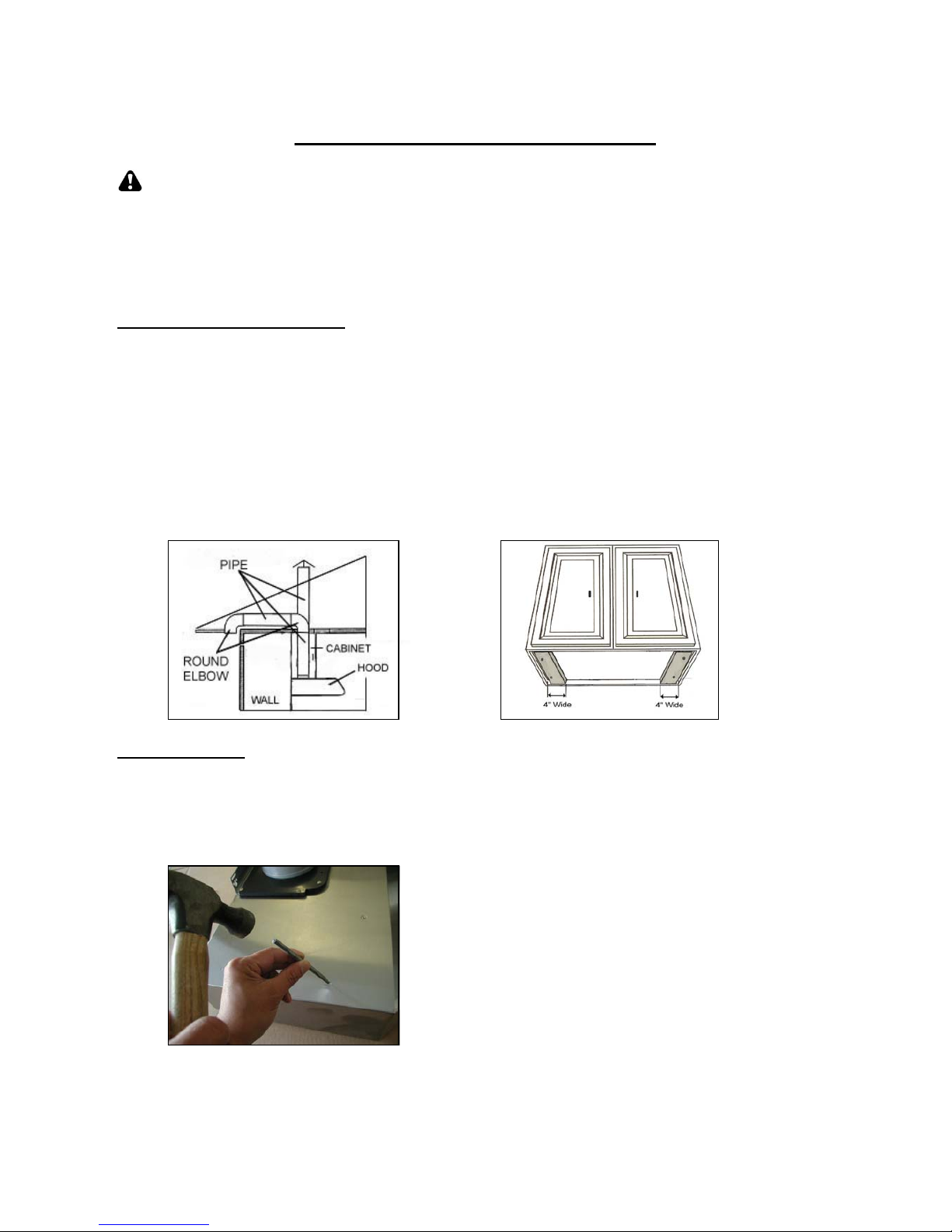

UNDER THE CABINET INSTALLATION
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.
- Temporarily wire the hood to test for proper operation before installing.
- Peel protective film off the hood (if any).
- For installing under the cabinets with recessed bottom, attach 4-inch wide wood filler
strips (not included) on each side. Refer to Figure 2.
- Measure and create access opening for electrical wires under the cabinet.
Figure 1 Figure 2
Hood Installation
CAUTION: If required to move the cooking range to install the hood, turn off the power on an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. Puncture the knockout holes. Refer to Figure 3.
Figure 3

6
2. NOTE: Be careful when using electrical screwdriver, damage on the hood might occur.
Unscrew the six screws on the bottom casing. Remove the bottom casing as shown on
Figure 4. If necessary, arrange the electrical wire to run through the 1” diameter hole on
the hood.
3. Using references on Table 1 and measurement on page 16 center the hood in place
beneath the cabinet and flush with the front of the cabinet. Refer to Figure 5.
Figure 4 Figure 5
4. Draw electrical wires through cabinet access opening
5. Place screws (not provided) into the exact center of each hole. Make sure all screws are
in place before tightening screws. CAUTION: MAKE SURE THE HOOD IS SECURE
BEFORE RELEASING.
Ductwork Installation
6. Use aluminum or steel pipe to connect the plastic exhaust on the hood to the ductwork
above. Use duct tape to make all joints secure and air tight.
Wiring to Power Supply
7. Connect the electrical wires.
- If necessary to hide the electrical wire connections, push wires back into the hood.
Access the wire connections underneath the hood by removing the bottom casing from
the six screws. Before reattaching the bottom casing, make sure wires do not slip
between motors, impellers, or any moving parts to prevent any damage.

7
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE
SURE THIS IS DONE BY A SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON ACCIDENTALLY.
- Connect three wires (black, white and green) to house wires and cap with wire
connectors.
- Connect according to color: black to black, white to white, and green to green.
- Test the operation of the hood before moving on to next step. Make sure power is
supplied to the hood.
Install Accessories
8. Place the oil container (round) into keyhole under each safety screen. Turn clock-wise
until firmly in place. Refer to Figure 6.
9. Slide oil container (oval) into plastic slot behind each safety screen. Refer to Figure 7.
Figure 6 Figure 7
Final Assembly
10. Turn power ON in control panel. Check all lights and blower operation.
11. Make sure to leave this manual for the homeowner.

8
STAND ALONE INSTALLATION
***This installation only applied with the purchase of a duct cover.
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the ductwork and locations.
Refer to Figure 8.
- Decide the location of the venting pipe from the hood to the outside.
- A straight, short venting run will allow the hood to perform more efficiently.
- Try to avoid as much transitions, elbows, and long run as possible. This may reduce the
performance of the hood.
- Use duct tape to seal the joints between pipe sections.
- If necessary, prepare back wall frame with cross framing lumber for secure installation.
Using references on Table 2 and measurement on page 16 decide the level of the
lumber. Refer to Figure 9.
Figure 8 Figure 9
Hood Preparation before Installation
- Temporarily wire the hood to test for proper operation before installing.
- Peel protective film off the hood and the duct cover (if any).

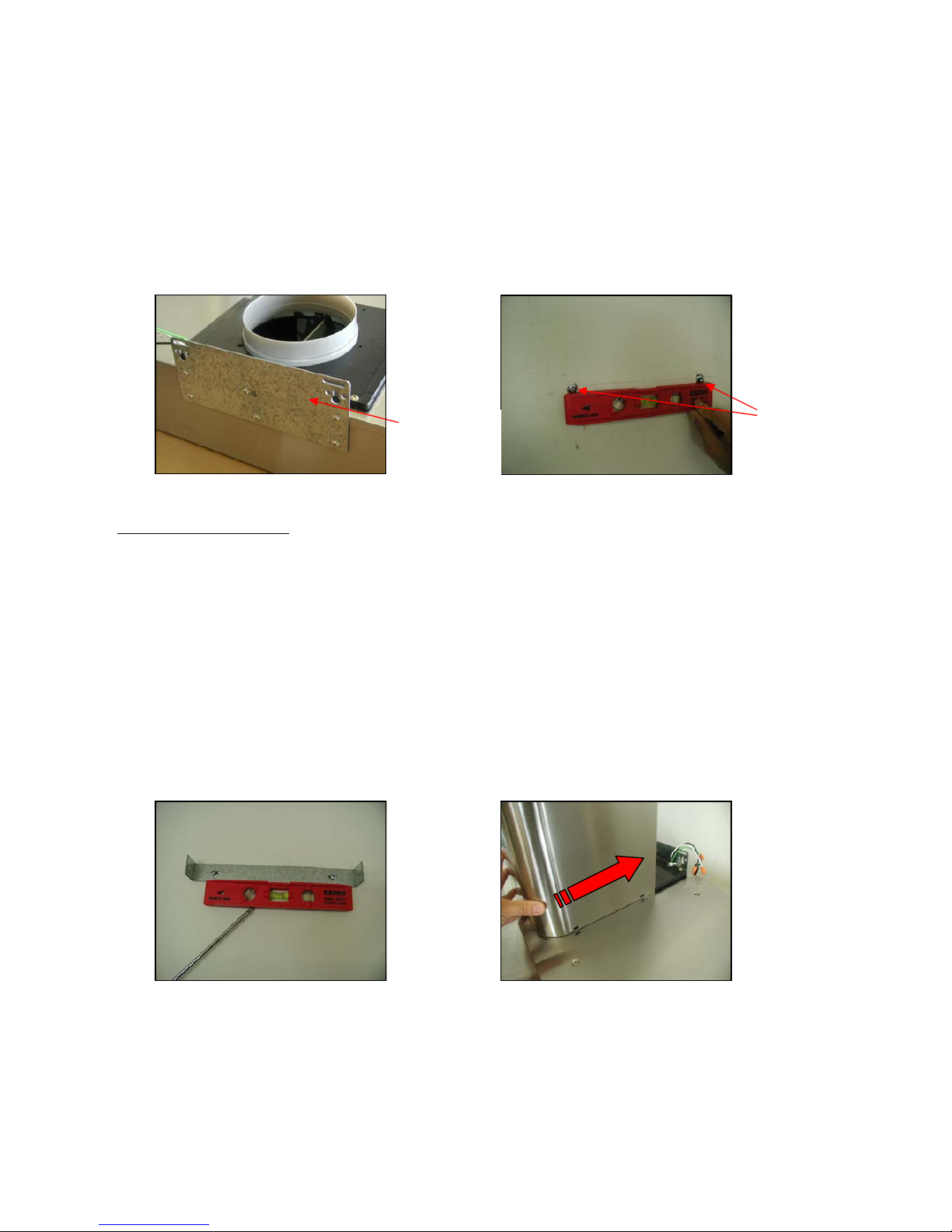

- Attach the hood-mounting bracket behind the hood with (3/16x3/8 mm) screws
(provided) as shown on Figure 10.
Hood Installation
CAUTION: If required to move the cooking range to install the hood, turn off the power on an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.

9
1. If necessary, attach two rubber stands (provided) with two (4x8 mm) screws (provided) to
the back of the hood.
2. Using references on Table 2 and measurement on page 16, decide the leveling point of
the hood. Position two mounting screws (not provided) on the wall, leaving 1/8” away
from the wall as shown on Figure 11.
3. Align hood-mounting bracket to the two screws on the wall and hook hood into place.
Tighten screws to secure hood to the wall. CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Figure 10 Figure 11
Duct Cover Installation
4. Mark the position of the duct cover-mounting bracket. Use calculation Efrom Table 2 for
reference. Attach and secure duct cover-mounting bracket with two screws (not
provided). Refer to Figure 12. NOTE: Inner duct cover will cover the duct cover-
mounting bracket.
5. Connect electrical wires. Refer to “Wiring to Power Supply.” If necessary to hide the
electrical wire connections, push wires back into the hood. Access the wire connections
underneath the hood by removing the bottom casing from the six screws. Before
reattaching the bottom casing, make sure wires do not slip between motors, impellers, or
any moving parts to prevent any damage.
6. Use aluminum or steel pipe to connect the exhaust opening on the hood to the ductwork
above. Use duct tape to make all joints secure and air tight.
7. Slide the inner duct cover up 2-inch before sliding the entire duct cover onto the hood.
Refer to Figure 13.
Figure 12 Figure 13
8. Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure
inner duct cover with two (4x8 mm) screws (provided) as shown on Figure 14.
9. Fasten outer duct cover to plastic plate on the hood with four (4x8 mm) screws (provided).
Mounting
Screws
Hood-
Mounting
Bracket

10
Figure 14
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Connect three wires (black, white and green) to house wires and cap with wire
connectors.
- Connect according to color: black to black, white to white, and green to green.
- Test the operation of the hood before moving on to next step. Make sure power is
supplied to the hood.

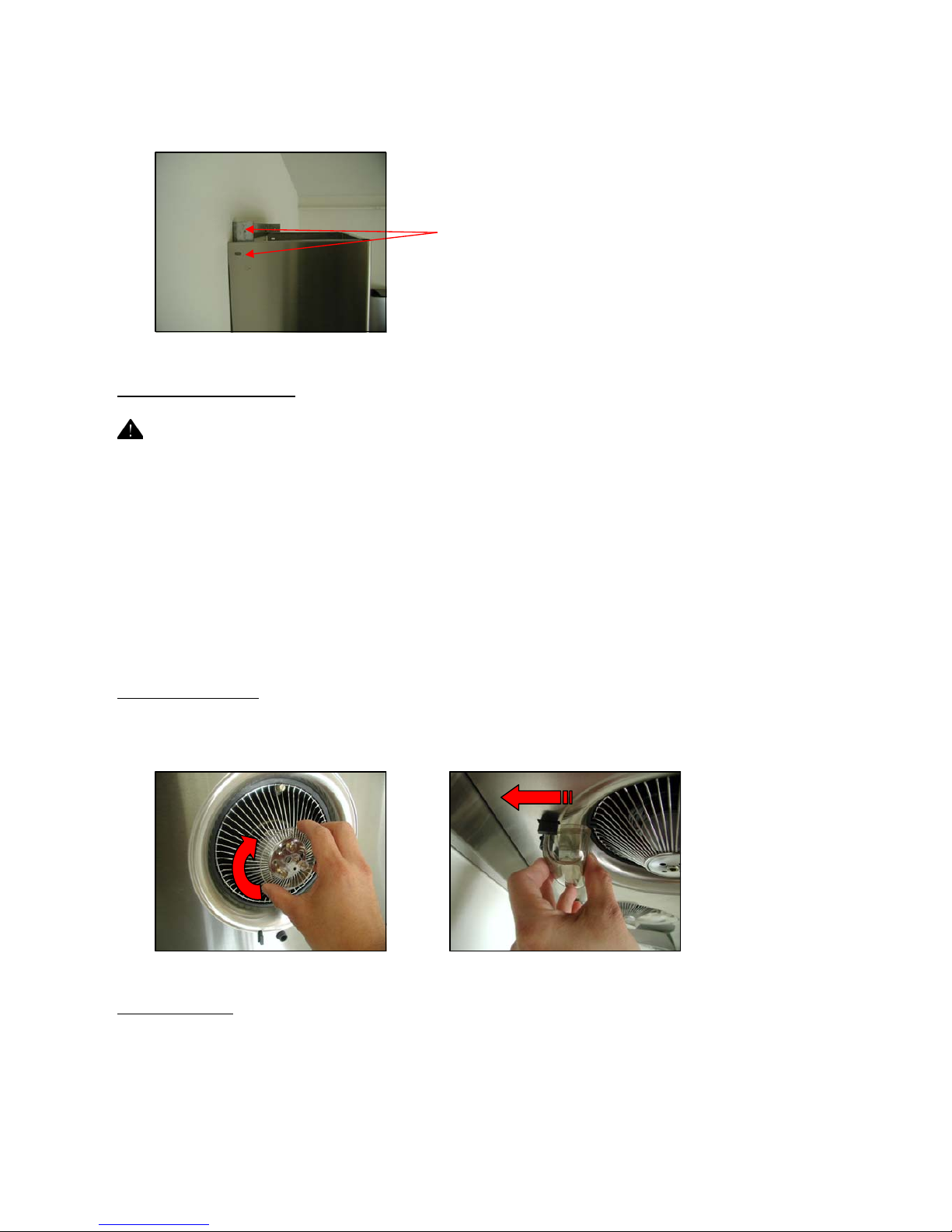

Install Accessories
10. Place the oil container (round) into keyhole under each safety screen. Turn clock-wise
until firmly in place. Refer to Figure 15.
11. Slide oil container (oval) into plastic slot behind each safety screen. Refer to Figure 16.
Figure 15 Figure 16
Final Assembly
12. Turn power ON in control panel. Check all lights and blower operation.
13. Make sure to leave this manual for the homeowner.
Attach Together

11
OPERATING INSTRUCTIONS
This KOBE hood is equipped with a four-switch control, two powerful centrifugal turbine
impellers with safety screens, two bright 12-volt 20-watt halogen lights, and four oil containers.
The four control switches are Light Control, Speed Control, QuietMode™ Control and the
Power Control (On/Off). Refer to Figure 17.
Figure 17
Light Control Power Control
Speed Control QuietMode™ Control
Low High
Turn On:
Press Power Control switch to turn on the power.
Press the Speed Control (Low, Off, High) or QuietMode™ Control to select the desired speed.
Once the Power Control is turned on, the previous switch selections will turned on.
Press the QuietMode™ Control to turn on QuietMode™. Speed Control will automatically be
disabled when QuietMode™ is turned on.
Press Light Control switch to turn halogen lights on.
Turn Off:
Press the Power Control switch to turn off all power. Note: The Power Control switch is the
main power controller.
If disable QuietMode™, speed will revert to its prior Speed Control.

12
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
Cleaning Hood Surface
CAUTION : NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT
USE PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals,
which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Oil Containers, Safety Screens and Impellers
CAUTION: DRAIN OIL CONTAINER BEFORE OIL CAN OVERFLOW.
1) Normal Cleaning
- Turn on high speed and spray a mild degreaser into the fan. Liquid residue will accumulate
in the oil containers.
2) Cleaning Oil Containers
- Remove the oil container (round) by turning counterclockwise for cleaning.
- Remove the oil container (oval) by sliding forward for cleaning.
- Wash with warm soapy water. Dry completely before returning into place.
- Top rack dishwasher safe.
3) Cleaning Safety Screens
- Remove the safety screen screw and slide the safety screen out.
- Wash with warm soapy water. Dry completely before returning into place.
- Top rack dishwasher safe.

13
To Replace Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
NOTE: DO NOT TOUCH HALOGEN LIGHT WITH BARE HANDS, WHICH MIGHT CAUSE OVER
HEAT AND SHORTEN THE LIFT OF LIGHT BULBS.
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
   
1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and the
housing. 
3. Pop out the halogen light glass covering. 
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W maximum.

5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing. 
7. Turn range hood ON to test for operation.

14
SPECIFICATIONS
MODEL / SIZE RA3830SQ / 30”
RA3836SQ / 36”
COLOR # 430 Commercial Grade Stainless Steel
VOLTAGE 120V 60Hz
CONSUMPTION / AMPERE 198W / 1.71A
NUMBER OF MOTORS 2
DESIGN 18-Gauge Seamless
FAN TYPE Twin Turbine Impeller
EXHAUST 6” Round
CONTROLS Three Speed (QuietMode™, Low, & High)
HALOGEN LIGHTS 12V 20W x 2
HOOD DIMENSION
(W x D x H)
(RA3830SQ) 29-3/4” x 20-1/2” x 5-1/8”
(RA3836SQ) 35-1/4” x 20-1/2” x 5-1/8”
OPTIONAL ACCESSORIES
(W x D x H)
1) Two-Piece Adjustable Duct Cover
(RA1020DC) 10-5/8” x 9-1/8” x (20-5/8” ~ 39-5/8”)
2) 30” Stainless Steel Back Panel
(SSP30) 30” x 1/10” x 32”
3) 36” Stainless Steel Back Panel
(SSP36) 36” x 1/10” x 32”
Net Gross
(RA3830SQ) 37.0 43.0WEIGHT (lbs)
(RA3836SQ) 39.0 47.0
SPEED QuietMode™Low High
Air Capacity (cfm) 330 480 720
Sone* 1.2* 3.0 4.8
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications information is subject to change without notice.

15
MEASUREMENTS & DIAGRAMS
***All inch measurements are converted from millimeter. Inch measurements are estimated.
***All measurements in ( ) are millimeters.
-FOR UNDER THE CABINET-
30” = Knockout Holes “A”
36” = Knockout Holes “A” & “B”
-FOR STAND ALONE (WITH OPTIONAL DUCT COVER)-
Hood-Mounting Bracket Duct Cover-Mounting Bracket

16
PARTS LIST
MODEL NO. RA3830SQ
RA3836SQ
(Optional Duct Cover)
NO. DESCRIPTION MODEL /SIZE PART NO.
1 6” Round Plastic Exhaust C1-0505-0001
2 Capacitor C1-0401-0120-01A
3 Transformer (Light) C1-0402-0120-40
4 Screw (4 x 6 mm) C1-0708-0001
5 Screw (4 x 6 mm) C1-0708-0001
6 Power Cord C1-0406-0120
7 Screw (TS 4 x 18 mm) C1-0708-0004
8 Plastic Plate C1-0507-0201
RA3830SQ 10-033009 Hood Casing
RA3836SQ 10-03360
10 Screw (3/16” x 5/8”) C1-0704-0004
11 Halogen Light (12V 20W Max.) C1-0403-0101
Air Chamber
RA3830SQAir Chamber (Top)
RA3836SQ
C1-0101-0382
RA3830SQ
12
A
B Air Chamber (Side)
RA3836SQ
C1-0102-0382
13 Motor (Left) C1-0301-0120-13A
14 Motor (Right) C1-0301-0120-14A
15 Turbine Impeller (Left) C1-0251-0092-01
16 Turbine Impeller (Right) C1-0251-0092-02
17 Oil Tunnel Seal C1-0502-0301
18 Oil Tunnel C1-0502-0203
RA3830SQ B101-0330-0919 Bottom Casing
RA3836SQ B101-0392-09
20 Oil Container (Oval) C1-0504-0101
21 Safety Screen C1-0602-0101
22 Oil Container (Round) C1-0503-0101
23 Safety Screen Screw C1-0705-0001
24 Screw (3/16” x 5/8”) C1-0704-0004
25 Impeller Plastic Cover C1-0251-0001
26 On/Off Switch C1-0405-0211
27 QuietMode™ Switch C1-0405-0214
28 Speed Switch C1-0405-0212
29 Light Switch C1-0405-0213
30 Rubber Stand C1-0511-0211
31 Screw (TS 4 x 8 mm) C1-0708-0006
NO. DESCRIPTION MODEL /SIZE PART NO.
32 Screw (3/16” x 3/8”) C1-0707-0001
33 Hood-Mounting Bracket C1-0221-0330
34 Duct Cover RA1020DC 12-02000-430
35 Round Head Screw (TS 4 x 8 mm) C1-0708-0006
36 Round Head Screw (TS 4 x 8 mm) C1-0708-0006
37 Duct Cover-Mounting Bracket C1-0203-0002

17
MODEL NO. RA3830SQ
RA3836SQ

18
CIRCUIT DIAGRAM
MODEL No. RA3830SQ
RA3836SQ
KEY CODE
BL
BK
BR
R
W
G
Y
OR
H
L
Q
HL
=
=
=
=
=
=
=
=
=
=
=
=
Blue
Black
Brown
Red
White
Green
Yellow
Orange
High
Low
QuietMode™
Halogen Light
