KOBE OVS-CHX8130SQB-40 Installation and operating instructions

KOBE Range Hoods
Brillia Series
Model No.
OVS-CHX8130SQB-40 (30”)
OVS-CHX8136SQB-40 (36”)
USER MANUAL
INSTALLATION GUIDE

READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor/electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and
product serial number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected] to report the problem.
IMPORTANT
READ THIS FIRST
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR PARTS

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.........................................................................4
COMPONENTS OF PACKAGE.......................................................................................3
INSTALLATION ...............................................................................................................4
OPERATING INSTRUCTIONS........................................................................................8
MAINTENANCE..............................................................................................................9
SPECIFICATIONS.........................................................................................................10

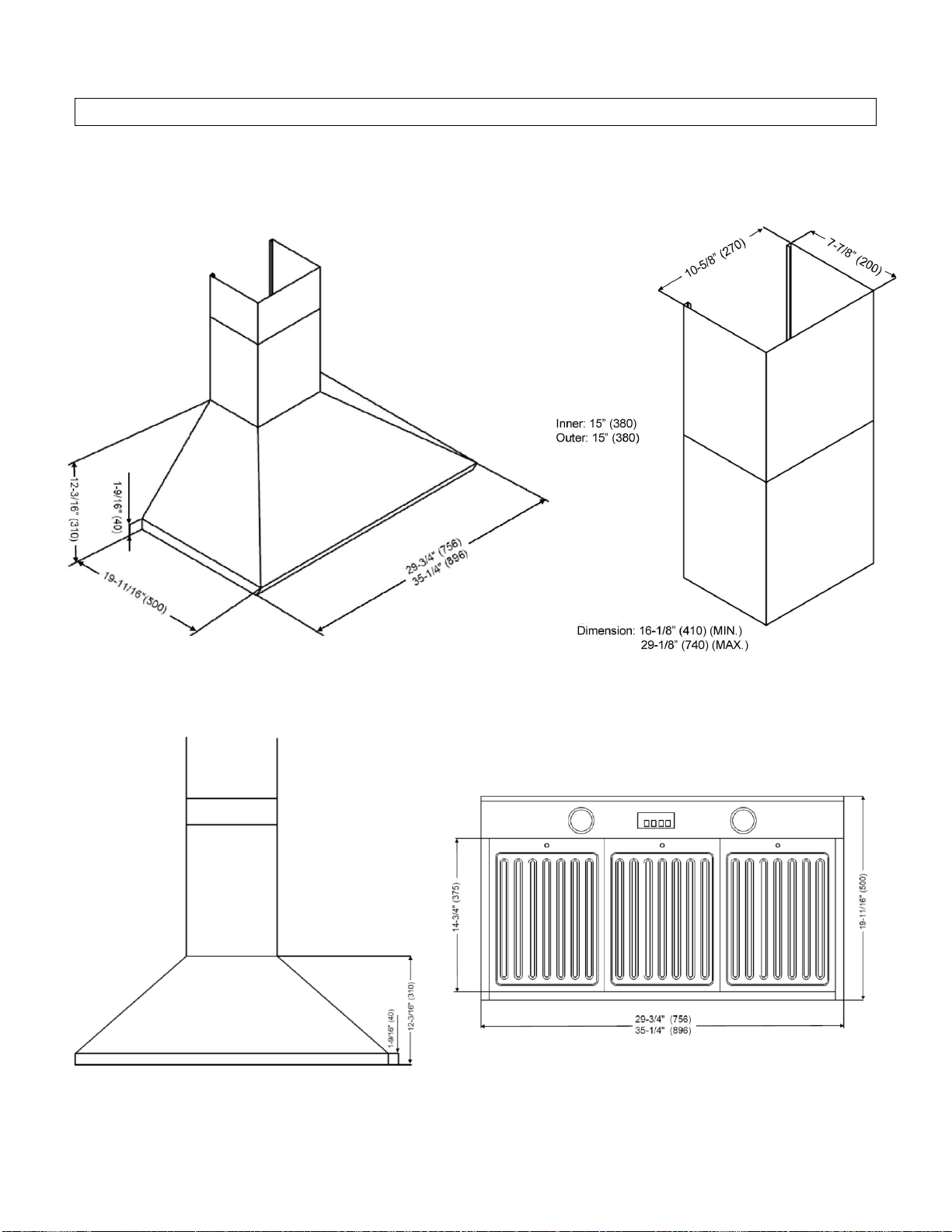

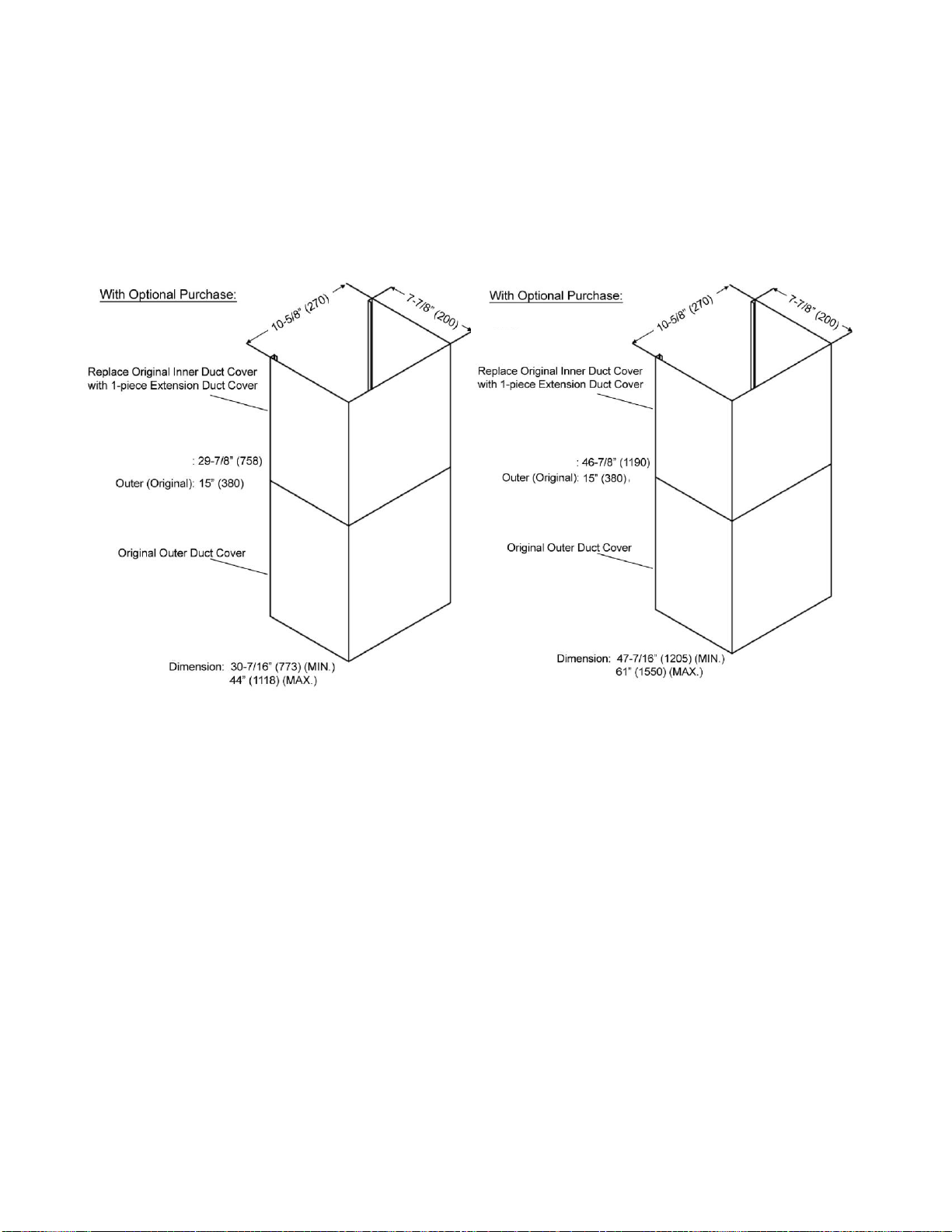

MEASUREMENTS & DIAGRAMS.................................................................................11
PARTS LIST..................................................................................................................13
CIRCUIT DIAGRAM......................................................................................................15
TROUBLE SHOOTING.................................................................................................16
DISCLAIMER................................................................................................................17
WARRANTY..................................................................................................................18
PRODUCT REGISTRATION.........................................................................................20
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONALAND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE
-
This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use,
mistreatment, negligence or any other circumstances beyond the
control of KOBE authorized agents. Any repair carried out without the
supervision of KOBE authorized agents will automatically void the
warranty.
-
KOBE will not be held responsible for any damages to personal
property or real estate or any bodily injuries whether caused directly
or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
Always turn hood ON when cooking.
Use high settings on cooking range ONLY when necessary.
Do not leave cooking range unattended when cooking.
Always use cookware and utensils appropriate for the type and amount of food prepared.
Use this unit only in the manner intended by the manufacturer.
Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THEAREAAND CALL THE FIRE DEPARTMENT or 911.
•NEVER PICK UPA BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration andAir Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
Model #
OVS-CHX8130SQB-40
(30”)
OVS-CHX8136SQB-40
(36”)
{A} BRILLIA Range Hood
{B} Warranty Registration Card
{C} Instructions Manual (WEBSITE)
{D} Baffle Filter x 2 (30” hood)
x 3 (36” hood)
{E} Screws package
{F} 6” Round Plastic Collar
{G} Hood Mounting Bracket
{H} Duct Cover Mounting Bracket
{A} {B}
{C} {D}
{E} {F}
{G} {H}
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Pre-installed
3/16” x 3/8” (6 Pcs)
For the operation
manual, please refer to
our website:
KOBERangehoods.com

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before installation
To calculate the length of the installation, please refer to Table 1. (All calculation is measure in
inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Recommended
26” to 30”)
D = Height of Hood
E = Height of Duct Cover [F –D]
F = Height of the Hood Installation
[A –(B+C)]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING
ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.

5
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.
- Decide the location of venting pipe from the
hood to the outside. Refer to Figure 1.
- A straight, short venting run will allow the hood
to perform more efficiently.
- Try to avoid as many transitions, elbows, and
long run as possible. This may reduce the
performance of the hood.
- Use duct tape to seal the joints between pipe
sections.
- Temporarily wire the hood to test for proper
operation before installing.
- If necessary, prepare back wall frame with
cross framing lumber for secure installation.
Using references on Table 1 and the
measurements on pages 11-12, decide the
level of the lumber. Refer to Figure 2.
- Peel protective film off the duct cover and the
hood (if any).
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power on
an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. Using references on Table 1 and
measurements on pages 11-12, mark the
leveling point for hood-mounting bracket on
the wall.
2. Secure 3 mounting screws (not provided) on
the wall leaving 1/8” away from the wall.
Refer to Figure 3.
3. Align hood-mounting bracket to the mounting
screws on the wall and hook hood into place.
4. Secure and tighten the mounting screws.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Figure 1
Figure 2
Figure 3

6

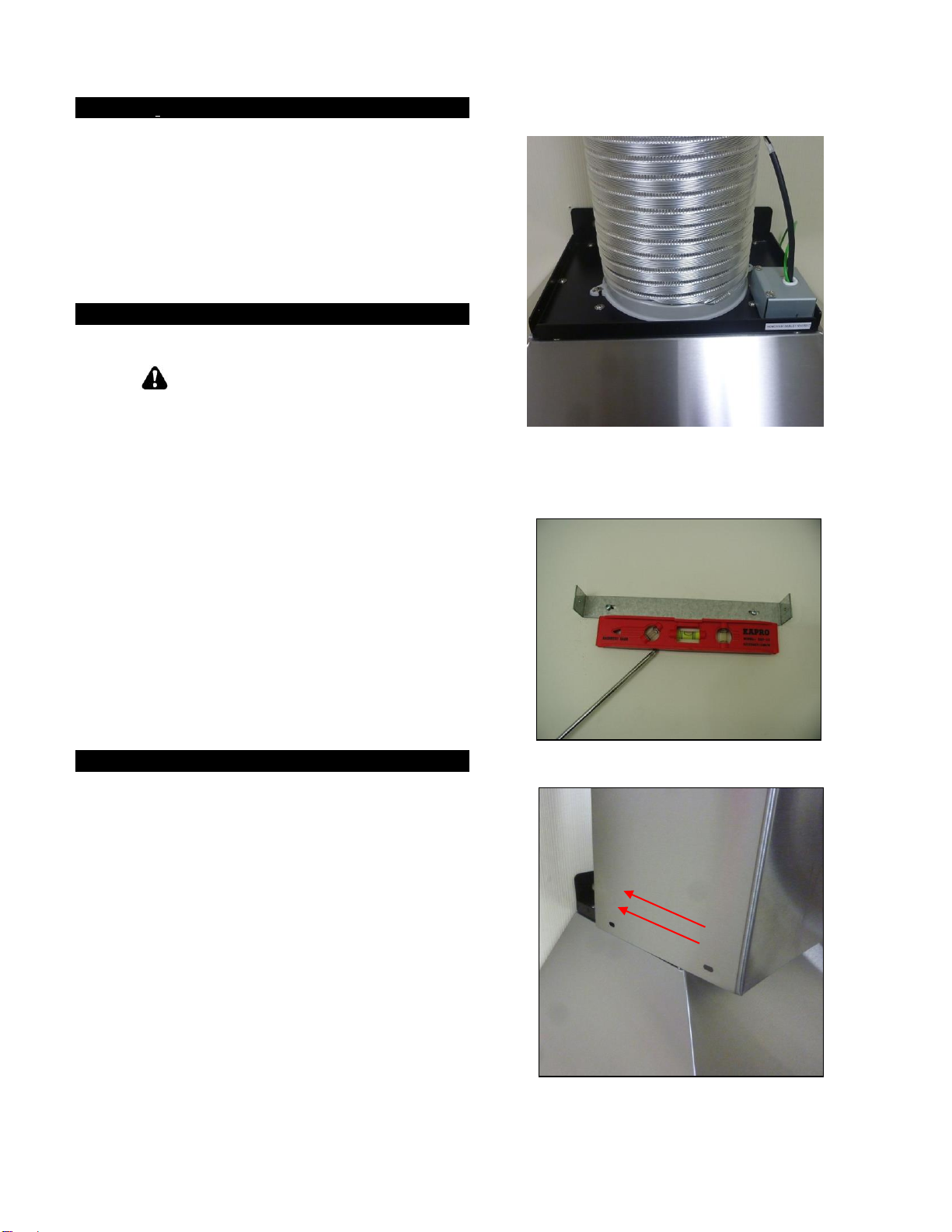

Ductwork Installation
5. Use 6” round steel pipe (not provided) to
connect the plastic exhaust on the hood to
the ductwork above. Use duct tape to make
all joints secure and air tight.
Refer to Figure 4.
THIS RANGE HOOD MUST BE
PROPERLY GROUNDED. MAKE SURE
THIS IS DONE BY QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH
ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE
CONNECTING WIRES, SWITCH POWER
OFF AT SERVICE PANEL AND LOCK
SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON
ACCIDENTALLY.
- If hood is operating normally, connect three
wires (black, white and green) to house
wires and cap with wire connectors.
- Store wires in the wiring box.
Duct Cover Installation
NOTE: BE CAREFUL WHEN USING
ELECTRICAL SCREWDRIVER, DAMAGE TO
THE HOOD MAY OCCUR.
6. Using reference Efrom Table 1 and
measurements on pages 11-12, mark the
leveling point for duct cover bracket.
7. Secure the duct cover mounting bracket to
the wall with two screws (not provided).
Make sure all screws are tightened Refer to
Figure 5. NOTE: Inner duct cover will cover
the duct cover bracket.
8. Slide the entire duct cover onto the hood.
Refer to Figure 6.
Figure 4
Figure 5
Figure 6
Wiring to Power Supply

7
Duct Cover Installation (Cont.)
NOTE: BE CAREFUL WHEN USING
ELECTRICAL SCREWDRIVER, DAMAGE TO
THE HOOD MAY OCCUR.
9. Secure the outer duct cover to the hood
mounting bracket with 4 (3/16” x 3/8”) screws
(provided). Refer to Figure 7.
10. Secure the inner duct cover with 2 (3/16” x
3/8) screws to the duct cover mounting
Bracket. Refer to Figure 8.
Install Accessories
11. Place baffle filters underneath the hood.
Refer to Figure 9.
Final Assembly
12. Turn power ON in control panel. Check all
lights and fan operation.
13. Make sure to leave this manual for the
homeowner.
Figure 7
Figure 8
Figure 9
Attach Together
