KOBE Brand Range Hood
Model No. / Modelo No. / Nos de modèles.
IN2630SQB-700
PREMIUM SERIES IN-026
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH].........................................................................1
[SPANISH].......................................................................25
[FRENCH] .......................................................................50

1
READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor/electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original proof of purchase and product serial
number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected] to report the problem.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR
PARTS
IMPORTANT
READ THIS
FIRST

2
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 3
COMPONENTS OF PACKAGE ................................................................................................. 5
INSTALLATION ......................................................................................................................... 6
OPERATING INSTRUCTIONS.................................................................................................11
SPECIFICATIONS....................................................................................................................15
MEASUREMENTS & DIAGRAMS.............................................................................................16
PARTS LIST.............................................................................................................................18
CIRCUIT DIAGRAM..................................................................................................................20
TROUBLE SHOOTING.............................................................................................................21
WARRANTY.............................................................................................................................22
WARRANTY INFORMATION FORM........................................................................................24
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W IR I NG M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W IT H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

3
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE
-
This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.
What to Do In The Event Of a Range Top Grease Fire

4
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THEAREAAND CALL THE FIRE DEPARTMENT or 911.
•NEVER PICK UPA BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration andAir Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch on may cause ignition or an explosion.
5. Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.

5
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR CONTACT
KOBE RANGE HOODS AT [phone].
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Instruction Manual
{D} Baffle Filter –2
{E} Oil Tunnel –1
{F} Stainless Steel Spacer –2
{G} Remote Control with holder –1
{H} Rectangular Exhaust Plate –1
{I} Rectangular Exhaust Adapter –1
{A}
{B} {C}
{D} {E}
{F}
{G} {H}
{I}
Adjustable Liner (Sold Separately)
{J} Front Section of Liner
{K} Rear Section of Liner
{J}
{K}
(AAA Batteries not included.)

6
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

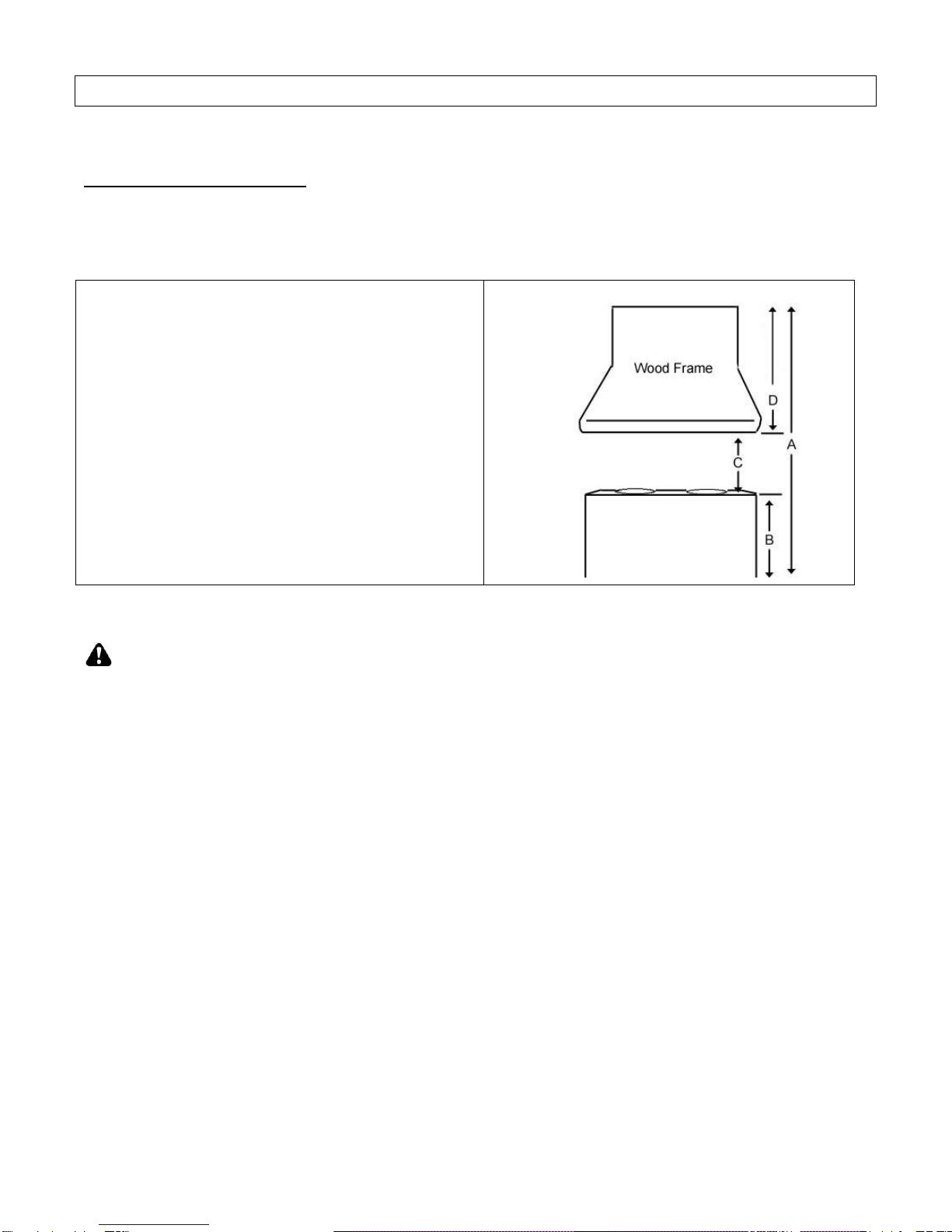

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame Bottom
(Minimum 27"to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING
ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY
OCCUR.

7
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS
FROM ENTERING THE VENT OPENING.
Decide the location of the venting pipe from the hood to the
outside. Refer to Figure 1.
A straight, short vent run will allow the hood to perform more
efficiently.
Try to avoid as many transitions, elbows, and long run as
possible. This may reduce the performance of the hood.
Temporarily wire the hood to test for proper operation before
installing.
Important: Peel protective film off the hood, if any.
Use duct tape to seal joints between pipe sections.
CAUTION: If moving the cooking range is necessary to
install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE. And use a protective covering
to protect cooktop and/or countertop from damage.
Custom Hood Preparation
1. The custom hood frame must be designed according to the
shape and the weight of the insert. Refer to Measurements
and Diagrams on Page 14-15.
2. A sturdy base (3/4 inch thick plywood recommended) is
needed to sustain the weight of insert.
3. If an optional liner will be installed, the side of the wood frame
must be sturdy (3/4 inch thick plywood recommended).
4. It is recommended to install front & rear stud support (not
included). Refer to Figure 2. For safety purposes, extra
installation holes on the side of the insert are provided.
Prepare the side stud support if needed.
5. Determine and mark the centerlines on the base of the wood
frame where the insert will be installed.
6. Determine the proper location for the Power Supply Cable.
Make a wiring access hole using a drill bit. Install the wire
cable and seal the gap around hole.
7. Cut out the opening where the insert will be installed. (Figure
3)
Liner Installation (Additional Purchase required)
8. The custom wood frame must have a sturdy base to
accommodate the cut-out for the insert. The base must be
recessed to accommodate the height of the liner (See liner
dimension on Page 15)
9. Secure the liner to the bottom of the base using screws (not
included) appropriate for the size and material of your wood
frame.
10. Liner is made up of two sections: a large, rear section with pre-
cut for insert and a front section for a total adjustable depth
between 23” and 25-3/4”.
11. Position the rear section of the liner so that it aligns with the
back edge of the custom wood frame. Use a pen to trace the
outline of the pre-cut area.
12. Install the rear section of the liner with 6 screws (not included).
Figure 1
Figure 2
Figure 3
Figure 4

8
13. Install the front section of the liner with 3 screws (not included)
Hood Preparation Before Installation
CAUTION: If moving the cooking range is necessary to
install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE.

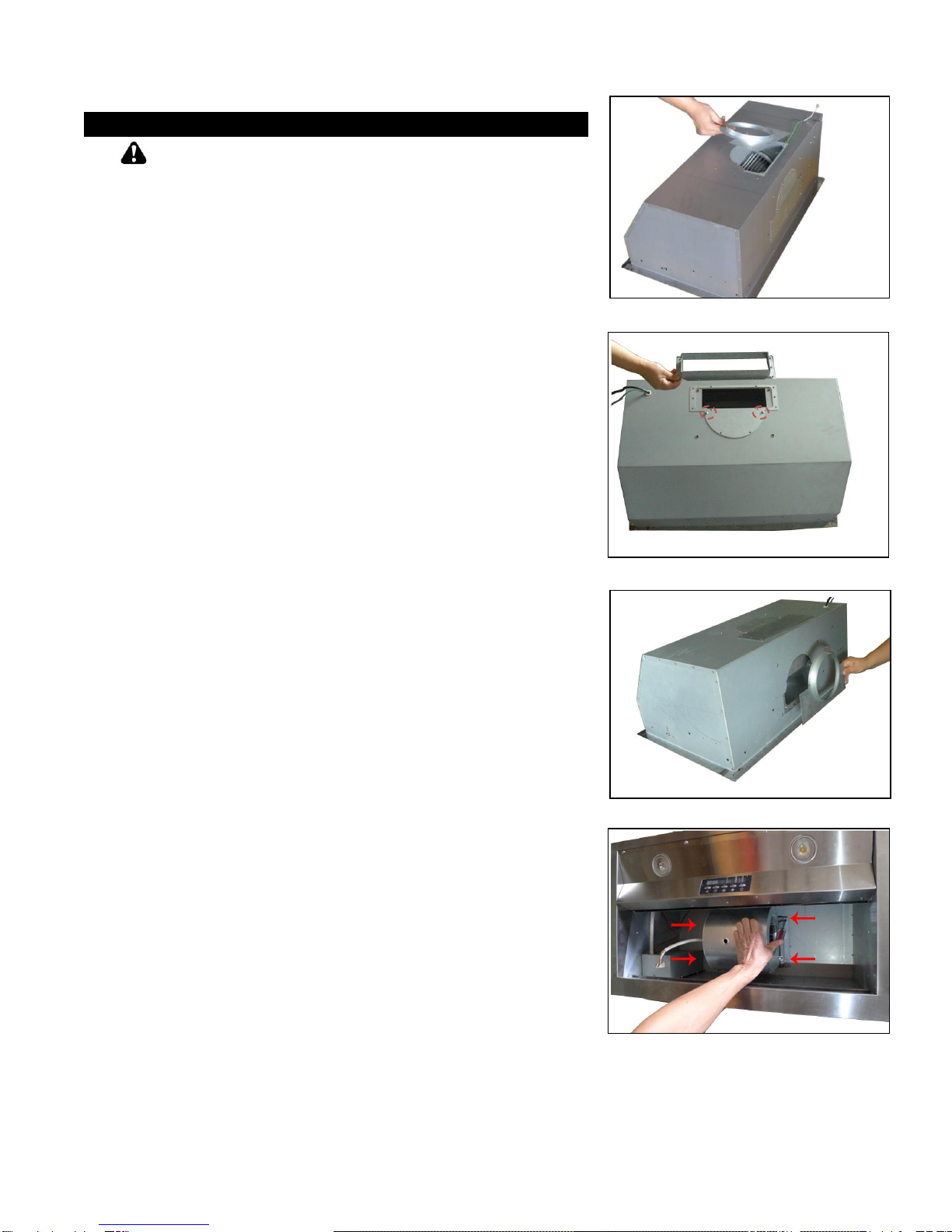

14. Choose the required vent option. The Round Exhaust Plate is
pre-installed for top vent.
15. For Top 3-1/4” x 10” rectangular installation only:
- Remove the pre-installed Round Exhaust Plate (Refer to
Figure 5). Keep screws to attach Rectangular Exhaust
Plate and Rectangular Exhaust Adapter.
- Place Rectangular Exhaust Plate over vent and secure
with 2 screws (Refer to Figure 6). Place Rectangular
Exhaust Adapter over the Rectangular Exhaust plate and
secure with 10 screws (Refer to Figure 6).
- Use remaining screws to secure exhaust plate.
For Rear Vent Options only:

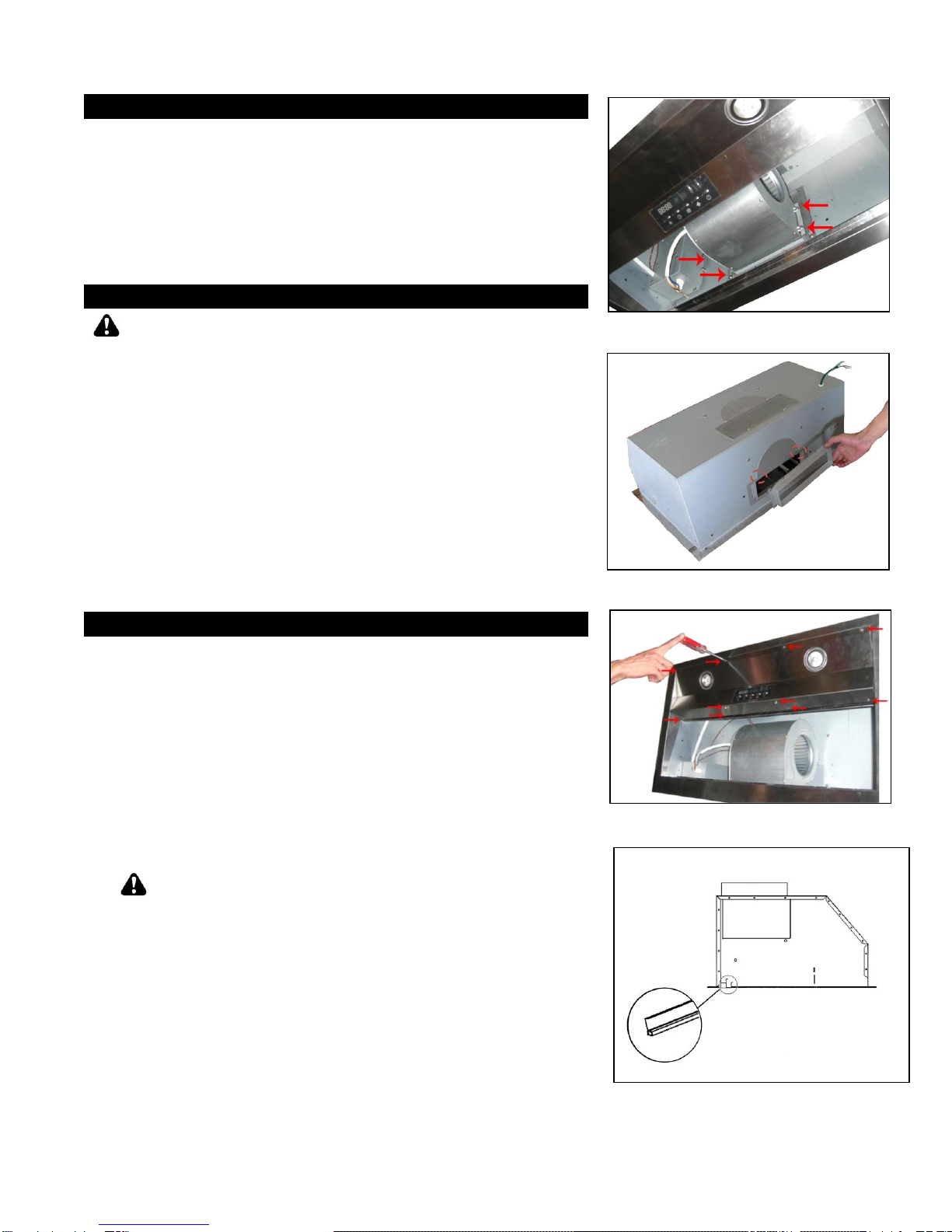

NOTE: The blower is pre-installed for top vent. If
installing as rear vent, follow the steps below.
16. For Rear 6” round installation only:
- Remove the Rear Round Vent Cover and Rear
Rectangular Vent Cover (Refer to Figure 4). Keep
screws to attach Round Exhaust Plate to rear vent.
- Remove the pre-installed Round Exhaust Plate from top
vent (Refer to Figure 5). Attach it to the rear vent (Refer
to Figure 7) using the screws removed from vent covers.
- Use the Round and Rectangular vent covers removed
from rear vent to seal top vent.
- Remove the 4 screws that secure the blower system
(Refer to Figure 8). Hold the blower to keep it from
dropping as you remove screws. Keep screws to re-
attach blower. Slowly rotate blower system to align with
mounting holes at the back of the insert. Secure blower
using 4 screws (Refer to Figure 9).
17. For Rear 3-1/4” x 10” rectangular installation only:
- Remove the Rear Round Vent Cover and Rear
Rectangular Vent Cover (Refer to Figure 4). Keep
screws to attach Rectangular Exhaust Plate and
Rectangular Exhaust Adapter.
- Place the Rectangular Exhaust Plate over vent and
secure with 2 screws (Refer to Figure 10). Place
Rectangular Exhaust Adapter over the Rectangular
Exhaust Plate and secure with 10 screws (Refer to Figure
10).
- Use remaining screws to secure exhaust plate.
- Remove the pre-installed Round Exhaust Plate from top
vent and keep screws (Refer to Figure 4). Use the Round
and Rectangular vent covers removed from rear to seal
top vent.
- Remove the 4 screws that secure the blower system
(Refer to Figure 8). Hold the blower to keep it from
dropping as you remove screws. Keep screws to re-
attach blower. Slowly rotate blower system to align with
mounting holes at the back of the insert. Secure the
blower using 4 screws (Refer to Figure 9).
Figure 5
Figure 6
Figure 7
Figure 8

9
Duct Work Installation
18. Determine and make all necessary cuts in the wall or ceiling
for the ductwork. Note: Install the ductwork before installing
the insert.
19. Use steel pipe to connect the exhaust on the hood to the
ductwork above. Use duct tape to make all joints secure and
air tight.
20. Please refer to local codes for the usage of a damper (not
included).
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE
PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES.
BEFORE CONNECTING WIRES, SWITCH POWER OFF AT
SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON ACCIDENTALLY.
21. Connect electrical wires.
22. Connect three wires (black, white and green) to house wires
and cap with wire connectors. Connect wires according to
their colors (i.e. black to black, white to white, and green to
green).
23. Store wires in the wiring box.
Hood Installation
NOTE: USE HAND TOOLS ONLY. DO NOT OVER TIGHTEN
SCREWS. IT MIGHT CAUSED DAMAGED TO THE HOOD.
24. Remove 10 screws located at the bottom of the insert (Refer to
Figure 11). Carefully remove the light support panel.
25. Position the insert inside the custom wood frame, and secure
the insert to the front and rear stud support ( Refer to Figure 2)
by using the front and rear mounting holes (Screws not
included).
26. For a more secure installation, use the mounting holes located
on the side of the insert
27. Make sure insert is secure before releasing.
28. Re-install the light support panel. (Do not over tighten screws.)
CAUTION: MAKE SURE HOOD IS SECURE BEFORE
RELEASING.
Figure 9
Figure 10
Figure 11
Figure 12

10
Final Assembly
29. Install the oil tunnel into recess support near rear of hood.
Refer to Figure 12.
30. Install baffle filters. Angle baffle filter toward back of hood
①. Push baffle filter up until almost level ②. Slide forward
into recess behind the front of hood ③. Lower baffle filter ④
. Slide back until it fits into resting position ⑤. Refer to
Figure 13.
Figure 13

11
OPERATING INSTRUCTIONS
This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a
double horizontal squirrel cage blower with stainless steel bafflefilters and two bright LED lights.
The five control buttons are Power Control (On/Off), Speed Control (High, Medium, Low & QuietMode™),
ECO Control, Delay Shut-Off Control and Light Control. Refer to Figure 14.
Figure 14
Note: For best results, turn the range hood to QuietMode™ prior to any preparation or cooking. Adjust
speed as needed.
Power Control
Press Power Control to turn On/Off the range hood.
Output Display:
Speed Control
(Each press of Speed Control will cycle the fan through High, Medium, Low, and QuietMode™.)
Output Display will indicate:
= QuietMode™ Speed
Delay Shut-Off
D
De el la ay y S Sh hu ut t- -O Of ff f C Co on nt tr ro ol l

12
= Low Speed
= Medium Speed
= High Speed
Press Power Control to turn fan off.
ECO Control
The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes
every hour to remove excess moisture, microscopic particles and odors for better kitchen air
quality.
ECO is independent of the power function.
To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be
displayed to show that it is active. To deactivate it, press the ECO Control again. The icon will
turn off, indicating it has been deactivated.
To activate ECO when the unit is powered on, press the ECO Control. The ECO icon will be
displayed to show that it has been activated. In order for ECO to take effect, the unit must
be turned off. If the fan is running, power it off by pressing the Power Control. Then press
the Power Control again to power down the unit. Once the unit is powered off, the ECO icon
will remain displayed to indicate that it is active. To deactivate it, press the ECO Control
again. The icon will turn off, indicating it has been deactivated.
NOTE: Must open door or windows to create sufficient make-up air when ECO is operating.
Output Display when ECO is active:
Light Control
(Lights are controlled independently from Power Control. Turning the power off will not turn the
lights off.)
Press Light Control to turn lights ON and OFF.
Delay Shut-Off Control
Delay Shut-Off allows users to automatically turn their range hood fan off. Delay Shut-Off ranges
from 1 min. to 99 mins.
To activate Delay Shut-Off, the fan must be on (High, Medium, Low, or QuietMode). Press Delay
Shut-Off Control to start timer. The Time Indicator on the display screen will flash. Set desired
time by pressing Delay Shut-Off control, each press will increase time by 1 minute. When
finished setting, Delay Shut-Off will automatically begin to count down.

13
To cancel Delay Shut-Off, press Delay Shut-Off control twice.
Baffle Change Indicator
The display will indicate when baffle filter needs cleaning. Press and hold the Power
Control for 5 seconds to reset the Baffle Change Indicator.

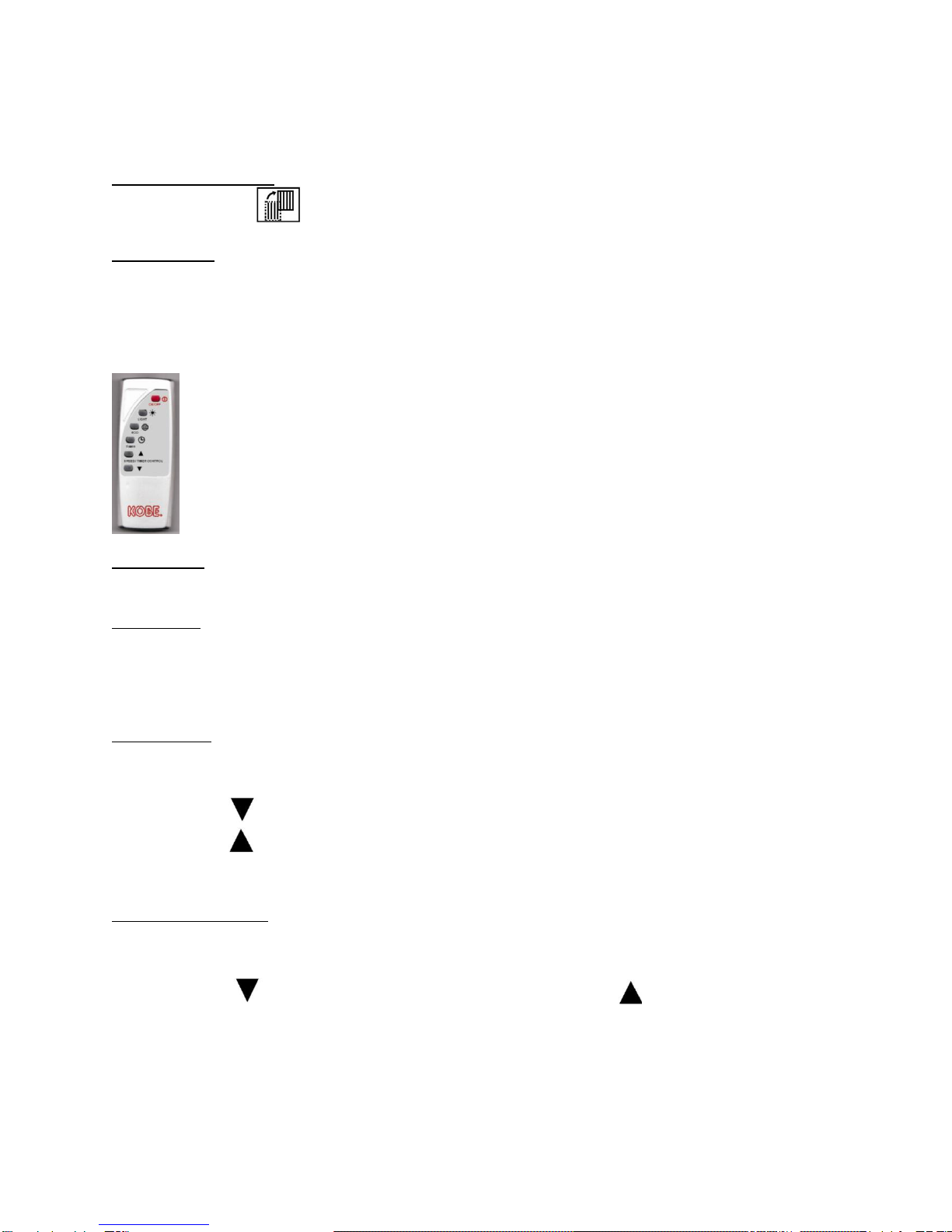

Remote Control
The six control buttons for the wireless remote control are Power Control (On/Off), Light Control, Delay Shut-Off
Control, ECO Control and Speed Controls (High, Medium, Low & QuietMode™).
NOTE: Requires 2 AAA Batteries. Batteries not included.
Power Control
Press Power Control to turn hood ON and OFF.
Light Control
(Lights are controlled independently from Power Control. Turning the power off will not turn the
lights off.)
Press Light control to turn lights ON and OFF.
Speed Control
Press the Speed Control to activate the fan. The fan will start on High speed. Each press of the
Speed Control button will cycle through the various speeds.
Press tto cycle from High, Medium, Low, and QuietMode™.
Press to cycle from High, QuietMode™, Low, and Medium.
Press Power Control to turn fan OFF.
Delay Shut-Off Control
While the fan is running, press Delay Shut-Off Control to activate. The Time Indicator on the
display screen will flash.
Press of will decrease the time by 1 minute. Each press of will increase the time by 1
minute.

14
If Speed/Delay Shut-Off Control button ( OR ) is not pressed within 6 seconds, the unit will
automatically exit Delay Shut-Off mode, and the arrow will return to speed function
control.
When Delay Shut-Off is activated, the fan will automatically turn off after the set time. Delay Shut-
Off ranges from 1 min. to 99 mins.
ECO Control
To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be
displayed to show that it is active. To deactivate it, press the ECO Control again. The icon will
turn off, indicating it has been deactivated.
To activate ECO when the unit is powered on, press the ECO Control. The ECO icon will be
displayed to show that it has been activated. In order for ECO to take effect, the unit must
be turned off. If the fan is running, power it off by pressing the Power Control. Then press
the Power Control again to power down the unit. Once the unit is powered off, the ECO icon
will remain displayed to indicate that it is active. To deactivate it, press the ECO Control
again. The icon will turn off, indicating it has been deactivated.
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1.Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2.If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3.DO NOT allow deposits to accumulate or remain on the hood.
4.DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5.DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER & OIL TUNNEL REGULARLY TO PREVENT
OVERFLOW.
1.Remove all the baffle filters and oil tunnel.
2.Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES
(Note: Baffle Filters are top rack dishwasher safe.)

15
SPECIFICATIONS
MODEL / SIZE
IN2630SQB-700 / 30”
COLOR
Commercial Stainless Steel
CONSUMPTION / AMPERE
290W / 2.5A
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
FAN TYPE: CENTRIFUGAL
Double Horizontal Squirrel Cage
EXHAUST
Top –
6” Round
3-1/4” x 10” Rectangular
Rear –
6” Round
3-1/4” x 10” Rectangular
CONTROLS
5 Push-Button with LED Display
- Variable Delay Shutoff
LIGHTS
LED Lights 3W x 2
HOOD DIMENSION
(W X D X H)
30” x 18-1/2” x 12”
OPTIONALACCESSORIES
(W X D X H)
2 Piece Adjustable Liner
Model No.: INL36252B
(34-7/16” x 23”~25-3/4”x 3”)
HOOD WEIGHT (lbs)
Net
Gross
IN2630SQB-700
42
52
Blower Air Capacity (cfm)
QuietMode™
Low
Medium
High
300
420
590
750
Sone*
1.0
2
5.0
6.0
dB
40.0
50.0
63.5
66.0
* One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

16
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO: IN2630SQB-700
Side View Bottom View
Back View Top View

17
Front View
Ajustable Stainless Steel Liner (Sold Separately)
Model No. INL36252B

18
PARTS LIST
MODEL NO: IN2630SQB-700
NO.
DESCRIPTION
MODEL/SIZE
PART NO.
1
Rectangular Exhaust Plate
B101-2630-17A
2
Rectangular Vent Cover
B101-2630-17B
3
Round Exhaust Plate
B101-2630-16A
4
Rectangular Exhaust Adapter
B101-2630-16B
5
Hood Casing
IN2630SQB-700
IN2630
6
Transformer (LED Light)
L1-0402-0120-700
7
Electric Component Support
L1-0201-2630
8
Processor Board
FA-18880-0401-B
9
Capacitor
L1-0401-0120-01
10
Blower Bracket
L1-0105-2630
11
Oil Tunnel
IN2630SQB-700
B101-2630-14A
12
Blower System
L1-0302-A120-01
13
Bottom Casing
B101-2630-09
14
Baffle Filter Support
B101-2630-14B
15
Stainless Steel Spacer
B101-2630-14B
16
Baffle Filter
B101-2630-15
17
Control Unit Support
L1-0207-2630
18
Control Unit
FA-18880-0401-A
19
Light Panel Support
B101-2630-06
20
LED Light (3W)
L1-0403-0001
Optional Adjustable Liner (Sold Separately)
21
Rear Section of Liner
INL36252B
B103-2630-A
22
Front Section of Liner
INL36252B
B103-2630-B
