KOBE INX2730SQB-700-1Brillia Series Troubleshooting guide

KOBE Range Hoods
Brillia Series
Model No.
INX2730SQB-700-1
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and
product serial number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected] to report the problem.
IMPORTANT
READ THIS FIRST
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR PARTS

1
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS................................................................................... 2
COMPONENTS OF PACKAGE................................................................................................. 4
INSTALLATION......................................................................................................................... 5
OPERATING INSTRUCTIONS.................................................................................................. 9
MAINTENANCE ...................................................................................................................... 10
SPECIFICATIONS................................................................................................................... 11

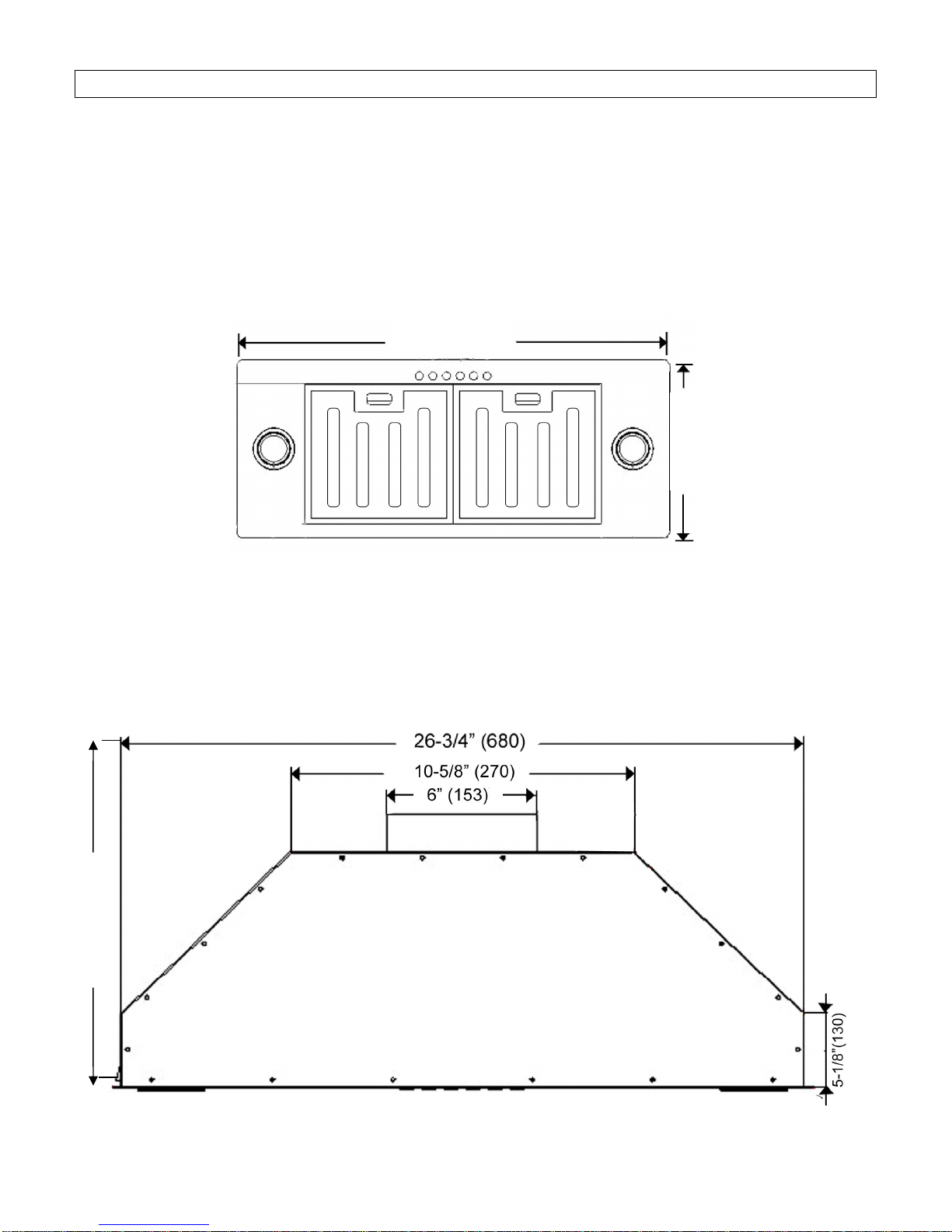

MEASUREMENTS & DIAGRAMS........................................................................................... 12
PARTS LIST............................................................................................................................ 14
CIRCUIT DIAGRAM................................................................................................................ 16
TROUBLE SHOOTING............................................................................................................ 17
DISCLAIMER........................................................................................................................... 18
WARRANTY............................................................................................................................ 19
WARRANTY INFORMATION FORM....................................................................................... 21
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL W IRING MUS T BE DONE B Y A PROFE S S I ONAL AND IN
ACCO RD ANCE W I TH NAT I ONAL AND LO C AL ELE CTRI CAL CODES

2
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
- Always turn hood ON when cooking.
- Use high settings on cooking range ONLY when necessary.
- Do not leave cooking range unattended when cooking.
- Always use cookware and utensils appropriate for the type and amount of food prepared.
- Use this unit only in the manner intended by the manufacturer.
- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
- Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch on may cause ignition or an explosion.
5. Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZA
RD
–
Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

4
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Range Hood Box
{A} Brillia Range Hood
{B} Warranty Registration Card
{C} Instruction Manual (WEBSITE)
{D} Baffle Filter – 2
{E} 6” Round Plastic Collar – 1
{F} Liner (Sold Separately)
{A}
{B} {C}
{D} {E}
{D} {E}
{F} Liner (Sold Separately)
For the operation
manual, please refer to
our website:
KOBERangehoods.com

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame
Bottom (Recommended 26"to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

6
- For Insert installation -
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT
DEBRIS FROM ENTERING THE VENT OPENING.
• Decide the location of the venting pipe from the hood to
the outside. Refer to Figure 1.
• A straight, short vent run will allow the hood to perform
more efficiently.
• Try to avoid as many transitions, elbows, and long run
as possible. This may reduce the performance of the
hood.
• Temporarily wire the hood to test for proper operation
before installing.
• Important: Peel protective film off the hood, if any.
• Use duct tape to seal joints between pipe sections.
CAUTION : If moving the cooking range is
necessary to install the hood, turn off the power in an
electric range at the main electrical box. SHUT OFF
THE GAS BEFORE MOVING A GAS RANGE. And use a
protective covering to protect cook top and/or
countertop from damage.
Custom Hood Preparation
1. The custom hood frame must be sized to shape and the
weight of the insert. Refer to Measurements and
Diagrams on Page 12.
2. Install 6”Round Plastic Collar using 2 attached
screws.
Refer to Figure 2.
3. It must have a sturdy base (1/2 inch thick plywood
recommended) to sustain the weight of insert.
4. If an optional liner will be installed, the side of the wood
cabinet must be sturdy (1/2 inch thick plywood
recommended).
5. It is recommended to install a rear and front stud
support. Refer to Figure 3. The stud supports are
located 1-1/2” up from the base of the wood frame.
Liner Installation
6. The custom/wood hood must have a sturdy base to
accommodate the cut-out for the inset. The base must be
recessed to accommodate the height of the liner (See
liner dimension on Page 13)
7. Secure the liner to the bottom of the base using screws
(not included) appropriate for the size and material of your
wood frame.
8. Position the liner so that it aligns with the back edge of
the custom wood frame. Use a pen to trace the outline of
the pre-cut area. Remove the liner and proceed to Hood
Preparation before Installation on Page 7.
9. Install the liner with 5 screws (not provided).
Figure 1
Figure 2
Figure 3

7
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST
BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE
BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES, SWITCH POWER
OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
10. Temporarily wire the hood to test for proper operation
before installing. If the insert does not operate, check
the circuit breaker or house fuse. If the insert is still not
working, disconnect the power supply and check the
continuity of all wiring connections.
11. Connect electrical wires.
12. Connect three wires (black, white and green) to house
wires and cap with wire connectors. Connect wires
according to their colors (i.e. black to black, white to
white, and green to green). See Figure 4.
13. Store wires in the wiring box.
Note: Connect all electrical wir
es before installing insert.
DO NOT turn on the power until installation is complete.
Duct Work Installation
14. Use 6” steel pipe (follow building codes in your area) to
connect the ducting on the hood to the ductwork above.
Use duct tape to seal and secure joints as shown in
Figure 5.
15. Please refer to local codes for the usage of a damper
(not included).
Hood Preparation Before Installation
CAUTION : If moving the cooking range is necessary
to install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE.
16. Determine and mark the centerlines on the base of the
wood frame where the insert will be installed.
17. Determine and make all necessary cuts in the wall or
ceiling for the ductwork. Note: Install the duct work
before installing the insert.
18. Cut out the opening where the insert will be installed.
Figure 6
Figure 4
Figure 5
Figure 6

8
Hood Installation
19. Slide the hood to the opening where it will be installed.
Two hooks will lock to temporarily hold the hoods’
weight. Figure 7
20. Locate the screw holes (4)
on each side of the insert.
Adjust the level of the hood casing support according to
the thickness of the base (1/2 thickness plywood
recommended – Refer to Figure 3).
21. Secure the hood using screws holes that are located in
front and back of unit (Screws not provided) Figure 8
22. Make sure the hood casing support is secure before
releasing.
CAUTION : MAKE SURE HOOD IS SECURE BEFORE
RELEASING.
Final Assembly
23. Install Baffle Filters. Insert the filters towards the
back of the unit and push up.
24. Make sure the Baffle Filters are secure before
releasing.
Figure 7
Figure 8

9
OPERATING INSTRUCTIONS
This KOBE hood is equipped with five electronic push buttons with LED indicator, double powerful
centrifugal squirrel cage with baffle filters, two bright 3-watt LED lights.
The five control buttons are Power Control (On/Off), Speed Control (High, Low, & QuietMode™), Light
Control, and Change Filter Indicator. Refer to Figure 9.
Figure 9
Note: For best results, turn hood to Low prior to any preparation or cooking. Adjust speed as needed.
Power Control
Press Power Control to turn On/Off the hood.
This unit equipped with 3-minute delay shutoff. To activate this feature, press Power
Control button once, panel LED lights will flash and power will be completely shut off after 3
minutes.
Press Power Control button twice, the fans will be shut off immediately.
Speed Control
Press Speed Control to activate Q - QuietMode™, L - Low, & H - High Speed.
Light Control
(Light control is separate from ON/OFF control. Turning power off will not turn lights off.)
Press Light control to turn lights ON.
Change Filter
Indicator LED Light Control
Speed
Control Power Control

10
Baffle Filter Change Indicator
The indication under symbol will indicate when baffle filter needs cleaning.
Remove to clean the baffle filter.
(To purchase replacement filters, please contact your local KOBE dealer or call 626-775-8880)
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
Cleaning Hood Surface
CAUTION : NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT
USE PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals,
which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Baffle Filter
1. Remove all the baffle filters.
2. Wash with warm soapy water. Dry thoroughly before returning into place.

11
SPECIFICATIONS
MODEL / SIZE INX2730SQB-700-1
COLOR 18-Gauge Commercial Stainless Steel
CONSUMPTION / AMPERE 120W / 3.3A
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 1
FAN TYPE: CENTRIFUGAL Double Horizontal Squirrel Cage
EXHAUST Top 6” Round
CONTROLS 5 / Mechanic Push Button
- 3-Minute Delay Shutoff
HALOGEN LIGHTS 3W-LED x 2
HOOD DIMENSION
(W X D X H) 27-1/2” x 11-3/16” x 10-3/8”
OPTIONAL ACCESSORIES
(W X D X H) Liner: INL36211A (36” X 21” X 2”)
HOOD WEIGHT (lbs) Net Gross
INX2730SQB-700-1
23.6 30.2
Blower Air Capacity (CFM)
QuietMode™ Low High
300 440 750
Sone 1.0 2.2 5.6
* One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

12
11
-
3/16” (284)
10
-
3/8” (264)
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO: INX2730SQB-700-1
Bottom View
Front View
27
-
1/2” (699)

13
Stainless Steel Liner (Sold Separately)
Model No. INL36211A

14
PARTS LIST
MODEL NO: INX2730SQB-700-1
*Liner Sold Separately

15
Liner
(Sold Separately)
INX2730SQB-700-1

16
CIRCUIT DIAGRAM
MODEL NO.: INX2730SQB-700-1

17
TROUBLE SHOOTING
Issue
Possible
Cause
Solution
After
Installation,
both motors
and lights are
not working.
The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a voltage meter to check
the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control panel and processor
board wiring are disconnected. Check wire continuity from control panel to processor board.
The control panel and processor
board is defective. Replace the control panel or processor board.
Lights are
working, but
motor(s) is
not.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
The control panel or processor
board is defective. Replace the control panel or processing board.
The range
hood is
vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air chamber.
The turbine impeller/squirrel cage is
not balanced. Replace the turbine impeller/squirrel cage.
Hood is not secured in place. Check the installation of hood, tighten the
mounting bracket.
The motor is
working, but
the lights are
not working.
LED driver is defective Replace LED Driver
LED light fixture(s) is defective Replace LED light fixture(s)
The light wiring(s) is loose.
Check wire continuity from processor board to light transformer to LED light fixture(s).
The control panel or processor
board is defective. Replace the control panel or processing board.
The range
hood is not
venting out
correctly.
The range hood is installed outside
of the manufacture recommended
clearance.
Adjust the clearance between the range
hoods and cook top to 26” to 30”. For Island
range hood, the clearance between the
range hoods and cook top is 30” to 36”.
There is no make-up air inside the
house.
Open the window to enhance the
performance of the range hood by creating
a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
The pipe size is smaller than the
suggested pipe size. Change the ducting according to the manufacture suggestion.
Cold air is
coming into
the home.
The pipe connection is not properly
sealed. Check the pipe installation.
The damper is not properly installed
or is missing from the installation. Check the damper installation.
The damper is not installed. Installing the damper will help eliminate air
backflow.

18
DISCLAIMER
1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE
ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND
SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM.
Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the
carrier and file a claim immediately. Failure to do so may result in the denial of your claim. The
carrier will furnish you with necessary forms for filing a claim.
DAMAGES CAUSED DURING TRANSIT ARE NOT COVERED UNDER OUR WARRANTY.
2. PLEASE INSPECT CONTENTS OF PACKAGE(S) CAREFULLY UPON RECEIVING!
We must be notified in writing of any damages and/or missing parts within the allocated days upon
your receipt of package(s). Contact your local KOBE dealer or distributor or call KOBE for the time
limit.
CLAIMS WILL NOT BE ACCEPTED AFTER THE ALLOCATED DAYS.
NOTE: ITEMS WERE THOROUGHLY TESTED AND CAREFULLY PACKED IN OUR FACTORY
BEFORE SHIPPING.
3. Products must be returned in good working condition with ALL original parts and documentation
packed in ALL original cartons, fillers and shipping cartons. A restocking fee of 25% will be charged
for all approved return(s).
EXCHANGES OR RETURNS MAY NOT BE ACCEPTED IF ANY PACKAGING IS MISSING.
4. MAKE SURE TO INSPECT THE HOOD FOR DAMAGES AND DEFECTS BEFORE
INSTALLATION. Appearance flaws of the hood found after installation and not affecting hood
performance is not covered under our warranty for returns or exchanges. Service visits not covered
under warranty will carry a service charge.
1. Before Installation: Return for exchange or refund (please see above for acceptable
returns).
2. After Installation: NO exchange or refund.
