KOBE INX2830SQH-700-1 Troubleshooting guide

KOBE Range Hoods
Brillia Series
INX28 SQ-700-1 Series
Model No.: INX2830SQB-700-1 (30”)
INX2830SQH-700-1 (30”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

IMPORTANT
READ THIS FIRST
READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects
3. Have a certified contractor/electrician test the unit before installation.
IF THERE ARE ANY PROBLEMS:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, email [email protected]
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS –
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........................................................................1
COMPONENTS OF PACKAGE......................................................................................3
INSTALLATION...............................................................................................................4
OPERATING INSTRUCTIONS....................................................................................... 8
MAINTENANCE..............................................................................................................9
SPECIFICATIONS ........................................................................................................ 10
MEASUREMENTS & DIAGRAMS.................................................................................11
PARTS LIST.................................................................................................................. 14
CIRCUIT DIAGRAM......................................................................................................17
TROUBLESHOOTING.................................................................................................. 18
WARRANTY.................................................................................................................. 19
WARRANTY INFORMATION FORM............................................................................ 21
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1) Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2) Always turn hood ON when cooking.
3) Use high settings on cooking range ONLY when necessary.
4) Do not leave cooking range unattended when cooking.
5) Always use cookware and utensils appropriate for the type and amount of food prepared.
6) Use this unit only in the manner intended by the manufacturer.
7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8) Clean ventilating fan frequently.

2
What to Do In the Event Of a Range Top Grease Fire
SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
NEVER PICK UP A BURNING PAN – You May Get Burned.
DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
Extinguish any open flame.
Do not try to turn on the lights or any type of appliance.
Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION!
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} 6” Round Plastic Collar x1
{E} Twist on wire Connector
{F} Screw Package
{G} Filter
a. Baffle Filter x2 (for INX28 SQB-700-1 only)
b. Honeycomb Filter x2 (for INX28 SQH-700-1 only)
{A} {B} {C} {D}
{E} {F} {G}
a. Baffle Filter b. Honeycomb Filter
Optional Liner:
INL36211A (Sold Separately)
{H} Liner (Model No.: INL36211A)
{H}
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com.
M4 x 1/2" (4)

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches).
- FOR BUILT-IN / INSERT -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Height of Counter Top to Wood Frame
Bottom (Recommended 26” to 30”)
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING
ANY PARTS FOR INSTALLING, CLEANING, OR SERVICING.
BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY
OCCUR. USING HAND TOOLS IS RECOMMENDED. DO NOT OVER TIGHTEN SCREWS.
MAKE SURE TO PREVENT ANY DEBRIS FROM ENTERING THE VENT OPENING TO AVOID
DAMAGE OR MALFUNCTION.

5
INSERT INSTALLATION
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE VENT
OPENING.
Decide the location of the venting pipe from
the hood to the outside. Refer to Figure 1.
A straight, short vent run will allow the hood to
perform more efficiently.
Try to avoid as many transitions, elbow, and
long run as possible. This may reduce the
performance of the hood.
Temporarily wire the hood to test for proper
operation before installing.
Important: Peel protective film off the hood, if
any.
Use duct tape to seal joints between pipe
sections.
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power
in an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE. And use a protective covering to
protect cooktop and/or countertop from
damage.
Custom Hood Preparation
1. The custom hood frame must be sized to the
shape and the weight of the insert. Refer to
Measurements and Diagrams on Page 11-12.
2. Install 6” Round Plastic Collar using 2 attached
screws. Refer to Figure 2.
3. It must have a sturdy base (1/2 inch thick
plywood recommended) to sustain the weight of
the insert.
4. If an optional liner will be installed, the side of
the wood cabinet must be sturdy (1/2 inch thick
plywood recommended).
5. It is recommended to install a rear and front stud
support. Refer to Figure 3. The stud supports
are located 1-1/2” up from the base of the wood
frame.
Figure 1
Figure 2
Figure 3

6
Liner
Installation
6. The custom hood frame must have a sturdy
base to accommodate the cut-out for the insert.
The base must be recessed to accommodate
the height of the liner (See liner dimension on
Page 13).
7. Secure the liner to the bottom of the base using
screws (not included) appropriate for the size
and material of your wood frame.
8. Position the liner so that it aligns with the back
edge of the custom wood frame. Use a pen to
trace the outline of the pre-cut area. Remove
the liner and proceed to Hood Preparation
before Installation on Page 6.
9. Install the liner with 5 screws (not provided).
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
10. Temporarily wire the hood to test for proper
operation before installing. If the insert does not
operate, check the circuit breaker or house fuse.
If the insert is still not working, disconnect the
power supply and check the continuity of all
wiring connections.
11. Connect electrical wires.
12. Connect three wires (black, white and green) to
house wires and cap with wire connectors.
Connect wires according to their colors (i.e.
black to black, white to white, and green to
green).
13. Store wires in the wiring box. See Figure 4.
NOTE: Connect all electrical wires before installing
insert. DO NOT turn on the power until installation
is complete.
Figure 4
Figure 5
Figure 6

7
Duct Work Installation
14. Use 6” steel pipe (follow building codes in your
area) to connect the ducting on the hood to the
ductwork above. Use duct tape to seal and
secure joints as shown in Figure 5.
15. Please refer to local codes for the usage of a
damper (not included).
Hood Preparation Before Installation
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power
in an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
16. Determine andmark thecenterlines onthebase
of the wood frame where the insert will be
installed.
17. Determine and make all necessary cuts in the
wall or ceiling for the ductwork. Note: Install the
duct work before installing the insert.
18. Cut out the opening where the insert will be
installed. Figure 6.
Hood Installation
19. Slide the hood into the opening where it will be
installed.
20. Locate the screw holes (4) on each side of the
insert. Adjust the level of the hood casing
support according to the thickness of the base
(1/2 thickness plywood recommended – Refer
to Figure 3).
21. Secure the hood using screws holes that are
located in front and back of unit (screws
provided). Figure 7.
22. Make sure the hood casing support is secure
before releasing.
CAUTION: MAKE SURE HOOD IS SECURE
BEFORE RELEASING.
Final Assembly
23. Install Filters. Insert the filters towards the back
of the unit and push up.
24. Make sure the filters are secure before
releasing.
Figure 7

8
OPERATING INSTRUCTIONS
Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while
cooking. Adjust speed as needed.
To operate the fan function
Press button to choose the speed.
oQ = QuietMode™ speed
oL = Low speed
oH = High speed
Press “OFF” to turn fan off.
To operate the light function
Press the Light Control to turn lights on and off.

9
MAINTENANCE
For optimal appearance, clean the range hood surface and filters regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
***Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks smudged (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use a soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use a dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful to the hood. Wipe down hood with a water-moistened cloth, then wipe dry with a
clean lint-free cloth.
For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER REGULARLY TO PREVENT OVERFLOW.
1. Remove all the baffle filters and the oil tunnel. Note: Not all models have an oil tunnel.
2. Using a sponge, wash them with warm soapy water. Dry them completely before putting them
back into place.
CAUTION: SHARP EDGES.
(Note: Baffle Filters are top rack dishwasher safe)
For Honeycomb Filter models only: to Clean Honeycomb Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM HONEYCOMB FILTER REGULARLY TO PREVENT OVERFLOW.
1. Remove all the honeycomb filters and the oil tunnel. Note: Not all models have an oil tunnel.
2. Using a sponge, wash them with warm soapy water. Dry them completely before putting them
back into place.
CAUTION: SHARP EDGES.
(Note: Honeycomb Filters are top rack dishwasher safe)

10
SPECIFICATIONS
MODEL / SIZE
INX2830SQB-700-1 (30”)
INX2830SQH-700-1 (30”)
COLOR
18-gauge commercial grade stainless steel
CONSUMPTION / AMPERE
300W / 2.5A
VOLTAGE
120V 60hZ
NUMBER OF BLOWER
1
FAN TYPE: CENTRIFUGAL
Single Horizontal Squirrel Cage
EXHAUST
Top 6” Round
CONTROLS
Mechanical Push Button
LIGHTS
LED Lights (3W) x 2
HOOD DIMENSION
(W x D x H)
INX2830SQB
-
700
-
1
27-9/16” x 11-1/4” x 10-1/4”
INX2830SQH-700-1 27-9/16” x 11-1/4” x 10-1/4”
OPTIONAL ACCESSORIES
(W x D x H)
1.
Liner
Model: INL36211A (35-1/8” x 21-7/8” x 2”)
2. 30” Stainless Steel Back Panel
Model: SSP30 (30” x 1/10” x 32”)
3. 36” Stainless Steel Back Panel
Model: SSP36 (36” x 1/10” x 32”)
HOOD WEIGHT
Net Gross
INX2830SQB-700-1 23.6 lbs 28.4 lbs
INX2830SQH-700-1 21.4 lbs 26.1 lbs
Speed
QuietMode™ Low High
Blower Air Capacity (CFM)
300 440 750
Sone
1.0 2.2 5.6
*One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

11

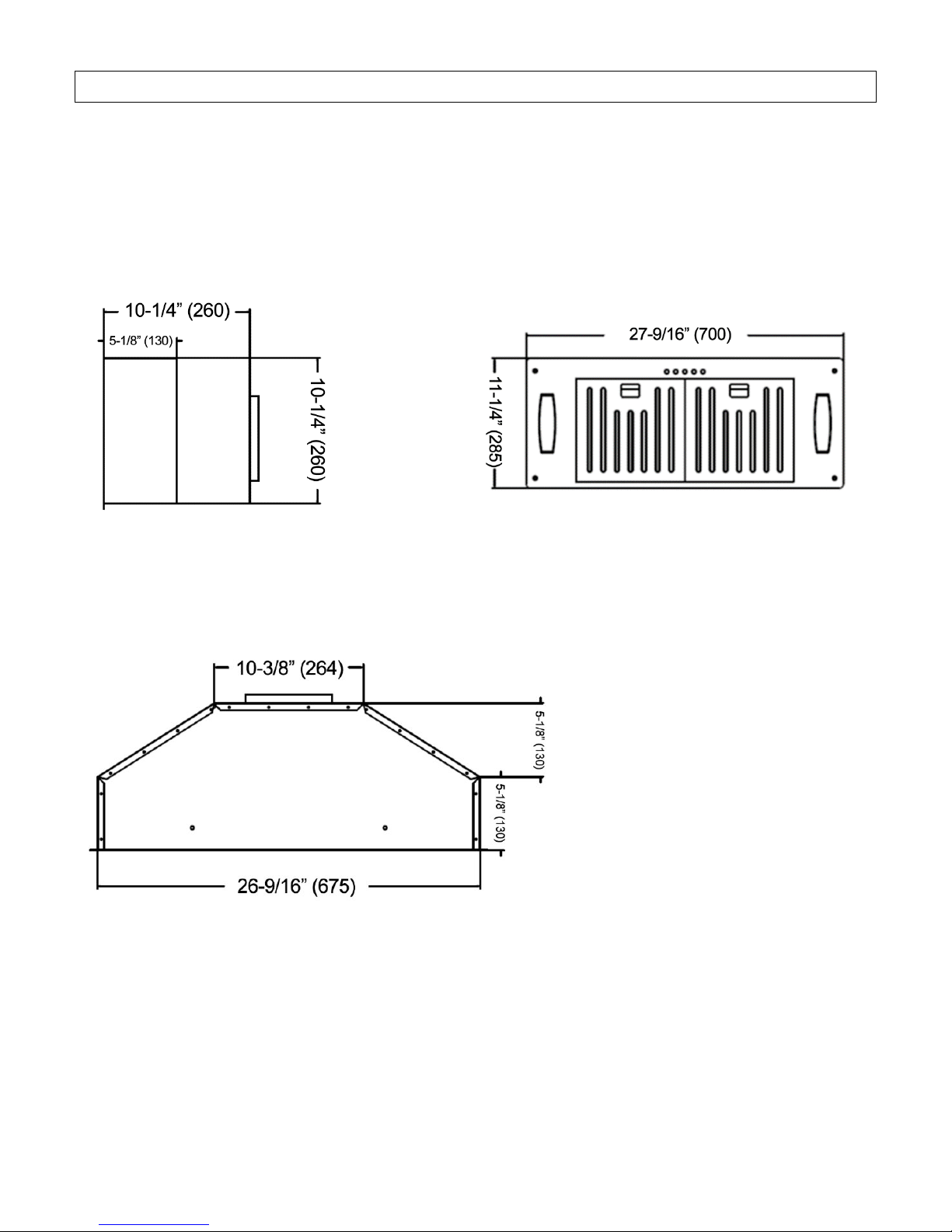

MEASUREMENTS & DIAGRAMS
***All ( ) are in millimeter.
***All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO.: INX2830SQB-700-1 (30”)
Side View Bottom View
Front View

12
***All ( ) are in millimeter.
***All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO.: INX2830SQH-700-1 (30”)
Side View Bottom View
Front View

13
Stainless Steel Liner (Sold Separately)
Model No.: INL36211A

14
PARTS LIST
MODEL NO.: INX2830SQB-700-1 (30”)
INX2830SQH-700-1 (30”)
NO.
DESCRIPTION
MODEL / SIZE
PART NO.
1 6” Round Plastic Exhaust
L1
-
0505
-
0003
2 Wiring Box
L1
-
0231
-
2730
3 Blower System
L1
-
0302
-
0120
-
802RO
4 Electronic Component Box
L1
-
0524
-
0003
5 LED Light Driver
L1
-
0402
-
0303
6 Capacitor x 1PCS
L1
-
0401
-
0120
-
24
7 Control Switch
L1
-
0405
-
0301
8 LED Lights (3W) x2
L1
-
0403
-
0601
9 Baffle Filter x2 INX2830SQB-700-1
L1
-
0604
-
0027
-
B
10 Honeycomb Filter x2 INX2830SQH-700-1
L1
-
0604
-
0027
-
C
Optional Liner
NO.
DESCRIPTION
MODEL / SIZE
PART NO.
11 Liner INL36211A
IN2730
-
11
-
01

15
MODEL NO.: INX2830SQB-700-1 (30”)

16
MODEL NO.: INX2830SQH-700-1 (30”)

17
CIRCUIT DIAGRAM
MODEL NO.: INX2830SQB-700-1
INX2830SQH-700-1
