KOBE Brand Range Hood
Model No. CH8136SQB
CH-181 SERIES – 11” HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........................................................................1
COMPONENTS OF PACKAGE ......................................................................................3
INSTALLATION...............................................................................................................4
OPERATING INSTRUCTIONS .......................................................................................8
MAINTENANCE..............................................................................................................9
SPECIFICATIONS ........................................................................................................11

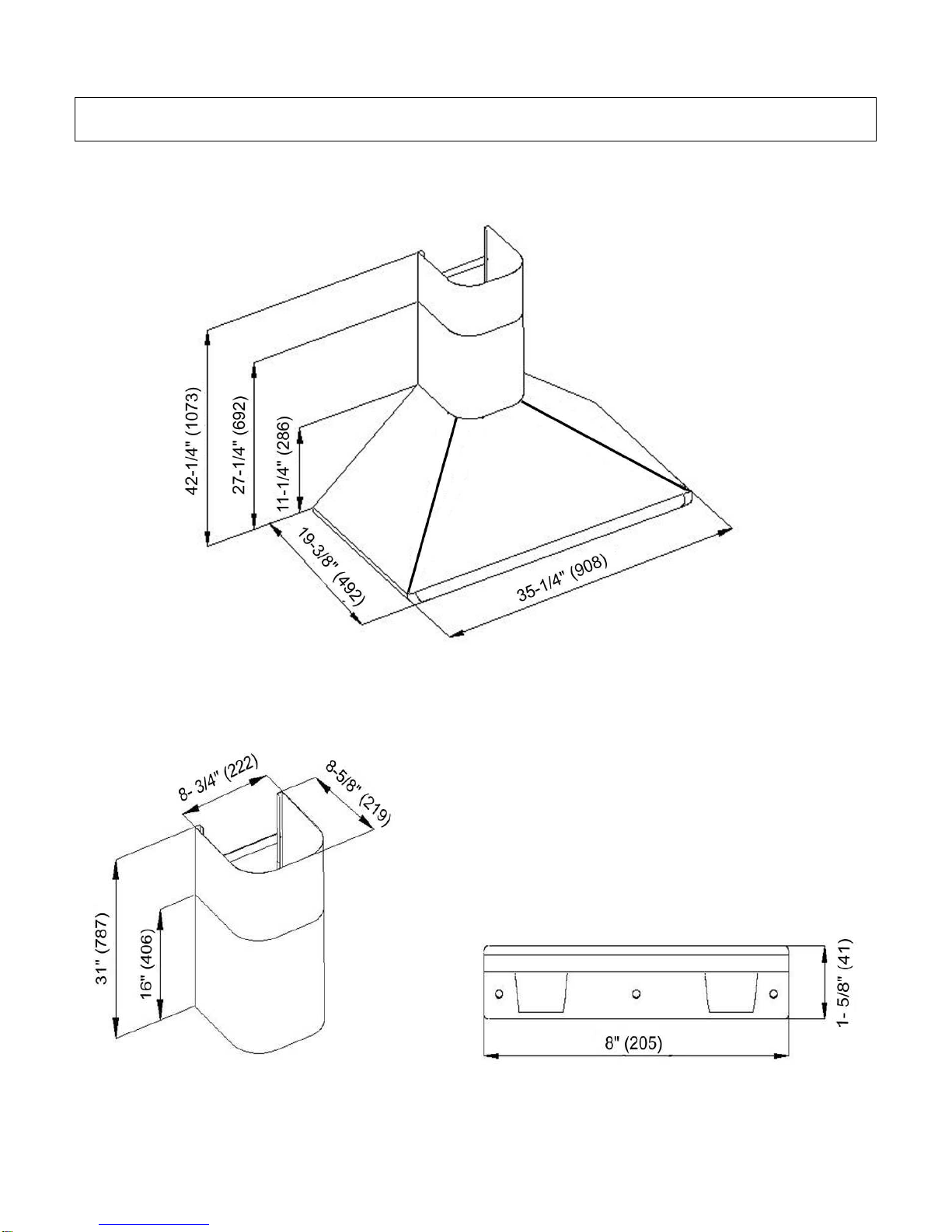

MEASUREMENTS & DIAGRAMS.................................................................................12
PARTS LIST..................................................................................................................13

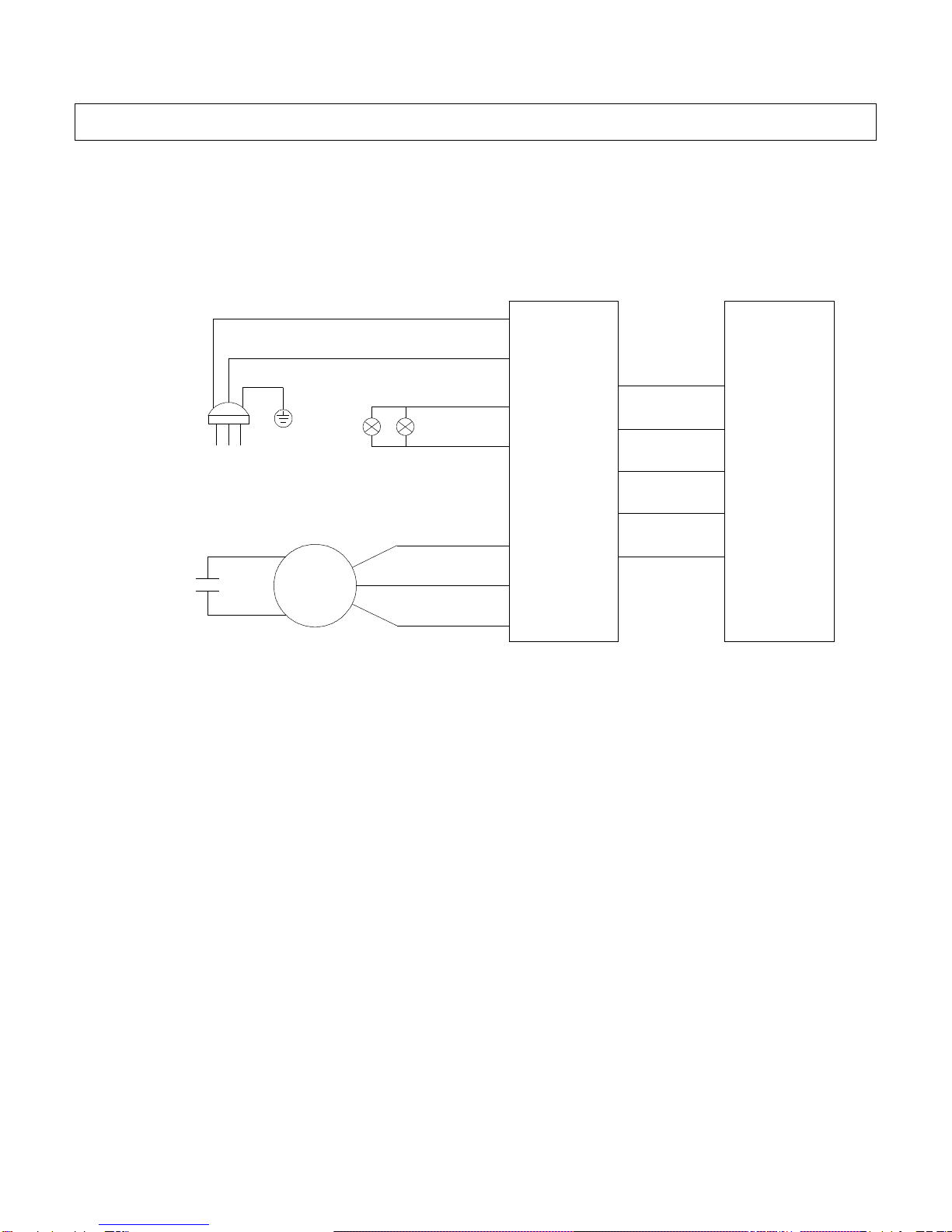

CIRCUIT DIAGRAM......................................................................................................16
DISCLAIMER ................................................................................................................17
WARRANTY..................................................................................................................18
PRODUCT REGISTRATION.........................................................................................20
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance
with all applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or
other hidden utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT
SERVICE PANEL.
b) Clean fan, baffles/filters and grease laden surfaces frequently. To reduce the risk of fire
and to disperse air properly; make sure to vent air outside. DO NOT vent exhaust air
into wall spaces, attics, crawl spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if
unit is damaged due to misuse, poor installation, improper use,
mistreatment, negligence or any other circumstances beyond the
control of KOBE RANGE HOODS authorized agents. Any repair
carried out without the supervision of KOBE RANGE HOODS
authorized agents will automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any
damages to personal property or real estate or any bodily injuries
whether caused directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A
RANGE TOP GREASE FIRE:
- Keep fan, baffle/filter, if any, and grease-laden surfaces clean.
- Always turn hood ON when cooking at high heat.
- Use high settings on cooking range ONLY when necessary.
- Do not leave cooking range unattended when cooking.
- Always use cookware and utensils appropriate for the type and amount of food prepared.
- Use this unit only in the manner intended by the manufacturer.
- Before servicing, switch power off at service panel and lock service panel (if possible) to
prevent power from switching on accidentally.
- Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan and
baffles/filters.

2
What to Do In The Event Of a Range Top Grease Fire
- SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the
burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If
the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE
DEPARTMENT or 911.
- NEVER PICK UPABURNING PAN – You May Get Burned.
- DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
- Use an extinguisher ONLY if:
1) You have a Class A, B, C extinguisher and know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department has been called.
4) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas
Company and Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials
and vapors.
2) To reduce the risk of fire, use only metal ductwork.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
Activating any switch on may cause ignition or an explosion.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If
equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to Local,
State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
{A} Body
{B} Warranty Registration Card
{C} Instructions Manual
{D} 6-1/4” Plastic Damper
{E} Rubber Seal
{F} Inner / Outer Duct Cover with Bracket
{G} Hood-Mounting Bracket
{H} Screw Package
{I} Baffle Filters
{A}
{B} {C}
{D} {E}
{F}
{G}
{H}
{I}

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTION BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to Table 1. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of Hood Installation
[A – (B + C)]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of venting pipe from the hood to the
outside. Refer to Figure 1.
- A straight, short venting run will allow the hood to
perform more efficiently.
- Try to avoid as many transitions, elbows, and long run
as possible. This may reduce the performance of the
hood.
- Use duct tape to seal the joints between pipe sections.
- Temporarily wire the hood to test for proper operation
before installing.
1. If necessary, prepare back wall frame with cross
framing lumber for secure installation. Using
references in Table 1 and measurements on page 12,
decide the level of the lumber. Refer to Figure 2.
Figure 1
Figure 2

5
2. Peel protective film off the duct covers and the hood (if
any).
3. If necessary, remove the rubber stand at the back of
the hood and store in case of future use. (For a more
secure installation, KOBE recommends not removing
the rubber stands.) Refer to Figure 3.
4. Place rubber seal on hood venting area; making sure
the holes on rubber seal and vent area
are aligned.
Refer to Figure 4.
5. Pull power cord through the electrical opening on
plastic damper. Refer to Figure 5.
6. Place plastic damper on rubber seal and attach to
hood with seven ST 3.9 x 16 mm screws (provided).
7. Adjust height of duct cover and secure using two
ST 3.5 x 8 mm screws (provided). Refer to Figure 6
and Figure 7.
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7

6
Hood Installation
CAUTION
If moving the cooking range is necessary to install the hood, turn off the power in an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
8. Using references in Table 1 and measurements on
page 12, mark the leveling point for hood-mounting
bracket on the wall.
9. Secure hood-mounting bracket with screws (not
provided). Refer to Figure 8.
10. Align hood to hood-mounting bracket on the wall and
hook hood into place. Refer to Figure 9. CAUTION:
MAKE SURE THE HOOD IS SECURE BEFORE
RELEASING.
Ductwork Installation
11. Use 7” round pipe to connect the plastic exhaust on
the hood to the ductwork above. Use duct tape to
make all joints secure and air tight. Refer to Figure
10.
Figure 8
Figure 9
Figure 10

7
Wiring Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH
ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE
CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON ACCIDENTALLY.
12. Connect the three hood wires to house wires according to color (black to black, white to
white, and green to green) and cap with wire connectors.
13. Test the operation of the hood before moving on to the next step to make sure power is
supplied to the hood.
Duct Cover Installation
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.
14. Slide duct cover onto the hood. Refer to Figure 11.
15. Secure duct cover to the body using two ST 3.9 X 10
mm screws (provided). Refer to Figure 12.
Final Assembly
16. Turn power on in control panel. Check light and fan
operation.
17. Make sure to leave this manual for the homeowner.
Figure 11
Figure 12

8

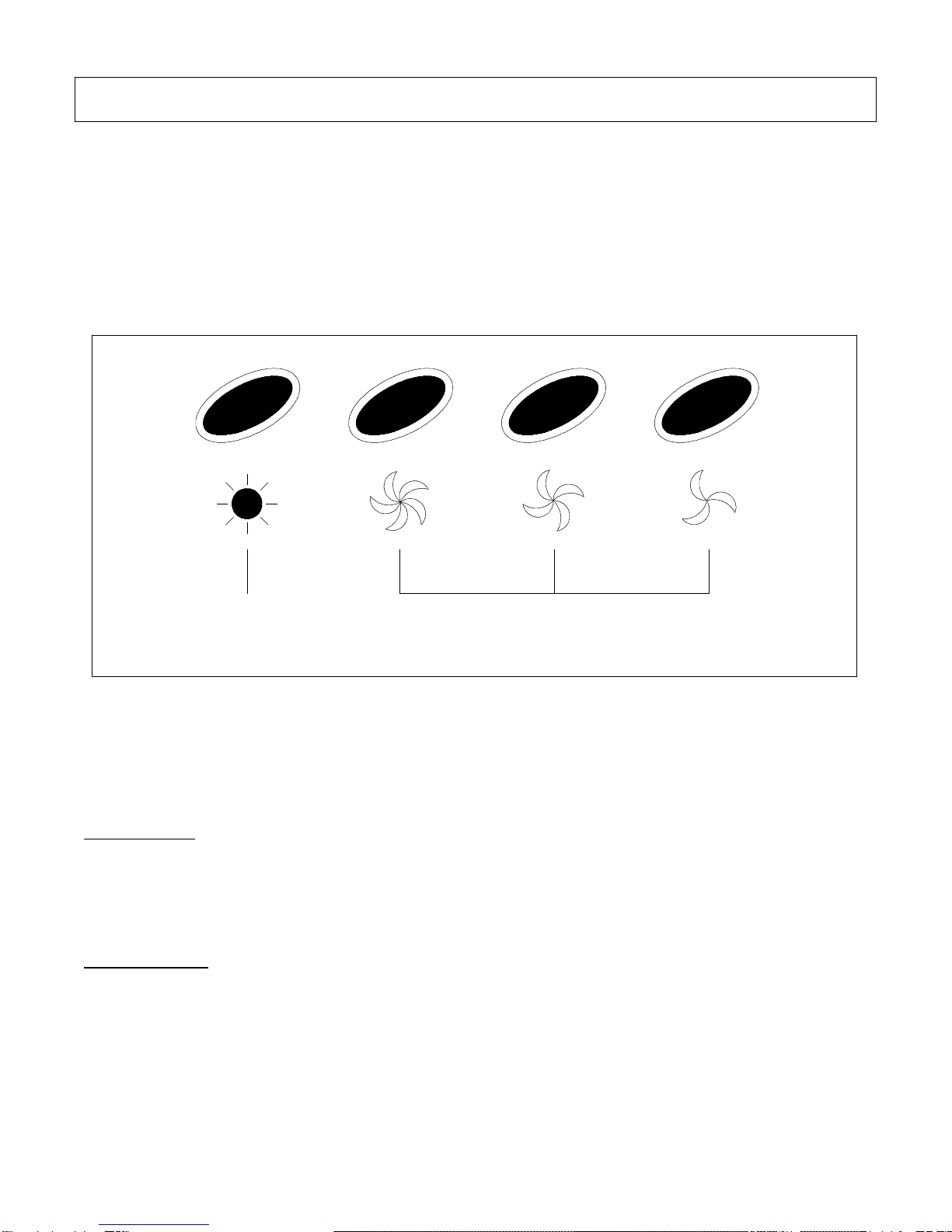

OPERATING INSTRUCTIONS
This hood is equipped with three speeds, powerful centrifugal squirrel cage with baffle filters,
and two bright 12-volt 20-watt halogen lights.
The control buttons are the light and speed controls (QuietMode™, Low and High). Refer to
Figure 12.
Figure 12
Light Control:
Press button to turn on / off.
Speed Control:
Press button for speed. (QuietMode™, Low and High).
Light Control Speed Control

9
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
For optimal operation, clean range hood surface and stainless steel baffle filters regularly.
Cleaning Hood Surface
CAUTION : NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
Regular care will help preserve the appearance of the hood.
1) Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2) If hood looks splotchy (stainless steel hood), use an orange base cleaner to clean the
surface of the hood. Avoid getting cleaner on the control switches. Spread a light
coating over the surface of the hood and leave on for a few minutes. CAUTION: Do
not leave on too long as this may cause damage to hood finish. Use soft towel to
wipe off the cleaning solution, gently rub away stubborn spots. Use a slightly damp
towel to get rid of any cleaning solution. Use dry soft towel to dry the hood.
3) To bring glow back into a stainless steel finish, use a stainless steel cleaner.
4) DO NOT allow deposits to remain for extended periods.
5) DO NOT use ordinary steel wool or steel brushes. Small bits of steel adhering to the
surface may cause rust.
6) DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to
remain in contact with stainless steel for extended periods. Many of these compounds
contain chemicals, which may be harmful. Rinse with water after exposure and wipe
dry with a clean cloth.

10

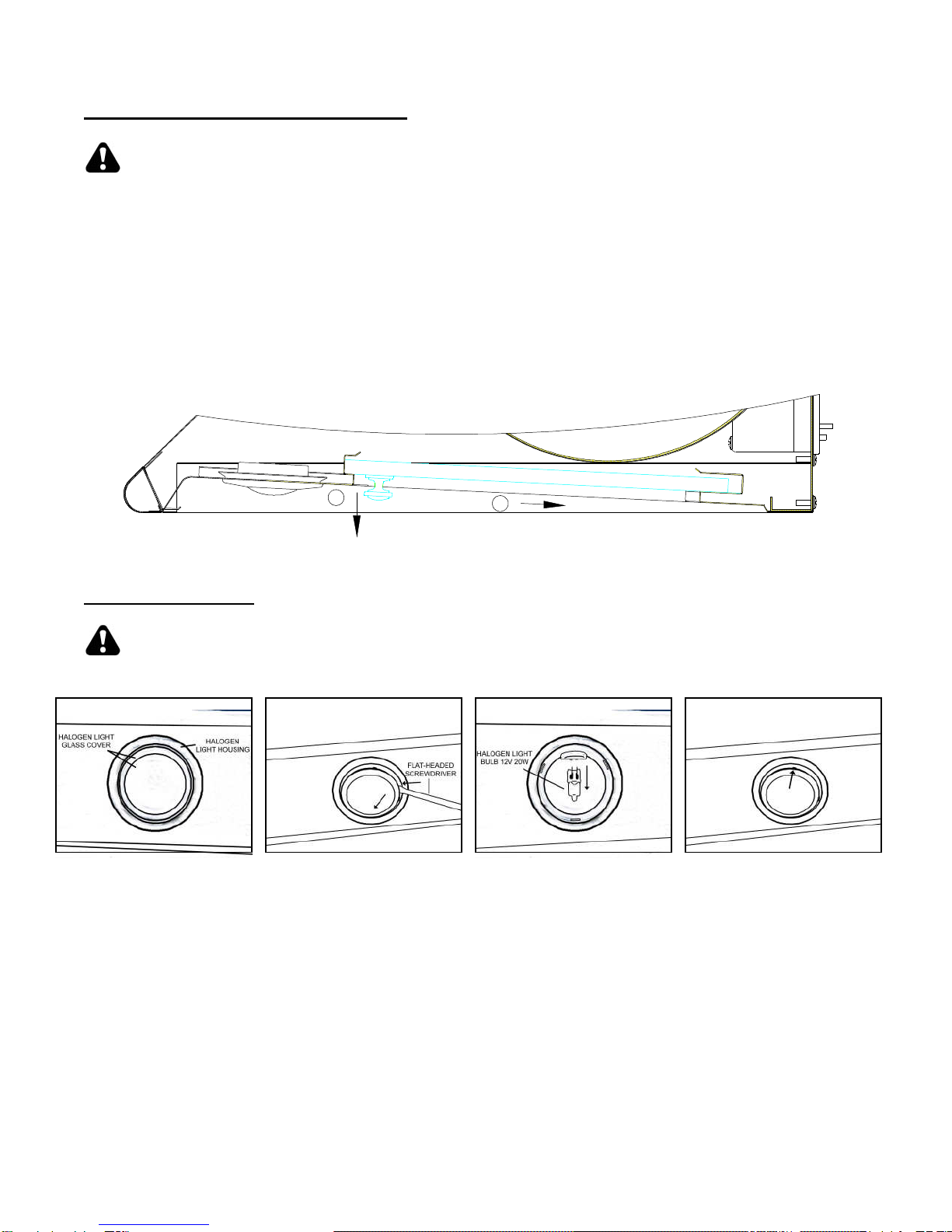

Cleaning Stainless Steel Baffle Filter
CAUTION : DRAIN OIL BEFORE RESIDUE CAN OVERFLOW.
1. Grasp knob on baffle filter and push filter toward rear.
2. Gently pull each baffle filter down and discard oil and residue.
3. Wash baffle filters with warm soapy water.
4. Dry thoroughly and put back.
NOTE: Baffle Filters are top rack dishwasher safe.
Figure 13
Replacing Light Bulb
CAUTION : HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.


 

 

 


1. Make sure all controls are OFF, and range hood is unplugged.
2. Place a flat-head screwdriver into the groove between the halogen light glass covering
and the housing .
3. Gently separate glass covering from the housing .
4. Gently pull out the defective light bulb and discard. Light bulb should be 12V 20W
maximum.
5. Wear a glove or use a cloth to hold the new light bulb and push securely into light
socket. NOTE: DO NOT PUSH TOO HARD OR YOU MAY BREAK THE BULB
CONNECTOR.
6. Put back halogen light glass cover .
7. Plug back power cord and turn on range hood to test for operation.
1
2

11
SPECIFICATIONS
MODEL / SIZE CH8136SQB / 36”
COLOR # 304 Commercial Grade Stainless Steel
DESIGN 20-Gauge / Satin Finish
FAN TYPE Squirrel Cage
EXHAUST 6-1/4” Round Damper
CONTROLS Three Speeds (QuietMode™, Low, High)
HALOGEN LIGHTS 12V 20W x 2
HOOD DIMENSION (W x D x H) 35-1/4” x 19-3/8” x 11-1/4”
DUCT COVER DIMENSION (W x D x H) 8-3/4” x 8-5/8” x 16”~31”
WEIGHT (lbs) NET GROSS
37.4 44.0
SPEED QuietMode™ Low High
Air Capacity (cfm) 250 450 600
Sone* 1.0 2.8 4.5
*In House Test Static Pressure “0”. One Sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

12
MEASUREMENTS & DIAGRAMS
*** All inch measurements are converted from millimeters. Inch measurements are
estimated.

13
PARTS LIST
MODEL NO.: CH8136SQB
NO. DESCRIPTION MODEL / SIZE
PART NO.
1 Duct Cover Bracket CH0061
2 Inner Duct Cover CH0595
3 Outer Duct Cover CH0596
4 6-1/4” Plastic Damper CY0187
5 Rubber Seal CH0539
6 Screws (3/16” X 3/8”) G3215
7 Back Casing CH0592
8 Blower Assembly
9 Screws (3/16” X 3/8”) G3398
10 Brackets CH0059
11 Hood Frame CH0040
12 Left / Right Side Trim CY0619/CY0620
13 Front Trim CH0044
14 Baffle Filters CH0594
15 Bottom Casing CH0591
16 Halogen Lights CY03341
17 Baffle Knobs CY0324
18 Electrical Box CY04751
19 Power Board CY0278
20 Capacitor 01475
21 Electrical Box Cover CY0475
22 Setup Board CH0048

14
MODEL NO.: CH8136SQB
1
2
3
4
5
6
7
8
14
15
12
18
19
20
21
22
10
9
13
16
17
11

15
Blower Assembly
NO. DESCRIPTION MODEL / SIZE PART NO.
23 Screw (3/16” X 3/8”) G3231
24 Air Flow Grill CY0406
25 Right Locknut CY0382
26 Motor CY0519
27 Fixture Ring CY0572
28 Vent Plate CY0529
29 Left Blower CY0160
30 Left Locknut CY0365
31 Air Chamber CH0052
32 Right Blower CY0161
23
24
26
27
28
29
30
31
32
25

16
CIRCUIT DIAGRAM
Transition
Circuit
Control
Board
AC 120V
60Hz
CAPACITOR
12uF / 450V MOTOR
HALOGEN
LAMPS
WHITE
BLACK

17
DISCLAIMER
1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING
DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS
RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND
KEEP COPY TO SUPPORT YOUR CLAIM.
Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages
should be reported to carrier and a claim filed. Failure to do this could result in the
carrier refusing to honor your claim. The carrier will furnish you with necessary forms
for filing a claim.
DAMAGES CAUSED DURING TRANSIT ARE NOT COVERED UNDER OUR
WARRANTY.
2. PLEASE INSPECT CONTENTS OF PACKAGE (S) CAREFULLY UPON RECEIVING!
We must be notified in writing of any damages and/or missing parts within the allocated
days upon receipt of package(s). Contact your local KOBE dealer or distributor or call
KOBE for the time limit.
CLAIMS WILL NOT BE ACCEPTED AFTER THE ALLOCATED DAYS.
NOTE: ITEMS WERE THOROUGHLY TESTED AND CAREFULLY PACKED IN OUR
FACTORY.
3. Products must be returned in good working condition with ALL original parts and
documentation packed in ALL original cartons, fillers and shipping cartons. A restocking
fee of 25% will be charged for all approved return(s).
EXCHANGES OR RETURNS MAY NOT BE ACCEPTED IF ANY PACKAGING IS
MISSING.
4. MAKE SURE TO INSPECT THE HOOD FOR DAMAGES AND DEFECTS BEFORE
INSTALLATION. Appearance flaws of the hood found after installation and not
affecting hood performance is not covered under our warranty for returns or
exchanges. Service visits not covered under warranty will carry a service charge.
A) Before Installation: Return for exchange or refund (please see above for
acceptable returns).
B) After Installation: NO exchange or refund.
