Kodiak 450-4111 User manual

KDCF53KDCF53
KODIAK MOBILE BY JOTTO DESK
an ISO 9001:2008 Certied Company
209 W. Easy St., Rogers, AR USA 72756
Customer Service: 877.455.6886
http://jottopublicsafety.gojotto.com/docking-stations.html
PART NUMBER: 450-4111 - Last Update: 07/2013
INTELLIGENT
DOCKING STATION
USERS MANUAL
PART NUMBER: 450-4111
PANASONIC CF53 TOUGHBOOK COMPATIBLE
AN ISO 9001:2008 CERTIFIED COMPANY
Kodiak Mobile
by JOTTO DESK®
CUSTOMER SERVICE
If you have any questions or require additional information please contact
Customer Service at 877-455-6886, Monday though Friday, 8:00am -
5:00pm CST.
TECHNICAL SUPPORT
Kodiak Mobile by Jotto Desk offers technical support for all of our products
Monday through Friday, 8:00am - 5:00pm CST. You can contact us at
877-455-6886 or by email: [email protected]
http://jottopublicsafety.gojotto.com/docking-stations.html
The Kodiak Mobile by Jotto Desk web site, is host to many technical pages
and specifications to help trouble shoot installation and post installation
problems. Visit the Kodiak Downloads area for ‘FAQ’ for frequently
asked questions, additional technical information as well as Ethernet
dock software drivers. Visit http://jottopublicsafety.gojotto.com/docking-
station-downloads for this and other information on our products.

KDCF53KDCF53
LIMITED WARRANTY
Kodiak Mobile by Jotto Desk will repair our docking station product with new
or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date
of original purchase in the event of a defect in materials or workmanship.
This warranty includes the metal case and internal power supply / port
replicator circuitry, but excludes all other options or accessories, which are
covered by the respective manufacturer of those options or accessories.
This warranty is extended solely to the original purchaser. A purchase
receipt or other proof of date of original purchase and a Kodiak Mobile
SO# will be required before warranty performance is rendered.
This warranty only covers failures due to defects in materials or
workmanship which occur during normal use. It does not cover damage
which occurs in shipment or failures which are caused by products not
supplied by Kodiak, or failures which result from alteration, accident,
misuse, introduction of liquid or other foreign matter into the unit, abuse,
neglect, installation, maladjustment of consumer controls, improper
maintenance, modification or service by anyone other than Kodiak
Mobile by Jotto Desk or an authorized Kodiak Mobile by Jotto Desk
Service Authorized Dealer, or damage that is attributable to acts of God.
Exclusions and Limits:
There are no other express warranties except as listed above.
KODIAK MOBILE BY JOTTO DESK SHALL NOT BE LIABLE FOR LOSS
OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
If you experience a problem with your Kodiak Mobile by Jotto Desk
product during or after your warranty period please contact us at
877.455.6886.
DESCRIPTION
Rugged in-vehicle “intelligent” docking station with internal port
replicator/power supply with auto shutdown/auto activation
capability.
WARNINGS
Do not use bolts longer than 3/8” to bolt docking station to
clevis or pedestal mount. Only use 1/4”-20 x 3/8” grade 8
bolts to secure dock to clevis/pedestal mount. Consult vehicle
manufacturer prior to installation for air bag deployment
zones. Do not install this unit in the driver or passenger air bag
deployment zones.
Only use appropriate mounting hardware that can securely
support the weight of this docking station and computer. Failure
to comply can result in serious injury or death.
FEATURES
1. INTERNAL PORT REPLICATOR
A. (6) USB 2.0 ports
B. Ethernet port 10/100 BASE_T
2. INTERNAL POWER SUPPLY
A. 15.7v DC output charging circuit
B. User selectable auto shutdown timer
C. Microprocessor control
D. Power Indicator
E. Docked Indicator
F. Low Volt Indicator
G. Auto Shutdown Warning Indicator
H. Auto Shutdown output trigger
PORT DIAGRAM

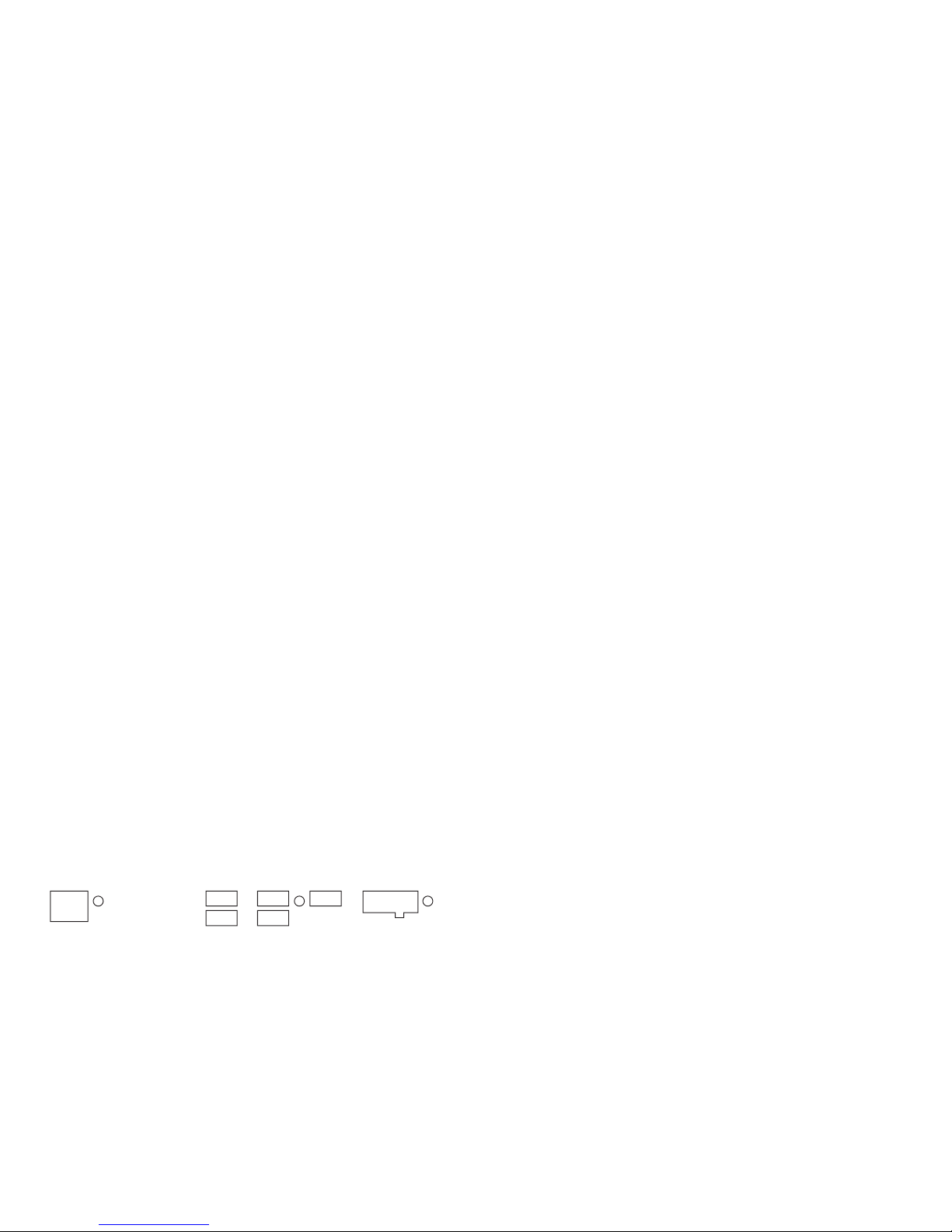

Diagram of the port layout located on the bottom of docking station.
ETHERNET USB 2.0 USB 2.0 USB 2.0 POWER IN
A
B

KDCF53KDCF53
DOCKING STATION DIAGNOSTICS
The KDCF53 120w Power Supply board has built-in power indicator LED’s
that can help you determine if the docking station is functioning properly. To
access the required area of the board, remove the access panel, located on
left side of the dock. The indicators are color coded and indicate if specific
functions are either receiving input power or producing output power.
Example:
If the +12vDC ignition circuit is not connected or the ignition fuse is blown
the Orange LED will not be illuminated. By simply observing the state of the
LED you can quickly determine if the docking station is receiving voltage or
not.
LED INDICATOR COLOR CODES:
INPUT POWER LED COLOR REF
+12vDC (un-switched power, or A+) RED D1
+12vDC (switched, or ignition power) ORANGE D7
OUTPUT POWER
+15.7vDC (laptop charging circuit) GREEN D6
+5vDC (USB, Ethernet power circuit) YELLOW D2
All four LED’s should be illuminated when the docking station is powered
up. If you don’t see all four LED’s there is a situation that is preventing the
docking station from functioning properly. Please use the chart below to
determine the cause and effect of the described situations:
1. Laptop computer won’t charge. Check to see if the GREEN LED is illuminated.
If it’s not, check Output Fuse.
2. Docking station turns on for a brief moment, then shuts down. Check to
see if the ORANGE LED is illuminated. If it’s not, check the Ignition Fuse
and check to be certain 12v is present at this circuit. (This condition may
vary depending on the settings of your shutdown timer. The docking station
will power up and then start the shutdown timer. Docking station will remain
powered up for the pre-set time then shut down if the Ignition Fuse is blown.)
3. Docking station will not power up at all. Check to see if the RED LED is
illuminated. If it’s not, check Main Power Fuse and check to be certain that
12v is present at the circuit. Laptop must be docked.
4. Ethernet will not function. Check to see of the YELLOW LED is illuminated.
If the LED is illuminated and the Ethernet will not work, you may need to
install the Ethernet driver into your computer. Drivers are available on the
Kodiak web site. UPDATE DRIVER TO INTERNET
SPECIFICATIONS
MOUNTING:
Mounting Pattern (Standard) 4.250 x 2.000
3.175 x 3.175
Dimensions: 13.1W x 11.8L x 1.5H
Weight: 6.2 lbs.
GENERAL:
Construction: 18g welded steel
Keyed Alike: Yes
Finish: Powder Coat - Black/Silver
FIRMWARE:
Revision: 6
*Laptop must be docked for
docking station to power.
POWER SUPPLY:
Input Voltage: 9v - 16v DC
Output Voltage1: 15.7v DC regulated @ 120W
Output Amp (Charging): 10A Max
Output Trigger: 400mA Max
Surge Suppression: Yes
Input Fused (BATT): 15A ATM
Input Fused (IGN): 7.5A ATM
Output Fused: 10A mini blade
Reverse Voltage Protection: Yes
Avalanche Voltage Protection: Yes
Un-Switched 12v Access: Yes (keyboard light)
PORT REPLICATOR:
Noise Filtering: Yes
EMI Filtering: Yes
USB: USB, type A 2.0
Ethernet: RJ45

KDCF53KDCF53
OUTPUT TRIGGER WIRING DIAGRAM
The output trigger on this docking station is to be used in conjunction
with a relay. The output trigger functions as a negative ground with a
400mA maximum load. See block diagrams.
MULTIPLE DEVICE SCHEMATIC [Block Diag. 2]
SINGLE DEVICE SCHEMATIC [Block Diag. 3]
FUNCTION OVERVIEW
GENERAL:
The docking station will only power up with laptop docked due to firmware
revision 6. The Kodiak Mobile KDCF53 intelligent docking station will
automatically power and charge the notebook computer. It is not necessary to
push any buttons on the control panel for unit activation under normal conditions.
Simply turning the vehicle ignition to accessory or starting the vehicle will activate
the docking station and any external devices that are wired to the output trigger
of the docking station. Turning the key OFF will automatically shutdown the
docking station and any external devices. Under special circumstances it may be
desirable to control the docking station manually. Use the buttons on the front
control panel to manually power and shutdown the docking station.
OUTPUT TRIGGER: (This optional feature is not required for standard function)
The KDCF53 docking station has an output trigger available on the power
cable supplied with the unit. This trigger can be used in conjunction with a
relay to control the power of other devices such as modems and GPS units. The
functionality is as follows: When the docking station is ON the external units
are ON. When the docking station powers OFF the external units power OFF.
AUTO SHUTDOWN TIMER: (This option can be enabled or disabled by the user)
This docking station has an integrated timer circuit that can be enabled. The
shutdown times are user controlled by setting the DIP switch on the side of the
docking station. The timer controls the output trigger as well as the main docking
station power. Once the ignition switch of the vehicle is shut off the docking
station will begin it’s countdown. Five minutes prior to reaching the set time
the Auto Shutdown warning LED on the control panel will begin to flash. The
user has the option to allow the docking station to power down or to reset the
countdown by pressing the Reset button on the control panel.
LOW VOLTAGE MONITORING: (This option can be enabled or disabled by the
user) The KDCF53 docking station has an integrated low volt detection circuit.
This feature monitors the vehicle battery voltage when enabled. If the vehicle
battery voltage drops below 10.5v the docking station will flash the Low Volt
indicator on the control panel and automatically shut down the docking station
along with any external devices that are tied to the output trigger. The docking
station automatically disables this feature if the vehicle ignition switch is in the
ON position or if the vehicle is running.
If a Low Volt condition is detected the docking station will flash the Low Volt
indicator until the condition is corrected. Once corrected press and hold the
Reset button for a few seconds and the unit will power up. If the condition still
exists the docking station will immediately detect the condition and power back
down. If this occurs, start the vehicle and repeat this step.
CONTROL PANEL DESCRIPTION:
Master Power Button: Main docking station power, on and off.
Power LED: Indicates power on and charging
Docked LED: Indicates mate between dock & computer.
Low Volt LED: Indicates vehicle battery is weak.
Auto Shutdown Warning LED: Indicates Auto Shutdown is about to occur.
Reset Button: Resets Auto Shutdown timer and Low Volt condition.

KDCF53KDCF53
WIRING INSTALLATION
RED: Constant 12vDC +
YELLOW: Switched 12vDC+
BLACK: Ground -
BLUE: Auto Shutdown Trigger (400mA max. output)
[Optional - See block diag. 2 or 3]
POWER CONNECTOR PINOUT
POWER HARNESS INSTALLATION [Block Diag. 1]
15A 7.5A
AUTO SHUTDOWN SWITCH SETTINGS
TIMER SETTING
DIP 1 DIP 2 DIP 3 RESULT
ON ON ON DISABLE
ON ON OFF 30 MIN
ON OFF ON 60 MIN
ON OFF OFF 90 MIN
OFF ON ON 120 MIN*
OFF ON OFF 200 MIN
OFF OFF ON 300 MIN
OFF OFF OFF CONSTANT ON**
LOW VOLTAGE MONITORING
DIP 4 RESULT
ON ENABLED*
OFF DISABLED
* FACTORY DEFAULT
** The “Constant ON” setting will turn the docking station ON with the ignition
switch, but will never turn it off. This was designed for Fire Departments and
emergency response vehicles who wish to leave the docking station ON all the
time and retain the low voltage monitoring feature.

KDCF53KDCF53
PARTS LIST
PART NO: PART DESCRIPTION QTY. REQ.
450-0013 Front Control Panel 1
450-0328 PCB InsulSlide Tray 1
450-0357 Interface PCB Assembly 1
450-0247 Interface Riser 1
450-0355 Rear Cover 1
450-0351 Rear Clamp 1
450-0352 Lock Bar 1
450-0245 3/4” Black Knob 1
450-0180 Lock 1
450-0359 Extension Spring 2
450-0353 Lock Cam 1
450-0350 CF53 Pan 1
450-0198 Front Access USB 1
450-0356 Base Plate 1
PARTS LIST - NOT SHOWN
PART NO: PART DESCRIPTION QTY. REQ.
450-0058 Key Set 1
450-0104 Power Cable 1
450-0199 15 Amp Fuse 1
450-0063 7.5 Amp Fuse 1
PART IDENTIFICATION: KDCF53
405-0328
450-0357
450-0198
450-0350
450-0356
450-0359
450-0353
450-0355
450-0247
450-0013
450-0180
450-0351
450-0352
450-0245
