Kogan KGNPRO16VBA User manual

KGNPRO16s
USER MANUAL

Contents
Safety precaution .......................................................................................
Main accessories.........................................................................................
Remote control ...........................................................................................
Remote control functions..............................................................................
LCD TV panel overview................................................................................
Connecting to external devices....................................................................
The OSD menus.........................................................................................
TV.............................................................................
DVD Functions operating instructions.........................................................
Supporting DVD format.............................................................................
Basic operation.......................................................................................
Trouble shooting......................................................................................
Function Settings.....................................................................................
MP3/JPEG/USB/CARD Playback...............................................................
Maintenance............................................................................................
Specifications..........................................................................................
DVD........................................................................
1
2
3
4
5
7
8
16
17
18
20
21
26
27
28

Notes:
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of insinuated
dangerous voltage within the product's enclosure that may be
of sufficient magnitude to constitute a risk of electric shock
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
The exclamation point within an equilateral triangles is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the product.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK). REFER SERVICING TO
AUTHORISED SERVICE PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Always power this product from an outlet with the same rating (voltage and
frequency) as indicated on the rating label on the back of the product.
If this product has been damaged (including cord or plug) take it to an authorised
o u r service technician for inspection, and if necessary, repair.
Turn off and disconnect the power cable before cleaning or storing this product.
Ensure this product does not get wet.
Only use the A/C power adapter supplied with your product.
Do not place naked flames, such as lit candles on or near the product.
Do not place objects filled with liquids, such as vases on or near the product.
Do not install this product on top of other electrical equipment or on uneven surfaces.
Do not use or store this product in a place where it is subject to direct sunlight, heat,
excessive dust or vibration.
Do not use this product with wet hands.
Do not clean this product with water or other liquids.
Do not block or cover the slots and holes in the product.
Do not push foreign objects into the slots or holes in the product.
The screen surface is easily scratched. Do not touch the screen with your hands or
any hard object.
Do not pull the power cord when disconnecting power. Turn off at the switch on the
socket and pull the plug not the cord.
Do not attempt to open this product yourself. There are no user serviceable parts
inside.
1
1.Safety precaution

Before using this product, read and follow all warnings and instructions.
This product is intended for household use only and not for commercial or
industrial use.
Allow suitable distances around the product for sufficient ventilation.
Ventilation should not be impeded by covering ventilation openings with items
such as newspapers, table cloths, or curtains.
Make sure the LCD TV stand is adjusted to a stable position. Damage caused by
using this product in an unstable position or by failure to follow any other warning
or precaution contained within this user manual will void warranty.
This product is not intended for use by young children. Young children should
be properly supervised.
SAFETY WARNINGS
2.Accessories
Check the accessories
(TV accessories)
Remote control/batteries
AV cableconnection
2
Power adapter


4
:Press OPEN CLOSE button when power on the disc tray is pushed out Put the disc on the tray with the title faced Up. Press OPEN
CLOSE again to close the disc tray and the unit starts playing automatically (Without auto play funetion for JPEG discs)
:When playing the disc,press PLAY/PAUSE once to pause,Press PLAY/PAUSE again to return to normal play.
:When playing DVD,SVCD,VCD,CD disc,press STOP once,the unit will memorize the previous ending point.Press
PLAY/PAUSE button to go on the play. Press STOP for the second time to stop the play and end the memory.
:Press button for quick forward search.
:Press button for quick rewind search.
:When playing DVD disc,press NEXT to the next chapter .when playing SVCD,CD disc,press NEXT to the next track.
:When playing DVD disc,press PREV to the previous chapter.when playing SVCD,VCD,CD disc,press PREV to the previous track.
Slow:When playing SVCD,VCD,DVD discs,press SLOW to select slow speed playing.press PLAY/PAUSE to resume normal play.
TITLE:When playing DVD disc,press TITLE to return the main title page.
GOTO: The GOTO button lets you instantly select a title, chapter or time, Use the navigate buttons to highlight the digit you want to change.
After you entered the desired value, confirm your choice with the ENTER button.
REPEAT :press REPEAT button to repeat a title,chapter,track or the whole disc.When playing DVD disc,press REPEAT button continually,the TV
screen shows chapter repeat,all repeat,repeat cancel in turn,when playing VCD,CD disc,the turn is track repeat,all repeat ,repeat cancel.when
Playing Mp3 disc, the turn is one repeat, file repeat, repeat all, repeat cancel.
SUBTITLE (for DVD and Super VCD discs)
- Press the SUBTITLE button once to display current subtitle.
- Press again to toggle between different subtitle modes in sequence.
NOTE: For Multi-languages subtitle DVD & Super VCD discs, press the SUBTITLE button to select your favorite subtitle language.
A-B:When playing DVD,VCD ,CD disc, press A-B button to repeat a certain contents.Press A-B key on the start point(A) and the ending point(B)
to select the repeat part.Press A-B the third time,cancel the A-B repeat and return to normal play.
10+: press 10+ to select program it’s over 10.
DVD SETUP:Press DVD SETUP button to open setting menu.
AUDIO:Press AUDIO button to choose different audio channel.
TTX/MIX: press TTX/MIX to enter teletext state and display teletext page.If want to display image and teletext page
at the same time, press this button again.If want to exit teletext state, press this button again.When teletext page
is displayed on the screen, you can select relevant function by using the remote control. Press the TTX to start and exit Teletext.
SUBPAGE: is refer to the subpage of teletext page, i.e. subcode page. When it is pressed, the screen display the requirement of subpage
code entry. If there is no subpage, it will not be displayed. In most case, there is no subpage.
HOLD: press it once to keep the display of the page, and press it again to exit hold state.
CANCEL: do not display the content of the page, but only the channel image. Press it again to display the content of the page again.
or button on the remote control can be used to display the content of previous or next page.Number buttons on the remote control can
be used to get to a certain page.Press the red, green, blue and yellow button on the remote control, the page of relevant color displayed
on the lower part of the screen will be displayed.
SIZE: press it once to enlarge the content on the upper part of the page, and press it the second time to enlarge the content on the lower
part of the page, and the third time to resume normal display of all the contents on the page.
REVEAL: Press it once to display the hide text, press it again to close the display of hide text.
INDEX: press it once to display the index for all the teletext page.
FAST TEXT (For possible future reference):The RED, GREEN, YELLOW & CYAN buttons are used for quick access to color coded pages
transmitted by FAST TEXT broadcast.
Example: RED selects CITY INFORMATION,CYAN selects TRAVEL INFORMATION,GREEN selects WEATHER
INFORMATION,YELLOW selects TV PROGRAMMING.
POWER: Power on/off button , press once to turn the TV on and press again to turn the TV off.
SLEEP: Sleep button , setting TV power off time.
MUTE: Mute button , press once to disable the audio and press again to enable the audio.
0,1-9: TV channel selection button.
: Previous channel button , return to the previous channel watched.
SOURCE: Signal source selection button (TV/AV/S-VIDEO/YPBPR/VGA/HDMI/DVD).
MENU: OSD menu button , to enter the TV setup menu.
(UP/Down): Up and down button of the OSD menu. To change the OSD menu items.
Left/Right): Left and right button of the OSD menu. To select the OSD menu items .
VOL+/-: Volume adjusting button, to increase or decrease the volume.
EXIT: Press the EXIT to exit the operation.
CH.LIST: Press the CH.LIST can display the channel list.
ADD/Erase: Press ADD/Erase to add or delete Favourite channel.
EPG: Press the EPG to detail information about the channel.
FAV: Press the FAV to start the "Favourite List" for select your favourite program.
P.MODE: P.MODE button , setting the picture mode for TV/YPBPR/AV/SVIDEO/HDMI/DVD input mode.
S.MODE: S.MODE button , setting the sound mode.
/
/ (
CH /:Channel selection button, to increase or decrease channel.
I/II: Press the I/II button to choose a different audio channel.
INFO: Press the INFO button for information.
ASPECT: Press the ASPECT button Select the picture display ratio: 16:9 / 4:3 .
4.Remote control functions

ON
OFF
5
5.LCD TV panel overview
TV Control Panel
1
2
3345
1.On/off button.
2.Selecting exterior signal input.
3.Main menu display and confirm.
4.Channel selecting.
5.Volume adjusting.
6.PLAY/PAUSE button.
7.OPEN/CLOSE button.
8.SD/MMC/MS card slot
9.USB port
8
9

6
TV Terminal connections
1. DC 12V power input.
2. SERVICE input
3. HDMI input.
4. S-VIDEO input.
5. VGAinput.
6. Component input terminal.
7. AV input .
8. PC audio input.
9. Coaxial audio signal out plug.
10. Antenna input (75 Ohm VHF/UHF).
11. Headphone output.
DC-12V
HDMI
VGA
YPBPR
S-VIDEO
VIDEO
RL
PC
AUDIO
RF
(75 ) COAXIAL SERVICE
12
3
5
6
78
11 10 94

7
6.Connecting to external devices
DC-12V
VGA
YPBPR
S-VIDEO
VIDEO
RL
PC
AUDIO
RF
(75 ) COAXIAL SERVICE
Connecting external devices to your LCD TV
The rear of TV
Y PB PR
AV
DVD
HDMI
S Video
Digital Audio System
Coaxial Cable
Power Amplifier
VCR
Digital Audio Input
OPTICAL
COAXIAL
AUDIO OUTPUT
AUDIO
HDMI

8

9

10

11

12

13

14

DVD Operation
DVD Operation

16

17
Supporting DVD format
Supporting DVD format
ALL 212 12
34

18
Table of contents
Other Kogan LCD TV manuals

Kogan

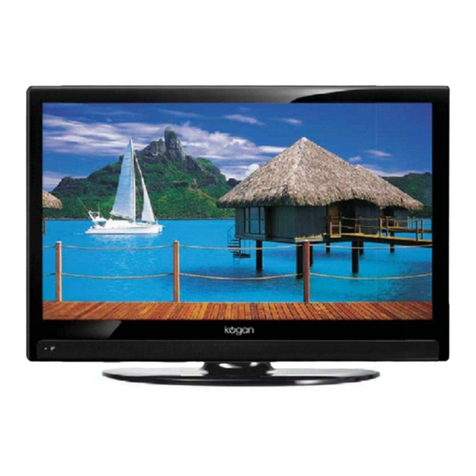

Kogan PRO16 User manual

Kogan
Kogan KGN1080P32VBA User manual

Kogan
Kogan KGNFHD32KVAA User manual

Kogan

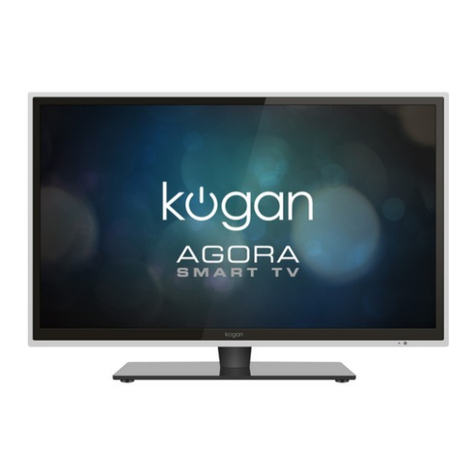

Kogan KALED32SMTWB User manual

Kogan
Kogan KGN1080P-PRO32VAA User manual

Kogan
Kogan HDMI HD22 User manual

Kogan
Kogan KALED22XXXWA User manual

Kogan
Kogan KGN1080P22VAA User manual

Kogan
Kogan KALED24XXXZB User manual

Kogan

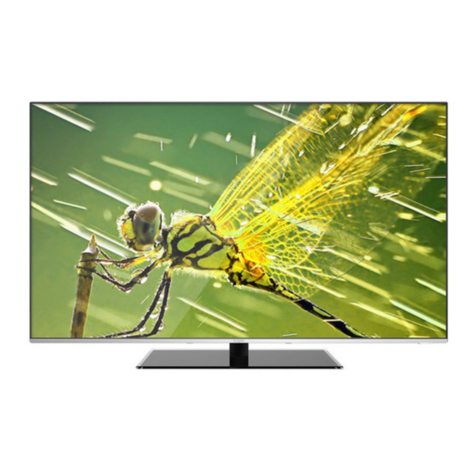

Kogan KALED55UHDZB User manual

Kogan
Kogan KGN1080PPRO22VDA User manual

Kogan
Kogan HDMI 1080p22 User manual

Kogan
Kogan HDMI HD19 User manual

Kogan
Kogan KGN1080P37VAA User manual

Kogan
Kogan KALCD19DVDAA User manual

Kogan

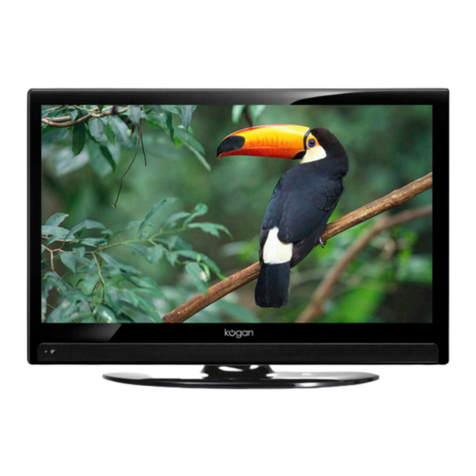

Kogan KGN1080P-PRO22VAA User manual

Kogan

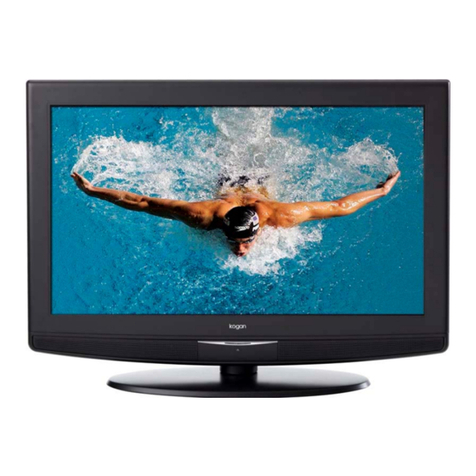

Kogan HDMI 1080p42 User manual

Kogan

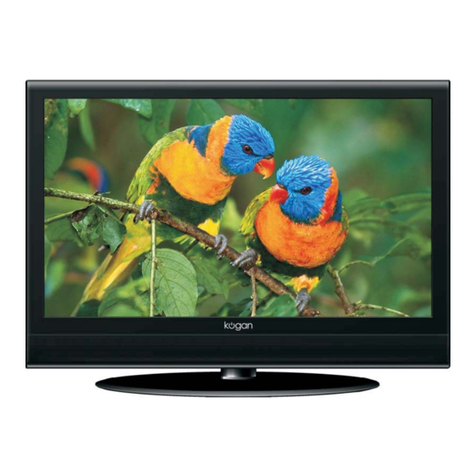

Kogan 1080p37 User manual

Kogan

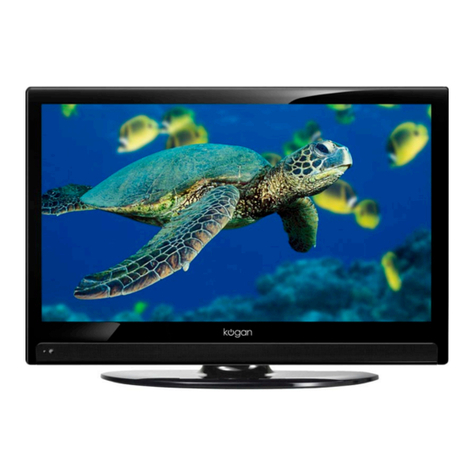

Kogan KGNPRO19VAA User manual
