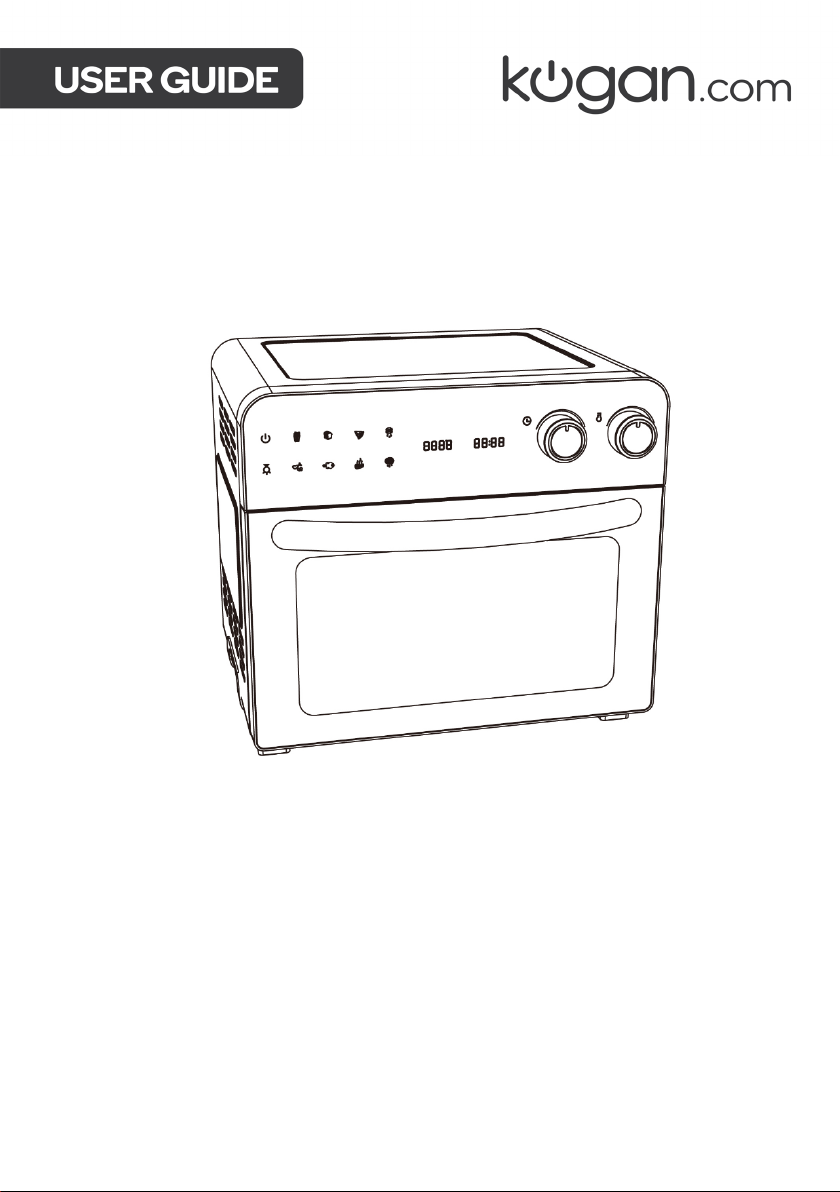

Kogan KA23LDGFRYA User manual

23L DIGITAL AIR FRYER
OVEN
(1700W, BLACK)
KA23LDGFRYA

When using an electrical appliance, basic safety precautions should always be followed,
including the following:
•Read and retain all instructions for future reference.
•Be sure to use on a heat resistant and even surface, such as a heatproof mat. Do
not place directly on a benchtop. Keep the appliance at least 20cm away from the
wall, furniture or other flammables
•Unplug from the power outlet when not in use and before cleaning. Allow cooling
before cleaning or handling, putting on or taking off parts.
•Do not touch hot surfaces. Use handles or knobs.
•To protect against electrical shock, do not place any part of the Air Fryer Oven in
water or other liquids. See instructions for cleaning.
•This appliance should not be used by or near children or individuals with certain
disabilities.
•Do not operate any appliance with a damaged cord or plug or after the appliance
has malfunctioned, has been dropped or damaged in any way, or is not operating
properly. Contact kogan.com for examination, repair, or adjustment.
•The use of accessory attachments not recommended by kogan.com may cause
injury.
•Do not use outdoors.
•Do not let the cord hang over the edge of tables or countertops or come into
contact with hot surfaces.
•Do not place the appliance on or near a hot gas or electric burner, or in a heated
oven.
•Do not use this appliance for anything other than its intended purpose.
•Extreme caution should be exercised when using containers constructed of
materials other than metal or glass in the oven.
•To avoid burns, use extreme caution when removing appliance accessories or
disposing of hot grease.
•When not in use, always unplug the unit. Do not store any materials other than
oven proof accessories recommended by Kogan.com in this appliance.
•Do not place paper, cardboard, plastic, or similar materials inside the appliance.
Please handle this product with care and inspect it regularly to ensure it is in good
working order.
If the product, power supply cord or plug shows any signs of damage: stop use,
unplug and contact Kogan.com support.
SAFETY & WARNINGS

•Do not cover the crumb tray or any part of the oven with metal foil. This will cause
overheating of the oven.
•Oversize foods, metal foil packages and utensils must not be inserted into the
appliance, as they may present a risk of fire or electric shock.
•A fire may occur if the appliance is covered, or touching flammable materials such
as curtains, draperies, or walls when in operation. Do not store any items on top of
the appliance when in operation. Do not operate the appliance under wall
cabinets.
•Do not clean with metal scouring pads. Pieces can break off the pad and touch
electrical parts, presenting a risk of electric shock.
•Do not attempt to dislodge food when the appliance is plugged into an electrical
outlet.
•Use the recommended temperature settings for all cooking/baking, roasting and
air frying.
•Do not rest cooking utensils or baking dishes on the glass door.
•Turn the time and temperature dials to the off position to turn off the appliance.
•Do not operate your appliance in a cupboard or under a wall cabinet. When storing
in a cupboard, always unplug the unit from the electrical outlet. Not doing so could
create a risk of fire, especially if the appliance touches the walls of the cupboard or
the door touches the unit as it closes.
•Extreme caution must be used when moving an appliance containing hot oil or
other hot liquids.
•To disconnect from power, turn both the time and temperature dials to “off”, then
remove the plug from the wall outlet.
•Fire may occur if the appliance is covered or touching flammable material,
including curtains, draperies, walls etc, when in operation. Do not store any item on
top of the appliance when in operation.
•A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
•Extension cords are available and may be used if care is exercised in their use. If an
extension cord is used, the marked electrical rating of the extension cord must be
at least as great as the electrical rating of the appliance and the longer cord should
be arranged so that it will not drape over edges.
For household use only, not intended for commercial use.
WARNING: To avoid the possibility of fire, NEVER leave the appliance
unattended during use.

A
Rotisserie spit assembly
E
Spit removal tool
B
Wire rack
F
Removable crumb tray
C
Baking pan
G
Air fryer oven
D
Air fryer basket
H
Rolling cage

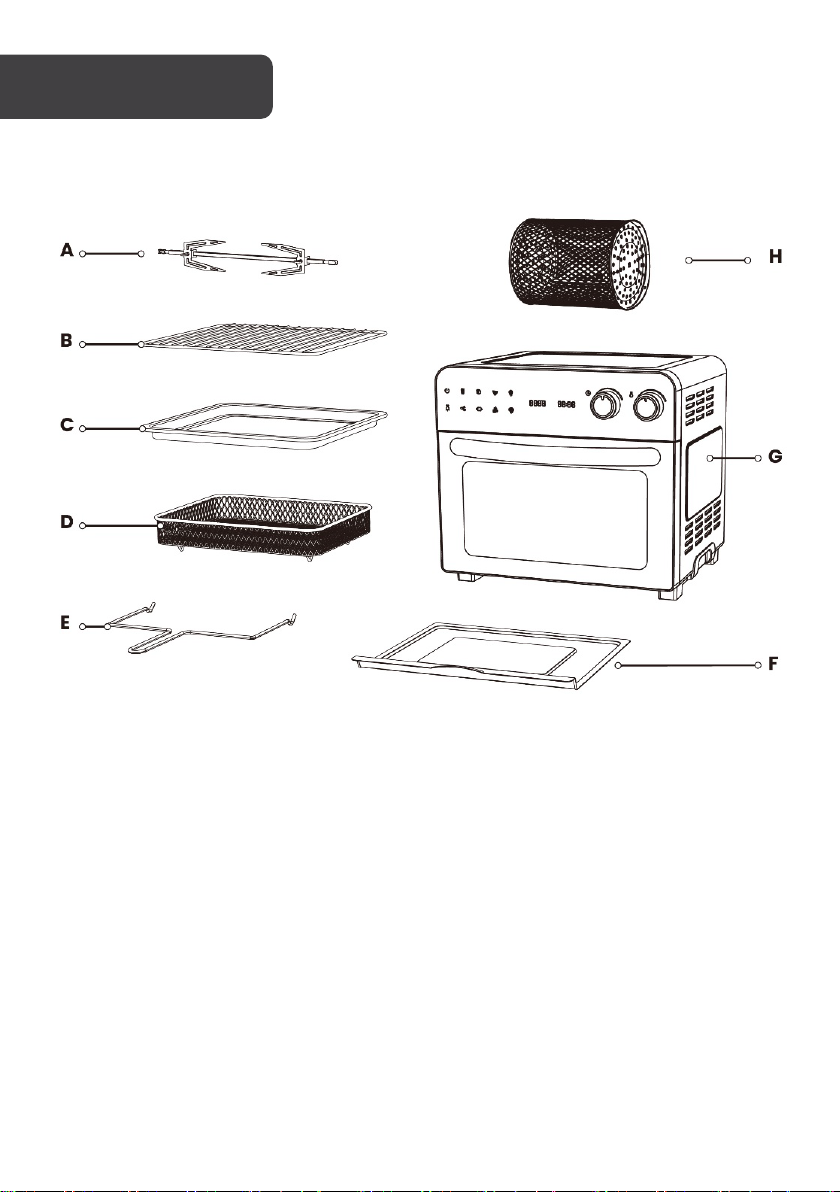

OVERVIEW

A: Rotisserie spit assembly (shaft, forks & set screws)
Used for roasts and whole chickens. Force the shaft lengthwise through the meat so that it is
centred on the shaft. Slide the forks onto the shaft from either end into the meat, and then
lock them in place with the set screws, aligning them with the indentations on the shaft. You
can adjust the screws closer to the middle if needed, but never further outward towards the
ends.
B: Wire rack
The wire rack can be used in all three rack positions, bottom, middle and top.
C: Baking pan
The baking pan can be placed in any of the three rack positions and can also be used as a
drip tray below other racks.
D: Air fryer basket
The Air fryer basket is grated to allow air to pass through the basket for even cooking. The air
fryer basket can only be used in conjunction with either the baking pan or on the wire rack.
The air fryer basket should be placed in the middle rack position unless a recipe states
otherwise.
E: Spit removal tool
The removal tool is used to easily remove items on the rotisserie, such as whole chickens.
F: Removable crumb tray
The crumb tray slides out from the bottom front of the appliance for easy cleaning. Always
ensure that the crumb tray is placed underneath the bottom heating elements whenever
the oven is being used.
H: Rolling cage
Used for the preparation of popcorn or French fries.

Functions
1. On/Off Icon
Use to start or stop the oven after setting a function.
6. Oven light
Press this icon to turn the oven light on or off.
11. Temperature display
Digital display for the operating temperature.
12. Time display
Digital display for the operating time.
13. Time adjusting knob
Use to adjust the desired time.
14. Temperature adjusting knob
Use to adjust the desired temperature.

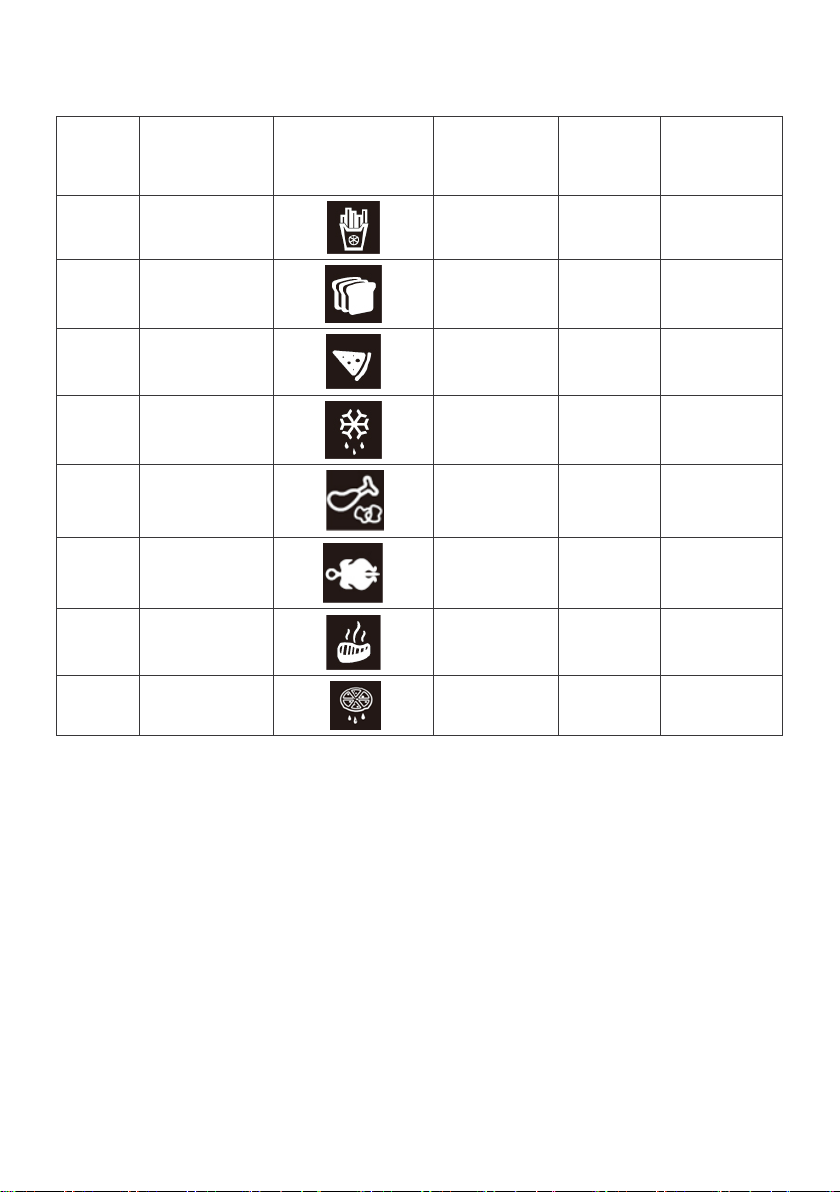

Program overview:
Number Function Icon Temperature
(°C)
Time
(mins) Fan speed
2. Fries 230 15 high
3. Toast 230 5 low
4. Pizza 230 7 low
5. Warm 60 30 low
7. Air roast 230 20 high
8. Rotisseries 170 45 low
9. Air broil 230 12 low
10. Dehydrate 60 60 low

Program instructions
Functions
Use
Fries
This function combines intense heat and maximised airflow to cook
foods crispy and brown.
Rotisseries
Heats food with 4 top elements on and low fan speed, cooking while the
rotisserie spit rotates your chicken or roast. Keeps food crispy on the
outside, juicy on the inside and evenly cooked.
Air broil
This function is ideal for cooking open-faced sandwiches, thin cuts of
meat, poultry and fish, sausages, and vegetables. Broiling can also be
used to brown the tops of casseroles, gratins and desserts.
Air roast
This function is ideal for cooking a variety of meats and poultry. Food will
be tender and juicy on the inside and roasted to perfection on the
outside.
Pizza
This function melts and browns cheese and toppings while crisping up
the pizza crust.
Toast
The air toast function browns and crisps the outside of your bread while
keeping the inside soft and moist. This function is also ideal for English
muffins and frozen waffles.
Warm
The warm function maintains hot foods at the recommended
temperature to prevent bacterial growth.
Dehydrate
The dehydrate function combines low and stable heat with maximised
airflow to evenly dry out foods without cooking or overheating.
OPERATION

Oven racks
Racks have 3 rack positions, top, middle, and bottom position.
Before first use
•Unpack the appliance and remove all packaging materials. Clean the appliance
according to the Cleaning and Care section of this manual.
•Place the appliance, on a flat, stable, level surface. Ensure that the oven is 2 to 4
inches away from the wall or any other objects.
•Plug the appliance into the power socket. When powered, any knob turn, or button
press will activate the appliance and put it into standby mode.
•It is recommended to perform a trial run of your appliance to eliminate any
protective substances from the heating elements. Conduct the trial run in a well-
ventilated area, as a small amount of smoke and odour may be emitted. This is
normal and should be expected.
Middle position
Bottom position
Top position

Operating your oven
Before using any of the pre-set functions on the unit:
•Place the appliance, on a flat, stable, level surface. Ensure that the oven is 2 to 4
inches away from the wall or any other objects.
•Ensure that the removable crumb tray is placed beneath the bottom heating
elements when using your appliance.
•Always ensure to unplug the appliance after use to power it off completely.
Fries
1. The air fryer basket can be placed on top of the wire rack or in the baking pan.
Place the tray in the middle or bottom rack position of the oven.
2. Connect the appliance to power, then press the fries icon to select this function.
Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Fries 230 15
3. Press the on/off icon to operate the oven. The Fries icon will flash, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Note:
Under each function mode, the time and temperature can be adjusted as required.
Turn the time/temperature dials on the top right of the display window to adjust the
d i d ti /t t di l

Air roast
1. Place the baking pan in the middle position of the oven
2. Connect the appliance to power, then press the air roast icon to select this
function. Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Air roast 230 20
3. Press the on/off icon to operate the oven. The air roast icon will flash, and all other
icons will dim. When the set time has expired, the display screen will turn off.
To a s t
1. Place bread on the wire rack; then place a wire rack in the middle rack position.
2. Connect the appliance to power, then press the toast icon to select this function.
Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Toa st 230 5
3. Press the on/off icon to operate the oven. The toast icon will flash, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Pizza
1. Place pizza on the wire rack; then place the wire rack in the middle rack position.
2. Connect the appliance to power, then press the pizza icon to select this function.
Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Pizza 230 7
3. Press the on/off icon to operate the oven. The pizza icon will flash, and all other
icons will dim. When the set time has expired, the display screen will turn off.

Air broil
1. Place the baking pan in the middle position of the oven.
2. Connect the appliance to power, then press the air broil icon to select this function.
Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Air broil 230 12
3. Press the on/off icon to operate the oven. The air broil icon will flash, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Warm
1. Place the baking pan in the middle position of the oven
2. Connect the appliance to power, then press the warm icon to select this function.
Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Warm 60 30
3. Press the on/off icon to operate the oven. The warm icon will flash, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Dehydrate
1. Place the air fry basket in the middle position of the oven. Arrange food evenly on
the included air fry basket. For best results, place food in a single layer and leave
space between pieces.
2. Connect the appliance to power, then press the dehydrate icon to select this
function. Under this mode, the time, temperature, and fan speed display as below.
Function
Icon
Temperature (°C)
Time (mins)
Dehydrate 60 60
3. Press the on/off icon to operate the oven. The dehydrate icon will flash, and all
other icons will dim. When the set time has expired, the display screen will turn off.

Rotisseries
1. Place one rotisserie fork on the end of the rotisserie shaft, with the fork facing the
centre, and tighten the rotisserie screw.
2. Slide the solid end of the rotisserie shaft through the centre of the food to be
cooked.
3. Place the other fork on the other end of the shaft with the fork facing the food to be
cooked.
4. Adjust the food so that it is centred on the shaft. Make sure the forks secure the
food in place, then tighten the screws.
5. When cooking poultry, it is necessary to secure the legs and wings to the body with
string to make the roast as compact as possible for smooth movement of the spit
(see trussing instructions).
6. Season or baste the food as desired.
7. Put the solid end (right side - see Figure 1) of the spit into the drive socket on the
right interior wall of the oven.
Fig.1
8. Place the grooved end (left side - see Figure 1) of the spit on the left interior wall of
the oven.
9. Connect the appliance to power, then press the rotisseries icon to select this
function. Under this mode, the time, temperature, and fan speed display as below.
Function Name
Icon
temperature (°C)
time (mins)
Rotisseries 170 45
10. Press the on/off icon to operate the oven. The rotisseries icon will flash, and all
other icons will dim. When the set time has expired, the display screen will turn off.
11. Remove the roast from the oven using the spit removal tool by placing the tool
underneath the grooved edges of the spit. Lift the left side up and towards you at
an angle and slide the right side of the spit out of the drive socket.
12. Place the roast on a cutting board or platter and allow to stand for 10-15 minutes.
13. Using an oven mitt, loosen the screws on the forks, and remove the shaft from the
roast. Carefully remove the forks and carve the roast.
Left side
Right side
Spit
Screws
Forks

Trussing Poultry
Place the poultry on a cutting board
breast up. Place twine under the wings
then pulls the twine evenly between legs
and breast.
Cross the twine.
Run the twine under the end of the legs.
Wrap the twine up and around legs,
brings them together then tie the twine
into a knot and bow to secure.
Run rotisserie shaft through the cavity of
the poultry. Secure the rotisserie fork
between the legs and into the back of the
poultry then tighten down the screw on
the rotisserie fork.
Place the other rotisserie fork on the shaft
that has already inserted. Slide down and
secure the rotisserie fork into both sides of
the breast. Tighten down the screw on
the rotisserie rod. Load into the oven.

•Unplug the appliance and allow it to completely cool before cleaning. Do not use
abrasive cleaners, as they will damage the finish. Simply wipe the exterior with a
clean, damp cloth and dry thoroughly. Apply the cleaning agent to a cloth, not
directly onto the surface of the appliance. Do not use excessive pressure when
cleaning the area of the control panel as it could cause the text to be removed over
time.
•To clean the interior walls and bottom of the oven (remove the crumb tray first), use
a damp soapy cloth or sponge. Never use harsh abrasives or corrosive products
including oven cleaner sprays, as these could damage the oven surface. Never use
steel wool pads on the appliance or accessories.
•The wire rack, baking pan, air fryer basket and crumb tray should be hand-washed
in hot, sudsy water using a nylon scouring pad or nylon brush. These parts are not
dishwasher safe.
•Always clean the crumb tray after each use. Excess food particles could cause
smoking and will be hard to remove from the tray. To remove baked-on grease or
burnt food particles, soak the crumb tray in hot, sudsy water or use nonabrasive
cleaners. Never operate the oven without the crumb tray in place.
•The rotisserie shaft, forks, screws, and removal tool can be cleaned with a cloth or
sponge in hot, sudsy water. For stubborn stains soak them in hot sudsy water
before cleaning.
•The top interior of the appliance should be cleaned to remove excess grease that
may accumulate after cooking greasy foods or after using the rotisserie function.
Doing so will prevent smoking in the oven during subsequent uses.
CLEANING & CARE

NOTES

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
