Kogan KA23LSSFRYA User manual

23L 1700W DIGITAL AIR FRYER
OVEN
(STAINLESS STEEL)
KA23LSSFRYA

When using an electrical appliance, basic safety precautions should always be followed,
including the following:
•Read all of the following instructions before use. Keep this user guide for future
reference.
•Unplug from the power outlet when not in use and before cleaning. Allow cooling
before cleaning or handling, putting on or taking off parts.
•Do not touch hot surfaces. Use handles or knobs.
•To protect against electrical shock, do not place any part of the appliance in water
or other liquids. See instructions in the Cleaning & Care section.
•Be sure to use on a heat resistant and even surface, such as a heatproof mat. Do
not place directly on a benchtop. Keep the appliance at least 20cm away from the
wall, furniture or other flammables.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance in a safe way by the person responsible for their safety, and understand
the hazards involved.
•Children should be supervised to ensure that they do not play with the appliance. If
the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Caution, hot surface
•Appliances are not intended to be operated by means of an external timer or
separate remote-control system.
•This appliance is intended to be used in household and similar applications such
as:
ostaff kitchen areas in shops, offices and other working environments;
ofarm houses;
oby clients in hotels, motels and other residential type environments;
obed and breakfast type environments.
Please handle this product with care and inspect it regularly to ensure it is in good
working order.
If the product, power supply cord or plug shows any signs of damage: stop use,
unplug and contact Kogan.com support.
SAFETY & WARNINGS

•Do not operate any appliance with a damaged cord or plug or after the appliance
has malfunctioned, or has been dropped or damaged in any way, or is not
operating properly. Contact kogan.com for examination, repair, or adjustment.
•The use of accessory attachments not recommended by Kogan.com may cause
injury.
•Do not use outdoors.
•Do not let cord hang over the edge of the table or countertop, where it could be
pulled on inadvertently by children or pets or touch hot surfaces, which could
damage the cord.
•Do not place appliance on or near a hot gas, or electric burner, or in a heated oven.
•Do not use this appliance for anything other than its intended purpose.
•Extreme caution should be exercised when using containers constructed of
materials other than metal or glass in the oven.
•To avoid burns, use extreme caution when removing appliance accessories or
disposing of hot grease.
•When not in use, always unplug the unit. Do not store any materials other than
oven proof accessories recommended by Kogan.com in this appliance.
•Do not place paper, cardboard, plastic, or similar materials inside the appliance.
•Do not cover the crumb tray or any part of the oven with metal foil. This will cause
overheating of the oven.
•Oversize foods, metal foil packages and utensils must not be inserted into the
appliance, as they may present a risk of fire or electric shock.
•A fire may occur if the appliance is covered, or touching flammable materials such
as curtains, draperies, or walls when in operation. Do not store any items on top of
the appliance when in operation. Do not operate the appliance under wall
cabinets.
•Do not clean with metal scouring pads. Pieces can break off the pad and touch
electrical parts, presenting a risk of electric shock.
•Do not attempt to dislodge food when the appliance is plugged into an electrical
outlet.
•Warning: To avoid the possibility of fire, never leave the appliance unattended
during use.
•Use the recommended temperature settings for all cooking/baking, roasting and
air frying.
•Do not rest cooking utensils or baking dishes on the glass door.
•Turn the time and temperature dials to the off position to turn off the appliance.
•Do not operate your appliance in a cupboard or under a wall cabinet. When storing
in a cupboard, always unplug the unit from the electrical outlet. Not doing so could
create a risk of fire, especially if the appliance touches the walls of the cupboard or
the door touches the unit as it closes.

•Extreme caution must be used when moving an appliance containing hot oil or
other hot liquids.
•To disconnect, press the power button to turn off the appliance and then remove
plug from wall outlet.
•Do not force the power cord to bend or stretch. If the power cord is damaged, stop
using the appliance immediately and replace the cord before the appliance is used
again.
•When unplugging the appliance, please hold the plug and pull it out of the socket.
If you unplug it by pulling the cord directly, the cord may be damaged, resulting in
leakage or fire. When not in use for an extended period, please unplug the
appliance from the wall socket.
•Do not use loose electrical sockets as this may result in fire, electric shock, or injury.
•Do not use an extension cord unless completely necessary with this product. If an
extension cord is used please ensure that it has a rating equal or exceeding the
rating of this appliance.
•Do not pull or carry by cord, use cord as a handle, close a door on the cord or pull
cord around sharp edges or comers. Keep cord� from heated surfaces.
•Do not bend or damage the power cord.
•A fire may occur if the appliance is covered or touching flammable material,
including curtains, draperies, walls and the like, when in operation. Do not store
any item on top of the appliance when in operation.
•A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
•Not intended for commercial use.

A Rotisserie Spit Assembly E Fetch Rack
B Wire Rack F Removable Crumb Tray
C Baking Pan G Air Fryer Oven
D Air Fryer Basket H Rolling Cage
OVERVIEW

Rotisserie Shaft, Forks & Set Screws
This is used for roasts and whole chickens.
•Force the shaft lengthwise through the meat so that it is centred on the shaft.
•Slide the forks onto the shaft from either end into the meat, and then lock them in
place with the set screws, aligning them with the indentations on the shaft.
•Adjust the screws closer to the middle if needed, but never further outward towards
the ends.
Wire Rack
The wire rack can be used in all three rack positions: bottom, middle and top.
Baking Pan
The baking pan can be placed in any of the three rack positions and can also be used as a
drip tray below other rack.
Air Fryer Basket
The air fryer basket is grated to allow air to pass through the basket for even cooking. The
air fryer basket can only be used in conjunction with either the baking pan or on the wire
rack. The air fryer basket should be placed in the middle rack position unless a recipe states
otherwise.
Fetch Rack
The fetch rack is used to take out roasted whole chicken.
Removable Crumb Tray
The crumb tray slides out from the bottom front of the appliance for easy cleaning. Always
ensure that the crumb tray is placed underneath the bottom heating elements whenever
the oven is being used.
Rolling Cage
The rolling cage is used for preparation of popcorn or fries.

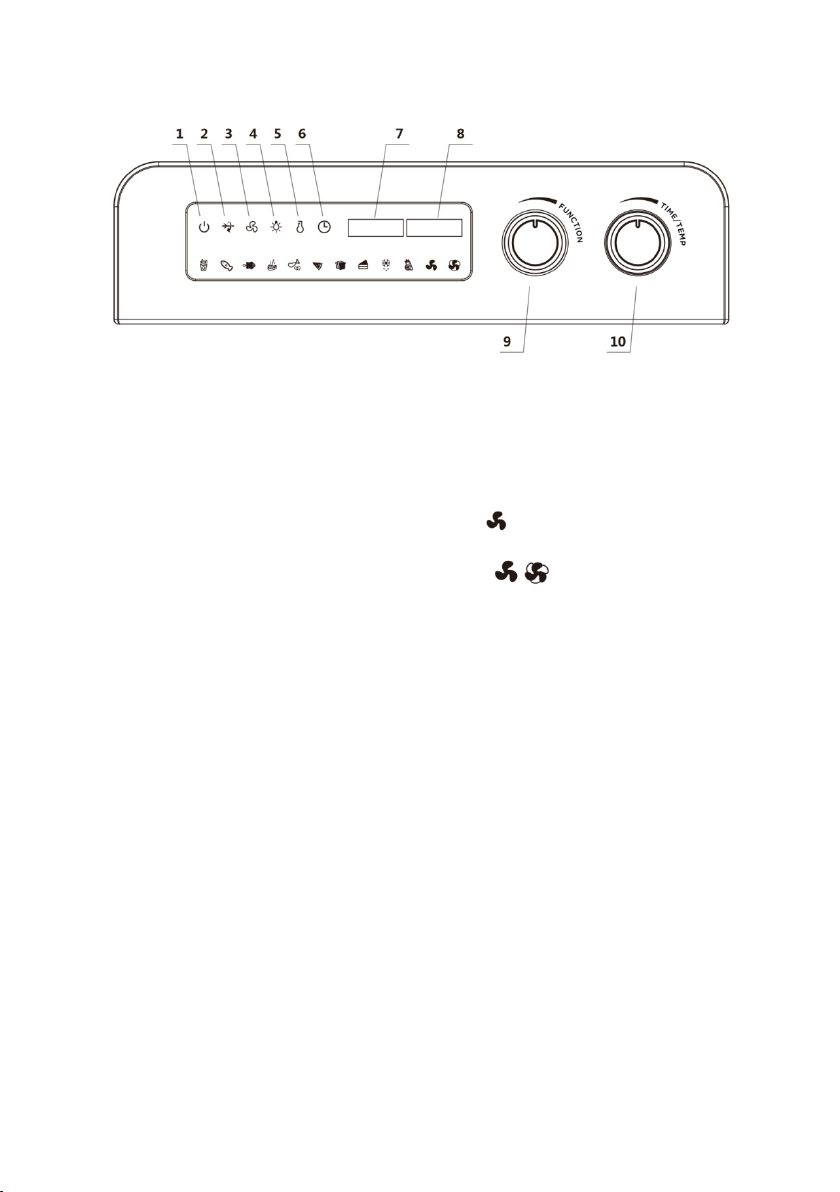

Functions
1
Power Button
Start or stop the oven after setting a function
2
Rotating Control Button
Control the rotating.
3
Fan Speed Adjusting Button
Adjust desired fan speed.
The icon will be illuminated when the
machine is on low fan speed.
The icons will be illuminated when the
machine is on high fan speed.
4
Oven Light
Turn on and turn off the oven light.
5
Temperature Adjust Mode
Button
Select temperature function for adjusting.
6
Time Adjust Mode Button
Select time function for adjusting.
7
Temperature Display
Display the working temperature.
8
Time Display
Display the working time.
9
Function Selection Knob
Select different functions.
10
Temperature/Time Adjusting
Knob
Adjust desired time and temperature.

Program Overview
Function Icon
Heating elements
Temperature
(°C)
Time
(minutes) Fan Speed
Top
Bottom
Fries 4 ON 2 OFF 230 15
Fish 2 ON 2 ON 230 25
Rotisseries 4 ON 2 OFF 170 45
Air broil 2 ON 2 ON 230 12
Air roast 4 ON 2 OFF 230 20
Pizza 2 ON 2 ON 230 7
Toast 2 ON 2 ON 230 5
Bake 2 ON 2 ON 170 35
Defrost 2 ON 2 OFF 60 30
Dehydrate 2 ON 2 OFF 60 60
Oven Rack
Top position
Middle position
Bottom position

Before First Use
1. Unpack the appliance and remove all packaging materials. Clean the appliance
according to the Cleaning and Care section of this manual.
2. Place the appliance, on a flat, stable, level surface. Ensure that the oven is 2 to 4
inches away from the wall or any other objects.
3. It is recommended to perform a trial run of your appliance to eliminate any
protective substances from the heating elements. Conduct the trial run in a well-
ventilated area, as a small amount of smoke and odour may be emitted. This is
normal and should be expected.
Using Oven
Before using any of the pre-set functions on the unit:
•Place the appliance, on a flat, stable, level surface. Ensure that the oven is 5-10cm
away from the wall or any other objects.
•Ensure that the removable crumb tray is placed beneath the bottom heating
elements when using your appliance.
•Adjust the time, temperature and fan speed as desired.
•Always ensure to unplug the appliance after use.
Fries
1. The air fryer basket can be placed on top of the wire rack or in the baking pan.
Place the wire rack in the middle or bottom rack position of the oven.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning the function knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Fries function. Under this mode, time,
temperature, and fan speed display as below.
4. Press power button to turn on the oven. The Fries icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Fries 230 15 High
OPERATION
Note: Under each function mode, the time and temperature can be adjusted as
required. Turn the time/temperature dials on the top right of the display window to
adjust the desired time/temperature accordingly.

Fish
1. Place food on the wire rack; then place wire rack in middle rack position.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Fish function. Under this mode, time,
temperature, and fan speed display as below.
4. Press power button to turn on the oven. The Fish icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Bake
1. Place the wire rack into the baking pan when using the Bake function. You can
also use bakeware or any oven-safe glassware if the dimensions do not exceed
30x30cm. Use the Bake function only in the middle or bottom rack position of the
oven.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Bake function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Bake 170 35 Low
5. Press power button to turn on the oven. The Bake icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Fish 230 25 Low

Air Roast
1. Place the baking pan in the middle position of the oven
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Air Roast function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Air roast 230 20 High
4. Press power button to turn on the oven. The Air roast icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Toast
1. Place bread on the wire rack; then place the wire rack in the middle rack position.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Toast function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Toast 230 5 Low
4. Press power button to turn on the oven. The Toast icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.

Pizza
1. Place pizza on the wire rack; then place the wire rack in the middle rack position.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Pizza function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Pizza 230 7 Low
4. Press power button to turn on the oven. The Pizza icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Air broil
1. Place the baking pan in the middle position of the oven.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Air broil function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Air broil 230 12 Low
4. Press power button to turn on the oven. The Air broil icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.

Defrost
1. Place the baking pan in the middle position of the oven
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Defrost function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Defrost 60 30 Low
4. Press power button to turn on the oven. The Defrost icon will display, and all other
icons will dim. When the set time has expired, the display screen will turn off.
Dehydrate
1. Place the air fry basket in the middle position of the oven. Arrange food evenly on
the air fry basket. For best results, place food in a single layer and leave space
between pieces.
2. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
3. Turn the Function knob to select the Dehydrate function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Dehydrate 60 60 Low
4. Press power button to turn on the oven. The Dehydrate icon will display, and all
other icons will dim. When the set time has expired, the display screen will turn off.

Rotisseries
1. Place one rotisserie fork on the end of the rotisserie spit, with the fork facing the
centre, and tighten the rotisserie screw.
2. Slide the solid end of the rotisserie shaft through the centre of the food to be
cooked.
3. Place the other fork on the other end of the spit with the fork facing the food to be
cooked.
4. Adjust the food so that it is centred on the spit. Make sure the forks secure the food
in place, then tighten the screws.
5. When cooking poultry, it is necessary to secure the legs and wings to the body with
string to make the roast as compact as possible for smooth movement of the spit.
See the Trussing Poultry section for instructions.
6. Season or baste the roast as desired.
7. Put the solid end (right side - see Figure 1) of the spit in the drive socket on right
interior wall of the oven.
8. Place the grooved end (left side - see Figure 1) of the rotisserie spit on the left
interior wall of the oven.
9. Connect the oven to the power supply, the oven light is off. Under this condition,
turning any knob can activate appliance by entering standby mode.
10. Turn the Function knob to select the Rotisseries function. Under this mode, time,
temperature, and fan speed display as below.
Function name
Icon
Temperature (°C)
Time (mins)
Fan Speed
Rotisseries 170 45 Low
11. Press power button to turn on the oven. The Rotisseries icon will display, and all
other icons will dim. When the set time has expired, the display screen will turn off.
12. Unplug the appliance from the wall outlet.
13. Remove the roast from the oven using the spit removal tool by placing the tool
underneath the grooved edges of the spit. Lift the left side up and towards you at
an angle and slide the right side of the spit out of the drive socket.
14. Place the roast on a cutting board or platter and allow to stand for 10-15 minutes.
15. Using a potholder, loosen the rotisserie screws on the forks and remove the spit
from the roast. Carefully remove the forks and carve the roast.
Screw
Forks
Spit
Right side
Left side
Figure 1

Trussing Poultry
1. Place the poultry on the cutting board
breast up. Place twine under the wings
then pull the twine evenly between legs
and breast.
2. Cross the twine.
3. Run the twine under the end of the
legs.
4. Wrap the twine up and around legs,
bring them together then tie the twine
into a knot and a bow to secure.

5. Run rotisserie rod through the cavity of
the poultry. Secure the rotisserie fork
between legs and into to back of the
poultry then tighten down the screw on
the rotisserie fork.
6. Place the other rotisserie on the
rotisserie rod already inserted. Slide
down and secure the rotisserie fork into
both side of the breast. Tighten down
the screw on the rotisserie rod. Load
into the oven.

•Unplug your appliance and allow it to completely cool before cleaning. Do not use
abrasive cleaners, as they will damage the finish. Simply wipe the exterior with a
clean, damp cloth and dry thoroughly. Apply the cleaning agent to a cloth, not
directly onto the appliance. Do not use excess pressure when cleaning the area of
the control panel as it could cause the text to be removed over time.
•To clean the interior walls and bottom of the oven (remove the Removable Crumb
Tray first) use a damp soapy cloth or sponge. Never use harsh abrasives or
corrosive products including oven cleaner sprays. These could damage the oven
surface. Never use steel wool pads on the appliance or accessories.
•The wire rack, baking pan, air fryer basket and crumb tray should be hand-washed
in hot, sudsy water using a nylon scouring pad or nylon brush. These parts are not
dishwasher safe.
•Always clean the crumb tray after each use. Excess food particles could cause
smoking and will be hard to remove from the tray. To remove baked-on grease or
burnt food particles, soak the crumb tray in hot, sudsy water or use nonabrasive
cleaners. Never operate the oven without the crumb tray in place.
•The rotisserie shaft, forks, screws, and removal tool can be cleaned with a cloth or
sponge in hot, sudsy water. For stubborn stains soak them in hot sudsy water
before cleaning.
•The top interior of the appliance should be cleaned to remove excess grease that
may accumulate after cooking greasy foods or after using the rotisserie function.
Doing so will prevent smoking in the oven during subsequent uses.
CLEANING & CARE
WARNING: Do not use normal paper as it can lead to fire hazard. Use
aluminium foil.

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
