Kogan KAH75BARFRA User manual

75L BAR FRIDGE
(WHITE)
KAH75BARFRA

2
Safety & warnings
3
Overview
7
Door reversal
8
Installation
11
Before first use
13
Cleaning & care
15
Troubleshooting
17
Notes
18

3
In the interest of your safety and to ensure the correct use, before installing and first using
the appliance, read this user guide carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to ensure that all people using the
appliance are thoroughly familiar with its operation and safety features. Retain these
instructions and make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance operation and safety.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given super vision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children unless they are
aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection
cable (as close to the appliance as you can) and remove the door to prevent playing
children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a
spring lock (latch) on the door or lid, be sure to make that spring lack unusable before
you discard the old appliance. This will prevent it from becoming a death trap for a
child.
General safety
Warning
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances unless they are approved for this purpose by the manufacture.
• Do not touch the light bulb if it has been on for a long period, it may be very hot.
• Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
SAFETY & WARNINGS

4
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level of environmental compatibility, which is
nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
o Avoid open flames and sources of ignition.
o Thoroughly ventilate the room in which the appliance is situated.
• It is dangerous to alter the specifications or modify this product in any way. Any
damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
o Staff kitchen areas in shops, offices and other working environments.
o Farmhouses and by clients in hotels, motels and other residential type
environments.
o Bed and breakfast type environments.
o Catering and similar non-retail applications.
• If any electrical components (plug, power cord, compressor etc.) are damaged, cease
use immediately and contact help.Kogan.com for support.
• The light bulb supplied with this appliance is a “special use lamp bulb” usable only with
the appliance supplied. This “special use lamp” is not usable for domestic lighting.
• The power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
• Ensure the bar fridge is place in a way where the power cord is accessible.
• When disconnecting the power supply, do not pull on the power cord. Instead grasp
the plug with your hands.
• If the electrical outlet is loose, do not insert the power plug. There is a risk of electric
shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Before first use
• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.

5
• Store pre-packed frozen food in accordance with the frozen food manufacturer’s
instructions.
• Storage recommendations should be strictly adhered to.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates
pressure on the container, which may cause it to explode, resulting in damage to the
appliance.
• Iced lollies can cause frost burns if consumed straight from the appliance.
Cleaning and care
• Before maintenance, switch off the appliance and disconnect the power cord from the
electrical outlet.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean
the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
• Unpack the appliance and check for any damage. Do not connect the appliance if it
has been damaged. Contact help.Kogan.com for support.
• It is advisable to wait at least 4 hours before connecting the appliance to allow the oil
to flow back in the compressor.
• Adequate air circulation should be around the appliance, failure to do so leads to
overheating. To achieve sufficient ventilation, follow the instructions relevant to
installation.
• Wherever possible the spacers of the product should be against a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
Service
• Any electrical work required should be carried out by a licensed electrician or qualified
trade professional.
• This product must be serviced by an authorised service centre and using only genuine
spare parts.
Note:
For electrical connection carefully follow the instructions given in specific paragraphs.

6
Energy Saving
• Do not place hot food in the appliance.
• Do not pack food close together as this prevents air circulating.
• Make sure food don’t touch the back of the compartment(s).
• Make sure food don’t touch the back of the compartment(s).
• Do not open the door(s) frequently.
• Do not keep the door(s) open for too long time.
• Do not set the thermostat on exceeding cold temperatures.
• Some accessories, such as drawers, can be removed to get larger storage volume and
lower energy consumption.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either
its refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains flammable gases: the
appliance shall be disposed according to the appliance regulations to obtain from your
local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The
materials used on this appliance marked by the symbol are recyclable.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead, it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please contact your
local council, your household waste disposal service or the shop where you purchased the
product.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection
container to recycle it.
Disposal of the appliance
Disconnect the mains plug from the electrical outlet.
Cut off the power cable and discard it.

7
1
Freezer compartment
7
Top hinge
2
Temperature control
8
Upper door shelf
3
Water drip tray
9
Large bottle shelf
4
Large shelf
10
Adjustable door shelf
5
Small shelf
11
Lower door shelf
6
Leveling foot
OVERVIEW

8
Tools required: Philips screwdriver, Flat bladed screwdriver, hexagonal spanner.
• Ensure the unit is unplugged and empty.
• To remove the door, it is necessary to tilt the unit backwards. Rest the unit on
something solid so that it will not accidentally slip during the door reversing process.
• All parts removed must be saved for reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It is recommended to have a second person assist during removal and reassembly.
1. Remove the top right hinge cover.
2. Undo the screws. Then remove the hinge bracket.
DOOR REVERSAL
Unscrew

9

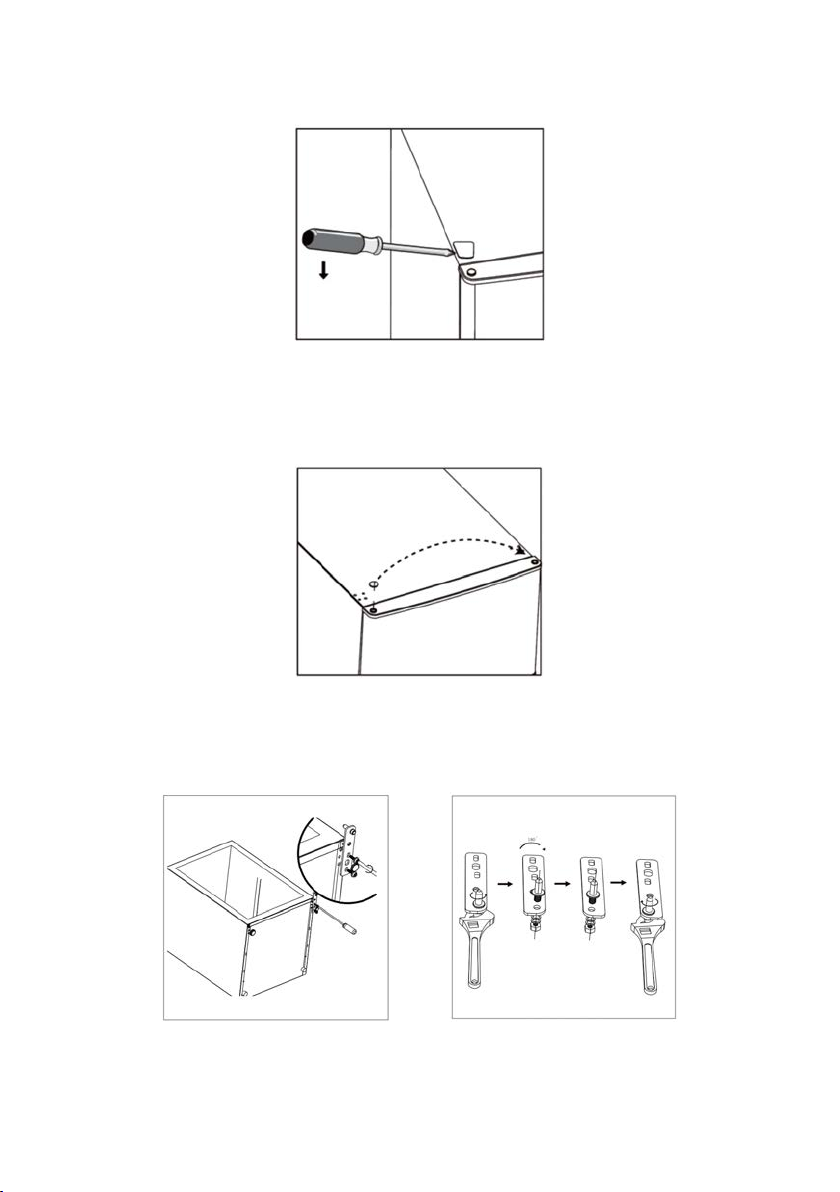

3. Remove the top left screw cover.
4. Move the core cover from left side to right side. And then lift the upper door and place it
on a soft surface to prevent it from scratching.
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

10
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.
7. Place the door back on. Ensure the door is aligned horizontally and vertically so that the
seals are closed on all sides before finally tightening the top hinge.
8. Insert the hinge bracket and screw it to the top of the unit.
9. Use a spanner to tighten it if necessary.
10. Put the hinge cover and the screw cover back.

11
Space Requirement
• Allow enough space for the door to open.
• Ensure there is at least 50mm gap on both sides.
Levelling the unit
• Rotate the two levelling feet at front of the unit to ensure the fridge is flat and level.
• If the unit is not level, the doors and magnetic seal alignments will not seal properly.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Climate class
Ambient temperature
SN
+10°C to +32°C
N
+16°C to +32°C
ST
+16°C to +38°C
T
+16°C to +43°C
INSTALLATION

12
Location
The appliance should be installed well away from any sources of heat such as radiators,
boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the unit.
To ensure best performance, if the appliance is positioned below an overhanging wall unit,
the minimum distance between the top of the cabinet and the wall unit must be at least
100mm. Ideally, however, the appliance should not be positioned below overhanging wall
units.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate
correspond to your domestic power supply. The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power supply
socket is not earthed, connect the appliance to a separate earth in compliance with current
regulations, consulting a qualified electrician. This appliance complies with the E.E.C.
Directives.
WARNING: It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be easily accessible
after installation.

13
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories
with lukewarm water and some neutral soap to remove the typical smell of a brand-new
product, then dry thoroughly.
Temperature Setting
• Plug in the appliance. The internal temperature is controlled
by a thermostat. There are 6 settings.
o 1 - warmest setting
o 5 - coldest setting
o 0 - off
• The appliance may not operate at the correct temperature if it
is in a particularly hot or if you open the door often.
Movable shelves
All shelves can be moved to cater to your specific
requirements.
• Pull the shelf outwards
• Select a suitable position and insert the shelf until
fully to ensure the door can seal properly.
BEFORE FIRST USE
Note:
Do not use detergents or abrasive powders, as these will damage the finish.

14
Vegetable Drawer
The drawer is suitable for storing fruit and vegetables.
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in a fridge compartment or at
room temperature. Place the frozen food in a dish or bowl to avoid the flowing of
condensate water when thaw it in compartment.
Helpful hints and tips
To obtain the best performance:
• Do not store warm food or evaporating liquids in the refrigerator.
• Do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely around it.
Hints for refrigeration
• Meat (all types): wrap in polythene bags and place on the glass shelf above the
vegetable drawer. For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc..: these should be covered and may be placed on any
shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the vegetable
drawer.
• Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as much air as possible.
• Milk bottles: these should have a cap and should be stored in the bottle rack on the
door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the
refrigerator.

15
For hygienic reasons the appliance interior, including interior accessories, should be cleaned
regularly.
Caution
• The appliance may not be connected to the mains during cleaning. Danger of
electrical shock! Switch the appliance off and remove the plug from the electrical
outlet.
• Before cleaning, switch the appliance off and remove the plug from the mains or switch
off or turn out the circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in
electrical components, danger of electrical shock! Hot vapours can lead to the damage
of plastic parts.
• The appliance must be dry before it is placed back into service.
• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store them in a cool place, well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water.
After cleaning, wipe with fresh water and dry thoroughly.
• Accumulation of dust at the condenser increases energy consumption. For this reason,
carefully clean the condenser at the back of the appliance once a year with a soft
brush or vacuum cleaner.
• After everything is dry, reconnect the fridge and resume operation.
CLEANING & CARE
Note:
Ethereal oils and organic solvents can attack plastic parts, e.g., lemon juice or the
juice form orange peel, butyric acid, cleanser that contain acetic acid. Do not allow
such substances to come into contact the appliance parts.

16
Defrosting
The evaporator, will become progressively covered with frost. This should be removed.
Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.
However, when the ice becomes very thick on the evaporator, complete defrosting should
be carried out as follows:
• Disconnect the plug from the electrical outlet.
• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place.
• Keep the door open placing a basin underneath of the appliance to collect the
defrosted water.
• When defrosting is completed, dry the interior thoroughly.
• Reconnect the fridge and resume operation.

17
Before troubleshooting, disconnect the power supply. Only a licenced electrician or qualified
trade professional should attempt any troubleshooting that is not mentioned in this guide. !
Problem
Possible cause
Solution
Appliance does not work
Temperature regulation
knob is set at number “0”.
Set the knob at other
number to switch on the
appliance.
Power plug is not plugged
in or is loose
Insert power plug.
Fuse has blown or is
defective
Check fuse, replace if
necessary.
Electrical outlet is
defective
Contact a licenced
electrician.
The food is too warm.
Temperature is not
properly adjusted.
Check the thermostat
settings.
Door was open for an
extended period.
Open the door only as
long as necessary.
A large quantity of warm
food was placed in the
appliance within the last
24 hours.
Turn the temperature
regulation to a colder
setting temporarily.
The appliance is near a
heat source.
Consider moving the
appliance to a more
suitable location.
Appliance cools too
much
Temperature is set too
cold.
Turn the temperature
regulation knob to a
warmer setting
temporarily.
Unusual noises
Appliance is not level.
Re-adjust the feet.
The appliance is touching
the wall or other objects.
Move the appliance
slightly.
A component, e.g., a pipe,
on the rear of the
appliance is touching
another part of the
appliance or the wall.
If necessary, carefully
bend the component out
of the way.
TROUBLESHOOTING

18
NOTES

19

20
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
