Kogan KAHUTRCA810A User manual

HUNTING TRAIL CAMERA
24MP
KAHUTRCA810A

44PCs IR LED
LED Indicator
Central PIR Sensor
Side PIR Sensor
Latch
Lens
OVERVIEW

Camera Quick Start Guide Mounting Strap USB Cable
8AA Batteries Depot
Colour Display Screen
Setup Buttons
Stand Knob Port
External Power Port
Micro SD Card Slot
USB Port
Mode Switch
IN THE BOX

If Using AA-Alkaline Batteries
1. Pull the gap lightly and open battery compartment.
2. Refer to the battery icons located on the inside of the battery compartment. Insert
the batteries according to the positive and negative battery icons.
3. Close the battery compartment tightly to ensure water and dust resistance.
Note:
Installing any AA battery in the wrong direction may cause the batteries to leak acid or
explode, causing camera failure and damage to the battery compartment.
INSTALLATION

If Using 6V DC Power Source
1. Remove the rubber port cap at the bottom of the camera. Plug a universal 6V DC
cord into the bottom port.
2. Run the cord to the side of the camera where there is a hook provided behind the
hinge of the camera door. This will support the power cord and take pressure off of
the connection point.
3. When not in use, replace the rubber port cap at the bottom of the camera to
protect the 6V DC universal plug-in port.

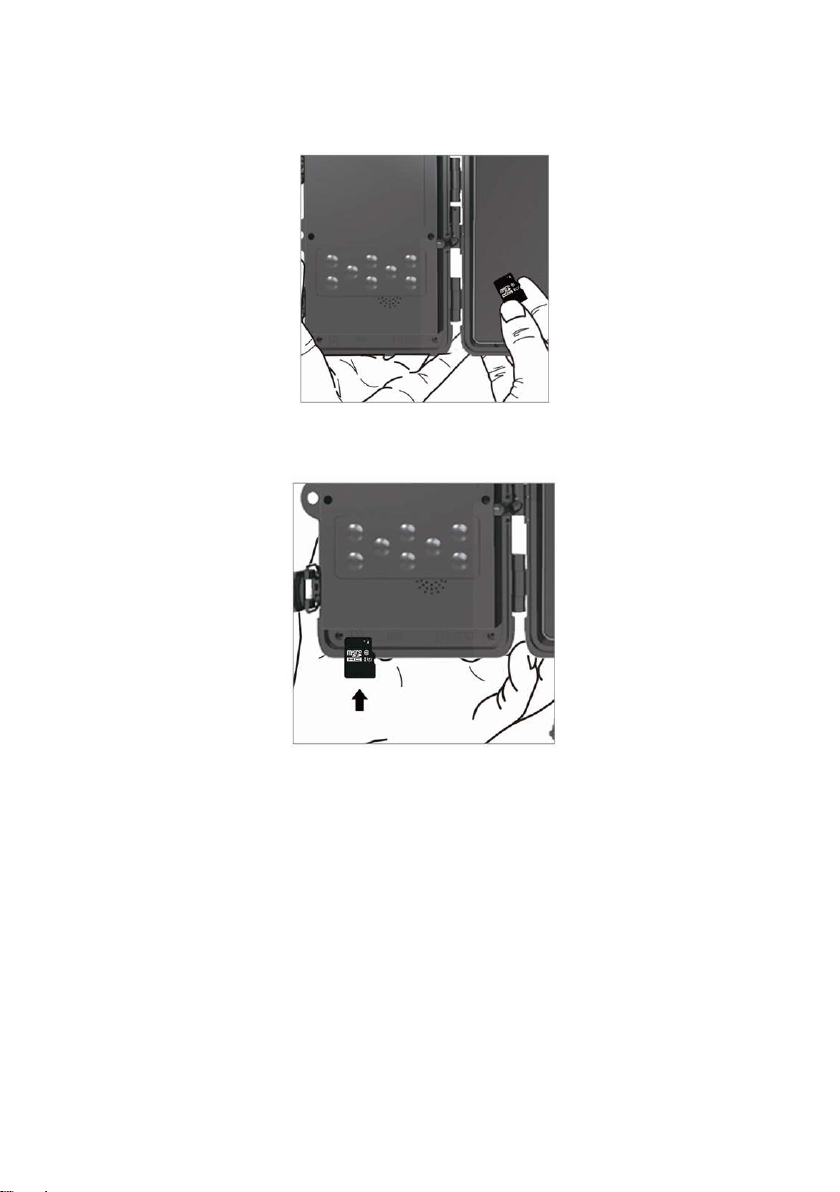

Memory Card Installation
1. Insert the Micro SD card with the contacts facing away. The Micro SD card should
slide in freely with little resistance. Continue pressing the card inward until you hear
a click. This means the Micro SD card is locked in place and ready for use.
2. To remove Micro SD card, press the card inwards to release.

Quick start
Slide the mode switch from OFF to TEST position to activate the camera and view the user
setup screen.
There is a control panel with 8 keys when you open the camera.
Operating Buttons
MENU Open the Settings menu using the MENU button.
REPLAY Press this button to start the replay mode.
Change to the manual recording mode for videos.
Change to the manual recording mode for taking photos.
SHOT Manually take a video or photo depending on the set recording mode.
Video recordings are ended by pressing the SHOT button.
Press it to start the video, press it again to stop.
OPERATION

Auto Recording Mode
After entering settings, slide the power switch to ON to enter auto recording mode. The
motion indicator will flash red for about 5 seconds, after which the camera will start working.
It will automatically take pictures or record videos when a person or animal enters into the
area of the PIR sensor.
Caution: To avoid potential false triggers due to temperature and motion disturbances, do
not aim the camera at a heat source (e.g. the sun, heated stone or metal) and remove
nearby tree branches and twigs. The ideal direction to aim at is an open place to the north
without nearby heat sources.
Advanced Settings
Camera Video Setup
 Resolution
 Sequence
 ISO
 Delay
 Camera ID
 Resolution
 Video length
 Record audio
 Mode
 Language
 Time-lapse
 TV mode
 Date/Time
 Timer
 Password
 Format
 Default settings
 Version
Note:
Generally, it is recommended to place the camera at a height of 1–2 metres.

Camera Menu Settings
Camera Sub menu Description
Resolution 24MP, 20MP, 16MP Photo size
Sequence 1/3/6/9 Number of photos taken sequentially
ISO Auto,100, 200, 400 Camera exposure level
Delay 1/5/10/30 sec/min Delay between shots
Camera ID 0-0-0
0-0-0 Camera ID
Video Menu Settings
Video Sub menu Description
Resolution 1080P, 720P, VGA Video size
Video length 10S, 30S, 60S, 90S Time length of video
Record audio ON, OFF Whether sound is captured or not

Setup Menu Settings
Setup Sub menu Description
Mode Camera, video, camera
and video, interval Image, video, image + video, image taken at set interval
Language English, French, German Camera menu language
Time-lapse
interval 5/30/60 Min Taking picture or video for every 5/30/60 minutes constantly
TV Mode NTSC, PAL AV output mode
Date/Time 2018-09-03 16:37:25 YYYY-MM-DD HH:MM:SS
Timer ON, OFF Enable operation only during set period
Password **** 4-digit password (universal password: 1314)
Format SD Card Format memory card and delete all files
Default settings Factory reset Restore factory defaults
Slide the switch to “ON” to resume operation after changing settings.
Note:
Images and video can only be played back/previewed while in test mode, not auto
recording.

Power 4 or 8 x AA alkaline/lithium batteries
external DC6V~12V (3.5 x 1.3mm jack)
Connectivity AV out (video cable not included)
Water resistance IP65
Photo recording
Photo resolution 24MP
File format JPG
Time lapse mode 5min/30min/60min
Multi-shot mode Up to 9 photos per detection
Stamp (photos and video) Date, time, temperature (˚C/˚F) and moon phase
Capture mode Colour by day, black and white by night
Video recording
Video resolution 1920 x 1080/30fps (FHD)
File format AVI/H.264
Sequence length Adjustable from 10 to 90s
Capture mode Colour by day, black and white by night
Audio
Sound recording ON/OFF
Memory storage
Support External only: Micro SD card up to 64GB
Detection system
Motion sensor 2 x PIR
Detection angle 120°
Detection range Adjustable from 1 to 80ft
Trigger speed 0.3sec
Delay between each detection Adjustable from Instant to 30min
Night time illumination system
LEDs 44 LEDs
Flash range <90ft
Exposure Automatic infrared level adjustment
Optical field of view 120°
Dimensions 135mm x 90mm x 76mm
Operating temperature -20°C to +70°C
SPECIFICATIONS

Camera doesn’t capture subject of interest
 Check the PIR sensitivity for warm environmental conditions. Set the Sensor Level
to “Low”; for cold weather use, set the sensor to “High”.
 Set your camera up in an area where there are no heat resources in the camera’s
field of view.
 In some cases, setting the camera near water will make the camera to take
images with no subject in them.
 Aim the camera over ground.
 Set the camera on stable and immovable objects, i.e., large trees.
 At night, the motion detector may detect beyond IR illumination range. You can
reduce distance by adjusting sensor sensitivity.
 The rise or setting of the sun can trigger the sensor; reorient the camera.
 If a person or animal moves quickly, it may move out of the camera’s field of view
before the photo is taken. Move camera further back or redirect camera.
Camera stops taking images
 Ensure that the memory card has enough memory storage. If the card is full,
camera will stop taking images.
 Check batteries to make sure that alkaline, NIMH or lithium AA batteries left power
is enough for camera to work.
 Make sure that the camera power switch is at the “ON” position and not at the
“OFF” or “TEST” modes.
 Please format the memory card when you use it for the first time or use another
memory card.
Night vision flash range doesn’t meet expectation
 Although the camera will operate well with 4 x AA batteries, 8 x AA batteries will
improve performance and provide better battery life during night vision.
 Ensure that batteries are fully charged or left power is enough.
 High-quality 1.5V NIMH or lithium rechargeable AA batteries can offer superior
flash range than alkaline batteries.
 To ensure accuracy and quality of night time image, mount the camera in a dark
environment without obvious light sources.
 Having surfaces for the flash to bounce off (trees, walls, ground, etc.) within flash
range is important to get good night time images. In an open field, there will be
nothing for the light to reflect on and the images will be poorer.
TROUBLESHOOTING

Need more information?
This is a Quick Start Guide, and we hope that this
has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
