Kogan SMARTERHOME KASMKALMICA User manual

KOGAN SMARTERHOME™
PHOTOELECTRIC INTERCONNECTED
SMOKE ALARM
KASMKALMICA

2
Safety & Warnings
3
Overview
4
Getting Started
5
Installation
6
Connect to SmarterHome™ app
10
Interconnecting Additional Units
13
Functions
13
Cleaning & Care
14
Specifications
15
Troubleshooting
16

3
WARNING: In case of an emergency, contact your local fire department.
• Australia: Call 000 for Police, Fire and Ambulance services.
• New Zealand: Call 111 for Police, Fire and Ambulance services.
Limitations of Smoke Alarms:
• Smoke alarms have played a key role in reducing deaths resulting from home fires
worldwide. However, like any warning device, smoke alarms can only work if they are
properly located, installed and maintained and if smoke can reach the alarms.
• Smoke alarms may not wake all individuals.
• Smoke alarms cannot detect fires if the smoke does not reach the alarms. Smoke from
fires in chimneys or walls, on roofs or on the other side of closed doors may not reach
bedroom or sleeping area - especially if the bedrooms or sleeping area doors are closed
at night.
• Smoke alarms may not have time to sound before the fire itself causes damage, injury,
or death, since smoke from some fires may not reach the unit immediately. Examples
of this include persons smoking in bed, children playing with matches, or fires caused
by violent explosions resulting from escaping gas.
• Smoke alarms are not foolproof. Like any electronic device, smoke alarms are made of
components that can wear out or fail at any time. You must test the unit weekly to
ensure your continued protection. Smoke alarms cannot prevent or extinguish fires.
They are not a substitute for property or life insurance.
• Smoke alarms have a limited life. The unit should be replaced immediately if it is not
operating properly. You should always replace a smoke alarm after 10 years from date
of purchase. Write the purchase date on the space provided on back of unit.
SAFETY & WARNINGS

4
Additional components:
x2 AA 3V Li-ion Battery
x2 Anchor Plugs
x2 Screws
(Before installing this product, check which plugs
and screws are best suited for the surface)
OVERVIEW
Test/Hush
button
Indicator light
Red indicator /
control button
Screw hole
(both sides)
Screw hole
(both sides)

5
Preparing the battery
Press the battery cover and remove the insulation sheets between both batteries and the
battery terminals – this will provide power to the alarm. The red indicator light will flash
twice, showing that it is receiving power.
GETTING STARTED
Remove insulation
sheets (both batteries)
Red indicator
light

6
Be careful not to press the Test/Hush button on top of the alarm module unless you intend
to do so. Pressing this button will cause the alarm to sound, the sound is very loud and may
cause harm to your hearing.
Preparation
Determine how many alarms you need and where best to install them. Refer to the
following pages for more information on recommended locations and locations to avoid.
Note: Before installing this product, check which plugs and screws are best suited for the
mounting surface.
Installation
Disconnect the alarm module from the base module by twisting the base module counter-
clockwise. Remove the insulation sheet found at the batteries to power on the detector.
Base module installed on ceiling
Connecting the alarm module
INSTALLATION

7
Where to install smoke detectors
We recommend at least one smoke alarm per floor, per room.
As a minimum, smoke alarms should be located between sleeping areas and potential
sources of fire such as living rooms and kitchens.
In single storey homes with one sleeping area, a smoke alarm should be installed in the
hallway, as close as possible to the living accommodation. To ensure audibility in
bedrooms, no smoke alarm should be further than 3m away from any bedroom door. It may
be necessary to install more than one smoke alarm, particularly if the hallway is more than
15m long.
In single storey homes with two separate sleeping areas, a minimum of two smote alarms is
required, one outside each sleeping area. In multilevel or split-level homes, as a minimum
one smoke alarm should be installed on the ground floor between the staircase and any
rooms in which a fire might start along with each storey in circulation areas which form part
of an escape route (normally hallways and landings).
Additional alarms should be installed in bedrooms in anticipation of fires caused by faulty
wiring, lights, appliances or other hazards.
For best protection, smoke alarms should be installed in every room in your home.
Single Story one sleeping area

8
Additional smoke alarms for better
protection
Smoke alarms for limited protection
HEAT ALARM
LIVING ROOM
KITCHEN
DINING
ROOM
STUDY
ROOM
BEDROOM
BEDROOM
BEDROOM
BEDROOM
HALL
BEDROOM
LIVING ROOM
KITCHEN
GARAGE
FINISHED
BASEMENT

9
Locations to avoid
Do not locate smoke alarms:
• In turbulent streams of air such as near fens, heaters, doors and windows, etc. These
can draw smoke away from the alarm.
• In high humidity areas such as bathrooms and shower rooms as high humidity can
trigger the alarm, or where temperature exceeds 40°C or below 0°C.

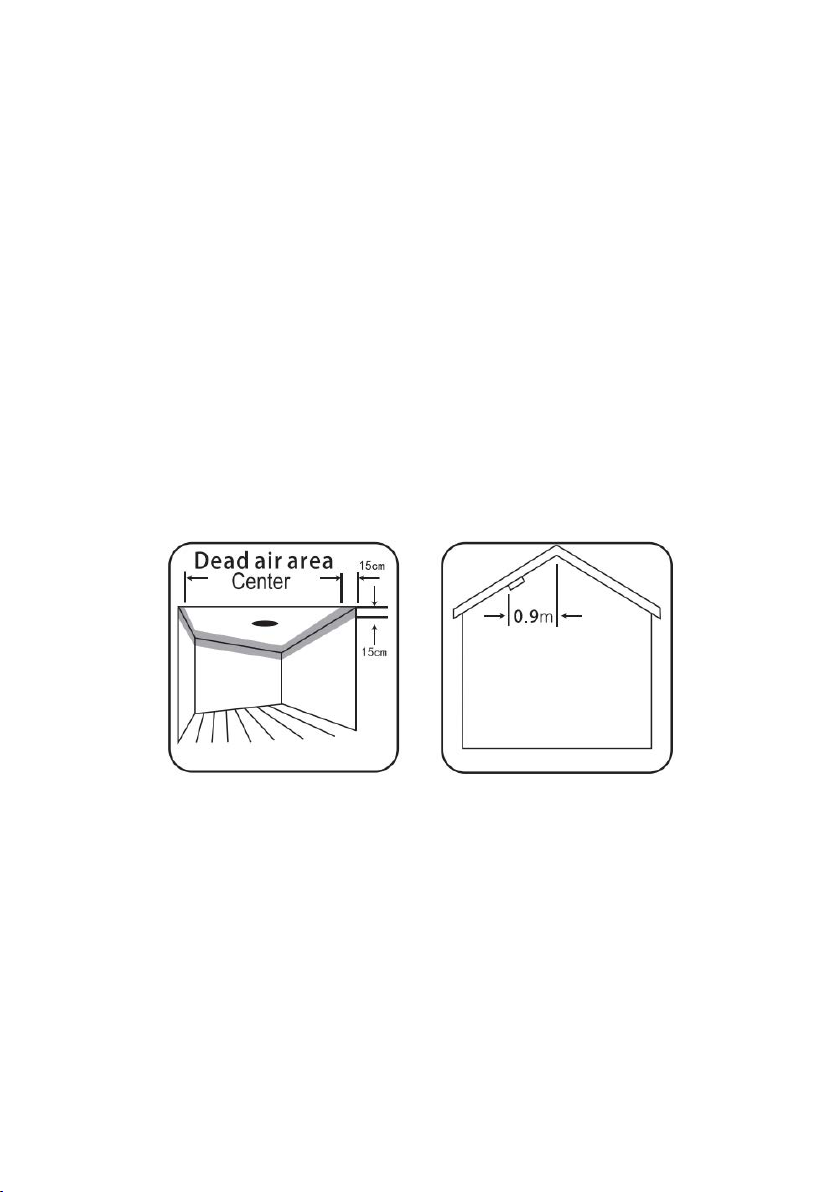

• At the apex of an “A” frame ceiling. “Dead air” at the top may prevent smoke from
reaching the alarm in time to provide early warming.
• Less than 300mm (12 inches) from the wall when mounted on the ceiling.
• In insect-infested areas, tiny insects may affect performance.
• In kitchens, boiler rooms, laundry rooms, garages. Combustion particles from cooking or
car exhausts and dust and moisture could trigger the alarm.
• In very dusty or dirty areas, dirt and dust can build up and impair performance.
• Within 300mm (12 inches) of light fittings or room corners.
• In locations which would make routine testing or maintenance hazardous (eg,over a
stairwell).
• On poorly insulated walls or ceilings.
• Near objects such as ceiling decorations which might impede the path of smoke to the
alarm.
• Within 1500mm (5 feet) of fluorescent light fittings.

10
Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Play Store (Android)
App Store (iOS)
To r e g i s t e r :
1. If you already have a SmarterHome account, select ‘Log In’. To register a new
account, select ‘Sign Up’.
2. The system will automatically recognise your country. If needed, you can manually
select your country from the drop-down box. Enter your email address and tap
‘Get Verification Code’ to continue.
3. A 6-digit code will be sent to the submitted email address. Enter this code before
the one-minute timer expires.
4. Continue to the next page and complete your SmarterHome profile.
CONNECT TO SMARTERHOME™ APP

11
Set device in App pairing mode
You can manually set the device in pairing mode by long-pressing
the control button until the red indicator light flashes 5 times then
immediately release it. The red indicator will begin flashing rapidly.
Note: If connection fails, try again and ensure to release the button
after the indicator has flashed 5 times.
Add device through network
1. Once registered, tap “Add Device” on the app’s home page, or the “+” in the upper
right corner, to add a new device through the network.
2. Select the product type from the list of options in the app (Sensor > Smoke Alarm).
3. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the
app are connected to the same Wi-Fi network during setup.
Notes:
• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
• Depending on the product, Steps 3 and 4 may be in opposite order.

12
4. Ensure that the device is in pairing mode, with the red indicator flashing rapidly,
and select “Confirm light is rapidly flashing” then tap “Next”.
5. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
6. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Note:
Once connected, you can select Create Scene from the “+” in the upper right
corner (or from the Scene tab) to group connected SmarterHome™ products
and automate their functions.

13
To connect several smoke detectors, press and hold the Test/Hush button on the primary
unit until the Red indicator flashes 3 times then immediately release it.
The Red indicator will flash rapidly for 2 minutes while waiting for other devices to pair. If
you need to end the pairing in advance, press the Test/Hush button again.
Press and hold the Test/Hush button on the secondary unit(s) until the Green indicator
flashes 2 times then immediately release it. The unit will emit a long beep and the Red
indicator will flash slowly. If the pairing is successful, the indicator will flash 3 times.
If the products have been previously paired with other groups, it will exit directly after the
Green indicator flashes 4 times. For a successful match, you should clear paired data on all
units first.
Note: The equipment has been matched before delivery.
Clearing paired data: Press and hold the Test/Hush button and wait for the Green
indicator to flash 4 times, immediately release the button. If the paired data is cleared
successfully, it will flash 3 times slowly and exit. Otherwise, repeat the above steps to clear.
Low voltage alarm:
When the built-in battery voltage of the smoke detector is below 2.7V, the red indicator light
flashes once every 50 seconds, accompanied by a beep sound. The app will also show a
warning in the status bar.
Smoke alarm fault:
The LED of the smoke alarm flashes once every 8 seconds and is accompanied by a buzzer.
The app status will display an alarm fault.
If the device operates normal the red LED indicator flashes once every 55 seconds.
FUNCTIONS
INTERCONNECTING ADDITIONAL UNITS

14
This unit has been designed to be as maintenance-free as possible, but there are a few
simple things you must do to keep it functioning properly.
Test each alarm at least once a week
Keep at arm’s length distance to the alarm during the test The alarm is loud in order to alert
you in case of an emergency and can be harmful to your ears, Press the Test/Hush button
for a duration of two seconds, The alarm will sound a few short loud beeps, upon releasing
the button, the sound will stop, The app will receive a test signal after 10 seconds.
Reset the alarm
If the test does not function properly, reset the alarm.
If the test does not function properly after completing these steps, contact help.Kogan.com
for support.
Cleaning
Clean the smoke alarm at least once a month; gently vacuum the outside of the smoke
alarm using your household vacuum's soft brush accessory. Test the smoke alarm after
cleaning. Never use water, cleaners or solvents since they may damage the unit.
If the smoke alarm becomes contaminated by excessive dirt dust and/or grime and gives
unwanted alarms, replace the unit immediately.
CLEANING & CARE
Test/Hush
button

15
Working Voltage
DC 3V Li-ion battery (non-replaceable, built into detector)
Battery
x2 DC 3V Li-ion battery (replaceable, located in wireless base)
Standby current
12uA
Alarm current
35mA
Low voltage threshold
2.7V
Product lifespan
10 years
Alarm sound
>85dB
Wireless frequency
2.4GHz
App
Kogan SmarterHome™
Alarm mode
LED, buzzer, app.
Size
110mm x 57mm
Interconnected limit
22 units
Fire protection grade
V-0
Execute Criterion
EN14604:2005
EN 300 328 V2.1.1 (2016-11)
Activfire AS3786:2014
ISO7731
SPECIFICATIONS

16
WARNING: In case of an emergency, contact your local fire department.
Australia: Call 000 for Police, Fire and Ambulance services.
New Zealand: Call 111 for Police, Fire and Ambulance services.
Reset procedure: If the device fails to access the network or crashes due to incorrect
operation, long-press the middle button to reset the Wi-Fi connection. Follow the
SmarterHome™ connection steps to reconnect.
Problem
Possible solution
Red LED flashes and
the alarm sounds one
beep every 50 seconds
The batteries are flat – replace the batteries.
“NO BATTERY” alert,
but batteries are
inserted.
Ensure the plastic insulation sheets are removed between
the batteries and their terminals.
No response during app
operation.
Check that the network and the power supply are correctly
operating.
The app battery
indicates red.
The batteries are flat – replace the batteries.
Smoke alarm is being
triggered when the
residents are cooking or
showering.
• Clean the detector, refer to Cleaning & Care section of
this user guide.
• Install the detector in another location, follow the
guidelines for recommended locations and locations to
avoid as stated in this user guide (“Installation” section).
Cannot connect to the
SmaterHomeTM App.
• Ensure you release the base button after it flashes 5
times.
• Ensure you are connecting to a 2.4Ghz network.
Cannot interconnect
additional units.
• Clear the paired data on all units.
• Place the primary unit into pairing mode first.
• Ensure all secondary units are connected within 1
minute of place the primary unit into pairing mode.
TROUBLESHOOTING

17
NOTES

18

19

20
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
