Kogan SMARTERHOME KASMKALMICA User manual

KOGAN SMARTERHOME™
INTERCONNECTED SMOKE
ALARM
KASMKALMICA

2
Safety & warnings 3
Overview 4
Getting started 5
Installation 6
Connect to SmarterHome™ app 10
Connecting several units 16
Functions 16
Cleaning & care 17
Specifications 18
Troubleshooting 19

3
WARNING: In case of an emergency, contact your local fire department.
•Australia: Call 000 for Police, Fire and Ambulance services.
•New Zealand: Call 111 for Police, Fire and Ambulance services.
Limitations of Smoke Alarms:
•Smoke alarms have played a key role in reducing deaths resulting from home fires
worldwide. However, like any warning device, smoke alarms can only work if they are
properly located, installed and maintained and if smoke can reach the alarms.
•Smoke alarms may not wake all individuals.
•Smoke alarms cannot detect fires if the smoke does not reach the alarms. Smoke from
fires in chimneys or walls, on roofs or on the other side of closed doors may not reach
bedroom or sleeping area - especially if the bedrooms or sleeping area doors are closed
at night.
•Smoke alarms may not have time to sound before the fire itself causes damage, injury,
or death, since smoke from some fires may not reach the unit immediately. Examples of
this include persons smoking in bed, children playing with matches, or fires caused by
violent explosions resulting from escaping gas.
•Smoke alarms are not foolproof. Like any electronic device, smoke alarms are made of
components that can wear out or fail at any time. You must test the unit weekly to
ensure your continued protection. Smoke alarms cannot prevent or extinguish fires.
They are not a substitute for property or life insurance.
•Smoke alarms have a limited life. The unit should be replaced immediately if it is not
operating properly. You should always replace a smoke alarm after 10 years from date
of purchase. Write the purchase date on the space provided on back of unit.
SAFETY & WARNINGS

4
Additional components:
2x AA 3.6V Li-ion Battery 2x Anchor Plugs 2x Screws
(Before installing this product, check which plugs
and screws are best suited for the surface)
OVERVIEW
Test/Hush button
Indicator light
Red indicator /
control button
Reset button
Screw shole
(both sides)

5
Preparing the battery
Press the battery cover and remove the insulation sheets between both batteries and the
battery terminals – this will provide power to the alarm. The red indicator light will flash
twice, showing that it is receiving power.
GETTING STARTED
Remove insulation
sheets (both batteries)
Red indicator
light

6
Be careful not to press the Test/Hush button on top of the alarm module unless you intend
to do so. Pressing this button will cause the alarm to sound, the sound is very loud and may
cause harm to your hearing.
Preparation
Determine how many alarms you need and where best to install them. Refer to the
following pages for more information on recommended locations and locations to avoid.
Before installing this product, check which plugs and screws are best suited for the
mounting surface.
Installation

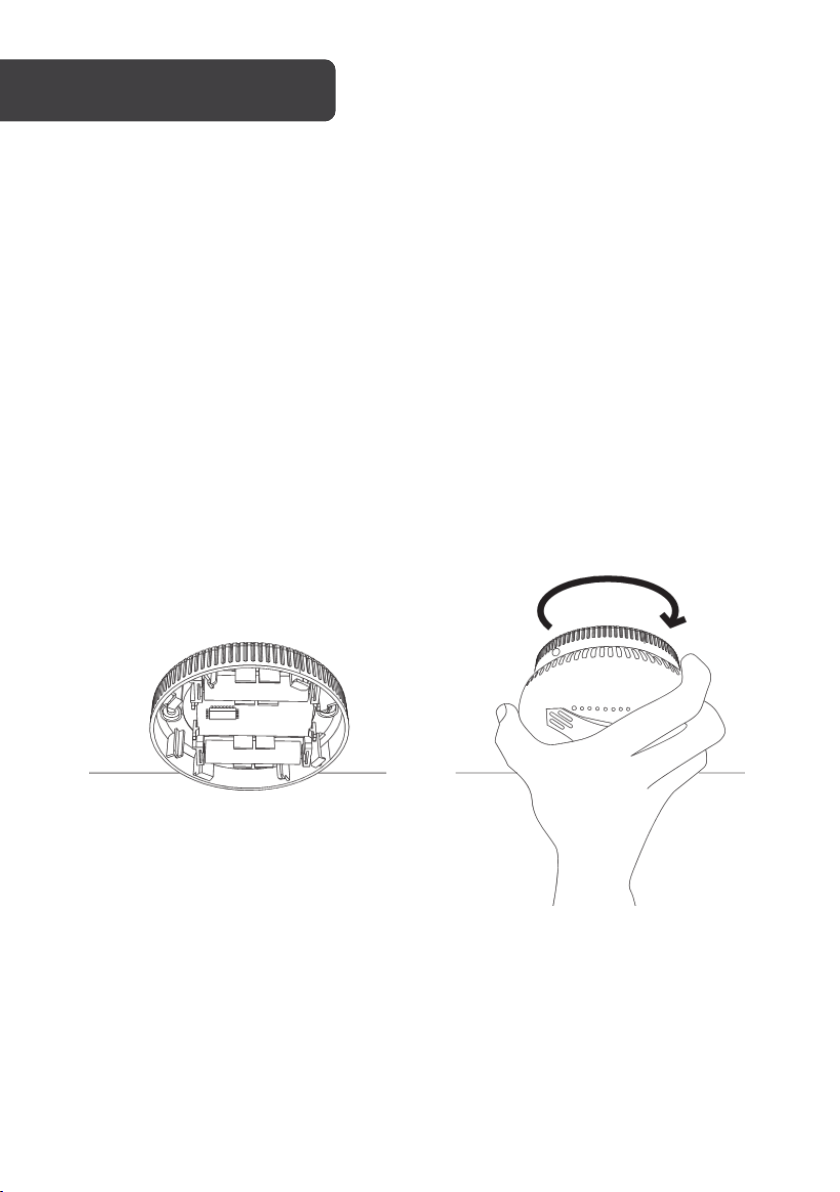

Disconnect the alarm module from the base module by twisting the base module counter-
clockwise. Remove the insulation sheet found at the batteries to power on the detector.
Base module installed on ceiling Connecting the alarm module
INSTALLATION

7
Where to install smoke detectors
We recommend at least one smoke alarm per floor, per room.
As a minimum, smoke alarms should be located between sleeping areas and potential
sources of fire such as living rooms and kitchens In single storey homes with one sleeping
area, a smoke alarm should be installed in the hallway, as dose as possible to the living
accommodation, To ensure audibility in bedrooms, no smoke alarm should be further than
3m away from any bedroom door. It may be necessary to install more than one smoke
alarm, particularly if the hallway is more than 15m long, In single storey homes with two
separate sleeping areas, a minimum of two smote alarms is required, one outside each
sleeping area, In multilevel or split level homes, as a minimum one smoke alarm should be
installed on the ground floor between the stair case and any rooms in which a fire might
start and one each storey in circulation areas which form part of escape route{normally
hallways and landings),
Additional alarms should be installed in bedrooms in anticipation of fires originating here,
caused by faulty wiring, lights, appliances, smokers or other hazards,
For best protection, smoke alarms should be installed in every room in your home, apart
from those listed in the Section 4.
Single Story one sleeping area

8
Additional smoke alarms for better
Smoke alarms for limited protection
HEAT ALARM
LIVING ROOM KITCHEN
DINING
ROOM
STUDY
ROOM
BEDROOM
BEDROO
BEDROO
BEDROO HALL BEDROOM
LIVING ROOM KITCHEN
GARAGE
FINISHED
BASEMENT

9
Locations to avoid
Do not locate smoke alarms:
•In turbulent streams of air such as near fens, heaters, doors and windows, etc These
can draw smoke away from the alarm.
•In high humidity areas such as bathrooms and shower rooms as high humidity can
trigger the alarm, or where temperature exceeds 40 °C or below 0 °C.
•At the apex of an "A" frame ceiling. "Dead air* at the top may prevent smoke from
reach ing the a la rm i n ti me to provide ea rly wami ng.
•Less than 300mm (12 inches) from the wall when mounted on the ceiling.
•In insect-infested areas, Tiny insects may affect performance.
•In kitchens, boiler rooms, laundry rooms, garages, Combustion particles from cooking or
car exhausts and dust and moisture could trigger the alarm.
•In very dusty or dirty areas, Dirt and dust can build up and impair performance.
•Within 300mm (12 inches) of light fittings or room corners,
•In locations which would make routine testing or maintenance hazardous (eg,over a
stairwell).
•On poorly insulated walls or ceilings.
•Near objects such as ceiling decorations which might impede the path of smoke to the
alarm.
•Within 1500mm (5 feet) of fluorescent light fittings.

10
Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).

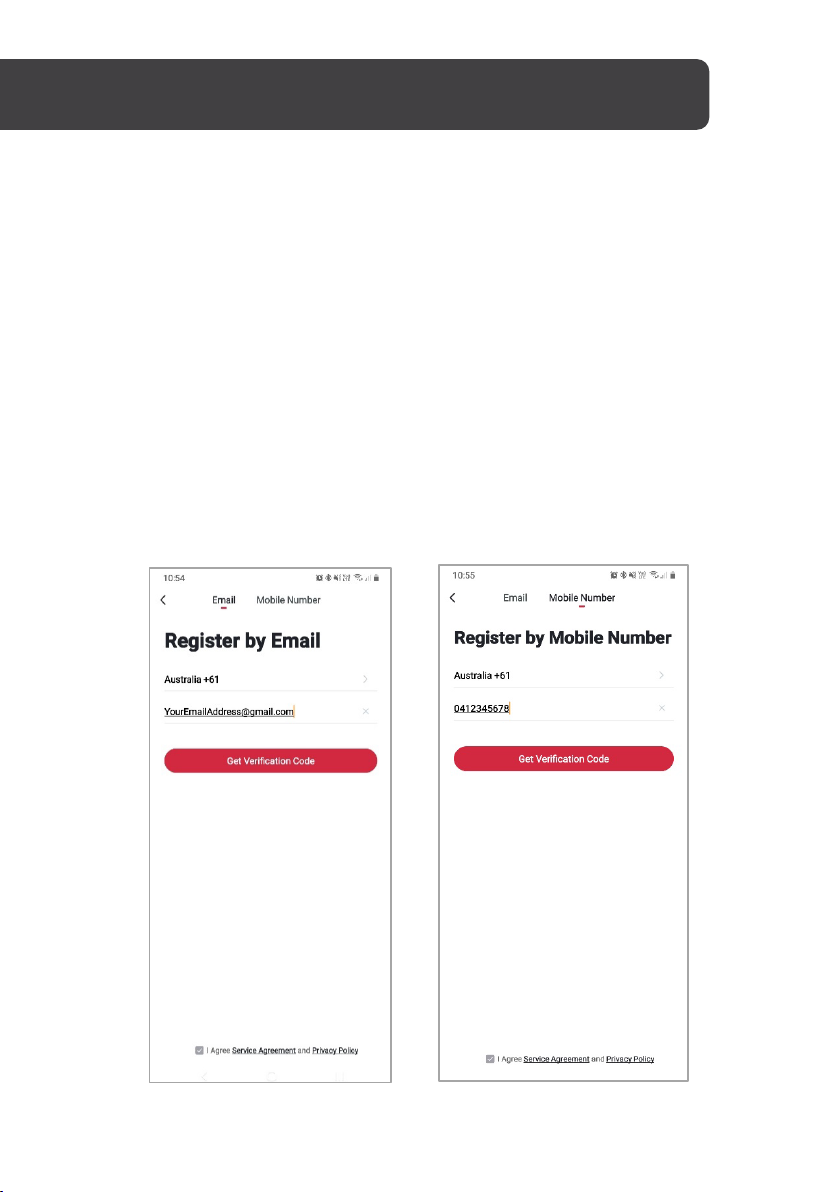

Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.
To register:
1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
CONNECT TO SMARTERHOME™ APP

11

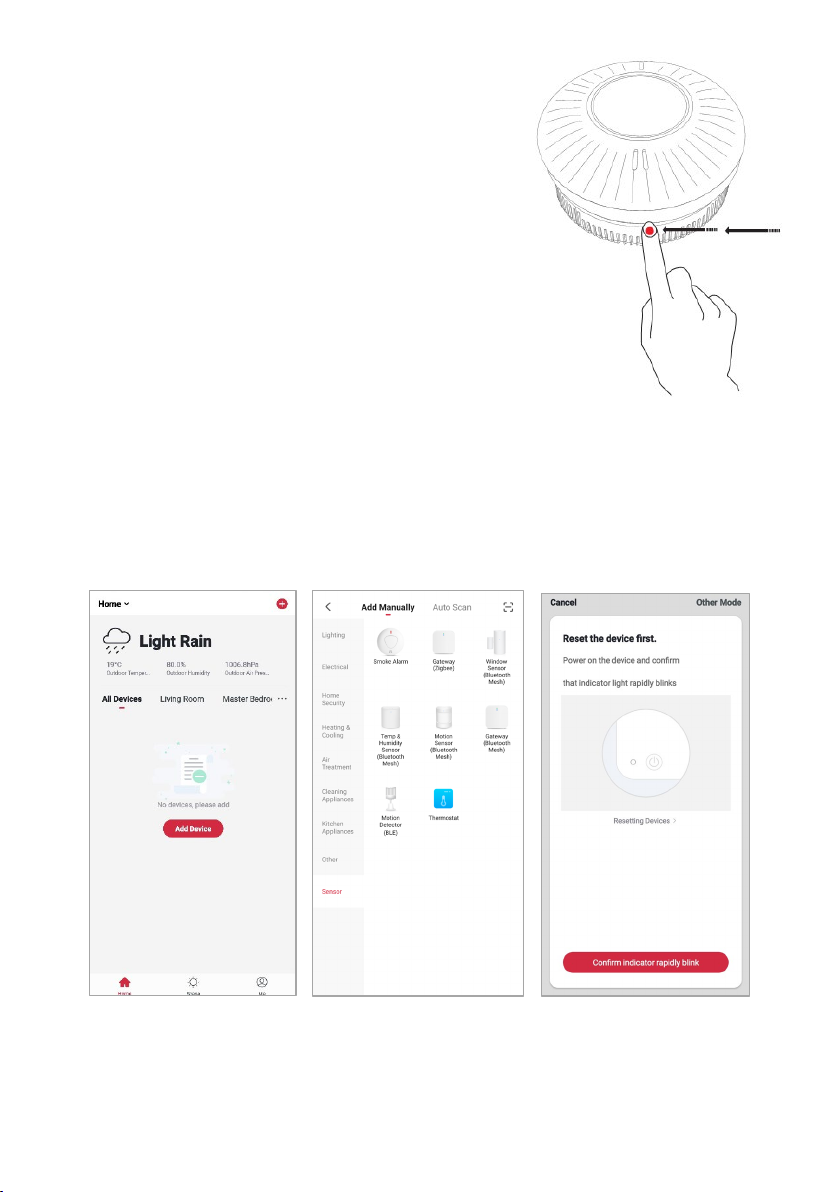

Set device in pairing mode
When the device is first turned on, it may automatically
enter pairing mode (red indicator light will be flashing
rapidly).
If not automatically in pairing mode when powered on,
you can manually set the device in pairing mode by long-
pressing the control button until the red indicator light
flashes three times, then continues flashing rapidly.
Add device through network
5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Sensor > Smoke Alarm).
7. Ensure that the device is in pairing mode, with the red light flashing, and tap
“Confirm light is rapidly flashing”.

12
8. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important
that your SmarterHome™ device and the app are connected to the same Wi-Fi
network during setup.
9. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
10. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.

13
Having trouble connecting?
If you’re unable to connect with the previous steps, try the
following AP Mode connection.
With the device already in pairing mode, repeat the step
(long pressing the control button) for 10 seconds, until the
green indicator light begins flashing slowly.
Note: After 5 seconds, the light may flash quickly, but
continue holding until it flashes slowly. This is important
for AP Mode connection.
Using AP Mode to add device

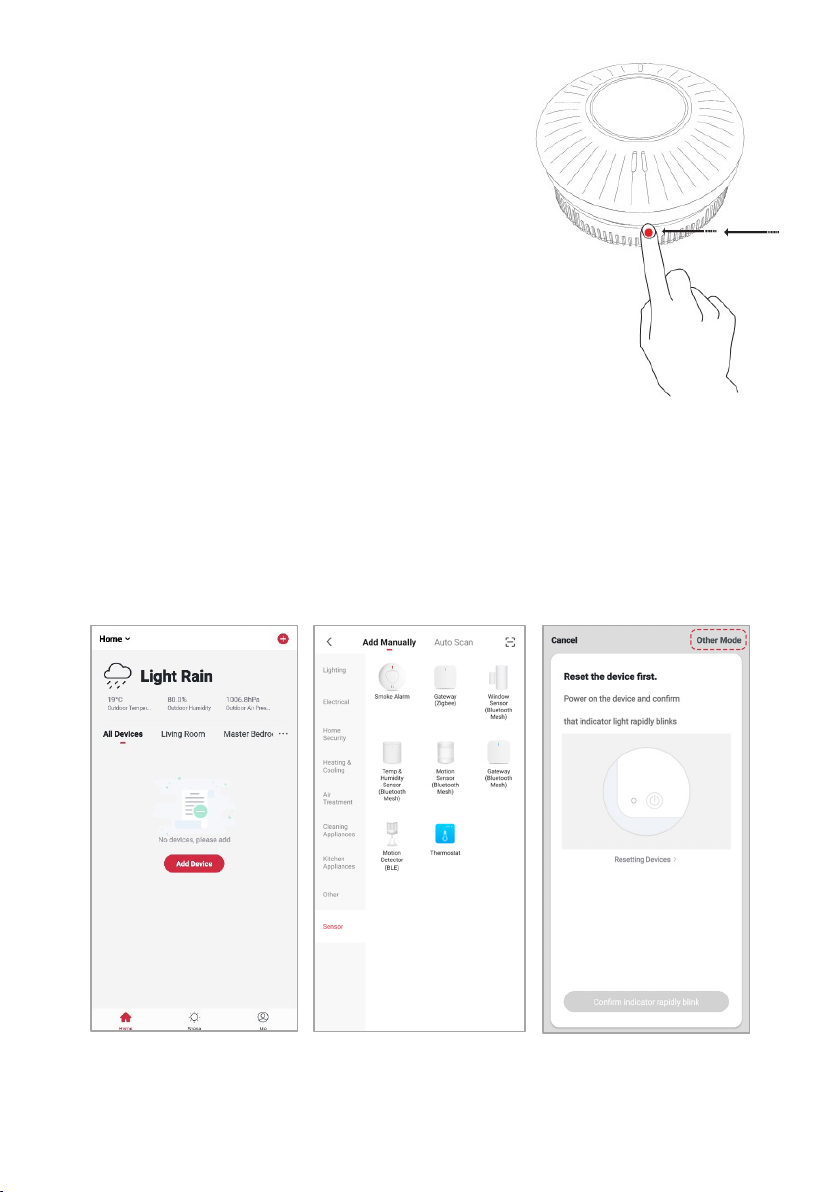

5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Sensor > Smoke Alarm),
and then select “Other Mode” from the top-right corner when asked to reset the
device.

14
7. Select “AP Mode” for the set-up type.
8. Ensure that the device is in pairing mode, with the red light flashing slowly, and tap
“Confirm light is slowly flashing”.
9. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the
app are connected to the same Wi-Fi network during setup.

15
10. Follow the in-app prompts to continue AP Mode connection, which will pair your
mobile phone to the device’s Wi-Fi hotspot to ensure a connection.
11. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
12. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.
Note:
If the Wi-Fi hotspot does not appear on your phone in the list of available
networks, your device may not be set in AP Pairing Mode correctly. Try repeating
the steps outlined above to ensure your device is ready for connection.

16
Interconnecting smoke detectors
To c o nnect several smoke detectors, press and hold the base button on all individual units
until the red lights flash three times. The red indicator lights will continue to flash for one
minute while waiting for other devices to pair. If you need to end the pairing in advance,
press the button again.
Press and hold the base button for the second alarm device. After the red light flashes
twice, release the button. At this time, the red light will flash slowly. If the pairing is
successful, the light will flash three times.
If the products have been paired with other groups before, it will exit directly after the red
light flashes quickly four times. For a successful match, you should clear paired data first.
Note: The equipment has been matched before delivery.
Clearing paired data: press and hold the base button and wait for the red light to blink for
four times, release the button. If the paired data is cleared successfully, it will flashes three
times slowly and exit. Otherwise, repeat the above steps to clear.
Low voltage alarm:
When the built-in battery voltage of the smoke detector is below 27V, the red indicator light
flashes once every 50 seconds, accompanied by a beep sound. The app will also show a
warning in the status bar.
Smoke alarm fault:
The LED of the smoke alarm flashes once every 8 seconds and is accompanied by a buzzer.
The app status will display an alarm fault.
If the device operates normal the red LED indicator flashes once every 55 seconds.
FUNCTIONS
CONNECTING SEVERAL UNITS

17
This unit has been designed to be as maintenance-free as possible, but there are a few
simple things you must do to keep it functioning properly.
Test each alarm at least once a week
Keep at arm’s length distance to the alarm during the test The alarm is loud in order to alert
you in case of an emergency and can be harmful to your ears, Press the button (3) for a
duration of two seconds, The alarm will sound a few short loud beeps, upon releasing the
button, the sound will stop, The APP will receive a test signal after ten seconds.
Reset the alarm
If the test does not function properly, reset the alarm.
Replace or return the alarm if the test does not function properly after completing these
steps.
Cleaning
Clean the smoke alarm at least once a month; gently vacuum the outside of the smoke
alarm using your household vacuum's soft brush accessory. Test the smoke alarm after
cleaning. Never use water, cleaners or solvents since they may damage the unit.
If the smoke alarm becomes contaminated by excessive dirt dust and/or grime and gives
unwanted alarms, replace the unit immediately.
CLEANING & CARE

18
Working Voltage DC 3.6V Li-ion battery (replaceable)
Standby current <12uA
Alarm current <35mA
Low voltage threshold 3.0V
Product lifespan 2-3 years
Alarm sound >85dB
Wireless frequency 2.4GHZ
App Kogan SmarterHome™
Alarm mode LED, buzzer, app.
Size 110mm x 42mm
Fire protection grade V-0
Execute Criterion EN14604:2005
EN 300 328 V2.1.1 (2016-11)
SPECIFICATIONS

19
WARNING: In case of an emergency, contact your local fire department.
Australia: Call 000 for Police, Fire and Ambulance services.
New Zealand: Call 111 for Police, Fire and Ambulance services.
Reset procedure: If the device fails to access the network or crashes due to incorrect
operation, long-press the middle button to reset the Wi-Fi connection. Follow the
SmarterHome™ connection steps to reconnect.
Problem Possible solution
Red LED flashes
and the alarm
sounds one beep
every 50 seconds
The batteries are flat – replace the batteries.
“NO BATTERY”
alert, but batteries
are inserted.
Ensure the plastic insulation sheets are removed between the
batteries and their terminals.
No response during
app operation.
Check that the network and the power supply are correctly
operating.
The app battery
indicates red.The batteries are flat – replace the batteries.
Smoke alarm is
being triggered
when the residents
are cooking or
showering.
•Clean the detector, refer to Cleaning & Care section of this
user guide.
•Install the detector in another location, follow the guidelines
for recommended locations and locations to avoid as stated
in this user guide (“Installation” section).
TROUBLESHOOTING

20
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
