Kogan SMARTERHOME KASMSLRPNLA User manual

KOGAN SMARTERHOME™
SOLAR PANEL
KASMSLRPNLA

Ensure to read all instructions in this user guide prior to first use. Retain this user guide for
future reference.
•Keep the solar panel clean and away from liquids at all times.
•This solar panel should not be used by children as well as adults with reduced
physical or mental capabilities, or those under the influence of drugs or alcohol.
•Take care when setting up the solar panel to prevent damage.
•When transporting the solar panel, ensure the panel is firmly secure so it will not
move around or collide with other objects.
•Do not use the solar panel if it is damaged or compromised in any way.
•Images used in this user guide are for reference only.
ASolar panel (x1) BStand (x1) CNut (x1)
DSpinlock collar (x1) E Base (x1) FM5 30mm screws (x4)
G7.5 x 24.5mm wall anchors (x3)
SAFETY & WARNINGS
COMPONENTS

Location
•Place the solar panel in an area with consistent sunlight. The panel needs at least a
few hours of sunlight per day to keep the camera’s battery charged.
•For optimum results, ensure the solar panel is facing north

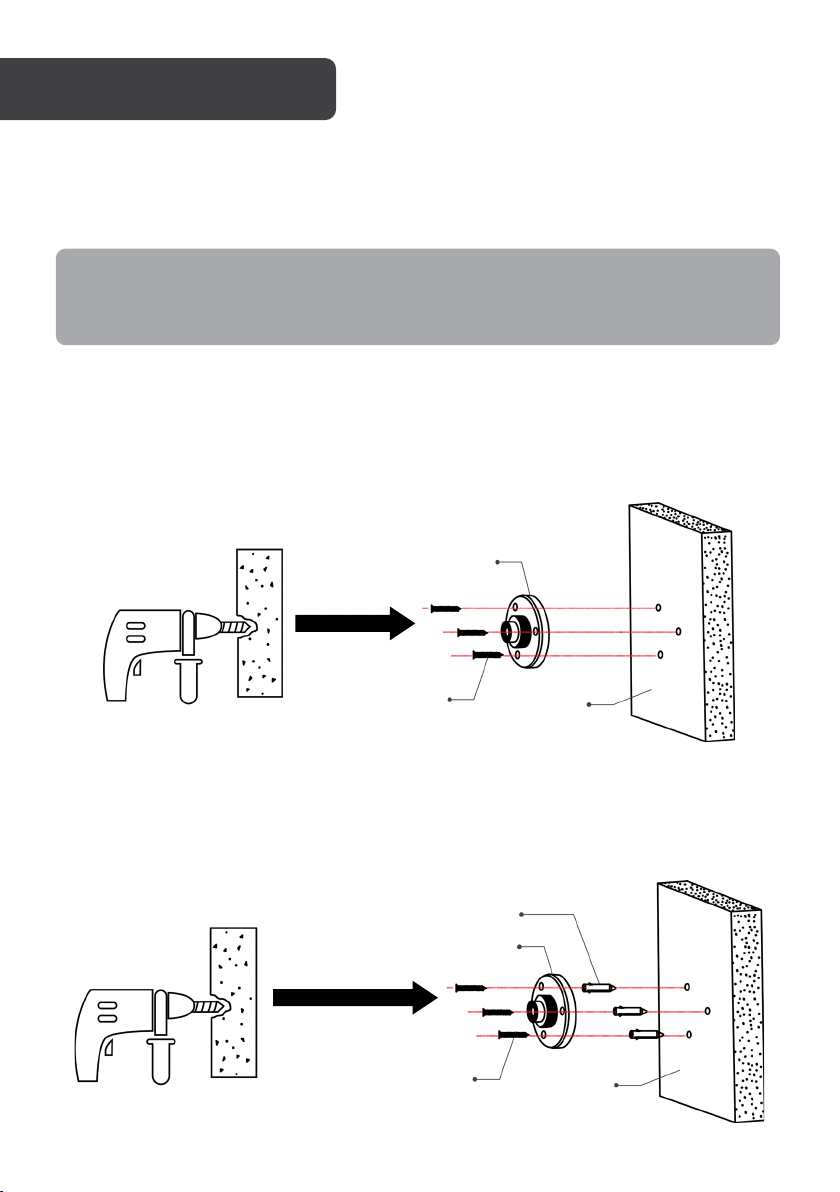

If installing on drywall, plaster, or timber walls
1. Using a stud finder (not supplied), locate a safe and secure mounting location for the
panel.
2.Place the base against the walls and mark the locations of the holes.
3.Using a drill, drill the holes and then secure the base in place using M5 30mm screws.
If installing on concrete or masonry walls
1. Place the base against the wall and mark the locations of the holes on the base.
Using a drill, drill holes at the marked locations.
2.Insert the wall anchors into the drilled holes. then place the base against the wall
anchors.
INSTALLATION
Note:
The amount of energy produced by the panel can vary based on weather conditions,
seasonal changes, geographic location, and other factors.
M5 30mm screws
Wall
Base
M5 30mm screws
Base
7.5 x 24.5mm wall anchors
Wall

3.Using a drill, secure the base with M5 30mm screws.
4.Secure the spinlock collar into the stand, then screw the nut onto the stand.
5.Screw the stand onto the back of the solar panel. Tighten the nut firmly.
6.Secure the spinlock collar into the base, then angle the joint on the stand upwards. It
is recommended to angle the solar panel 30° upwards.
7. Connect the Micro-USB cable from the solar panel to the Micro-USB port on the
camera to charge.
Spinlock collar
Stand
Nut
Solar panel
Stand
Nut
Spinlock collar
Base
Joint on the stand
30°

Adjusting the angle of the solar panel
The solar panel can be adjusted vertically up to 90°.
To adjust the angle:
1. Loosen the spinlock collar.
2.Rotate the sleeve on the stand, then adjust the positioning/angle of the solar panel.
3.When the solar panel is in the desired position, tighten the spinlock collar.
Spinlock collar
Sleeve
Spinlock collar
90°

Wipe the face of the solar panel with a soft, damp cloth regularly to clear any dust or debris.
Compatibility with cameras
This solar panel is compatible with the following cameras at the time of printing. Other
products may be compatible in the future. Please refer to help.Kogan.com for the most up
to date user guides and support.
Cable length 3m
Operating voltage 5V DC
Operating temperature –20.5°C–48.5°C
SKU Name
KA2KVDBELA Kogan Smart Doorbell 2S (SmarterHome™, 2K Camera)
KABASCAMAOA Add-on Camera for Kogan SmarterHome™ Outdoor Security
Camera System
KABASCAMS2A Kogan SmarterHome™ Outdoor Wireless Security Camera System
(2 Cameras + Base Station)
KASMDBL2PGA,
KASMDBL2PWA
Kogan SmarterHome™ Security Camera Doorbell 2 Pro
KSOBCAMWGAB,
KSOBCAMWGAC
Kogan SmarterHome™ Outdoor Battery Powered Wireless
Security Smart Camera
SPECIFICATIONS
CLEANING & CARE

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
