Kohler K-7420 Assembly instructions

Homeowners Guide

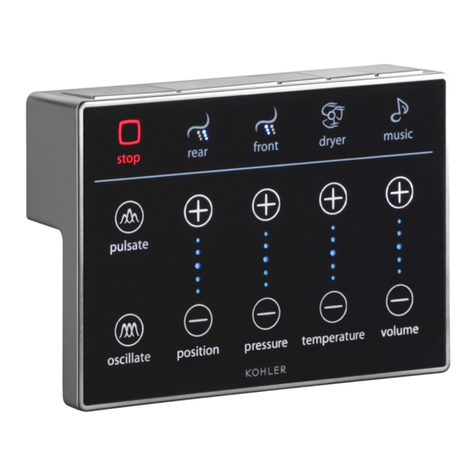

Premium Remote Control
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-7420
1197249-5-D

Table of Contents
Thank You For Choosing Kohler Company .............................................. 2
Compliance ..................................................................... 2
Range and Function Disclaimer ...................................................... 3
Features - Remote Control .......................................................... 5
Flushing Your Toilet ............................................................... 7
Using the Bidet Functions .......................................................... 8
Using the Music Feature .......................................................... 10
Activating and Synchronizing Your Bluetooth Device ...................................... 12
Using the Heated Seat and Heated Feet Functions ....................................... 13
Using the Ambient and Bowl Light Functions ............................................ 14
Creating and Using a User Profile .................................................... 16
Setting the Remote Control Brightness and Language ..................................... 18
Setting the Date, Time ............................................................ 19
Setting the Remote Control Power ................................................... 20
Setting the Sleep Mode ........................................................... 21
Setting the User Profiles ........................................................... 23
Setting Seat and Cover Auto Open, Auto Close .......................................... 24
Setting Auto Flush, Animated Flush, Deodorizer ......................................... 25
Setting the Key Sounds, Lighting, Welcome Music ....................................... 26
Connecting the Remote Control to the Toilet ............................................ 28
Resetting User Profiles and Features, Accessing Model Information ........................... 29
Care and Cleaning ............................................................... 30
Manual Cleaning Process .......................................................... 31
Running and Scheduling the Automatic Clean Cycle ...................................... 33
Troubleshooting ................................................................. 34
Warranty ...................................................................... 35
Thank You For Choosing Kohler Company
Thank you for choosing Kohler Co. Your Kohler Co. product reflects the true passion for design,
craftsmanship, artistry, and innovation Kohler Co. stands for. We are confident its dependability and beauty
will surpass your highest expectations, satisfying you for years to come.
All information in this guide is based upon the latest product information available at the time of
publication. At Kohler Co. we strive to fulfill our mission of improving the level of gracious living for each
person who is touched by our products and services. We reserve the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to the care and cleaning instructions.
Compliance
FCC ID: N82-KOHLER005 – Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Interference Statement (Part 15.105 (b))
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
1197249-5-D 2 Kohler Co.

Compliance (cont.)
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Warning
This portable transmitter with its antenna complies with FCC’s RF exposure limits for general
population/uncontrolled exposure.
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
CANADA IC: 4554A-KOHLER005
Industry Canada Statement per Section 4.0 of RSP-100
The term ″IC:″before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
Section 7.1.5 of RSS-GEN
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
Section 2.6 of RSS-102
This portable transmitter with its antenna complies with Industry Canada RF Exposure Limits for General
Population/Uncontrolled Exposure.
Modifications: any modifications made to this device that are not approved by Kohler Co. may void the
authority granted to the user by the FCC to operate this equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Range and Function Disclaimer
BLUETOOTH
®
is the name for a short-range radio frequency (RF) technology that operates at 2.4 GHz. The
effective range of most BLUETOOTH mobile devices is 30’ (9.14 m). BLUETOOTH is designed for very low
power use. The compatibility of the BLUETOOTH wireless speaker to mobile/portable devices differs
according to the various individual devices and, in particular, may vary with different software versions for a
device. The normal mobile device BLUETOOTH range can be up to 10 m, however, placement of your
mobile device and the BLUETOOTH wireless speaker’s installation environment will impact your reception
range.
Water and walls can act as blocking agents to the BLUETOOTH signal that your mobile device is using to
broadcast to your BLUETOOTH wireless speaker. Therefore, selecting an installation location that removes
these range blocking obstacles will increase the effective range and performance of your BLUETOOTH
wireless speaker.
You can test your BLUETOOTH reception by performing simple range tests using your mobile device prior
to performing a permanent installation. The best way to make use of the short BLUETOOTH range is to
make sure your BLUETOOTH wireless speaker is as close to the BLUETOOTH transmitter (mobile phone,
Kohler Co. 3 1197249-5-D

Range and Function Disclaimer (cont.)
tablet, etc.) as possible. The less distance between the two devices, the greater will be the reliability of your
BLUETOOTH audio signal, and the less distance means less obstacles in the medium through which the
transmission is passing, so there is a reduced chance of audio signal loss.
The compatibility of the BLUETOOTH wireless speaker to mobile/portable devices differs according to the
various individual devices and, in particular, may vary with different software versions for a device. All
functions are based on industry-wide communications standards. Compatibility between the BLUETOOTH
wireless speaker and mobile device is therefore largely dependent upon the software version of the mobile
device. Other factors (e.g. installation location, walls, distance) mean that in individual cases, sporadic
impairment of functions may occur in devices that otherwise function reliably. Not all functions are
supported in all countries.
Because of these reasons, Kohler Co. can assume no guarantee for the unlimited compatibility and
functionality of your mobile device in conjunction with the BLUETOOTH wireless speaker.
_________________________________________________________________
The BLUETOOTH
®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Kohler Co. is under license. Other trademarks and trade names are those of their
respective owners.
1197249-5-D 4 Kohler Co.

Features - Remote Control
IMPORTANT! For a detailed interactive users guide for this product, go to www.kohler.com.
A. flush-eco - Activates a 0.6 gallon (2.27 L) flush for liquid waste.
B. flush-full - Activates a 1.28 gallon (4.5 L) flush for solid waste.
C. seat - Opens the cover and seat when both are closed, or seat only when the cover is already open.
D. cover - Opens the cover only.
E. close - Closes the cover and seat when both are open, or cover only when the seat is already closed.
F. rear - Takes the user to the rear bidet screen where bidet water pressure, position, and temperature can be
adjusted and activated.
G. front - Takes the user to the front bidet screen where bidet water pressure, position, and temperature can
be adjusted and activated.
H. dryer - Takes the user to the bidet dryer screen where air pressure and air temperature can be adjusted
and activated.
I. heating - Takes the user to the heating screen where the heated seat and foot warmer features can be
adjusted and activated.
J. music - Takes the user to the music screen where the user can choose between playing audio through a
built-in FM radio, portable devices through an auxiliary-input, or listening to the pre-loaded music.
K. lighting - Takes the user to the lighting screen, where the ambient light or the bowl light can be activated
and adjusted.
L. users - Takes the user to the user preset screen where personalized settings can be activated.
A
GH
D
C
B
QP
K
I
J
N
LM
OR
E
F
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
Kohler Co. 5 1197249-5-D

Features - Remote Control (cont.)
M. settings - Takes the user to the settings screen, where the user can change system settings and feature
settings.
N. stop - Stops all toilet functions when selected.
O. clock - Indicates current time.
P. user indicator - Indicates current user-preset settings.
Q. signal indicator - Indicates remote control to toilet signal.
R. battery indicator - Indicates battery life.
1197249-5-D 6 Kohler Co.

Flushing Your Toilet
IMPORTANT! The flushing action for your toilet is unique. Full flush is a two stage flush designed for
superior performance while using a small amount of water. It will seem as if your toilet is flushing twice.
This is proper operation.
NOTE: When you receive your toilet it is set to flush automatically. The toilet will flush automatically 6
seconds after the user stands up, 60 seconds after use with the seat in the raised position. The toilet will
determine the appropriate flush type ([flush-eco] or [flush-full]) automatically. Refer to the ″Settings -
Auto Open, Auto Flush, Deodorizer″section for instructions on enabling or disabling the auto flush
feature.
NOTE: There are two flushing options. The [flush-eco] option uses 0.6 gallons (2.27 L) of water and is
intended for liquid waste removal. The [flush-full] option uses 1.28 gallons (4.5 L) of water and is
intended for solid waste removal.
For liquid waste removal, select [flush-eco]. The flush takes approximately 30 seconds. There is an
initial flush, then the bowl is refilled.
For solid waste removal, select [flush-full]. The flush takes approximately 45 seconds. There is an
initial flush, the bowl is partially refilled, and a second flush takes place.
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am 12:34 am home
home
flushing cycle
settingsstop
rinsing rim
Kohler Co. 7 1197249-5-D

Using the Bidet Functions
NOTE: The bidet function will automatically stop after 2 minutes.
Using the Front Bidet Wash
Select [front].
Select [on].
Move the [pressure] scroll bar up or down to adjust the water pressure.
Move the [position] scroll bar up or down to adjust the wand position.
Move the [temp.] scroll bar up or down to adjust the water temperature.
Select [off].
NOTE: To adjust the spray, perform the ″Adjusting the Spray″steps below.
Using the Rear Bidet Wash
Select [rear].
Select [on].
Move the [pressure] scroll bar up or down to adjust the water pressure.
Move the [position] scroll bar up or down to adjust the wand position.
Move the [temp.] scroll bar up or down to adjust the water temperature.
Select [off].
Using the Dryer
12:34 am home
music
front rear dryer
heating lighting
users stop settings
cover seat close
flush-eco flush-full
12:34 am
front rear dryer
home
pressure position temp.
options
bidet
off
12:34 am
front rear dryer
home
pressure position temp.
options
bidet
on
12:34 am
rearfront
on
dryer
home
pressure
bidet
temp.
12:34 am
front rear dryer
pulsate
wave
home
oscillate
back
options
bidet
on
1197249-5-D 8 Kohler Co.

Using the Bidet Functions (cont.)
Select [dryer].
Select [on].
Move the [pressure] scroll bar up or down to adjust the air pressure.
Move the [temp.] scroll bar up or down to adjust the air temperature.
Select [off]
Adjusting the Spray
NOTE: When [pulsate] is selected, the bidet wand is stationary and the water pressure emitted from the
bidet wand increases and decreases. When [oscillate] is selected, the bidet wand moves while a steady
stream of water is emitted.
Select [front] or [rear].
Select [options].
NOTE: When [wave] is selected, the water will pulsate and oscillate simultaneously.
Select [pulsate],[oscillate] or [wave].
Kohler Co. 9 1197249-5-D

Using the Music Feature
Playing Music Using the Radio
NOTE: AM radio is not available. Radio is FM only.
Select [music].
Use the up or down arrows to select an FM radio station.
To save the station as a preset, hold one of the three preset buttons (labeled [1], [2],or[3]) down for
3 seconds and select [yes] when prompted.
To adjust the volume, move the volume scroll bar up or down.
To scan for radio stations, select [scan]. To scan up, press the up arrow, then select [scan]. To scan
down select the down icon, then press [scan].
Playing Music Using an External Music Source
NOTE: External music source can be any standard music player or a Bluetooth enabled device. MP4
format is not supported at this time.
If an MP3 player is being used, connect the external music source to the inlet on the docking station
or the back of the toilet.
If a Bluetooth enabled music source is being used, first synchronize the device following the
instructions in the ″Activating and Synchronizing Your Bluetooth Device″section.
Select [music].
Select the [aux] tab.
Select the external source icon [1] for MP3 players. Select the Bluetooth icon [2] for a Bluetooth
music source.
12:34 am home
music
front rear dryer
heating lighting
users stop settings
cover seat close
flush-eco flush-full
on
SDauxradio
12:34 am
107.3
1
2
3
music
fm
MHz
optionshome
scan
volume
shuffle
radio
repeat
music
volume
SDaux
track number
off
optionshome
0001
12:34 am
volume
SD
numi
auxradio
music
on
optionshome
12:34 am
1
2
1197249-5-D 10 Kohler Co.

Using the Music Feature (cont.)
Start the desired music selection on the external player.
NOTE: When using an external music source, if there is background interference (buzzing) coming
through the speakers, adjust the volume on the external device. This will often eliminate the interference.
Playing Music From an SD Card
Insert an SD card that contains only music files in the slot located on the back of the toilet.
On the remote control, select [music].
Select the [SD] tab.
Select the play icon.
Playing Pre-loaded Music
Select [music].
Select the [aux] tab.
Select the [numi] icon.
Select [on].
Adjusting the Bass, Treble and Balance (not shown)
Select [music].
Select the [radio],[aux],or[SD] tab.
Select [options].
To adjust the bass, treble or balance, move the appropriate scroll bar up or down.
Changing the Speaker Output (not shown)
Select [music].
Select the [radio],[aux],or[SD] tab.
Select [options].
Select [toilet] for the internal speakers or [external] for external speakers.
Kohler Co. 11 1197249-5-D

Activating and Synchronizing Your Bluetooth Device
To Activate or Deactivate Bluetooth
NOTE:
Select [settings].
Select [bluetooth settings].
Select [bluetooth on/off].
To activate Bluetooth, select [on]. Select [off] to deactivate the Bluetooth feature.
To Synchronize the Bluetooth Device
Select [settings].
Select [bluetooth settings].
Select [set pin code].
Enter a four digit code you will remember.
On your Bluetooth device, perform the ″detect Bluetooth″process.
When prompted on your Bluetooth device, enter the same code you entered on the remote control
keypad.
On your Bluetooth device, select ″play through NUMI″when prompted.
bluetooth on/off
back
home
off
on
12:34 am
12:34 am
bluetooth on/off
backhome
bluetooth settings
set pin code
12:34 am settings
home
about
bluetooth settings
maintenance
cleaning
feature settings
system settings
12:34 am home
music
front rear dryer
heating lighting
users stop settings
cover seat close
flush-eco flush-full
ok
back
home
bluetooth settings
Bluetooth pin code
0
98
7
65
4
32
1
1 2 3 4
12:34 am
back
1197249-5-D 12 Kohler Co.

Using the Heated Seat and Heated Feet Functions
NOTE: When the scroll bar is at its lowest position, the feature will turn off. When the scroll bar is moved
upward, the feature will activate.
Using the Heated Seat
Select [heating].
Move the scroll bar for the [heated seat] option up to activate it or increase the heat.
NOTE: If the [heated seat] is left on, it will continuously keep the seat warm unless [power save] mode is
activated.
To disable the heated seat option, move the scroll bar all the way down.
Using the Heated Feet
Select [heating].
Move the scroll bar for the [heated feet] option up to activate it or increase the heat.
To disable the heated feet option, move the scroll bar all the way down.
NOTE: Heated Feet feature will automatically time out after 15 minutes if no other functions are
selected.
heated
seat heated
feet
brightness
heating ambient
light
lighting
12:34 am
home
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
Kohler Co. 13 1197249-5-D

Using the Ambient and Bowl Light Functions
NOTE: When the scroll bar is at its lowest position, the feature will turn off. When the scroll bar is moved
upward, the feature will activate.
NOTE: The ambient light is located on the back panels of the toilet. The bowl light is located in the tip of
the bidet wand and is activated by low light conditions (night light).
Adjusting the Ambient Light - Default Color
Select [lighting].
For standard light color, select [default color].
Select the desired color square.
Select [home] to return to the main screen.
Adjusting the Ambient Light - Change Color Daily
Select [lighting].
Select [by date].
Select the color square under each day to change the color.
When you select the color square, a second color row of color squares will appear.
Select the desired color for that day. The color square under the day will change to your selection.
Select [home] to return to the main screen.
Adjusting the Ambient Light - Change Color Dynamically
Select [lighting].
Sat.Fri.Thu.Wed.Tue.Mon.
by date
Sun.
dynamic
default color
brightness
heating ambient
light
lighting
12:34 am
home
ambient
light bowl
light
brightness
heating ambient
light
lighting
12:34 am
home
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
1197249-5-D 14 Kohler Co.

Using the Ambient and Bowl Light Functions (cont.)
To cycle through each light color automatically, select [dynamic].
Select [home] to return to the main screen.
Enable/Disable the Ambient and Bowl Lights and Adjust the Brightness
Select [lighting].
Select the [brightness] tab.
Move the scroll bar for the [ambient light] option up to activate it and adjust the light intensity.
Move the scroll bar for the [bowl light] option up to activate it and adjust the light intensity.
To disable either feature, move the scroll bar all the way down.
Kohler Co. 15 1197249-5-D

Creating and Using a User Profile
Creating a New User Profile
Set each of the features you wish to have included in your user profile to your desired settings.
Features available for user settings are: bidet front and rear, dryer, music, heating, and lighting
functionality.
Select [users].
NOTE: When a profile is in use, highlighted icons will appear next to it. Unused profiles will have no
highlighted icons next to the user.
Select a user profile (user 1-6) that is not in use by touching it or selecting [save as] and selecting
the desired features.
Select each feature you want to save as part of your user profile. A check will appear when it is
selected.
NOTE: To remove a selected item, select it a second time. The check will disappear, showing the selection
is not active.
Select [next].
Select the features you want one touch start activated on. A check will appear when it is selected.
Select [save].
The user screen will appear. The icons of your selected features will appear alongside the user
profile you created.
Using Your User Profile
If the toilet is not set to your user profile (setting is shown on the top of the remote screen):
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
user 1
home
save as
user 4
user 5
user 6
user 2
user 1
user 3
12:34 am
users
home
save as
user 4
user 5
user 6
user 2
user 1
user 3
12:34 am
music
lighting
cancel
heating
bidet front
bidet rear
dryer
users
save the following
to user 1?
next
12:34 am
save
dryer
music
cancel
select features for
one touch start:
users
bidet front
12:34 am
1197249-5-D 16 Kohler Co.

Creating and Using a User Profile (cont.)
Select [users].
Select your user profile.
NOTE: After every use, your Numi toilet will revert to one of three user profiles: previous user,user1,or
default. To change the default user profile setting, follow the instructions in the ″Setting the User Profiles″
section.
Kohler Co. 17 1197249-5-D

Setting the Remote Control Brightness and Language
Adjusting the Remote Control Screen Brightness
Select [settings].
Select [system settings].
Select [brightness].
Adjust the [screen] scroll bar up or down.
Select [home] to return to the main screen or [back] to return to the previous screen.
Changing the Remote Control On-Screen Language
Select [settings].
Select [system settings].
Select [languages].
NOTE: If the language you desire does not appear on the screen, move the scroll bar down to see
additional language options.
Select your desired language. The screen icons will immediately change.
Select [home] to return to the main screen or [back] to return to the previous screen.
12:34 am
brightness
backhome
system settings
user settings
power save
set time
set date
languages
ançaisrF
tuguêsroP
Español
Italiano
home
languages
back
Deutsch
English
12:34 am
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
system settings
feature settings
cleaning
maintenance
bluetooth settings
about
home
settings
12:34 am
brightness
screen
home back
12:34 am
back
1197249-5-D 18 Kohler Co.

Setting the Date, Time
Setting or Changing the Date
Select [settings].
Select [system settings].
Select [set date].
Use the up and down indicators to adjust the day, month, and year.
Select the desired date format.
Select [home] to return to the main screen or [back] to return to the previous screen.
Setting or Changing the Time
Select [settings].
Select [system settings].
Select [set time].
Select [12 hr.] or [24 hr.].
Use the up and down indicators to adjust the hour and minute.
Select [am] or [pm].
Select [home] to return to the main screen or [back] to return to the previous screen.
back
12:34 am
10/12/2009
backhome
yyyy/mm/dd
dd/mm/yyyy
mm/dd/yyyy
set date
12:34 am
12:34
12
24
backhome
set time
pm
am
hr.
hr.
12:34 am
brightness
backhome
system settings
user settings
power save
set time
set date
languages
system settings
feature settings
cleaning
maintenance
bluetooth settings
about
home
settings
12:34 am
flush-fullflush-eco
close
seat
cover
settingsstopusers
lightingheating
dryer
rear
front
music
home
12:34 am
Kohler Co. 19 1197249-5-D

Setting the Remote Control Power
Setting the Remote Sleep
NOTE: The remote sleep setting determines the amount of time the remote control screen will stay active
after its last use. To reactivate the remote control, touch any area of the screen and it will immediately
activate.
Select [settings].
Select [system settings].
Select [power save].
Select [remote sleep].
Select the desired amount of time.
Select [home] to return to the main screen or [back] to return to the previous screen.
Setting the Remote Off
NOTE: The remote off setting determines the amount of time the remote control power will stay on when
it is undocked and inactive. Once the power is off, place the remote control on the docking station to turn
the power on.
Select [settings].
Select [system settings].
Select [power save].
Select [remote off].
Select the desired amount of time.
Select [home] to return to the main screen or [back] to return to the previous screen.
remote off
home back
power save
toilet sleep
backhome
12:34 am
2 min.
5 min.
10 min.
3 min.
home back
remote sleep
backhome
12:34 am
flush-fullflush-eco
close
seat
cover
settings
stop
users
lightingheating
dryer
rear
front
music
home
12:34 am 12:34 am
brightness
backhome
system settings
user settings
power save
set time
set date
languages
back
12:34 am settings
home
about
bluetooth settings
maintenance
cleaning
feature settings
system settings remote sleep
60 min.
12:34 am
home back
remote off
backhome
5 min.
30 min.
15 min.
never
1197249-5-D 20 Kohler Co.
