Kohler K-22106T-S2 User manual

1204812-T01-E -1-
INSTALLATION INSTRUCTIONS
VITREOUS CHINA FLOOR STANDING TOILET
K-22106T-2/K-22106T-S2/K-22528T-SCS2/K-22528T-CPS2
K-22527T-SCS2/K-22527T-CPS2/K-21566T-GS2/K-22529T-CPS2
K-22529T-BNS2/K-22530T-CPS2/K-22530T-BNS2
PANACHE
·
·
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information -
.
please leave instructions for the
consumer
·
·
·-
ORDERING INFORMATION
PANACHE WF Toilet (HT100 MEC IWT) ..............K-22106T-2
Includes PANACHE Bowl ................................K-18154T-2
Includes ODEON Inwall Tank
W/O Iron Rack................................K-6286T-PN2
Includes ...........................K-4760T
Includes ....................................................1036901
PANACHE WF Toilet (HT100 MEC IWT)............K-22106T-S2
Includes PANACHE Bowl ................................K-18154T-2
Includes ODEON Inwall Tank
W/O Iron Rack .............................K-6286T-PNS2
Includes .....K-17674T
Includes ....................................................1036901
PANACHE WF Toilet
(ODEON SR A/C)...........................................K-22528T-SCS2
Includes Bowl ...........................................K-23167T-ACS2
Includes ODEON Toilet/Squat Sensor...K-744T-MC05-SC
Includes .....K-17674T
PANACHE WF Toilet (ODEON SR A/P) ........K-22528T-CPS2
Includes Bowl ...........................................K-23167T-APS2
Includes ODEON Toilet/Squat Sensor...K-744T-MC05-CP
Includes .....K-17674T
PANACHE WF Toilet
(ODEON SR D/C) ..........................................K-22527T-SCS2
Includes Bowl ...........................................K-23167T-DCS2
Includes ODEON Toilet/Squat Sensor .........K-744T-M-SC
Includes .....K-17674T
PANACHE Toilet Seat
P-Trap
PANACHE Quiet-close Toilet Seat
P-Trap
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
®
®
®
®
®
( 100 ).............K-22106T-2
..................................................K-18154T-2
( ) ....................................................K-6286T-PN2
.....................................K-4760T
....................................................1036901
( 100 )...........K-22106T-S2
...................................................K-18154T-2
( ) ..................................................K-6286T-PNS2
.............................K-17674T
....................................................1036901
( , / ) ........................K-22528T-SCS2
......................................................K-23167T-ACS2
, .............................K-744T-MC05-SC
.............................K-17674T
( , ) .......K-22528T-CPS2
......................................................K-23167T-APS2
, .............................K-744T-MC05-CP
.............................K-17674T
( , / ) ........................K-22527T-SCS2
......................................................K-23167T-DCS2
, ....................................K-744T-M-SC
.............................K-17674T
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436
( ) 158 200436
©
©
Copyright Kohler China Investment Co., Ltd. 2018
2018

1204812-T01-E

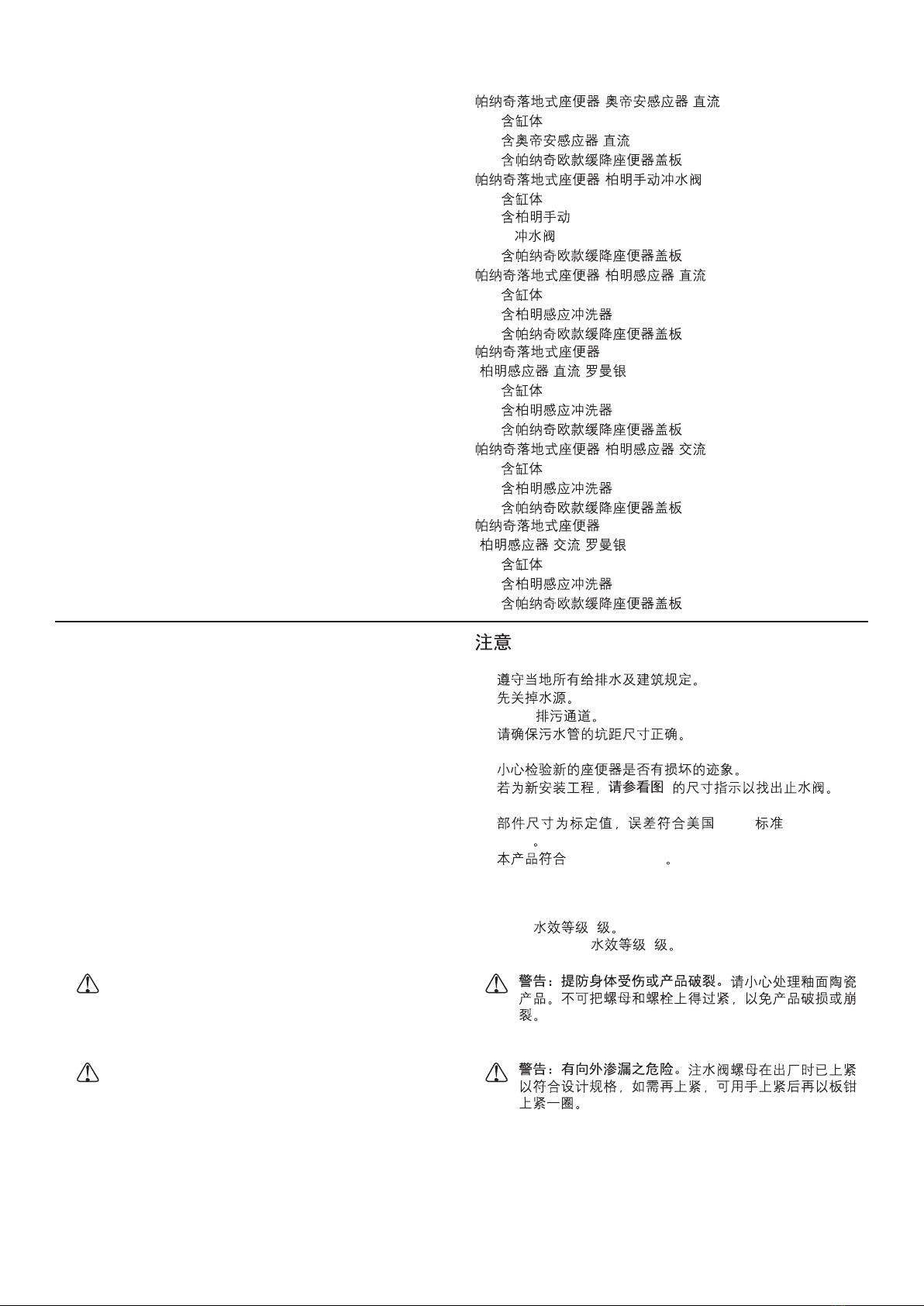

PANACHE WF Toilet (ODEON SR D/P)........K-22527T-CPS2
Includes Bowl ...........................................K-23167T-DPS2
Includes ODEON Toilet/Squat Sensor .........K-744T-M-CP
Includes .....K-17674T
PANACHE WF Toilet (BEAM M FV) ................K-21566T-GS2
Includes Bowl .............................................K-20724T-GS2
Includes BEAM Manual Toilet/Squat
Flush Valve.......................................K-77682K-G
Includes .....K-17674T
PANACHE WF Toilet (BEAM SR D/CP) ........K-22529T-CPS2
Includes Bowl ...........................................K-21567T-DPS2
Includes BEAM Toilet Sensor (DC) ..............K-30947T-CP
Includes .....K-17674T
PANACHE WF Toilet
(BEAM SR D/BN) ...........................................K-22529T-BNS2
Includes Bowl ...........................................K-21567T-DNS2
Includes BEAM Toilet Sensor (DC) ..............K-30947T-BN
Includes .....K-17674T
PANACHE WF Toilet (BEAM SR A/CP) ........K-22530T-CPS2
Includes Bowl ...........................................K-21567T-APS2
Includes BEAM Toilet Sensor (AC)...............K-30948T-CP
Includes .....K-17674T
PANACHE WF Toilet
(BEAM SR A/BN) ...........................................K-22530T-BNS2
Includes Bowl ...........................................K-21567T-ANS2
Includes BEAM Toilet Sensor (AC)...............K-30948T-BN
Includes .....K-17674T
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
PANACHE Quiet-close Toilet Seat
®
®
®
®
®
®
( , ) .......K-22527T-CPS2
......................................................K-23167T-DPS2
, ....................................K-744T-M-CP
.............................K-17674T
( ) ..............K-21566T-GS2
........................................................K-20724T-GS2
.........................................................K-77682K-G
.............................K-17674T
( , )...........K-22529T-CPS2
......................................................K-21567T-DPS2
.........................................K-30947T-CP
.............................K-17674T
( , / ) ...............................K-22529T-BNS2
......................................................K-21567T-DNS2
.........................................K-30947T-BN
.............................K-17674T
( , )...........K-22530T-CPS2
......................................................K-21567T-APS2
.........................................K-30948T-CP
.............................K-17674T
( , / ) ...............................K-22530T-BNS2
......................................................K-21567T-ANS2
.........................................K-30948T-BN
.............................K-17674T
NOTES
·
·
·
·
·
·
·
Observe all local plumbing and building codes.
Shut off the water supply.
51mm (2") passageway.
Ensure that the new drain has the correct roughing-in
dimension.
Carefully inspect the new fixture for any sign of damage.
For new construction, refer to the dimensions in
for locating the shut-off valve.
Fig. #1
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
This product complies with GB 25502-2017.
Water Efficiency Grade 2 for K-22106T-2/K-22106T-S2/K-
22528T-SCS2/K-22528T-CPS2/K-22527T-SCS2/K-
22527T-CPS2/K-22529T-CPS2/K-22529T-BNS2/K-
22530T-CPS2/K-22530T-BNS2.
Water Efficiency Grade 3 for K-21566T-GS2.
·
·
·
·
·
·
·
·
51mm
1
ASME (A112.19.2-
2018)
GB 25502-2017
K-22106T-2/K-22106T-S2/K-22528T-SCS2/K-22528T-
CPS2/K-22527T-SCS2/K-22527T-CPS2/K-22529T-
CPS2/K-22529T-BNS2/K-22530T-CPS2/K-22530T-
BNS2 2
K-21566T-GS2 3
·
WARNING: Risk of personal injury or product
damage
WARNING: Risk of external leakage
: Handle vitreous china products very carefully.
Vitreous china can break and chip if you overtighten
bolts and nuts.
. The fill valve
nut has been factory-tightened to design specifications.
If re-tightening is required, wrench tighten one turn
past finger tight .
-2-

1204812-T01-E -3-
TOOLS AND MATERIALS REQUIRED (NOT
SUPPLIED)
·
·
·
·
·
·
·
·
·
254mm (10") adjustable wrench
305mm (12") pipe wrench
Tape measure
Level
Drill (10mm. Drill bit)
Screwdriver
Plastic connector (Supplied)
Toilet installation bolt (Supplied)
S-TRAP 1206391(Optional)/P-TRAP 1036901 (Supplied)
·
·
·
·
·
·
·
·
·
254
305
( 10mm)
()
()
S 1206391( )/P 1036901( )
ROUGHING-IN
Fig.#1
1
Kohler reserves the right to change marked dimensions without prior notice.
Finished Wall
Finished Wall
Finished Wall
Finished Wall
Reference Value UNIT: mm
1036901
P-Trap
1206391
S-Trap(Optional)
()
185
90-110
550
C
C
L of Inlet
Inlet
L of Outlet
Outlet
380 352
185
85
215
358 350 155
Floor Fixings
55
102
1. Install Flushing Mechanism
1-1. Install The Tank
1) Turn the water supply off before installing the new toilet.
2) Install the concealed tank system in wall before decorating
the wall.
3) Install the tank system per tank's installation instructions.
1-2. Install Manual Valve Or Sensor
Refer to installation instructions of manual valve or sensor for
the installation of flushing mechanism.
INSTALLATION
1.
1-1.
1)
2)
3)
1-2.

1204812-T01-E -4-
2.
1)
2)
3) 10mm
4)
5)
6)
7)
Back Edge of Pan
Back Edge of Pan
Wall
Installation Template
Fig.#3
3
2. Install The Bowl
1) Put the bowl in position and mark a line along the back of
the bowl.
2) Place the template on the floor, align to the pencil line and
secure to the floor.
3) Drill the fixing holes with a 10 mm drill as indicated on the
template.
4) Fit the clamps to the floor with the floor plugs, washers
and nuts.
5) Position the bowl and install the soil pipe in accordance
with the manufacturer's instructions.
An inlet isolating valve must be installed to the bowl.
6) Connect the inlet water supply to the bowl.
7) Secure the bowl in positon with the plastic sleeve and the
screw. Fit the plastic cover cap.
Note!
Cover Cap
Screw
Plastic Sleeve
Fixing Hole
Bolt
Washer
Clamp
Floor Plug
Fig.#4
4
Fig.#5
5
()
0C
o
CONSUMER RESPONSIBILITIES
If you live in a hard water area, make certain that the holes in
the toilet rim are kept clean to ensure proper bowl flushing.
Toilet bowl cleaners should be used at least once a week.
Use a long-handled brush to clean the rim holes, and to clean
as far into the trap as possible to prevent mineral deposits
from forming.
Most toilet bowl cleaners are not harmful to the vitreous china
surface of the toilet bowl. Please follow the bowl cleaner
manufacturer's instructions carefully.
Do not use abrasive cleaners or solvents.
Do not use in-tank cleaners. Products containing
chlorine (calcium hypochlorite) can seriously damage
fittings in the tank. This damage can cause leakage
and property damage.
Kohler Company shall not be responsible or liable for any
damage to these tank fittings caused by the use of cleaners
containing chlorine (calcium hypochlorite).
WARNING: Risk of property or product damage.
WARNING: Risk of product damage.
CAUTION:
Do not throw into the toilet what is easy to block it,
such as newspaper, paper pilch, sanitary towel.
Do not bump the vitreous china with great force to
prevent it from damaging and leaking.
Do not use the toilet in the water below 0 C.
Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.
o

BEAM
座便器/蹲便器感应冲洗器
TOILET/SQUAT SENSOR
安装说明书
INSTALLATION INSTRUCTIONS
K-30947T (DC/直流型)
K-30948T (AC/交流型)
K-30951T (DC/直流型)
K-30952T (AC/交流型)
K-30948T-X(AC/交流型/IoT)
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operation and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information - please leave instructions for the
consumer.
Open end/adjustable wrenches
Tape measure
Basin wrench
Pipe wrench
Square
Level
Pliers
Socket wrench with sockets
Philips driver
Seal tape
Special wrenches
Connection wire
Wire cutter
Insulation tape
Bushing
SENSOR SPECIFICATIONS
BEFORE YOU BEGIN
请详读本说明书，以便熟悉所需工具、材料及安装程序。请
遵照相关章节进行安装，以避免由于安装不当而导致不必要
的贵重损失。除了有关正确的安装方法之外，还务必请阅读
所有操作及安全说明。
本说明书所含一切材料，均以印刷时所有的最新产品为准。
科勒中国公司保留随时更改产品特性、包装或供应情况的权
利，恕不另行通知。
本说明书也包含了有关护理、清洁及保养等重要资料-请交
消费者留存。
安装之前
RECOMMENDED TOOLS AND MATERIALS
所需工具及材料
开口/活动扳手
卷尺
梅花扳手
管扳手
直角尺
水平尺
老虎钳
管钳
十字螺丝刀
生料带
专用扳手
连接线
剥线器
绝缘胶布
电工套管
柏明
感应器规格
1350669-T01-A
型 号
Power 电 源
Liter per flushing 冲洗水量
Temperature 1 ~55 水温：
1 ~45
以内（沿发射角度方向）
Recommended
working pressure 推荐工作压力
K-30947T(3/4.5L) / K-30948T(3/6L)
K-30951T(6/8L) / K-30952T(6/8L)
K-30947T(3/4.5L&3/6L, 直流型)
K-30948T(3/4.5L&3/6L, 交流型)
K-30951T(6/8L, 直流型)
K-30952T(6/8L, 交流型)
K-30948T-X(3/4.5L&3/6L,AC,IoT)
4节5号碱性电池（AA×4）
220V AC 50/60Hz
K-30947T(3/4.5L) / K-30948T(3/6L)
K-30951T(6/8L) / K-30952T(6/8L)
Model
220V AC 50/60 Hz
Environmental temperature:1 ~55
Water temperature:1 ~45
Starting pressure 0.05~0.86MPa
Sensing distance
Flushing delay
Connect dimension
Protective flushing
使用温度
启动压力
环境温度：
0.05~0.86MPa
距感应窗口
人离开约3秒后
进水管G1
，出水管 G1-1/2
无人使用时每24小时自动冲洗一次
冲洗器进水口动压为 0.1~0.55MPa
推荐
供水管路（包括水表、阀等）内径不小于
25mm 。
Within85cmfromsensing window
(along the direction of transmitting angle)
about 3 seconds after user leave
Inlet pipe G1, Outlet pipe G1-1/2.
Auto flush once every 24h if unused
Sensor inlet dynamic pressure:
0.1~0.55MPa,recommended inner diameter of
water supply (including water meter,valve, etc.)
no less than 25mm.
感应范围
冲洗延时
连接尺寸
设备保护冲洗
85cm
K-30947T(3/4.5L&3/6L, DC)
K-30948T(3/4.5L&3/6L, AC)
K-30951T(6/8L, DC)
K-30952T(6/8L, AC)
K-30948T-X(3/4.5L&3/6L,AC,IoT)
，
2013
Copyright Kohler China Ltd., 2013
版权为科勒中国有限公司所有
科勒（中国）投资有限公司
中国上海市静安区江场三路158号 邮编: 200436
制造商：上海科勒电子科技有限公司
中国上海宝山区丰翔路1955号 邮编：200444
AA size alkaline batteries (4)

Note: 1. The sensing distance in the table is measured with a
30 30 cm white or black board as the reflecting
surface.
4. To ensure an effective flushing preformame, please
turn the adjusting bolt properly according to actual
using conditions when the product is used with toilet
(such as K-8750,etc.)
2
3. The infrared transmiting angle is 20° downward.
5. Do not discard the special wrench when the installation
is complete.It will be helpful for qualified maintenance
personnel to repair the outlet connection assembly
and the vacuum breaker.
6. The slurry mold is used only when install the valve
box.
30cm X 30cm
20° 。
K-8750
注意：
1.
2.
3.
4.
5.
6.
2. The user may set the amount of water per flush
according to the specifications of the specific toilet
and water pressure.
When the water pressure is 0.10 ~ 0.55 MPa, If sometimes
splashs, you can reduce the water flow. When adjusting,
remove the sensor cover and turn the adjusting bolt for
water flow till good flushing and no splash.
右旋
水流调节
流动水压在0.10~0.55MPa时，如有溅出现象可适当调小
水流速度。调节时取下面板，顺时针方向旋动水流调节栓
至能冲洗干净而又不溅出即可。
7. 7.
21350669-T01-A

UNIT: mm
K-4350
K-4368 K-4349 K-4367
1350669-T01-A 3
ROUGHING-IN 尺寸图
单位：毫米
L
H
730700 L
670640 H 700670 H 730H700 760H730 790H760
760730 L 790760 L 820790 L 850L820
105 0
+30
105 0
+30
L
H
CL OF OUTLET
G1-1/2
G1-1/2 SPUD
G1-1/2 管接头
排污管中心线
Table of installation positions for toilets (Used with K-4350, K-4368, K-4349, K-4367)
座便器安装位置（配
K-4350,K-4368,K-4349,K-4367)
158
158
H
L
CL OF OUTLET
G1-1/2 SPUD
G1-1/2
G1-1/2
管接头
排污管中心线
158
158
L
105 0
+30
105 0
+30
H
L
K-4330 K-8750
L
H
570L540
600H570 630600 H 670H630 700670 H 740700 H
600L570 630600 L 660630 L 700660 L
H
G1-1/2
CL OF OUTLET
G1-1/2 SPUD
G1-1/2
G1-1/2
管接头
排污管中心线
CL OF OUTLET
排污管中心线
158
158
158
158

Notice: a. To ensure sensing effect, the dimensions
for L&H should be strictly observed.
b. Do not use if dimension for L and H is not
in table.
c. When toilet length between 540mm and
850mm,please use 2430T-NA as top inlet,
please use 2429T-NA as rear inlet; When
squat, please use 2429T-SA-NA as rear
inlet.
d. To comply with above tables,you may cut
either end of the connecting pipe.
Table of installationpositionsforsquats
L
H700 L 730
640 H 670
41350669-T01-A
730 L 760
670 H 700 760 L 790 700 H 730 790 L 820 730 H 760 820 L 850 760 H 790
蹲便器安装位置
注意 为保证感应效果，L、H安装对应尺寸需严格
遵守。
若L、H值超过表格范围，不推荐使用。
当座便器安装长度540<L 850时，上进水配管
请选配2430T-NA,后进水配管请选配
2429T-NA；蹲便器后进水配管请选配
2429T-SA-NA。
为保证以上表中的尺寸要求，配管两端均可按
需求锯短。
a.
b.
c.
d.
+30
105 0
H
CL OF OUTLET
排污管中心线
L

1
Notice:
.
a.
Determine the installation location per rough-in dimensions and
the table of installation position.Chisel out a slot and install the
supply tubes.Then flush the supply tubes. The depth of the slot
is not less than 110 mm, see the figure to the right for rough-in
dimension requirement. See the figure right for rough-in
dimension requirement.
While installing K-30948T/K-30952T(AC), chisel out the slot
indicated in the dot line area of figure right for installation of
bushing. Installation that fails to accord with the
installation position or rough-in dimensions
may result in false operations or no
operations.
b. No light shall enter or be reflected into the
sensing window.
c. No reflectible objects in front of the sensing
window (e.g., mirror, polishing stainless
steel and some other polished plates).
d. No strong ultraviolet radiation or
electromagnetic field nearby.
1.
a.
b.
c.
d.
1350669-T01-A 5
2. Remove the dust-proof cover from the inlet connection of
the flushing valve.Then place the flushing valve into the
slot, adjust its level and square with battens and connect
the inlet tubes. Screw down the nut at the outlet position.
Refer to the specific rough-in of different toilets/squats for
the connection of outlet fittings.
2.
注意：
NOTE: please clean the inside of water supply pipe
before connecting to the product.
INSTALLATION 安装步骤
根据安装尺寸图及安装位置表确定安装位置，凿出槽坑，埋
设供水管，并冲洗供水管道。槽深不小于110mm。尺寸参
考右图。安装K-30948T/K-30952T（交流型）时，添加右
图虚线内槽坑用于安装电工套管。
未按安装位置表规定尺寸安装可能引起误动作或
不感应情况发生。
不能有光源直射或反射进入感应窗口。
不能在感应器正对面有易反射的物品（如镜子、
光亮不锈钢板及其它镜面物体等。）
不能靠近强烈紫外线或电磁场。
注意：
将冲洗阀进水连接的防尘罩取下。然后将冲洗阀放入槽坑内，
用垫紧块将其固定平整、端正，接好进水管道。拧紧出水处的
螺母。出水配管的连接根据座/蹲便器的不同按安装尺寸图所
示方式安装。
将本产品连接供水管前，建议先冲洗干净供水管。
连接出水管
70 30
Battens
垫紧块
Supply Tube
供水管
30
70
169 Install bushing
适合安装
电工套管
Installation Side
安装区
130
30

Notice: a. Because the installation position of the
sensor will affect directly to the future
operation of the sensor, you are
recommended to confirm the correction
position of the sensor after its placement
and fix it.
b. Don't mistake the direction of inlet and
outlet.
c. Don't drop the O-rings.
d. Keep the wire plug-in away from water.
e. Align the center of the flushing valve with
the center of the toilets/squats, and ensure
it parallel with the wall, or will result in the
false operation of the sensor.
f. Do not use any sealant or grease on the
valve or connector and outlet pipe.
g. While more than 3 sets of sensor were
installed in one lavatory, the inner diameter
of main inlet pipe should not be less than
38mm.
h. Do not connect the DC output of AC Power
unit to AC power supply.
i. Do not connect to power supply while
installing. Connection line is not supplied.
AC connection wire with insulating sleeving
is recommended. Wire of which the nominal
section area of conductor is not less than
0.5mm is also recommended. DC
connection line use wire of which the
nominal section area is not less than
0.3mm . It is cut according to acted
installation requirements(The length of cut
wire is recommended less than 10m).
j. The headAC power supply must be
protected with appropriate fuse.
k. Please confirm the AC power supply and
water supply should be shut off before
maintaining the products with AC power
related.
2
2
1350669-T01-A 6
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
k.
2
2
因为感应器的安装位置将对感应器的工作
产生直接影响，要求放置后经测量确认感
应器位置准确无误后再固定。
不要将进出水方向弄错。
不要将密封圈丢失。
不要让接插件受潮。
冲洗阀中心要求与座/蹲便器中心对齐并保
证与墙面平行，否则将可能引起误动作。
不要在阀体部件或接头和出水配管上使用
任何密封胶或油脂。
当一个卫生间同时安装3台以上感应器时推
荐主供水管内径大于38mm。
不可将交流电源盒的直流输出端与交流电
连接。
安装时不要向电源盒供电。连接线请用户
自备，建议交流电源线采用导体标称截面
积 0.5mm 的电线，直流连接线采用导体
标称截面积 0.3mm 的电线，电线长度根
据实际安装需要自行裁剪（建议连接线长
度小于10m)。
交流电的总电源必须有合适的熔断丝加以
保护。
维修时必须断开交流电源并关闭水源。
注意:

4.
4.
35
71350669-T01-A
3.
Notice:
Drive the flushing unit with manually operation button.
Once it is confirmed that there is no leakage after the
connection of supply tube, put the manually operation to
its original place. Mount the slurry mold onto the valve
box and apply slurry into the crevice around the valve
box and smooth the surface.
a. Please confirm the completion of the outlet
connection or no leakage during the
application of water supply.
b. Please avoid breaking the manual lever line
during this procedure.
c. Avoid the plug-ins from wetting,or this will
result in false operations of the sensor.
Valve Box
Tiles
Slurry Mold
Manually Operation button
手动按钮
3.
a.
b.
105+30
0
用手动按钮组件驱动冲洗器,试通水,确认各管道连接处无
渗漏后,将手动拉线组件放回原位。将灰浆模装于阀盒上,
阀盒周围空隙用灰浆抹平。
试水过程中确认出水口连接完成或封堵无误。
防止接插件受潮,否则将引起误动作。
注意:
暗盒
瓷砖
灰浆模
When the slurry turns solid,remove the short screws,pull
out slurry mold,mount the bracket assembly,and secure
with long screws.
灰浆固化后，取下短螺钉，揭去灰浆模，并用长螺钉固定安
装架。
Screws
M4 50
螺钉M4 50
M4 10
Slurry Mold
灰浆模
Screws M4 10
螺钉

5.
Notice:
Dont connect to power supply while installing the cover.
Connect the solenoid valve connector on the control box
with the corresponding cords of the solenoid valve.
Install the sensor cover with control box as shown by
the figure:
a. Buckle the sensor cover into the wall slightly above the
bracket assy.
b. Press the sensor cover down along the wall and fit
tightly into the bracket assy.
c. Push upward with basin wrench and rotate clockwise to
lock the sensor cover (rotate counterclockwise to
remove the sensor cover).
a.
b.
c. Prevent damage or drop of the cover or
break the cord during this procedure.
d. Please observe the indicator from the
bottom of the sensor cover upwards.
connector
Ensure the tightness of the to
avoid them from wetting
Wear clean gloves when installing the
sensor cover to avoid surface injury by
cement or sand
.
.
'
Indicator
5.
a.
b.
c.
a.
b.
c.
d. c
90o
1350669-T01-A 8
安装面板时，不要连接电池或交流电源。将电磁阀接插件与电控
盒上电磁阀接插件,如图安装带有控制盒的面板。
将面板在安装架稍偏上方的位置扣向墙面；
紧贴墙面向下扣紧面板，使面板和安装架卡牢；
用六角扳手上顶后顺时针旋转，锁定面板。（逆时针旋
转即可取下面板）
注意要使接插件插紧，防止接插件受潮。
安装面板时应戴上干净的手套，以防水泥或沙
粒损伤表面。
此过程中防止外壳损伤或跌落或扯断电线。
请从面板正下方斜向上观察指示灯。
注意：
感应指示灯
Solenoid Valve Connector
电磁阀接插件（二线）
a
b

6.
Notice:
After installing the sensor cover, observe the cover if it is
upright and its centerline is aligned with that of the toilet
and squat. If any deviation occurs, remove the cover and
loosen the locking screws of the fixed bracket. Adjust the
fixed bracket for correctness. Fasten the screws and
reinstall the sensor cover after any adjustment.
The central position and correctness of the
sensor will affect the proper operation of the
sensor.
6.
INSTALLATION IN OTHER METHODS
a. Installation On Prefabricated Board b. Installation On Decorating Panel
105 0
+30
Prefabricated Board
预制板
105 0
+30
35 35
Decorating Panel
装饰板
91350669-T01-A
Notice: For these two installation forms, the sensor must be installed according to rough-in.
安装面板后，观察面板是否端正及其中心线是否与座/蹲便器
在一条中心线上，如有偏差，取下面板，松开固定架的锁定螺
钉，调节固定架使其端正。调完后锁紧螺钉并重新装好面板。
感应器的中心位置及端正与否将影响感应器工作。注意：
其它形式安装
预制板安装法 外加装饰板安装法
以上两种安装形式，感应器的安装位置必须严格按尺寸图进行。注意：

USER S GUIDEUSERSGUIDE
Automatic Adjustment of Sensing Distance
The accuracy of this section s steps will affect
the sensing performance.
The sensing distance of this product is set at within 85cm
away from the sensing window along the direction of
transmitting angle (with a 30cmx30cm white board as the
reflecting surface) in the factory with an infrared transmitting
angle of about 20° downward. When the power is applied,
sensing distance during the first one minute, when the
sensor is in an environment of normal operations. Also during
this period, all the facilities have been installed in the toilet.
Proceed with this process so that you can correctly adjust its
sensing distance.
'
Toilet Cover
座便器盖
Toilet Seat
座便器座圈
1.Preparations
a. Pull down the toilet seat, if there is a cover, please lift it as
shown in picture above.
b. Remove any unwanted materials near the toilet bowl.
2. Procedures (Please finish below
steps within 5 mins)
a.
b. Install the sensor cover.
c. Close the door of the toilet.
d. Wait 5 mins,the auto adjustment of sensing distance will
complete.
Reomove the sensor cover. While installing K-30947T/K-30951T(DC),
take out the battery box from the back of the cover and put
batteries into the box. Connect battery box assy to control
box. While installing K-30948T/K-30952T(AC), connect AC
power unit to control box, and then power on.
1.
a.
b.
2.
a.
b.
c.
1350669-T01-A 10
the product is in the status of automatically adjusting its
使用说明
自动调节感应范围
本节操作步骤准确与否将影响感应效果。
本产品出厂时，感应距离设定为距感应窗口沿发射角度方向
85cm以内（以30cm 30cm白纸为反射平面），红外发射角度
向下倾斜约20°。接通电源1分钟内为自动调节感应范围状态，
此时需要使感应器处于一个正常工作的环境内，也即卫生间所
有设施已安装完毕，方可操作本步骤，以便感应器准确的调节
感应范围。
准备工作
对于座便器，放下座圈，若有便器盖，请如右图所示打开。
移开便器周围所有杂物。
操作步骤（以下操作步骤a-d项请在5分钟内
完成）：
取下面板，安装K-30947T/K-30951T直流型时，从面板反面
取出电池盒，装入电池，将电池盒接插件与电源盒接插件连
接。安装K-30948T/K-30952T交流型时，将交流电源盒接插
件与电控盒接插件连接，然后接通电源。
安装面板。
关上卫生间的门。
静待5分钟后，自动调节感应范围过程结束。
d.
Notice: a. After finishing these steps, the toilet sensor
is ready for use.
b. The sensor cover installing must be
finished within five minutes after power on.
If this is not accomplished within 5 minutes,
shut off the power. When the indicator
stops flashing, power on again and repeat
the above steps.
c. Don't mistake the polarity of the batteries
and don't mix the new and used batteries
together.
d. Tighten the screws of the battery box to
avoid the batteries from wetting.
a.
b.
c.
d.
完成以上操作步骤后，即可正常使用冲洗器。
从接通电到完成安装面板关上卫生间的门必须在
5分钟内完成，如在5分钟内未完成此项工作，切
断电源，待指示灯停止闪烁后再重新接通电源即
可重复上述步骤。
电池极性不能装反，新旧电池不能混用。
电池盒螺钉必须锁紧，以防电池受潮。

111350669-T01-A
4. Manual Flushing
This system can have a good sense toward most of the
clothes. However, it may have abnormal sense to a very small
number of clothes. If this occurs, you may use the mode of
manual flushing.
a. The button is a standby device that will be
used when the sensor cannot perform
correctly or the toilet is being repaired. It is
not recommended to use when the sensor
is normally functional.
b. When the sensor cannot function properly,
please refer to the list of troubleshooting on
Page 15.
c. Do not exert too much force to avoid the
manual unit from damaged.
Notice:
a.
b.
c.
手控冲洗
本系统能对大部分衣物感应良好，但可能对极少数衣物出现感
应不良现象。如有感应不良现象时可用手控冲洗。
按钮为备用机构，为感应器不能正常工作或维
修便器时使用，在感应器能正常工作时不推荐
使用。
当感应器不能正常工作时请参考故障排除。
（见第15页）
不得用力过大，以免损坏手动机构。
注意：
4.
Button
按钮

6. Replacement of Batteries(only for K-30947T/K-30951T)
When the power in the batteries will be exhausted and the
indicator in the sensing window continues flashing, the indicator
flash every 6 seconds and the sensor will work about one week.
The indicator flush two times every 6 seconds, the sensor will
not work until new batteries are supplied. When changing,
remove the battery cover and put in new batteries.
the flash direction of the indicator is downward,
so you need to observe along the direction.
Note:
Screws
螺钉
Battery Box Cover
电池盒盖
Batteries
电池
Battery Box
电池盒
6. 电池的更换（仅适用于安装K-30947T/K-30951T使用直流
电源的情况）
电池耗尽时，指示灯 每6秒闪烁1次，感应器将继续工作大
约一周时间，指示灯 每6秒闪烁2次，感应器将停止工作，
直至更换电池。更换电池时取下电池盒盖，换上新电池即可。
指示灯发光方向为斜向下，因此需顺着发光方向
观察。
注意：
7. Protective Flushing
When the toilet has not been used for a long time, the sensor
will drive the solenoid valve to flush every 24 hours to avoid
the deodorizer and the sewer pipe from drying up.
7.设备保护冲洗
便器长期处于不使用状态时，感应器将驱动电磁阀每24小时
冲洗一次，以防止脱臭器及排水管的干涸。
1350669-T01-A 12

Toilet & Squat Repair
When repairing, you don t have to dismount the sensor.
Cover the sensing window with tape and work with ease.
: use very adhesive tape in case the scar
will be hard to remove and result in false
operations of the sensor.
Notice Don't
Clean the Filter Screen
If the flushing volume reclines sharply after installation or
used for a long time with no cause from water pressure, the
filter may need a wash.Turn off the fixed cap with monkey
wrench, take out the piston, clean with a brush and reinstall
it. a. Turn off the water supply or tighten the
adjusting bolt before cleaning.
b. Carefully take out the filter when cleaning to
avoid foreign materials entering the inside
of the valve body.
Notice:
Care & Clean
Keep the sensing window clean.Wipe with soft cloth and mild
cleaner.
a. Do not use dust-removing powder, abrasive
powder or cleaner containing oil, acidor
alkaline ingredient.
b. Do not spray air-refresher, disinfector, or
other deodorizing,cleaning solvent directly
into the sensing window.
c. Keep wire away from water.
d. Don t attack the sensor window.
Notice:
'
a.
b.
c.
d.
131350669-T01-A
活
塞
a.
b.
维护保养
修理座便器/蹲便器
修理座便器/蹲便器时，不必拆下感应器，只需用电工胶布粘
住感应窗口，您便可放心修理设备。
不要用强力胶布，因为粘痕会难以清除，而产
生误动作。
注意：
清洗过滤网
初装或使用较长时间后，如发现出水流速明显变小，而非水压
原因，可清洗阀体中的过滤网。用活动扳手旋下固定盖，取出
活塞，刷洗滤网后重新装入即可。
清洗前，请先关闭水源或拧紧调节栓。
清洗时小心取出滤网，防止杂质进入阀体内部。
注意：
清洁保养
保持感应窗口清洁，可用蘸有中性清洁剂的软布擦洗。
禁止使用去污粉、研磨粉及油类、酸性类、碱
性类清洁剂。
禁止直接对感应窗口喷洒空气清新剂、消毒液
或其他除臭、清洁类有机溶剂。
避免水直接接触电线接插件。
勿撞击感应窗口。
MAINTENANCE
注意：

No flushing
(Indicator not flashing)
No flushing or poor
flushing while the indicator
can flash
1. Adjusting bolt not fully open.
2. Low water pressure.
3. Filter is obstructed.
1. Open the adjusting bolt.
2. Improve water supply.
3. Clean the filter.
Keep flushing indicator not
flashing
Battery indicating light
keeps flashing and no
flushing
1. There are some dirty materials inside the valve
body.
2. The manual unit is damaged.
Out of electricity.
(Only for K-30947T-CP/BN,K-30951T-CP/BN)
1. After cleaning the filter, activate the
sensor several times.
2. Check the manual unit.
Replace batteries.
(Only for K-30947T-CP/BN,K-30951T-CP/BN)
Please make following checks before repair:
Symptoms Probable causes Corrective actions
If the trouble remains after above-mentioned actions are taken, please contact with us via distributor.
1350669-T01-A 14
1.
2.
3.
1.
2.
1.
2.
3.
1.
2.
TROUBLESHOOTING
简单故障排除
请在委托修理前做以下检查：
现象 可能原因 处理方法
不出水
（感应指示灯不亮）
感应指示灯闪烁
而无水流出或出水较差
不停水
感应灯也不闪烁
电池指示灯连续
闪烁而不出水
调节栓未完全打开。
水压太低。
过滤装置脏堵。
阀体部件内有脏物。
手动装置损坏。
电池耗尽（仅适用于安装K-30947T-CP/
BN,K-30951T-CP/BN的情况）。
打开调节栓。
改善供水情况。
清洗过滤装置。
清洗过滤装置后，使感应器连续感应动作
数次。
检查手动装置。
更换新电池(仅适用于安装K-744T-M的情况)。
如按以上操作仍未解除故障，请通过销售商与本公司联系。
1. 检查电源连接。
2. 清理物体。
3. 清洁窗口。
4. 紧固座圈，并重新按自动调距步骤操作。
5. 打开座便盖。
6. 清洁便器周围。
1. 无电源或接线有误。
2. 感应范围内有其它物体一直被感应。
3. 感应窗口较脏。
4. 座便器座圈松动。
5. 座便器盖合上（若有）。
6. 蹲便器周围太脏。
1. No power or mistake connected.
2. There is an object within the sensing distance.
3. The sensing window needs cleaning.
4. The toilet seat is loose.
5. The toilet cover (if applicable) is closed.
6. Around squat is dirty.
1. Check the power connect.
2. Remove the object or reduce the sensing
distance.
3. Clean the window.
4. Fasten the toilet seat, and follow the
steps for automatic adjustment of the
sensing distance again.
5. Open the toilet cover.
6. Clean the squat.

151350669-T01-A
I
Consumer Responsibilities
1. Do not attack the sensor.
2. Do not directly flush the sensor with water. The sensor is
an electronic instrument.
3. Do not let sunlight or other light source enter or be
reflected into Sensor Window.
4. Do not hang on the opposite wall any reflective items or
install light/electronic sensor such as toilet flushing sensor.
5. Do not make Sensor Window near strong ultraviolet or
electromagnetic field.
6. Keep the sensor window clean.
The sensor cover can be cleaned by soft rag with neutral
liquid detergent.
Do not use eradicator, abrasive powder or oil, acid or alkali
liquid detergent.
Do not spray air freshener, disinfectant or other kinds of
odious removing, cleaning organic liquid to the sensor
directly.
7. Urinal is designed for use with potable water. Avoid water
that includes a lot of contaminants or acid/alkali water and
impure water.
8. When AC power unit is connected to 220V AC power
supply, corresponding protective measures should be
taken.
9. Please confirm no water penetration at the connection
area of AC wire, and the connection area is not easy to be
affected by damp.
10. Don t connect power unit to AC power supply until the
sensor installation is finished.
11. The head AC power supply must be protected with
appropriate fuse.
12. Please confirm the AC power supply and water supply
should be shut off before maintaining the products with
AC power related.
13. All electrical connection must be compliance with related
regulation and codes.
14. All installation staff should be well familiar with installation
instruction.
’
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
IMPORTANT CONSUMER INFORMATION
用户须知
用户责任
请勿敲击感应窗口。
感应器为电子器具，请勿直接用水冲洗。
避免阳光或其他光源直接或反射进入感应窗口。
保持感应窗口清洁。
窗口外壳可用蘸有中性清洁剂的软布擦洗。
禁止使用去污粉、研磨粉及油类、酸性类、碱性类清洁剂。
禁止直接对感应窗口喷洒空气清新剂、消毒液、或其他除臭、清
洁类有机溶剂。
使用水源为自来水或可供饮用井水。
避免使用含有杂志较多或带有酸、碱性的处理水或未加工处理的
水。
将交流电源盒接入220V电源时，应采取相应的防卫措施。
应确保交流导线连接处无水渗入以及不易受潮。
务必在感应器安装完毕后，才向交流电源盒供电。
交流电的总电源必须有合适的熔断丝加以保护。
所有电路连接必须符合相关规范和条例要求。
所有参与安装人员都必须熟知安装说明。
请勿在感应器正面墙壁挂贴易反射的物体或安装光电感应器
（如大便自动感应冲洗器）。
请勿靠近强烈紫外线或电磁场。
维修交流供电型的产品时，必须首先断开交流电源并关闭水源。

1350669-T01-A 16
回收提示
本产品超过使用期限或经过维修无法正常使用后，不应随意丢弃，请交由有废弃电器电子产品处理资质的
企业处理，正确的处理方法请查阅国家或当地有关废旧电器电子产品处理的规定。
本产品的“环保使用期限”为10年，科勒公司根据产品设计特性指定该期限。只有在本产品
使用说明书所述的正常情况下使用本产品时，“环保使用期限”才有效。
10
产品中有害物质含量的说明
有害物质统计表
注：本表格提供的信息是基于供应商提供的数据及科勒公司的检测结果。本产品应用环保设计理念，在当
前技术水平下，所有有害物质或元素的使用已经控制到了最低程度，科勒公司会继续努力通过改善现有技
术来减少这些物质的使用。
有害物质名称
部件名称 铅(Pb） 汞（Hg）
外壳组件 × ○ ○ ○ ○ ○
阀体组件 × ○ ○ ○ ○ ○
控制盒组件 × ○ ○ ○ ○ ○
*电池盒组件 ○ ○ ○ ○ ○ ○
*电池 ○ ○ ○○ ○ ○
*交流电源盒 ○ ○ ○ ○ ○ ○
*进水组件 × ○ ○ ○ ○ ○
附件类 ○ ○ ○○ ○ ○
多溴联苯
（PBB）
多溴二苯醚
（PBDE）
镉（Cd） (Cr(VI)）
六价铬
○：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572现行有效版本规定的限量要求以下。
：表示有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572现行有效版本规定的限量要求。
×
*：表示部分机型含有该部件。
