Kohler K-6299 Assembly instructions

Installation and Care Guide
Toilet
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-6299, K-6300
1145594-2-C

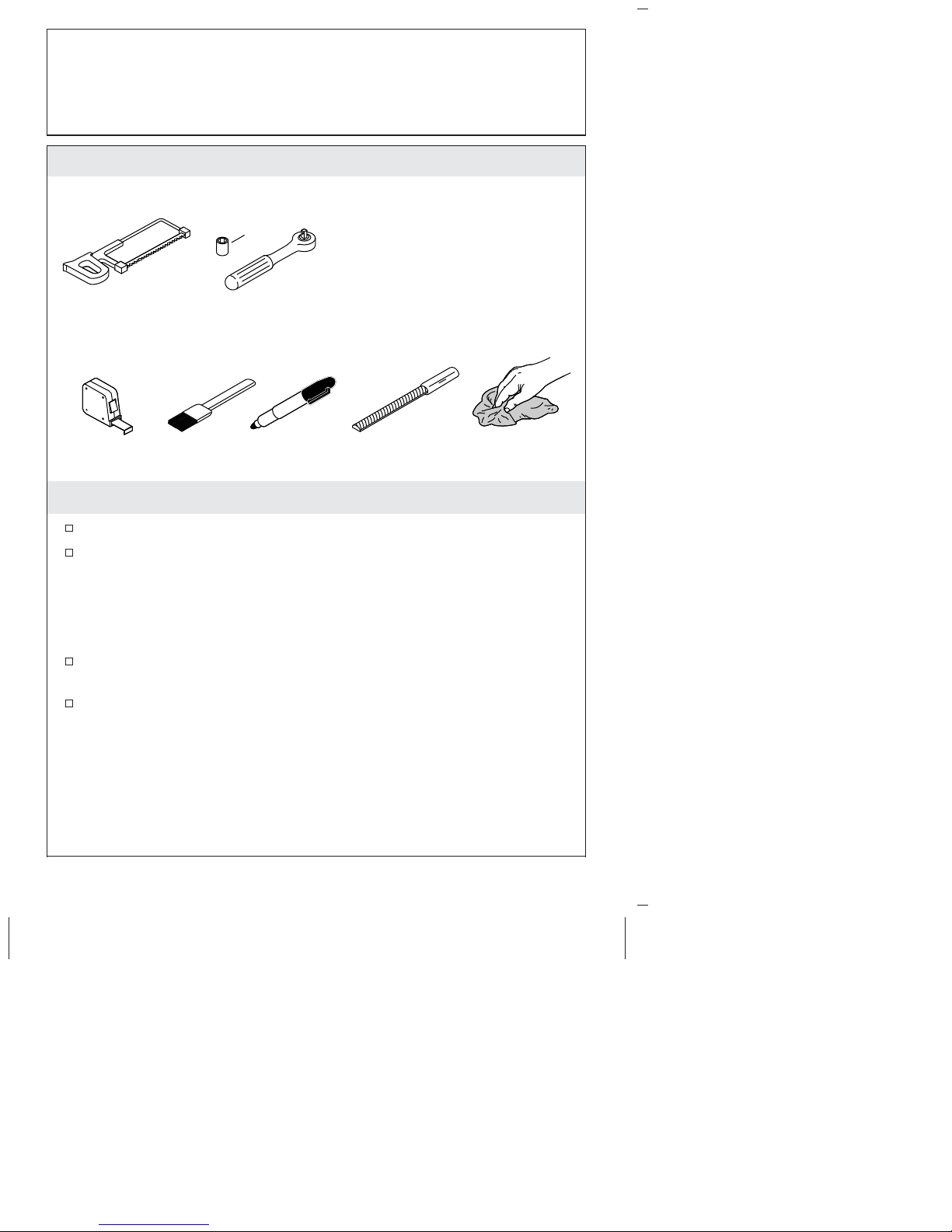

Tools and Materials
Before You Begin
Observe all local plumbing and building codes.
Carefully inspect the new bowl for damage.
NOTE: When lifting the bowl into place, the process is more
efficient when performed by two people.
Consult the online users guide at www.kohler.com for more
information.
For service parts information, visit www.kohler.com/serviceparts.
• Rug or Protective Material
• Plumbers Grease
• Level or Straight Edge
• Marker
Plus:
File Rags
3/4"
1145594-2-C 2 Kohler Co.

1. Mark the Pipes - Bowl Side
IMPORTANT! If silicone plumbers grease is not applied to the
gaskets, they will bind during fitting, which will result in the pipes
being cut to incorrect lengths.
NOTE: This step is easier with the bowl upside down.
Install the gasket on the ribbed end of the inlet pipe.
NOTE: The outlet pipe gasket comes positioned on the thin portion
of the outlet pipe. Remove the gasket and reinstall it as shown.
Install the outlet pipe gasket on the flared end of the outlet pipe.
Apply silicone plumbers grease to the outlet pipe gasket.
Firmly fit the outlet pipe and gasket over the bowl outlet,
pushing until it contacts the bowl.
Position a level or other straight edge device across the back of
the bowl.
Mark the outlet pipe at the back edge of the bowl using the level
as a guide.
Straight Edge
or Level
Gasket
Inlet Pipe
Outlet
Pipe
Gasket
Silicone
Plumbers
Grease
Outlet Pipe
Inlet Pipe
Silicone
Plumbers
Grease
Kohler Co. 3 1145594-2-C

Mark the Pipes - Bowl Side (cont.)
Apply silicone plumbers grease to the outside of the inlet pipe
gasket.
Firmly insert the gasket end of the inlet pipe into the water inlet,
pushing until it contacts the bowl.
Position a level or other straight edge device across the back of
the bowl.
Mark the inlet pipe at the back edge of the bowl using the level
as a guide.
1145594-2-C 4 Kohler Co.

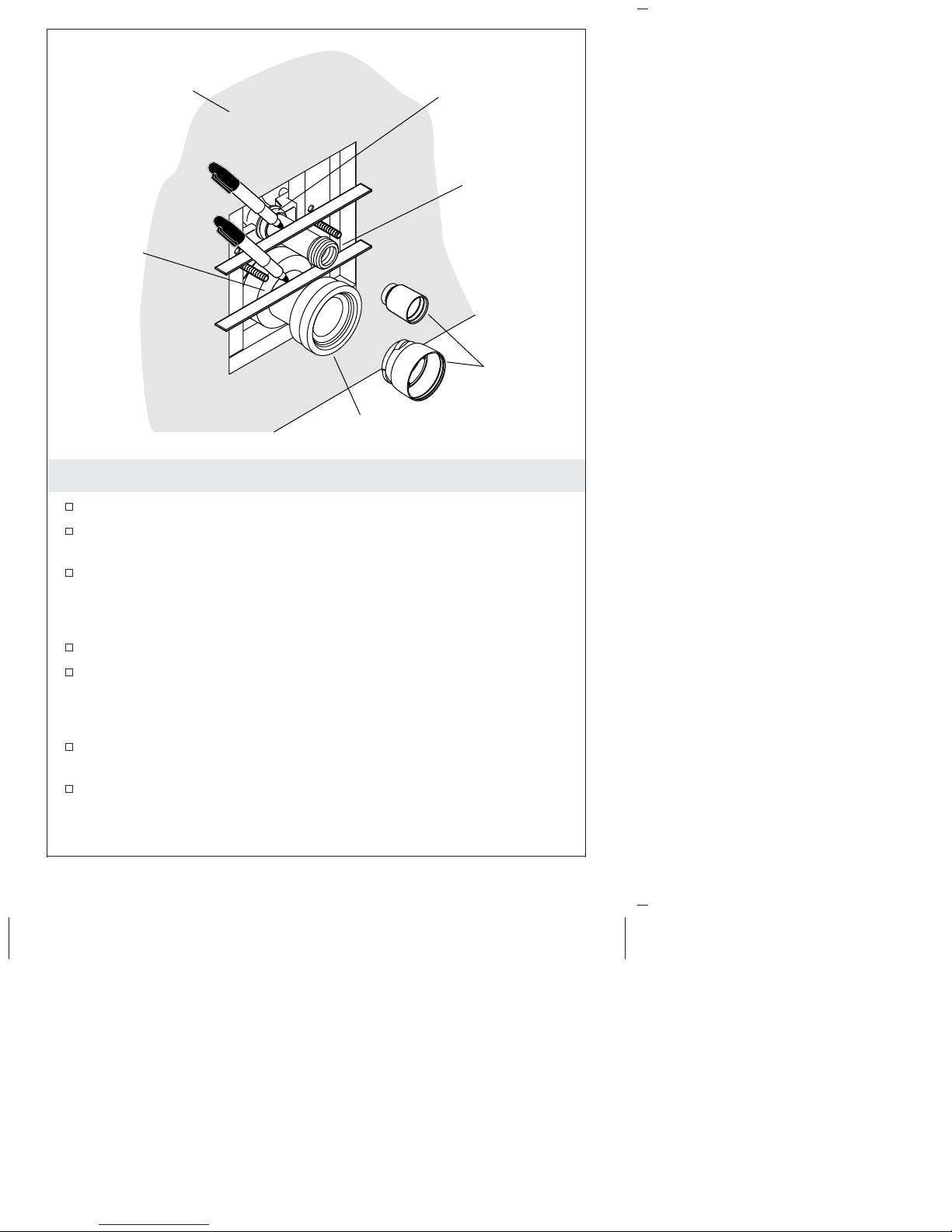

2. Mark the Pipes - Wall Side
Remove the plaster guards from the inlet and outlet holes.
Apply plumbers grease to the gasket in the opening of the inlet
hole.
Firmly insert the inlet pipe completely into the inlet hole.
NOTE: If the finished wall aligns with any portion of the gasket
section of the inlet pipe, no mark or cut is needed.
Mark the inlet pipe even with the front edge of the finished wall.
Firmly insert the outlet pipe completely into the outlet hole.
NOTE: If the finished wall aligns with the wide part of the outlet
pipe, no mark or cut is needed.
Mark the outlet pipe even with the front edge of the finished
wall.
Remove the pipes.
Finished Wall Inlet Hole
Plaster
Guard
Outlet Hole
Outlet Pipe
Inlet Pipe
Kohler Co. 5 1145594-2-C

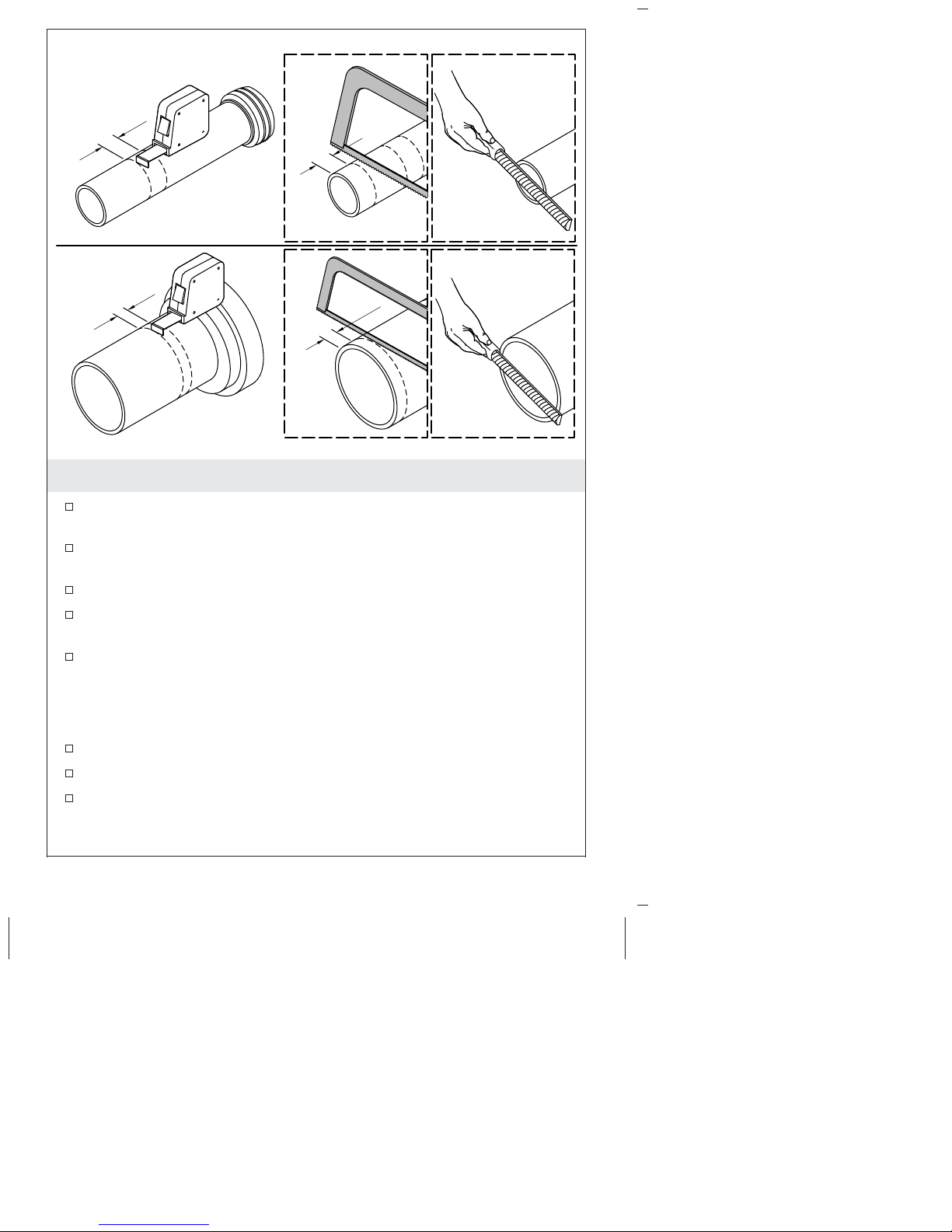

3. Cut the Pipes
Measure the distance between the two marks on the inlet pipe to
determine ″A.″
Measure and mark ″A″from the end of the side opposite the
gasket on the inlet pipe.
Cut the inlet pipe at this location.
Measure the distance between the two marks on the outlet pipe
to determine ″B.″
Measure and mark ″B″from the end of the side opposite the
gasket on the outlet pipe.
NOTE: Confirm the finished wall line is closer to the outlet end of
each pipe.
Cut the outlet pipe at this location.
Use a file to remove all rough areas on the cut end of each pipe.
Reinstall the pipes on the bowl.
A
B
Outlet Pipe
Inlet Pipe
B
A
1145594-2-C 6 Kohler Co.

4. Install the Pipes
Apply plumbers grease to the gaskets in the inlet and outlet holes
and on the inlet and outlet pipes.
Install the inlet pipe in the inlet hole of the carriage.
Install the outlet pipe in the outlet hole of the carriage.
Finished Wall Inlet Hole
Gasket
Inlet Pipe
Outlet Pipe
Gasket
Plumbers Grease
Kohler Co. 7 1145594-2-C

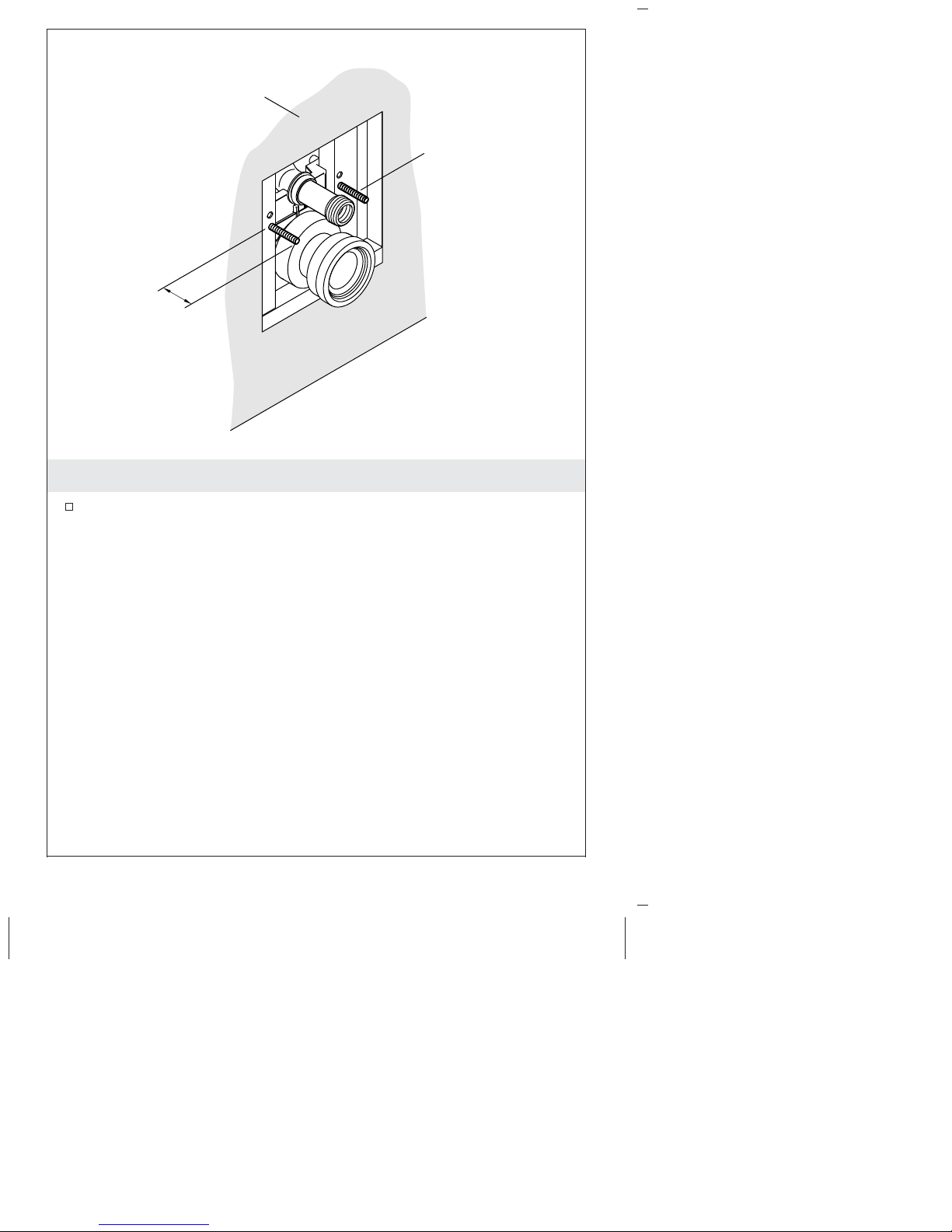

5. Adjust the Threaded Rods
Adjust the threaded rods until they each extend 2-1/4″(57 mm)
from the finished wall.
Threaded Rod
2-1/4"
(57 mm)
Finished Wall
1145594-2-C 8 Kohler Co.

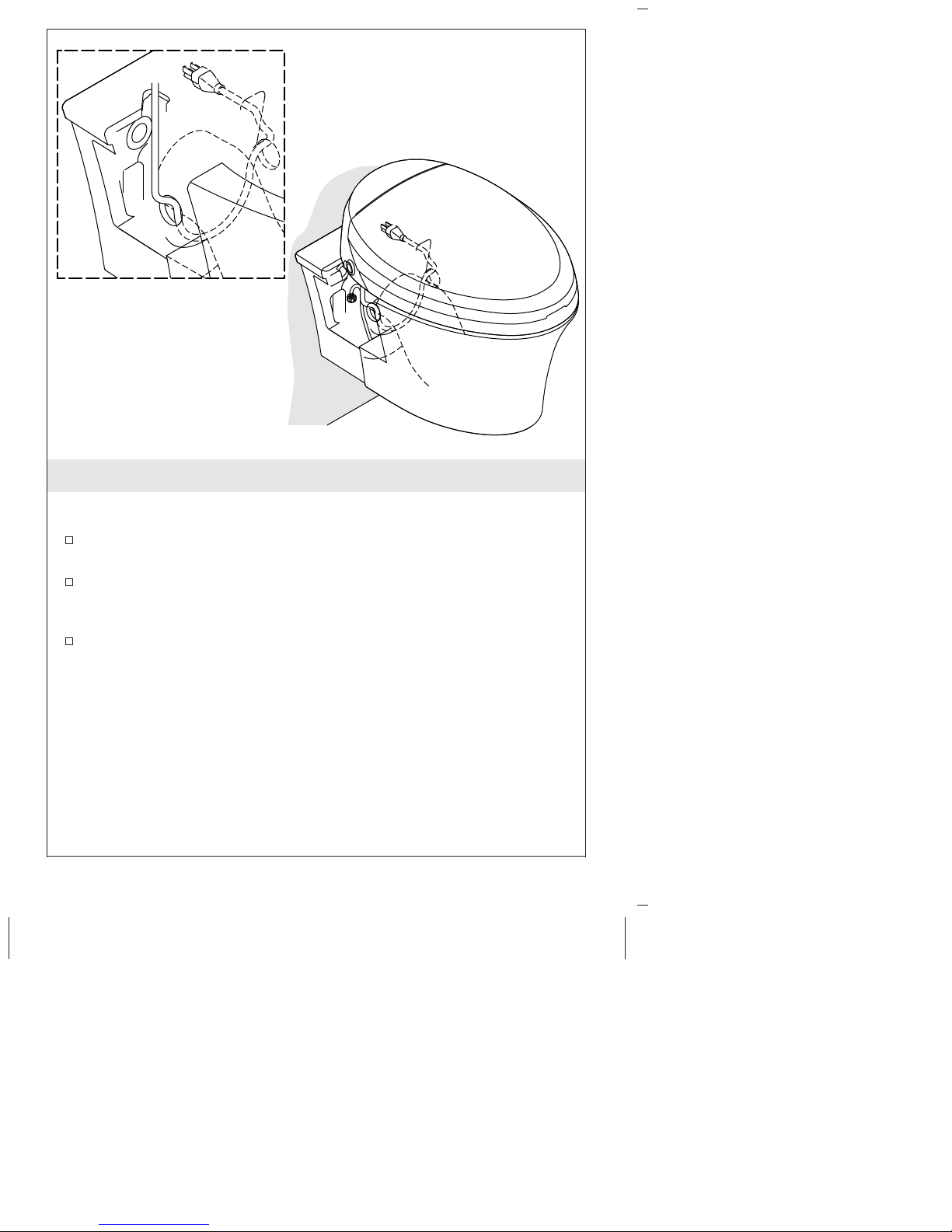

6. Install the Bidet Seat
Models with Bidet Seat Only
Install the bidet seat to the bowl following the instructions
supplied with the bidet seat.
Route the electrical cord through the hole in the top of the bowl,
through the circular hole in the bowl wall, down under the bowl
outlet, and up through the hole in the right side of the bowl.
Leave the cord hanging through the opening in the right pocket
until the connection is made.
Kohler Co. 9 1145594-2-C

7. Install the Bowl
NOTE: This step is easier when performed by two people.
Confirm the gasket on the inside of the inlet elbow has correctly
engaged with the inlet pipe.
Confirm the gasket on the inside of the outlet elbow has correctly
engaged with the outlet pipe.
NOTE: If your model has a bidet seat, align the bidet water supply
with the corresponding hole in the back of the bowl.
Carefully lift the bowl up and align the threaded rods and pipes
with the corresponding holes.
Slide the bowl onto the threaded rods, inlet pipe and outlet pipe.
Make sure the bowl fully engages the gaskets on the inlet and
outlet pipes.
Slide the bowl back until it makes contact with the wall.
Lift the bowl slightly and install the gaskets over the threaded
rods.
Install the washers and nuts and tighten with a socket wrench
and 3/4″socket.
Threaded Rod
Finished Wall
Gasket
Washer
Nut
Bidet Water
Supply
(Optional)
1145594-2-C 10 Kohler Co.

8. Connect the Bidet Seat
Models with Bidet Seat Only
NOTE: The steps assume the optional outlet is installed in the
carriage. If the outlet is not installed, order the outlet specified in
the specification sheet and install it following the instructions in the
carriage installation instructions.
Connect the power cord.
Connect the bidet water supply hose to the supply shut-off.
Coil excess cord or hose and store in the side pocket.
Confirm the supply shut-off handle operates correctly.
Kohler Co. 11 1145594-2-C

9. Complete the Installation
Check for Leaks
Turn on the water supply.
Turn on the tank water supply.
If applicable, turn on the bidet seat water supply.
Check for leaks.
Confirm Correct Operation
Press the left side of the faceplate to confirm the full flush is
operating correctly.
Press the right side of the faceplate to confirm the eco-flush is
working correctly.
If applicable, confirm the bidet seat is functioning correctly
following the instructions provided with the seat.

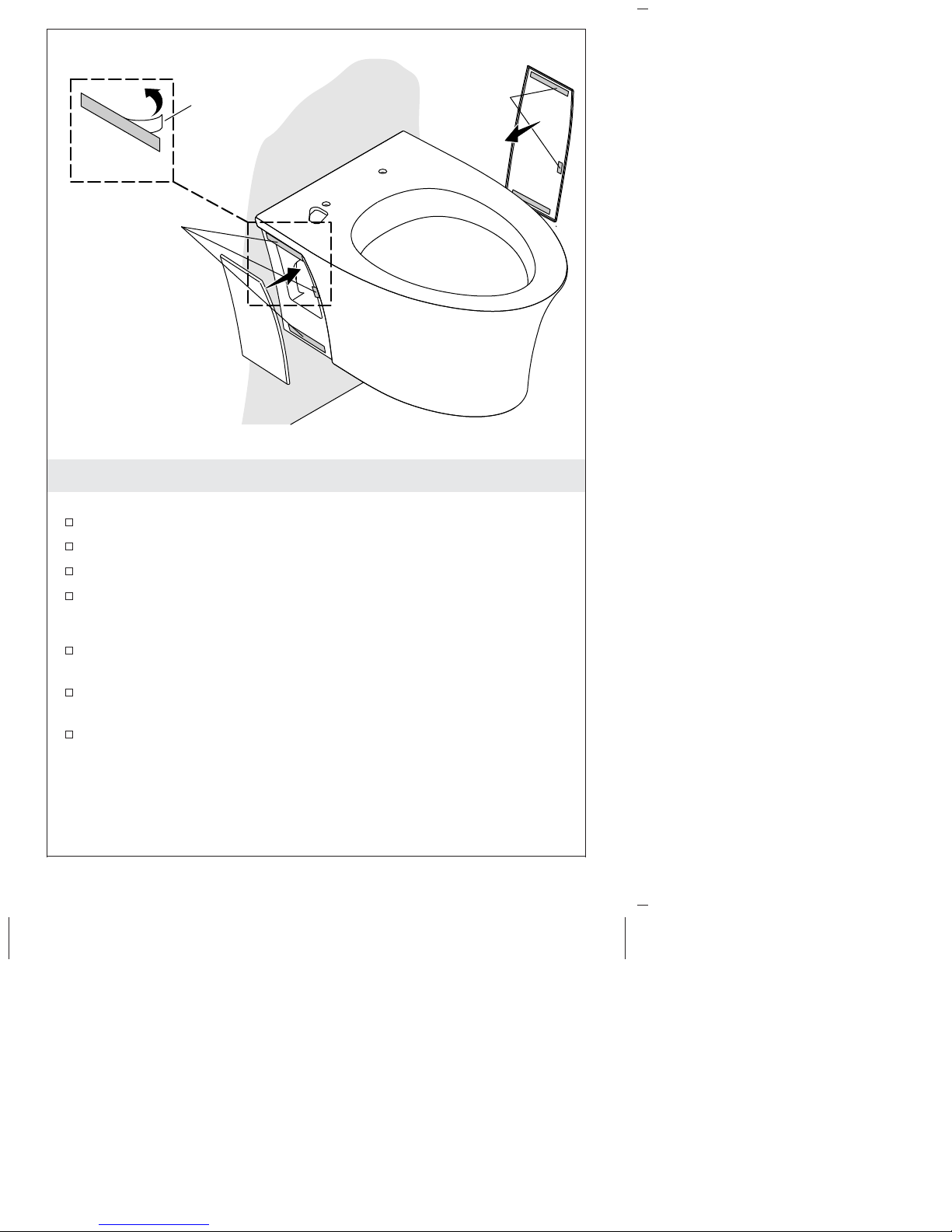

Install the Side Panels
NOTE: There is a left and right side panel. They are not
interchangeable.
Backing
Adhesive
Locking Tape
Adhesive
Locking Tape
1145594-2-C 12 Kohler Co.

Complete the Installation (cont.)
Clean the vitreous surface where the side panel adhesive locking
tape will contact the bowl.
Make sure the vitreous surface is dry.
Determine the correct panel for each side of the bowl.
Peel the backing off each of the three strips of adhesive locking
tape on one of the side panels.
Carefully align the side panel and press into place.
Repeat for the second side panel.
IMPORTANT! Do not remove the side panels for at least 24 hours
after installing them. This will allow the adhesive to fully adhere to
the vitreous surface.
Care and Cleaning
WARNING: Risk of property or product damage. Do not
use in-tank cleaners in your toilet. Products containing
chlorine (calcium hypochlorite) can seriously damage fittings
in the tank. This damage can cause leakage and property
damage.
Kohler Co. shall not be responsible or liable for any tank fitting
damage caused by the use of cleaners containing chlorine (calcium
hypochlorite).
For best results, keep the following in mind when caring for your
KOHLER product:
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately
after applying cleaner. Rinse and dry any overspray that lands on
nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
Kohler Co. 13 1145594-2-C

Care and Cleaning (cont.)
•For Artist Edition Toilets: Treat your decorative product just as
you would treat your fine china. DO NOT use bristle brushes or
abrasive-backed sponges. They will scratch decorative surfaces.
Use only warm water to clean. Dry with a cotton cloth or soft
sponge.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
Troubleshooting
For service parts information, visit www.kohler.com/serviceparts.
Symptoms Cause Recommended Action
1. Poor
flush. A. Flush is weak. A. Make sure you are selecting full flush.
B. Low water
pressure. B. Raise the water level in the tank to the marked
waterline by turning the fill
valve white knob clockwise
until the water level reaches
the waterline marked in the
tank (approximately 8″(203
mm) above the floor of the
tank).
C. Improper waste
line venting. C. Confirm the venting meets code. Correct if needed.
2. Leaks
from
behind
bowl.
A. Gaskets not
positioned
correctly.
A. Remove the bowl and
inspect all the gaskets.
Reposition the gaskets if
needed. Lubricate the
gaskets so they slide in or
over the mating part they
seal. Reinstall the bowl,
making sure the gaskets
stay in the correct positions.
3. Bowl is
loose on
the
threaded
rods.
A. Threaded rods are
protruding too far
from wall.
A. Remove the bowl. Adjust
the threaded rods until they
are 2-1/4″(57 mm) from the
finished wall.
1145594-2-C 14 Kohler Co.

Troubleshooting (cont.)
Symptoms Cause Recommended Action
B. Fasteners are not
tight. B. Remove the side panels. Lift the bowl tight against the
wall, and tighten the nuts
until the bowl is firmly
secured.
4. Carriage
and
bowl
flex
when
used.
A. Insufficient support
for the carriage. A. Add additional support members to the framing,
and mount the carriage
with 1/4″or larger lag
bolts.
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in
material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one (1) year after installation. Kohler
Co. is not responsible for removal or installation costs. Use of in-tank
toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler,
WI 53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from
within the USA and Canada, and 001-800-456-4537 from within Mexico,
or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY. KOHLER CO. AND/OR
SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states/provinces do not
allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other
rights which vary from state/province to state/province.
Kohler Co. 15 1145594-2-C

Warranty (cont.)
This is Kohler Co.’s exclusive written warranty.
1145594-2-C 16 Kohler Co.

Guide d’installation et d’entretien
Toilette
Outils et matériaux
Avant de commencer
Respecter tous les codes de plomberie et de bâtiment locaux.
Inspecter soigneusement la nouvelle cuvette pour vérifier qu’elle
est intacte.
REMARQUE: Lors du soulèvement de la cuvette pour la mettre en
place, la procédure est plus efficace si elle est exécutée par deux
personnes.
Consulter le guide d’utilisation en ligne sur le site
www.kohler.com pour obtenir des informations supplémentaires.
Pour tout renseignement sur les pièces de rechange, visiter
www.kohler.com/serviceparts.
• Tapis ou matériau de protection
• Graisse de plombier
• Niveau à bulle ou règle droite
• Marqueur
Plus:
Lime Chiffons
3/4"
Kohler Co. Français-1 1145594-2-C

1. Marquer les tuyaux - Côté cuvette
IMPORTANT! Si de la graisse de plombier à silicone n’est pas
appliquée sur les joints, ils accrochent durant l’ajustement, ce qui
peut amener à couper les tuyaux à des longueurs incorrectes.
REMARQUE: Cette étape est plus facile avec la cuvette à l’envers.
Poser le joint sur le côté à nervures du tuyau d’entrée.
REMARQUE: Le joint du tuyau de sortie est fourni posé sur la
partie étroite du tuyau de sortie. Retirer le joint et le réinstaller
comme sur l’illustration.
Poser le joint du tuyau de sortie sur le côté évasé du tuyau de
sortie.
Appliquer de la graisse de plombier à la silicone sur le joint du
tuyau de sortie.
Engager fermement le tuyau de sortie et le joint sur la sortie sur
la cuvette, jusqu’à ce qu’ils touchent la cuvette.
Placer un niveau à bulle ou une règle à travers l’arrière de la
cuvette.
Règle
ou niveau
à bulle
Joint
Tuyau
d'entrée
Tuyau
de sortie
Joint
Graisse de
plombier à
la silicone
Tuyau de
sortie
Tuyau
d'entrée
Graisse de
plombier à
la silicone
1145594-2-C Français-2 Kohler Co.

Marquer les tuyaux - Côté cuvette (cont.)
Marquer le tuyau de sortie sur le bord arrière de la cuvette en
utilisant le niveau à bulle comme guide.
Appliquer de la graisse de plombier à la silicone sur l’extérieur
du joint du tuyau d’entrée.
Enfiler fermement le côté avec joint du tuyau d’entrée dans
l’entrée d’eau, jusqu’à ce qu’il touche la cuvette.
Placer un niveau à bulle ou une règle à travers l’arrière de la
cuvette.
Marquer le tuyau d’entrée sur le bord arrière de la cuvette en
utilisant le niveau à bulle comme guide.
Kohler Co. Français-3 1145594-2-C

2. Marquer les tuyaux - Côté mur
Retirer les protège-plâtres des orifices d’entrée et de sortie.
Appliquer de la graisse de plombier sur le joint dans l’ouverture
de l’orifice d’entrée.
Enfiler fermement le tuyau d’entrée à fond dans l’orifice d’entrée.
REMARQUE: Si le mur fini est aligné sur une partie quelconque du
joint de tuyau d’entrée, aucun marquage ni aucune découpe ne sont
nécessaires.
Marquer le tuyau d’entrée dans l’alignement de la face avant du
mur fini.
Enfiler fermement le tuyau de sortie à fond dans l’orifice de
sortie.
REMARQUE: Si le mur fini est aligné sur la partie large du tuyau
de sortie, aucun marquage ni aucune découpe ne sont nécessaires.
Marquer le tuyau de sortie dans l’alignement de la face avant du
mur fini.
Retirer les tuyaux.
Mur fini Orifice d'entrée
Bavette
caoutchoutée
Orifice de
sortie
Tuyau de sortie
Tuyau d'entrée
1145594-2-C Français-4 Kohler Co.
