Kolin KAP-475BHCP User manual

KAP-475BHCP
Mini Air Purifier
User Manual
www.kolinphil.com.ph

Contents
Contents........................................................................................
Before use.....................................................................................
Important......................................................................................
Product appearance description...................................................
How to use....................................................................................
Display and remote control.........................................................
Daily care and maintenance...........................................................
Confirmation matters before fault declaration..............................

Before use
Thank you for purchasing our air purifier.
Please spend some time carefully reading this manual before use!
The living environment health is increasingly concerned with the increasing life quality.
The indoor air pollution degree may be above the outdoor air sometimes.
Our air purifier can effectively remove some microorganisms, particulate matters and harmful
gases, reduce peculiar smell, remove passive smoking and bring you with clean and fresh air by
means of high efficiency filtration technology combined with Pre-filter, carbon filter and HEPA
filter, negative ion purification technology.
Protect earth
Do your bit help for environmental protection
Classify the waste and do not discard the packing material with other wastes
Bring the packing material and used filters to the nearby professional recycle center
Basic parameters
Product model
KAP-475BHCP
Rated voltage
220V~
Rated frequency
60Hz
Rated power
128W
Clean air delivery rate (particle CADR)
475m3/h
Maximum noise
70Db(A)
Recommended room area
~57m2(Reference)
To improve the product quality, the product design and configuration will be changed
without prior notice and the company reserves the right of final explanation.

Important
Dangerous:
Do not make water enter the machine.
Do not use the machine in humid areas, such as bathroom, laundry room and other places in
which the machine may contact water.
Do not clean the product with water and any other liquid or inflammable detergent to avoid
electric shock and/or fire.
Warning:
Confirm whether the voltage marked in the rear part of the product is consistent with local
voltage before switching on the product.
The damaged power cord, if any, must be replaced by the manufacturer or its maintenance
department or the professionals in similar department to avoid dangerous. The product is
an electrical appliance and shall not be played by a child.
The people without complete limbs, with sensory or metal disturbance or lacking relevant
experience and knowledge (including children) are not recommended to use this product,
unless otherwise supervised or guided by the personnel responsible for such people.
Do not block the air inlet or air outlet. For example, do not place the object in the air outlet
or air inlet.
Unplug the power plug if not using the machine for long time, for example, before traveling
Attention:
This product is researched and designed for domestic consumers and shall not be used
outdoors or other inappropriate environment.
Make sure that all filters have been correctly installed before turning on the product power.
Do not put any object on the top of the product or sit on the product.
At least 30cm space shall be left in the rear and on both sides of the product and at least
50cm is left above the product.
Use the original filters designed exclusively for this product and do not use any other filters.
Always use the lifting handles on both sides of the product to lift or move the product.
Do not insert the fingers or other objects into the air inlet or air outlet, as the machine will
be damaged or serious safety risks will be caused.
Do not use this product when using the indoor spray type insect repellant or in the places
filled with inflammable gas, such as gas appliance, heating units or stoves etc.
Keep stable air flow and temperature in the machine work environment to ensure normal
work of the machine sensor. Do not use perfume, floral water, liquid vaporizer and other
objects with strong smell during the machine running. Do not place the machine near the air
conditioner, air outlet, fan or other equipment affecting the air flow stability and
temperature change.

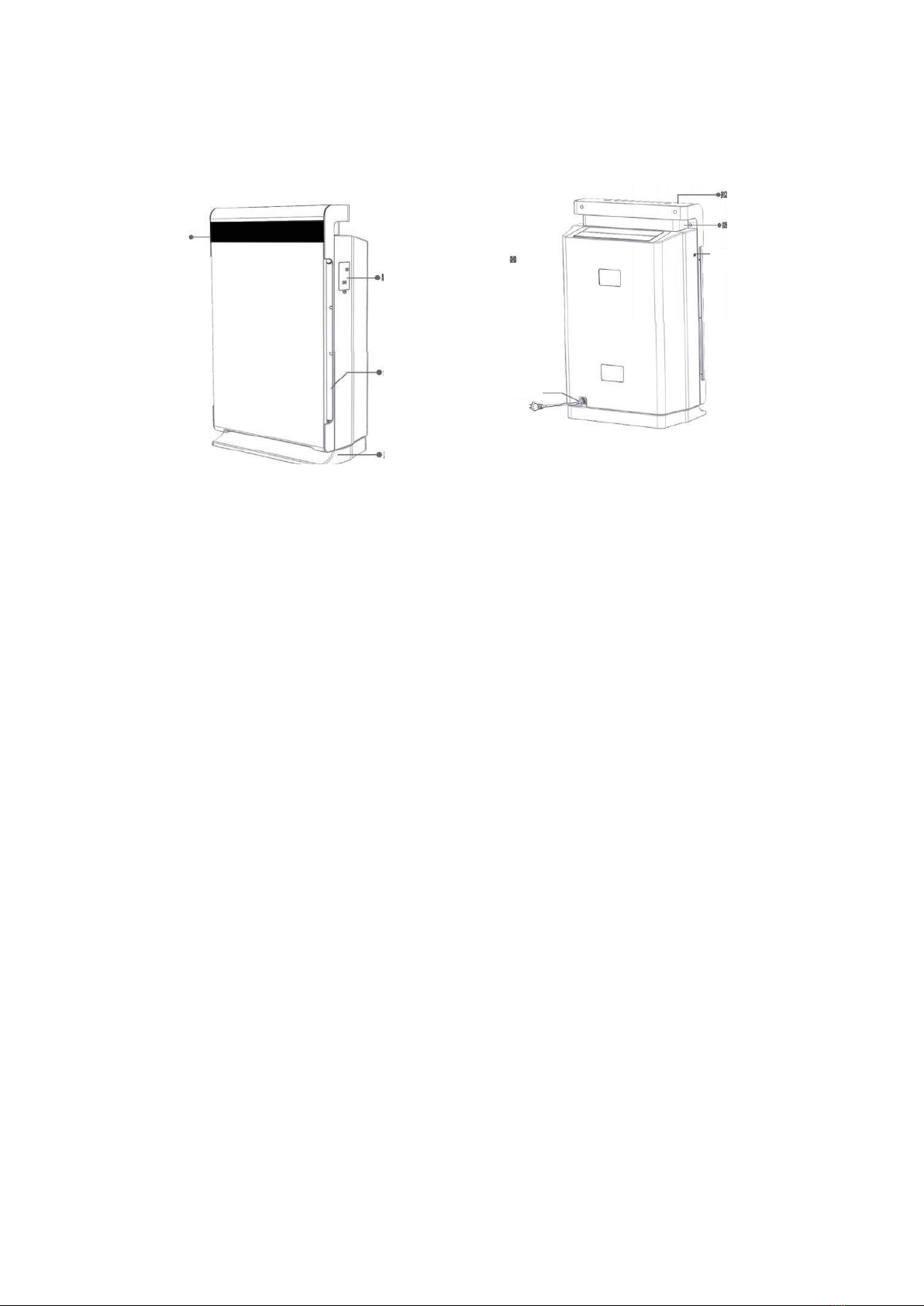

Product appearance description
No.3 Modified activated carbon filter
Efficiently eliminate TVOC.
Display interface
Particle sensor
Air inlet
Base
Control button
Lifting handle
Power cord

How to use
Before first use (install filter)
This product is attached with standard filter. Before using the product, be sure to remove the
filter package. Remove and unpack all filters according to the following instructions and re-place
in the product.
Prompt: Confirm that the product has been firmly placed in correct manner when taking out or
loading the filters.
Note: Be sure to install the filters in correct position.
1. Put the fingers at the recession of the
side panel and gently pull out the upper
half part of the front towards your
direction. Lift the hook at the bottom of
the panel and pull it out from the
bottom of the product.
2. Open the front panel and Remove all
filters from the product.
3. Remove all packages of the Filters.
4. Put back the HEPA filter, carbon filter
and Pre-filter into the product.
Note: Make ensure that the side with
drawstring towards you.

5. Turn four rotating buckles to
horizontal position to block the filter.
6. Load back the front panel. Install the
bottom hook in place and then push the
panel to the machine body.
Above illustration is only for the filter installation. The filters could be different configuration
based on different model.

Switch on
Insert the plug into the socket. And push the button of power/on you will hear “ting”
Use method

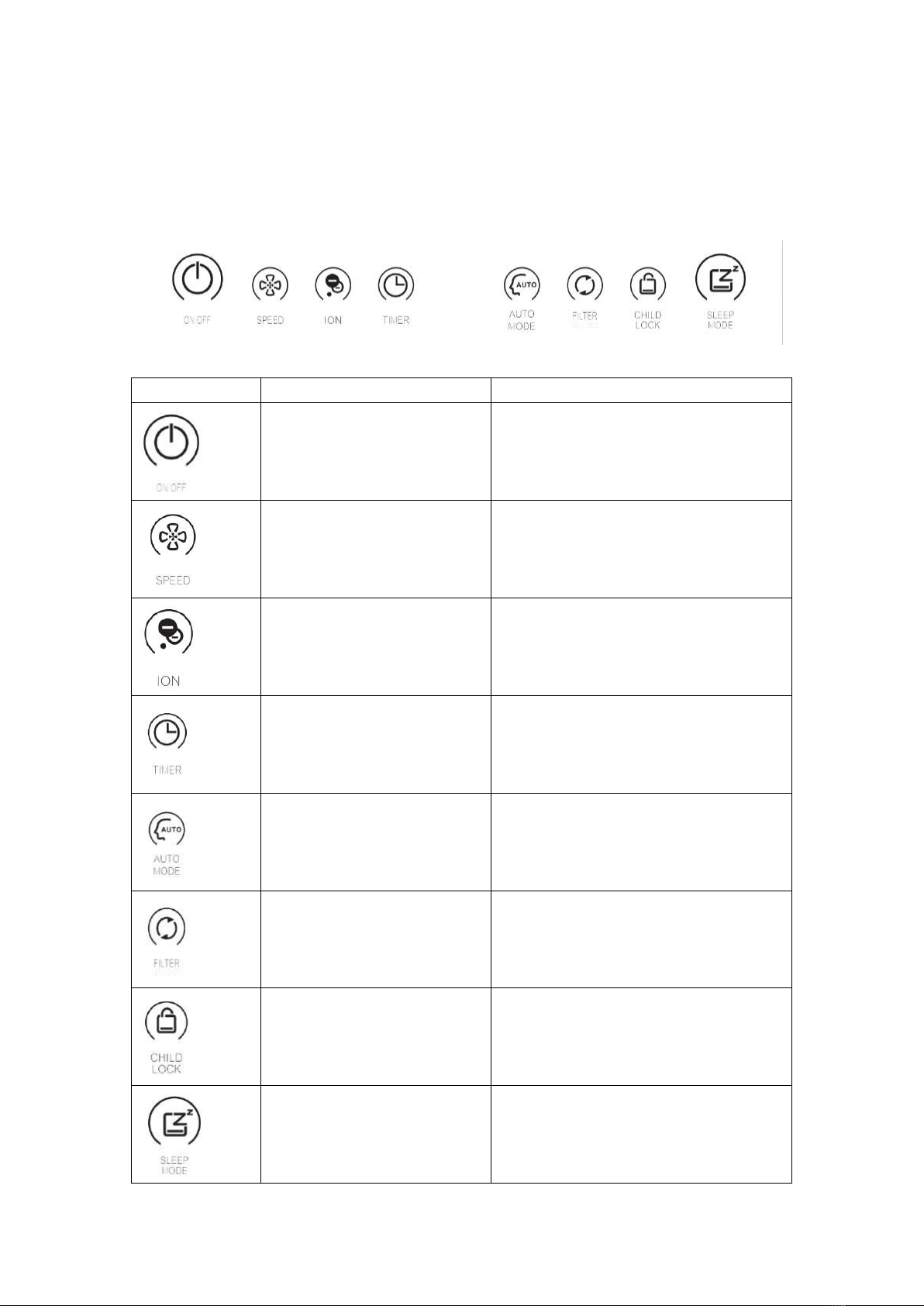

Description of touch key operations
Touch keys
Icon
Key name
Functional description
Power on /Off
Turn on/off the air purifier
Air speed
Manually select high/medium/low air flow
speed
ion on/off
Turn on/off anion
Timing set
Set and cancel the working time (0.5
hr/press, max.8hrs)
Auto mode
Enable auto mode
Filter reloaded
When change new filter, press Filter
reloaded 3 seconds with response sound
Child lock
Enable/disable child lock function
Sleep mode
Enter/exit sleep mode

On/Off
Press “On/Off” once. The product starts and enters the auto mode. The user may make
corresponding operation according to desired mode.
Speed
Press “speed” button to run machine under manual mode. You can select high, medium and low
air flow speed manually.
Ion
This function is enabled only after air flow speed is manually selected or worst air quality (Red)
when auto mode
Note: The anion function manually enabled is automatically disabled at max 1h.
Timer
Timing set: increase timing by 0.5h and set timing for at most 8h. Long press “Timing” to quickly
increase the time. Stop pressing, the displayed time is flashing three times and the set timing is
determined.
Timing cancel: press “Timing” once after the timing is set to cancel the timing function.
Auto
Detect the air quality automatically by particle sensor and adjust the air flow speed automatically
to clean the air when the product is running at “Auto” mode.
Filter reloaded
Long press “Filter reloaded” 3s in the on status after changing new filters. The indicator light is
flashing three times and then off after reset.
Child lock
Long press “Child lock” key 3s to enable the child lock function. Long press “Child lock” key 3s
again to disable child lock.
Note: The other key operations are invalid after the child lock function is enabled.
Sleep
Press “Sleep” once and the equipment enters sleep mode. Press “Sleep” again to exit the sleep
mode.
Note: The timing, ion are automatically disabled after the sleep mode is enabled.
Displaying
Filter change remind
lighting
Child lock
Air quality window

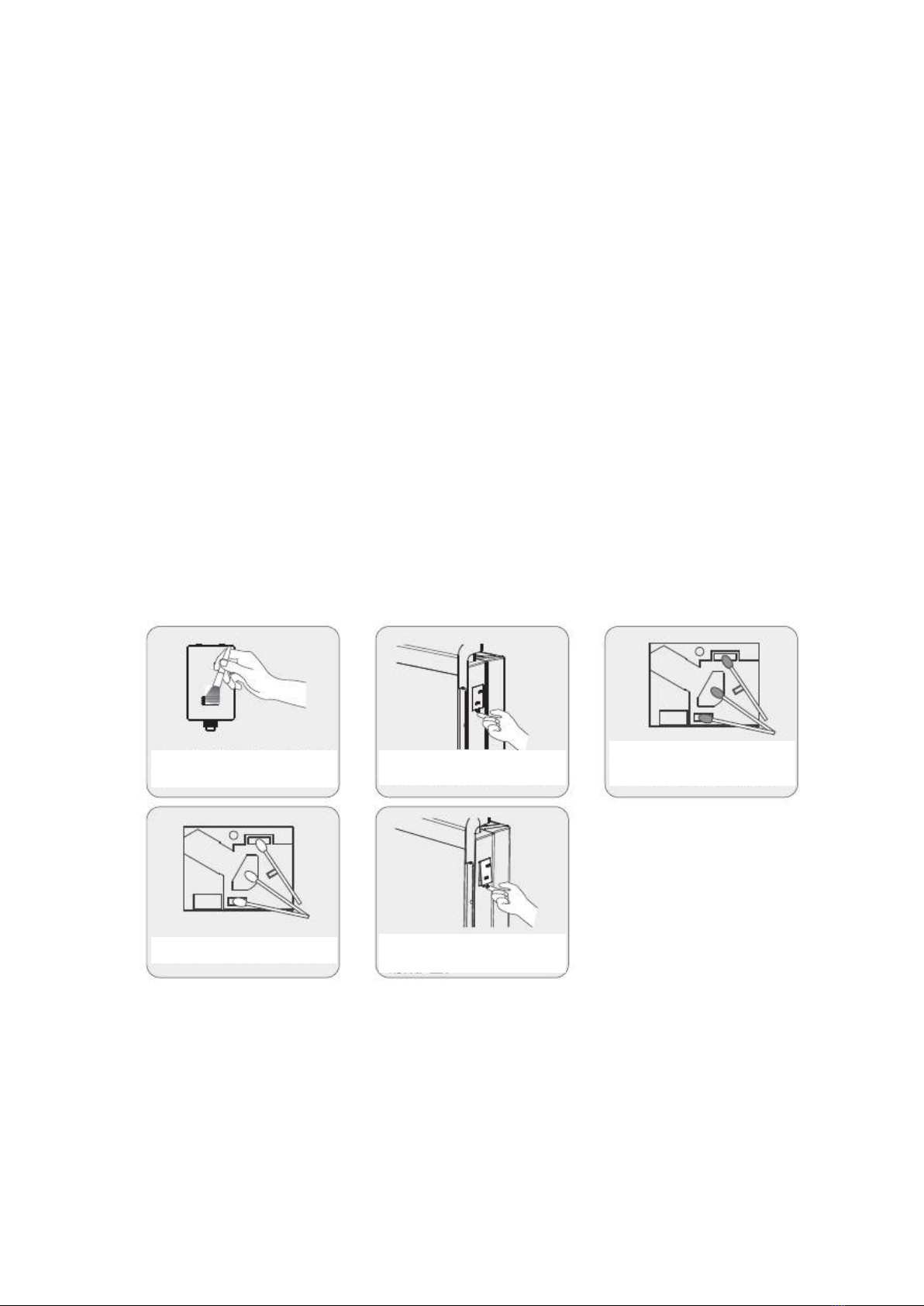

1. Clean the air inlet/air outlet of the
air quality sensor with a brush.
2. Remove the protective cover of the
particle sensor.
3. Clean the air inlet/air outlet of the
air quality sensor with a slightly
wetted cotton swab.
4. Wipe it dry with a dry cotton swab.
5. Reload the protective cover of the
air quality sensor.
Remote control
The functions are the same with touch keys
Daily care and maintenance
To keep the machine running in best status, you are recommended to regularly clean the
machine.
Be sure to cut off the power when cleaning, maintaining and replacing the filter.
Wipe the outside of the machine with clean and soft towel. Open the front panel, take out
the filter and use the soft brush to clean the air inlet grid.
Do not clean any part of the product with gasoline, alcohol, bleach and other chemical
solvents and corrosive cleaners.
Clean the particle sensor
It is recommended to clean the particle sensor every two months. Properly increase the cleaning
times if the local air quality is very worst.
Note: In case of large changes in the indoor temperature and humidity or high humidity, the
condensate water may be formed on the air quality sensor, resulting in sensor disoperation. Even
though the air quality is high at this time, the display panel may also display general or poor air
quality. In this case, clean the air quality sensor and it is recommended to set the wind speed in
manual mode.

Confirmation matters before fault declaration
Confirm the following matters before the product is entrusted to the customer service center for
repair due to exception.
Status
Confirmation matter
Measure
The product cannot
be started
Is the power cut?
Re-operate after confirming the power
Does the power plug fall off?
Re-operate after inserting the power
plug
Is the power socket confirming?
Re-operate after replacing the socket
Is the front panel not closed
tightly?
Confirm that the front panel has been
closed according to instructions
Red HEPA or TVOC
indicator light is
normally on
Is the reset button pressed for
more than 3s in the reset after
filter replacement?
Press the reset button for more than 3s
to reset after filter replacement.
The product has
peculiar smell
Is the primary filter polluted?
Clean the primary filter
Does the filter have peculiar
smell?
Purchase and replace the filter
Excessive product
sound
Are all packages of the filters
removed?
Ensure that all packages have been
removed.
The air quality
indication is always
red
Is there unfound dust or
peculiar smell inducing
substance indoors? Is the color
changed after the machine is
moved to a clean room? Are the
air quality sensor regularly
cleaned?
Clean the particle sensor. If the red
light is still always on after the
dust/smell sensor is cleaned and
moved to a clean room, the sensor/line
may be abnormal. Please contact the
customer service center.
The air quality
indicator light is
always red/purple,
but the air flow
speed is still
unchanged
Is it in auto mode status?
Set up to auto mode.
The air flow speed will not be changed
automatically in manual air flow speed
mode.

KPII20180717
