Kolin e Series User manual

Window Type Air Conditioner
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the Owner’s Manual, please contact the local agent or visit www.kolinphil.com.ph.
KAG-80HME4
KAG-100HME4
KAG-150HME4
KAG-200HME4
KAG-250HME4
KAG-80HRE4
KAG-100HRE4
KAG-150HRE4
KAG-200HRE4
KAG-250HRE4

Thank you for choosing Kolin air conditioner. Our design is based on the best efficiency and the lowest
noiseoperation and it can keep the room comfortable. Please read this operating manual carefully before
operating the unit and keep it for consultation.
CONTENTS
Function
Operating condition
power requirement
Installation
Notes for installation
Part identification 7
Air direction adjustment 7

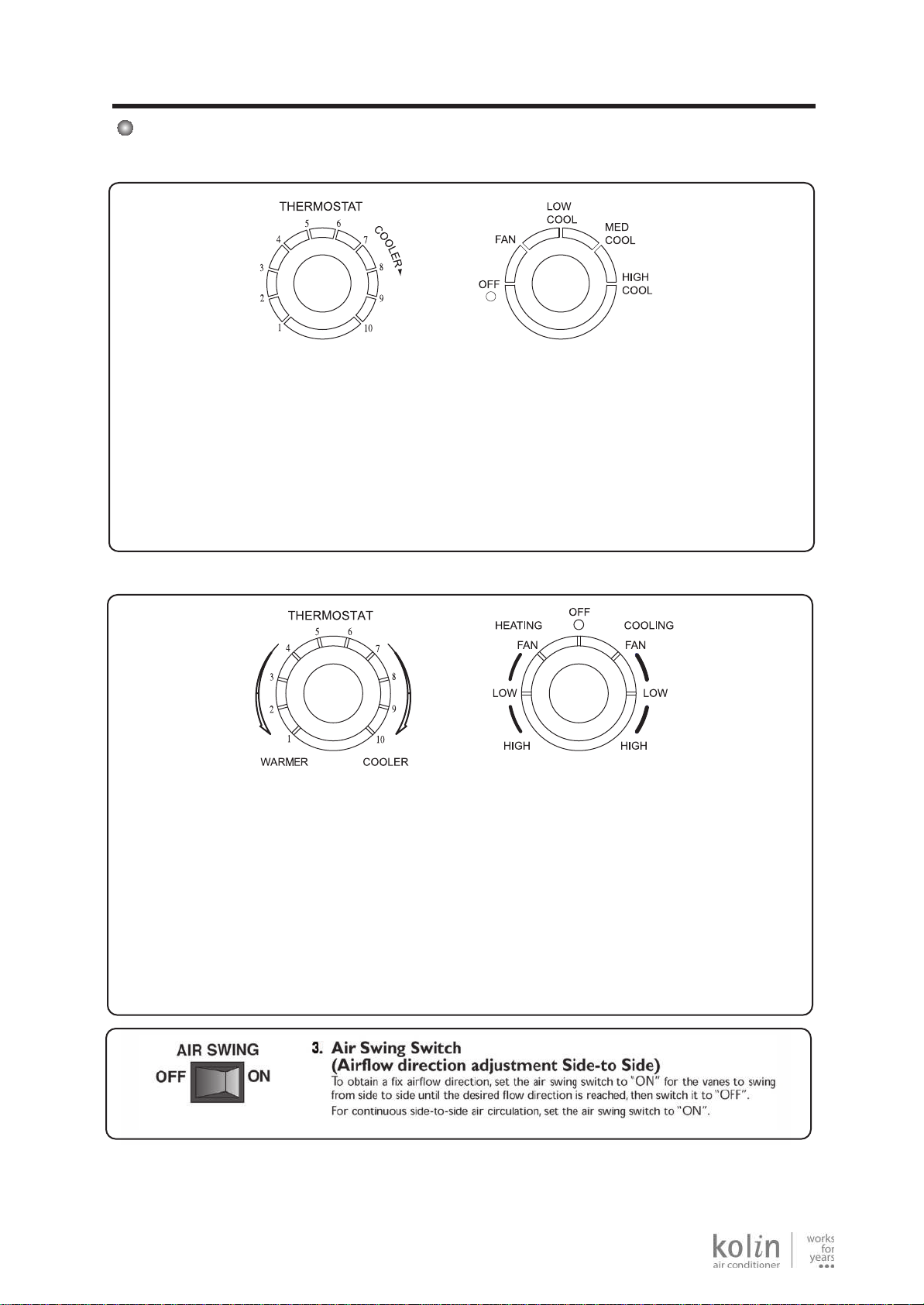

Main switch operation procedure 8

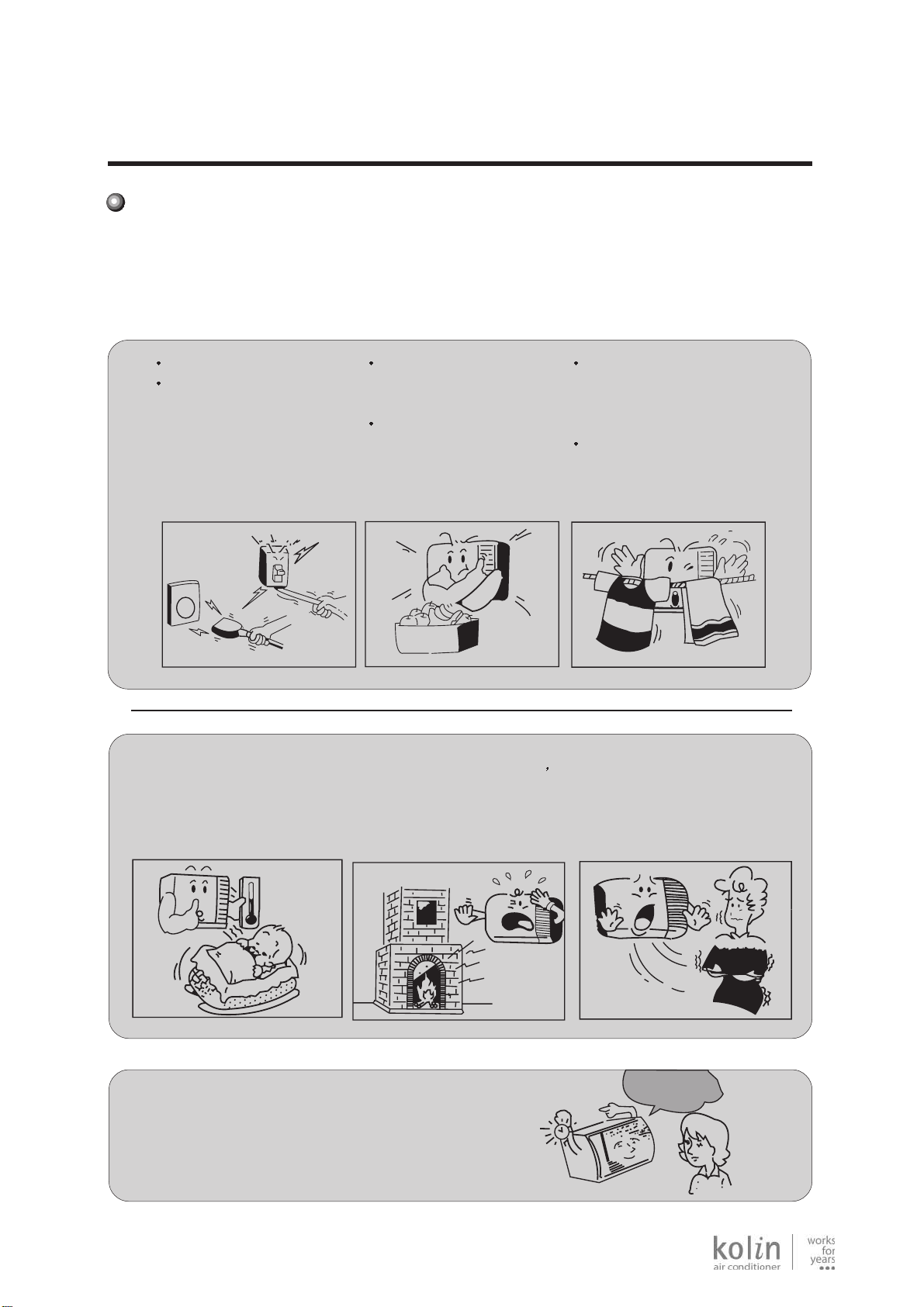

Operation tips 15
Caution 16
Care and
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible fortheir safety.
Children should be supervised to ensure that they do not play with the appliance.
Please read this operating manual carefully before operating the unit.
for reference.
The figures in this manual may be different with the material objects, please refer to the material objects
NOTICE:
maintenance 17
Trouble shooting guide 18

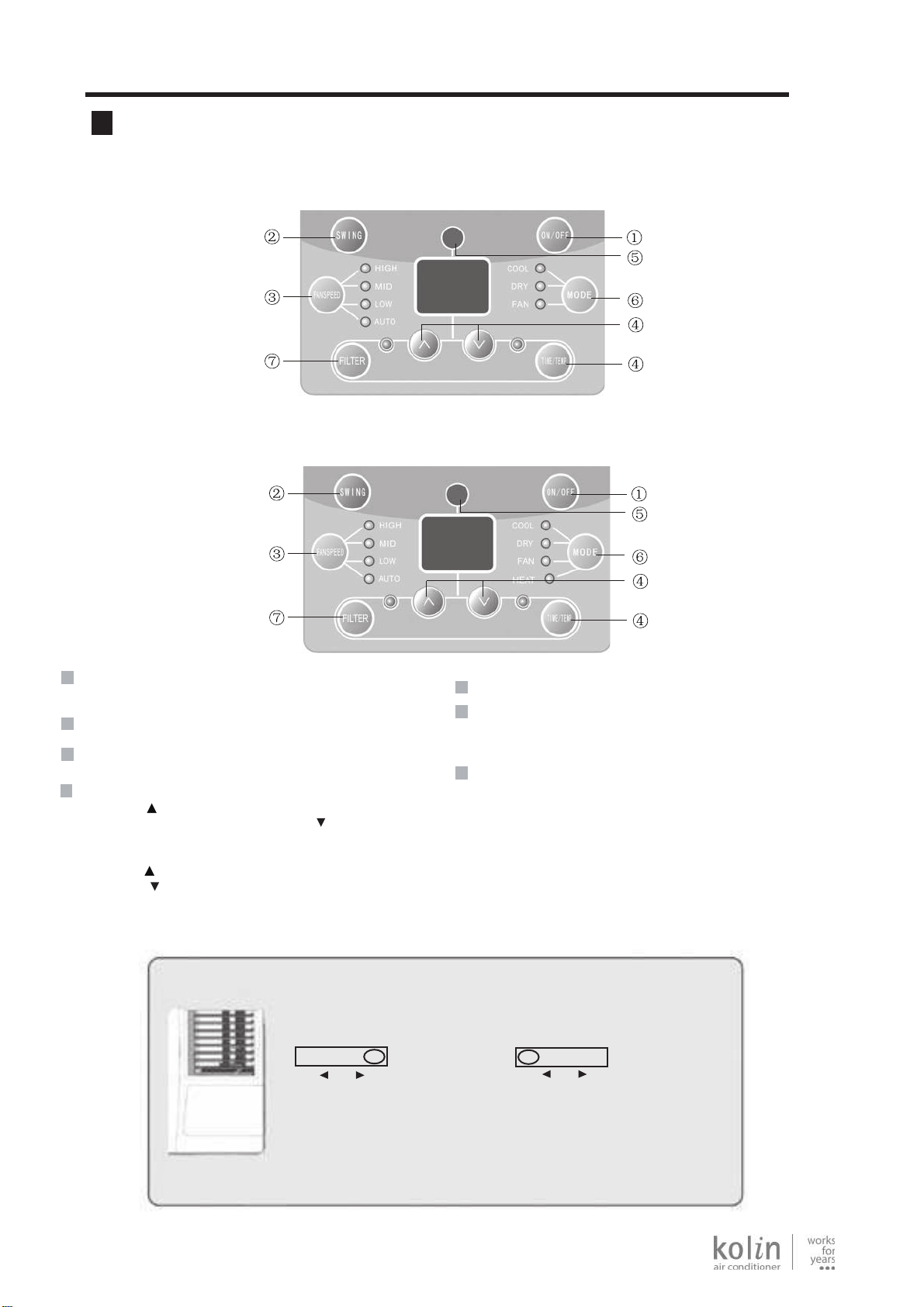

Remote control operation procedure 9
Operation procedure

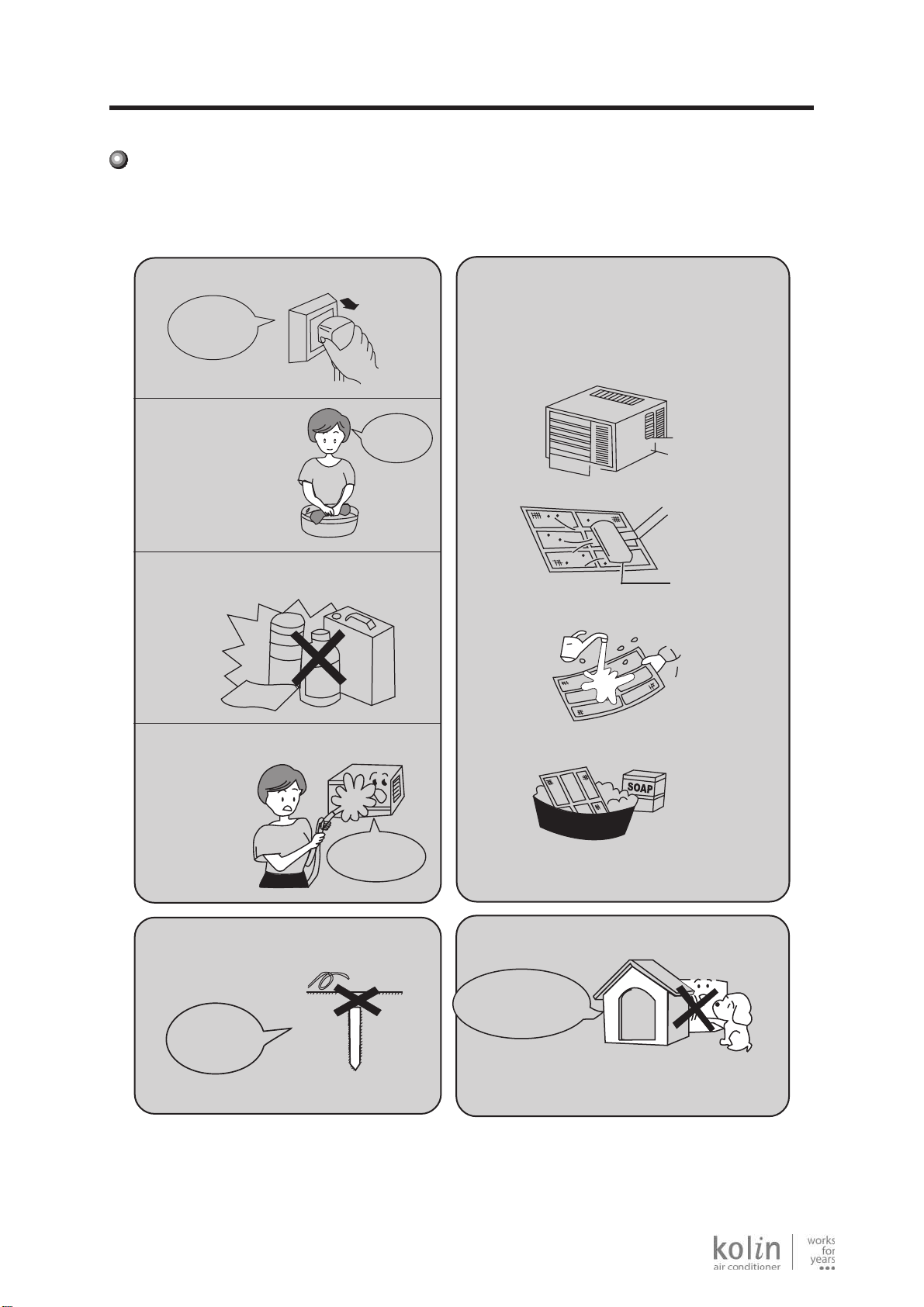

Care and maintenance
3
3
4
6
2
After service 19
Structure mechanism and Installation
Precautions 1

1
Do disconnect power supply when cleaning air conditioner. Otherwise, it may
cause electric shock.
Please contact dealer when you need to repair air conditioner.
injury or damage.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
●
● Do not repair air conditioner by yourself. It may cause electric shock or damage.
● Maintenance must be performed by qualified professionals.Otherwise,it may cause
●
● Children being supervised not to play with the appliance.
Please install the devices for short-circuit protection and electrical leakage protection
According to the local safety regulations, use qualified power supply circuit and circuit
when installing the air conditioner.
break.
Precautions
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Warning
The air conditioner should be installed in accordance with national wiring regulation.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric
shock.
hazard.
broken.
injury or damage.
personal injury.
● Do not connect air conditioner to multi-purpose socket.Otherwise, it may cause fire
● Do install the air switch. If not, it may cause malfunction.
● Do not spill water on the remote controller’otherwise the remote controller may be
● Do not spray water on air conditioner. It may cause electric shock or malfunction.
● Do not extend fingers or objects into air inlet or air outlet. It may cause personal
● Do not step on air conditioner, or put heavy objects. It may cause damage or
● Do not block air outlet or air inlet. It maycause malfunction.
Working temperature range
※ Operating Temperature Range
Indoor side DB/WB(°C)
Maximum cooling 32/23 43/-
Maximum heating 27/- 24/18
Outdoor side DB/WB(°C)
The operating temperature range (outdoor temperature) for cooling only unit is
18°C~ 43°C; for heat pump unit is -7°C~ 43°C.


Function
Introduction
Window type room air conditioners of Kolin can regulate the room
temperature and dry the room. It is convenient for your work,study
and life. It can be widely used in residence, shop, hotel, office, library
and laboratory, and so on.
Room
temp.
Spring
Summer
Autumn
Wind
direction
Winter
Cooling in summer
In hot summer, Air conditioner can cool down
the room air by transferring heat out.
Without reducing the room temp., air conditioner
can dehumidify and make the room air dry and
comfortable.
Dehumidifying in rainy or
humid season
Exchange fresh air
Open storm door to keep the fresh air in the room.
Dry
Fresh Air
Heating in winter
In cold winter, Air conditioner can heat up room air.
(Only for heat unit)

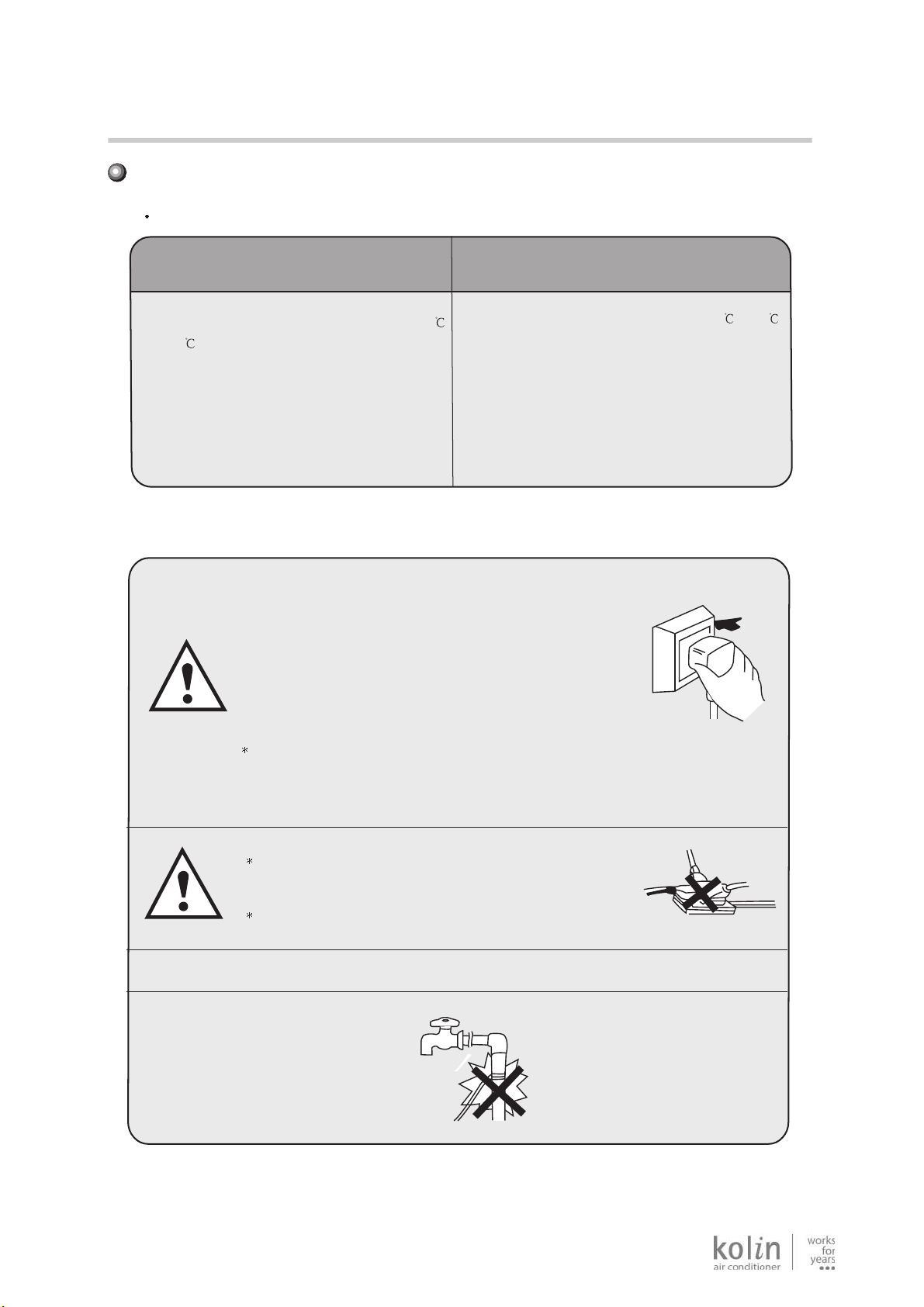

Operating Condition
Please operate air conditioner in the correct conditions as following.
Power requirement
COOL mode operation
DRY mode operation
otherwise it is possible for air conditioner to breakdown.
Outdoor temperature should be in range of 18
to 43 , otherwise it is possible for air conditioner
to breakdown.
Room humidity should be lower than 90%.
Otherwise, it is possible for air conditioner to dew
at air conditioner surface and even drop water af-
ter running for so much time. But this is normal.
Water pipe
The electric components will be damaged when the voltage is too high.
If the voltage is too low, the compressor will vibrate violently to dam-
age the refrigerant system and easily cause the compressor and elec-
tric components not work.
The ground must be connected.
Special socket must be used. Furthermore, the socket and wiring
must conform to the wiring regulations. And the earthing method
must be reliable.
In fixed circuit, there must be electricity leakage protection switch
of enough power capacity and air switch with enough space.
Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:
Outdoor temperature should be in range of 18 to 43 ,
3
Rated voltage and voltage range:230V~
KAG-80HME4 KAG-80HRE4
KAG-100HME4 KAG-100HRE4
KAG-150HME4 KAG-150HRE4
KAG-200HME4 KAG-200HRE4
KAG-250HME4 KAG-250HRE4

A
4
Installation
Installation precaution:
Window type conditioner is so valuable and the improper installa-
tion of it will cause a lot of damage! Please associate the profes-
sional technician to install the unit and don’t install it by yourself.
Otherwise, we are not responsible for the damage like this.
Location:
The condensation water must be drained away conveniently.
Install air conditioner unit far away from TV set or radio
etc. to avoid disturbing video or voice.
In salt and coastal area or place where is near thermal springs
and polluted by sulphurous gas, or other special areas, please
contact the seller before use.
Avoid a place where is possible for inflammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.
For window type air conditioner with remote
control, install in a location where is strong elec-
tromagnetic disturbance, you should contact the
seller in advance to avoid the malfunction in use.
How to install:
Choose a location where there are no any obstacle surrounding
the unit, and the plug is accessible.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the following diagram.
Don't use the unit in the immediate surrondings of
a laundry,a bath,a shower or a swimming pool.
Model A B
KAG-80HME4 450 350
KAG-100HME4 560 375
KAG-100HRE4 560 375
660 428
KAG-150HME4 560 375
KAG-150HRE4 560 375
KAG-200HME4 660 428
KAG-200HRE4 660 428
KAG-250HME4
KAG-250HRE4
660 428
KAG-80HRE4 450 350

Sunshade board
Wall
Wooden frame
Rubber plate
Support

Horizontal line
Horizontal line
Drain water:
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the
condenser coil.
To the cooling only unit, If the splashing sound annoys you, you can provide an outside drain by using the follo
-wing procedure, which may however cause a small loss of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.
Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.
3) Fill up sews in the cabinet with sponge or foam.
Installation assistance:
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.
6~10mm
6~10mm


Notes for installation
Remove
Before removing air conditioner to the other place, you should
contact the seller firstly.
Then it must be done under the direction of the professional
technician. In addition, the charge of this must be paid.
Noise
Electric wiring
Install in a location where is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of outdoor unit to avoid increasing
noise.
Be sure that hot air or noise will not inconvenience neighbors.
Please contact the seller as soon as there is strange noise during operation.
Please use the safety support.
Must connect with ground reliably.
The exclusive circuit must be used. But removable socket can’t be used because poor
contact of it can cause over heat or fire.
If the supply cord is damaged,it must be replaced by the manufacturer or your dealer
In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.
Note:
Drain pan and drain hose must be installed before using reverse cycle models.
Drain hose or tubing can be purchased locally to satisfy your particular needs.
Don’t pull the power cord strongly.
or a qualified person to avoid a hazard.
An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in fixed wiring
Connecting method between air conditioners and power cord and interconnecting method
The air conditioner should be installed in accordance with national wiring regulation.
All The electrical work must be done according to the local wiring regulations.
Air switch (thermal-magnetic breaker) should be installed in the circuit and its capacity
is 10A for 0.75hp/1.0hp, 16A for 1.5hp, 20A for 2.0hp, 25A for 2.5hp.
The cross section area for fixed wiring should be more than 2.5mm
2
.
of each individual element with one another should accord with wiring diagram on the unit.


Part identIfIcation
Vertical airflow direction vane
(Airflow direction adjustment up and down).
The vertical airflow direction vane is controlled by
downwards or straight out.
Air direction adjustment
Air filter
(behind the front intake grille)
Front intake grille)
Control panel cover
Power cord
Front grille
Air inlet louver
Cabinet
Front grille
Air inlet louver
Cabinet
Air filter
(behind the front intake grille)
Front intake grille)
Remote control panel Power cord
Note:Panel outlook picture, just for reference, please take the real unit as standard.
positioning the vane to discharge the air upwards,

Main switch operation procedure
1.Main Control Knob
2.Thermostat control Knob
not as desired after a reasonable period,turn the thermostat.When the thermostat control know is set to 10moisture
Set the thermostat control knob to your desired setting(Usually 6-7 is recommended),If the room temperature is
1.Main Control Knob
2.Thermostat control K nob
and 6-7 for cooling),If the room temperature is not as desired after a reasonable period,turn the thermostat.When
Set the thermostat control knob to your desired setting(Usually 4-5 is recommended setting for setting for heating
1.Only Cooling
2.Cooling and Heating

Set to Low Cool,Med Cool or High Cool as desired(FAN setting operates the fan only.)
CAUTION:If the main control knob is turned off of changed to a fan setting from a cooling operation setting.
WAIT at teast 3minutes before resetting to cooling operation.
may freeze onto evaporator fins and the thermostat control knob counter clockwise,This will quickly defrost the
evaporator fins so that mormal cooling can be resumed.
Set either Low Cooling or High Cooling and Low Heating or High Heating as desired.
(FAN setting operates the fan only.)
CAUTION:If the main control knob is turned off of changed to a fan setting from a cooling operation setting.
WAIT at teast 3minutes before resetting to cooling operation.
the thermostat control know is set to 10moisture may freeze onto evaporator fins and the thermostat control knob
counter clockwise,This will quickly defrost the evaporator fins so that mormal cooling can be resumed.

Buttons on remote controller
Introduction for icons on display screen
21
3
4 5
6 7
1
3
5
2
4
6
7
ON/OFF button
MODE button
+/- button
FAN button
SWING button
SLEEP button
TIMER button
Timer on Timer off
Sending signal
swing operation
sleep operation
lock
set speed
Set timeSet temperature
heat operation
fan operation
dry operation
cool operation
auto operation
9
Remote control operation procedure

Note:
● When power is connected(stand by condition), you can operate the air conditioner
through the remote controller.
● When unit is on, each time you press the button on remote controller, the sending
signal icon " " on the display of remote controller will blink once. If the air con-
ditioner gives out a beep sound, it means the signal has been sent.
● When unit is off, set temperature will be displayed on the remote controller (If the
light of indoor unit display is turned on, the corresponding icon will be displayed);
When unit is on, it will display the icon of the on-going function.
Press this button to turn unit on/off.
ON/OFF button
1
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
●
When selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can't be adjusted and won't be displayed
either. Press FAN button to adjust fan speed.
● When selecting cool mode, air conditioner will operate under cool mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
● When selecting dry mode, air conditioner will operate at low fan speed under dry
mode. In dry mode, fan speed can't be adjusted.
● When selecting fan mode, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
● When selecting heat mode, air conditioner will operate under heat mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
(Cooling only unit can’t receive heating mode signal. If set HEAT mode by remote
controller, press ON/OFF button can’t turn on the air conditioner.)
AUTO COOL DRY FAN HEAT
MODE button
2
● Pressing + or - button once will increase or decrease set temperature by 1°F(°C).
Hold + or - button for 2s, set temperature on remote controller will change quickly.
Release the button after your required set temperature is reached.
● When setting Timer On or Timer Off , press + or - button to adjust the time.(See
TIMER Button for setting details)
+ / - button
3
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.
10
Introduction for buttons on remote controller


Introduction for buttons on remote controller
Press this button to turn on left and right air swing.
SWING button
5
Under Cool, Heat mode, press this button to turn on Sleep function. Press this button
to cancel Sleep function. Under Fan, Dry and Auto mode, this function is unavailable.
SLEEP button
6
TIMER button
7
Note:
● Under Auto speed, air conditioner will select proper fan speed automatically acc-
ording to ambient temperature.
● Fan speed can't be adjusted under Dry mode.
FAN button
4
Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ),
SPEED 2 ( ),
Speed 4 is the same with speed 3.).
SPEED 3 ( ), SPEED 4 ( ) (unavailable in this air conditioner.
AUTO
SPEED 1 (equals to low fan speed)
SPEED 3 (equals to high fan speed) SPEED 4 (equals to high fan speed)
SPEED 2 (equals to low fan speed)
● When unit is on, press this button to set Timer Off. T-OFF and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer Off. Pressing
+ or - button once will increase or decrease the time by 0.5h. Hold + or - button
for 2s, time will change quickly. Release the button after your required set time
is reached. Then press TIMER button to confirm it. T-OFF and H icon will stop
blinking.
●When unit is off, press this button to set Timer On. T-ON and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer On. Pressing
+ or - button once will increase or decrease the time by 0.5h. Hold + or - button
for 2s, time will change quickly. Release the button after your required set time
is reached. Then press TIMER button to confirm it. T-ON and H icon will stop
blinking.
●Cancel Timer On/Off: If Timer function isset up, press TIMER button once to
review the remaining time. Within 5s, press TIMER button again to cancel this
function.

Note:
● Range of time setting is: 0.5~24h
● The interval between two motions can't exceed 5s, otherwise the remote con-
troller will exit setting status.
Function introduction for combination buttons
Press “+” and “-” buttons simultaneously can turn on or turn off child lock function.
When child lock function is started up, LOCK indicator on remote controller is ON.
If you operate the remote controller, remote controller won’t send signal.
Child lock function
Temperature display switchover function
Under OFF status, press “-” button and “MODE”button simultaneously can switch
between °C and °F.
Operation guide
1. After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT.
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.
12
Introduction for buttons on remote controller

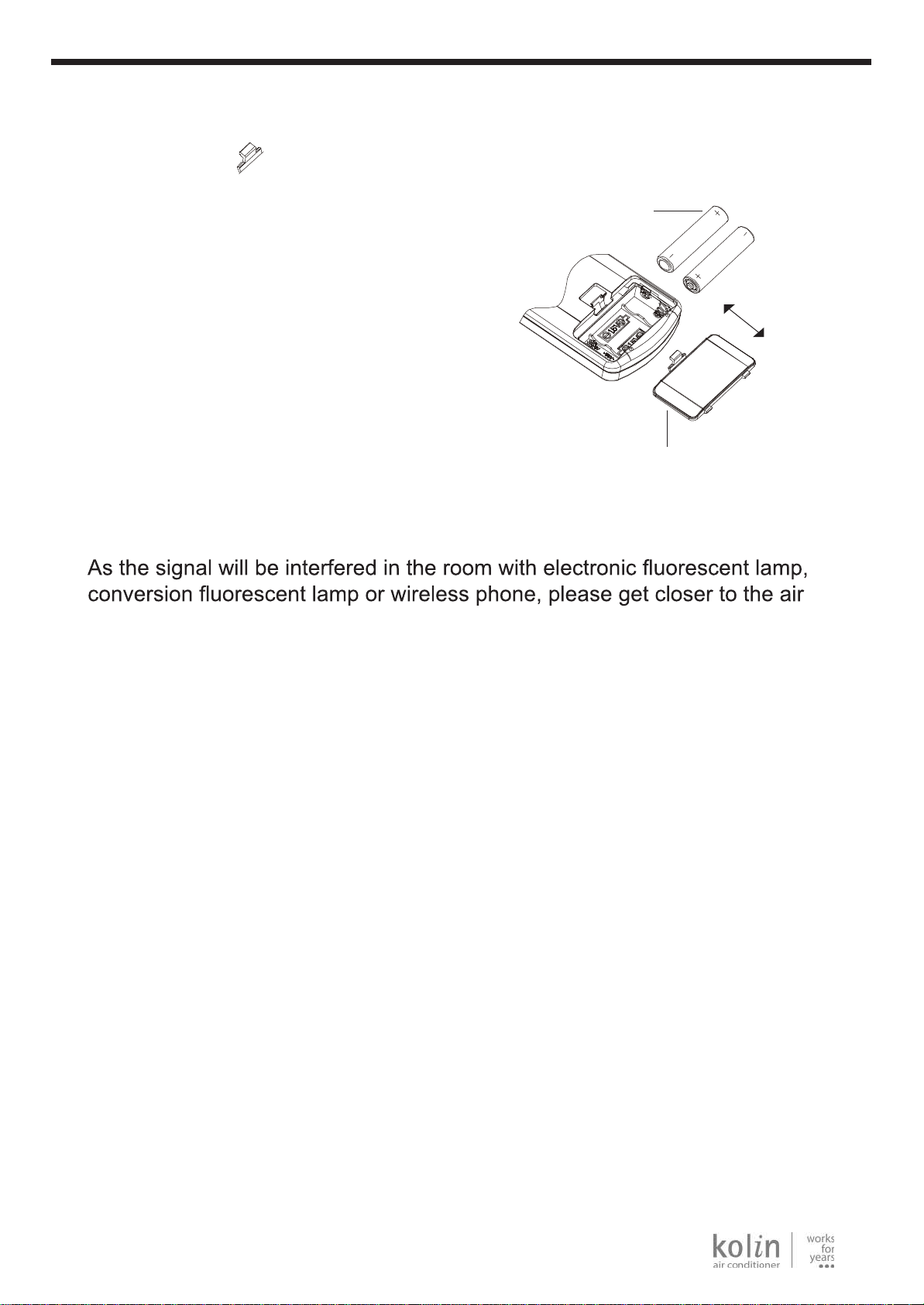

1. Press the mark “ ” on back cover of batteries box cover for remote controller with
fingers as shown in the fig, and then remove the batteries box cover along the arrow
direction. Battery
Cover of battery box
Remove
Reinstall
2. Replace with two #7 (AAA 1.5V) dry batteries.
Make sure positions for “+” pole and “-” pole are
correct.
3. Reinstall batteries box cover.
●The distance between signal sender and receiving window should be no more
than 8m, and there should be no obstacles between them.
●
conditioner when using the remote controller.
●Replace new batteries of the same model when replacement is required.
●When you don’t use remote controller for a long time, please take out the
batteries.
NOTICE
13
Replacement of batteries in remote controller

Note:
-"OPEN" position,the ventilation door
opens to allow air,smoke or odors to
be expelled from the room.
-"CLOSE" position,the ventilation door
is closed and the air will be circulated
inside the room and conditioned.
VENTILATION LEVER
Ventilation Lever
When the slider at the: When the slider at the:
1
Remote control panel
1POWER BUTTON
Operation starts when pressing this button, and stops
when pressing this button again.
2
FAN SPEED BUTTON
Select the fan speed HIGH, MID, LOW and AUTO in sequence.
3
Pressthe keypad also to increase the selected time.
Press the keypadto decrease the selected time.
The time seting range is from 0~24 hours.
4 TEMP/TIMER BUTTON
Press the keypad to increase the set (operating)
temperature of the unit.and Press the keypad to
decrease the set (operating) temperature of the unit.
The temperature seting range is from 16~30℃．
MODE BUTTON
Select the operation mode, AUTO, HEAT, COOL,
FAN
,DRY
(for reverse cycle model) or AUTO,COOL, FAN,DRY
(for cooling only model).
5SIGNAL RECEIVER
6
SWING BUTTON
Activate the automatic air swing function.
7 FILTER BUTTON
This feature is a reminder to clean the Air Filter (See
Care and Cleaning) for more efficient operation and
cooling. The LED (light) will illuminate after 250 hours
"Check Filter" button and the light will go off.
of operation. To reset after cleaning the filter, press the
This function is applicable to KAG-80HRE4, KAG-100HRE4,
KAG-150HRE4, KAG-200HRE4, KAG-250HRE4 only.
If wireless remote controller is lost, open the surface panel and operate manually.
CLOSE VENT OPEN CLOSE VENT OPEN

1
Operation Tips
Operation for comfort and economy
Do not overcool the room
temperature. This is not good
for health and wastes electricity.
Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air con-
dition is in operation.
Keep the room temp. uniform.
Adjust the vertical and horizon-
tal airflow direction to ensure a
uniform temperature in the room.
Air can’t be discharged to the di-
rection of air-in.
Make sure that the doors and win-
dows are tightly closed .Avoid open-
ing doors and windows as much as
possible to keep air conditioning in the
room.
Clean the air filter regularly.
Blockages in the air filter re-
duce dehumidifying effects.
Clean the air filter at least once
every two weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains or
windows should be closed to pre-
vent the heat/cool leakage.

1
Caution
Do not use the air conditioner
for other purposes except for
cooling the room.
Do not use the air conditioner
for other purposes such as
drying clothes, preserving
foods,or cultivating
vegetables.
Do not block the air intake and
outlet vents
This causes lowered perfor-
mance and irregular operation.
Do not insert sticks or other
objects into these vents as it is
dangerous to touch the electric
components and the fan.
Always wait at least 3 minutes before switching the
air conditioner on again after you have switched it
off during cooling or heating.
Always wait
at least 3 minutes
Do not pull out the power cord.
Damage to the cord may result
in serious electric shocks.
s
plastic parts will melt if exposed to
excessive heat.
Avoid exposing the body directly to
a continuous unidirectional air flow
for long periods.
This is not recommended for health
reason.
Select the most appropriate
temperature.
Pay attention to adjust the tempera-
ture to suit the conditions.
Rooms occupied by infants,the
elderly, or the sick should be kept at
an appropriate temperature.
Do not use heating apparatuses in
the vicinity.The air conditioner
Operations for safety and health
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard.

1
Care and maintenance
Always turn off the air conditioner and main power supply before cleaning to ensure safety.
Cleaning unit
1. Cut power off before cleaning.
4. Do not splash water directly into indoor
* Check earth wire
Vacuum cleaner
Plug out only after
air conditioner
stops at all.
Dry the cloth by
h a n d s b e f o r e
cleaning.
unit, in which
there are micro-
computer and
circuit plate,
they must not be
drenched with
water.
Accident could
happen.
Is it broken
or loose?
Air lock could result
in bad efficiency.
* Check if air inlet and outlet of outdoor unit
are blocked or not.
Let the filter dry thoroughly before reinstalling it.
If. necessary, please ask the professional personnel to
clean it.
.tsudthgilevomerotedisytsudehtnoretlifehtmuucaV.2
3. Wash the filter, cleaner side up under gently flowing water
to wash out accumulated dust and lint.
4. If the filter is very dirty, use a mild household detergent in
the wash water.
Air filter
The air filter behind the intake grille should be washed at least
once every two weeks or as often as it needs cleaning.
How to clean the air filter:
1. T o remove the air intake grille, grasp the tab on the filter and
pull to take out.
2. Use soft cloth when
cleaning cabinet.
If the cabinet is very
dirty, dip cloth into warm
water below 40℃，dry
the cloth and then rub
offthe dirt.
3. Don’t use gas, benzene, solvent,wash,
chemical solvent, etc. for cleaning.

Trouble shooting guide
Fault phenomenon Trouble-shooting
Air conditioner dose not
operate at all.
* Is there a power failure?
* Is the plug out?
* I s power fuse or switch off ?
* Whether the voltage is too high or too low?
* Is air inlet or outlet locking?
* Is there any other heat/cool source in room?
* Are air filters dirty very much?
* Is indoor fan speed set at LOW?
* Maybe the room is too hot/cool when the unit is
started.
* At COOL mode operation, sometimes there is foggy
air flowing out of indoor unit, this is because the room
humid air has been cooling rapidly.
* The unit is normal while the indoor outlet is sending
out some odor, because the inlet air may be mixed
with the smell of furniture and smoke.
* For a noise that sounds like water flowing:
This is the sound of freon flowing inside the air con-
ditioner unit.
* For a noise that sounds like a shower:
This is the sound of the dehumidifying water being
processed inside the air conditioner unit.
* Condensation occurs when the airflow from the air
conditioner cools the warm room air.
* This is to protect the mechanism.
* Wait about three minutes and operation will begin.
Cool or heat efficiency is
not good.
The air conditioner opera-
tion is noisy.
It seems that condensation is leaking from air conditioner.
Air conditioner dose not operate for about 3 minutes when
restart.
Please check the following items before asking for repair,it saves your time and
money.
OFF
NO
cooling
Foggy air
flows out.
1
