Kolin KAM-55CMC32 User manual

Before using your air conditioner, please read this
manual carefully and keep it for future reference.
KAM-55CMC32
USER MANUAL
WINDOW TYPE AIR CONDITIONER
www.kolinphil.com.ph

1
CONTENTS
1. SAFETY PRECAUTIONS..................................................................2
2. NORMAL SOUNDS...........................................................................14
3. OPERATING INSTRUCTIONS ..........................................................15
4. INSTALLATION INSTRUCTIONS......................................................16
5. CARE AND CLEANING.....................................................................17
6. TROUBLESHOOTING ......................................................................18
7. SPECIFICATIONS .............................................................................19
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacturer will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
SOCIABLE REMARK
Read This Manual
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
When using this unit in the European countries, the following
information must be followed:

2
To prevent injury to the user or other people and property
damage, the following instructions must be followed. Incorrect
operation due to ignoring of instructions may cause harm or
damage. The seriousnessis classified by the following indications.
This symbol indicates the possibility of death or serious injury.
!
WARNING
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug properly.
fire due to excess heat generation.
Otherwise, it may cause electric shock or
Do not modify power cord length or share the outlet with other
appliances. It may cause electric shock or fire due to heat generation.
Always ensure effective earthing. Incorrect earthing may cause electric shock.
Unplug the unit or disconnect the power supply to the unit, if strange sounds,
smell, or smoke comes from it.
It may cause fire and electric shock.
Do not operate or stop the unit by inserting or pulling out the power
plug. It may cause electric shock or fire due to heat generation.
Do not operate with wet hands or in damp environment.
It may cause electric shock.
Do not allow water to run into electric parts.
It may cause failure of machine or electric shock.
Do not use the socket if it is loose or damaged.
It may cause fire and electric shock.
Do not damage or use an unspecified power cord.
shock or fire. If the power cord is damaged, it must be replaced by the
manufacturer or an authorised service centre or a similarly qualified
person in order to avoid a hazard.
It may cause electric
Do not direct airflow at room occupants only. This could damage your health.
Always install circuit breaker and a dedicated power circuit.
Incorrect installation may cause fire and electric shock.
Do not open the unit during operation. It may cause electric shock.
WARNING
!
SAFETY PRECAUTIONS
Leave the door closed while the air conditioner is running.
It is not designed to cool the entire house.

3
Do not use the power cord close to heating appliances.
It may cause fire and electric shock.
Do not use the power cord near flammable gas or combustibles, such as
gasoline, benzene, thinner, etc. It may cause an explosion or fire.
Ventilate room before operating air conditioner if there is a gas
leakage from another appliance.
It may cause explosion, fire and burns.
Do not disassemble or modify unit. It may cause failure and electric shock.
!
CAUTION
When the air filter is to be removed, do not touch the metal parts of the unit.
It may cause an injury.
Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation. It may cause an
electric shock.
Ventilate the room well when used together with a stove, etc.
An oxygen shortage may occur.
When the unit is to be cleaned, switch off, and turn off the circuit breaker.
Do not clean unit when power is on as it may cause fire and electric
shock, it may cause an injury.
Do not put a pet or house plant where it will be exposed to direct air flow.
This could injure the pet or plant.
Do not use for special purposes.
preserve precision devices, food, pets, plants, and art objects.
It may cause deterioration of quality, etc.
Do not use this air conditioner to
Stop operation and close the window in storm or hurricane.
Operation with windows opened may cause wetting of indoor and
soaking of household furniture.
Hold the plug by the head of the power plug when taking it out.
It may cause electric shock and damage.
Turn off the main power switch when not sing the unit for a long time.u
It may cause failure of product or fire.
Do not place obstacles around air-inlets or inside of air-outlet.
It may cause failure of appliance or accident.

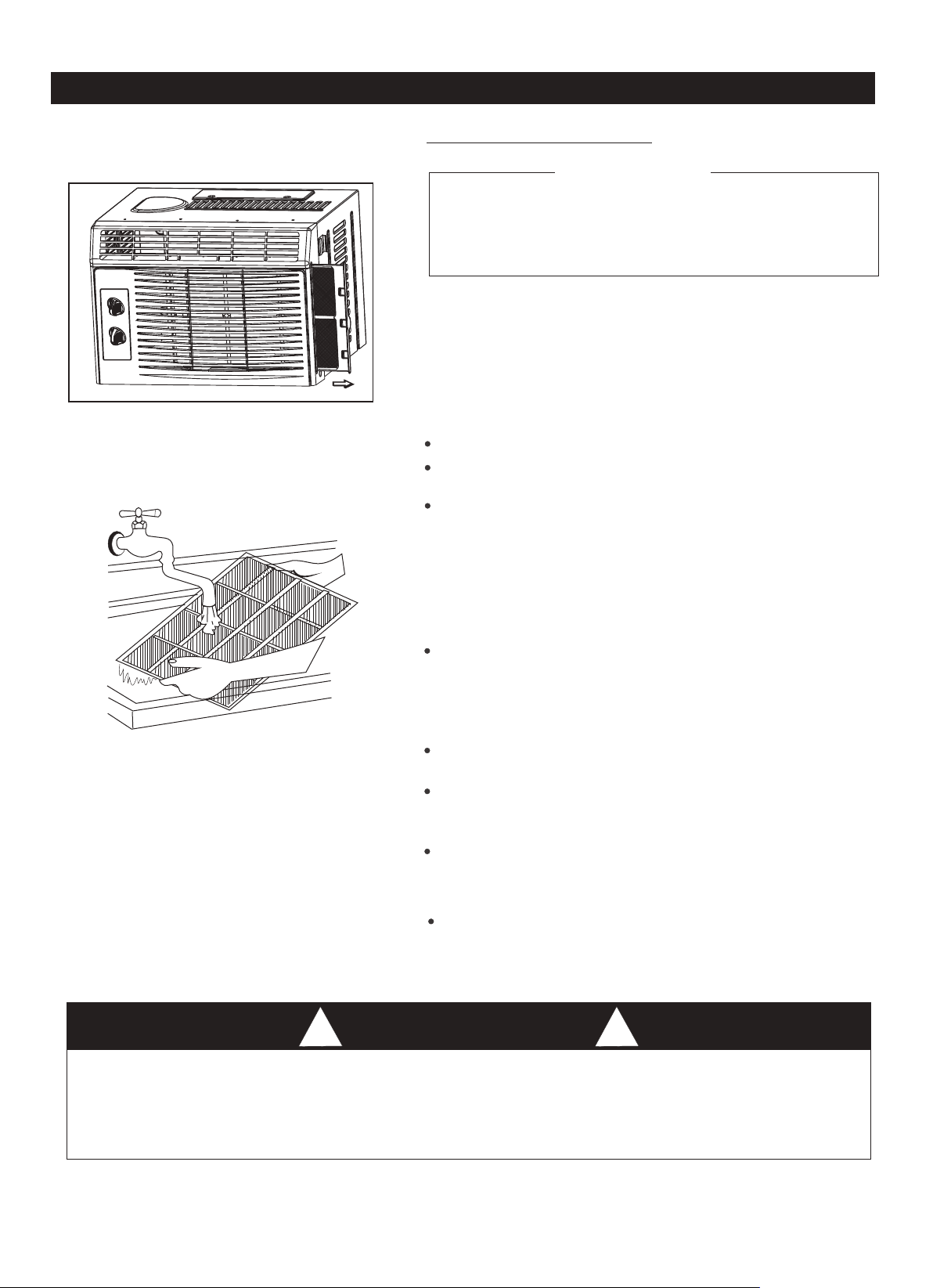

Always insert the filters securely. Clean filter once every two weeks.
Operation without filters may cause failure.

4
Ensure that the installation bracket of the outdoor appliance is not
damaged due to prolonged exposure. If bracket is damaged, there is
concern of damage due to falling of unit.
Appearance may be deteriorated due to change of product color or
scratching of its surface.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Do not place heavy object on the power cord and ensure that the cord
is not compressed. There is danger of fire or electric shock.
Do not drink water drained from air conditioner.
It contains contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could cause
injury.
If water enters the unit, turn the unit off at the power outlet and switch
off the circuit breaker. Isolate supply by taking the power-plug out or
disconnect the power supply to the unit,and contact a qualified service
technician.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision. (be applicable for the
European Countries )
This appliance is not intended for use by persons (including
children) with reduced physical ,sensory or mental capabilities or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. (be applicable for other
countries except the European Countries )
Children should be supervised to ensure that they do not play with
the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
The appliance shall be installed in accordance with national wiring
regulations.

5
Do not operate y our a ir c onditioner i n a w et r oom s uch a s a
b athroom o r l aundry r oom.
The appliance with electric heater shall have a t l east 1 m eter s pace
t o t he c ombustible materials.
Contact the authorised service technician for repair or maintenance
of this unit.
Contact the authorised installer for installation of this unit.
If the air conditioner is knocked over during use, turn off the unit and
unplug it from the main power supply or disconnect the power supply
to the unit, immediately. Visually inspect the unit to ensure there is
no damage.
If you suspect the unit has been damaged, contact a technician or
customer service for assistance.
In a thunderstorm, the power must be cut off to avoid damage to the
machine due to lightning.
To reduce the risk of fire or electric shock, do not use this fan with
any solid-state speed control device.
Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from traffic area and where it will
not be tripped over.
If connecting power to fixed wiring, an all-pole disconnection
device which has at least 3mm clearances in all poles, and have
a leakage current that may exceed 10mA, the residual current
device(RCD) having a rated residual operating current not
exceeding 30mA, and disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
How to fix the appliance to its support, please read the installation
instructons section in this manual.
All wiring must be performed strictly in accordance with the wiring
diagram located inside of the unit.

Preparing for operation
Usage
Cleaning and maintenance
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Do not use a damaged or non-standard power cord.
4. Do not share the same outlet with other appliances.
5. Do not use an extension cord.
6. Do not start/stop operation by plugging/unplugging the
power cord.
1. Exposure to direct airflow for an extended period of time
could be hazardous to your health. Do not expose
occupants, pets, or plants to direct airflow for extended
periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the
room when used together with stoves or other heating
devices.
3. Do not use this air conditioner for non-specified special
purposes (e.g. Preserving precision devices, food, pets,
plants, and art objects). Usage in such a manner could
harm such property.
1. Do not touch the metal parts of the unit when removing
the filter. Injuries can occur when handling sharp metal
edges.
2. Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation, leading to
possible electric shock.
3. When cleaning and maintenance the unit, first make
sure that the power and circuit breaker are turned off.
SAFETY PRECAUTIONS(prior to operation)
6

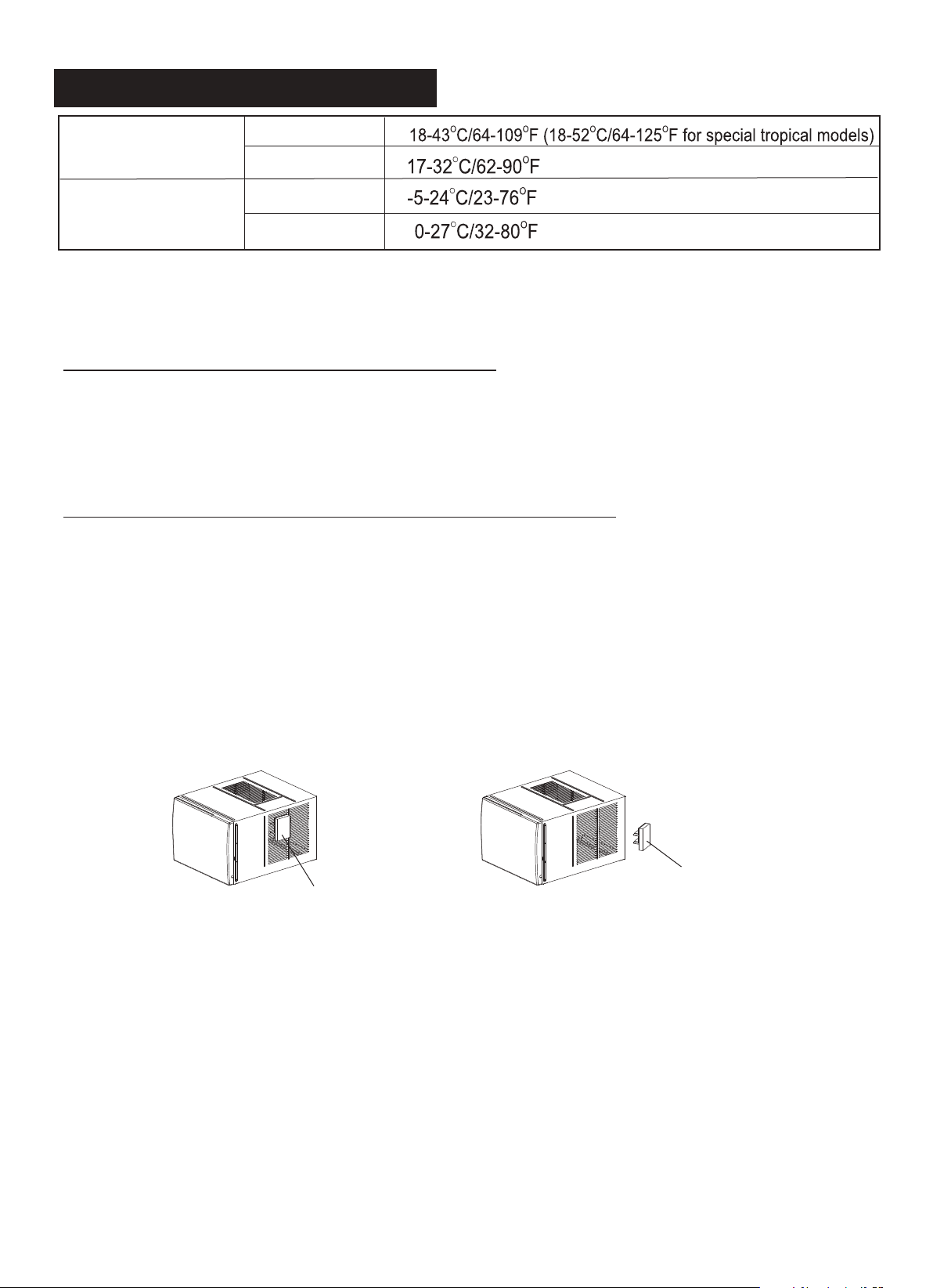

Operating Temperature
Note: Performance may be reduced outside of these
operating temperatures.
Cooling operation
Outdoor temp:
Indoor temp:
Heating operation
Outdoor temp:
Indoor temp:
After the unit has stopped, it can not be restarted
operation in the first 3 minutes. This is to protect the
unit. Operation will automatically start after 3
minutes.
Wait 3 minutes before resuming operation
If the unit breaks off unexpectedly due to the power
cut,it will restart with the previous function setting
automatically when the power resumes.
Auto-Restart(on some models)
7
CAUTION: Before installing, remove all packaging from
inside the carton, along with any inserts placed into the side
louvers.
Inserts placed into
the side louvers.
Remove inserts placed
into the side louvers.
Note About Fluorinated Gasses
-
specific information on the type, the amount and the CO equivalent in tonnes of the
fluorinated greenhouse gas(on some models), please refer to the relevant label on the
unit itself.
-Installation, service, maintenance and repair of this unit must be performed by a
certified technician.
-Product uninstallation and recycling must be performed by a certified technician.
Fluorinated greenhouse gases are contained in hermetically sealed equipment. For
2

WARNINGS (for using R290/R32 refrigerant only)
!
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.

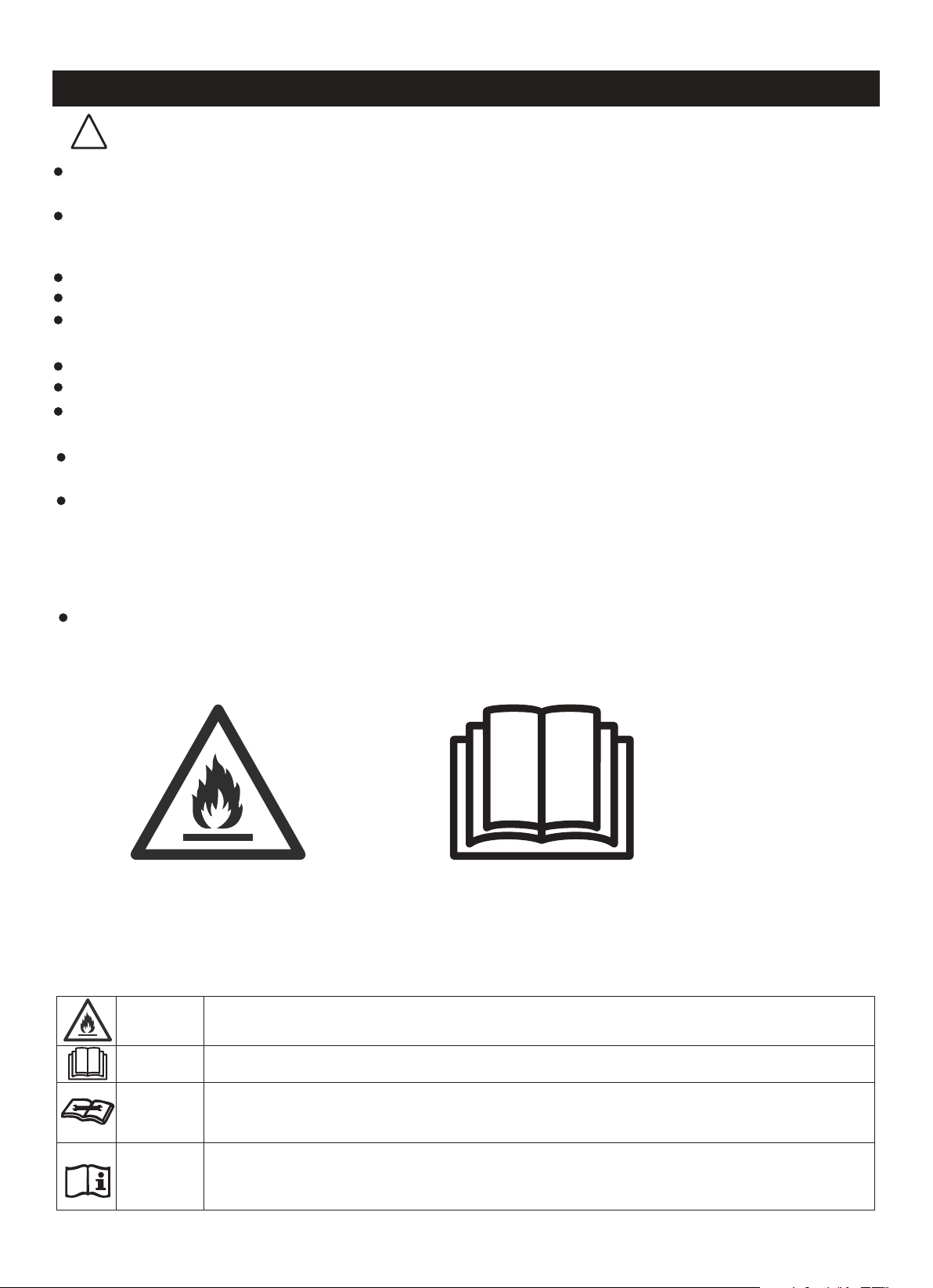

Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):
WARNING
This symbol shows that this appliance used a flammable refrigerant. If the
refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.
SAFETY PRECAUTIONS
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating
ignition sources (for example: open flames, an operating gas appliance or an
operating electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
Appliance should be installed, operated and stored in a room with a floor area
2
larger than 4 m .
Compliance with national gas regulations shall be observed.
Keep ventilation openings clear of obstruction.
The appliance shall be stored so as to prevent mechanical damage from
occurring.
A warning that the appliance shall be stored in a well-ventilated area where
the room size corresponds to the room area as specified for operation.
Any person who is involved with working on or breaking into a refrigerant
circuit should hold a current valid certificate from an industry-accredited
assessment authority, which authorises their competence to handle
refrigerants safely in accordance with an industry recognised assessment
specification.
Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other
skilled personnel shall be carried out under the supervision of the person
competent in the use of flammable refrigerants.
8

SAFETY PRECAUTIONS
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system,
the following precautions shall be complied with prior to conducting work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
flammable gas or vapour being present while the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out. Work in confined spaces shall be avoided. The area around the
workspace shall be sectioned off. Ensure that the conditions within the area have been made
safe by control of flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2
fire extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any
pipe work that contains or has contained flammable refrigerant shall use any sources of ignition
in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources,
including cigarette smoking, should be kept sufficiently far away from the site of installation,
repairing, removing and disposal, during which flammable refrigerant can possibly be released
to the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking
signs shall be displayed.
WARNINGS (for using R290/R32 refrigerant only)
!
9

SAFETY PRECAUTIONS
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any hot work. A degree of ventilation shall continue during the period that
the work is carried out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the
correct specification. At all times the manufacturer's maintenance and service guidelines shall
be followed. If in doubt consult the manufacturer's technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
The charge size is in accordance with the room size within which the refrigerant containing
parts are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the
presence of refrigerant;
Marking to the equipment continues to be visible and legible. Markings and signs that are
illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to be
exposed to any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being corroded or
are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all
parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
That there no live electrical components and wiring are exposed while charging, recovering
or purging the system;
That there is continuity of earth bonding.
7.Repairs to sealed components
1)During repairs to sealed components, all electrical supplies shall be disconnected from the
equipment being worked upon prior to any removal of sealed covers, etc. If it isabsolutely
necessary to have an electrical supply to equipment during servicing, then a permanently
operating form of leak detection shall be located at the most critical point to warn of a
potentially hazardous situation.
2)Particular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is affected.
This shall include damage to cables, excessive number of connections, terminals not made
to original specification, damage to seals, incorrect fitting
of glands, etc.
Ensure that apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded such that they no longer serve the
purpose of
10

SAFETY PRECAUTIONS
preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection
equipment. Intrinsically safe components do not have to be isolated prior to working on them.
8.Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the
presence of a flammable atmosphere. The test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer. Other parts may result in
the ignition of refrigerant in the atmosphere from a leak.
9.Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental effects. The check shall also take into account the
effects of aging or continual vibration from sources such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall
not be used.
11.Leak detection methods
The following leak detection methods are deemed acceptable for systems containing flammable
refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the
sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be
calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition
and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of
the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate
percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with
most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine
may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all
naked flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut
off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then
be purged through the system both before and during the brazing process.
12.Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures shall be used. However, it is important that best practice is followed since
flammability is a consideration. The following procedure shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;
Open the circuit by cutting or brazing.
11

SAFETY PRECAUTIONS
The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall
be flushed with OFN to render the unit safe. This process may need to be repeated several
times. Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to
fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down
to a vacuum. This process shall be repeated until no refrigerant is within the system. When the
final OFN charge is used, the system shall be vented down to atmospheric pressure to enable
work to take place. This operation is absolutely vital if brazing operations on the pipe-work are
to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is
ventilation available.
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed.
Ensure that contamination of different refrigerants does not occur when using charging
equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant
contained in them.
Cylinders shall be kept upright.
Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak
tested on completion of charging but prior to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with
the equipment and all its detail. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken
in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:
Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person;
Recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and
12

SAFETY PRECAUTIONS
the equipment are removed from site promptly and all isolation valves on the equipment are
closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has
been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment
stating the equipment contains flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall
be complete with pressure relief valve and associated shut-off valves in good working order.
Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning
the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
In addition, a set of calibrated weighing scales shall be available and in good working order.
Hoses shall be complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, check that it is in satisfactory working order, has been properly
maintained and that any associated electrical components are sealed to prevent ignition in the
event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery
units and especially not in cylinders. If compressors or compressor oils are to be removed,
ensure that they have been evacuated to an acceptable level to make certain that flammable
refrigerant does not remain within the lubricant. The evacuation process shall be carried out
prior to returning the compressor to the suppliers. Only electric heating to the compressor
body shall be employed to accelerate this process. When oil is drained from a system, it shall
be carried out safely.
13

NORMAL SOUNDS
NOTE:All the illustrations in the manual are for explanation purpose only.Your air
conditionar may be slightly different. The actual shape shall prevail.
14
NOTE: If the air conditioner is turned off, wait 3 minutes before restarting. This allows pressure
inside the compressor and equalize. Failure to follow these instructions may be harmful to your unit.
Power supply voltage
If the power supplied to the unit is not within plus/minus 10% of the specified rating, the unit may
not function and the fuse may blow.
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the
Safety Precautions before operating this appliance.
The capacity of the room air conditioner must fit the room size for efficient and satisfactory operation.
Install the room air conditioner on the shady side of your room.
Do not block air flow inside with blinds, curtains or furniture; or outside with shrubs, enclosures, or other buildings.
Keep blinds and drapes in other windows closed during the sunniest part of the day.
Clean the air filter as recommended in the section Care and Cleaning .
Energy Saving Ideas
Normal sounds
Noise level
Noise from the air conditioner will be louder at night than in the daytime. This is because noise in the surroundings
is comparatively low at night. If you feel that noise of the air conditioner is too loud, switch the thermostat to lower
numbers.
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
Gurgling or hissing noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
pinging or switching sounds.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
1
2
3
4
5
2
1
3
4
5
Points for using air conditioner

OPERATING INSTRUCTIONS
15

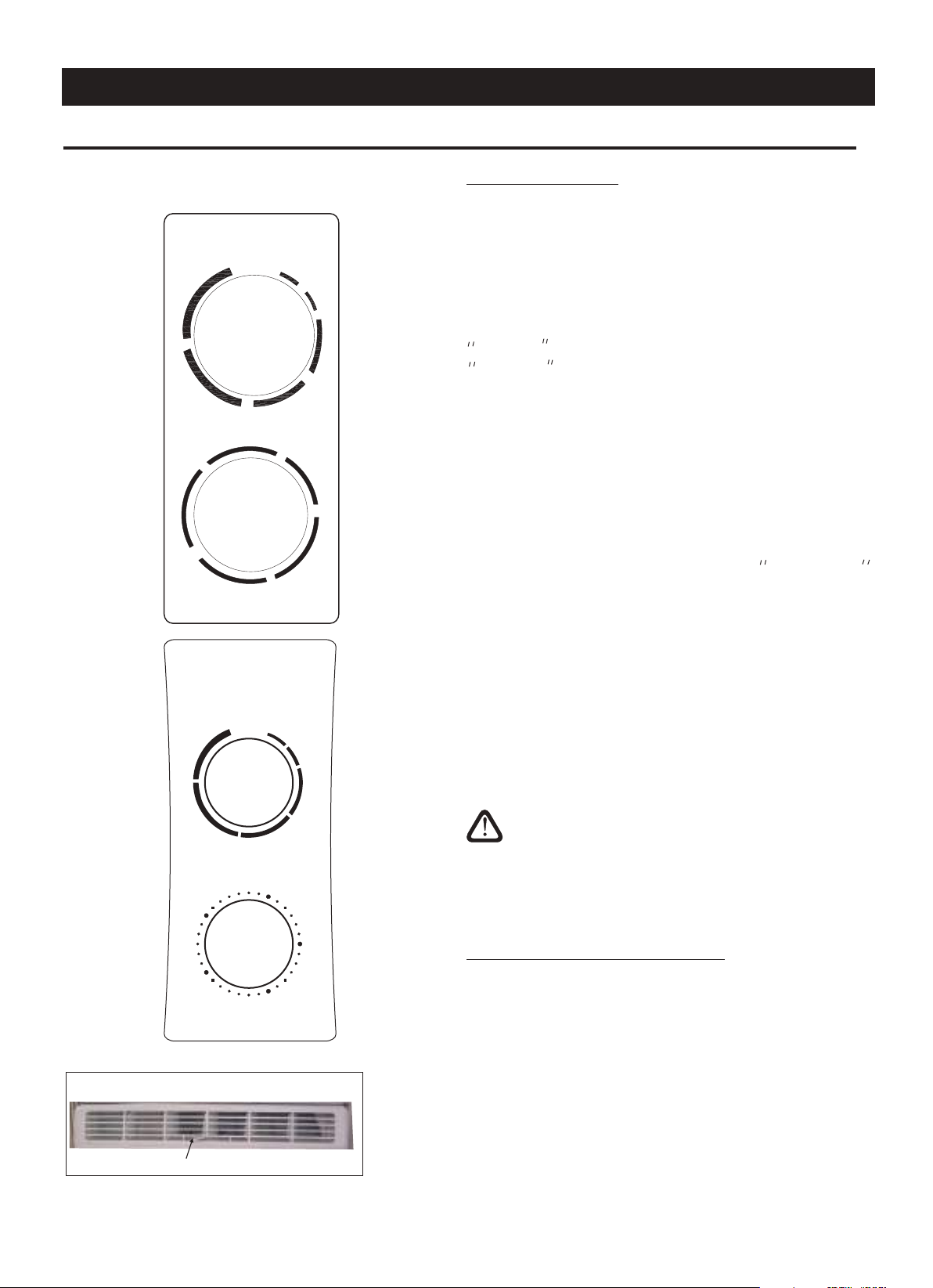

Operation instructions
Control Panel
The controls featured in this manual are representative
of many available models. Your model may offer slightly
different features.
Cool Mode
The desired cool setting is selected by rotating the knob
to the appropriate location.
HI COOL has maximum cooling effect and airflow.
LO COOL has minimum cooling effect and airflow.
Fan Mode
Rotate the knob to select your choice of fan speeds for air
circulation.
NOTE: When selecting a fan speed, the compressor will
not run.
Thermostat
The thermostat is used to set the desired room tempera-
ture when the unit is being operated in the COOL MODE.
TEMPERATURE
min
cool
max
cool
COOLING
1
4
5
6
7
To set the desired room temperature, rotate the thermostat
switch to the desired setting. After the set temperature is
achieved the thermostat will automatically start and stop
the compressor in order to maintain the desired set
temperature.
Rotate the thermostat selector clockwise for higher cool
settings. Higher cool settings will provide lower room
temperature. Rotate the thermostat selector counter
clockwise for lower cool settings. Lower cool settings will
provide higher room temperature.
2
3
lo
fan
lo
cool
hi
cool
hi
fan
OFF
Air Directional Louvers
The louvers will allow you to direct the air flow Left or
Right throughout the room as needed.
Move the Center handle from side to side until the
desired Left/Right direction is obtained.
Air Direction
Please always wait 3 minutes when turning
unit off then on again, and when changing from
cool to fan and back to cool. This prevents
compressor from overheating & possible
circuit breaker tripping.
Center handle(3)
TEMPERATURE
COOLING
Wait Three Minutes Before Restarting
The control panel of the unit you bought may
be look like one of the following:
min
cool
max
cool
6
5
4
3
2
1
7
Low
Fan
Low
Cool
High
Cool High
Fan
OFF

16

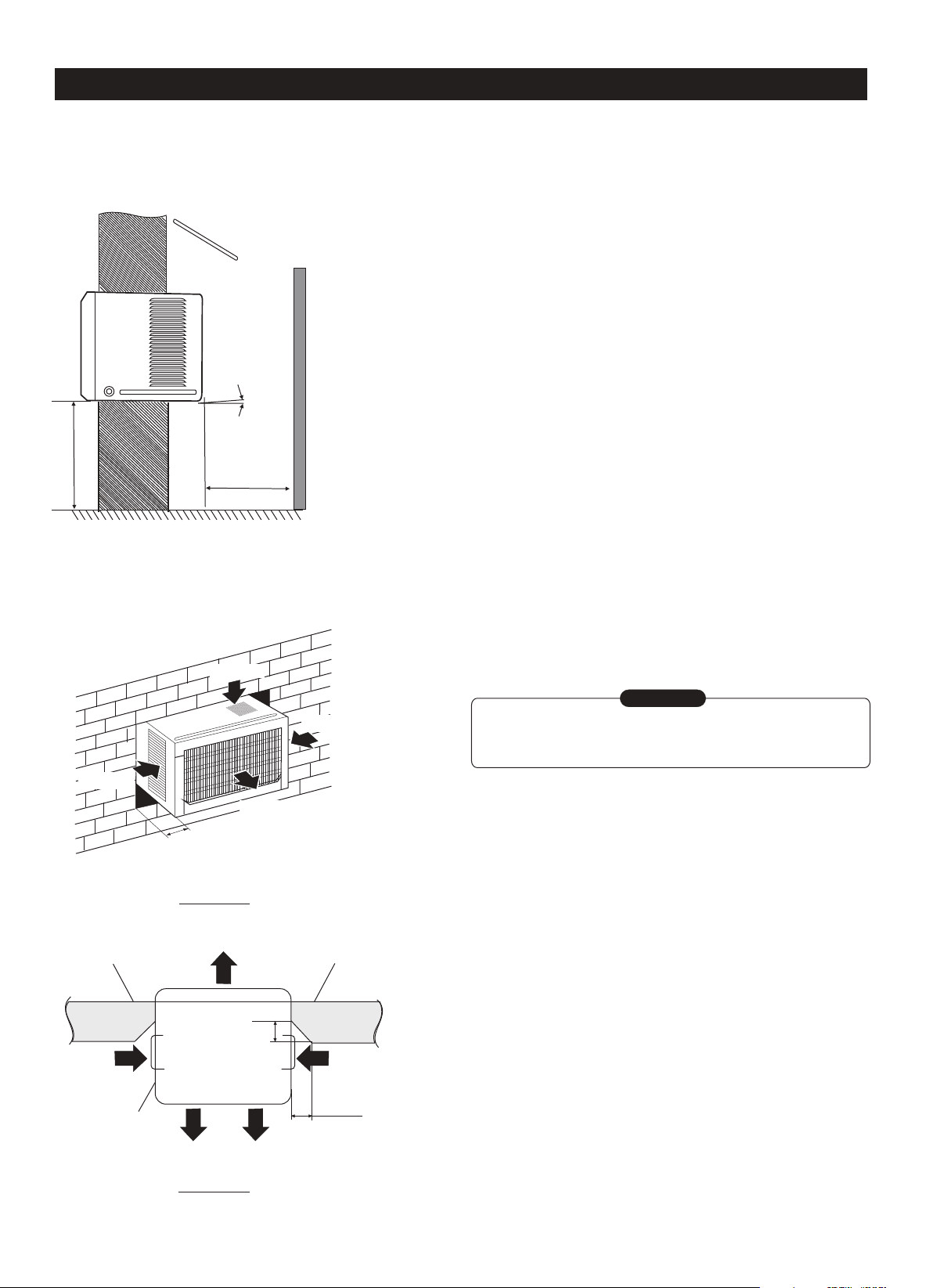

INSTALLATION INSTRUCTIONS
NOTE: Before installing, remove all packaging from inside the carton, along
with any inserts placed into the side louvers.
Select the best location
1. To avoid vibration and noise, make sure the unit is
installed securely and firmly.
2. Install the unit where the sunlight does not shine
directly on the unit. If the unit receives direct
sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or
wall, within 50cm from the back of the cabinet
because it will prevent heat radiation of the
condenser. Restriction of outside air will greatly
reduce the cooling and heating efficiency of the
air conditioner.
4. Install the unit a little obliquely outward not to
leak the condensed water into the room (about
O
3~4 with level).
5. Install the unit with its bottom portion 75~150cm
above the floor level.
6. The power cord must be connected to an
independent circuit. The yellow/green wire must
be grounded.
All side louvers of the cabinet must remain
exposed to the outside of the structure.
CAUTION
75~150cm
Over 50cm
AWNING
FENCE
Suggested tools
1. Screw driver (medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Level gauge
Note: Unit may be supported by a solid frame
from below or by a hanger from a solid
overhead support.
AIR IN
AIR IN
AIR OUT
100mm minimum
OPTION A
AIR IN
LOUVRE
BRICK
WALL
O
45 BRICK CUT AWAY
TO CLEAR LOUVRES
FRONT
AIR OUT
AIR INAIR IN
TOP
VIEW
O
45 BRICK CUT AWAY
TO CLEAR LOUVRES
100mm
BRICK
WALL
100mm
OPTION B
Select the best location
Installations of the unit into the wall
O
3~4
NOTE: After installing,make sure the air conditioner
O
is tilted 3~4 to the outside to allow water drainage
a nd p erfect c ooling e fficiency.

17
CARE AND CLEANING
CARE AND CLEANING
Clean your air conditioner occasionally to keep it
looking new. Be sure to unplug the unit before
cleaning to prevent chock or fire hazards.
CAUTION
Air Filter Cleaning
The air filter should be checked at least once a month to
see if cleaning is necessary. Trapped particles in the filter
can build up and cause an accumulation of frost on the
cooling coils.
Remove the filter by sliding out from the right-hand side.
Wash the filter using liquid dishwashing detergent and
warm water. Rinse filter thoroughly.
Gently shake excess water from the filter. Be sure the
filter is thoroughly dry before replacing.
Or, instead of washing you may vacuum the filter clean.
。 。
Note: Never use hot water over 40 C(104 F) to clean th e
ai r filter. Never attempt to operate the unit without the air filter.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent shock or
fire hazard. The cabinet and front may be dusted with an
oil-free cloth or washed with a cloth dampened in a
solution of warm water and mild liquid dishwashing
detergent. Rinse thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet
front.
Be sure to wring excess water from the cloth before
wiping around the controls. Excess water in or around
the controls may cause damage to the air conditioner.
Plug in air conditioner.
Winter Storage
If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the
installation instructions. Cover it with plastic or return it
to the original carton.
NEVER operate the air conditioner without the
air filter, as dust/dirt particles can contribute to
equipment failure.
CAUTION
! !

Air conditioner
freezing up
See Air Conditioner Freezing Up below.
Cooling coils have
iced up.
Ice blocks the air flow and
stops the air conditioner
from cooling the room.
Set the fan at MED or HIGH until the ice
melts.
18
TROUBLESHOOTING
Abnormal Operation
Normal Operation
Air conditioner
does not cool
as it should
Air conditioner
does not start
Problem Possible Causes What To Do
The air conditioner is
unplugged.
Make sure the air conditioner plug is pushed
completely into the outlet and switched on.
Troubleshooting Tips
Save time and money! Review the chart below first and you may not need to call for service.
You may hear a pinging noise caused by water being picked up and thrown against the
condenser on rainy days or when the humidity is high. This design feature helps
remove moisture and improve efficiency.
You may hear the thermostat click when the compressor cycles on and off.
Water will collect in the base pan during high humidity or on rainy days .The water may
overflow and drip from the outdoor side of the unit.
The fan may continue to operate when the compressor has cycled off.
The fuse is blown/circuit
breaker is tripped.
Check the house fuse/circuit breaker box
and replace the fuse or reset the breaker.
Power failure.
If power failure occurs, switch off and
disconnect/unplug the power cord. When
power is restored, reconnect (plug in) the
power cord, switch on the power and wait
3 minutes to restart the air conditioner to
prevent tripping of the compressor overload.
Airflow is restricted .
Make sure there are no curtains, blinds, or
furniture blocking the front of the air conditioner.
Clean the filter at least every 2 weeks.
See the care and cleaning section.
When the air conditioner is first turned on you
need to allow time for the room to cool down.
The air filter is dirty.
The room may have
been hot.
Check for open furnace floor registers and
cold air returns.
Cold air is escaping.

SPECIFICATIONS
Minimum norminal cross-sectional area of conductors:
Rated current of appliance(A)
2
Nominal cross-sectional area(mm )
0.75
1
1.5
2.5
Suggest Minimum Wire Size(AWG:American Wire Gage):
Appliance Amps
AWG Wire Size
10
13
18
25
18
16
14
12
30 10
Unit dimensions:
NOTE: Value of D is for reference only.
＞3 and 6
≤
＞6 and 10
≤
＞10 and 16
≤
＞16 and 25
≤
MODEL
(Btu/h)
BODY DIMENSION(mm)
(W X H X D)
406X306X335
406X306X390
471X340X400
471X340X400
19
<7000
>7000
