Kolin KDM-20LES User manual

Before operating this product, please read the instructions
carefully and save this manual for future use.
16120100000251
KPII20180410
The design and specifications are subject to change without prior notice
for product improvement. Consult with the sales agency or manufacturer
for details. Any updates to the manual will be uploaded to the service
website, please check for the latest version.
KDM-20LES
DEHUMIDIFIER
USER MANUAL

CONTENTS
SAFETY PRECAUTIONS
Warning ..........................................................................................................................................2
Caution ...........................................................................................................................................2
Electrical information ......................................................................................................................3
OPERATING THE UNIT
When using the unit .......................................................................................................................8
Removing the collected water ........................................................................................................9

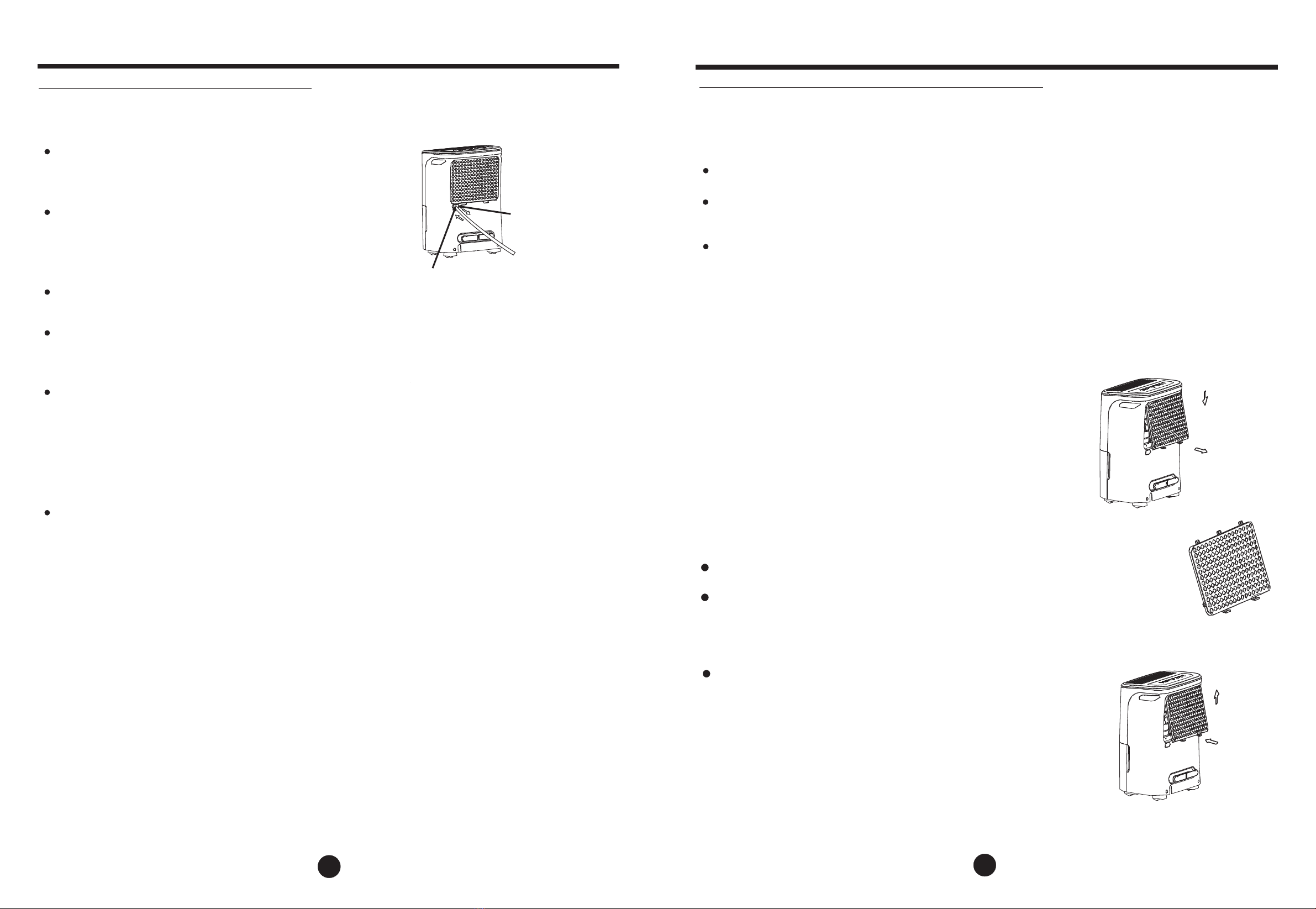

CARE AND MAINTENANCE
Care and cleaning of the dehumidifier ..........................................................................................11
TROUBLESHOOTING TIPS
Troubleshooting tips ..................................................................................................................... 13
CONTROL PADS ON THE DEHUMIDIFIER
Control pads....................................................................................................................................4
Other features................................................................................................................. ...............5

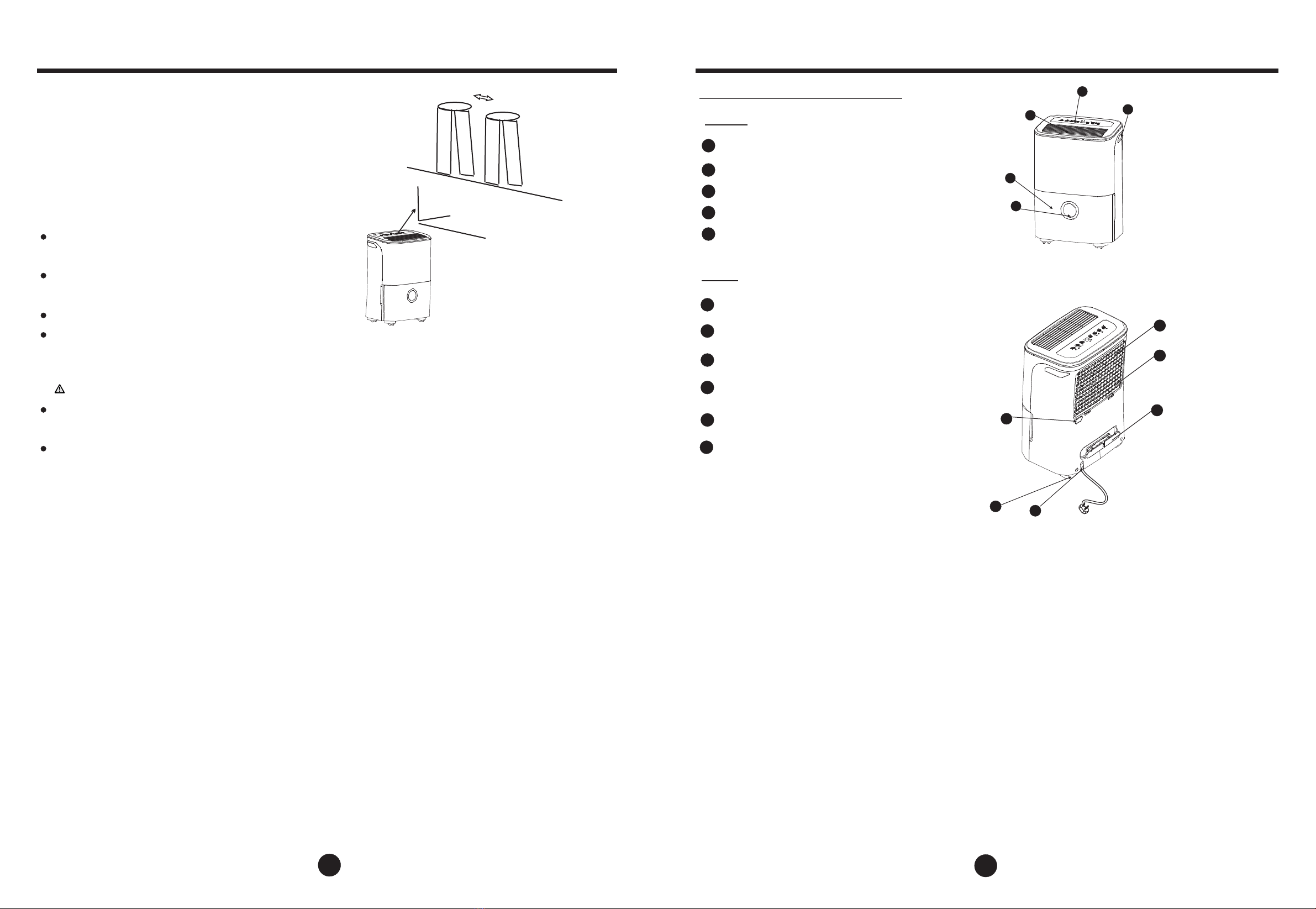

IDENTIFICATION OF PARTS
Identification of parts ......................................................................................................................7
Positioning the unit .........................................................................................................................8
SOCIABLE REMARK
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
When using this dehumidifier in the European countries, the following information
must be followed:
1
Note About Fluorinated Gasses
-
specific information on the type, the amount and the CO equivalent in tonnes of the
fluorinated greenhouse gas(on some models), please refer to the relevant label on the
unit itself.
-Installation, service, maintenance and repair of this unit must be performed by a
certified technician.
-Product uninstallation and recycling must be performed by a certified technician.
Fluorinated greenhouse gases are contained in hermetically sealed equipment. For
2
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review o ur c hart o f T roubleshooting
Tips first, you may not need to call for service at all.
Read This Manual
CAUTION
!
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision. (be applicable for the European Countries )
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance. (be applicable for other countries except the
European Countries )
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
The appliance with electric heater shall have at l east 1 m eter s pace t o t he c ombustible
materials.
Contact the authorised service technician for repair or maintenance of this unit.

23
SAFETY PRECAUTIONS
Do not exceed the rating
of the power outlet or
connection device.
Do not modify power cord
length or share the outlet
with other appliances
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Otherwise, it may cause
electric shock or fire due to
excess heat generation.
It may cause electric shock
or fire due to heat generation.
It may cause fire and
electric shock.
It may cause electric shock
or fire due to heat generation.
It may cause electric shock.
It may cause failure of
machine or electric shock.
It contains contaminants and
could make you sick.
It may cause electric shock
or fire.
Plastic parts may melt and
cause a fire.
It may cause electrical shock
or injury.
It may cause an explosion
or fire.
Do not operate or stop the
unit by switching on or off
the power supply.
Do not insert or pull out
plug with wet hands.
You should never try to
take apart or repair the
unit by yourself.
Do not drink or use the
water drained from the unit.
Do not damage or use an
unspecified power cord.
Do not place the unit near
a heat source.
Before cleaning, turn off
the power and unplug the
unit.
Do not use the machine near flammable
gas or combustibles, such as gasoline,
benzene, thinner, etc.
!
!
CAUTION
Do not use the unit in
small spaces.
Lack of ventilation can
cause overheating and fire.
Do not put in places where
water may splash onto the
unit.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock or fire.
Place the unit on a level,
sturdy section of the floor.
If the unit falls over, it may
cause water to spill and
damage belongings, or cause
electrical shock or fire.
!
To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
WARNING
It may cause bucket full protect of
the unit and cause electric shock.
Do not take the water buc-
ket out during operation.
SAFETY PRECAUTIONS
Do not cover the intake or
exhaust openings with
cloths or towels.
A lack of air flow can lead
to overheating and fire.
Never insert your finger or
other foreign objects into grills
or openings. Take special care
to warn children of these
dangers.
Do not use in areas
where chemicals are
handled.
This will cause the unit
deterioration due to
chemicals and solvents
dissolved in the air.
Care should be taken when
using the unit in a room with
the following persons:
Infants, children, elderly people,
and people not sensitive to
humidity.
You may be injured if you
fall or if the unit falls over.
Water may spill inside the
unit, causing insulation
failure and electrical
shock or fire.
!
!
It may cause failure of
appliance or accident.
There is danger of fire or
electric shock.
Do not place heavy object on
the power cord and take care
so that the cord is not
compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
CAUTION
Do not climb up on
or sit on the unit.
If water enters the unit, turn
the unit off and disconnect the
power , contact a qualified
service technician.
!
Do not place flower
vases or other water
container on top of
the unit.
The manufactures nameplate is located on the rear panel of the unit and contains electrical
and other technical data specific to this unit.
Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding
is important. The power cord is equipped with a three-prong grounding plug for protection
against shock hazards.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by a time delay fuse or circuit breaker(please
refer to the nameplate for the electrical data), have a qualified electrician install the proper
receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not use extension cords or an adapter plugs with this unit. However, if it is necessary
to use an extension cord, use an approved Dehumidifier extension cord only (available at
most local hardware stores).
To avoid the possibility of personal injury, always disconnect the power supply to the unit,
before installing and/or servicing.
Electrical Infor mation
It may cause electric shock
or failure of appliance.

45
CONTROL PADS ON THE DEHUMIDIFIER
Control pads
3
When you push the button to change
operation modes, the unit will make
a beep sound to indicate that it is
changing modes.
NOTE: The control panel of the unit you purchased may be slightly different according
to the models.
Fig.1
2
Humidity Set Control Pads
: Down/Up Pads
TIMER Set Control Pads
Use the Up/Down pads to set the Auto start and
Auto stop time from 0.0 to 24.
The humidity level can be set within a range of
35%RH(Relative Humidity) to 85%RH(Relative
Humidity) in 5% increments.
For drier air, press the pad and set to a lower
percent value(%).
For damper air, press the pad and set a higher
percent value(%).
CONTROL PADS ON THE DEHUMIDIFIER
Other features
Bucket Full Light
Glows when the bucket is ready to be
emptied, or when the bucket is removed
or not replaced in the proper position.
When frost builds up on the evaporator coils, the
compressor will cycle off and the fan will continue
to run until the frost disappears.
NOTE:When Auto defrosting operation,the unit may
make a voice of refrigerant flowing,it is normal.
Auto Defrost
Wait 3 minutes before resuming operation
After the unit has stopped, it can not be restart
opertation in the first 3 minutes. This is to protect
the unit. Operation will automatically start after
3 minutes.
Setting the Timer
When the unit is on, first press the Timer
button, the Timer Off indicator light
illuminates. It indicates the Auto Stop
program is initiated. Press it again the
Time On indecator light illuminates.It
indicates the Auto Start is initiated.
When the unit is off, first press the Timer
button, the TIMER ON indicator light
illuminates. It indicates the Auto Start
program is initiated. Press it again the
Time Off indecator light illuminates.It
indicates the Auto Stop is initiated.
Press or hold the UP or DOWN pad to
change the Auto time by 0.5 hour incre-
ments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control
will count down the time remaining until
start.
The selected time will register in 5 seconds
and the system will automatically revert
back to display the previous humidity
setting.
When the Auto start & Auto stop times are
set, within the same program sequence,
TIMER ON OFF indicator lights illuminate
identifying both ON and OFF times are
now programmed.
Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel
the Auto Start/Stop function.
When LED display window displays the
code of P2, the Auto Start/Stop function
will also be cancelled.
Display
Shows the set % humidity level from 35% to 85% or
auto start/stop time (0~24) while setting, then shows
the actual ( ±5% accuracy) room % humidity level
in a range of 30%RH(Relative Humidity) to 90%RH
(Relative Humidity).
Error Codes and Protection Codes:
AS- Humidity sensor error--Unplug the unit and plug
it back in. If error repeats, call for service.
5
Timer Pad
Press to initiate the Auto start and Auto stop
feature, in conjuction with the and key
pads.
Auto Shut Off
The shuts off when the bucket is full,
or when the bucket is removed or not replaced in
the proper position.When the setting humidity is
reached, the unit will be shut off automatically.
For some models,the fan motor will continue
to run for 30 seconds.
dehumidifier
Auto-Restart
If the unit breaks off unexpectedly due to the power cut,
it will restart with the previous function setting automa-
tically when the power resumes.
1
4
Power Pad
Press to turn the dehumidifier on and off.
1234567
Unit operation on
indicator light
8
High fan
indicator light
Timer on/off
indicator light
Ion operation on
indicator light
Bucket full
indicator light
Continuous
operation on
indicator light
Dryer operation
on indicator light
Smart dehumidifying
operation on indicator
light
Mode Pad
Press to select the desired operation mode from
Dehumidifying,Dryer,Continuous dehumidifying and
Smart dehumidifying.
NOTE: Dryer and Smart dehumidifying modes are
optional.
6
Turbo Pad
7
Ion Pad(optional)
Press to activate the ionizer. Anions are
automatically generated by ionization. The
anions deactive the airborne chemical vapors
and dust particles. Press it again to stop the
function.
Control the fan speed. Press to select either
High or Normal fan speed. Set the fan
control to High for maximum moisture
removal. When the humidity has been
reduced and quiet operation is preferred,
set the fan control to Normal.
8
P1- Unit is defrosting-- Allow the unit time to automatically
defrost. The protection will clear after the unit self defrosts.
P2- Bucket is full or bucket is not in right position-- Empty
the bucket and replace it in the right position.
E3- Unit malfunction-- Unplug the unit and plug it back in. If
error repeats, call for service.
EC- Refergerant leakage detection malfunction-- Call for
service.
Smart dehumidifying mode(optional)
At smart dehumidifying mode, the unit will
automatically control room humidity in a
comfortable range 45%~55% according to the
room temperature. The humidity setting
function will be invalid.
NOTE: When the compressor startups or stops
running, the unit may make a loud voice, it is normal.
ES- Temperature sensor error-- Unplug the unit and
plug it back in. If error repeats, call for service.

67
IDENTIFICATION OF PARTS
Power Cord and plug
Drain hose outlet
Air intake grille
Air filter (behind the grill)
Front
Rear
Air outlet grille
Caster
Identification of parts
Fig.2
Fig.3
Water bucket
Control panel
Handle (both sides)
Water level window
1
2
3
4
5
1
2
3
4
NOTE: All the pictures in the manual are
for explanation purposes only. The actual
shape of the unit you purchased may be
slightly different, but the operations and
functions are the same.
5
4
4
5
5
Dryer mode(optional)
The unit can make the MAX dehumidification function
when it is under the Dryer mode. The fan speed is fixed
at high fan speed. The humidity level is automatically
controlled according to the actual room humidity.The unit
will quit dryer mode after a maximum 10 hours' operation.
NOTE:
The Dryer mode must be operated in a close room,do not
open the door and window.
To make the best effective dehumidification ,please first
dehydrate the wet clothes.
Make sure to direct airflow at the wet clothes (See Fig.A).
For thick and heavy wet clothes may not get the best
effective dehumidification.
CAUTION
Do not cover the air outlet of the unit with clothes. It may
cause excessive heat, fire or failure of unit.
Do not place the wet clothes on the top of the unit and do
not make the water drop into the unit. It may cause
electric shock,creepage or failure of unit.
30~50cm
30~50cm
Airflow
Fig.A
Wet clothes
Allow 30~50cm of distance
on the top and right side of
the unit to the wet clothes.
1
2
3
1
23
6
Power cord Buckle(Used
only when storing the unit.)
6
CONTROL PADS ON THE DEHUMIDIFIER

89
OPERATING THE UNIT
When using the unit
When first using the dehumidifier, operate the unit
continuously 24 hours.
This unit is designed to operate with a working
O O O O
environment between 5 C/41 F and 35 C/95 F.
If the unit has been switched off and needs to be
switched on again quickly, allow approximately
three minutes for the correct operation to resume.
Do not connect the dehumidifier to a multiple socket
outlet, which is also being used for other electrical
appliances.
Select a suitable location, making sure you have easy
access to an electrical outlet.
Plug the unit into a electrical socket-outlet with earth
connection.
Make sure the Water bucket is correctly fitted otherwise
the unit will not operate properly.
NOTE:When the water in the bucket reaches to a certain
level,please be careful to move the machine to avoid it
falling down.
A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed
storage area, such as a closet, unless there is adequate circulation of air in and out of the area.
Air outlet grille
Air intake
grille
20cm or more
20cm or more 20cm or more
20cm or more
40cm or
more
Positioning the unit
Do not use outdoors.
This dehumidifer is intended for indoor residential
applications only. This dehumidifier should not be used
for commercial or industrial applications.
Place the dehumidifier on a smooth, level floor strong
enough to support the unit with a full bucket of water.
Allow at least 20cm of air space on all sides of the unit
for good air circulation.
Place the unit in an area where the temperature will not
O O
fall below 5 C(41 F). The coils can become covered with
O O
frost at temperatures below 5 C(41 F), which may reduce
performance.
Place the unit away from the clothes dryer, heater or radiator.
Use the unit to prevent moisture damage anywhere books
or valuables are stored.
Use the dehumidifier in a basement to help prevent
moisture damage.
The dehumidifier must be operated in an enclosed
area to be most effective.
Close all doors, windows and other outside openings
to the room.
Removing the collected water
1. Pull out the bucket a little.
2. Hold both sides of the bucket
with even strength, and pull it
out from the unit.
3. Pour the water out.
There are two ways to remove collected water.
1. Use the bucket
When the unit is off,if the bucket is full, the unit
will beep 8 times and the Full indicator light will
flash, the digital display shows P2.
When the unit is on,if the bucket is full, the
compressor turns off and the fan turns off after
30 seconds for drying the water of the condenser,
then the unit will beep 8 times and the Full
indicator light will flash, the digital display
shows P2.
Slowly pull out the bucket. Grip the left and
right handles securely, and carefully pull out
straight so water does not spill. Do not put
the tank on the floor because the bottom of
the bucket is uneven. Otherwise the bucket
will fall and cause the water to spill.
Throw away the water and replace the bucket.
The bucket must be in place and securely
seated for the dehumidifier to operate.
The machine will re-start when the bucket is
restored in its correct position.
NOTES:
When you remove the bucket, do not touch
any parts inside of the unit. Doing so may
damage the product. Be sure to push the
bucket gently all the way into the unit.
Banging the bucket against anything or
failing to push it in securely may cause the
unit not to operate.
When you remove the bucket,if there is some
water in the unit you must dry it .
Fig.5
Fig.6
OPERATING THE UNIT
Casters(Install at four points on the
bottom of unit)
Do not force casters to move over
carpet, nor move the unit with water
in the bucket. (The unit may tip over
and spill water.)
NOTE:Casters is optional,some
models without.

10
9
OPERATING THE UNIT
Removing the collected water
Fig.7
Attach the hose
to the drain
hose outlet.
Cut the cover down
2. Continuous draining
NOTE: When the continuous drain feature is
not being used, remove the drain hose from
the outlet.
Water can be automatically emptied into a
floor drain by attaching the unit with a water
hose(not included).
Cut the cover down from the back drain
hose outlet. Attach a drain hose(ID=13.5mm)
and lead it to the floor drain or a suitable
drainage facility(see Fig.7).
Make sure the hose is secure so there are no
leaks.
Direct the hose toward the drain,making sure
that there are no kinks that will stop the warter
flowing.
Place the end of the hose into the drain and
make sure the end of the hose is level or
down to let the water flow smoothly.Do never
let it up.
Make sure the water hose is lower than the
drain hose outlet.
Select the desired humidity setting and fan
speed on the unit for continuous draining to
start.
3. Clean the air filter
Fig. 8
Care and cleaning of the dehumidifier
Turn the dehumidifier off and remove the plug
from the wall outlet before cleaning.
1. Clean the Grille and Case
Use water and a mild detergent. Do not use bleach
or abrasives.
Do not splash water directly onto the main unit. Doing
so may cause an electrical shock, cause the insulation
to deteriorate, or cause the unit to rust.
The air intake and outlet grilles get soiled easily, so use
a vacuum attachment or brush to clean.
2. Clean the bucket
Every few weeks, clean the bucket to prevent growth of mold,
mildew and bacteria. Partially fill the bucket with clean water
and add a little mild detergent. Swish it around in the bucket,
empty and rinse.
NOTE: Do not use a dishwasher to clean the bucket.
After clean, the bucket must be in place and securely
seated for the dehumidifier to operate.
Fig. 9
Fig. 10
The air filter behind the front grille should be
checked and cleaned at least every 30 days
or more often if necessary.
NOTE: DO NOT RINSE OR PUT THE FILTER
IN AN AUTOMATIC DISHWASHER.
To remove:
Grip the tab on the filter and pull it upward, then
pull it out as shown in Fig.8.
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it. Do not clean the
filter in a dishwasher.
To attach:
Insert the air filter into the unit from underside to
upside. See Fig.10.
CAUTION:
DO NOT operate the dehumidifier without a filter
because dirt and lint will clog it and reduce
performance.
CARE AND MAINTENANCE
11

After turning off the unit, wait one day before emptying
the bucket.
Clean the main unit, water bucket and air filter.
Cover the unit with a plastic bag.
Store the unit upright in a dry, well-ventilated place.
4. When not using the unit for long time periods
CARE AND MAINTENANCE
12
Care and cleaning of the dehumidifier
TROUBLESHOOTING TIPS
Before calling for service, review the chart below first yourself.
Problem What to check
Unit does not start
Make sure the dehumidifier s plug is pushed
completely into the outlet.
Check the house fuse/circuit breaker box.
Dehumidifier has reached its preset level or bucket is full.
Water bucket is not in the proper position.
Dehumidifier does not
dry the air as it should
Did not allow enough time to remove the moisture.
Make sure there are no curtains, blinds or furniture
blocking the front or back of the dehumidifier.
The humidity control may not be set low enough.
Check that all doors, windows and other openings are
securely closed.
O O
Room temperature is too low, below 5 C(41 F).
There is a kerosene heater or something giving off
water vapor in the room.
,
The unit makes a loud
noise when operating
The air filter is clogged.
The unit is tilted instead of upright as it should be.
The floor surface is not level.
Frost appears on the
coils
This is normal. The dehumidifier has Auto defrost
feature.
Water on floor Hose to connector or hose connection may be loose.
Intend to use the bucket to collect water, but the back
drain plug is removed.
ES, AS, E3, EC,P1 or P2
appear in the display
These are error codes and protection codes. See the
CONTROL PADS ON THE DEHUMIDIFIER section.
13
