Kommander KMN-CLOIP-FME21A User manual

KMN-CLOIP-FME21A
Prisoner Partition
Installation Manual
Ford Mach-E 2021+

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 2/30
Copyright Notice
© Cyberkar® Systems, 2023
No part of the documentation materials accompanying this Cyberkar® Systems software product
may be reproduced, transmitted, transcribed, stored in a retrieval system, sold, exploited
commercially or translated into any language or computer language, in any form or by any means,
including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without
prior written permission of Cyberkar® Systems.
The contents of this documentation are protected by applicable copyright laws and will be
distributed with a software that includes an end-user license agreement.
The information contained herein is provided for informational purposes only and is subject to
change without notice. Cyberkar® Systems assume no responsibility or liability for any errors or
inaccuracies that may appear in the informational content contained in this document.
Cyberkar® Systems, Cyberkar® and Kommander® logos are trademarks of Cyberkar® Systems in the
United States and Canada. Other trademarks used in this document may be trademarks of the
manufacturers or vendors of the respective products.
Cyberkar® Systems
Address: 3026 Anderson, suite 202
Terrebonne, Quebec, J6Y1W1
Canada
Toll-free number: 1-855-951-3080
E-mail: [email protected]

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 3/30
Table of Content
1 WORK TIME.................................................................................................4
2 EXPLODED VIEW..........................................................................................5
3 PARTS INCLUDED ........................................................................................6
4 HARDWARE BAG ..........................................................................................9
5 PREPARING TO INSTALL............................................................................. 11
6 INSTALLATION .......................................................................................... 13
7 TECHNICAL SUPPORT ................................................................................ 28

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 4/30
1 WORK TIME
Installation time 2 hours

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 5/30

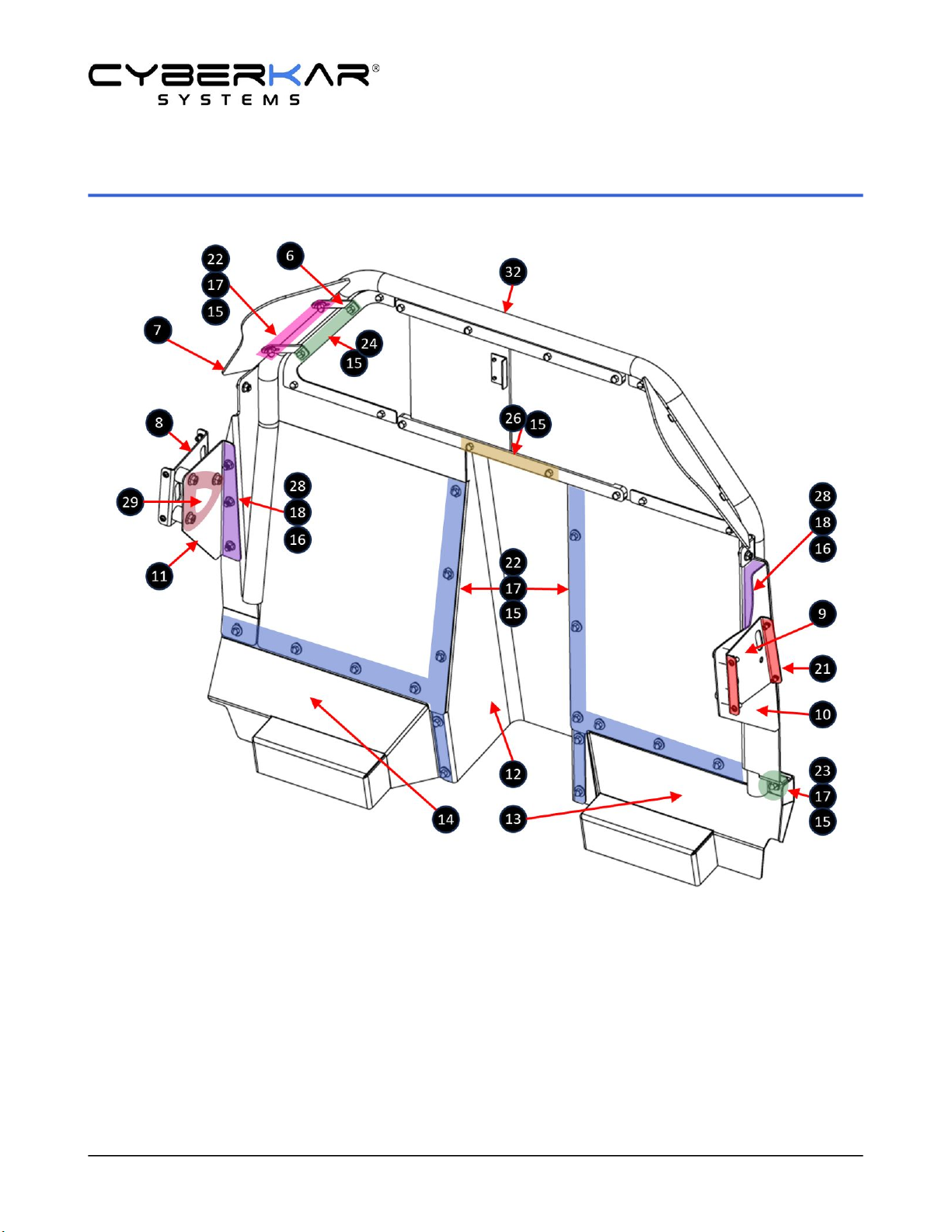

2 EXPLODED VIEW

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 6/30
3 PARTS INCLUDED
# Nº / SKU DESCRIPTION QT IMG
6FA00007648-M-10149-01 Top corner protector
bracket
4
7FA00007648-M-10150 Top corner protector 2
8FA00007648-M-10062 Car mount (passenger side) 1
9FA00007648-M-10097 Car mount (driver side) 1

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 7/30
10 FA00007648-M-10152 Lateral attachment plate
(driver side)
1
11 FA00007648-M-10153 Side attachment plate
(passenger side)
1
12 FA00007648-M-10155 Central recessed panel 1
13 FA00007648-M-10156 Lower extension (driver
side)
1

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 8/30
14 FA00007648-M-10157 Lower extension
(passenger side)
1

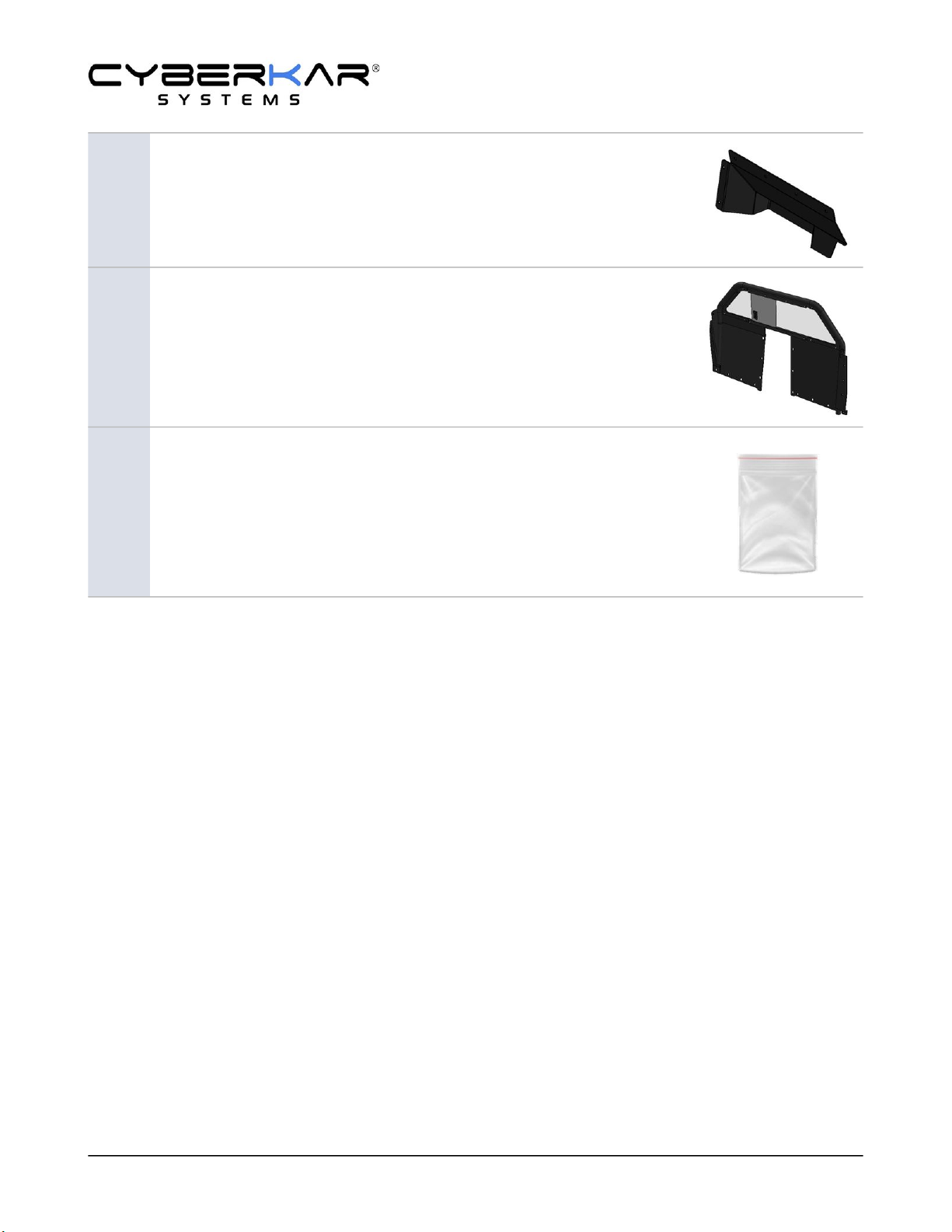

32 KMN-CLOIP-CAD-FME21A Main frame assembly 1
KMN-HB-CLOIP-FME21A Hardware bag 1

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 9/30
4 HARDWARE BAG
# Nº / SKU DESCRIPTION QT IMG
15 MCMASTER_
94000A039
Cap nut, M8x1.25, stainless 28
16 MCMASTER_
94942A103
Flanged nut M10 8
17 MCMASTER_
91116A380
Oversized washer M8 22
18 MCMASTER_
91116A390
Oversized washer M10, 18/8
stainless steel
6
21 MCMASTER_
94060A460
Drilling screw 8
22 MCMASTER_
98930A114
Square-neck bolt, M8x1.25 -
16
21
23 MCMASTER_
98930A116
Steel square-neck carriage
bolt M8x20mm
1

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 10/30
24 MCMASTER_
98930a118
Steel square-neck carriage
bolt M8x25mm
4
26 MCMASTER_
98930A124
Steel square-neck carriage
bolt M8x35
2
27 MCMASTER_
98093A614
Flanged screw M10X20 2
28 MCMASTER_
98930A319
Steel square-neck carriage
bolt M10x25
6
29 MCMASTER_
98093A746
Flanged screw M12x25 6

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 11/30
5 PREPARING TO INSTALL

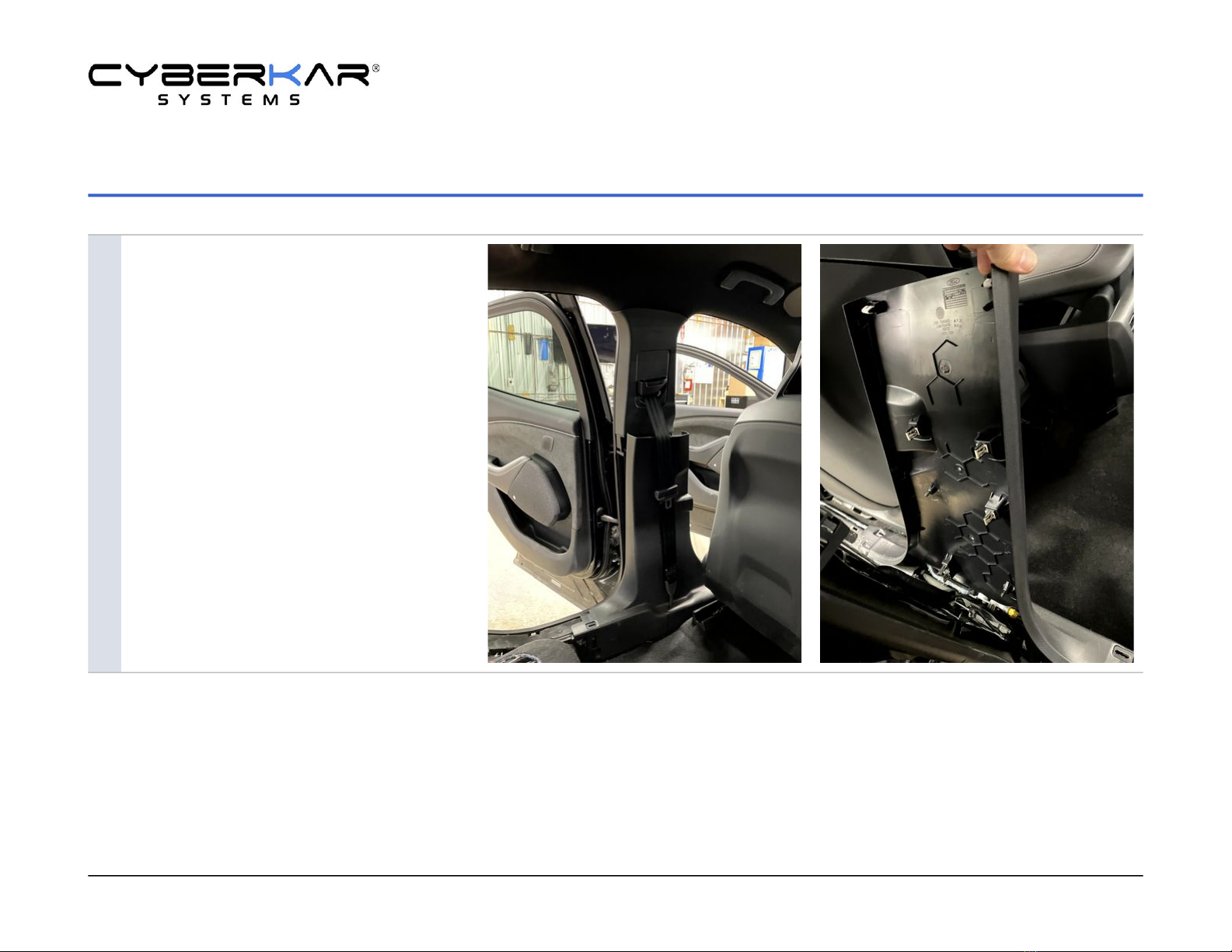

1Remove the front and rear running boards
and remove the bottom trim as shown in
the first illustration.
Refer to the second illustration if necessary
to locate the clips.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 12/30
2To remove the top trim, use a 10mm
socket to remove the screw and unclip the
trim.
3Repeat the same operation on the passenger side.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 13/30
6 INSTALLATION
1Position the driver-side vehicle anchor
plate (part#9) as shown in the photo.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 14/30
2Using a 13/64"drill bit, drill 4holes using
the piece as a guide (2forward and
2back).

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 15/30

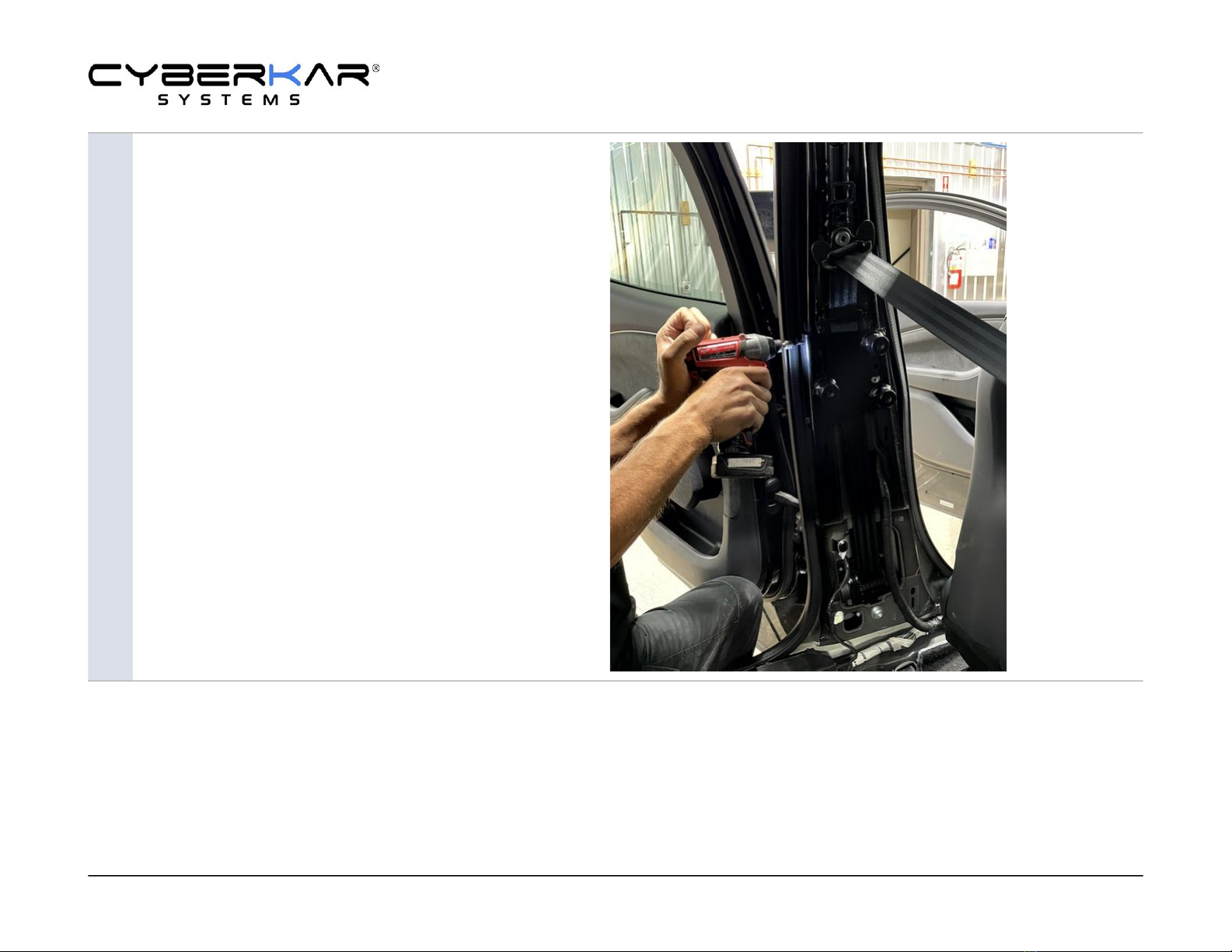

3Use 4drilling screws (item#Q21) to
secure the vehicle anchor plates.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 16/30

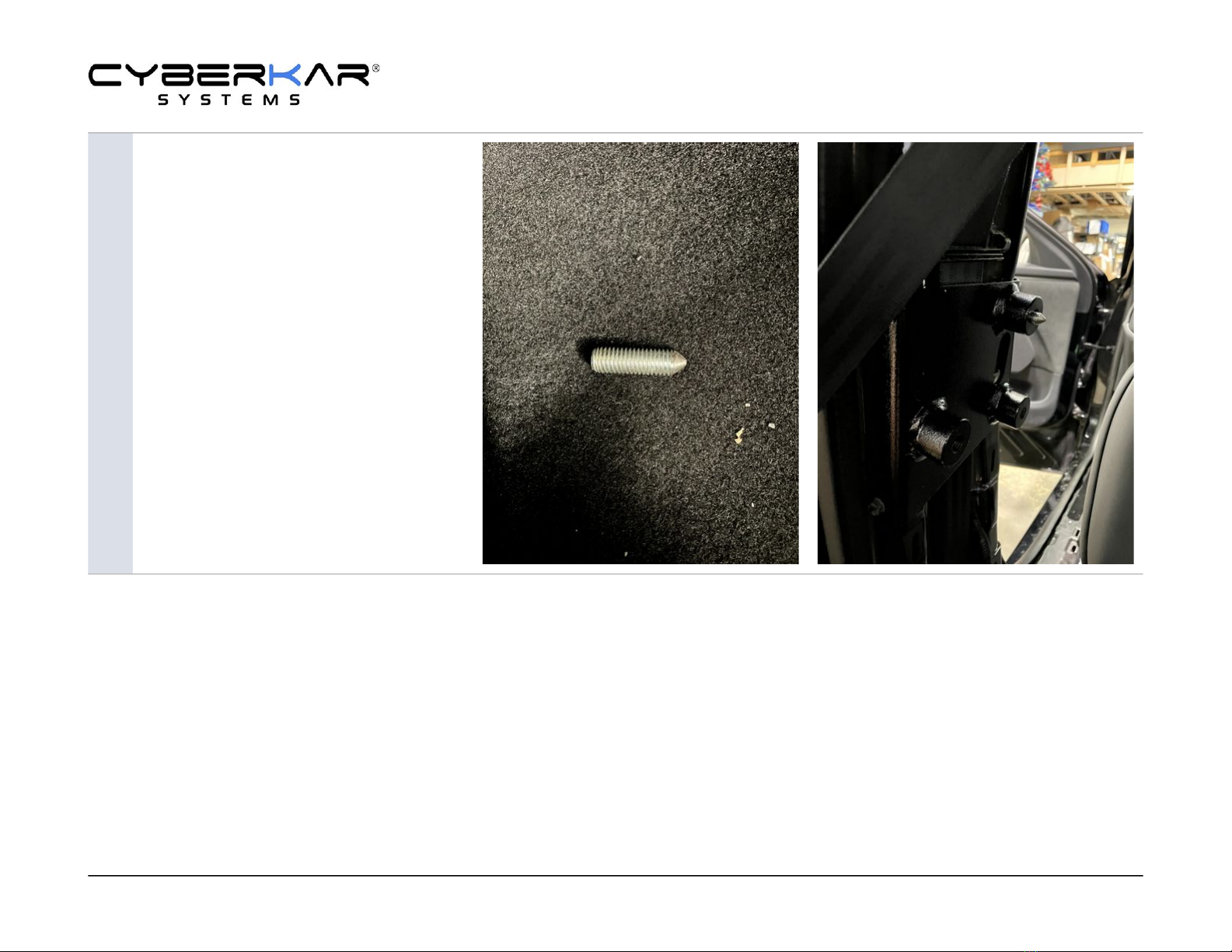

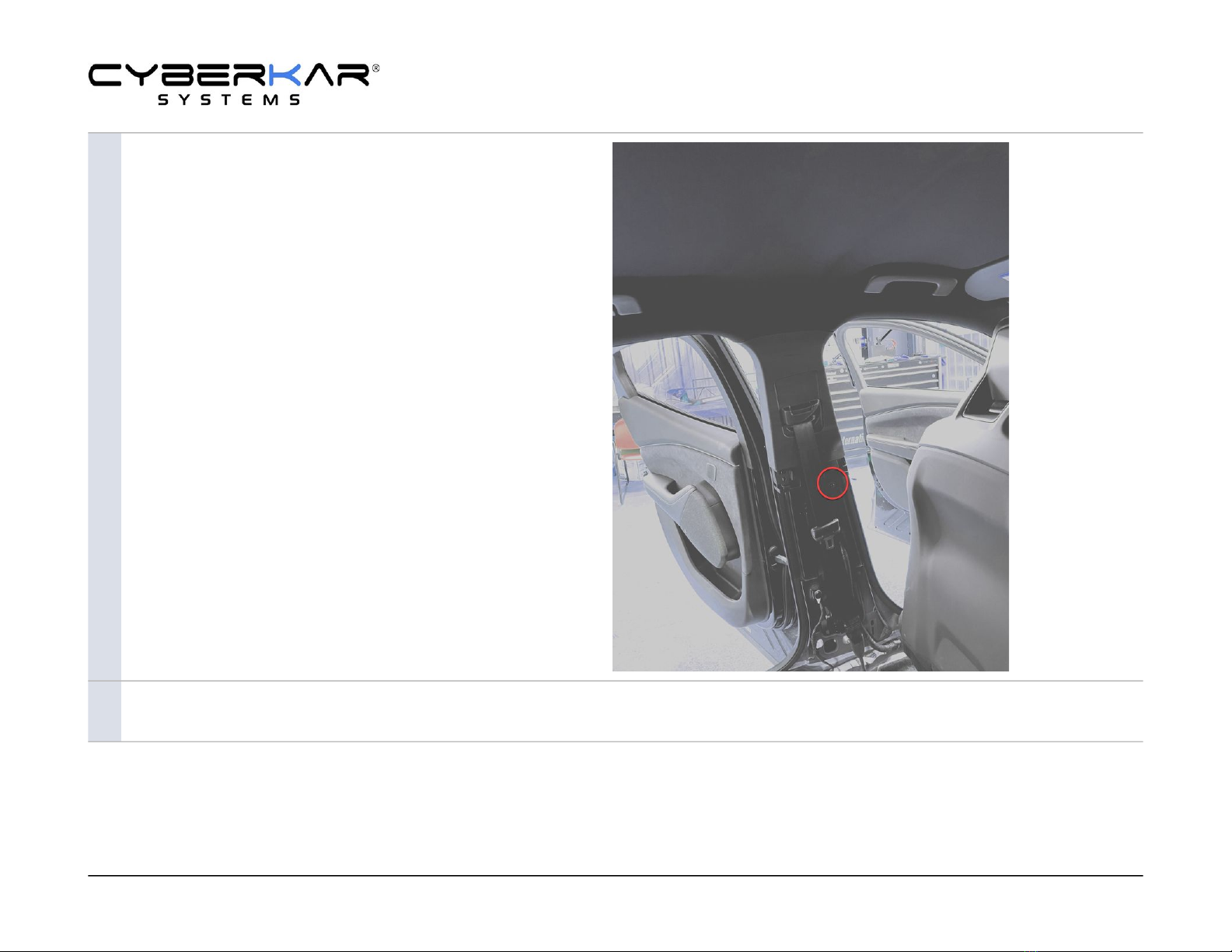

4Insert a punch into the front top anchor.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 17/30
5Place the top seal back in place and
gently knock on the plastic (against the
punch) using a rubber mallet.
This will accurately mark the location of
the hole to be drilled later.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 18/30

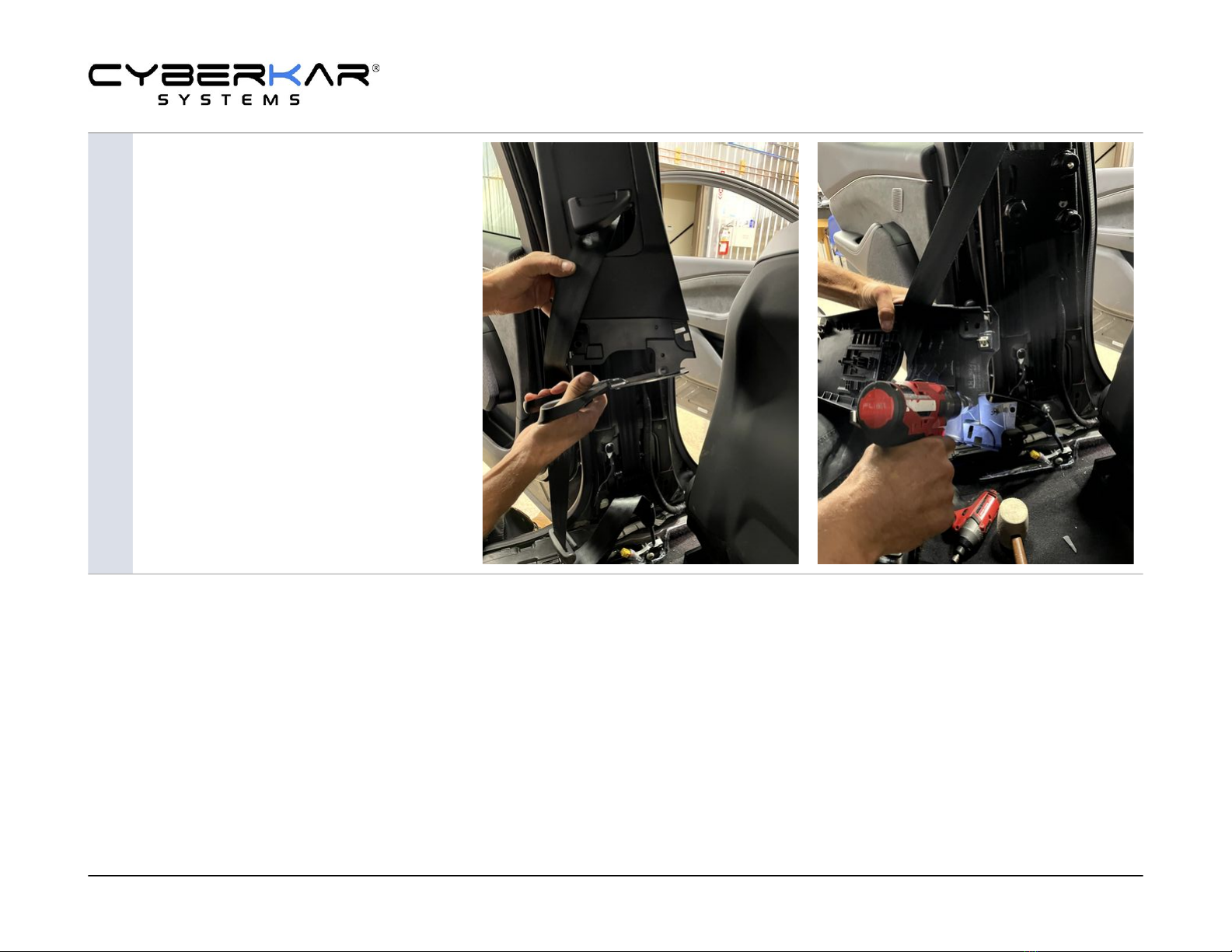

6Cut the bottom of the trim as shown in
the photo.
Using a tapered drill bit, drill a hole of
sufficient size to insert the vehicle anchor
plate sleeve into it.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 19/30

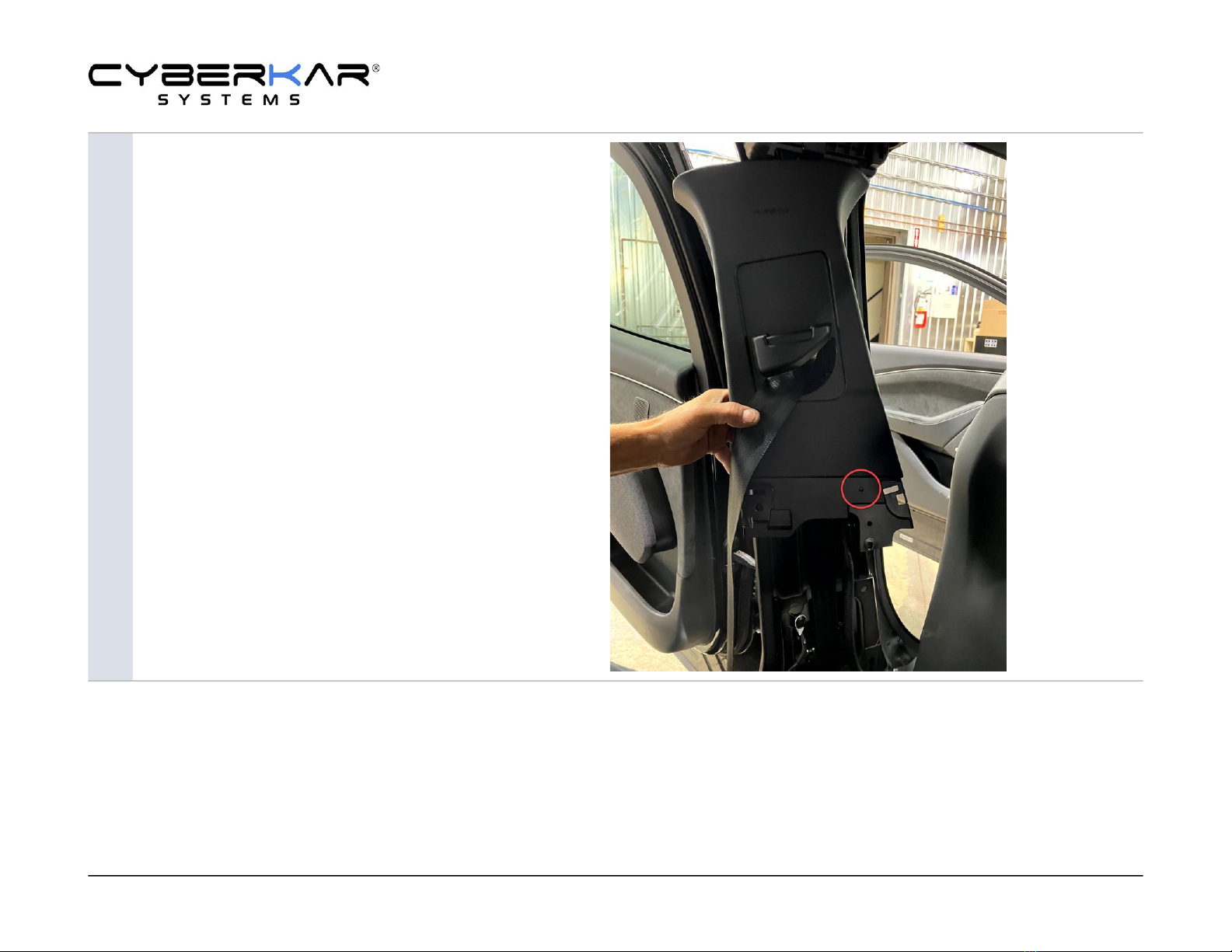

7Replace the trim and then replace the
screw using a 10mm socket.

Prisoner Partition
KMN-CLOIP-FME21A
Installation Manual
© All rights reserved, Cyberkar® Systems, 2023
www.kommanderbycyberkar.com/en/
Page 20/30
8Mark the 3holes to be drilled in the
bottom trim using a punch and rubber
mallet as shown in the photo.
Drill the 3holes to let the sleeves out and
reposition the trim in place.
Adjust the size of the holes as necessary
to allow the trim to enter freely without
forcing.
Reinstall the front and rear running
boards.
