Konka L32K6RW MST6E16 User manual

SERVICE MENUAL
MODEL: L32K6RW MST6E16
L37K6RW MST6E16
L42K6RW MST6E16
▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂

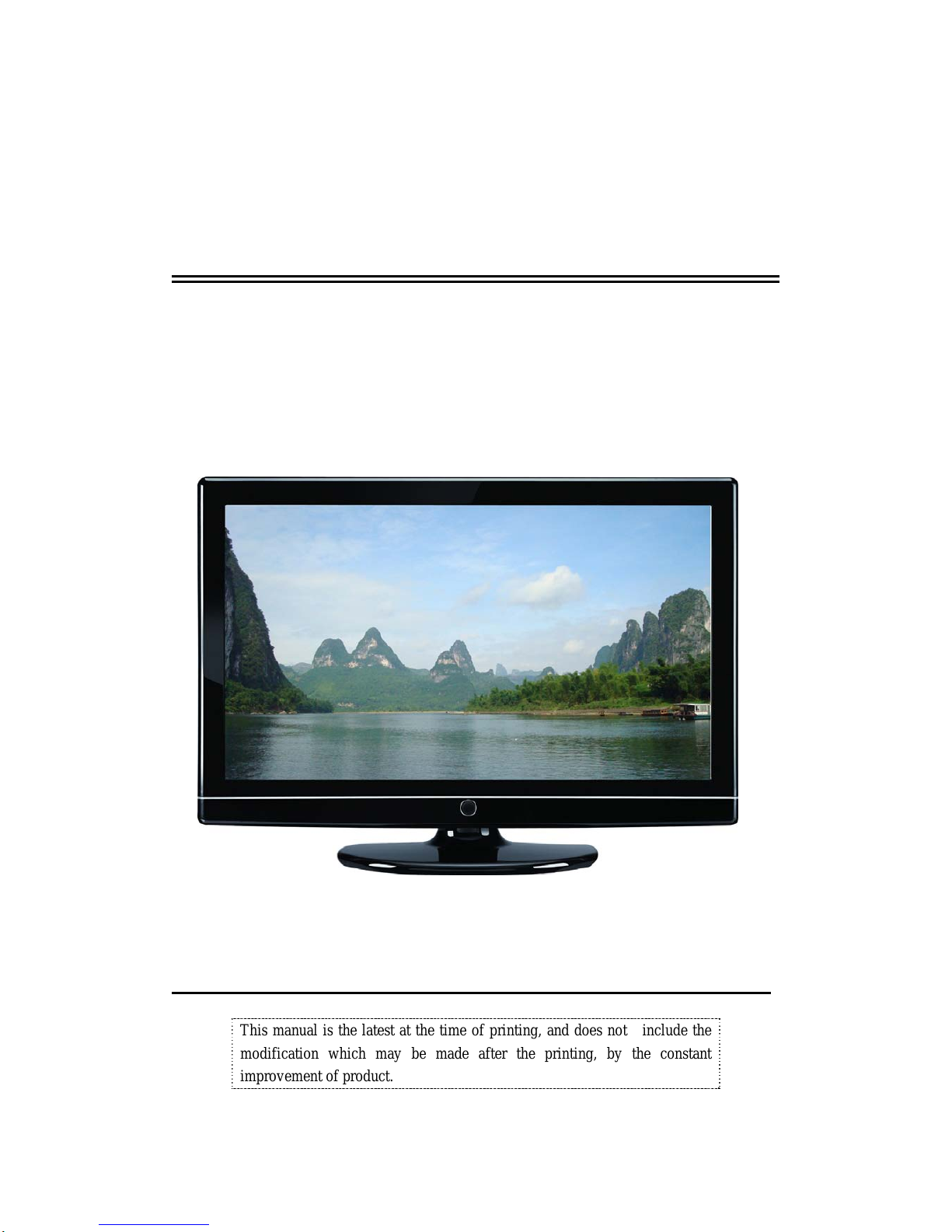

This manual is the latest at the time of printing, and does not include the
modification which may be made after the printing, by the constant
improvement of product.

CONTENTS
Number Item Pages
1 Safety Precaution.. 3-5
2 Production Instruction Book. 6-18
3 Block Diagram 19-19
4 Circuit Diagram 20-25
5 PCB layer and Component Position. 26-27
6 Explosive View 28-32
7 Basic Operations & Circuit Description 33-36
8 Simple Trouble Shoot 37-37
9 Factory Mode Setting 38-39
10 Main IC Information 40-101
11 Panel Information 102-137
12 Software Upgrade 137-140

Safety Precaution
PRECAUTIONS DURING
SERVICING
1. In addition to safety, other parts and
assemblies are specified for conformance with
such regulations as those applying to spurious
radiation. These must also be replaced only
with specified replacements.
Examples: RF converters, tuner units, antenna
selection switches, RF cables, noise-blocking
capacitors, noise-blocking filters, etc.
2. Use specified internal Wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
3. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulating Tape
2) PVC tubing
3) Spacers (insulating barriers)
4) Insulating sheets for transistors
5) Plastic screws for fixing micro switches
4. When replacing AC primary side components
(transformers, power cords, noise blocking
capacitors, etc.), wrap ends of wires securely
about the terminals before soldering.
5. Make sure that wires do not contact heat
generating parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)
6. Check if replaced wires do not contact sharply
edged or pointed parts.
7. Make sure that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclo
sure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL ONLY.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MAKE YOUR CONTRIBUTION
TO PROTECT THE
ENVIRONMENT
Used batteries with the ISO symbol
for recycling as well as small accumulators
(rechargeable batteries), mini-batteries (cells) and
starter batteries should not be thrown into the
garbage can.
Please leave them at an appropriate depot.
WARNING:
Before servicing this TV receiver, read the
SAFETY INSTRUCTION and PRODUCT
SAFETY NOTICE.
SAFETY INSTRUCTION
The service should not be attempted by anyone
unfamiliar with the necessary instructions on this
apparatus. The following are the necessary
instructions to be observed before servicing.
1. An isolation transformer should be connected in
the power line between the receiver and the
AC line when a service is performed on the
primary of the converter transformer of the set.
2. Comply with all caution and safety related
provided on the back of the cabinet, inside the
cabinet, on the chassis or picture tube.
3. To avoid a shock hazard, always discharge the
picture tube's anode to the chassis ground
before removing the anode cap.
4. Completely discharge the high potential voltage
of the picture tube before handling. The picture
tube is a vacuum and if broken, the glass will
explode.
3

PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this
apparatus have special safety-related
characteristics.
These characteristics are offer passed
unnoticed by visual spection and the protection
afforded by them cannot necessarily be obtained
by using replacement components rates for a
higher voltage, wattage, etc.
The replacement parts which have these
special safety characteristics are identified by
marks on the schematic diagram and on the parts
list.
Before replacing any of these components,
read the parts list in this manual carefully. The
use of substitute replacement parts which do not
have the same safety characteristics as specified
in the parts list may create shock, fire, or other
hazards.
9. Must be sure that the ground wire of the AC
inlet is connected with the ground of the
apparatus properly.
5. When replacing a MAIN PCB in the cabinet,
always be certain that all protective are
installed properly such as control knobs,
adjustment covers or shields, barriers, isolation
resistor networks etc.
6. When servicing is required, observe the original
lead dressing. Extra precaution should be given
to assure correct lead dressing in the high
voltage area.
7. Keep wires away from high voltage or high
tempera ture components.
8. Before returning the set to the customer,
always perform an AC leakage current check
on the exposed metallic parts of the cabinet,
such as antennas, terminals, screwheads,metal
overlay, control shafts, etc., to be sure the set
is safe to operate without danger of electrical
shock. Plug the AC line cord directly to the
AC outlet (do not use a line isolation
transformer during this check). Use an AC
voltmeter having 5K ohms volt sensitivity or
more in the following manner.
Connect a 1.5K ohm 10 watt resistor paralleled
by a 0.15μF AC type capacitor, between a
good earth ground (water pipe, conductor etc.,)
and the exposed metallic parts, one at a time.
Measure the AC voltage across the combination
of the 1.5K ohm resistor and 0.15 uF
capacitor. Reverse the AC plug at the AC
outlet and repeat the AC voltage measurements
for each exposed metallic part.
The measured voltage must not exceed 0.3V
RMS.
This corresponds to 0.5mA AC. Any value
exceeding this limit constitutes a potential
shock hazard and must be corrected
immediately.
The resistance measurement should be done
between accessible exposed metal parts and
power cord plug prongs with the power switch
"ON". The resistance should be more than
6M ohms.
Good earth ground
such as the water
pipe, conductor,
etc.
Place this probe
on each exposed
metallic part
AC VOLTMETER
AC Leakage Current Check
4

Attention:
Motionless picture might cause permanent destruction to the display.
Be sure not to display motionless picture on the LCD TV for more than
2 hours, because it would cause picture remnants to appear, which is
called "screen burns". To avoid such picture remnants, please decrease
the "contrast" and "brightness" of the display when displaying motionless
picture.
While watching TV program in 4:3 size mode for a long time, there would
be traces on the edge of the screen's left, right and center parts because
of different transmition of the light on the screen.Similar impact on the
screen will occur when playing DVD or connecting games control. Products
destroyed by these reasons can't be guaranteed for maintenance.
It might cause picture remnants to display electronic games and motionless
picture of PC more than a period of time.To avoid such effect, please
decrease the "contrast" and "brightness" when displaying motionless
picture.
•
•
•
CAUTION
Where the MAINS plug or an appliance coupler is used as the disconnect device,
the disconnect device shall remain readily operable.
CAUTION
7KHVHVHUYLFLQJLQVWUXFWLRQVDUHIRUXVHE\TXDOL¿HGVHUYLFHSHUVRQQHORQO\7R
reduce the risk of electric shock, do not perform any servicing other than that
FRQWDLQHGLQWKHRSHUDWLQJLQVWUXFWLRQVXQOHVV\RXDUHTXDOL¿HGWRGRVR
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
%DWWHULHVVKDOOQRWEHH[SRVHGWRH[FHVVLYHKHDWVXFKDVVXQVKLQH¿UHRUWKH
like.
Used batteries should not be thrown into the garbage can, please leave them
at an appropriate depot.
5

LCD COLOR TV

1. Connection and Preparation of TV
1.1 Accessories
User Manual x 1
Power Cord x 1
Remote Control x 1
%DWWHU\8053$$$[
6WDQG[3UHDVVHPEOHG2SWLRQDO
:DOO0RXQW.LW[3UHDVVHPEOHG2SWLRQDO






1.3 Installation of Wall Mount Kit(Optional)
The Wall Mount Kit can help install the TV on the wall.
For more information about wall mounting, please refer to the instructions
provided along with the wall mount kit.
:KHQZDOOPRXQWLQJWKHSURGXFWSOHDVHFRQWDFWTXDOL¿HGSHUVRQQHO
If users choose to install the TV by themselves, the producer is irresponsible
for any possible damages caused either to the product or to persons .
1.2 Installation of Stand
1. Place the TV with the front panel facing downwards on the soft cloth or soft
pads on a desk.
2. Insert the stand into the bottom socket of the TV.
3. Insert the screws into the sockets and tighten them.

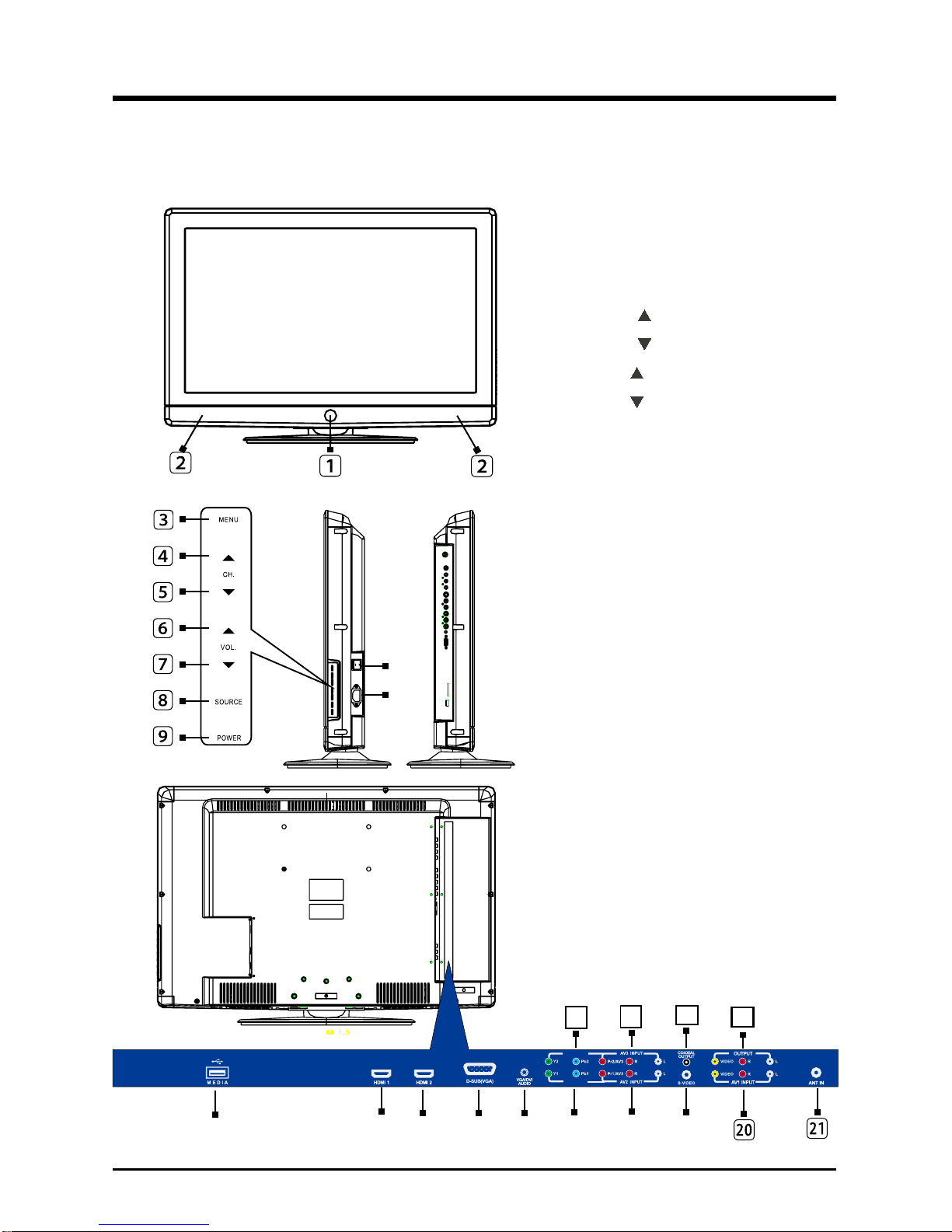

1.4 Keys and Interfaces
L32K6/L37K6/L42K6•
󱯢󱯤 󱯥 󱯦󱯧󱯩
󱯨
󱯣
22 23
1. Remote sensor window&
Power indicator
2. Speaker
3. Menu key
4. Channel “ ” key
5. Channel “ ” key
6. Volume “ ” key
7. Volume “ ” key
8. Source key
3RZHU6WDQGE\NH\
10. Power switch
11. AC input
0(',$
13. HDMI 1 input
14. HDMI 2 input
'68%9*$LQSXW
16. VGA/DVI audio input
17. YPbPr 1 and audio input
$9YLGHRDQGDXGLRLQSXW
19. S-Video input
$9YLGHRDQGDXGLRLQSXW
21. Antenna input
22. YPbPr 2 and audio input
$9YLGHRDQGDXGLRLQSXW
24.Coaxial output
$99LGHRDQGDXGLRRXWSXW
󱯡
󱯠
24 25
YPbPr 1
YPbPr 2

LCD COLOR TV

1.5 Remote Control
3
6
9
0
CH
^
P. 6,=(
>
PA*( HOLD
LIST
POS PIP
^
12
45
78
0(18
ENTER
602'( 7(;7
,1'(;
5(9($/
6,=(
MI;
)5((=( SWAP
POW(5 SOURC(
DISPLAY R(&ALL
VOL
+
_
MU7(
<(//2W
B
L
U
(
5(D
*5((1
V-CHIP
&(
CCD
P. 02'(
32:(56WDQGE\WXUQRQDQGRII
6285&(6HOHFWWKHVLJQDOVRXUFH
3. 0~9: Continue to press the keys to select
a channel.
4. DISPLAY: Display the information of
current video and audio.
5(&$//5HWXUQWRSUHYLRXVFKDQQHO
)5((=()UHH]HWKHSLFWXUH
7. PIP: Open or close PIP.
8. SWAP: Swap the position of the main
picture and sub picture.
9. POS: Change the PIP position.
10.
VOL+: Increase the volume.
11. CH∧ : Select the channel forward.
087(0XWHVRXQG
13.
VOL-: Decrease the volume.
14. CH∨ : Select the channel backward.
0(18(QWHURUH[LWPHQX
36,=(&KDQJHWKHSLFWXUHVL]H
17. , ,
, key: The menu item selection.
18.
(17(5&RQ¿UPRUHQWHU
602'(6HOHFWWKHVRXQGPRGH
7(;7RSWLRDO(QWHURUH[LWWHOHWH[W
&(+LGHWHOHWH[WFRQWHQWVSUHVVDJDLQWR
reappear.
302'(6HOHFWWKHSLFWXUHPRGH
23. HOLD: Hold the current page.
,1'(;'LVSOD\WKHLQGH[SDJH
3$*((QWHUWKHVXESDJHPRGH
5(9($/5HYHDOWKHKLGGHQLQIRUPDWLRQ
/,67(QWHUWKHWHOHWH[WOLVWPRGH
6,=(&KDQJHWKHWHOHWH[WVL]H
0,;3UHVVUHSHDWHGO\WRWXUQRQ7HOHWH[W
Teletext blending with TV program
Teletext mode.
5('$FFHVVWKHUHGLWHPRUSDJH
%/8($FFHVVWKHEOXHLWHPRUSDJH
*5((1$FFHVVWKHJUHHQLWHPRUSDJH
<(//2:$FFHVVWKH\HOORZLWHPRU
page.
Note: The INDEX, CE, PAGE, HOLD,
REVEAL, SIZE, MIX, LIST, RED,
GREEN, YELLOW, BLUE keys related
to teletext are optional.

2.3 Selection of Input Mode
- Press the Source button, and then press or to select the signal
source you desire, then press Enter or EXWWRQWRFRQ¿UP 
7KHVLJQDOVRXUFHVDUHGLVSOD\HGLQWKHIROORZLQJVHTXHQFH
2. Basic Operation
2.1 Power ON/OFF
- Connect the power cord to the AC Input. Insert the power cord into the
appropriate socket.
- Press the Power switch to switch on the TV, then press Power button to
turn on the unit.
- Press the Power switch again to switch off the TV.
Note: After switch off the TV, please don’t immediately re-open the power
switch ,should be delayed one minute more to re-open the power
switch.
2.2 Setting of Standby Mode
- Press Power (EXWWRQWRWXUQRQWKHXQLW
- Press Power ( EXWWRQDJDLQWRUHWXUQWKHGLVSOD\WRVWDQGE\PRGH7KH
power indicator turns red.
- Be sure not to set your TV in standby mode for a long period of time.
1.6 Installation of Batteries
1. Open the back lid of the remote control.
,QVWDOOWZR$$$9EDWWHULHV
(QVXUHWKHFRUUHFWSRODULW\RIWKHEDWWHULHV
3. Cover the back lid.
Please take out of the batteries from the remote
control for long time of no use.
If the remote control doesn't work properly,
please carry out the following checks.
- Check the TV is turned on.
- Check the polarity of the batteries are correct.
- Check the batteries are not drained.
- Check the power supply is normal or the power cord
is correctly connected.
&KHFNWKHUHDUHQRVSHFLDOÀXRUHVFHQWOLJKWRUQHRQ
light around.

LCD COLOR TV

TV VGA
YPbPr2 HDMI2
69,'(2
When selecting the signal source, the screen will display the information.
59
AUTO
Mono
TV mode
When there is no signal from the selected source, the warning
message will be displayed DVSHULOOXVWUDWLRQ(LWKHUFKDQJHWKHFKDQQHO
in TV mode or press Source button to change
source.
HDMI
HDMI mode
12
TV mode
2.4 Menu Option Adjustment
After you have installed the batteries into the remote control, you will
need to set some preferences on the LCD TV, using the menu system.
- The buttons for menu option adjustment include: Menu, , , , Enter
buttons.
- Press the Menu button to open the OSD Menu, then press , button to
VHOHFWWKHSDJHV7KHSDJHVDUHGLVSOD\HGLQWKHIROORZLQJVHTXHQFH
FLUFXODUGLVSOD\
󱯎 Press the Menu button to display the menu system.
󱯐 Press
, button to select the menu pages.
󱯒
Press , button to select an item.
󱯔 P ress , , , button to select or adjust a setting .
󱯖 If you do not make a selection within 15 seconds, the menu will close
automatically .
󱯘 Press the Menu button to return or exit OSD menu.
Picture Sound Advance PIP
System TV
AV1 AV2 AV3 YPbPr1 HDMI1
B/G
0(',$

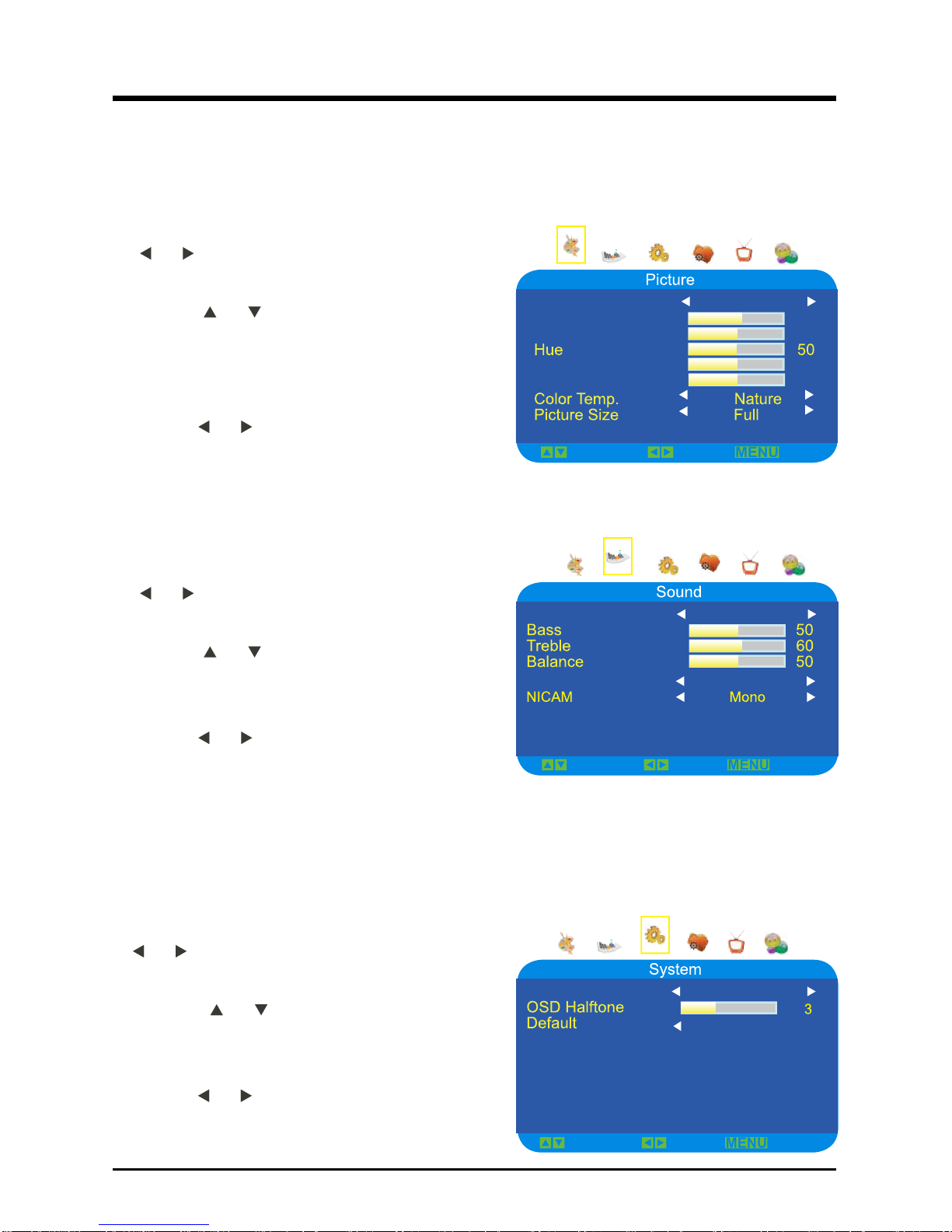

2.5 Menu Functions
2.5.1 Picture Function
Ć Adjustment of the Picture.
󱯎Press the Menu button, and then press
or button until the “Picture” menu
appears.
󱯐Press or button to highlight the
“Picture Mode”,“Contrast”,“Brightness”,
“Hue”,“Saturation” “Sharpness”,“Color
Temp”,“Picture Size”item.
󱯒Press or button to adjust.
󱯔Press the Menu button to return or exit.
2.5.2 Sound Function
Ć Adjustment of the Sound
󱯎Press the Menu button, and then press
or button until the “Sound” menu
appears.
󱯐Press or button to highlight the
“Sound Mode”, “Bass”, “Treble”,
“Balance”,“Sourround”, “NICAM” item.
󱯒Press or button to adjust.
󱯔Press the Menu button to return or exit.
Note: “NICAM” item is optional.
2.5.3 System Function
Ć Adjustment of the System
󱯎Press the Menu button, and then press
or button until the “System” menu
appears.
󱯐Press or button to highlight the
“OSD Language”,“OSD Halftone”,
“Default” item.
󱯒Press
or button to adjust.
󱯔Press the Menu button to return or exit.
Saturation 50
ExitSelect Adjust
Pictuer Mode Standard
ExitSelect Adjust
Surround Off
OSD Language (QJOLVK
ExitSelect Adjust
Sharpness 50
60
Contrast
50
Brightness
Sound Mode Standard

LCD COLOR TV

2.5.6 PIP Function
󱯎Press the Menu button, and then press
or button until the “PIP” menu
appears.
󱯐Press or button to highlight the
“Multi Window”,“Sub Source”,“Size”,
“PIP H-Position”,“PIP V-Position”,
“Border Color”,“Sound Source”,
“Swap” item.
󱯒Press
or button to adjust.
󱯔Press the Menu button to return or exit.
Ć Adjustment of the PIP
2.5.5 TV Function (Optional) (Only for TV)
Ć Adjustment of the TV
󱯎Press the Menu button, and then press
or button until the “TV” menu
appears.
󱯐Press or button to highlight the
“Channel”, “Color System”, “Sound
System”, “Skip”, , “FineTuning”,
“Manual Search”, “Auto Search” item.
󱯒Press or button to select .
󱯔Press the Menu button to return or exit.
2.5.4 Advance Function
To control the noise reduction.
Ć Adjustment of the Advance
󱯎Press the Menu button, and then press
or button until the “Advance” menu
appears.
󱯐Press or button to highlight the
³'15´³6OHHS´³77;/DQJXDJH´LWHP
󱯒Press or button to select .
󱯔Press the Menu button to return or exit.
Note: ,QDFWLYHIRU9*$DQG'9,ĺ+'0,
77;/DQJXDJH :(67
ExitSelect Adjust
Channel 0
ExitSelect Adjust
T V
PIP H-Position
ExitSelect Adjust
PIP V-Position
3D NR 0,''/(
Color System PAL
Sound System DK
1
Border Color Black
Large
Size

PIP Setting23,3IXQFWLRQ;QRQ3,3IXQFWLRQ
Sub
Main
TV AV S-Video YPbPr VGA HDMI
TV ;;;OOO
AV ;;;OOO
S-Video ;;;OOO
YPbPr O O O ;;;
VGA O O O ;;;
HDMI O O O ;;;

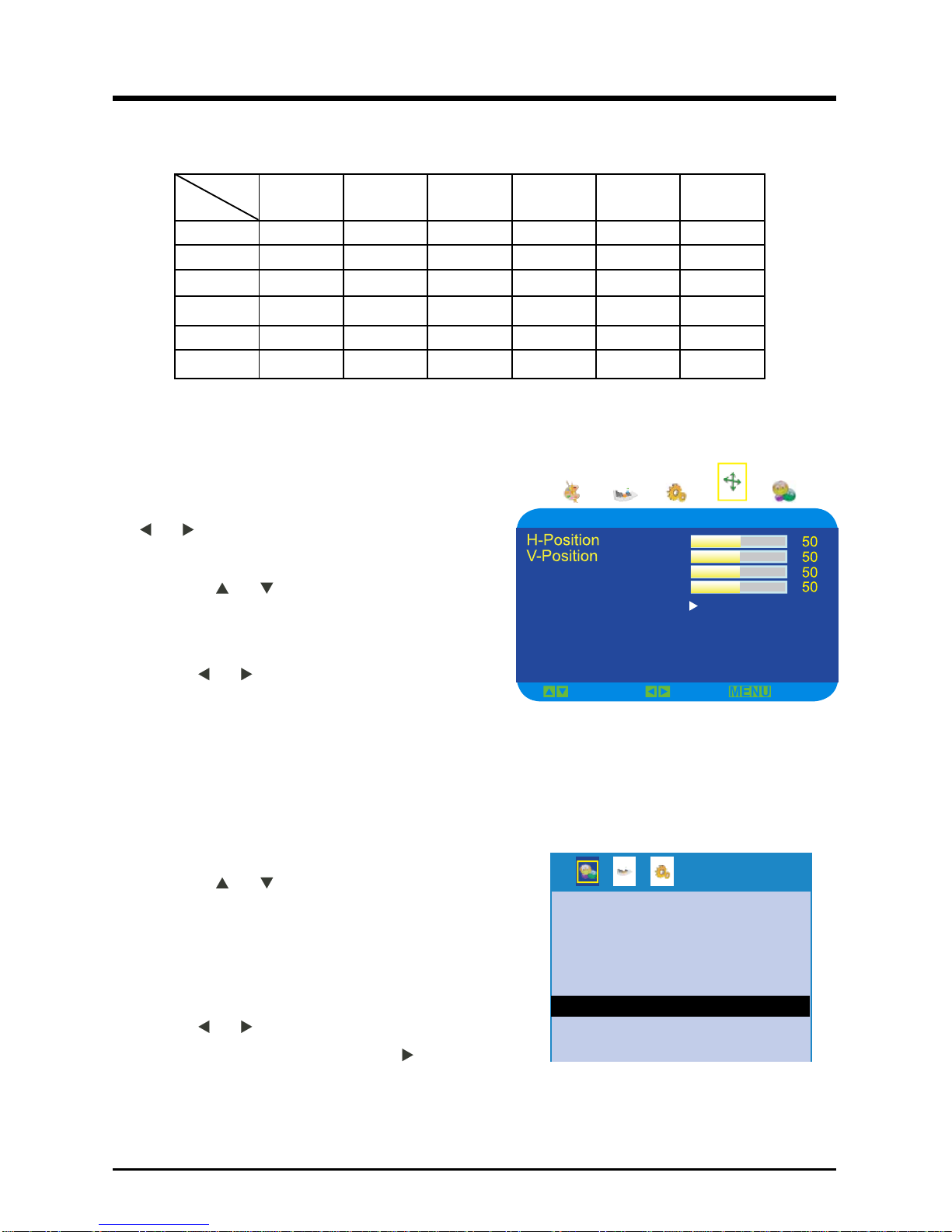

2.5.7 Geometry Function (Only for VGA )
Ć Adjustment of the Geometry
󱯎Press the Menu button, and then press
or button until the “Geometry”
menu appears.
󱯐Press  or button to highlight the
“H-Position”,“V-Position”,“Clock”,
“Phase”, “Auto” item.
󱯒Press or button to adjust.
󱯔Press the Menu button to return or exit.
Geometry
Phase
Clock
Auto
ExitSelect Adjust
2.5.8 MEDIA Function (Option )
󱯎In0(',$6RXUFHWKH0(',$0(18ZLOO
always appear as right.
󱯐Press  or button to select
-3(*03RU'(9,&(IXQFWLRQ7KH
-3(*RQO\VXSSRUWMSJIRUPDWGDWD03
only support.mp3 format data the device
only support FAT32 format hard disk.
󱯒Press
or button to highlight the
-3(*RU03¿OHWKHSUHVVEXWWRQWR
play music or decording picture.
󱯔Press the Menu button to return or exit.
Ć  $GMXVWPHQWRIWKH0(',$
-3(*

LCD COLOR TV
2.6 Using the Teletext Function (Optional)
Note: When pressing the Teletext function keys on the remote control, if the
word “NO TTX” is displayed onscreen, it means the related function
can’t be used.
Teletext is a free service broadcast by most TV stations which give up-to-the-
minute information news,weather,television programs, share price,subtitles,and
many other topics.
7RRSHUDWH7(/(7(;7
Ć Select a TV station on which Teletext is being transmitted.
Ć Press the Text button once to bring up the teletext screen.Two page
QXPEHUVDUHGLVSOD\HGRQWKHVFUHHQKHDGOLQH7KH¿UVWSDJHQXPEHU
indicates your selection,while the second shows the current page
displayed.
Teletext Page Selection
Ć (QWHUWKHUHTXLUHG7HOHWH[WSDJHDVDWKUHHGLJLWQXPEHUV7KHVHOHFWHG
page number is displayed at the top left corner of the screen. The
Teletext page counter searches until the selected page number is
located,so that the desired page is displayed on the screen.
Ć The, buttons can be used to select the preceding or following page.
Ć )DVW¿QGXVLQJWKH4 coloured buttons.Four subject-headed pages
FDQEHVHOHFWHGTXLFNO\E\SUHVVLQJWKHFRUUHVSRQGLQJFRORXUHGEXWWRQV
Red,Green,Yellow,or Blue on the remote control.
Useful features for Teletext
Mix
Ć Press repeatedly to turn on Teletext Teletext blending with TV program
Teletext mode.
Index
Ć Press this button to select the index page that displays the list of teletext
contents.

Hold
Ć The teletext page you have selected may contain more information than
is on the screen;The rest of the information will be displayed after a
period of time on a sub page.
Ć Press Hold button to stop the automatic page change.The hold symbol
will be displayed at the top left-hand corner on the screen and the
automatic page change will be stopped.
Ć Press Hold button again to continue.
Reveal
Ć Press this button once to display concealed information,such as solutions
RIULGGOHVSX]]OHVRUDTXL]
Ć Press this button again to conceal the revealed answers.
Size
Ć Press repeatedly to double the character size in the following order:Upper
half of the page, Lower half of the page, Return to normal size.
Page
Ć Press this button to enter the sub page mode.You can use , button
to display sub page; Press again to exit.
CE
Ć Press to hide teletext contents, press again to reappear.
List
Ć Press this button to list mode, press again to exit.

LCD COLOR TV

7HFKQLFDO6SHFL¿FDWLRQ
Product Model L32K6 L37K6 L42K6
Screen Size 32” diagonal 37” diagonal 42” diagonal
Aspect Ratio 16:9
Power Supply AC 100-240V~ , 50/60 Hz
Power
Consumption 140 W 200 W 280 W
TV System 3$/%*'.,6(&$0%*'.
Audio Output
Power
,QWHUQDO
6W x 2 6W x 2 8W x 2
Input Terminal $QWHQQD,QSXW',17\SH[
9*$'6XE3LQ7\SH[
+'0,9HU&RQQHFWRU[
S-Video Input Mini Din 4 Pin Terminals x 1
Video Input RCA Terminals x 3
Component Video - YPbPr x 2 RCA Terminals
Stereo Audio x 3RCA,x 1（Phone Jack for VGA/DVI）
0(',$86%7\SH[








Output
Terminal
VHWRI$XGLR2XWSXW7HUPLQDOV5&$/5
1 set of Video Output RCA Terminals
1 set of S/PDIF Output RCA Terminals



Outline Size
/[:[+PP
without stand
with stand
799x88x529
799x236x564
914x93x595
914x236x634
1022x93x657
1022x256x712
Gross Weight 15.2Kg 19.2kg 22.5kg
Working
Temperature 0ć~40ć
Working
Humidity 20% ~ 80% Non-condensing

- When the signal received by the Display exceeds the allowed range, a
warning message will appear on the screen.
 <RXFDQFRQ¿UPWKHLQSXWVLJQDOIRUPDWRQVFUHHQ
4. Supported Signal Modes
Resolution
Horizontal
)UHTXHQF\
.+]
Vertical
)UHTXHQF\
+]
640 x 480 31.50 60.00
800 x 600 35.16 56.25
37.90 60.00
1024 x 768 48.40 60.00
Resolution
Horizontal
)UHTXHQF\
.+]
Vertical
)UHTXHQF\
+]
480p 31.468 59.94
576p 31.25 50.00
720P 45.00 60.00
1080i 33.75 60.00
3[ 67.50 60.00
B. YPbPr Mode
C. HDMI Mode
Note: HDMI mode can't be applied to PC function.
Note: 1. When in VGA mode, you’d better choose the resolution of 1024 x 768.
2. You’re suggested to use the VGA connecting cord of not more than 5
meters to ensure the appropriate picture quality.
Resolution
Horizontal
)UHTXHQF\
.+]
Vertical
)UHTXHQF\
+]
480i 15.734 59.94
S[ 31.468 59.94
576i 15.625 50.00
S[ 31.25 50.00
S[ 37.50 50.00
45.00 60.00
1080i 28.13 50.00
33.75 60.00
3[ 67.50 60.00
56.25 50.00
A. VGA Mode

AV VIDEO
S-Video
AV1 Audio
VGA
HDMI 1/2
COMP-V 1
COMP-V 2
AV2 Audio
COMP-V1 L
Audio OUT
R
AC POWER IN
Simplified Functional Block Diagram
Mstar-6E16GS Chassis
TV IF
W
DC-DC POWER
UZ1084 3.3V
UZ1084 1.26V/2.5V
AUDIO AMPLIFIER
TDA8944J
SAWFILER
YPbPr SWITCH
PI5V330Q
AV AUDIO SWITCH
UTC4052
TUNER
ET-5C511-BS1A
PANELPower
Switch
AP2309
PANEL
LVDS SIGNAL
SIF/PIF
FLASH RAM
W25VF032
EEPROM
AT24C64
CONTROL SIGNAL
PANEL VDD
AUDIO
BUFFER
SCALER
Mstar6E16GS
SMPS(PSU)PCB Ass'y
HDZ1804-3A
DC 5V For System VSS
DC 12V For System VSS
DC 24V For Inverter VSS
DC 12V For AUDIO AMP
DDR RAM
128M-4ns

1 1
2 2
3 3
4 4
D D C C B B A A

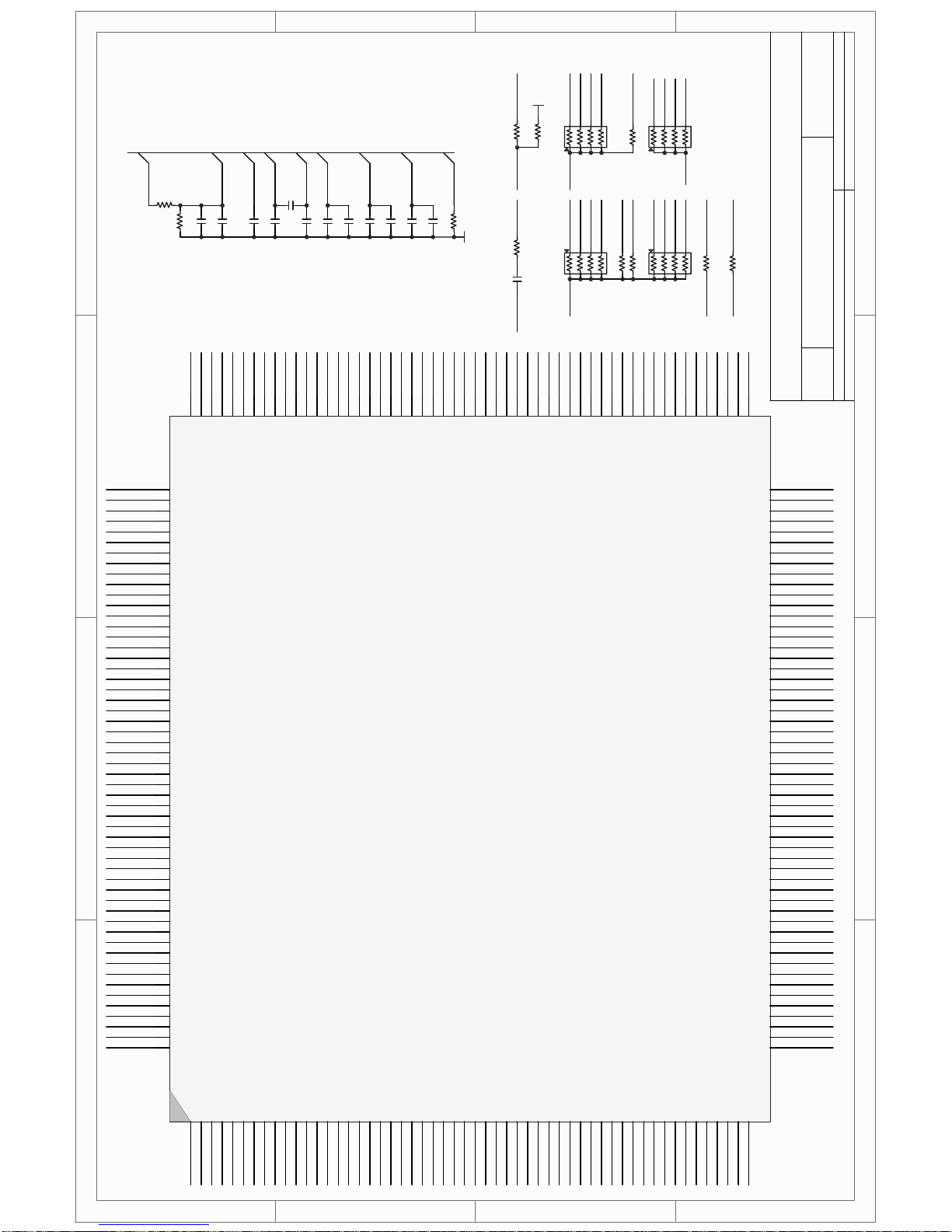

Title
Number RevisionSize
A4
Date: 2009-5-22 Sheet of File: E:\
䆒䅵ᮍḜ
\MST6M16_FILE\Scaler.SCHDOCDrawn By:
MST6E16PROJECT - SCALER
PAGE 1 / 8 REV1.0
MST6E16
FANGDW
VI_VGA_GIN+ VI_VGA_GIN- VI_VGA_RIN+ VI _SW _BIN + VI _SW _GIN + VI _SW _SOG VI_H1_C LK- VI_H1_C LK+ GND VI_H1_TX0- P_3.3V_AVDD VI_H1_TX2+ VI_H1_TX2- VI_H1_TX1+ VI_H1_TX0+ P_3.3V_AVDD VI_H1_TX1- REF_HDMI IIC_SDA_H1 II C_S CL_ H1 VI_VGA_HS VI_VGA_VS REF_ SCALER RE F_ ADC_P RE F_ ADC_N VI_VGA_BIN+ VI_VGA_BIN- VI_VGA_SOG VI _SW _RI N+ P_3.3V_AVDD GND SW_SC2_FB VI_AV1_Vin+ VI_AV2_Vin+ VI _S1 _Cin VI _S1 _Yin VI_AV3_Vin VI_TV _VIF+ VI_TV _VIF- VI_CVBS2_Out GND P_3.3V_SIF AU_TV_SIF+ AU_TV_SIF-
GND
REF_AU_P
REF_AU
P_3.3V_AU
AU_VGA_L
AU_VGA_R
AU_MUX_L
AU_MUX_R
AU_GND
SW_TV_AGC
AU_Out_L1
AU_Out_R1
AU_Out_L2
AU_Out_R2
P_3.3V_VDDP
AU_SPDIF_O
SW_MUTE_M
SW_4052_2
SW_4052_1
GND
P_2.5V_MEM SW_LED
SW_SC1_FS
VI_USB_D+ VI_USB_D- P_3.3V_VDDP SPI_CK SPI_DI SPI_CZ SPI_DO RE F_ DDR
SW_USB_DET
IIC_SDA_M II C_S CL_ M IIC_SDA_VGA II C_S CL_ VGA
VI_TV_IR
P_3.3V_VDDP SW_WP_FSH SW _WP_M SW_5V_PANEL
SW_H1_HPD
SW_LCD_BLK
P_3.3V_VDDP
P_3.3V_VDDP
GND
P_3.3V_VDDP
SW_RESET
SW_5V_USB
SW_LCD_ADJ
SW_TV_SIF
SW_P_STB
RE F_ USB
VI_LV_RE0+
VI_LV_RE0-
VI_LV_RD0+
VI_LV_RD0-
VI_LV_CK0+
VI_LV_CK0-
VI_LV_RC0-
VI_LV_RB0+
VI_LV_RB0-
VI_LV_RA0+
VI_LV_RA0-
VI_LV_RB1+
VI_LV_RB1-
VI_LV_RA1+
VI_LV_RA1-
VI_LV_RE1+
VI_LV_RE1-
VI_LV_RD1+
VI_LV_RD1-
VI_LV_CK1+
VI_LV_CK1-
VI_LV_RC1+
VI_LV_RC1-
MST6E16G-LF
MST6E16G-LF
RXACKN RXACKP RXA0N RXA0P AVDD_33 RXA1N RXA1P RXA2N RXA2P HOTPLUGA REXT DDCDA_SDA DDCDA_SCA VCLAMP REFP REFM BIN1P SOGIN1 GIN1P RIN1P BIN0M BIN0P GIN0M GIN0P SOGIN0 RIN0P AVDD_33 GND HSYNC0 VSYNC0 VSYNC2 Y0 CVBS3 CVBS2 CVBS1 VCOM1 CVBS0 VCOM0 AVDD_33 CVBSOUT1 CVBSOUT0 GND XOUT XIN AVDD_MPLL GND_VIFPLL VR27 AVDD_RXS GND_RXS SIFP SIFM VIFM VIFP AVDD_RXV
TAGC
AVDD_33
GND
AUVRM
AUVRP
AUVAG
AVDD_AU
LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_0R
AUCOM
LINE_OUR_3L
LINE_OUT_3R
LINE_OUT_2L
LINE_OUT_2R
LINE_OUT_1L
LINE_OUT_1R
GPIOD[0]
GPIOD[1]
GPIOD[2]
VDDP
GND
VDDC
AD[0]
AD[1]
AD[2]
AD[3]
WRZ
RDZ
ALE
BADR[1]
BADR[0]
RASZ
VDDC
GND
AVDD_MI
CASZ
WEZ
MADR[11]
MADR[10]
MADR[9]
MADR[8]
MADR[7]
MADR[6]
MADR[5]
MADR[4]
MADR[3]
MADR[2]
MADR[1]
MADR[0]
GND
AVDD_MI
AVDD_MIPLL
DQM0
DQS0
AVDD_MI
MDATA[0] MDATA[1]
GND
MDATA[2] MDATA[3]
AVDD_MI
MDATA[4] MDATA[5] MDATA[6] MDATA[7]
AVDD_MI
MDATA[8] MDATA[9]
GND
MDATA[10] MDATA[11]
AVDD_MI
MDATA[12] MDATA[13] MDATA[14] MDATA[15]
AVDD_MI
DQS1
DQM1
MCLKZ
MCLK
MCLKE MVREF
USB20_REXT
AVDD_USB
USB20_DM
USB20_DP
GND
VDDP
SPI_SCK
SPI_SDI
SPI_SCZ
SPI_SDO
GND
VDDC
SAR0 SAR1 SAR2 SAR3
PWM0 PWM1
DDCR_SDA
DDCR_SCL
DDCA_SDA
DDCA_SCL
INT
IRIN
VDDP
PWM2
PWM3
VDDP
GPIOT[1]
HWRESET
GND
VDDC
LVA4P
LVA4M
LVA3P
LVA3M
LVACKP
LVACKM
LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M
VDDP
GND
LVB4P
LVB4M
LVB3P
LVB3M
LVBCKP
LVBCKM
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M
VDDP
GND
GPIOM[0]
GPIOM[1]
VDDC
RXBCKN
RXBCKP
AVDD_33
RXB0N
RXB0P
GND
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
53 54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109
108
107
106
105
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162 161 160 159 158 157
RXB1N
RXB1P
GND
RXB2N
RXB2P
HPLUGB
DDCDB_SDA
DDCDB_SCL 216
215
214
213
212
211
210
209
MST6E16GS-LF
U103
VI_AV2_Vin- VI_AV1_Vin- VI_CVBS1_Out P_3.3V_VIF X_OUT X_IN P_3.3V_MPLL GND
P_3.3V_AU
AU_Out_L3
AU_Out_R3
GND
GND
GND GND GND GND
GND
VI_H2_CLK-
VI_H2_CLK+
VI_H2_TX0-
VI_H2_TX2+
VI_H2_TX2-
VI_H2_TX1+
VI_H2_TX0+
P_3.3V_AVDD
VI_H2_TX1-
II C_ SDA_H2
II C_ SCL_H2
SW_H2_HPD
GND
GND
P_1.2V_C
P_1.2V_C
P_3.3V_AVDD
P_1.2V_C
P_1.2V_C
P_1.2V_C
RE F_ VR2 7
P_3.3V_MIPLL
P_2.5V_MEM P_2.5V_MEM P_2.5V_MEM DDR_ DATA7 DDR_ DATA6 DDR_ DATA5 DDR_ DATA4 DDR_ DATA3 DDR_ DATA2 DDR_ DATA1 DDR_ DATA0 DDR_ DQS0 DDR_ LDQM
DDR_WEZ
DDR_CASZ
DDR_RASZ
DDR_BA0
DDR_BA1
DDR_AR0
DDR_AR1
DDR_AR2
DDR_AR3
DDR_AR4
DDR_AR5
DDR_AR6
DDR_AR7
DDR_AR8
DDR_AR9
DDR_AR10
DDR_AR11
DDR_ CKE DDR_ MCLK+ DDR_ MCLK- DDR_ UDQM DDR_ DQS1 DDR_ DATA8 DDR_ DATA9 DDR_ DATA10 DDR_ DATA11 DDR_ DATA12 DDR_ DATA13 DDR_ DATA14 DDR_ DATA15 P_2.5V_MEM
P_2.5V_MEM
P_2.5V_MEM
SW_SC2_FS
SW_SC1_FB
SW _TV_K EY SW _TV_K EY 1 SW _TV_K EY 2
GND
GND
REF_ SCALER
RE F_ ADC_P RE F_ ADC_N
RE F_ AU_ P RE F_ AU RE F_ VR2 7 RE F_ DDR
RE F_ USB
910 R103
10K R101
10K R102
4.7uF
C110
100n
C106
100n C107 100n
C112
100n
C109
100n/nc C108
1uF
C114
4.7uF
C115
10uF
C116
100n
C117
1n
C104
100n
C105
GND
P_2.5V_MEM
REF_HDMI
390 R104
4.7Kx4 R148 4.7Kx4 R150
SW_TV_SIF
SW_P_STB
SW_LED IIC_SDA_M II C_S CL_ M II C_SDA_VGA II C_S CL_ VGA SW_WP_FSH SW_WP_M
SW_5V_PANEL
SW_TV_KEY SW_TV_KEY 1 SW_TV_KEY 2
VI_TV _IR SW_LCD_BLK SW_5V_USB SW_LCD_ADJ
4.7Kx4 R149
4.7KR133 4.7KR134 4.7K
R135
SW_4052_2 SW_4052_1
4.7KR139
47K R131 100K R132
P_3.3V_A P_5Vs_SA P_3.3V_M
P_3.3V_AVDD
GND
P_5V_USBSW _US B_DE T
VI_LV_RC0+
P_3.3V_M
4.7Kx4 R138
SW_PDP_DISPEN
SW_MUTE_M
SW_YPbPr
SW_YPbPr
4.7KR140
P_3.3V_M
100n C123

1 1
2 2
3 3
4 4
D D C C B B A A
Title
Number RevisionSize
A4
Date: 2009-5-22 Sheet of File: E:\
䆒䅵ᮍḜ
\..\DDR&EPROM.SCHDOC Drawn By:
MST6E16PROJECT - DDR
PAGE 2 / 8 REV1.0
MST6E16
FANGDW
MVDD
1
DQ0
2
VDDQ
3
DQ1
4
DQ2
5
VSSQ
6
DQ3
7
DQ4
8
VDDQ
9
DQ5
10
DQ6
11
VSSQ
12
DQ7
13
NC
14
VDDQ
15
LDQS
16
NC
17
MVDD
18
NC
19
LDM
20
WE
21
CAS
22
RAS
23
CS
24
NC
25
BA0
26
BA1
27
A10/AP
28
A0
29
A1
30
A2
31
A3
32
MVDD
33 VSS 34
A4 35 A5 36 A6 37 A7 38 A8 39 A9 40
A11 41
NC 42 NC 43
CKE 44 CLK 45 CLK 46
UDM 47
VSS 48
VREF 49
NC 50
UDQS 51
VSSQ 52
NC 53
DQ8 54
VDDQ 55
DQ9 56
DQ10 57
VSSQ 58
DQ11 59 DQ12 60
VDDQ 61
DQ13 62 DQ14 63
VSSQ 64
DQ15 65
VSS 66
HY5DU281622ET-4 U102
100X4 R105 100X4 R107
100X4 R106 100X4 R108
22X4 R146
22X4R147
22X4R145
22X4 R144
100
R125
100
R127
33X4R143
100R123 10KR124
100R128
150R130
10KR126
1nFC111 0.1uFC113
GND
GND
GND
DDR_ DATA7 DDR_ DATA6 DDR_ DATA5 DDR_ DATA4 DDR_ DATA3 DDR_ DATA2 DDR_ DATA1 DDR_ DATA0 DDR_ DQS0 DDR_ LDQM DDR_ WEZ DDR_ CASZ DDR_ RASZ DDR_ BA0 DDR_ BA1 DDR_ AR0 DDR_ AR1 DDR_ AR2 DDR_ AR3 DDR_ AR4
DDR_ AR5 DDR_ AR6 DDR_ AR7 DDR_ AR8 DDR_ AR9 DDR_ AR10 DDR_ AR11 DDR_ CKE DDR_ MCLK+ DDR_ MCLK- DDR_ UDQM DDR_ DQS1 DDR_ DATA8 DDR_ DATA9 DDR_ DATA10 DDR_ DATA11 DDR_ DATA12 DDR_ DATA13 DDR_ DATA14 DDR_ DATA15
P_2.5V_DMC P_2.5V_DMQ
CE
1
SU
2
WP
3
GND
4SI 5
SCK 6
HOLD 7
VCC 8
PMC25L080 U101
1nF C122
100uF C118
1uF C121
BAV99
D101
N3906 Q101
10K R151
1K R153
10K R152
1K R121
1 2
14.318M
Y101
27p C119 27p C120 1M
R154
GND
GND
GND
100n C101
100
R112
100n R109
GND
NC
1
E1
2
E2
3
GND
4SDA 5
SCL 6
WP 7
VCC 8
24C04_SO8 U105
100 R114 100 R115
0 R113
4.7K R141
100n C102
15
CN5/PH2.0 CN101
4.7K/NC R110 IIC_SDA_M
II C_S CL_ M
P_5Vs_SA
GND
GND
GND
NC
1
E1
2
E2
3
GND
4SDA 5
SCL 6
WP 7
VCC 8
24C32_SOP8 U104
100 R117 100 R118
100 R116
4.7K R142
100n C103
SW_WP_M P_5Vs_SA
GND
IIC_SDA_M II C_S CL_ M
14
CN4/PH2.0 CN102
100R119 100R120
GND
X_IN X_OUT
SW_WP_FSH
P_3.3V_A
GND
P_3.3V_A
P_5Vs_SA
II C_S CL_ VGA' IIC_SDA _VGA'
SW_RESET
SPI_CK SPI_DI SPI_CZ SPI_DO
33X 4 R111
FB/0603 L101
4.7K R122
FLASH
EEPROM FOR HDCP KEY EEPROM FOR MAIN CPU
220 R155
II C_SDA_VGA II C_S CL_ VGA
