Konka KDL42MS19U User manual

Service manual
Model KDL42MS19U
※1、Adjustment
※2、Assemblyinstruction
※3、Circuitdiagram
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

1.Preface
1.1Applicablearea
ThistestmanualisapplicableforKL32GT611LCD TV.
1.2调试注意事项及要求
1.2.1 请按下列调试步骤和指定的测试仪器进行调试，否则将不能调好电视机，为了保证满意
的测试结果，在调试中必须保证所指定的偏压值。
1.2.2调试之前请务必戴好静电手套。
1.2Testnotes
1.2.1Pleasefollowthepointed teststepsandchoosethepropertestequipmentto
conductadjustment,otherwisegood effectofTVsetcouldnotbe obtained.Pointed
biasvoltage valueshouldbeensured during testtogetsatisfiedtestresult.
1.2.2Besure thatyouhavethe staticelectricity protectivegloveinbefore test.
3Testequipment
1)Computer1set
2)Multi-meter(VICTORVC9801) 1set
3)VideoSignalGenerator(ChromaModel2227/2327/VG859)1set
4)ColorAnalyzer(ChromaModel7120 )1set
5) TVVideo SignalGenerator (FLUKEPM54200) 1set
6) Remotecontrollerwithfactorykeys1set
7）TV,VGA, HDMI ,Component,AVSignalline etc1set
8）ALL－11C21set
9）BeeProg1set
4.Testitemand method
ITEM
Program
Menu.
EquipmentsRequirementsProcedureandSPEC
1
M/B
Voltage
confirmation
DigitalMultimeter
JSK3178-006
MinBoard
1.
ConnectPowertocheck whether
PowerLEDdisplaysthegreenl
ightor
not.
2.
Pleaserefertoappendix4.1/4.2/4.3
ifthereisabnormalphenomenon.
2
UpdateNVRAM
PC
BeeProg
Debug Tool
Pleaserefertoappendix
5ifthereis
abnormalphenomenon.
3 UpdateHDMI
EDID Pleaserefertoappendix
5ifthereis
abnormalphenomenon.
4
Update
HDCP
KEY
PC,ALL-11Debug
Tool
Pleaserefertoappendix5
ifthereis
abnormalphenomenon.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

5
Enterfactory
menu Enterfactorymenu :Press
MENU
buttononthe remotecontrol,then
Press digitalbutton 2008”
in
order
6
Restorethe
factorysetting
to
default value
1.Enterfactorymenu,SelectReset
TV ，Waitabout5-8seconds,
resetwill ok,then theTVwill
restart.
7
AutocolorHDTVVideo
SignalGenerator
VG859
1.Enterfactorymenu, Select“ADC
Adjust”,thenSelect “Component”
underthe “INPUTSOURCE”state,
then select “AUTOADC”,press
RIGHTarrowkeytoadjust.TV
displays “OK”meansadjustmentis
successful,ifitdisplays“FAIL”means
itneedadjustagain.
8
ColorTemp.
adjustand
white-balance
calibrate
HDTVVideo
SignalGenerator
VG859
ColorSignal
Generator
Ifyoudotheautocolorafter
calibrating the whitebalance,You
needcheck the whitebalanceagain.
a
AV:ColorTemp
.
and white-
balancecalibrate
adjust
TVSignal
Generator
ColorSignal
Generator
Inpujt
graystep
signal1.Enterfactorymenu,Select “W/B
Adjust”,select “TEMPERATURE”
to“Natural”.
2.Adjustment R/G/BGaintoget
whitecalibration;
AdjustmentR/G/BOffsettoget
black
c
alibration
,
b
YPbPr
（Component）:
ColorTempand
white-balance
calibrateadjust
HDTV
Video
SignalGenerator
VG859
ColorSignal
Generator
Input
graystep
signal 1.Enterfactorymenu,Select
“COLORTEMP”,select
“COLORTEMPNORMAL”.
2.Adjustment R/G/BGaintoget
whitecalibration;
Adjustment R/G/BOffsettoget
black calibration,
c
VGAColorTemp
and
white-balance
calibrateadjust
HDTV
Video
SignalGenerator
VG859;
ColorSignal
Generator
Input
graystep
signal 1.Enterfactorymenu,Select
“COLORTEMP”,select
“COLORTEMPNORMAL”.
2.Adjustment R/G/BGaintoget
whitecalibration;
Adjustment R/G/BOffsettoget
black calibration,
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

9.TVmode check FactoryTVSignal
orTVSignal
Generator
1.EnterUsermenu,Check whether
thepicturesnormalornot,
bluescreen
lorsnowflakepointscomingforth，it
wouldenterstandbystatein
15
minutesif nosignal
2.CheckAutoTuning/
Manual
tuning、etcrightornot.
10 VIDEOcheck DVD
Videocable
PlayDVD
SetDVD
to
interlaced output 1.Screenisclearand fluent,
Audio
checksiftheoutput isnormal。
11Y,Pb,Pr
（Component）
SDTV:
576P/480P
HDTV:
HDTVReceiver
ATSCHDTV
Tuner
Component cable
PlayDVD
SDTV/HDTV
(Y,Pr,Pb)
1.Screenisclearand fluent,
Audio
checksiftheoutput isnormal。
12 VGAINPUT
PC
VGACable
TVBOX
D-SUBcable
PCMode
Please
refertoappendix
6.1
1.ApieceMode
Screenis clearand
fluent。
2.PlayTVBOX
Screen isclearand
fluent,Audiochecks
iftheoutputis
normal
。
13 HDMI check
SAMSUNG
DVD-HD948
GdbbkDVD（or
HDMIof DVD）
HDMIcable
HDMIMode
Pleasereferto
appendix6.2
1.Select “SOURCE”Eand Select
“HDMI”
2.ApieceMode: Screen isclearand
fluent,Audiochecksifthe outputis
normal。
14 HDCPcheck DVD（
orHDMIof
DVD）
HDMIcable
VGA859
1.Select “SOURCE”Eand
Select
“HDMI”
2.checkSignalGenerator
output
HDMI/HDCPSignal,checks
ifthe
output is”PASS”
3.ifnot “PASS”
,Pleasecheck the
HDCPkey.
15
EarphoneOutput
function
check
Earphone、DVD TVorplayDVD IN
1.plugintoEarphone ，speaker
aphonia，Earphone Audioisnormal，
Press VOL+-
KeySetthe sound
volume..，Audiochecks
iftheoutput
is normal
16. remotecontrol
functioncheck
PC、DVDPattern
Generator
TVSignal
Generator
VCDorplayDVD
IN 1.Checkiftheapiecemodefunction
normal。
17
About BurnMode
InTVSource, Don’tplugtheantenna.
S
oitwillbenosignal,ThenGoto
MainMenu ‘
sFunction Pageandset
the Bluescreen
off,thenGotoMain
Menu
’
sSetupPageand setthe
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

4.1Accessories
4.1.1The inputandoutputcharacteristictest ofpower
Number ItemTest PointStandard
1The portofACinputXS901 Noshort circuit
2The resistanceof12V output VDW961 Noshort circuit
3The resistanceof5Vstboutput L802 Noshort circuit
4The resistanceof3.3STB output N810 Noshort circuit
5The resistanceof5VA output V812 Noshort circuit
6The resistanceof1.25V output L801 Noshort circuit
7The resistanceof2.5Voutput N812 Noshort circuit
8The resistanceof3.3VAoutput N811 Noshort circuit
9The resistanceof3.3Vtuner output N810 Noshort circuit
10 The resistanceofPanelVcc output V808 Noshort circuit
11 The resistanceofLEDVCC output VDW951 Noshort circuit
4.1.2 HI-POTconfirmation
Short-circuitpowerinputL/N-terminal,plus3000VACbetweentheL/N-side and power
secondaryside toholdfor sixseconds.The leakagecurrentbetweentheprimaryand
secondaryside mustbe ≤10 mA..
4.2SignalBoardpart
4.2.1Signalboardpower part
SignalBoardpowerdistribution
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

4.2.2Verifythe stateofTVset
PowerOn,Thenverifythe LED ，lightstateisPOWERONstate.
4.2.3Checking SupplyPower.
Numb
er ItemTestPointStandard
StandbyPower on
112VVDW9616.5V12V
25Vstb L802 5V5V
33.3stb N810 3.3V3.3V
45VA V812 0V5V
51.25V L801 0V1.25V
62.5V N812 02.5V
73.3VA N811 03.3V
83.3Vtuner N180 03.3V
9PanelVcc V808 012V
4.2.4Digitalsignalpart start order
Turnonthe
power N501RESET and
IOportinitialize
S
upply
power forLCD
Turnonback
lightlamp Successfulstart
andpicturedisplay
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

4.2.5Afterturningonthe power,ifblankscreen appears(nobacklightlamp),justpress
POWERbuttonseveraltimes,
4.2.6ifblankscreenisstillthere，youmustcheckthatthe voltageofeverypowersupplyis
rightornot.
4.2.7CheckifthecrystaloscillatorZ501 (27MHz)oscillateor not,and oscillatefrequency
isrightor not.
4.2.8Backlightcontrolsignal(BKLT_EN) of R704hashigh level(above3V)
ornot, ifnot, checkwhether faultsolderedorshortcircuit happened。
4.5Whitecalibration adjustment
4.5.1Receivegraystepsignal,adjustingpicture modetostandard.
4.5.2Adjustwhitebalance. Enterfactorymenu,selectW/BAdjust Menu,
AdjustGainRed0-255
GainGreen 0-255
GainBlue 0-255
OffsetRed0-255
OffsetGreen 0-255
OffsetBlue 0-255
4.5.3Adjustingcolortempofeverystep to9300（u`=0.189,v`=0.447;误差+/-0.020）。

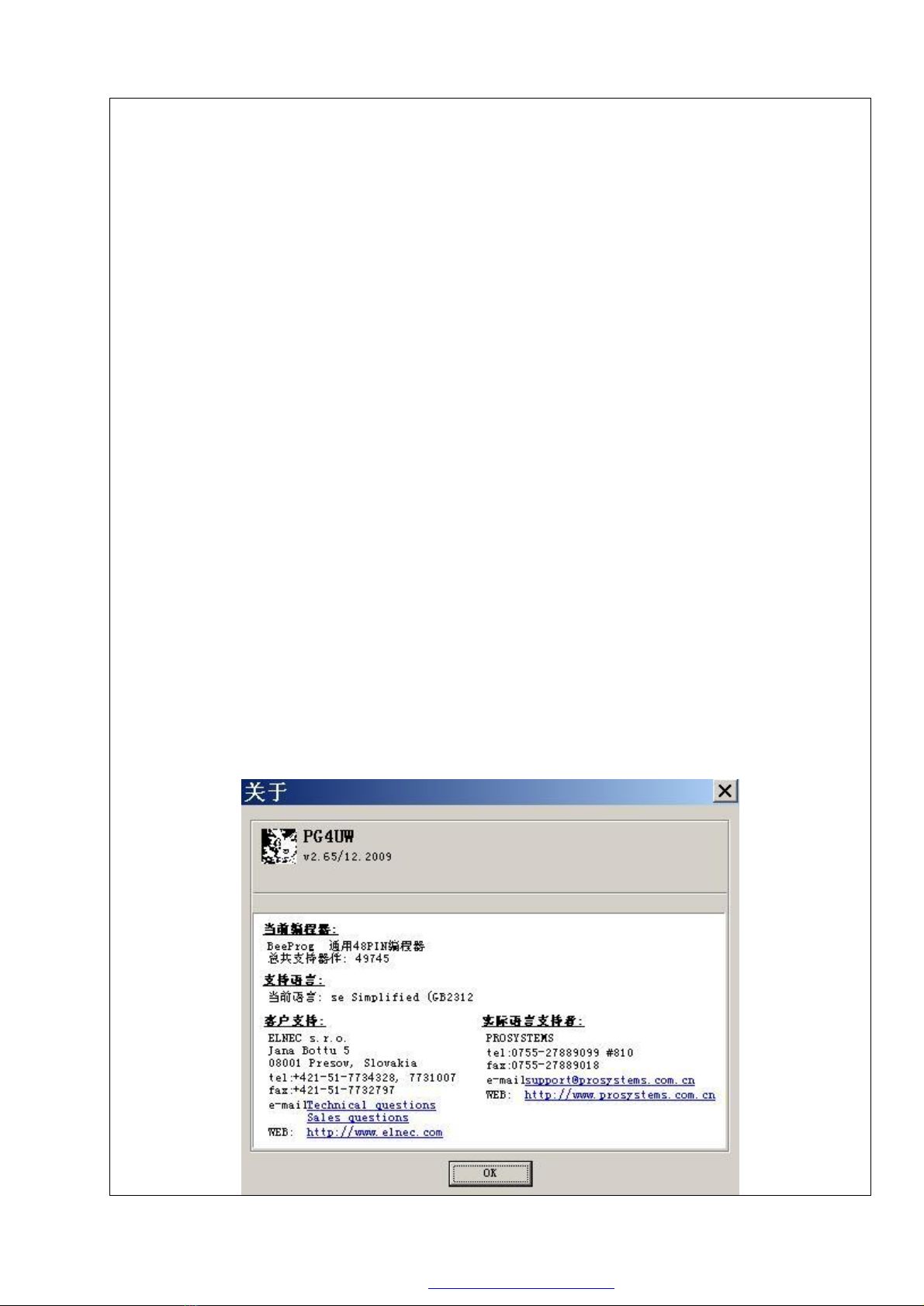

5.1UsePG4UWToProgramTheFirmware
1)Firstly,Download thePG4UWwhichversion isV2.33d.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

2)Run the programPG4UW,click “Found Programmer”and setitasbelowphoto.
3)click”Device àSelectDevice ”,and select “S25FL032P[SO8]”,,then click ok.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

4)Click
“
File
à
Open
”
,and Selectthe MERGE.bin(Thebellowphotoisalittledifferent,please
open theMERGE.bin)
5)Thenselect “Burn ”page, and click “Yes”
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

If it’sprogramcorrect,it willshowaphotoasbellow.
5.2Burn The HDMIEDID.
For thereisnoProgramDeviceonhand,pleasereferto5.3section.Theoperation steps
issamewithburn HDCP KEY,onlythefiletobeprogrammedisdifferent.
5.3BurnTheHDCP KEY
MT8227platformHDCPKEYisburning inthe storageofmainprogramFlash(a,N504),
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

must usethe online upgradewaytoburn,the concretesteps:
1HDCPKEYcutting: willcontainanumber ofKEYfilecut intocontainingasingleKEY
filetowrite.
(1)thefirstcontainsanumberofKEY file(filenameis421605-423143)copytothe burn tool
directory,run directoryinHDCP_Key_20080114.exefile,selectaKEYfile(421605-
423143),the following chart:
(2)ByKeyKEYOffsettosetthe cuttingstartposition(i.e., fromthe firstfewKEYbegan
cutting ),Output#istocutoutasingleKEYnumber (recommendedwhencutting the
number of< 1000).If you select"Output SingleFile"will output asingleKEYfile(thisoption
appliestoalargeKEYfiles(suchas10000)cutintoasmallernumberof(suchas1000)
KEYfile).Ifyouwanttocut intothe containingasingleKEYfile,then uncheckthe option.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

(3) Afterthecompletionofinstallation,click theGenHDCPbutton,intherecordingfile
directorytogenerateanoutput_keys_0directory,directorywithapluralityofcontaininga
singleKEYfile.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

2
HDCP
KEYburning

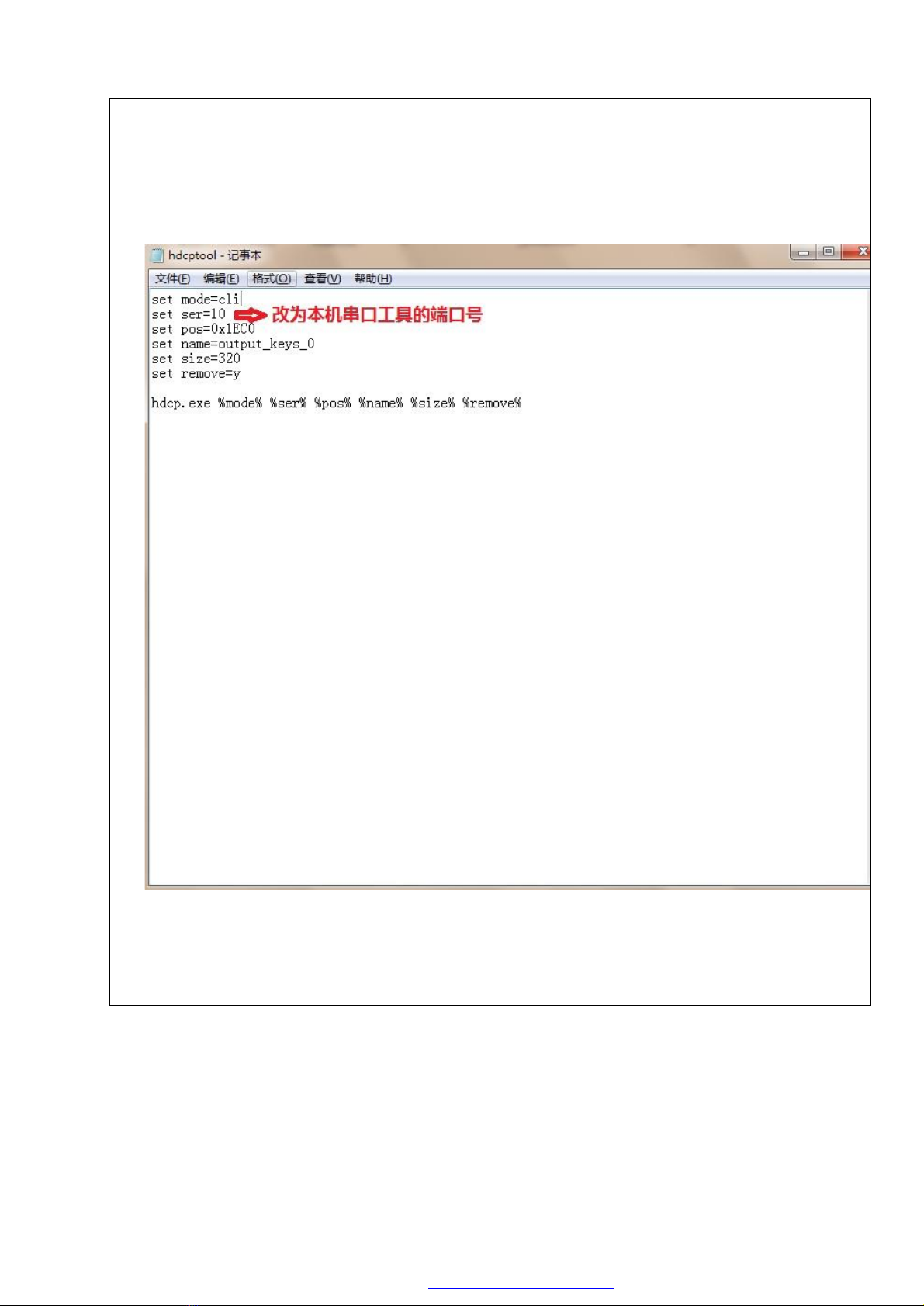

(1) Toedit the configuration file,right clicktheburntoolfolderinthehdcptool.bat,select
"Edit",using atexteditor toopen thefile,setser following numericalintoserialdebugging
toolsport number (intheoperatingsystemofthe"devicemanager"-"port"view,different
computer portnumber maynotbethe sameasthe other ),keeping thedefaultcanbe
modified,saveandexit(thesamecomputer,witharecording toolusuallyneedsonly
once).

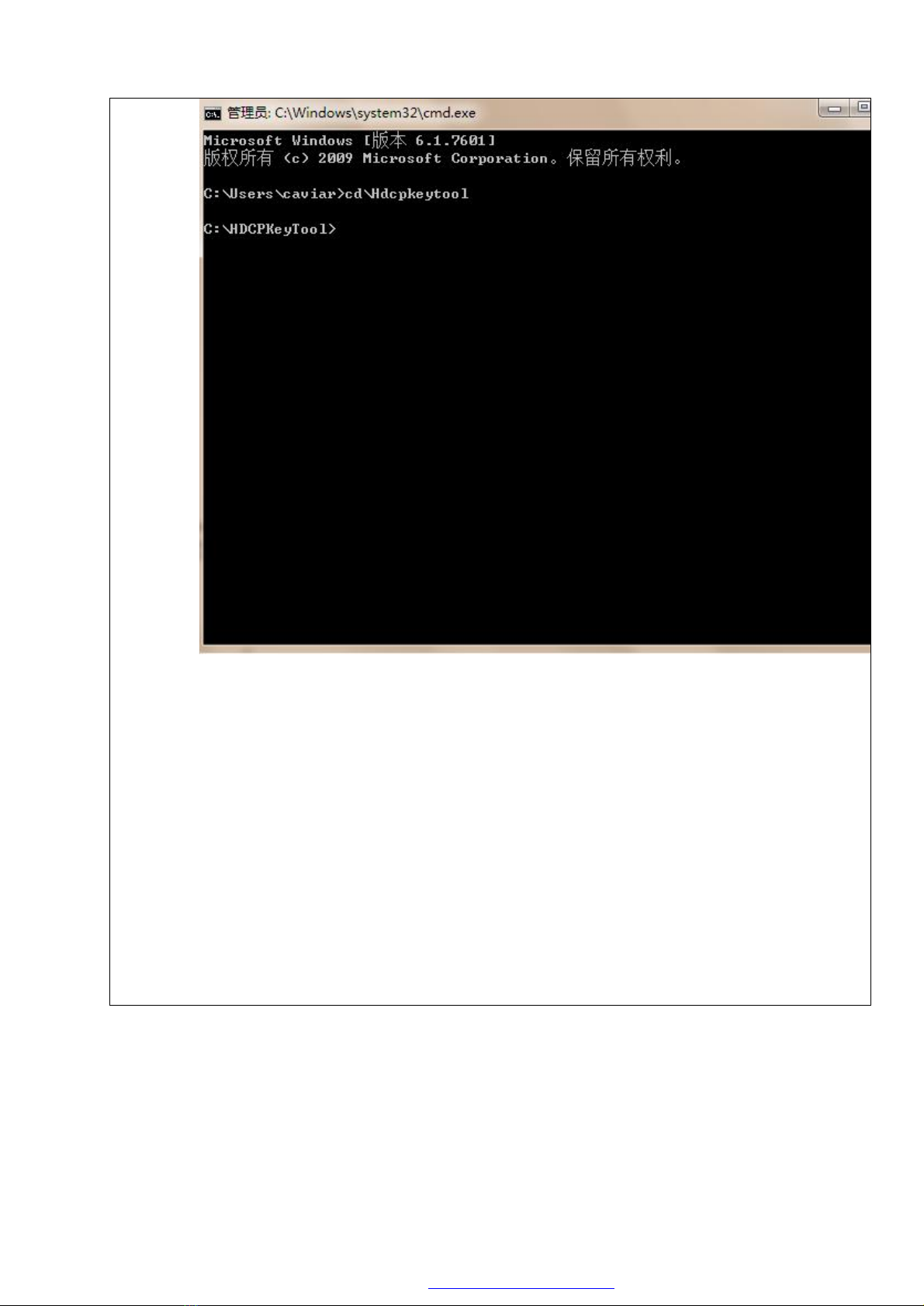

(2)IntheWindowsXP"start"menu,select"run","CMD"typeand"confirmation",enter
theDOScommandline mode.Type"CD \HDCPKeytool"and hitenter (assumingthe
burntooldirectoryinthe rootdirectoryofC),intothe"HDCPKeytool"directory.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

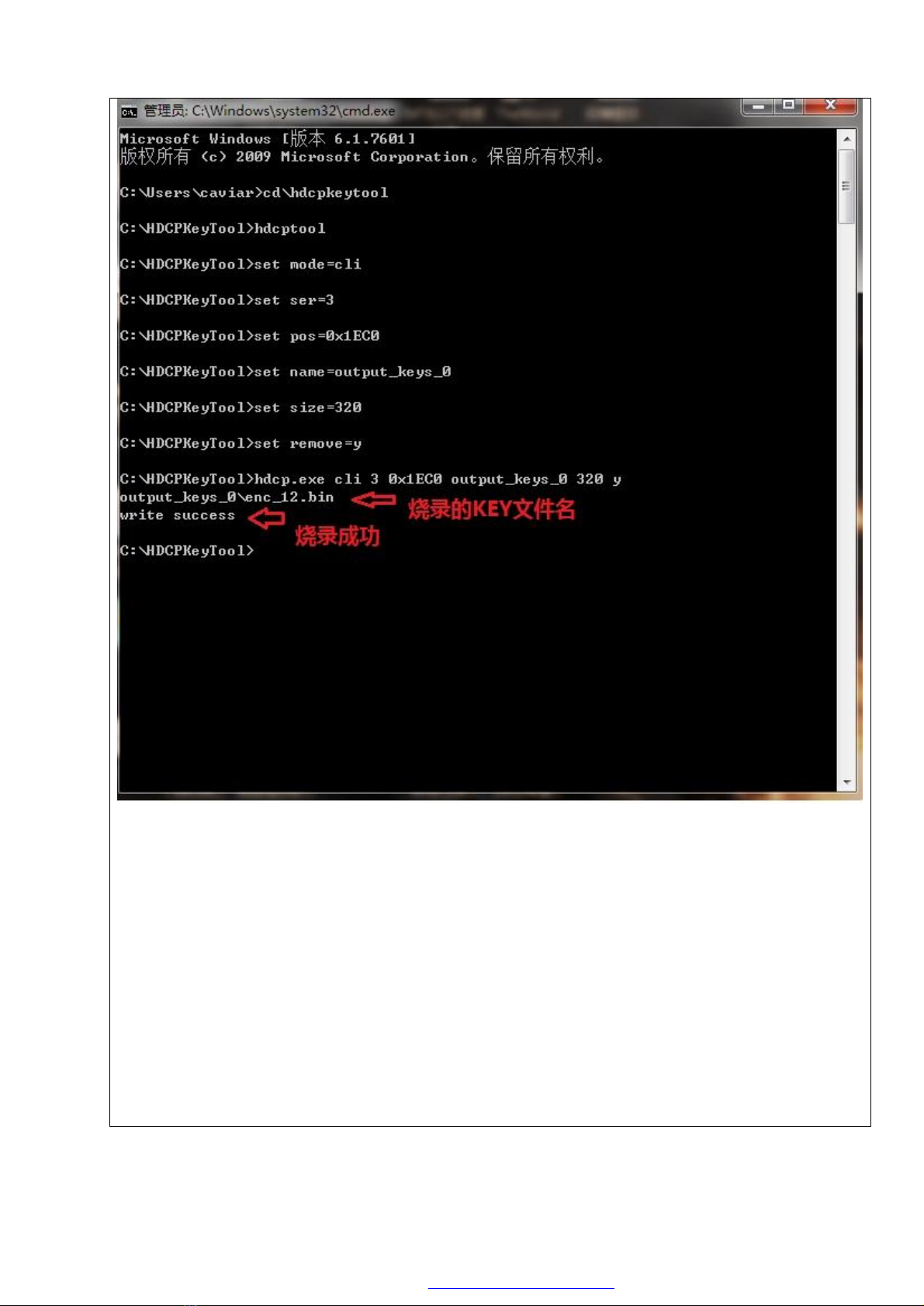

(3) using aserialrecordingtoolconnected tothetelevisionmotherboardXS510 socket,
thetelevision starting,typehdcptoolandpress entertostartburning,burning time,
burningabout1~2S,afterthesuccesswill prompt"writesuccess",and indicatethe
burningtoKEYfilename.Ifthe"writefail"failureprompt, accordingtothedirection of the
keyboard keys"on the"outof hdcptoolcommand andpressagaintoburn again.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

(4) writingiscompleted,unplug theburnline, change amachineinserted serialline,run
thehdcptoolcommandtoburn (donotneedtotype hdcptool,requiresonlythecursor
promptstatebydirectionkey"on"tomakeatypehdcptoolcommand ).Writesuccessful
KEYwill be automaticallydeleted,toensurethatthe sameKEYwon'tberepeated
burning.

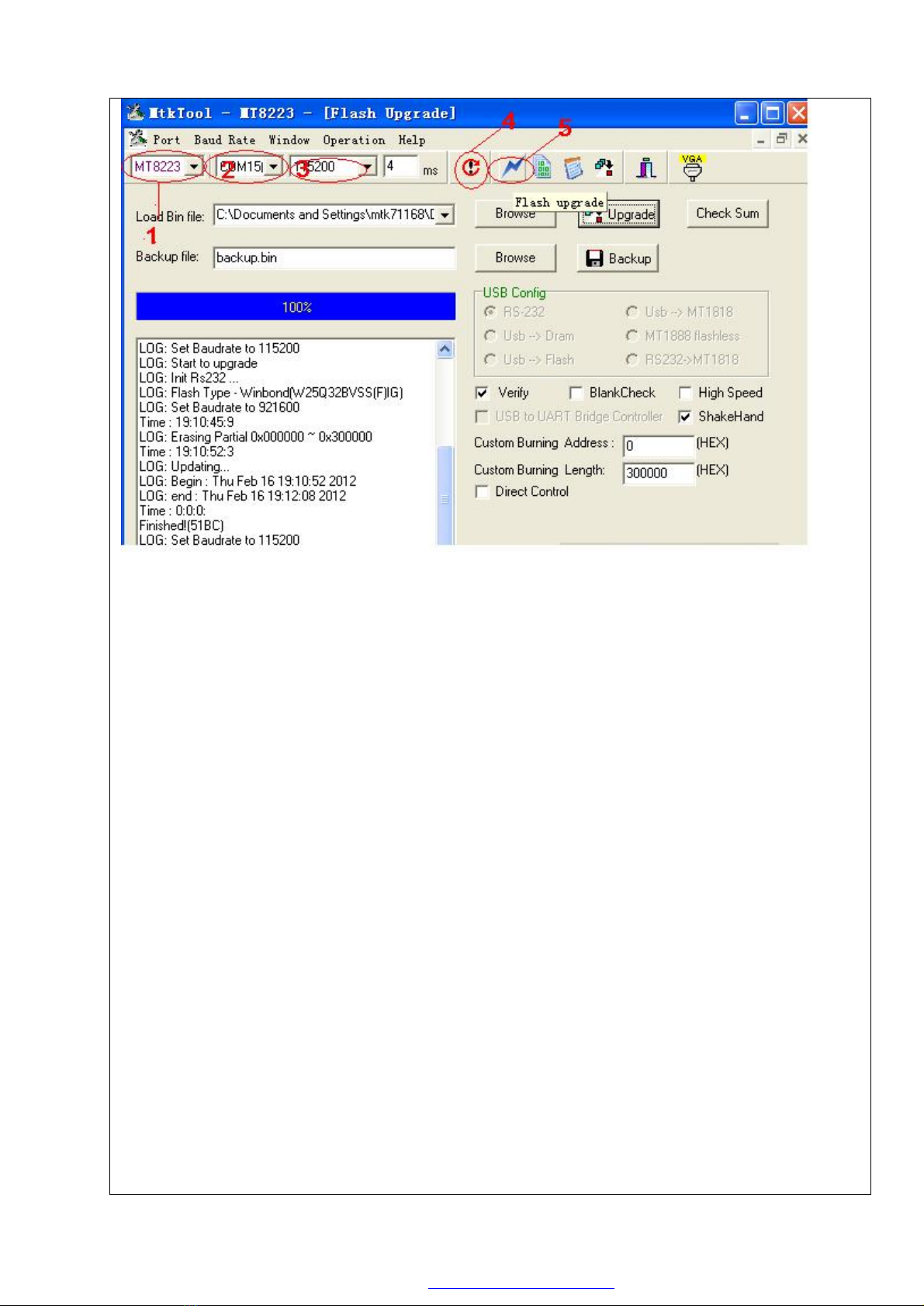

AppendixA: the burntooluse(through the XS510on-lineburnrecordingflash-- (corresponding toboard
anumberis N506 )programandupgrade)
1)recording equipmentproblems,cannot burn
2)recording apparatuscooked flashfilmafter weldingthemotherboardcan not work
normally, toburnthe mainprogramverification
MTKtoolburningprogrammethod:
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

(1) theabovechart, atposition 1anthology8223,position2for the com,can be inthe
taskmanagertoviewUartusesiswhich.3baud,115200.4ifthe red thatnotevenon
Uart, maybethe COMportbyother localaccounted for, suchasterminal,notwithother
localconflicts.Ifthe iconfor the redpointthisicon green,hassaidthatconnecttoUart,
you canupgrade.Open theprogram,the defaultistoupgrade program,sothe 5need
notchoose.Butifwearenotcarefultopointtothe otherplace,5pointstoupgrade
interface.
(2)andthenclickonthe "load binfile", browseinthelocalcomputer chosetoupgradethe
binfile,upgradecan upgrade.
Interfaceelsewheredonotset,thedefault.
Upgrade blue transferprogress willrun twotimes, firsttimetoeraseflashdata,second is
written. The progressofthefollowingtext, there are corresponding tothe log display
upgrade status,whentheburningstateby100%,updatecomplete.Thepowertorestartthe
televisioncan.
AppendixB:USB upgrademethod (through the USB interfaceupgrade TV program)
The method isapplicabletoatelevision capableofnormalcaseofbootupgrade program:
Upgrade steps:
(1) theBINprogramfilesare copiedtotheUrootdirectory,andchangeditsnameto
MTKDTV.BIN
(2)inthe television startingcondition,the UdiskinsertedintoanyUSBport,andpress"
source"keytangentialtothe USB input.
(3)selecttheUdiskdriveicon,press anykeytoenter theUdisk,thiswillbe detected
includingprocedure documents,andejecttheupgradetips(see diagrambelow),press
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

"enter"tostartthe upgrade.
(4) thewholeupgradeprocessabout 2minutes, during whichthe television cannot
upgrade power,success willautomaticallyrestartafter.
(5 )ifthe upgradefailed toTV doesnot start, mustthrough the serialporttothe burn tool
heavyfiring procedures(seeAppendixA ).
6.Test Signals
6.1VGASignalFormat
VGA (640 x480)
60 / 72/75Hz
S
-
VGA (800x600)
60 / 72/75Hz
XGA (1024x768)
60 / 72/75Hz
W
-
XGA (1280x768)
60Hz(@68
.25MHz,@79.5MHz)/75Hz
W-XGA（1360×768）
60Hz
HDMIPCFormatSignal
VGA (640 x480)
60 / 72/75Hz
S
-
VGA (800x600)
56/ 60 / 72/ 75Hz
XGA (1024x768)
60 / 72/75Hz
W
-
XGA (1280x768)
60Hz(@68.25MHz,@79.5MHz)/75Hz
W-XGA（1360×768）
60Hz
HDMI VIDEOFormat
480i(
60Hz
)/576i(
50
Hz)
480p(60Hz)/ 576p (50Hz)
720p(60Hz)/ 720p (50Hz)
1080i(60Hz)/1080i(50Hz)
1080p
(24/25/30/
50/60Hz)
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
