LCD TV SERVICE MANUAL
Model list
KLC-2611QS
KLC-2621QS
KLC-3211QS
KLC-3221QS
KLC-2718QS
KONKA GROUP CO,LTD.
Digital Flat Display Division

IMPORTANT SERVICE SAFETY INFORMATION
Operating the receiver outside of its cabinet or with its back removed involves a shock hazard.
Those who are thoroughly familiar with precautions necessary when working on high voltage
equipment should only perform work on these models.
Exercise care when servicing this chassis with power applied. if carelessly contacted, can cause
serious shock or result in damage to the chassis. Maintain interconnecting ground lead connections
between chassis, escutcheon, picture tube dag and tuner when operating chassis.
When it is necessary to make measurements or tests with AC power applied to the receiver
chassis, an Isolation Transformer must be used as a safety precaution and to prevent possible damage
to transistors. The Isolation Transformer should be connected between the TV line cord plug and the
AC power outlet.
It is important to maintain specified values of all components and anywhere else in the received
that could cause a rise in operating supply voltages. No changes should be made to the original design
of the receiver.
Components shown in the shaded areas on the schematic diagram and/or identified by in the
replacement parts list should be replaced only with exact factory recommended replacement parts. The
use of unauthorized substitute parts man creates may create shock, fire, or other hazards.
Before returning the receiver to the user, perform the following safety checks:
1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged
between the chassis and other metal parts in the receiver.
2. Replace all protective devices such as non-metallic control knobs, insulating fish papers, cabinet
backs, adjustment and compartment covers of shields, isolation resistor-capacitor networks,
mechanical insulators etc.
3. To be sure that not shock hazard exists, a check for the presence of leakage current should be made
at each exposed metal part having a return path to the chassis (antenna, cabinet metal, screw heads
knobs and/or shafts, escutcheon, etc.) in the following manner.
Plug the AC line cord directly into a 220V/240V, AC receptacle. (Do not use an Isolation
Transformer during these checks.) All checks must be repeated with the AC line cord plug connection
reversed. (If necessary, a non-polarized adapter plug must be used only for the purpose of completing
these checks.)
PLEASE READ BEFORE ATTEMPTING SERVICE
1. Use an Isolation Transformer when performing any service on this chassis.
2. Never disconnect any leads while receiver is in operation.
3. Disconnect all power before attempting any repairs.
4. Do not short any position of the circuit while the power is on.
5. For safety reasons, replace components any with identical replacement parts (SEE PARTS LIST).
6. Before alignment, warm up the TV for at least 30 minutes.
7. When removing a PCB or related component, after unfastening or changing a wire, be sure to put
the wire back in its original position.
8. Inferior silicon grease can damage IC's and transistors. When replacing IC's and transistors, use
only specified silicon grease. Remove all old silicon when applying new silicon.
9. Before removing the anode cap, discharge electricity because it contains high voltage.

A. SPECIFICATION
Color System : PAL、SECAM
Sound System : I、D/K、B/G、L/L’
Frequency range: 45M~855.25M
IF Frenquency Video： 38.9MHz
Sound： 33.4MHz
Chroma： 34.47MHz
Audio output power 10%THD 4W X 2
Antenna Impedance 75Ω(Unbalance)
Power Consumption 160W(26’’ and 27’’) , 180W(32’’)
Power Supply : AC~110-240V,50/60Hz
item Port list
1 RF Cable
3 Scart RGB & Composite
4 Scart Y/C & Composite
5 Y(CVBS)、Cb/Pb、Cr/Pr
6 VGA
7 DVI
8 Headphone audio output
9 AC Input

ADJUSTMENT MANUAL
Ⅰ. TEST NOTE
1. Please follow the pointed test steps and choose the right test equipment to
conduct adjustment, otherwise good effect of Unit could not be obtained. The
unit should be warmed up for 30 minutes before adjustment and every
parameter should be adjusted repeatedly till the optimum value obtained, the
pointed voltage value should be ensured during test to get satisfied test result.
2. Test environment
1) Temperature ： 15°C-35°C
2) Relative Humidity: 45-75%
3) Air pressure: 86-106Kpa
3 Test equipments（The following equipment should be calibrated before testing）
1)Computer 1set
2) Multi-meter (VICTOR VC9801) 1 set
3) Video Signal Generator (Chroma Model 2227/2327) 1 set
4) Color Analyzer (Chroma Model 7120 ) 1 set
5) DDC card (DYNACOLOR, INC D8330) 1 slice
6) TV Video Signal Generator (FLUKE PM54200) 1 set
4 Factory mode adjustment
4.1 Enter factory mode adjustment
Using the remote control, press Menu button once first , then press
RECALL (or named PRE.CH) button five times, and you can see manufacture
menu on the LCD panel.
4.2 factory menu operation method
Press the channel +/- button to selection the sub menu of factory menu
（including F、E、UOCⅢ、Temp）, and press the vol+ to enter the sub menu and
setting the value.
4.3 exit the factory menu
Press the MUTE button again and again or turn off the TV, it can exit the
factory menu.
4.4 AGC adjustment
In TV mode,Receive 60dB split field signal. Enter factory mode menu
“UOCⅢ” item,press”CHAN▽” to select“AGC” ，then use VOL+/- to adjust
the item until the voltage of Pin 1 of N100 to be about 2.5V±0.2V,or the noise in
the picture disappears.

4.5 White calibration adjustment
1 Receive black or white signal under AV or PC mode, adjusting brightness
and contrast to set the brightness to 15Nit in dark area and 90 Nit in bright area.
2 Adjust white balance. Press“MENU”button once, then press “RECALL”
five times to enter factory menu, select “Temp” Menu,
Adjust Red 0-100
Green 0-100
Blue 0-100
3 Adjusting chromaticity coordinates of black and white to fit the requirement
(X=0.283,Y=0.297), or plug automatic calibration system to adjust white
calibration automatically. BLOCK DIAGRAM

Signal Board Power Diagram
XS
804
F802
Vcc
_
5v
For
L809
Vcc_USB
5V
N804
1117-3.3
N805
1117-2.5
N806
1117-3.3
VCC-3.3
FOR
N501
FOR
N501
VCC-CORE
VCC-3.3USB
FOR
N401
N803
9435A
Vcc 5v
FOR
N401
F801
12V
Vcc 12
N860
9435A
Vcc 12
FOR Panel
N200
TDA151
INVERT
N201
TDA894

IC BLOCK DIAGRAM
1 N401 (TDA15021H1)
2 N501 (MST519)

Trouble Shooting
Key IC list
Item Type Maker Package Circuit No. Qty.
1 TDA15021H1 Philips QFP128 N401 1
2 MST519 MSTAR PQFP160 N501 1
3 24LC32A MICROCHIP SOIC-8 N402 1
4 24LC21A MICROCHIP SOIC-8 N302 N601 2
5 FDS9435A FAIRCHILD SOIC-8 N803 N860 2
8 TDA1517 PHILIPS SIL9MPF N200 1
9 FSAV330 FAIRCHILD TSSOP-16 N301,N303 2
10 TDA8944J philips DBS17P N201 1
11 1117-3.3V 1117 serial SOT223 N804,N806 2
12 1117-2.5V 1117 serial SOT223 N805 1
13 Tuner Qingjia N100 1
Start order：
1) Verify the state of TV set. Please switch the TV on, and then verify the LED
color. Red is standby state and green is working state.
2) Checking Supply Power. If the color of LED is green, the power supply for
signal board : N820 supply 5V, N804、N806 supply 3.3V power(Test the PIN
2).N805 supply 2.5V(Test the PIN 2), D803 supply 8.3V, V401 and V402 supply
1.8V. All these are for main IC N401, N501. N860 supply 12V(26’’ and 32’’), N802
supply 5V(27’’).
3) After turning on the power, if blank screen appears (no back light lamp), just
press POWER button several times, if blank screen still there. Check if the voltage
of every power supply is normal.
4) Check if the crystal oscillator X501(14.318MHz) X401(24.576MHz) oscillate or
not, and oscillate frequency is right or not.
5) Back light control signal (BKLON) of XS805 has high level (about 2.5V) or not,
if not, check whether fault soldered or short circuit happened.
6) If back light lamp is on while there is no display, check N401 and N501’s reset
circuit and the output of the oscillator to confirm the CPU and SCALER are
working or not. If RGB is abnormal, check N501; If RGB is working correctly and
the other channel is abnormal, please check N501.
Turn on the
p
ower
N
401 RESET and
IO port initialize
N
501electrify,
reset, initialize Turn on back light lamp Successful start and LCD display

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
BKLBT
PWRON
PWRON
BKLON
PanelPWR
VCC_3.3
VCC_3.3USB
VCC_12V
VCC_5V
VCC_USB
VCC_8U
VCC_ADC
VCC_AMPLL
VCC_ADPLL
VCC_USB
VCC_5V
VCC_12V
VCC_CORE
VCC_USB
VCC_USB
VCC_Usb
VCC_12V
VCC_5V
VCC_5UA
VCC_LP VCC_PAN
VCC_5V
VCC_OP
Title
Size Document Number Rev
Date: Sheet of
LC-TM1509S 1.0
<Title>
A3
55Thursday, June 15, 2006
Title
Size Document Number Rev
Date: Sheet of
LC-TM1509S 1.0
<Title>
A3
55Thursday, June 15, 2006
Title
Size Document Number Rev
Date: Sheet of
LC-TM1509S 1.0
<Title>
A3
55Thursday, June 15, 2006
VCC_3.3U is for UOC III 3.3V
VCC_8U is for UOC
audio 8V
VCC_5UA is for UOC and
TUNER analog
VCC_CORE is for MST Vcore 2.5V
VCC_OP is for MST Voutput
VCC_ADC is for MST Vadc
VCC_AMPLL is for MST Vmpll
VCC_ADPLL is for MST Vadpll
POWER
TO POWER
VCC_5USB is for 5V
STANDBY

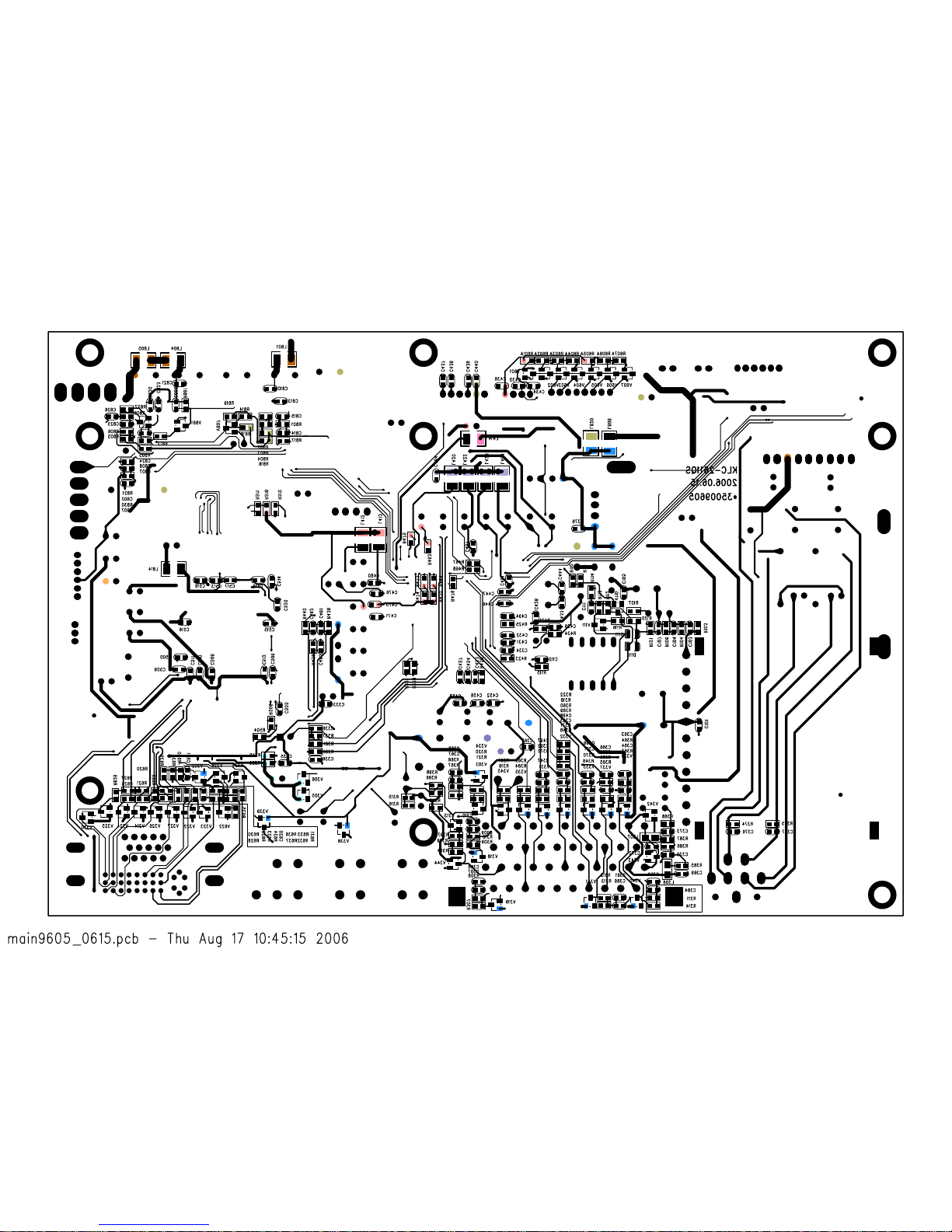

KONKA CO.LTD (NDA)
