Koolbreeze Kompact 18 User manual

Portable Air Conditioner
18000 BTU
Operating Instructions
Model No. Kompact 18
Please read owner’s manual carefully before operating unit.

2
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS………………………………………………………………………………… 3
PRODUCT DIAGRAM………………………………………………………………………………………… 4
INSTALLATION……………………………………………………………………………………………… 5
CONTROL PANEL AND MULTI-COLOR DISPLAY…………………………………………………………… 7
CONTROL PANEL FUNCTIONS……………………………………………………………………………… 8
OPERATION USING THE CONTROL PANEL………………………………………………………………… 9
COOLING………………………………………………………………………………………………… 9
DEHUMIDIFYING………………………………………………………………………………………… 9
FANNING………………………………………………………………………………………………… 9
AUTO MODE……………………………………………………………………………………………… 9
SLEEP MODE…………………………………………………………………………………………… 10
REMOTE CONTROL & OPERATION…………………………………………………………………………… 11
MAINTENANCE……………………………………………………………………………………………… 13
END OF SEASON STORAGE……………………………………………………………………………… 13
TROUBLESHOOTING………………………………………………………………………………………… 14
ERROR MESSAGES………………………………………………………………………………………… 14
DISCLAIMER………………………………………………………………………………………………… 15

3
IMPORTANT SAFEGUARDS
Before installing and using your portable air conditioner and heater, it is important that you read this owner’s
manual carefully. Store this manual in a safe place for future reference.
This instruction manual is used for guidance and does not form part of a contract. It reserves the right to
make technical changes without prior notice.
1. Always place the unit on a level surface.
2. The appliance shall be installed in accordance with national wiring regulation.
3. The unit must be connected to a correctly grounded power supply. For your safety, this unit is
grounded through the power cord plug when connected to a grounded wall outlet. Do not use an
adapter plug or extension cord.
4. Do not install the unit in an area where gas leakage may occur and/or in an explosive atmosphere.
5. Do not apply an insecticide or any type of flammable spray on the unit.
6. Confirm drainage piping is connected properly.
7. Do not start or stop the unit by inserting or pulling out the power plug.
8. Do not operate with wet hands.
9. Close supervision is necessary when the unit is used near children. The unit in not intended for use
by children.
10. Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills.
11. Do not expose skin or eyes directly to cool air for a long period of time.
12. If an abnormal odor or smoke comes out of the unit, disconnect the unit immediately and contact a
qualified service technician. (see page 13)
13. When opening the filter cover, do not touch the metal parts in the unit’s interior.
14. Do not immerse the unit in water or any type of liquid. Do not use the unit in the immediate
surroundings of a bath, shower, or swimming pool, or in any other steamy, wet areas.
15. When cleaning the unit, always turn the unit off and unplug the power cord.
16. Always inspect the power cord for signs of damage before use. If the power cord is damaged, it must
be replaced by the manufacturer or a qualified service technician.
17. Do not place a plant or allow a pet in the direct path of the airflow to avoid injury.
18. Do not put a stove, etc, where it would be exposed to the direct airflow. It may affect combustion.
19. Do not sit on the unit or place anything on it.
20. Before storing, the water must be drained from the unit and the filters cleaned.

4
PRODUCT DIAGRAM
FRONT
A. Control panel
B. Vertical air louvers
C. Air outlet
D. casters
E. Cable (power cord and plug)
A
B
C
D
F
ACCESSORIES
Flexible exhaust hose with 2 adapters
• 3-piece set
• stretches from 14 1/4” to 60 5/8”
(36cm to 150cm)
Window exhaust adapter
Adjustable window slider kit
• 3-piece set
• adjusts 33 1/2” to62” (85cm to 157.5cm)
Drain tube
Drain pan
BACK
A.
Hot air outlet grill
B. Lower air inlet grill
C. Water Release Port
c

5
INSTALLATION
SELECTING THE LOCATION
Place the unit in a flat location where the air
outlets are not obstructed. Place the unit at
least 20” (50cm) away from a wall or other
obstacle.
MOUNTING THE EXHAUST HOSE
Slide the square end of the exhaust duct over
the hot air outlet on the back of the unit.
The exhaust hose should be kept as short and
straight as possible. Prevent any sharp bends in
the exhaust hose, as this will trap hot exhaust
air.
The hot exhaust air can be vented through the
wall or out a window. If mounting in the wall, the
height of the hole should be 16 to 50 inches
(40cm to 130cm).

6
WINDOW KIT INSTALLATION
The window kit is designed to fit into most
standard vertical and horizontal windows, as well
as some sliding glass doors. However, it may be
necessary to modify some aspects of the
installation process for certain window types.
1. Open the window or sliding door and adjust
the length of the window kit to fit the
opening. If the window kit is not long
enough, connect the extra window kit panel
to fit the opening. Mark and cut down a
single panel of the window kit if necessary.
2. Place the window kit between the window
and the window frame as shown in the
images to the right. Close the window onto
the window kit to form a tight seal.
3. Attach the exhaust duct adapter to the
window kit. Tabs located on the adapter will
lock into place securing the adapter to the
window kit.

7
CONTROL PANEL AND MULTI-COLOR DISPLAY
CONTROL PANEL
C
F
KONB Button
(turn left)
when the unit is working. Press this button to turn the
timer off.
KONB Button
(turn down)
KONB Button
(turn down)
KONB Button
(turn right) This button increases the room temperature+/timer hours.
Press this button to oscillate the vertical louvers or to
stop oscillation.
During the modes of cooling ,heating and fanning ,press
this button to choose high,medium or low fan speed.In
dehumidifying mode,this button is inoperable.
when the unit is not working. Press this button to turn
the timer on.
This button decreases the room temperature-/timer hours.
Press this button to select among the modes of
auto,cooling,dehumidifying,fanning or heating.
Press this button to turn the unit on or off.
FAN SPEED
Button
SWING Button
CONTROL PANEL AND VFD DISPLAY
MODE Button
POWER Button
CONTROL PANEL
LED DISPLAY
MODE
FAN
SWIN
G
POWER

8
MULTI-COLOR DISPLAY
CONTROL PANEL FUNCTIONS
ON/OFF BUTTON
Starts or stops the unit.
MODE BUTTON
Press to select the operating mode:
Fan Mode
Air Conditioning Mode
Dehumidifying Mode
Auto Mode
FAN BUTTON
Press to select the fan speed: High, Medium, and Low.
The fan speed can be visually distinguished by the number of the digital air segments flow out from the
windmill fan image on the multi-color display.
TEMPERATURE KNOB
When in cooling or heating mode, the desired temperature can be selected by turn lef t and turn right
buttons. The multi-color display flashes the temperature while it is being set. The multi-color display
shows the set temperature when it is not in temperature setting mode.
The multi-color display can show either Celsius or Fahrenheit. turn letf and turn right buttons.
simultaneously to change the display from Celsius to Fahrenheit or vice versa.
TIMER KNOB
when the unit is not working turn down konb to set the auto start time, until the multi-color display
shows a flashing “ ”. when the unit is working turn down konb to set the auto stop time, press
the Timer Off button and the multi-color display will show a flashing “ ”. turn letf and turn
righ buttons to change the clock to the desired time for the unit to automatically stop. The light will
flash for 3 seconds to activate the timer you programmed.
SWING
To start horizontal oscillation, press the Swing button once. ‘ ’ icon will appear on the multi-color
display. To stop oscillation, press the Swing button again. Vertical air flow direction can be adjusted
manually.
A.
Auto Mode
B. Cool Mode
C. Dehumidify Mode
D. Fan Mode
E. Heat Mode
(if only cooling not work)
F. Fan Speed (Low, High, Medium)
G. Compressor is on
H. Swing Mode
I. Sleep Mode
J. Temperature and Timer
K. Time On
L. Time Off
M. Water full
A B C D E F K L
H G M I J

9
OPERATION USING THE CONTROL PANEL
COOLING
1. Properly install the exhaust hoses.
2. Plug the power cord into a grounded outlet.
3. Turn on the unit by pressing the On/Off button on the control panel.
4. Press the Mode button until “ ” icon appears on the multi-color display.
5. Turn the Knob until the desired temperature appears on the multi-color display.
The temperature ranges from 61°F - 88°F (16°C - 31°C).
6. Select the fan speed by pressing the Fan button.
NOTE: During hot days, the unit will cool off the room most efficiently by setting the temperature at the
lowest and the fan speed at the highest. Reducing the length of the exhaust hoses, insulating the exhaust
hoses, and keeping direct sunlight to a minimum will also improve the cooling efficiency.
DEHUMIDIFYING
1. Properly install the exhaust hoses.
2. Plug the power cord into a grounded outlet.
3. Turn on the unit by pressing the On/Off button on the control panel.
4. Press the Mode button until the “ ” icon appears on the multi-color display.
NOTE: The unit operates at low fan speed during dehumidifying. The unit cools the room slightly
during dehumidification.
Keep the windows and the doors closed to aid in the effectiveness of the unit in removing the moisture
from the room.
NOTE: The unit will not dehumidify when the room temperature is lower than 61°F.
FANNING
1. Plug the power cord into a grounded outlet.
2. Turn on the unit by pressing the On/Off button on the control panel.
3. Press the Mode button until “ ” icon appears on the multi-color display.
4. Select the fan speed by pressing the Fan button.
NOTE: When the unit is running on fan mode, the exhaust hoses are inoperative and are not required.
HEATING
1. Plug the power cord into a grounded outlet.
2. Turn on the unit by pressing the On/Off button on the control panel.
3. Press the Mode button until “ ” icon appears on the multi-color display.
4. Turn the Knob until the desired room temperature appears
on the multi-color display. The temperature ranges from 16°C
- 31°C.
5. Select the fan speed by pressing the Fan button. It is
recommended to use the low fan speed.
NOTE: When the unit is running on heating mode, the exhaust hoses are inoperative and are not
required.

10
AUTO MODE
1. Properly install the exhaust hoses.
2. Plug the power cord into a grounded outlet.
3. Turn on the unit by pressing the On/Off button on the control panel.
4. Press the Mode button until the “ ” icon appears on the multi-color display.
5. Press the Fan button to select the fan speed.
During the Auto mode, The unit operates in dehumidifying mode when the room temperature is
between 68°F - 73°F. The unit operates in cooling mode when the room temperature is above 73°F.
You may use the timer with the Auto mode.
NOTE: If the unit is turned off during cooling, dehumidifying, and then restarted, there will be a 3 minute
delay before the compressor will turn back on to prolong the life of the compressor. Once the power recovers
and the compressor restarts, the unit will return to the original working mode.
SLEEP MODE
(This mode can only be programmed from the remote control.)
1. The air conditioner will need to be in operation.
2. Press the Sleep button. The “ ” icon appears on the multi-color display.
3. The fan motor runs at low speed.
4. When in cooling mode, the temperature will increase 1°F per hour during the first two hours. Then
the temperature will stay 2°F higher than the originally set temperature for 6 hours. 6 hours later,
the unit will shut down.
5. When in heating mode, the temperature will decrease 1°F per hour during the first two hours. Then
the temperature will stay 2°F lower than the originally set temperature for 6 hours. 6 hours later, the
unit will shut down.
6. When in dehumidify mode, the temperature will not change.
NOTE: If the unit is turned off during cooling, dehumidifying, and then restarted, there will be a 3 minute
delay before the compressor will turn back on to prolong the life of the compressor. Once the power recovers
and the compressor restarts, the unit will return to the original working mode.

11

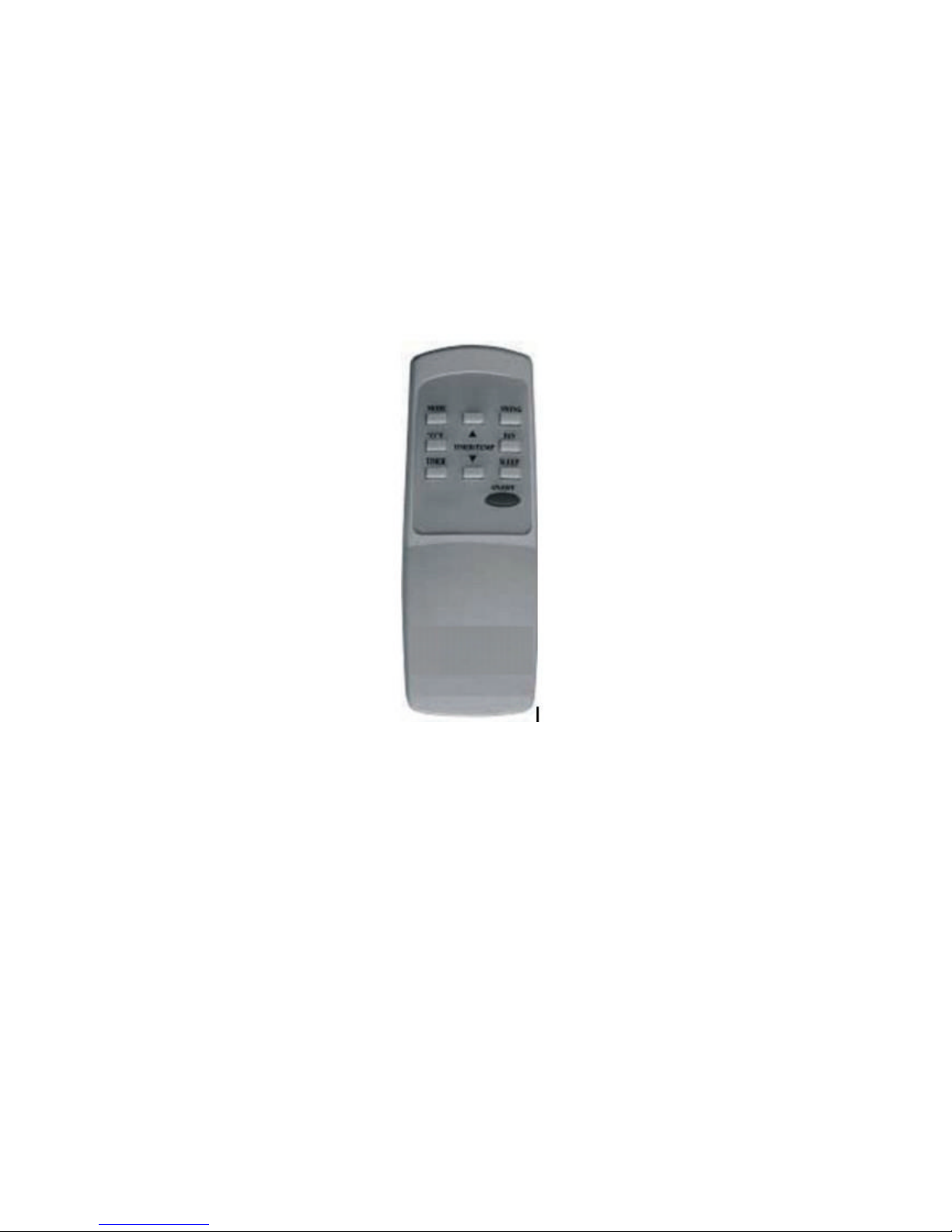

REMOTE CONTROL & OPERATION
The remote control provided with the unit can be used to operate the portable air conditioner. The remote
control uses 2 AAA batteries (provided). Install the batteries before using the remote control.
The remote control can be used to do all the operations that can be programmed from the control panel.
The LCD display on the remote control can show either Celsius or Fahrenheit. Press the + and - keys
simultaneously to change the display from Celsius to Fahrenheit or vice versa.

12
WATER DRAINAGE
When used in high humidity areas (over 60% humidity) , continuous operation may be interrupted
due to excessive dehumidification producing excessive water, This unit has a special built in
facility to avoid the unit stopping operation. The unique design of this unit allows you to connect
a water drain pipe to the upper water release port for extra convenience and ease of use. This will
allow the machine to drain the water automatically.
When this feature is desired ,connect the 3 metre water pipe to the automatic water releasing port.
The water pipe will drain water out a window or suitable drainage area or exit point. Please ensure
the water drain hose is no higher than 1.5 meters from base of unit. Ensure the drain pipe is not
bent or twisted. IF THIS FEATURE IS NOT REQUIRED (due to lower humidity) please ensure the
plastic screw lid is tightly secured to upper drainage port,
NOTE If the water release port and water release pump are NOT used during periods of high humidity,
water will collect in a water container at the bottom of the unit. When the water container is full, the
compressor will stop but the fan will continue to run.
When the water container is full, the unit will display ‘ ’ on the control panel until the tank is emptied.
To resume operation, empty the water container according to the following steps:
1. Turn the unit off. Do not move the unit when the water container is full.
2. Place the drain pan accessory under the drainage port at the back of the unit.
3. Remove the rubber plug from the drain hole. The condensate water will drain out automatically.
When the drain pan is full, replace the rubber plug into the drainage hole to stop the water flow.
Empty the drain pan. Repeat until all the water is emptied.
4. Once the water container has been emptied, replace the rubber plug into the drain hole firmly. Do not
allow the water to drip continuously into the drain pan, as it might easily overflow.
Automatic
freeing
port
Automatic
freeing
port
Drain
Drain Port

13
MAINTENANCE
Always turn off and unplug the unit before
cleaning to avoid electrical shock.
CLEANING THE HOUSING
Wipe the surface of the unit with a soft, damp
cloth. Do not use abrasive chemicals or detergents
to clean the surface of the unit, as the unit may
become scratched or damaged.
Avoid direct exposure to sunlight as this may
change the surface color.
CLEANING THE FILTER
Slide the filters out from the side of the unit.
Immerse the filter gently in warm water with a mild
detergent. Rinse thoroughly and dry before
replacing.
An unclean air filter reduces air volume. The filter
should be cleaned every two weeks.
END OF SEASON STORAGE
Turn off and unplug the unit.
Drain all condensate water from the water
container.
Turn the unit to fan mode for a couple of hours to
completely dry out the inside.
Clean the filter.
Wrap the cord around the cord hooks.
It is recommended that the unit be packed in its
original carton for storage.
Store in a dry location.

14
TROUBLESHOOTING
Before seeking repair or service, please check the following:
ERROR MESSAGES
Diagnostic system indicators appear if any of the following interrupts operation of the unit. The unit may
require simple maintenance or repair by a qualified service technician.
CODE DIAGNOSIS ACTION
FAULT E1 Faulty room temperature sensor Contact customer service for repair or service.
FAULT E2 Faulty inside sensor. Contact customer service for repair or service.
FAULT E3 Internal frost in the unit. Wait for unit to defrost
FAULT E4 Unit malfunctions. Contact customer service for repair or service.
PROBLEM POSSIBLE CAUSE REMEDY
Is the unit plugged in? Securely plug the power cord into the wall outlet.
Is the main power supply on? Reestablish the main power supply.
Is the water container full indicator light on? Empty the water container.
Unit does not operate or
only runs in fan mode.
Is the timer set? Change timer settings.
Is the air inlet or outlet blocked? Clear the blocking.
Is there any other heat source in the room? Move the heat source.
Are the air filters dirty? Clean the air filters.
Is the temperature setting suitable? Change the temperature setting.
Cooling efficiency is not
satisfactory.
Is the fan speed set at low? Increase the fan speed.
Unit is noisy or vibrates. Is the machine positioned unevenly on a level
surface? Place the unit on a level surface.
Is the voltage from the power source correct? Use a proper power source.
The unit starts and stops
frequently. Is the exhaust hose positioned incorrectly? Position the exhaust hose correctly and keep the
exhaust hose straight as possible.

15
TECHNICAL SPECIFICATIONS
MODEL P18HCA(Kompact 18)
Cooling Capacity 18,000 BTU/Hr
Heating Capacity 18,000BTU/Hr
Dehumidifying Capacity 40 litres /day
Cooling 1600 W
Power Consumption Heating 1500W
Air Flow Volume 700 M3/Hr
Power Source 220~240V /50HZ
Cooling 9.6A
Rated Current Heating 9.0A
Sound Pressure Level <55db(A)
Weight 43Kg net
Dimensions 616x370 x780mm
(WxDxH)
Refrigerant R410A
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL
ARE THE PRESENTATION OF THE MANUFACTURER. COTTAGE STORES LLP HAS NOT
CONDUCTED INDEPENDENT TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED
HEREWITHIN.
Koolbreeze is the registered trade name of Cottage Stores LLP
