Korenix JetCon 2502 User manual

JetCon 2502
Ethernet over VDSL Extender
User’s Manual
Version: 1.0 Date: 18-Aug, 2009
1

Korenix JetCon 2502
Ethernet over VDSL Extender
User’s Manual
Copyright Notice
Copyright ©2009 Korenix Technology Co., Ltd.
All rights reserved.
Reproduction in any form or by any means without permission is prohibited.
2

Declaration of CE
This product has passed the CE certification for environmental
specifications. Test conditions for passing included the equipment being
operated within an industrial enclosure. In order to protect the product from
being damaged by ESD (Electrostatic Discharge) and EMI leakage, we
strongly recommend the use of CE-compliant industrial enclosure products.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his
expense.
The user is cautioned that changes and modifications made to the
equipment without approval of the manufacturer could void the user's
authority to operate this equipment.
3

Key word
VDSL: Very High Speed Digital Subscriber Loop
VDSL 2: Very High Speed Digital Subscriber Loop version 2
DMT: Discrete Multi-tone modulation
STM: Synchronous Transfer mode
ASTM : Asynchronous Transfer mode
CO : Central office
CPE : Customer Premise Equipment
QoS: Quality of Service
SNR: Signal Noise Ratio
INP: Impulse Noise Protection
POTS : Plain Old Telephone System
AFE : Analog Front End
HDTV : High Definition Television
FTTC : Fiber to the Corner / cabinet
FTTH: Fiber to the Home
FTTB: Fiber to the Building
4

Index
1. Introduction.....................................................1
1-1. Features............................................................3
1-2. Package Checklist ............................................ 3
2. Hardware Description.....................................4
2-1. Dimensions.......................................................4
2-2. Hardware Appearance......................................5
2-3. Wiring the DC Power Inputs..............................7
2-4. LED Indicators ..................................................8
3. Mounting Installation......................................9

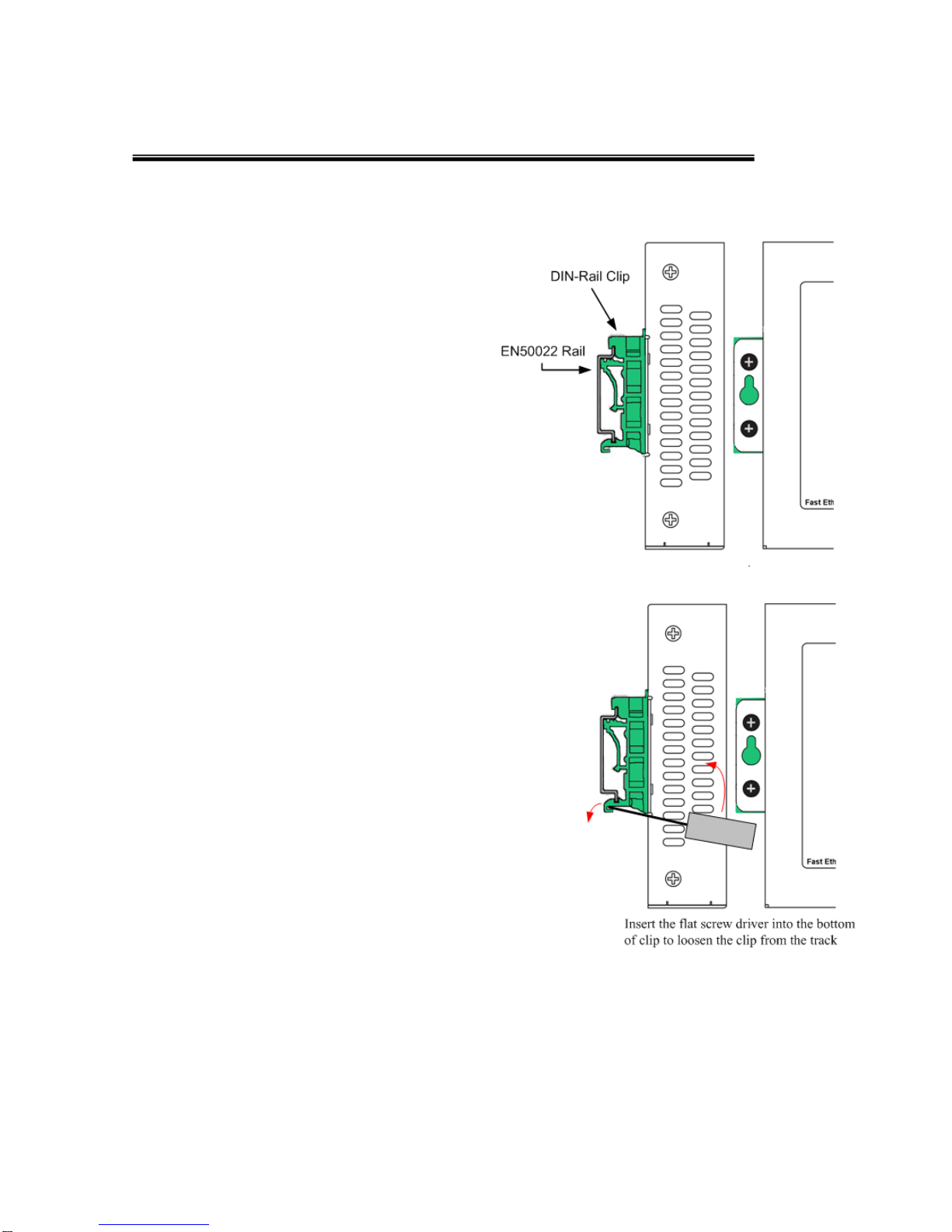

3-1. DIN-Rail Mounting............................................. 9
3-2. Wall Mounting.................................................10
4. System installation and configuration...........11
4-1. Install and Wiring ............................................11
4-2. Dip switch configuration.................................. 12
4-3. VDSL2 Technology.........................................13
4-4. Transmission distance and forwarding rate.... 15
4-5. Line impedance of region Telecom Company 16
5. System testing and trouble shooting............20
5-1 .System testing ................................................20
5-2. Troubles shooting ........................................... 22
6. Technical Specifications...............................23
5

1. Introduction
This document describes the how to use the Korenix JetCon 2502 Ethernet
over VDSL extender, including installation and specifications. Following this
user manual, you will be well learned about how to help you construct
Network infrastructure with JetCon 2502. The followings are brief
introduction of JetCon 2502.
Ideal Ethernet /Voice Extender
JetCon 2502 is an Ethernet/POTS to VDSL2 (Very High-Rate Digital
Subscribe Loop -2) extender and is compliant with ITU-T G.993.2 standard.
It allows the VDSL2 carriers to deliver Ethernet data & voice up to 100Mbps
in both upstream and downstream over existing twisted copper. The JetCon
2502 Ethernet over VDSL converter features Discrete Multi-Tone
modulator/ de-modulator and VDSL Analog Front End (AFE) technology; it
is an ideal solution to carry POTS signal (Voice) and Ethernet Data stream
to 3000 feet to extend local LAN and voices over the same line.
Economical and Simple Connection
To deploy VDSL2 access with the telephone network, the VDSL2 converter
should follow the line impedance of telephone network. Therefore, each
region will adopt different line splitter to provide best communication quality.
Therefore, users need additional wiring and splitter, but mostly make a
jumble at home or office. The JetCon 2502 has implement splitter for each
region to save your installation time.
Central and Discrete Internet Access
For the network infrastructural, JetCon 2502 is the best choice to plan
centralized internet access through the existing POTS wiring system for
hotels, dormitories or where need extend LAN over 100m over a single pair
of copper wires.
Triple Play – HDTV, Data Access, Video conference
JetCon 2502 allows users to compete with wireless and satellite providers
by offering outstanding service, such as Video conference, HDTV or Video
chatting over a existing telephone copper cable without any configuration;
just plug and play to enlarge infrastructure for your applications.
1

Internet last mile access
The VDSL2 technology also deployed at the last mile of internet access; the
ISP uses the fiber cable as backbone uplink to the basement of building
(FTTB) or corner of streets (FTTC) and uses the exist 1 pair twisted cable of
POTS system to carry voices and Ethernet data stream for user via VDSL2
signal.
Intelligent Traffic System application
In the Intelligent Traffic system (ITS), the VDSL2 technology could be
applied in the long distance data transmission for traffic signal control or
traffic information signboard. JetCon 2502 can save the deployment cost of
fiber by using the twisted cable up to 3000 feet at DS/US data rate 35Mbps /
8Mbps for low speed data transmission over the Ethernet link distance.
Subway & Railway System application
JetCon 2502 can also be applied in the subway and railway system to offer
long distance transmission with low data traffic; for example, the Fire Alarm
System (FAS) and Passenger Information Direction System (PIDS) use the
VDSL2 technology to communicate between outdoor device and Control
Room to replace the fiber cable and save the cost of deployment
2

1-1. Features
IEEE 802.3u 100Base-TX Fast Ethernet Extender
IEEE 802.3x flow control & Back-pressure
ITU-T G.993.2 VDSL2 standard
2 x RJ-11 connectors for POTS/ISDN and VDSL
One RJ-45 10/100Mbps Fast Ethernet Port
Build-in POTS/ISDN Splitter
Extend Voice and Ethernet to 2KM far
Transport 1792 bytes packet size over VDSL2
Broadcast Packet filtering
Power input by DC jack & terminal block
-25~70℃ Hazardous environment application
1-2. Package Checklist
JetCon 2502 package includes the following items:
JetCon 2502 x1
DIN-Rail clip x2
CD user manual or Quick installation guide
JetCon 2502 User’s Manual CD-ROM Quick Installation Guide
Contact your sales representative if any item is missing or damaged.
3

2. Hardware Description
2-1.Dimensions
The dimension of JetCon 2502 is 29.6 mm(H) x 88mm (W) x114.8 mm (D)
4

2-2. Hardware Appearance
The top view of the JetCon 2502 DIP Switch and power connector show in
the following picture, figure 2-2-1.
Figure 2-2-1
DIP Switch: For operating mode selection; for the detailed functions
please refer chapter 4-2.
DC Power Input and Case Grounding
Two power inputs with power redundancy with the standard removable
terminal block or DC Jack.
Power Input Voltage: DC 24V, input range from DC 12 to 48V.
Terminal block connector:
Center pin: case ground, connects to earth ground for better electric
magnetic and static immunity.
Right side pin: V+ input.
Left side pin: V- input
DC Jack: Ø 2mm Center Pin. Center pin is positive voltage.
Make sure to use the CE and UL certified AC to DC power adapter or AC to
DC switching power supply as a power source.
On the other side, there are 1 Fast Ethernet RJ-45 connector and 2 RJ-11
connectors for Line/ISDN and VDSL2. See the following picture, figure 2-2-2.
5
Figure 2-2-2
