Korpinen 21273020 User manual

Korpinen Duo Height adjustable
Toilet, Electric
User manual
This manual should always be in close proximity of the
product

TF 200.07.0006_ENG
2
Table of content
1. Symbols used in this manual.................................................................................................................. 3
2. General safety........................................................................................................................................... 3
2.1 Product Unit label ...................................................................................................................... 5
3. General requirements .............................................................................................................................. 6
3.1 Product information....................................................................................................................... 6
3.2 Product description ....................................................................................................................... 7
3.3 Intended use.................................................................................................................................. 7
3.4 Intended operator.......................................................................................................................... 7
3.5 Essential performance .................................................................................................................. 7
3.6 Non-clinical functions .................................................................................................................... 7
3.7 Clinical functions ........................................................................................................................... 7
3.8 Product dimensions....................................................................................................................... 7
4. Instructions for use.................................................................................................................................. 9
4.1 Installation of product................................................................................................................. 9
4.1.1 Installation interface................................................................................................................ 9
4.1.2 Construction ......................................................................................................................... 12
4.1.3 Mounting the product............................................................................................................ 13
4.1.4 Pair the Bluetooth remote..................................................................................................... 16
4.2 Operating the product.............................................................................................................. 21
4.3 Residual risks........................................................................................................................... 21
4.4 Installation of accessories........................................................................................................ 22
4.4.1 Installation of height adjustable toilet support arms ............................................................. 22
4.4.2 Installation of backrest............................................................Error! Bookmark not defined.
5. Troubleshooting ..................................................................................................................................... 22
6. Cleaning .................................................................................................................................................. 23
7. Maintenance............................................................................................................................................ 23
7.1 Periodic maintenance .............................................................................................................. 23
7.2 Calibration of actuator.............................................................................................................. 23
8. Component parts list.............................................................................................................................. 24
9. Environmental protection...................................................................................................................... 24
10. Electromagnetic compatibility .............................................................................................................. 24
10.1 Suitable Environments......................................................................................................... 24
10.2 Adjacent and stacked use.................................................................................................... 24
10.3 Cables.................................................................................................................................. 24
10.4 RF portable equipment ........................................................................................................ 25
11. Accident reporting.................................................................................................................................. 25

TF 200.07.0006_ENG
3
1. Symbols used in this manual
Warning!
Indication of potentially hazardous situation. If not avoided, it can
result in serious injury or death.
Caution!
Indication of potentially hazardous situation which may result in
minor or moderate injury.
It may also be used to alert against unsafe practices.
Notification!
This symbol is used to notify correct use and handling of the
product.
2. General safety
This manual must be read and understood before use and
installation. Always keep this manual in close proximity of the
product.
The use, installation and service of this product must be in
compliance with this manual to avoid accidents and serious
personal injury.
Never use or handle this product in other ways specified in
this manual as it can result in personal safety hazards and/or
cause damage to the product.
Persons installing and/or using this product either as operator
or user should have the necessary safety information and
access to this manual.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
designated persons in order to avoid a hazard.

TF 200.07.0006_ENG
4
Do not perform repairs, disassembly or assembly operations,
add-ons, re-adjustments or modification of the product
beyond what is described in this manual. These must be
carried out by Korpinen or Korpinen authorized personnel. Do
not perform service while in use.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Do not use the product if it has defects or have become
damaged before being repaired or replaced.
If the control box makes unusual noise or smells, switch off
the mains voltage immediately.
Take care that the cables are not damaged.
Unplug the mains cable on mobile equipment before it is
moved.
The products must only be used in an environment that
corresponds to their IP protection..
The information in this manual is based on correct installation
in accordance with installation instructions for this product.
Korpinen cannot be held liable if the product is used in any
way that differs from stated in this manual and/or installation
instruction.
Korpinen reserves the right to amend this manual and
reference documents without prior notice.

TF 200.07.0006_ENG
5

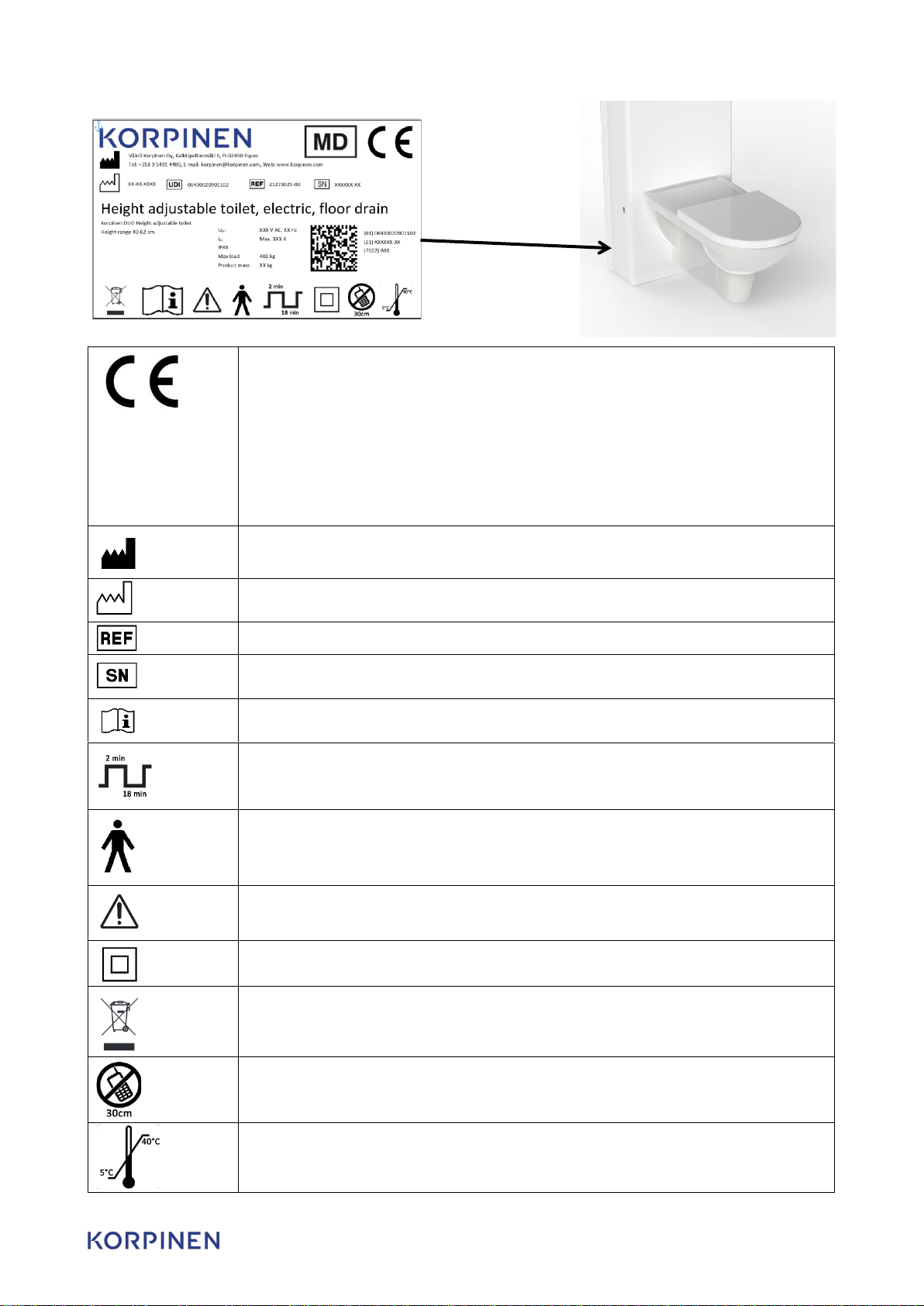

2.1 Product Unit label
This product is CE-marked in accordance with:
European Medical Device Directive 93/42/EEC, including
amendments incorporated in Directive 2007/47/EEC.
European Medical Device Regulation (EU)2017/745
Council Directive 2006/42/EC on machinery
Council Directive 2011/65/EU, RoHS
Manufacturer name and address
Date of production
Stock number
Serial number
Consult manual before use
Operating interval of electrically operated equipment. The use of electrical height
adjustable equipment can run at maximum 2 minutes, followed by an 18-minute
break.
Type B applied part. The product complies with IEC 60601-1 requirements to
provide protection against electric shock.
Consult manual for important safety related information, warnings, and safety
precautions.
Class II, double isolated electrical components.
Do not dispose as unsorted municipal waste. Product must be returned to a
designated recycling station.
Mobile phones or other portable RF emitting equipment should be no closer to the
product than 30cm.
Operating and storing temperatures may not exceed 5-40°C

TF 200.07.0006_ENG
6
3. General requirements
3.1 Product information
Manufacturer
Väinö Korpinen Oy,
Kalkkipellontie 6, FI-02650 Espoo
Tel. [phone]
[e-mail]
Product models
Part number
Model
Configuration
21273020
21273030
Height adjustable toilet
Height adjustable toilet
Electric, floor drain
Electric, wall drain
Expected service life
according to ISO
17966:2016
5 years
MDD Class
93/68/EEC
MDR Class
2017/745
Class I
Applied part
classification
60601-1
Type B applied part
MEE Class
60601-1
Class II
Intended environments
This product is to be used only in:
Professional Healthcare Environment
Homecare Environment
The device is not intended for use in special environments as defined by IEC
60601-1-2
Maximum user weight
according to ISO
17966:2016
400kg
Power supply
100-240V ~50/60Hz
I in
Max 2.0A
Intermittence
2min use / 18min pause
Height adjustment
400-650mm
Speed of actuation
≈8mm/s
IP rating
IPX6
Ambient temperature
range
-5 °C to +40 °C Transport and storage
+5 °C to +40 °C Operation
Relative humidity:
20% to 80% - non-condensing
Materials in contact
with patient
Components
Covers
Material description
AMI ABS/PMMA plastic
Reference datasheet

TF 200.07.0006_ENG
7
Accessories
Item nr.
Model
3.2 Product description
The Korpinen toilet lifter electric can be set in heights ranging from 405-655mm by the use of the wireless
handset. Height adjustment will meet different sitting height needs various patient heights.
3.3 Intended use
The Korpinen height adjustable toilet lifter is intended to be used in both homecare and professional
healthcare environments. Adjusting the height will meet ergonomic demands emerging from various patient
heights.
The toilet lifter is not intended for playing, or as a training device.
The Korpinen Toilet Lifter gives people with reduced mobility the possibility to extend their independence. It
lowers and lifts the user to the best seated or standing position. Importantly it is straight-forward to set to the
optimum height for both user and helper. It is a solution using modern welfare technology to help users
become more self-reliant in their bathroom routines. The Toilet Lifter is an assistive aid which can support
users to keep their privacy for as long as possible. The height adjustment has an adjustment range of 25 cm
going from 40-65 cm.
3.4 Intended operator
The intended operator may include all that have read and understood this manual exempt kids.
3.5 Essential performance
The device does not have any function related to basic safety or essential performance. In case of loss or
degradation of performance, the user can get of the toilet.
3.6 Non-clinical functions
Height adjusting offers better ergonomics to user and caretaker.
3.7 Clinical functions
This product does not offer clinical benefits for patients, when used as intended by the manufacturer.

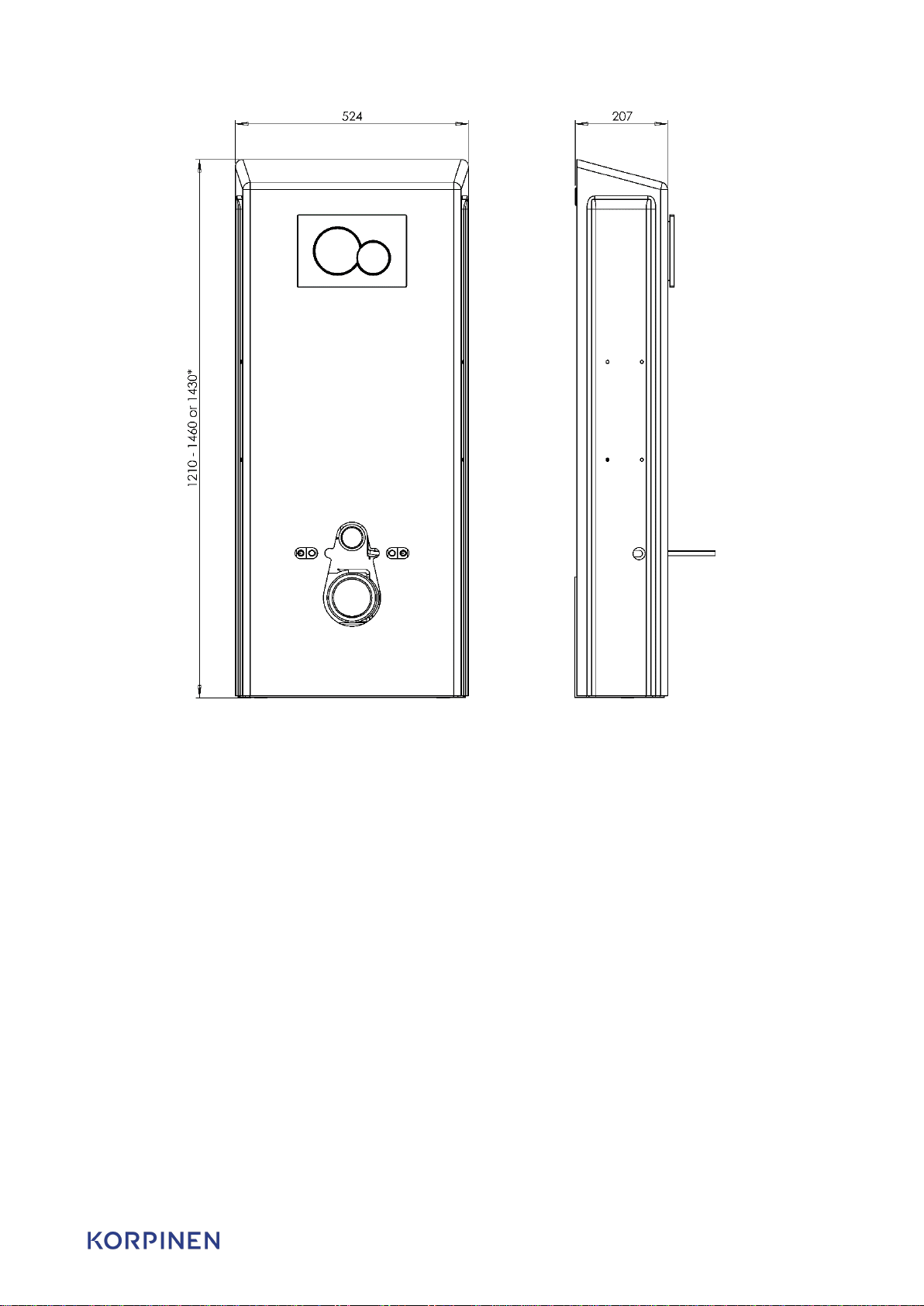

3.8 Product dimensions

TF 200.07.0006_ENG
8
* Electrically adjusted model's seat height is adjustable between 400-650 mm. Manually adjusted model's
seat height is adjustable between 400-620 mm

TF 200.07.0006_ENG
9
4. Instructions for use
4.1 Installation of product

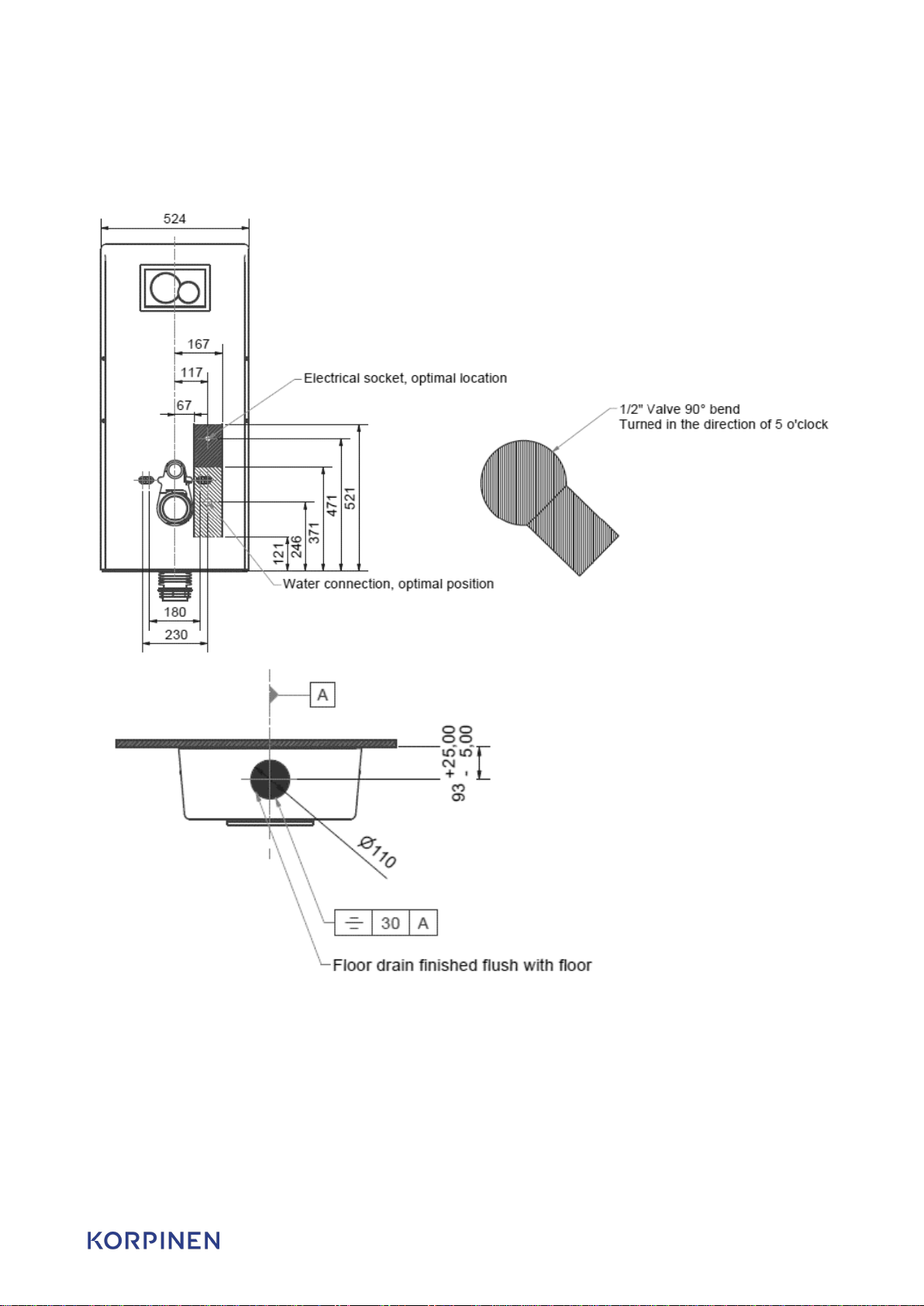

4.1.1 Installation interface

TF 200.07.0006_ENG
10

TF 200.07.0006_ENG
11

TF 200.07.0006_ENG
12
4.1.2 Construction
Notification!
The toilet lifter is supplied with a set of 6 screws and rawlplugs suitable for mounting in a
concrete wall. The fitter should always consider the material, condition, and strength of the
wall and use screws and rawlplugs suitable for the specific wall type.
Caution!
Maximum pulling force per screw is 44kg, at 400kg max user weight according to ISO 17966:
2016

TF 200.07.0006_ENG
13
4.1.3 Mounting the product

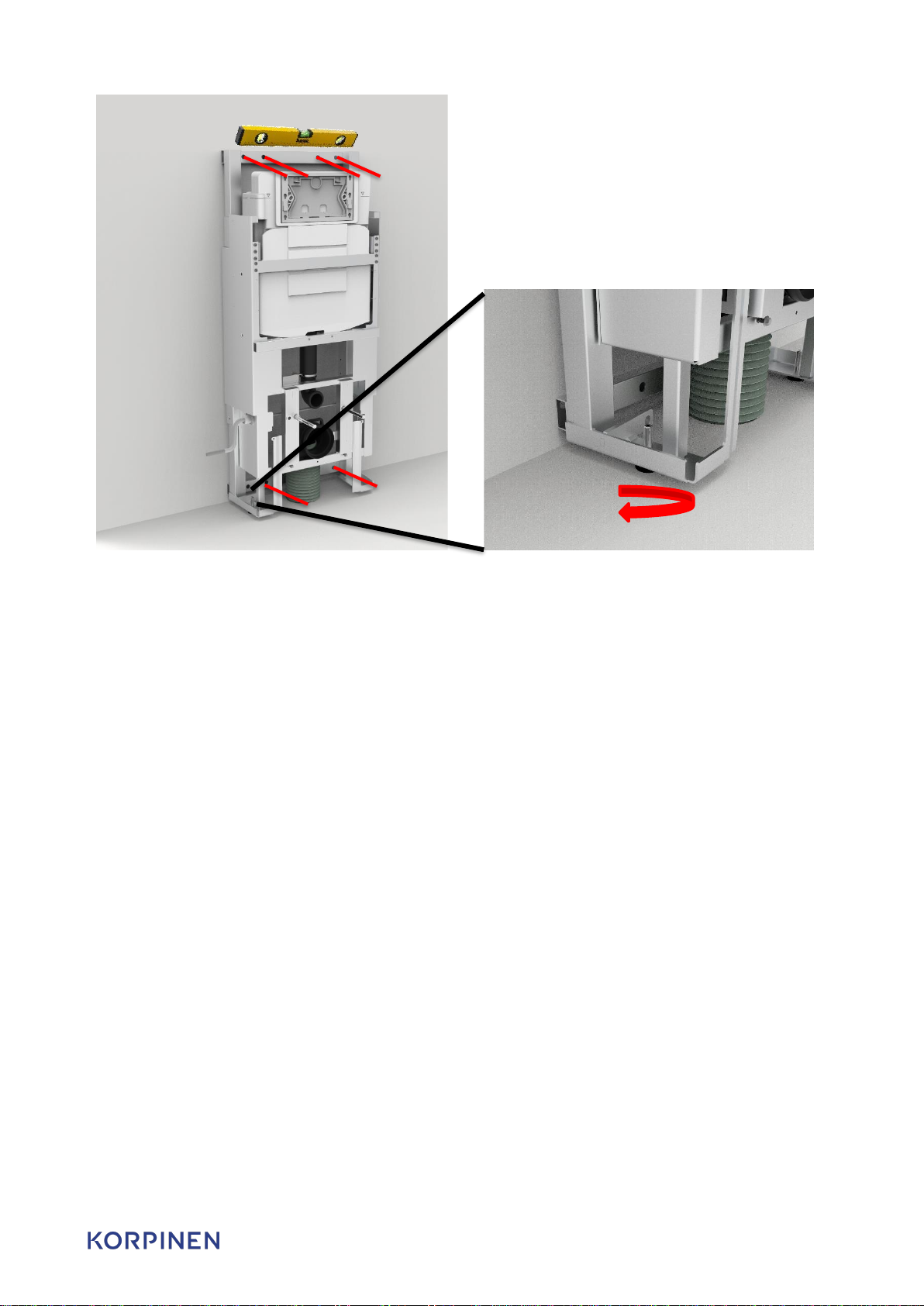

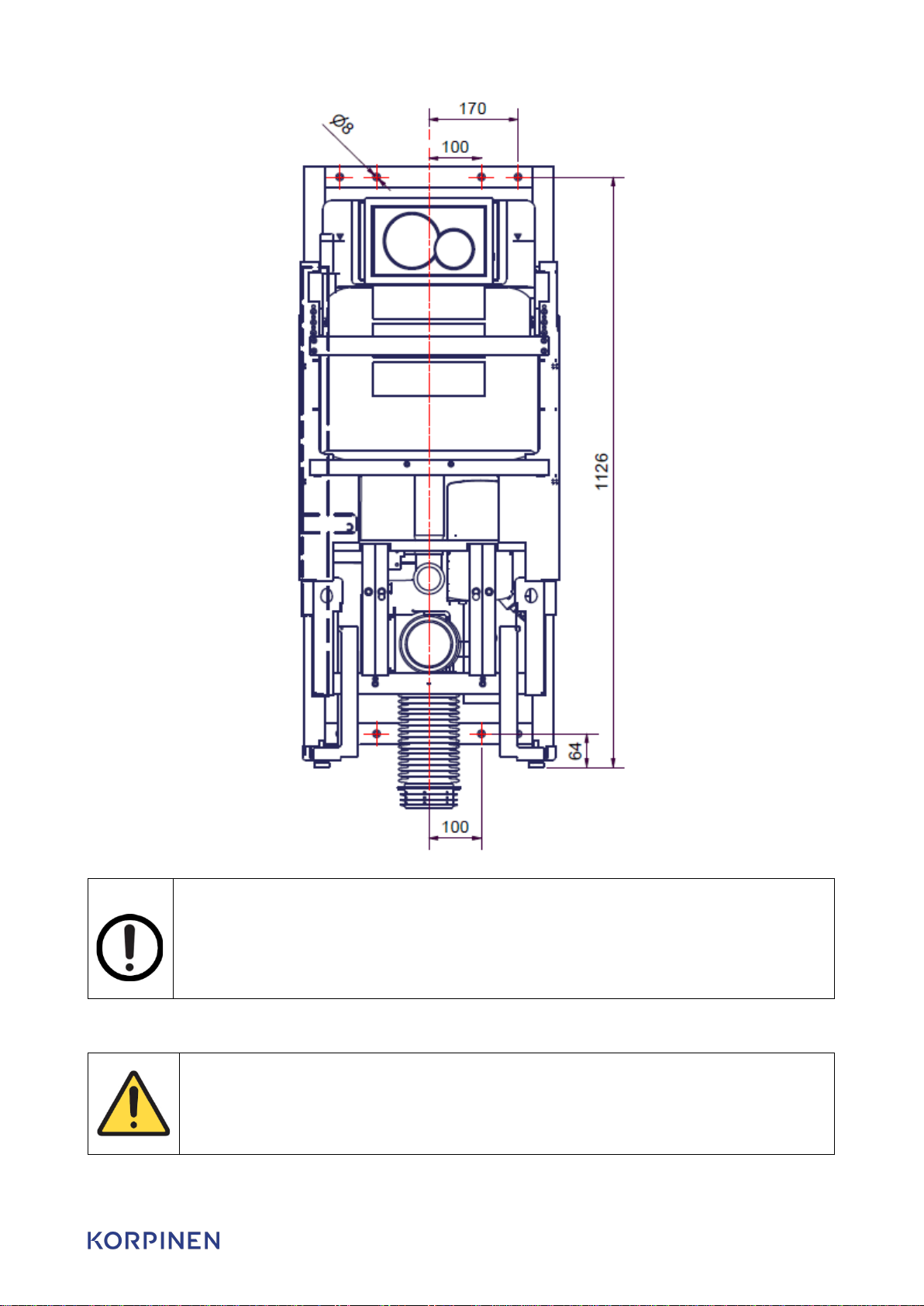

a. Line up frame with adjustment screws. Mark out 6 holes and drill holes for appropriate rawlplugs.
Ensure that the center of the bottom 2 holes is at least 64mm above the floor.
b. Connect water hose on wall outlet and electric outlet before securing frame to the wall.
c. Secure frame to wall.

TF 200.07.0006_ENG
14

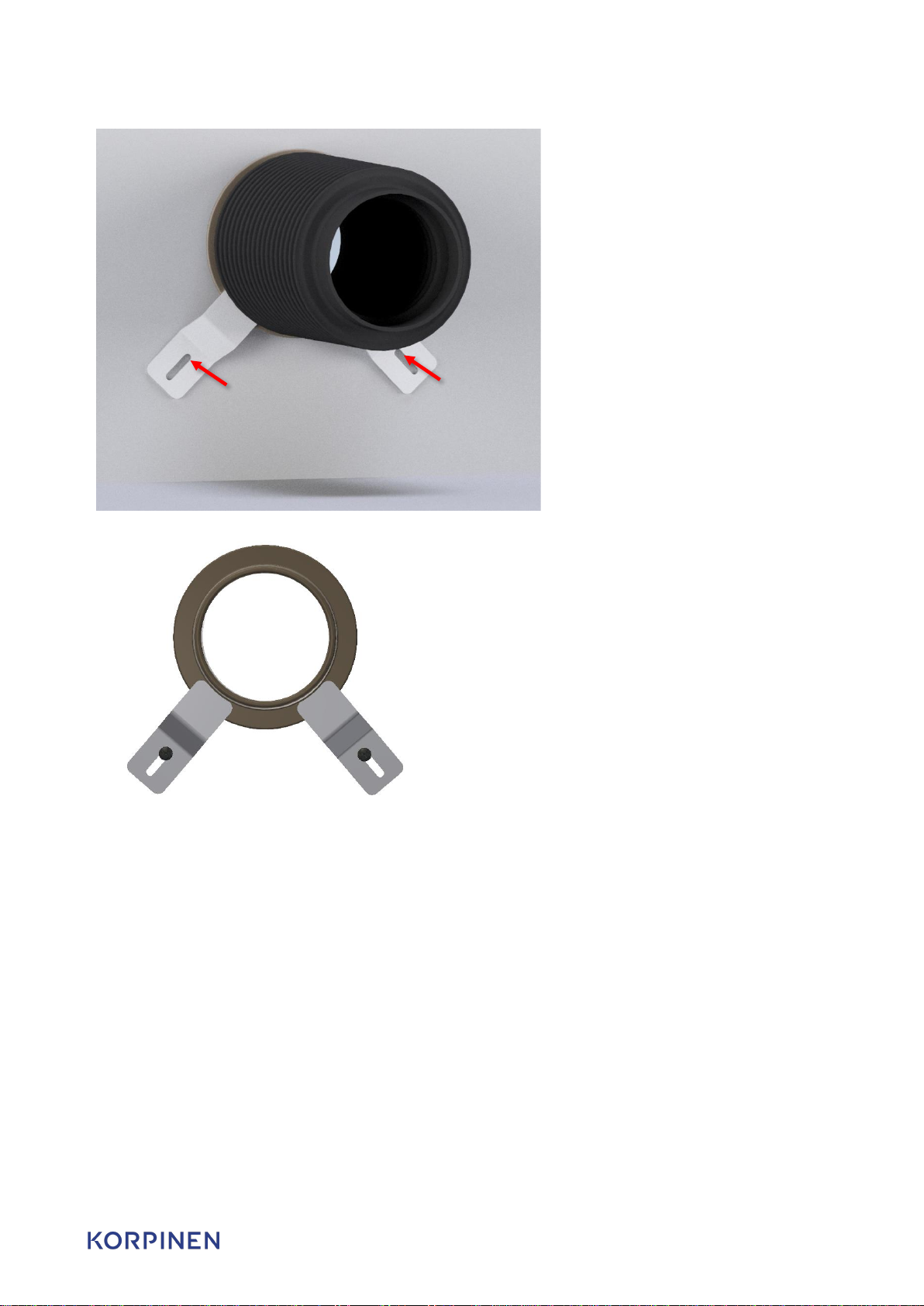

d1. If drain is in floor, mount the drain bellow as instructed below.
Make sure the bellow is not twisted
Mount the bellow as shown below for correct
flow

TF 200.07.0006_ENG
15

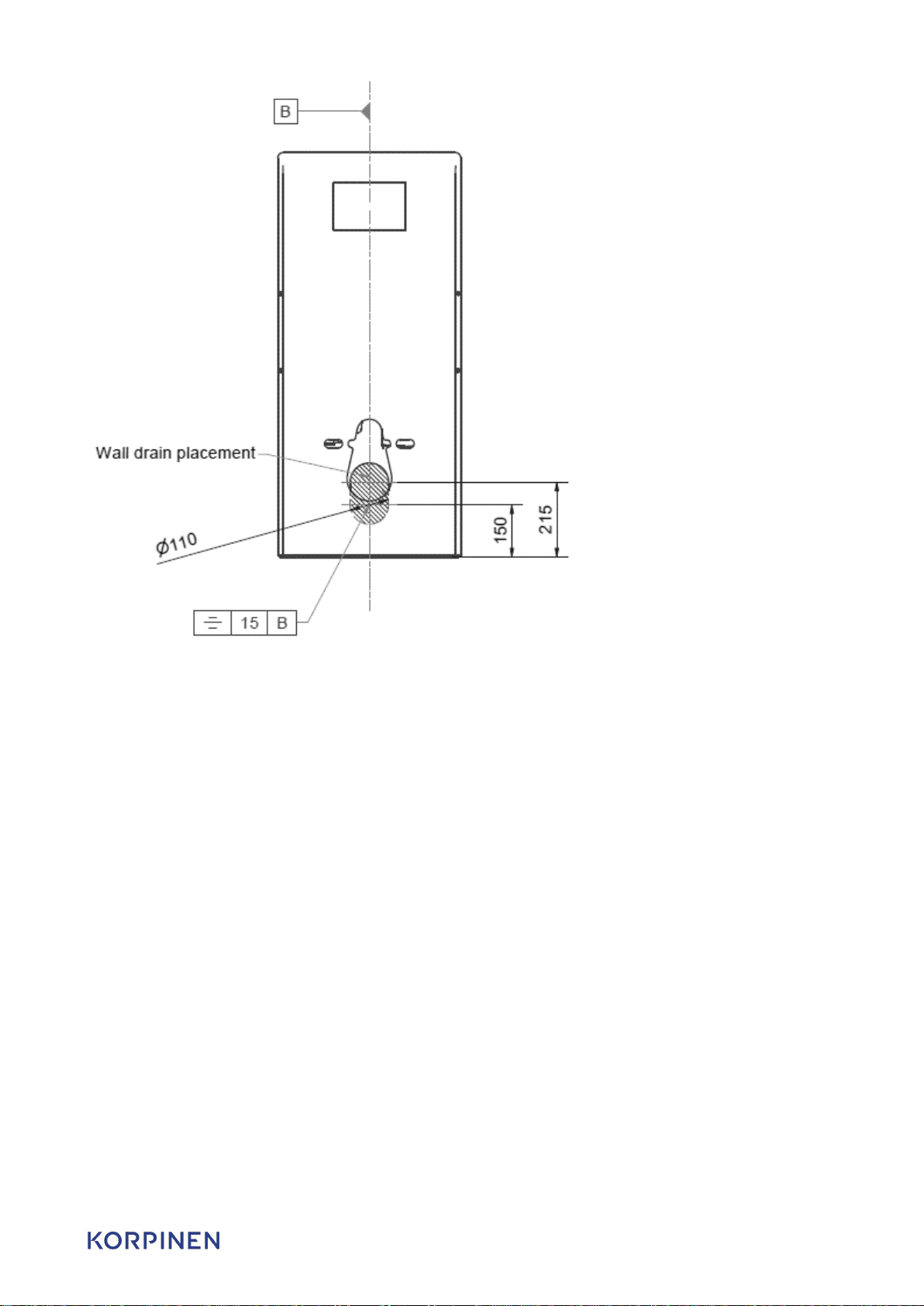

d2. If drain is in wall, mount the drain bellow in wall drain, mount the accompanying brackets on the wall,
so that the toilet flange is held in place.

TF 200.07.0006_ENG
16

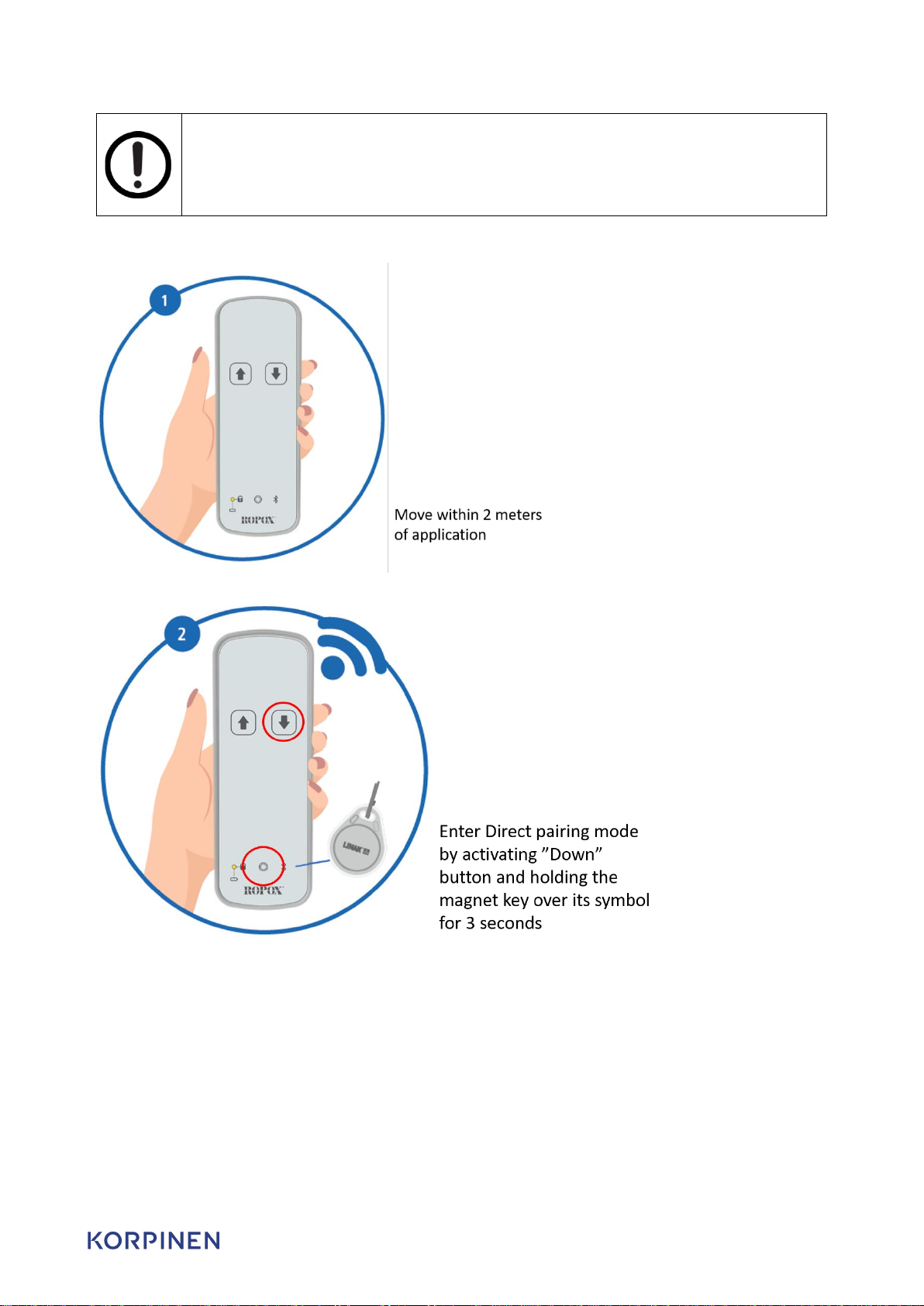

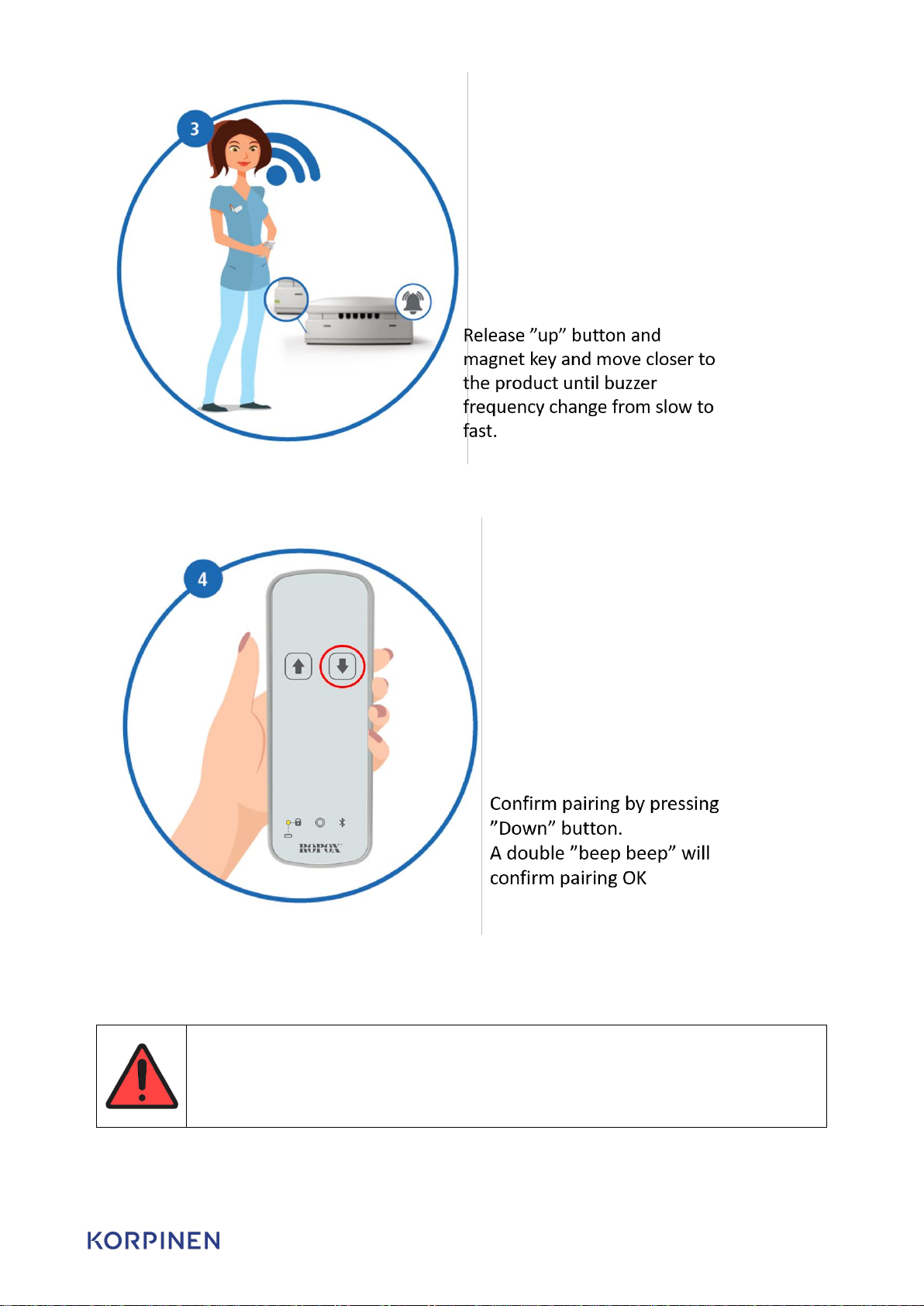

4.1.4 Pair the Bluetooth remote
Notification!
Pair the remote to the product and test full travel length before continuing installation!

TF 200.07.0006_ENG
17
Notification!
When pairing is complete test product travel. Make sure all cables, water connection and
drain connection travels freely. The electrical connection shall travel unhindered and may
not get entangled in other installations.

TF 200.07.0006_ENG
18

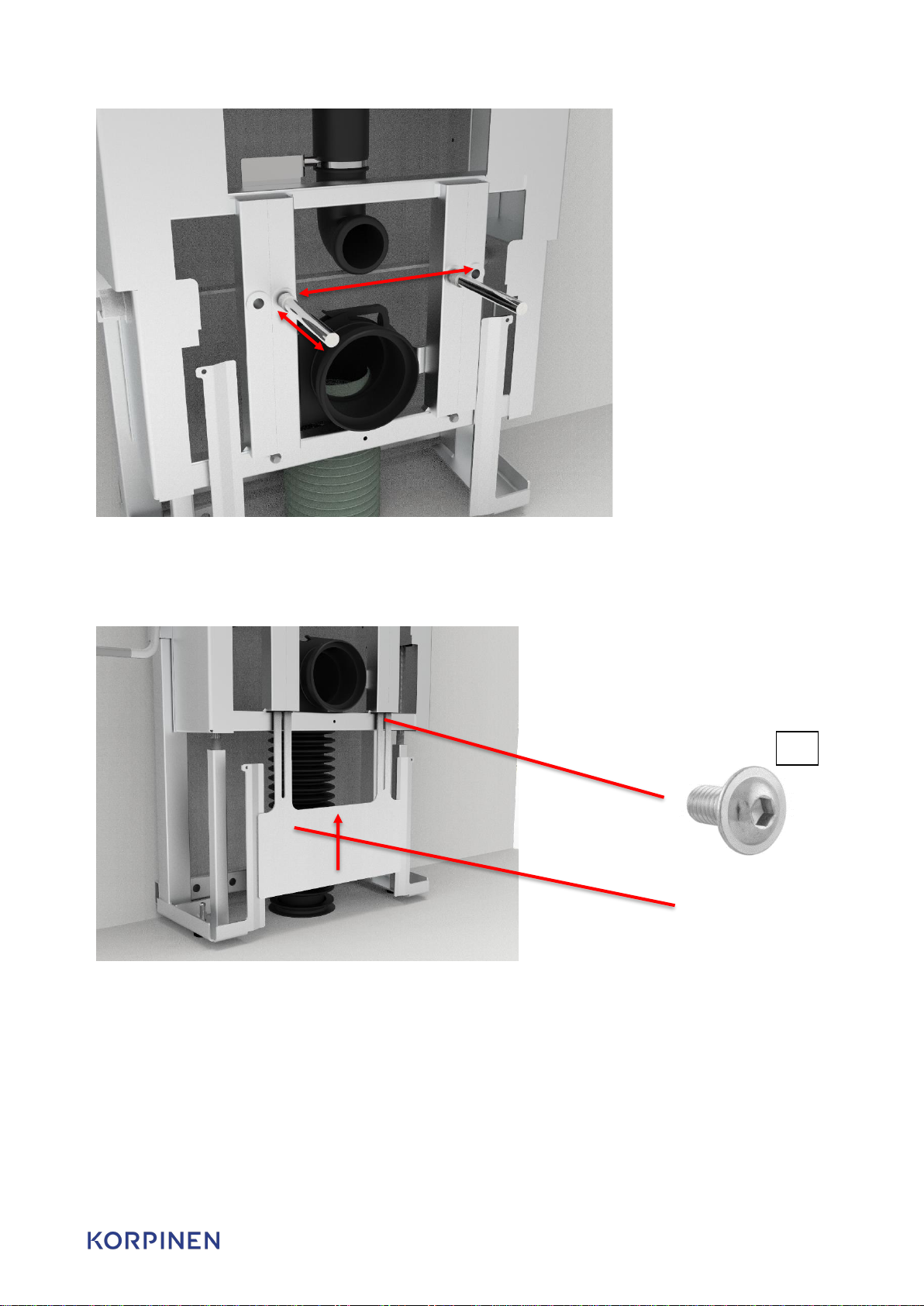

e. Cut threaded rods to length and secure them in the frame.
f. Mount inner cover 1 and 2.
2x

TF 200.07.0006_ENG
19
g. Mount outer cover.
2x

TF 200.07.0006_ENG
20

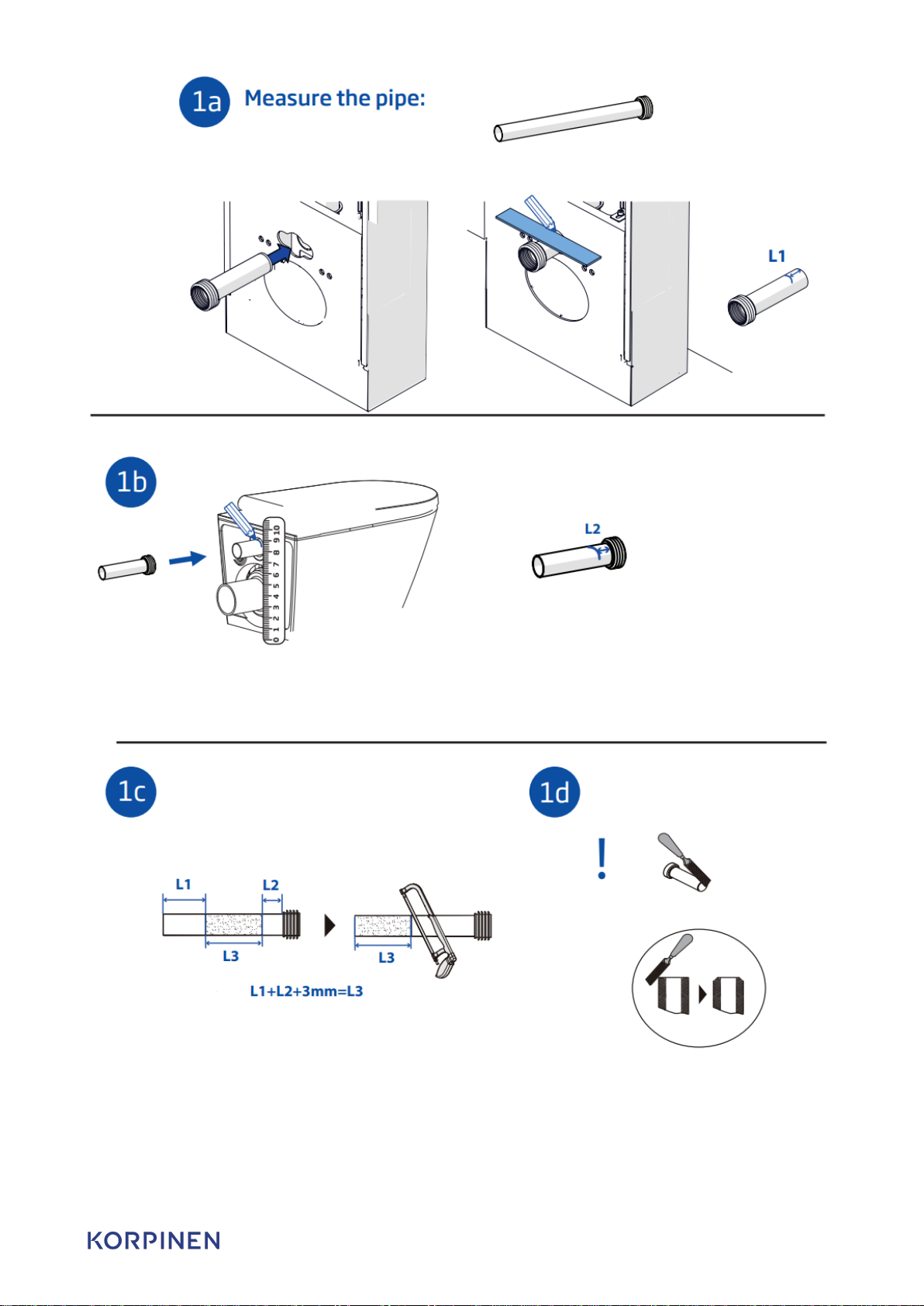

h. Shorten ferrule and flush pipe to length and mount them.

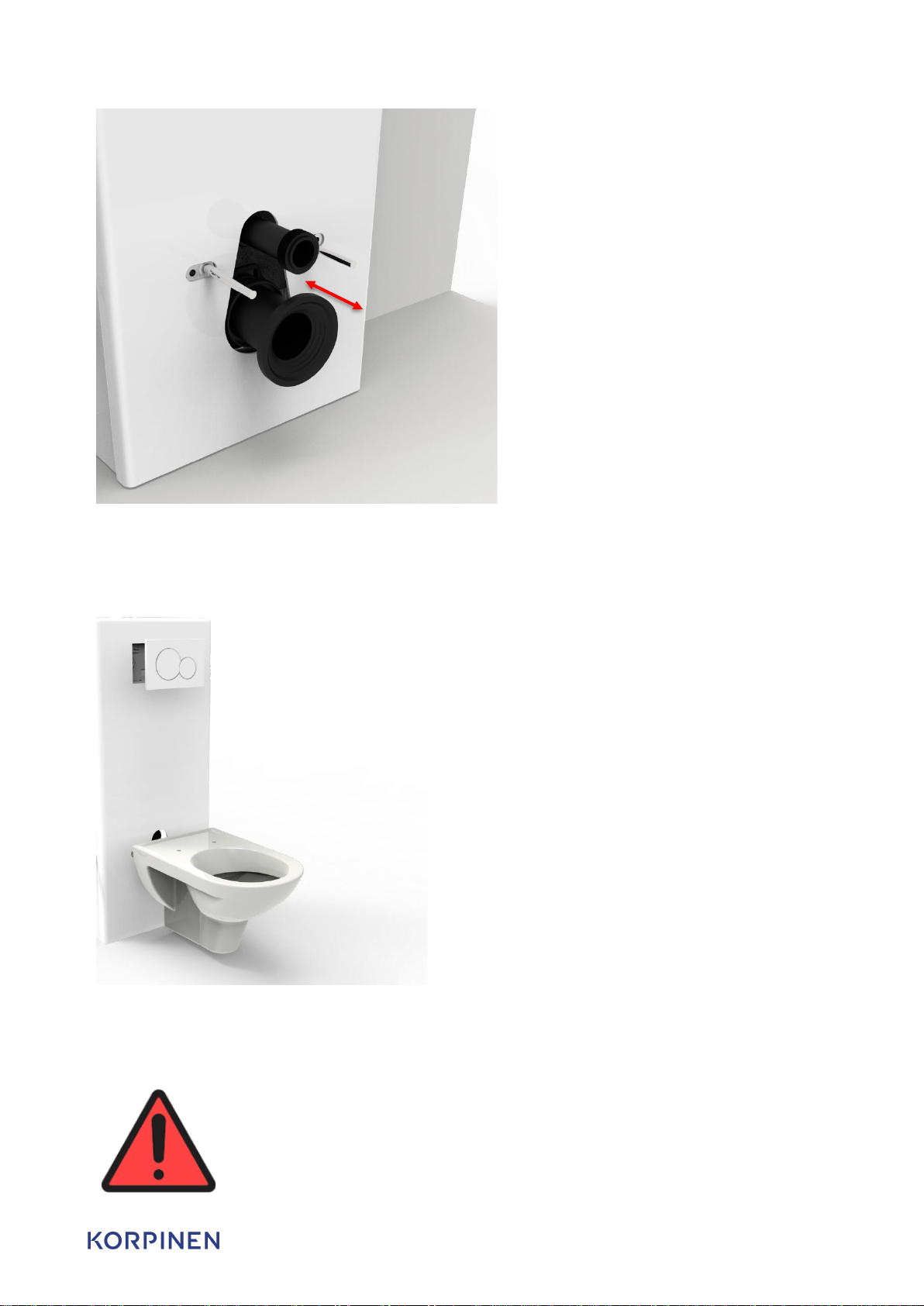

i. Mount the toilet and press pad.
j. Finish the installation by checking the following:
1. Rigidity test, sit on the toilet and check screw connections are firm.
2. Check that full travel of the product goes unhindered.
3. Check flushing and leaks.
