KORTEX 56000 PCMCIA
1
KORTEX 56000 PCMCIA
Installation Manual
PC

KORTEX 56000 PCMCIA
2
Contents
PRODUCT REGISTRATION AND GUARANTEE....................................3
STANDARDS FOR USE ..............................................................................6
INTERCONNECTIBILITY OF KORTEX 56000 PCMCIA..................................6
INTERCONNECTION CLASSIFICATION SCHEMATIC ..........................................6
CE LABELLING............................................................................................6
TELECOM NETWORK SAFETY........................................................................6
INSTALLATION PRECAUTIONS .......................................................................7
CLEANING ...................................................................................................7
AGREEMENT................................................................................................7
INTRODUCTION ........................................................................................8
MINIMUM CONFIGURATION REQUIREMENTS..................................................8
TECHNICAL DATA....................................................................................9
INSTALLATION OF KORTEX 56000 PCMCIA MODEM UNDER
WINDOWS 95 ............................................................................................10
INSTALLATION OF CARD.............................................................................10
Insertion of card in computer................................................................10
Connection of cable..............................................................................10
SELECTION OF COUNTRY....................................................................14
TESTING KORTEX 56000 PCMCIA CARD WITH WINDOWS 95
HYPERTERMINAL...................................................................................15
APPENDIX 1 AT COMMANDS SET........................................................19
S-REGISTERS REFERENCE...........................................................................42
THE RESULT CODE SUMMARY ....................................................................53
INTERNET SERVER.................................................................................55
KORTEX WEB SERVER ..............................................................................55
BEFORE ASKING FOR TECHNICAL SUPPORT .................................56

KORTEX 56000 PCMCIA
3
PRODUCT REGISTRATION AND GUARANTEE
Guarantee :
1. Description :
This guarantee gives you the right to a free replacement of any parts which are faulty due to a manufacturing defect.
2. Exclusions :
a) All accidental damage cause by improper or incorrect usage.
b) All damage caused by using the product with a non-standard telephone system or PABX.
c) All damage cause by exceeding the recommended voltage, product abuse, customer negligence, defective electrical supply, failure
to follow the installation or usage instructions or opening of the product casing by the customer or a third party.
d) This guarantee also excludes any damage resulting from major force due to a third party.
3. Payment of damages :
The guarantee does not give any right to payment of damages for losses caused by the unavailability of the product.
4. Other Terms and Conditions :
a) No distributor or reseller has the right to change the terms of this guarantee.
b) This guarantee does not effect your consumer rights.
c) To take advantage of the guarantee you must return the product registration form below within 15 days of the date of purchase of
your modem.
d) The modem serial number must not have been modified or removed.
To benefit from this guarantee, you must complete the product
registration form, which must include the serial number marked on the
case (not that of disks or CD ROM) and return it within 15 days of
purchase to the address indicated overleaf. Please note that if you fail to
return the product registration certificate with this 15 days period, the
guarantee will cover only the first year of usage.
-----------------------------------------------------------------------------------------------
KORTEX 5 years product guarantee registration
Name :
Surname :
Company :
Job Title :
Address :
Post Code :
City :
Tel : Fax :
Serial N°:
Name address of reseller :
Product Name :
Date of purchase :
Please indicate three
factors which influenced
your purchase :
¨Product design
¨Company Reputation
¨Advice of your reseller
¨Price
¨Technical specification
¨Modem feature
¨……………………..

KORTEX 56000 PCMCIA
4
WHY RETURN YOUR PRODUCT REGISTRATION CARD?
YOU WILL BENEFIT FROM A 5 YEARS GUARANTEE
YOU WILL RECEIVE INFORMATION ABOUT UPGRADES
By returning your product registration card, KORTEX will keep you informed
on the availability of new upgrades to your hardware and software : prices,
special upgrade offers, technical specifications
YOU WILL RECEIVE PRIORITY UPDATES
KORTEX will keep you informed of the latest news, products, promotions and
technical information.
HOW TO BENEFIT FROM THE SUPPORT HOT-LINE :
You can take advantage of the KORTEX support hot-line during the guarantee period following the
purchase of your modem. by sending a fax to [phone], and our highly trained support
engineers will give you personal technical assistance, please note your system configuration (modem
type, machine, operating system, communications software, type of phone line...) and notes your
questions on the fax.
HOW TO RETURN A FAULTY PRODUCT :
When returning your faulty modem to the repair centre during the 5 years guarantee period, it is
essential that you include a copy of your original purchase invoice. You must also have previously
returned your product registration form within 15 days of the date of purchase of your modem. We also
ask you to include a description of the fault that you have encountered.
-----------------------------------------------------------------------------------------------
KORTEX INTERNATIONAL
SERVICE REPARATION
139, 147 AVENUE PAUL-VAILLANT COUTURIER
93126 LA COURNEUVE CEDEX FRANCE
AFFIX
STAMP

KORTEX 56000 PCMCIA
5
NOTE
All information contained in this manual is subject to change without prior notice. The designer cannot
be held responsible for any omissions of either a technical or editorial nature.
The information in this manual is protected by copyright. The manual may not be reproduced in any
form, in part or in its entirety, without the permission of:
Trademarks and copyrights:
MS-DOS, Windows, Windows 95, 98 and NT are trademarks of Microsoft
Corporation; PC, XT and AT are trademarks of IBM Corporation; pentium is
a trademark of Intel Corporation
KORTEX INTERNATIONAL
139, 147 AVENUE PAUL-VAILLANT COUTURIER
F - 93126 LA COURNEUVE CEDEX
Phone: [phone] Fax: [phone]

KORTEX 56000 PCMCIA
6
Standards for Use
Interconnectibility of KORTEX 56000 PCMCIA
The electrical safety of the KORTEX 56000 PCMCIA card conforms to
standard IEC 950.
Interconnection Classification Schematic
TRT: telephone network voltage
TBTS: very low voltage (safety)
CE Labelling
The product conforms to directives CEM 89/336/EEC for electromagnetic
compatibility and CEM 73/23/EEC for user safety.
Telecom Network Safety
The product conforms to standard EN 41003. It may be connected to telecom
networks.

KORTEX 56000 PCMCIA
7
Installation Precautions
Avoid installing the KORTEX 56000 PCMCIA card in a damp room or next
to a source of heat.
Do not open the KORTEX 56000 PCMCIA card. Contact after-sales if any
kind of repair is necessary.
Provide over voltage protection for the KORTEX 56000 PCMCIA card in
regions subject to frequent heavy storms.
Cleaning
Disconnect the telephone line before cleaning the KORTEX 56000 PCMCIA
card.
Do not use any solvents to clean the KORTEX 56000 PCMCIA card.
Agreement
Legal use of this equipment is only possible in countries where the responsible
administration or authority has issued its official approval. The equipment has
been approved in accordance with Council Decision 98/482/EC for pan-
European single terminal connection to the public switched telephone network
(PSTN). However, due to differences between the individual PSTN’s provided
in different countries, the approval does not, of itself, give an unconditional
assurance of successful operation on every PSTN network terminal point.
In the event of problems, you should contact Kortex to verify the supported
countries.

KORTEX 56000 PCMCIA
8
Introduction
This manual provides all the information necessary for installation and use of
the KORTEX 56000 PCMCIA modem, based on Lucent technology.
Read the manual first before installing the modem. It details the procedures for
installing the card.
The KORTEX 56000 PCMCIA solution can be updated by software thanks to
its integrated flash memory, eliminating the need to change integrated circuits
or cards.
Minimum Configuration Requirements
n486 or Pentium processor
n16 Mbytes RAM
nWindows 95 (including versions OSR1/OSR2), NT4.0
or Windows 98
nHard disk
nCD-ROM drive

KORTEX 56000 PCMCIA
9
Technical Data
TECHNICAL DATA
Supported communication standards Speed
V.21 300 bps
V.22 1200 bps
V.23 (Minitel) 1200/75 bps
V.22 bis 2,400 bps
V.32 9,600 bps
V.32 bis 14,400 bps
V.34 28,800 bps
V.34+ 33,600 bps
V.90 56,000 bps
K56 FLEX 56,000 bps
V.8 bis x
V.80 Ready for video
Error correction
V.42 X
MNP 2, 3, 4 X
Data compression
V.42 bis X
MNP 5 X
Supported fax protocols
Fax V.27 ter 4,800 bps
Fax V.29 9,600 bps
Fax V.17 14,400 bps
Fax class 1 X
UART, transfer rate DTE up to 115,200
Selection of country from configuration panel
under Windows 95, 98 or NT 4.0
Very low power consumption
Signal quality monitoring and automatic
readjustment
Automatic fallback
AT commands
PCMCIA type II interface bus
Compatibility with systems
Windows 95 OSR1/OSR2
Windows NT 4.0

KORTEX 56000 PCMCIA
10
Installation of KORTEX 56000 PCMCIA Modem
under Windows 95
Installation of Card
Insertion of card in computer
You can connect the modem card to any kind of portable or desktop computer
featuring a slot for PCMCIA V 2.00 cards.
1. Slide the card into a PCMCIA slot. Refer to the manual of your computer if
you are not sure which is the PCMCIA slot.
2. Make sure the card engages properly with the connector. On most laptops
and notebooks, you will hear a beep to indicate that the card is correctly in
place.
Connection of cable
Connect the supplied cable between the PCMCIA modem card and the
telephone jack. One end of the cable has a flat connector for joining to the
PCMCIA card, the other end can be joined to a national adapter.

KORTEX 56000 PCMCIA
11
When the computer is powered on, or if it is already powered on, it detects the
PCMCIA card automatically. The message “New hardware found” (or
something similar) will appear. Now you insert the CD ROM or diskette with
the KORTEX 56000 PCMCIA driver in the CD ROM or disk drive and click
on “Next >” to continue. Follow the instructions on the screen.
Choose to display the list of drivers click on “No”.
Enter the correct name of the directory where the driver is located.
This will be “A:\” for the disk drive or “D:\” for the CD ROM drive. Enter the
complete path and the name of the driver file. Click on “OK” to confirm.

KORTEX 56000 PCMCIA
12
Click on “Browse…” if you do not know the complete path for selecting the
driver file. Click on “OK” to confirm. The next window then appears:
Click on “ Next >” to continue. The next window is displayed. Click on “Next
>” to continue. An icon will be created in the configuration panel to allow a
choice of country.

KORTEX 56000 PCMCIA
13
Click on “Finish”, and installation of the driver is finished.

KORTEX 56000 PCMCIA
14

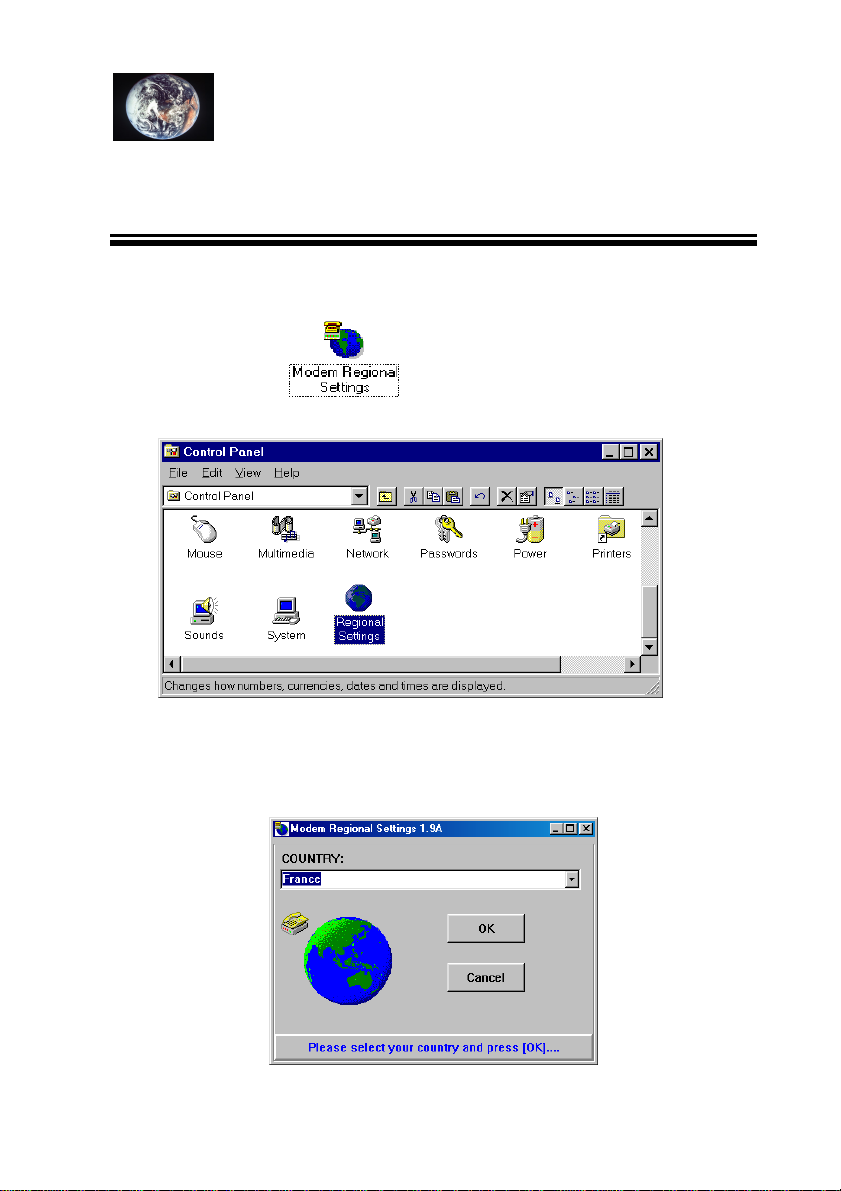

Selection of Country
Double-click on the icon in the configuration panel.
Select the country where you are, for example “France”. If your country is not
listed, select “USA” as a default or contact the producer or retailer of your
modem.

KORTEX 56000 PCMCIA
15
Testing KORTEX 56000 PCMCIA Card with
Windows 95 HyperTerminal
If you experience any difficulties with the KORTEX 56000 PCMCIA
modem, follow the instructions below and try to pinpoint the possible
cause. Continue until you come across your own problem.
1. Click on “Start”, choose “Programs”, “Accessories”,
“Communications” and then “HyperTerminal”.

KORTEX 56000 PCMCIA
16
2. Double click on “HyperTerminal”. Start HyperTerminal to open
the “Connection” window.
3. Enter a name and choose an icon. Click on “OK”.
4. Confirm the modem selection. Enter any telephone number,
preferably selecting the country from which you are calling, and
click “OK”.

KORTEX 56000 PCMCIA
17
5. Click on “Cancel”; the modem does not ring the number and will
return to terminal mode.

KORTEX 56000 PCMCIA
18
6. Back in the terminal window, you can enter commands for the
modem. Key in the AT <Enter>. You should receive the response
“OK”. If nothing appears, this indicates that the modem does not
receive the interruption IRQ. Use the control panel of the modem
under Windows 95 to change the IRQ. (Refer to the Windows 95
or 98 manual if necessary.)

KORTEX 56000 PCMCIA
19
Appendix 1 AT Commands set
AT commands are issued to the modem to control the modem's operation and
software configuration.
AT commands can only be entered while the modem is in command mode.
The format for entering AT commands is:
TYPE: ATXn
where X is the AT command, and n is the specific value for that command.
PRESS: Enter
Any command issued is acknowledged with a response in either text or
numeric values known as result codes. For multiple AT commands in the same
command line, the commands are executed in the order received from the
DTE. Should execution of a command result in an error, or a character be not
recognised as a valid command, execution is terminated, the remainder of the
command line is ignored, and the ERROR result code is issued. Otherwise, if
all commands execute correctly, only the result code associated with the last
command shall be issue; result codes for preceding commands are suppressed.
In the following listing, all commands and command-values accepted by the
modem are shown; any entries other than those shown cause the ERROR
result code.
+++ Escape sequence
The escape sequence allows the modem to exit data mode and enter on-line
command mode. While in on-line command mode, you may communicate
directly to your modem using AT commands. Once you are finished, you may
return to data mode using the ATO command.

KORTEX 56000 PCMCIA
20
A pause, the length which is set by the Escape Guard Time (S12), must be
used after an escape sequence is issued. This pause prevents the modem from
interpreting the escape sequence as data. The value of the escape sequence
character may be changed using Register S2.
A/ Repeat Last Command
This command repeats the last command string entered. Do not precede this
command with an AT prefix or conclude it by pressing Enter.
A Answer Command
This command instructs the modem to go off-hook and answer an incoming
call.
Bn Communication Standard Setting
This command determines CCITT vs. Bell standard.
B0: Selects CCITT V.22 mode when the modem is at 1200 bits/s.
B1: Selects Bell 212A when the modem is at 1200 bits/s (default).
B2: Unselects V23 reverse channel ( same as B3).
B3: Unselects V23 reverse channel ( same as B2).
B15: Selects V.21 when the modem is at 300 bits/s.
B16: Selects Bell 103J when the modem is at 300 bits/s (default).
Result Codes:
OK n = 0, 1, 15, 16
ERROR Otherwise
Cn Carrier Control
The modem will accept the C1 command without error in order to ensure
backward compatibility with communications software that issues the C1
command. However, this modem does not support the C0 command. The C0
