xG Technology CN3100-PS-2500-900-1-EXT Operator's manual

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: [phone] Fax: [phone]
Certification Exhibit
FCC ID: VEYXVMR1
FCC Rule Part: 15.247
ACS Project: 15-2067
Manufacturer: xG Technology, Inc.
Model: CN3100
User Manual

G7609 - Release 3.0 - DRAFT
For xG Technology Internal Review Only!

2
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
Product features and specifications are subject to change without prior notice.
xG® and xMax® are registered trademarks of xG Technology, Inc.
All other trademarks used herein are property of their respective owners.
For the latest product documentation and software
updates, please refer to our Web site at
www.xGTechnology.com/support
xG Technology, Inc.
240 South Pineapple Avenue, Suite 701
Sarasota, FL 34236
[phone]
www.xGTechnology.com
For xG Technology Internal Review Only!
DRAFT

3
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
Table of Contents
Introduction ...............................................................................................................5
About this Product....................................................................................................................5
About this Book ........................................................................................................................5
Before You Begin ......................................................................................................................5
Hardware Overview....................................................................................................6
Before Powering the CN3100 Vehicle Modem ........................................................................6
Connectors................................................................................................................................7
Status LED .................................................................................................................................7
Important Safety and Installation Requirements ........................................................8
FCC Part 15 Requirement .........................................................................................................8
Hazard.......................................................................................................................................8
FCC Compliance ........................................................................................................................8
RF Exposure ..............................................................................................................................9
Antenna Considerations ...........................................................................................10
Antenna Configurations............................................................................................11
Omni Antenna Configuration .................................................................................................11
xMax Dual-polarity Vehicle Antenna Configuration ..............................................................11
Omni Configuration Connections ...........................................................................................12
xMax Dual-polarity Vehicle Antenna Configuration Connections .........................................13
Configuring the CN3100 Vehicle Modem...................................................................14
Installation ...............................................................................................................18
Assemble Your Parts and Tools ..............................................................................................18
Installation Procedure ............................................................................................................19
Connecting Wireless Devices to the xMax Network ..................................................20
Wired Internet Connectivity...................................................................................................20
CN3100 Vehicle Modem Management Tool ..............................................................21
Overview.................................................................................................................................21
Content and Functions Chart .......................................................................................................... 23
CN3100 Vehicle Modem Management Details......................................................................24
Home View ...................................................................................................................................... 24
Information View –Home ............................................................................................................... 24
Information View –xMax................................................................................................................ 25
Information View –WiFi.................................................................................................................. 25
Information View –System Information......................................................................................... 26
For xG Technology Internal Review Only!
DRAFT

4
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
Information View –Tools ................................................................................................................ 26
Settings View –WiFi........................................................................................................................ 27
Settings View –xMax ...................................................................................................................... 27
Settings View –Other...................................................................................................................... 28
Logs View......................................................................................................................................... 28
Accounts View ................................................................................................................................. 29
Upgrade View .................................................................................................................................. 29
Technical Specifications ............................................................................................30
Warranty ..................................................................................................................31
Limited Warranty....................................................................................................................31
SCOPE OF THE WARRANTY.............................................................................................................. 31
ADDITIONAL PROVISIONS OF THE WARRANTY............................................................................... 32
OBTAINING SERVICE AND SUPPORT UNDER WARRANTY............................................................... 33
EXCLUSIVITY OF THE WARRANTY.................................................................................................... 33
For xG Technology Internal Review Only!
DRAFT

5
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
The CN3100 Vehicle Modem is a ruggedized subscriber device. It is waterproof and made to handle
wide temperature ranges. While primarily designed for vehicle usage, the device may be used in fixed
locations, such as in parks or at outdoor events.
It enables any Internet-ready device to connect to the xMax network, either wirelessly using secure
WiFi links or through a wired Ethernet connection.
This manual provides basic instructions for installation and configuration of the CN3100 Vehicle
Modem. It also describes how to connect to the xMax Network and then connect Internet-enabled
wireless devices to the xMax Network.
IMPORTANT
The CN3100 Vehicle Modem is shipped with the parts needed for installation and operation.
Be sure each of these items is included in your product package. If any item is missing, please contact
the place of purchase.
Depending upon the requirements of your installation, you may also need to purchase additional
components such as fuses and cables. A checklist of typically required parts is shown in the topic
Weatherproof
Ethernet Kit
Weatherproof Power
Connector
with 3 ft. cable
xMax Antenna with
Magnetic Mount
Magnetic Mount
WiFi Antenna
CN3100 Vehicle Modem
Mounting
Bracket
For xG Technology Internal Review Only!
DRAFT

6
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
The CN3100 Vehicle Modem is a self-contained IEEE 802.11b/g access point and xMax modem.
It is a full-featured hotspot allowing connection by up to 5 users.
The CN3100 is totally protected against dust and moisture.
Both top Tx RF ports, MUST be properly terminated
before power is applied to the unit.
Applying power without proper RF port
termination might damage the unit
and void the product warranty.
POWER
ETHERNET
TERMINATE
BEFORE
POWER UP
For xG Technology Internal Review Only!
DRAFT

7
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
The CN3100 features seven connectors:
Four external xMax antenna connectors (N-type Jack, Female Socket)
A connector for an external WiFi antenna (TNC Jack, Female Socket)
A weatherproof Ethernet connector
A weatherproof Power connector
TOP CONNECTORS
BOTTOM CONNECTORS
Tx 3/Rx
Tx 1/Rx
Rx 4
Power
Ethernet
Rx 2
The CN3100 Vehicle Modem Status LED indicates power, WiFi and network status and hardware fault
conditions.
Under normal operating conditions, the LED glows GREEN.
WiFi CONNECTOR
xMax Network
GREEN
SOLID
CONNECTED
RED
SOLID
NOT
CONNECTED
STATUS LED
For xG Technology Internal Review Only!
DRAFT

8
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
These notices apply to the CN3100 Vehicle Modem.
Be sure to read, understand and follow these instructions.
Heed all warnings.
Only use accessories and attachments specified by xG Technology.
Keep a copy of these instructions for future reference.
The CN3100 Vehicle Modem MUST only be installed by a professional installer. It is the responsibility
of the installer to adjust the transmit power level to ensure that the output power plus antenna gain
does not cause the device to exceed FCC Part 15 output power regulations.
Hazardous situation, which if not avoided,
could result in death or serious injury.
All antennas MUST either be located on the exterior of a vehicle or mounted on a pole.
Every antenna MUST be separated from users by more than 25 cm (0.82 ft) at all times.
Shielded and grounded Ethernet cable MUST be used to avoid damage to the CN3100 Modem
unit and ensure proper operation.
Lightning Protection MUST be used on all antenna connections and Ethernet tower runs.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio technician for help.
For xG Technology Internal Review Only!
DRAFT

9
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance of 25 cm (0.82 ft) between
the radiator and your body. This transmitter MUST not be co-located or operating in conjunction with
any other antenna or transmitter.
Changes or modifications to this device not expressly approved
by xG Technology could void the user’s authority to operate
the equipment and void the product warranty.
For xG Technology Internal Review Only!
DRAFT

10
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
The CN3100 has four antenna connectors —two Tx/Rx and two Rx-only.
All connectors are always used.
The WiFi antenna can be positioned in any convenient location.
On a vehicle, magnetic-mount or through-hole mount antennas may be used.
FOR OPTIMUM PERFORMANCE
The CN3100 should be placed as close as possible to the antennas.
The antenna cable lengths should be as short as possible.
Use of Low-loss cables (LMR 195/240 or equivalent) is highly recommended.
When using four antennas
The cables from the two Tx/Rx connectors on the CN3100
should be connected to the two antennas on one diagonal.
The cables from the two Rx connectors on the CN3100
should be connected to the two antennas on the opposite diagonal.
When using two dual-polarity antennas, connect the cables as shown:
Vertical Polarity
Horizontal Polarity
Antenna 1
Antenna 2
WiFi
Antenna
Antenna 1
Antenna 2
Horizontal Polarity
Vertical Polarity
For additional information, please refer to the antenna configuration illustrations in the
Antenna Configurations section on page 11.
For xG Technology Internal Review Only!
DRAFT

11
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
The following illustrations show typical antenna configurations. The antennas must be separated by
at least 2 feet (0.6 meters) in horizontal and vertical orientation. This is the minimum separation
distance required for proper operation.

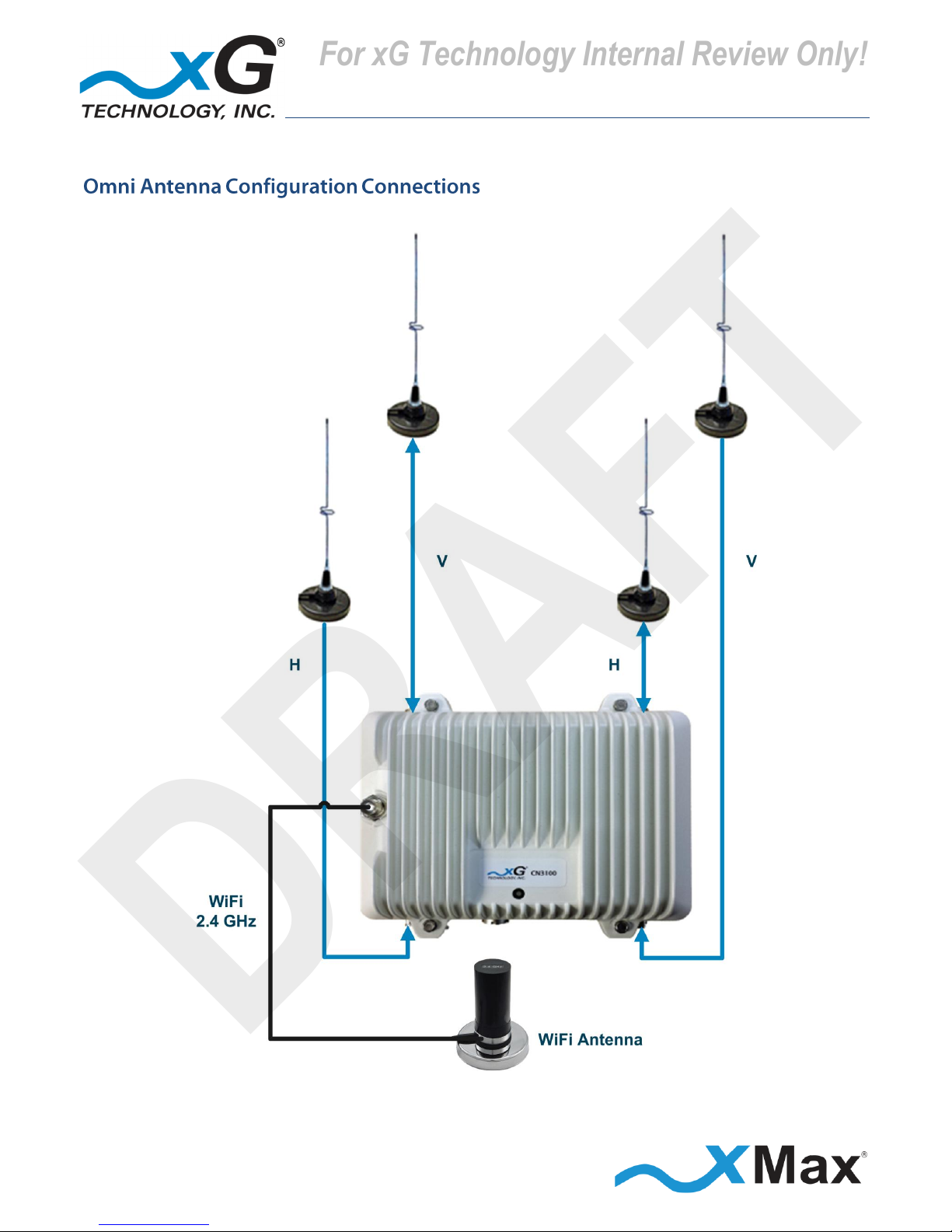

Four antennas are used with an Omni antenna installation. The antennas should be arranged in a
square configuration with two feet (2 ft.) separation on each side.
Two antennas are used with an xMax Vehicle Antenna installation. The antennas should be arranged
either in line or side-to-side, with two feet (2 ft.) separation between the antennas.
Side-to-Side
In-line
For xG Technology Internal Review Only!
DRAFT

12
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
For xG Technology Internal Review Only!
DRAFT

13
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
For xG Technology Internal Review Only!
DRAFT

14
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
This procedure should be completed before installing the CN3100 in a service location.
These steps set up the CN3100 Vehicle Modem for use. After completing these configuration steps,
the CN3100 Vehicle Modem will be fully functional and ready for installation and operation.
It will broadcast on the configured channel and enable any authorized Internet-ready device to
securely connect to the Internet through the xMax Network.
Devices may also be connected to the xMax network through a wired Ethernet connection to the
CN3100. For more information, refer to the topic Wired Internet Connectivity on page 20.
NOTE
This sequence assumes that the CN3100 device is in factory-default configuration
and has not been previously configured.
IMPORTANT: BEFORE YOU CONTINUE
Antennas or dummy loads MUST be connected to the two top Tx RF ports.
Both top Tx RF ports MUST be properly terminated
before power is applied to the unit.
Applying power without
proper RF port termination might damage the unit
and void the product warranty.
1. Use a laptop or desktop computer to configure the CN3100 Vehicle Modem.
Configure the computer network adapter to Internet Protocol Version 4 (TCP/IPv4) for a static IP
address and subnet mask.
BEFORE YOU CONTINUE
Be sure to take note of the current settings to restore them after configuration.
2. Use the IP Address as shown below:
Computer Network Adapter Settings
IP Address:
169.254.90.100
Subnet Mask:
255.255.255.0
3. Using an Ethernet cable, connect the computer to the Ethernet connector on the CN3100.
For xG Technology Internal Review Only!
DRAFT

15
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
4. Connect the flying leads on the supplied weatherproof power connector to a 12 to 19 VDC
power supply capable of providing 3 amp service.
5. Secure the power plug to the power connector on the CN3100 Vehicle Modem.
The Status LED glows RED within fifteen seconds after the power source is switched on.
NOTE
The CN3100 startup process takes two to three minutes.
Before continuing, wait until this process completes and the LED glows GREEN.
6. On the computer, open a Web browser.
In the browser address line, enter the IP address to open the CN3100 xVM Management window:
CN3100 Management
IP Address:
http://169.254.90.101
7. In the User name and Password fields enter:
User name:
admin
Password:
admin1
The password is case sensitive.
The CN3100 xVM Management window opens to the Home view.
For xG Technology Internal Review Only!
DRAFT

16
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
The menu bar is at the top of the window.
8. On the tool bar, click Settings to open to the Settings –WiFi view.
xG Technology strongly recommends that you change the SSID and WPA security key.
NOTE
Before saving changes, be sure to write down the new SSID, and then keep it in a safe place
for future reference:
SSID:
9. In the SSID field, enter a unique SSID for the device.
Select a security protocol:
10. Click the down arrow on the right side of the Security field to reveal the options menu.
11. Click the desired security protocol. The best, and most secure, level of security is WPA2.
Enter the desired security key/passphrase:
Be sure to write down the new Shared Key and then keep it in a safe place for future reference:
Shared Key
After confirming that the settings are written down for future reference, click Save.
For xG Technology Internal Review Only!
DRAFT

17
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
On the tool bar, click Accounts to open the User Accounts view.
The Change User Password section, displays the current Username.
xG Technology strongly recommends that you change the default Account Password.
IMPORTANT
Before clicking Apply, be sure to write down the new password, and then keep it in a safe place for
future reference.
The password length must be a minimum of 6 characters.
The password is case sensitive, and may contain any alphanumeric or special character.
Note the New Password:
12. Enter the selected password in the New Password field, and then again enter the password
in the Repeat Password field. Finally, click Apply.
The system displays the message:
Saving Settings! Please wait while the server saves your settings, and then followed by
Settings saved! Server has successfully saved your settings.
NOTE
This completes the minimum setup. For additional information on the many features of the
CN3100 xVM Management tool, please refer to the topic CN3100 Vehicle Modem Management Tool
starting on page 21.
13. To complete the setup, log out of the CN3100 xVM Management. On the right side of tool bar
click Logged In to reveal the options menu, and then click Log Out.
14. Be sure to restore the computer network adapter to its previous settings.
For xG Technology Internal Review Only!
DRAFT

18
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
NOTE
xG Technology recommends that the CN3100 Vehicle Modem be configured on a bench before
installing the device in the field. See Configuring the CN3100 Vehicle Modem on page 14.
This checklist may be of assistance in assembling the parts needed to complete the installation.
CN3100 Vehicle Modem Parts Checklist
SUPPLIED BY xG Technology
OBTAIN FROM YOUR PART SUPPLIER

1
CN3100 with Wall Mount Bracket

1
Ethernet Cable
(for configuration)

1
Weatherproof Ethernet Kit

1
In-line Fuse Holder
(Littelfuse FHA010 or equivalent)

1
Weatherproof Power Connector
with 3 ft. cable

1
Fuse (10 Amp ATO®)

2
Magnetic Mount xMax Antennas

1
Magnetic Mount WiFi Antenna

Alternative CN3100 mounting
solution (as ordered)
For xG Technology Internal Review Only!
DRAFT

19
CN3100 Vehicle Modem - Installation Guide - G7609 - 3.0 - DRAFT
These steps outline the basic tasks required to complete a successful installation.
Your specific steps will depend upon the requirements of your system design.
1. Select an appropriate location to mount the CN3100 Vehicle Modem and secure it in place with
an appropriate mounting bracket.
2. Position the Magnetic Mount xMax Antennas on the roof of the vehicle as shown in the topic
Antenna Configurations on page 11. For optimum performance, the antennas should be arranged
with a separation of two feet (2 ft.) between the antennas.
3. Position the Magnetic Mount WiFi Antenna on the roof of the vehicle in any convenient location.
4. Route the cables to the CN3100 unit location, and then connect the cables from the antennas to
the CN3100 unit.
IMPORTANT
Ensure that the correct antenna cable is attached to correct CN3100 connector, as shown in the
diagrams in the topic Antenna Configurations starting on page 11.
5. Connect the flying leads of the supplied weatherproof power plug cable to a in-line fuse holder
fitted with a 10 Amp fuse.
6. Connect the fuse holder cable to a 12 to 19 VDC power source capable of providing 3 amp service.
7. Secure the power plug to the power connector on the CN3100 Vehicle Modem.
Within 15 seconds after the power source is applied, the Status LED glows RED.
If the CN3100 is within range of an xMax Network, it connects within 2 minutes and the LED glows
GREEN.
The CN3100 Vehicle Modem is now fully functional and provides IEEE 802.11 wireless connections to
wireless devices.
NOTES
If the Status LED remains RED after two minutes have elapsed,
ensure that the CN3100 is within range of an operating xMax Network.
If the CN3100 is within range of an operating xMax Network, but not connecting,
follow these steps to restart the CN3100:
Power off the CN3100.
Wait 60 seconds.
Power on the CN3100.
For xG Technology Internal Review Only!
DRAFT
