INSTALLATION & OPERATING MANUAL
MODEL:
SP-36:SLIM PROFILE 36"
DIRECT VENT GAS FIREPLACE
US Patent Number 5,931,154
US Patent Number 6,004,493
IMPORTANT:
READ INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION. FAILURETO INSTALL THIS FIREPLACE
CORRECTLY CAN CAUSE SERIOUS STRUCTURAL AND
FIRE HAZARDS AND MAY VOID YOUR WARRANTY.
June 2007
www.kozyheat.com

Page 1
INDEX
DESCRIPTION PAGE
SAFETYREQUIREMENTS/SPECIFICATIONS ..................................2-3
MINIMUMCLEARANCES .................................................... 3
VENTINGREQUIREMENTS .................................................3-8
RestrictorInstallation ................................4
MinimumVenting....................................5
HorizontalVenting................................. 5-7
VerticalVenting .....................................8
POSITIONTHEFIREPLACE ................................................9-10
Rough-in Chimney Vent Dimensions . . . . . . . . . . . . . . . . . . 10
Rough-inDimensions............................... 10
REMOVETHEGLASSASSEMBLY............................................ 11
DIRECTVENTKITINSTALLATION..........................................11-12

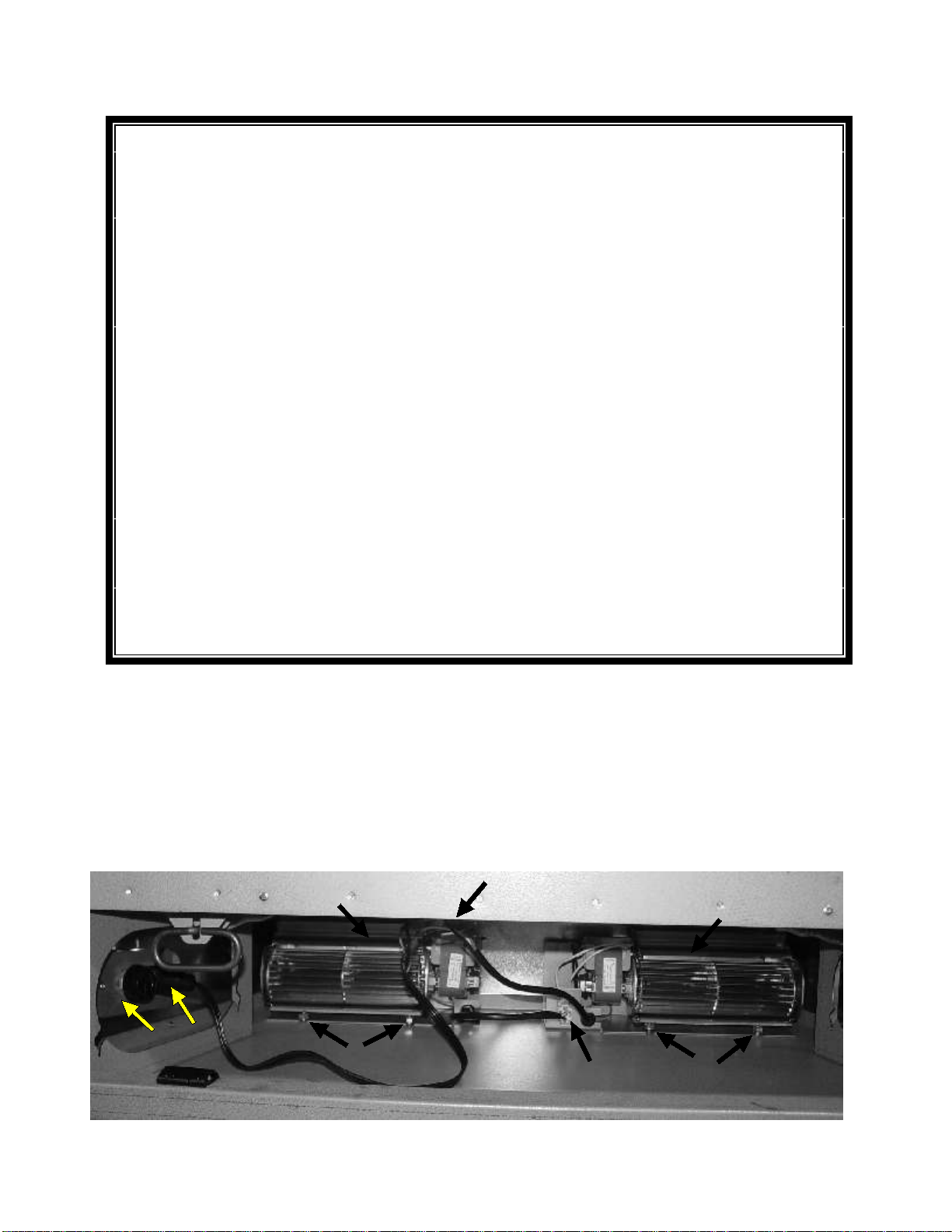

FANINSTALLATION .....................................................13-14
GASLINESPECIFICATIONS ..............................................15-16
SECURETHEMILLIVOLTBOARD ........................................... 16
LOGINSTALLATION ....................................................... 17
WALL SWITCH - THERMOSTAT - REMOTE CONTROL INSTALLATION . . . . . . . . . . . . . . 18
COMPLETETHEINSTALLATION ...........................................19-20
LIGHTING&SHUTDOWN .................................................21-22
MANIFOLD & INCOMING PRESSURE CHECK PROCEDURES . . . . . . . . . . . . . . . . . . . . . . 23
CLEANING&MAINTENANCEREQUIREMENTS ................................. 24
MILLIVOLT BOARD REMOVAL / INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
TROUBLESHOOTING....................................................27-28
REPLACEMENTPARTSLISTS............................................... 29
WARRANTYPOLICY.....................................................30-31

Page 2
IMPORTANT:
READTHISMANUALBEFORE INSTALLINGANDUSINGTHISFIREPLACE
MODEL SP-36 DV GAS FIREPLACE HEATER
INSTALLATION INSTRUCTIONS
This appliance has been tested to and complies with ANSI Z21.88-2002CSA 2.33-M02, “VENTED GAS
FIREPLACE HEATER”. Installation mustconform with localbuilding codes,or,in theabsence of local
building codes, with the national fuel gas code, ANSI Z223.1 NFPA 54, Current Edition, or the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes. This
appliance is only for use with the type(s) of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used. An LP Gas conversion kit is
included with this fireplace.
Installation and/or repair of this fireplace should only
be done by a qualified installer.
COMMONWEALTH OF MASSACHUSETTS
INSTALLATIONS
WARNING: This Product Must Be Installed By a Licensed
Plumber Or Gas Fitter When Installed Within The
Commonwealth of Massachusetts.
IMPORTANT: Installation of a CO detector is required in the
fireplace room.
FOR YOUR SAFETY:
WHAT TO DO IF YOU SMELL GAS:
!Do not touch any electrical switches.
!Do not try to light any appliance.
!Do not use the phone in your building.
!Immediately call your gas supplier from
a neighbor’s phone.
!Follow the gas suppliers instructions.
!If you cannot reach your gas supplier,
call the fire department.
!Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult a
qualified installer, service agency, or the gas
supplier.
WARNING: Do notuse thisheaterifany part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control
system and any gas control which has been under water.
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.

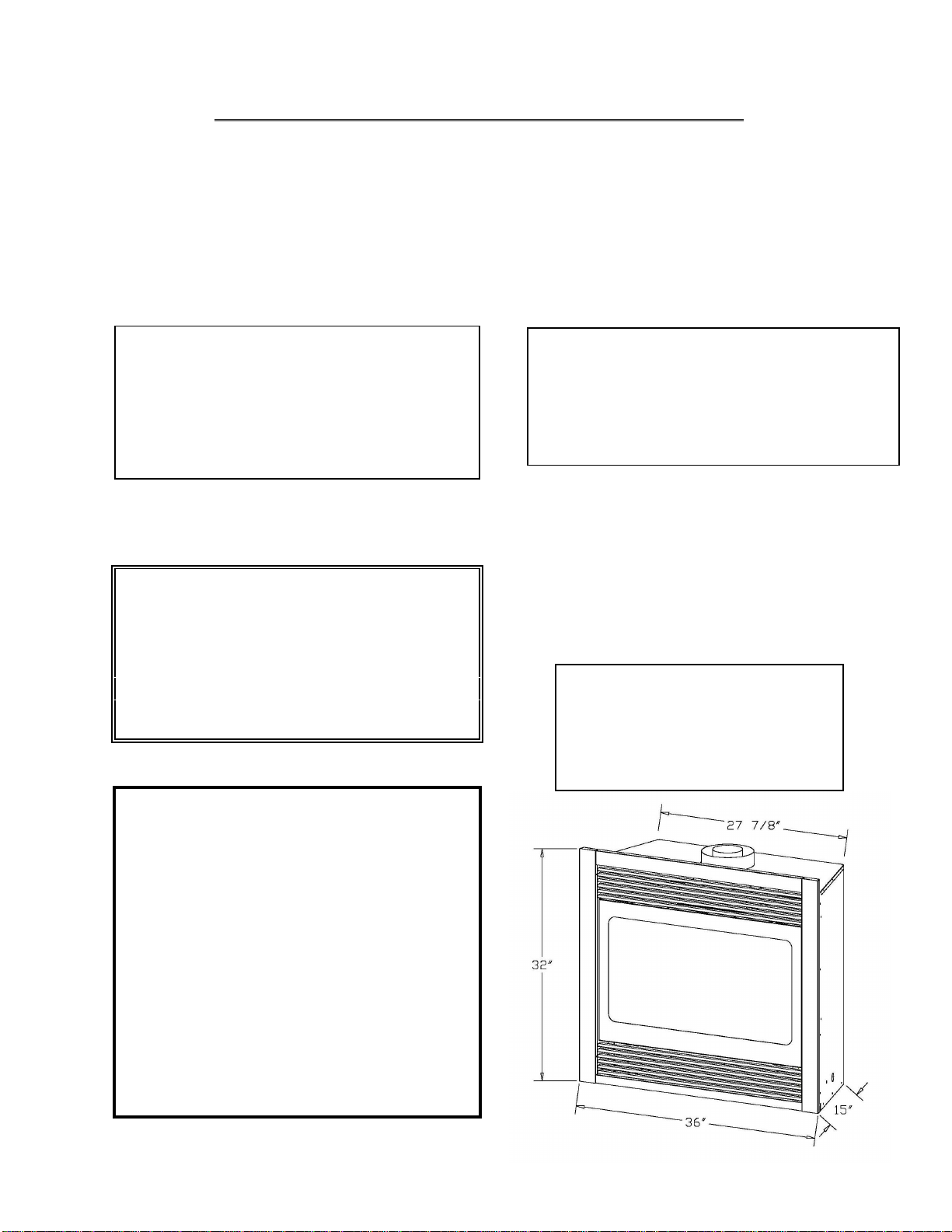

UNIT SPECIFICATIONS -
Height : 32"
Front width: 36"
Back width: 27 7/8"
Depth: 15”
Flue size: 4" exhaust, 7" intake

Page 3
WARNING: DONOT REPLACETHEBURNERASSEMBLY WITH ANYOTHER SIZEDBURNER. REPLACEMENT
WITH AN UNAUTHORIZED BURNER CAN RESULT IN TEMPERATURES EXCEEDING THE LIMITS FOR THIS
FIREPLACE, AND VOID YOUR WARRANTY.
IMPORTANT: NON-COMBUSTIBLEFACING MATERIAL MAY BE APPLIED OVER THE FACE - DONOT
PLACECOMBUSTIBLEMATERIALOVERTHEFACEOFTHEFIREPLACE. TO PREVENT THE FACING
MATERIALFROM CRACKING AND FALLINGOFFDUETO EXPANSIONOFTHE FACEWHENHEATED,
DO NOT ATTACH FACING MATERIAL DIRECTLY TO THE FACE OF THE FIREPLACE. DO NOT
OBSTRUCT THE FLOW OF VENTILATION AIR.
CLEARANCES Mantel Projection
Minimum clearance to combustibles:
From fireplace sides & back: 0"
From fireplace top stand-off: 0"
To flooring: 0"
From flue vent: 1"
From fireplace glazing to adjacent sidewall: 8"
From heat outlet to mantel: 12"
VENTING REQUIREMENTS
APPROVED DIRECT VENT CHIMNEY SYSTEMS:
- #745 DIRECT VENT TERMINATION KIT - for
terminations 4' or less.
- #718 DIRECT VENT TERMINATION KIT - for
terminations greater than 4' but less than 8'.
-#746 DIRECT VENT EXTENSION KIT - used in
conjunction with #745 or #718. The extension kit is
expandable to 6'.
The above direct vent kits are typically used for
horizontal venting applications.
Referto pages #5-#7forventing requirements and page
#12 for complete installation instructions on the above
kits.
- SIMPSON DURA-VENT DV-GS CHIMNEY SYSTEM*:
Size: 4” x 6 5/8”.
For horizontal & vertical terminations.
- AMERI-VENT DIRECT VENT CHIMNEY SYSTEM*:
Size: 4" X 6 5/8".
For horizontal & vertical terminations.
*Adaptor #923-C is required to adapt the fireplace
exhaust and intake collars to the Dura-Vent and Amer-
Vent chimney systems.
Referto pages#5-#8 and page#11 forcomplete venting
requirements.
Followinstallationinstructionsincluded withthe#923-C
adaptor & installation instructions provided with the
chimney system you are using.

Page 4
RESTRICTOR INSTALLATION
The restrictor plate included in the fireplace
components packet can be installed as either a large
orsmallrestrictor,dependingonyourspecificventing
configuration.
Thereareseveralfactorswhichcanaffectproperdraft
of the vent system and the burner operation of a
fireplace. Installing a restrictor may be necessary to
resolve the problem, even though it may not be
required under ‘normal conditions’.
IMPORTANT: DO NOT INSTALL IF THE VENTING
CONFIGURATION IS AT THE
MINIMUM REQUIREMENTS!
The restrictor included is sized as the ‘large’
restrictor. To reduce the size to the small restrictor,
simply bend the section without the tabs off at the
perforation and discard.
Large Restrictor
Remove this
section
Small Restrictor
To install the restrictor, bend the tabs ‘up’ far enough (approximately 80-degrees) so that when positioned
into the exhaust pipe, will create tension to hold itself in place. Do not over bend the tabs! Slide the
restrictor into the exhaust pipe with the tabs pointing toward you. Access to the exhaust pipe can be
gained byremoving the nuts securing the exhaust baffle inside the firebox at the top.
Install with the tabs pointing toward you.
IMPORTANT: REPLACE THE EXHAUST BAFFLE AFTER RESTRICTOR INSTALLATION IS
COMPLETE. DO NOT OVER TIGHTEN THE NUTS!

Page 5

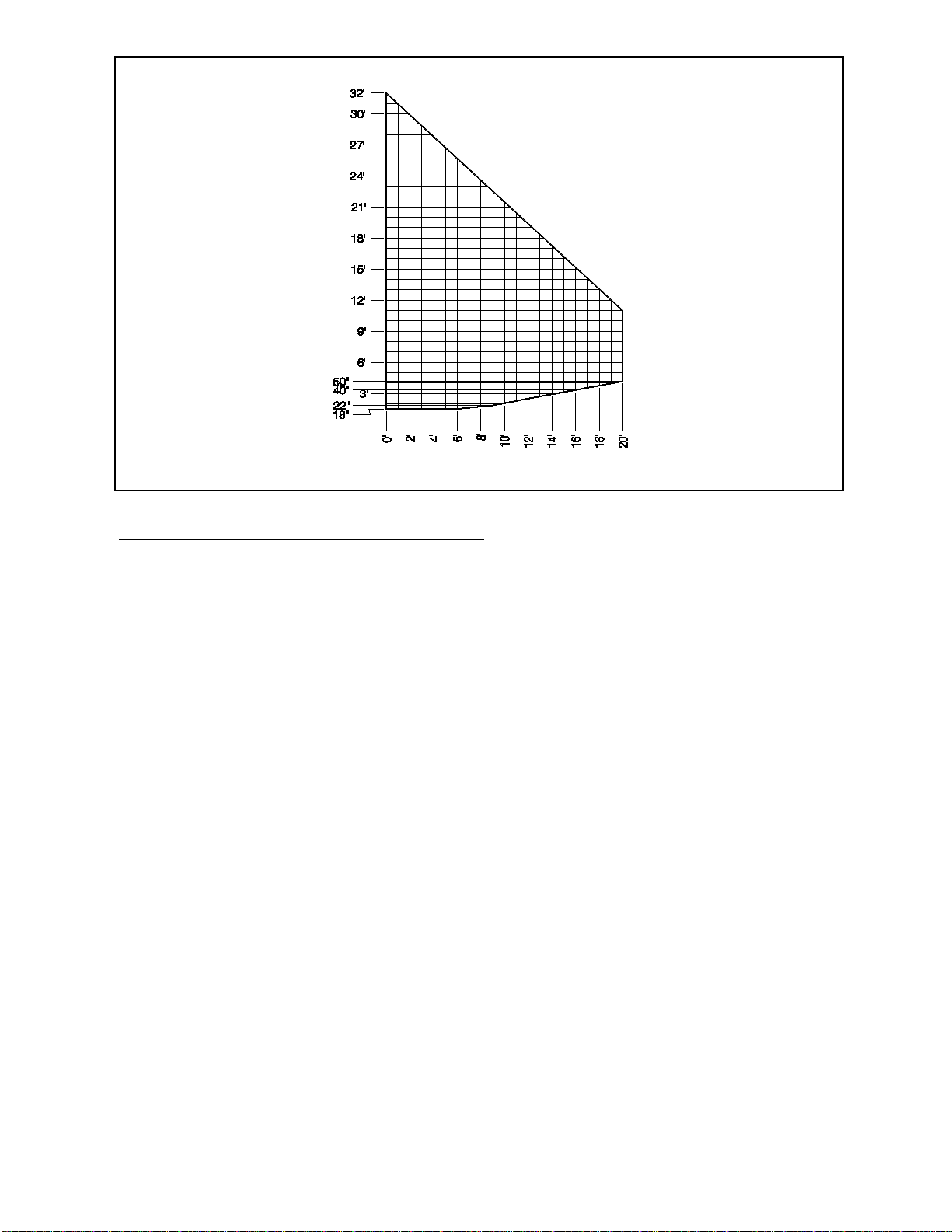

HORIZONTAL & VERTICAL VENTING CHART
Vertical Rise
Horizontal Run
HORIZONTAL VENTING REQUIREMENTS
The following are minimum venting configurations which may be used for direct thru-the-wall installations. This
generally will be determined by how the fireplace will be finished on the interior.
1. SIMPSON DURA-VENT PIPE ONLY MAY BE USED ON THE FOLLOWING CONFIGURATION:
#923-C adaptor, followed by a 90°elbow, then a minimum horizontalvent run of 6". A snorkel kit must then be
used on the outside of the house to ensure proper draft and compliance to the venting requirements as tested.
The maximum horizontal run for this configuration is 2' 6". See Figure 2A on page #7.
2. SIMPSON DURA-VENT OR AMERI-VENT PIPE MAY BE USED ON THE FOLLOWING CONFIGURATIONS:
A. #923-C adaptor, followed by a 90°elbow, then a minimum/maximum horizontal vent run of 6". This is the only
accepted configuration that can be used without a snorkel kit. The vertical and horizontal runs cannot be
increased. Refer to Figure 2B, page #7.
B. MINIMUM VERTICAL RISE*: 17" (TO TOP OF INTAKE PIPE) - this is equivalent to (1)6" chimney section followed by
(1)90° elbow. See Figure 2C, page#7. NOTE:#923-Cadaptor mustbe used.
MINIMUM HORIZONTAL RUN: 6 IN.
*MAXIMUM HORIZONTAL RUN: 6 FT. (Horizontal runs must maintain 1/4” rise per ft.)
TOTAL HORIZONTAL & VERTICAL RUN MUST NOT EXCEED32 FT.

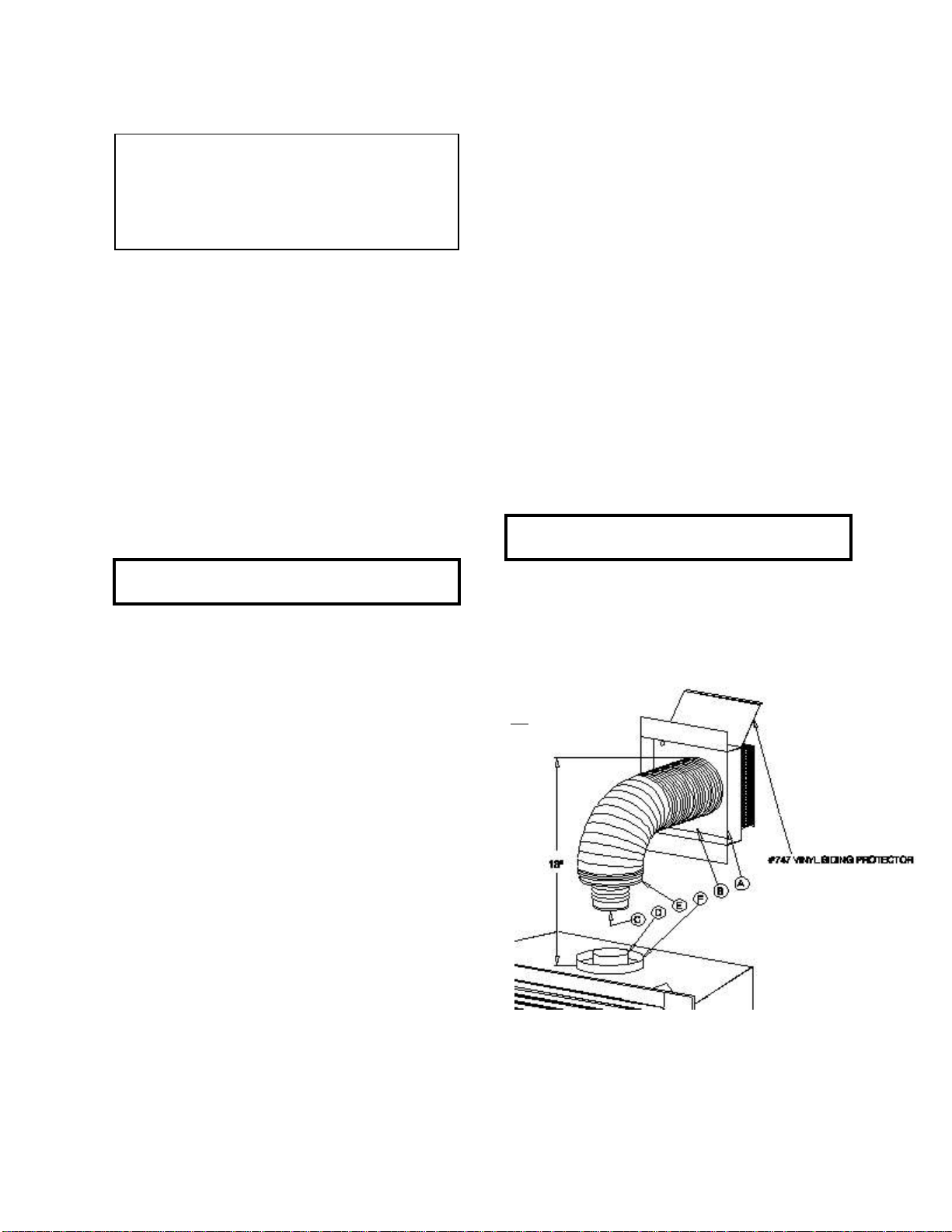

3. KOZY HEAT #700 SERIES FLEXIBLE DIRECT VENT CHIMNEY SYSTEM:
Refer to Figure 2D, page #7.
MINIMUM VERTICAL RISE*: 18" (TO TOP OF INTAKE PIPE)
MINIMUM HORIZONTAL RUN: 6 IN.
*MAXIMUM HORIZONTAL RUN: 6 FT. (Horizontal runs must maintain 1/4" rise per ft.)
*Determined by the length of horizontalrun. Using the chart above, find the minimum vertical riserequired directly off the top of
the fireplace for the length of horizontal you need. A 50"vertical rise will allow a 20 ft. horizontal run (w/ 1/4" rise per ft. incline) with
no elbows.

Page 6
4. For each additional elbow used after the first elbow, you must subtract 5 ft. from the maximum horizontalrun
allowed. A maximum of 2 elbows are allowed.
For example: A vertical rise of 18” directlyoff the top of the fireplace with a 90° elbow would be allowed to run 6’ with 1/4” rise
per ft. If an additional elbow is used within this vent run, the maximum horizontal run allowed would be 1’ with 1/4” rise per ft.
(6ft-5 ft.(foradditionalelbow)=1ft.)

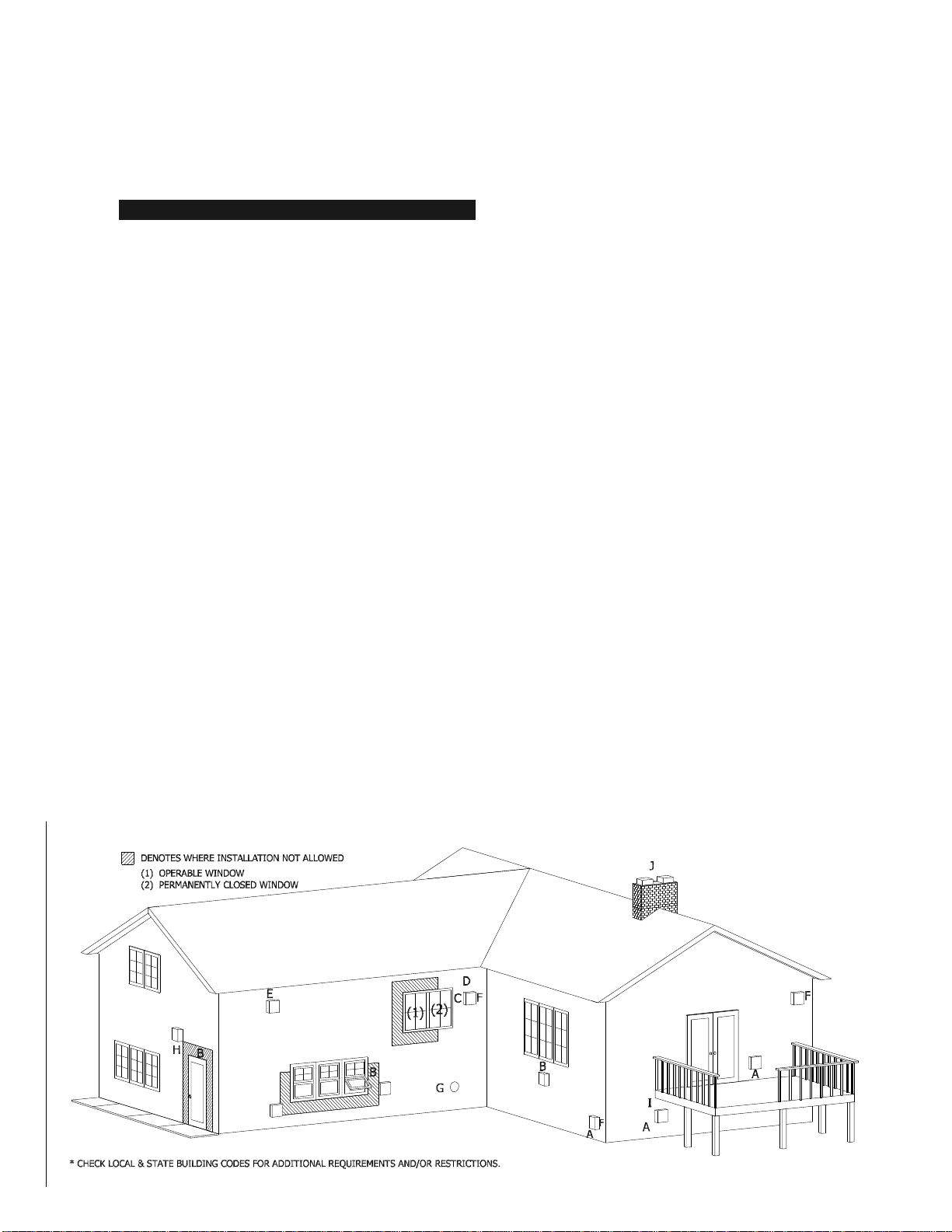

TERMINATION VENT CAP LOCATION:
This gas appliance must not be connected to a chimney flue serving another type of appliance.
GENERAL:
1. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
2. DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, etc.. If
necessary, extend framing so that termination kit will be exposed once building materials are installed.
3. Vent termination must not be located where it will become plugged by snow or other material. The flow of
combustion and ventilation air must be not obstructed.
LOCATION CLEARANCES:
SAbove grade, veranda, porch, deck, balcony - 12". (A)
SOperable window - 12". (B)
SPermanently closed window - 12" (recommended to prevent condensation on window). (C)
SVentilated soffit - 24". (D)
SUnventilated soffit - 12". (E)
SOutside / inside corner - 12". (F)
SMeter / Regulator: not to be installed above within 3 ft. horizontally from the center line of the regulator.
SService regulator vent outlet - 3 ft. radius.
SNon-mechanical air supply inlet to building - 12".
SCombustion air inlet to any other appliance - 12".
SMechanical air supply inlet - (G) US: 3 ft. above if within 10 ft. horizontally. NOTE: Massachusetts
installations: 10 ft.
SAbove furnace exhaust or inlet - 12".
SAbove paved side-walk or paved driveway located on public property - 7 ft. * (H)
NOTE: A vent cannot be located directly above a sidewalk or paved driveway that is located between
two single family dwellings and serves both dwellings.
SUnder veranda, porch, deck, or balcony (must be fully opened on a min. of 2 sides) - 12". (I)
SBetween two horizontal terminations - 12".
SBetween two vertical terminations - 12". (J) - Note: May be the same height.
* Clearance must be in accordance with local installation codes and the requirements of the
gas supplier.
Figure 1

Page 7

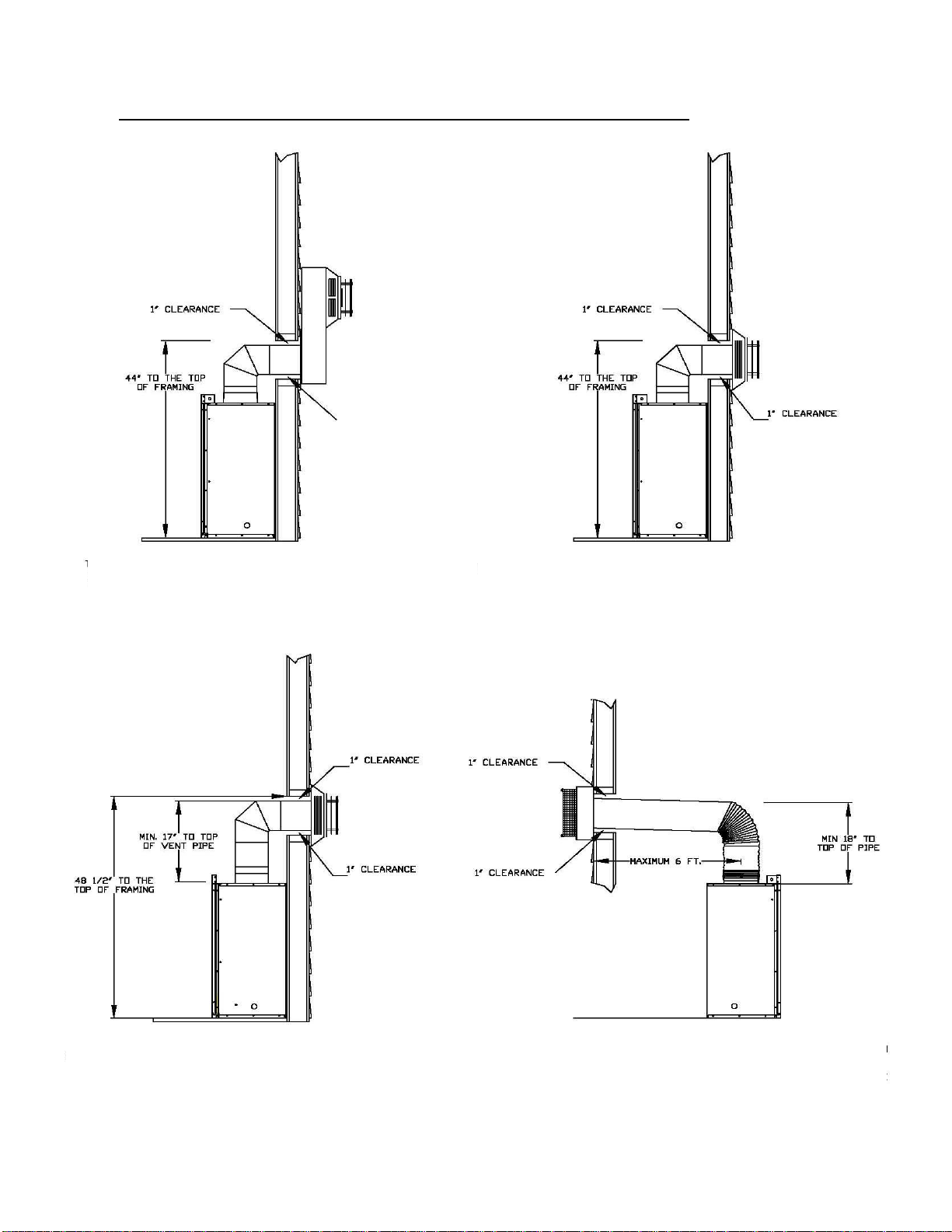

Minimum ventingusing Simpson Dura-Vent orAmeri-Vent chimney systems.
#923-C adaptor must be used. (1) 90° elbow followed by a
minimum/maximum vent run of6". This is the maximum horizontal vent run
allowed without using a snorkel kit. Do not lengthen vertical or horizontal
vent runs.
Minimum venting using Simpson Dura-Vent & the #923-C
adaptor:(1)90°elbow,followedbyaminimum 6"horizontal
vent run and then the 14" snorkel kit. The maximum
horizontal vent run for this configuration is 2 ft. 6 in.
Minimum Horizontal Venting Configurations
Figure 2A Figure 2B
Figure 2C Figure 2D
Typical horizontal termination using #700 Series flexible direct vent
system. For minimum / maximum vertical & horizontal venting
requirements, refer to pages #5 & #8.
Important: Horizontal runs must maintain 1/4" incline per for of pipe.
Minimum venting using Simpson Dura-Vent orAmeri-Ventchimney systems.
For minimum / maximum vertical & horizontal venting requirements, refer
to pages #5 & #8.
Important: Horizontal runs must maintain 1/4" incline per foot of pipe.

Page 8
VERTICAL VENTING REQUIREMENTS
NOTE: MINIMUM VERTICAL RISE FROM TOP OF FIREPLACE BEFORE FIRST ELBOW: 18 IN.
MAXIMUM VERTICAL RISE FROM TOP OF FIREPLACE: 32 FT.
IMPORTANT: A RESTRICTOR IS REQUIRED FOR VERTICAL VENT RUNS OF 14' TO 32' FEET.
ELBOWS: 2 (Dura-Vent & Ameri-Vent chimney)
MINIMUM CLEARANCE TO COMBUSTIBLES: 1"
WHEN VERTICALLY TERMINATING, THE MINIMUM CHIMNEY HEIGHT ABOVE THE ROOF LINE IS DETERMINED BY
THE FOLLOWING CHART:
Roof Pitch Minimum Chimney Height Roof Pitch Minimum Chimney Height
Flat to 6/12 1 ft. 13/12 to 16/12 6 ft.
6/12 to 9/12 2 ft. 17/12 to 21/12 8 ft
10/12 to 12/12 4 ft.
CAUTION: This gas appliance must not be connected to or joined with any chimney flue serving
any other appliance.
Figure 3

Page 9
(A) POSITION THE FIREPLACE.
1. Determine the exact position of your
fireplace. If possible, place the fireplace in
such a manner that the piping willbe placed
between two studs so additional framing is
not necessary. Determine the width, depth
and height of the (optional) hearth.
Refer to Figure 4 below for various
installation options.
Maintain proper clearance to combustible
requirements listed on page #3.
Maintain proper clearances of vent system on
the exterior when horizontally terminating as
outlined on page #6.
CAUTION: COLD AIR TRANSFER AREA. THE
SURROUNDING WOOD CHASE OF THE
OUTSIDE WALL MUST BE INSULATED TO
PREVENT COLD AIR FROM ENTERING THE
ROOM.
NOTE: Due to high temperatures, this
fireplace should be located out of traffic areas
and away from furniture and draperies.
Figure 4
2. HORIZONTAL TERMINATIONS
Determine the height* & location of where the venting will exit on the exterior.
ATTENTION: #700 SERIES DV SYSTEMS: THE HEIGHT TO THE TOP OF THE FRAMED
OPENING MUST BE A MINIMUM OF 49 ½" ABOVE THE HEIGHT OF THE FLOOR OR OPTIONAL
HEARTH.
*Important: This measurement is determined by the vertical height and horizontal length of
the venting application desired. The measurement is to the top of the opening. Please refer
to pages #5- #8 of this installation manual for requirements and restrictions
Note: 1/4" expansion space is recommended at the
back & sides of the fireplace & has been included in
the rough opening dimensions.
All dimensions are minimum.

Page 10
3. #700 SERIES VENT SYSTEMS: Cut a 9 1/2" x 9
1/2" hole for the firestop at the location
determined . The top of this hole must be a
minimum of 49 ½" (A) above the height of the
floor or hearth.
The flexible termination kit includes an interior
firestop assembly shown in Figure 5, which is
installed on the inside wall (over wall materials),
around the flexible pipe. Slide the firestop over
the flex pipe with the spacer legs toward the wall
PRIOR to connecting to the fireplace.
When the wall is complete, secure each corner
with a drywallscrew. OPTIONAL: Apply a liberal
beadofsealantaroundtheoutside/wallsideedge
and place over the 9 1/2” square opening.
Figure 5
SIMPSON DURA-VENT OR AMERI-VENT CHIMNEY SYSTEMS: REFER TO CHIMNEY
INSTALLATION INSTRUCTIONS FOR OPENING SIZE. MINIMUM CLEARANCE IS 1".
4. Build the hearth to the desired size and
height. See notes below.
5. Rough in the wall enclosure. The
minimum rough opening dimensions are:
32 1/4" high
36 1/2" wide
15 1/4" deep
Figure 6
NOTE: When the fireplace is installed directly on carpeting, tile, orother combustible materialsotherthanwood flooring, itmustbe
installedonametalorwood panelextendingthefullwidthanddepthofthefireplace. Theminimumforthesupportplatformunderthe
fireplaceis151/4"deepby 36" wide. Ifmasonryistobeused(optional),preparethenecessaryfoundationforthemasonryload.When
masonry construction is being used, a lintel must be used over the top of the fireplace to support the added weight.
NOTE: Anon-combustible hearth extension is not required. If a hearth extension is desired, combustible materials may be used.
NOTE: Provide for a minimum of 6" of clearance in front of the lower grill. This willprovide adequate space for openingand closing
thelowergrilltoaccessthecontrols. Donotobstructtheupperandlower grillareastoallowproperventilationairaroundthefireplace.
Air enters the fireplace atthe lower grill, and exits at the upper grill. Blocking these passages may result in overheating the fireplace
creating a potentially hazardous situation.
6. Place the fireplace into position.

Page 11
(B) REMOVE THE GLASS ASSEMBLY.
See Figure 7.
1. Locate the spring-loaded handles
securing the glass assembly (under the
firebox).
2. Pull the handles out, then down to release
the glass assembly.
3. Pull the bottom of the glass assembly out
and lift up off the tabs (at the top).
4. Set aside where it will not be broken.
5. Remove the log package from the firebox
and set aside.
Figure 7
(C) HORIZONTAL&VERTICALVENTINGAPPLICATIONSUSINGTHESIMPSON DURA-VENT
OR AMERI-VENT CHIMNEY SYSTEM:
1. INSTALL THE #923-C ADAPTOR FOLLOWING THE INSTRUCTIONS INCLUDED WITH THE ADAPTOR.
2. INSTALL THE CHIMNEY SYSTEM FOLLOWING THE CHIMNEY MANUFACTURERS’ INSTRUCTIONS
INCLUDED WITH THE CHIMNEY SYSTEM.
IMPORTANT:IFINSTALLINGTHESIMPSONDURA-VENTBRANDCHIMNEYSYSTEM,YOUMUSTSEALALL
JOINTS ON BOTH THE 4" AND 6 5/8" SECTIONSOF THE PIPE. YOUMAY USE THESEALANT PROVIDED
WITH THE #923-C ADAPTOR OR THE EQUIVALENT.
3. WHEN YOU HAVE FINISHED INSTALLING THE CHIMNEY SYSTEM, GO TO PAGE #13 OF THIS MANUAL
AND CONTINUE THE FIREPLACE INSTALLATION.
(D) HORIZONTAL VENTING APPLICATIONS USING #700 SERIES DIRECT VENT FLEXIBLE
CHIMNEY SYSTEMS.
1. PROCEED WITH THE INSTALLATION INSTRUCTIONS ON THE FOLLOWING PAGE.

Page 12
(E) INSTALLATION OF THE #700 SERIES HORIZONTAL DIRECT VENT TERMINATION KIT(S)
IMPORTANT: #700 Series vent kits must be supported every 3 ft. to maintain proper rise.
NOTE:THE FLEXPIPE IS PERMANENTLYATTACHED
TO THE EXTERIOR WALL PLATE.DO NOT ATTACH THE
#745 OR #718 TERMINATION KIT TO THE FIREPLACE
(OR EXTENSION KIT)UNTIL IT HAS PASSED THROUGH
THE WALL.THE TERMINATION PLATES SHOULD ALL BE
INSTALLED ON THE EXTERIOR OF THE OUTSIDE WALL.
1. If your chimney termination is 8' or less from the
stove top and doesn’t require an extension kit,
proceed to step number #6.
2. If your chimney termination will require one or
more extension kits (part #746), proceed with the
following steps. Each extensionkitcontainsenough
4" & 7" flexible aluminum pipe to extend the chimney
an additional 6'.
3. Using your extension kit pieces, place a bead of
sealant outside the 4" flex pipe collar (C) - the end
withtheEXTERNALnotches-andslideitinsidethe4"
pipe on top of the fireplace (D). Secure with 3 evenly
spaced screws.
NOTE: This connection is difficult to remove without
damaging the collars once installed.
4. Place a bead of sealant outside the 7" flex pipe
collar (E) - the end with the EXTERNAL notches - and
slide it inside the 7" pipe on top of the fireplace (F).
Secure with 3 evenly spaced screws.
5. Ifadditionalextensionkitsarebeingused,repeat
steps 3 and 4, placing the 4" & 7" pipes onto the
previous extension kit.
Referring to Figure 8:
6. Applyaliberalbeadofexteriorsealantaroundthe
outeredgeoftheterminationkitbox(A),and,fromthe
outside, place the exterior wall assembly through the
9 ½ " square hole. Place screws through the four
slots (B) securing it in place.
NOTE: Attachment brackets are included with the
termination kit. These optional brackets should be
screwed,ornailed(screwsnotprovided)onto thetop
and bottom ofthe9 ½ "square hole,on the exteriorof
the house. The termination plates then fit in between
thesebrackets,andusingthescrewsprovided,screw
thebracketstotheterminationkitbox(A). Attachthe
vinyl siding protector.
7a. OPTIONAL: Place insulation between the7" pipe
and the wall studs.
7b. The flexible termination kit includes an interior
firestopassemblyshowninFigure5,page#10,which
is installed on the inside wall (over wall materials),
around the flexible pipe. Slide the firestop over the
flex pipe with the spacer legs toward the wall.
OPTIONAL:Applyaliberalbeadofsealantaroundthe
outside / wallside edge and place over the 9 1/2”
square opening.
7c. Secure each corner with a drywall screw. (See
Figure 5 - page #10)
8. Gently pull the 4" & 7" flexible aluminum pipes
down to the top of the extension kit, or the top of the
fireplace if no extension kits were used.
9. Place a bead of sealant outside the 4" flex pipe
collar (C) and slide it inside the 4" pipe on top of the
fireplace (D). Secure with 3 evenly spaced screws.
NOTE: This connection is difficult to remove without
damaging the collars once installed.
10. Place a bead of sealant outside the 7" flex pipe
collar (E) and slide it inside the 7" pipe on top of the
fireplace (F). Secure with 3 evenly spaced screws.
Note: The 18" minimum vertical
rise measurement is to the
top of the 7” pipe.
Figure 8

Page 13
(F) FAN INSTALLATION
INSTALLATION OFTHISFANSHOULD BEDONEONLY BY AQUALIFIEDINSTALLER.
IMPORTANT: THE FAN IS EASIEST TO INSTALL BEFORE THE MILLIVOLT BOARD IS CONNECTED TO THE
GAS LINE.
IMPORTANT: IF THE LOWER GRILL HAS BEEN INSTALLED, IT MUST BE BE REMOVED TO PROPERLY
INSTALL THIS FAN.
NOTE: The fan wiring must be done prior to enclosing the sides of the fireplace. An electrical
box & romex connector are pre-installed on a removable panel on the left side of the
fireplace. A receptacle speed control assembly and (3) wire nuts are included in the
fireplace components packet.
This optional fan kit, part #600-1* includes:
1. Right and left fan assemblies with thermostatic control switch already mounted.
2. Components package: (4) nuts, installation instructions.
NOTE: To wall-mount the speed control, you will need to purchase a speed control assembly & mounting
plate, an electrical box to mount the speed control and a cover / switch plate with screws.
*NOTE: Fan kit #TRF-028 is also available. Follow instructions included with the fan.
IMPORTANT: Code approved line voltage wiring 14 gauge orbetter must be used when wiring
this assembly. Refer to your local electrical codes for specific requirements in
your area.
WARNING: This appliance is equipped with a three-prong (grounding) plug for protection against
shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do
not cut or remove the grounding prong from this plug.

Page 14

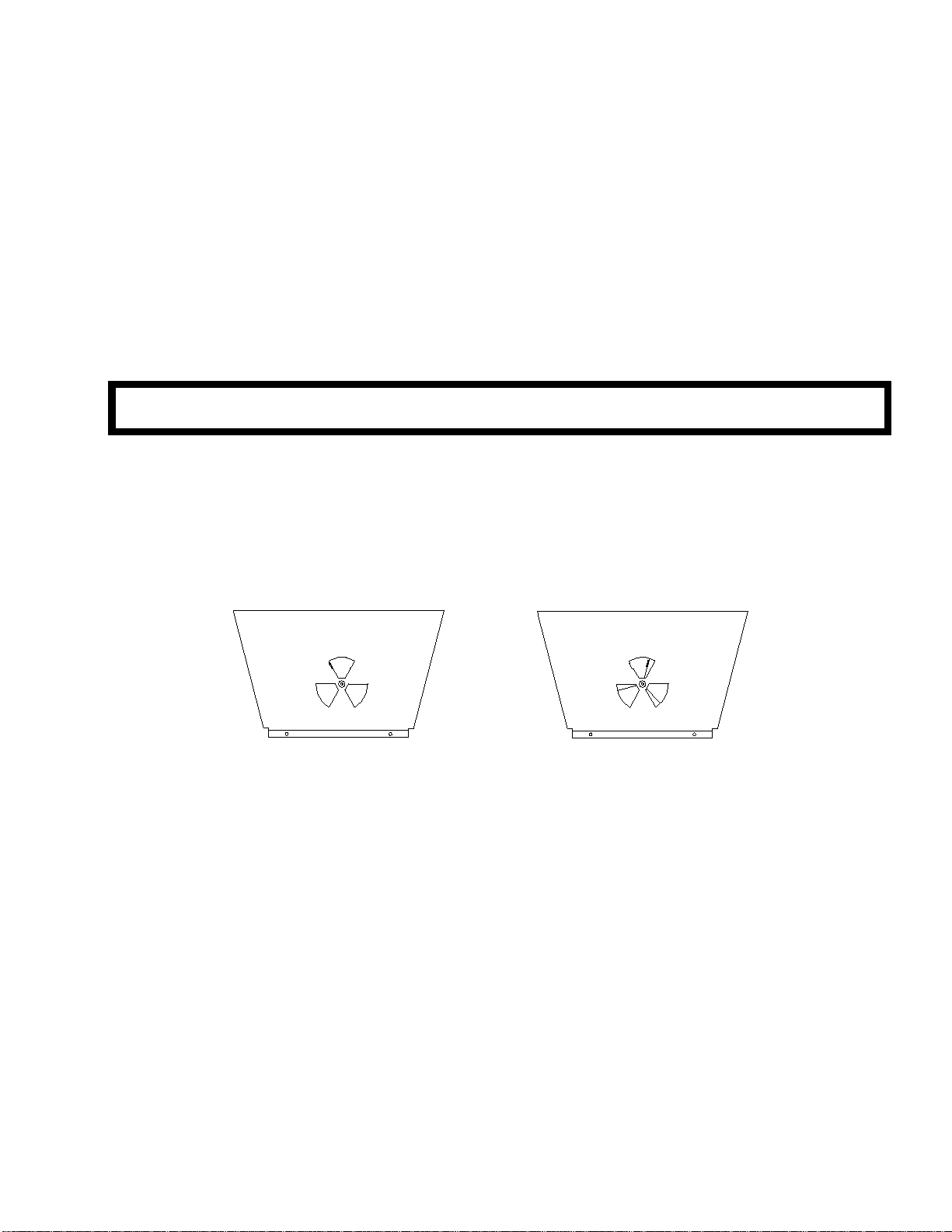

INSTALLATION INSTRUCTIONS. REFER TO FIGURE 9 BELOW.
1. Remove the lower grill, if installed.
2. OPTIONAL: For easier installation, the fans may be separated by unplugging the three-prong plug
from the receptacle in the right fan assembly.
3. Slide the left fan (A) (without receptacle) through the lower grill opening (right side of the valve) and
place over the (2) left mounting studs (B) located towards the back of the fireplace.
4. Slide the right fan (with receptacle) (C) through the lower grill opening (right side of the valve) and
place over the (2) right side mounting studs (D) located towards the back of the fireplace.
5. Place nuts on mounting studs and tighten.
6. If the fans were separated in step #2 above,plug fans together by inserting the three-prong male end
on the short fan cord on the left fan assembly into the receptacle in the right fan assembly.
7. Remove the (2) screws securing the removable access panel (with electrical box & romex connector
installed) from the side of the fireplace.
8. Insert 115V wiring (with ground) through the romex connector and wire to the speed control /
receptacle assembly matching the black (hot), white (neutral) and green (ground) wires to the
corresponding wire on the speed control / receptacle assembly. NOTE: (3) wire nuts are included in
the fireplace components packet.
9. Secure the speed control / receptacle assembly (E) into the electrical box with the (2) screws provided.
10. Re-install the electrical access panel and secure with the (2) screws removed.
11. Place the temperature control switch (with magnet) on the bottom of the firebox.
12. Plug the fan cord (F) into the receptacle in the electrical box.
13. Turn on/off speed control counter-clockwise until it ‘clicks’. This is the ‘OFF’ position.
14. Turn the speed control ‘ON’ by turning the knob clockwise past the ‘click’ - this is the highest setting.
15. Re-install lower grill, if removed in step #1 above.
NOTE: The fan will not operate unless the speed control has been turned ‘ON’. The fan will not turn ‘ON’ until sufficient heat is
applied to the thermostatic control switch . The fan will turn ‘ON’ and ‘OFF’ automatically when the fireplace heats and cools.
Adjust fan to desired speed while it is running.
THERMOSTATIC CONTROL SWITCH POSITION: Prior to adjusting the theromstatic control switch, unplug the 3-prong plug on
the fan cord from the receptacle. Adjust the position of the temperature control switch to a warmer location under the firebox to
turn the fan ‘ON’ sooner or move it to a cooler location under the firebox to turn the fan ‘ON’ later. The fan will turn on when the
sensor in the temperature control switch reaches 110 F and will turn ‘OFF’ when the sensors reach 90 F. After adjustment,
oo
plug the 3-prong plug on the fan cord into the receptacle.
Temperature
Control Switch
A
C
E F
B
D
White 3-prong receptacle
Figure 9

Page 15
(G) RUN THE GAS LINE.
CAUTION: Installation of the gas line must only be done by a qualified person in
accordance with local building codes.
GAS CONVERSIONS
This fireplace is manufactured for use with Natural Gas. An LP Gas conversion kit is included
with the fireplace components packet. Follow instructions included with the conversion kit.
NaturalGas ConversIon Kit #OCK-S32A-used to convert an LP millivolt board to NaturalGas.
LP Gas Conversion Kit OCK-S52A - used to convert a Natural Gas millivolt board to LP Gas.
The conversion shall be carried out in accordance with the requirements of the provincial authorities having
jurisdiction and in accordance with the requirements of the ANSI Z223.1 installation code.
NOTE: This fireplace is equipped with a 3/8" x 18” long flexible gas connector and manual shut off valve.
NOTE: The gas line should be run to the point of connection where the shut-off valve and flexible gas line
will connect.
CAUTION: The manual shut-off valve or flexible gas tubing must not extend outside of the fireplace cavity.
See the WARNING label affixed to the flexible tubing for additional installation instructions and
warnings.
NATURAL GAS:
The minimum inlet gas supply pressure: 7.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 10.5 inches W.C.
Manifold pressure: 3.5 inches W.C.
Manifold pressure (lo setting): 1.7 inches W.C.
Orifice size: 32 Input: 32,000 BTU’s Efficiency: 74% AFUE: 67%
LP GAS:
The minimum inlet gas supply pressure: 11.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 13.0 inches W.C.
Manifold Pressure: 10.0 inches W.C.
Manifold Pressure (lo setting): 6.5 inches W.C.
Orifice size: 52 Input: 30,000 BTU'S Efficiency: 73% AFUE: 68%
The efficiency rating of this appliance is a product thermal efficiency rating determined under continuous
operating conditions and was determined independently of any installed system.
NOTE: For high altitude installations consult the local gas distributor or the authority having
jurisdiction for proper rating methods.

Page 16
1. Run the gas line. An accessible shut off valve must be installed up stream from the regulator.
NOTE: Do not run the incoming gas line in a manner that would obstruct the operation of the fan.
2 . This fireplace is designed to accept either a 3/8" or 1/2" gas line approved for gas appliances.
Consult local building codes to properly size the gas supply line leading to a 3/8" reduction.
3. A gas line knockout is positioned on either side of the fireplace for gas line connection.
4. Connect the gas line to the manual shut-off valve.
5. Connect the flexible gas line (installed on the millivolt board valve) to the manual shut off
valve.
IMPORTANT:
ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE MUST BE
CHECKED FOR LEAKS!
NOTE: The appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of ½ psi.
NOTE: The appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than ½ psi.
Pressure check taps for both the manifold (outgoing) & inlet (incoming) pressures are located in
front of the gas valve. The right pressure tap is the manifold pressure and the left pressure tap is
the incoming pressure. Follow instructions on page #23 for checking these pressures.
(H) SECURE THE MILLVOLT BOARD:
This fireplace is equipped with the millivolt board & burner / cover assembly already installed.
Referring to the ‘INSTALLING THE MILLIVOLT BOARD’ section on pages #25-#26, check to ensure
that all (7) nuts securing the millivolt board are in place and properly tightened. Re-install the
burner / cover assembly, securing it to the millivolt board bottom with the (2) nuts provided and
ensuring the burner tube is properly positioned over the burner orifice.

Page 17
(I) LOG INSTALLATION
This log set includes: (1) JA-Log (1) N-Log (1) HB-Log
(1) LA1-Log (1) BL-Log (1) AP-Log
(1) C-Log (1) JC-Log
(1) Rock wool embers pkg.
NOTE:
THE‘JA’LOGISNOTCHEDANDSHOULDBEPOSITIONEDONTOTHEBURNERCOVERPLACINGTHENOTCHEDOUTSECTIONSINTHELOGTOTHE
BRACKETS IN THE CENTER OF THE BURNER COVER.
1. Position the ‘JA’ log onto the center of the
burner cover aligning the notches in the
bottom of the log to the brackets in the
burner cover. Figure 10.
2. Place the ‘N’, ‘LA1’ and ‘HB’ logs into
position on the burner cover as shown in
Figure 10. To secure in place once
positioned,pressthe logsdown slightlyonto
the pins in the burner cover.
Note: Do not allow any portion of the logs to
cover the burner ports.
3. Place the ‘JC’ log into position in front of the
burner as shown in Figure 10.
Carefully place the rock wool embers as
desired onto the logs and burner tube to
create additionalglow. Do not plug burner
port holes or use excessively.
Note: You will not use all the embers
included in the packet at this time. Save for
future use.
4. Align the hole in the bottom of the ‘AP’ log to
thealignmentknob*protrudingfromthe‘HB’
log. Refer to Figures 10 & 11.
5. Position remaining top logs ‘BL’ & ‘C’ onto
the previously positioned logs as shown in
Figure 11.
LA1 N
JA HB
*
JC
Figure 10
C
BL AP
Figure 11
INITIAL BURN PERIOD
Due to the makeup of the logs, the curing process may take up to 4 hours of burn time. During this
period, the logs will discolor but will return to their true color once the curing process is complete.
Do not burn this fireplace without the glass properly in place.
***MAKE SURE THE HOMEOWNER IS AWARE OF THIS***

Page 18
(J) THERMOSTAT - WALL SWITCH - REMOTE INSTALLATION
CAUTION: DO NOT CONNECT HIGH VOLTAGE (115V) WIRE TO THE GAS VALVE!
NOTE: INSTALLATION OF A THERMOSTAT OR WALL SWITCH
SHOULD ONLY BE DONE BY A QUALIFIED INSTALLER.
If desired, a thermostat (wireless style available),
wall switch, or remote control assembly may be
used to turn the fireplace ‘OFF’ and ‘ON’. ONLY
ONE of these may be installed. Follow
instructions included with each assembly.
OPTIONAL: Disconnect the on/off rocker switch
wires from the top & bottom terminals on the
back side of the gas valve. Refer to Figure 19,
page #28.
REMOTE CONTROL USERS:
Follow instructions included with the remote
control.
IMPORTANT: The insulated cover included with
the remote control must be placed over the
remote receiver to protect it from overheating.
Remote Control Wiring Diagram
Figure 13
Figure 12
Thermostat Wiring Diagram
WALL SWITCH / THERMOSTAT USERS:
Run low-voltage (thermostat) wires from the
terminals on the gas valve to thedesired location
of the wall switch or thermostat.
Attach the appropriate connector to each wall
switch / thermostat wire and connect to the top
and bottom terminals on the gas valve marked
‘TH’.

Page 19
(K) COMPLETE THE INSTALLATION
1. SECURE THE FIREPLACE:
NOTE: Nailing flanges are attached to the sides of the fireplace.
A. Loosen but do not remove the screws securing the nailing flanges to the fireplace. Remove the
nailing flanges.
B. Locating the keyhole slots on the nailing flange, simply place over the screws and slide forward
to the desired position, then tighten the screws.
C. The tabs can now be bent parallel with the fireplace.
D. Fasten to framing with holes provided in the nailing flange.
2. COMPLETE THE FIREPLACE WALLS AND THE FIREPLACE FACING:
CAUTION: THE SURROUNDING WOOD CHASE OF THE OUTSIDE WALL MUST BE INSULATED TO PREVENT COLD AIR FROM
ENTERING THE ROOM.
3. SEASONAL HEAT DUMP: This fireplace has been designed with an adjustable heat dump outlet
located inside the fireplace (at the top). This will allow infinite control over the amount of heat
emitted into the living area without affecting the flame height.
INSTALLER: PLEASE INSTALL THIS FIREPLACE WITH THE ADJUSTABLE HEAT OUTLET DUMP IN ITS
CLOSED POSITION.
HEAT OUTLET SHOWN HEAT OUTLET SHOWN IN
IN CLOSED POSITION. PARTIALLY OPENED POSITION.
CAUTION: IF THE FIREPLACE HAS BEEN IN OPERATION, ALLOW AMPLE TIME FOR IT TO COOL BEFORE
ADJUSTING THE HEAT OUTLET OPENING OR USE THE APPROPRIATE PROTECTION TO PREVENT
SERIOUS BURNS.
To adjust the heat outlet opening: 1. Remove the upper grill and glass assembly.
2. Open or close the outlet to desired position.
3. Replace the glass assembly and upper grill.
3. THIS STEP SHOULD ONLY BE DONE BY A QUALIFIED INSTALLER OR SERVICE TECHNICIAN:
A) Perform lighting and shutdown procedures as described on pages #21-#22 . This should be
done prior to re-installing the glass so that any necessary adjustments can be made and proper
operation verified.
