INSTALLATION & OPERATING MANUAL
MODEL:
SP-36: SLIM PROFILE 36"
DIRECT VENT GAS FIREPLACE
US Patent Number 5,931,154
US Patent Number 6,004,493
IMPORTANT:
READ INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION. FAILURE TO INSTALL THIS FIREPLACE
CORRECTLY CAN CAUSE SERIOUS STRUCTURAL AND
FIRE HAZARDS AND MAY VOID YOUR WARRANTY.
September 2006
www.kozyheat.com

Page 1
INDEX
DESCRIPTION PAGE
SAFETY REQUIREMENTS / SPECIFICATIONS .................................. 2-3
MINIMUM CLEARANCES ......................................................3
VENTINGREQUIREMENTS .................................................. 3-7
MINIMUMVENTING................................... 4
HORIZONTALVENTING ............................. 4-6
VERTICALVENTING.................................. 7
POSITIONTHEUNIT..........................................................8

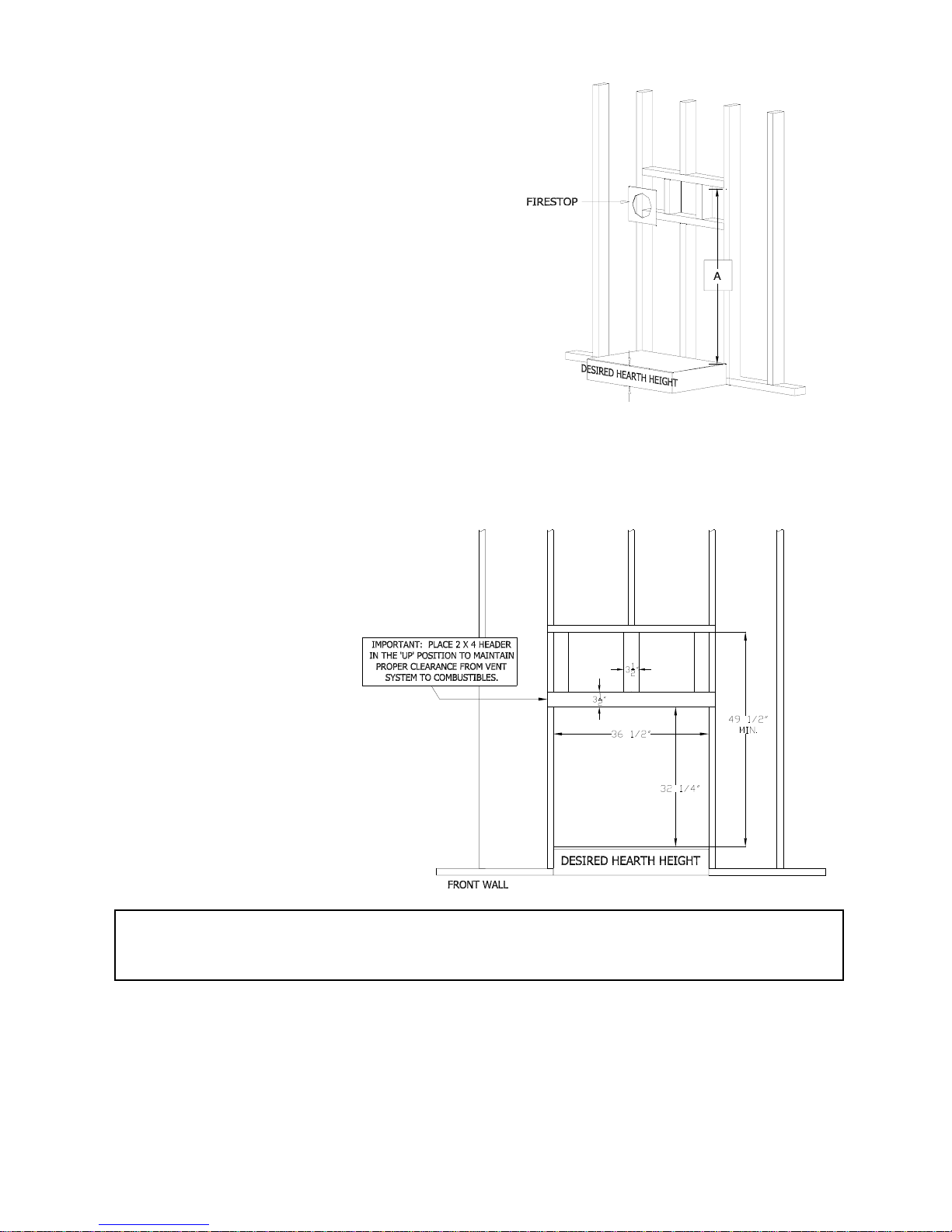

ROUGH-INCHIMNEYVENTDIMENSIONS ................ 9
ROUGH-INDIMENSIONS .............................. 9
REMOVE THE GLASS ASSEMBLY .............................................10
DIRECTVENTKITINSTALLATION .......................................... 10-11

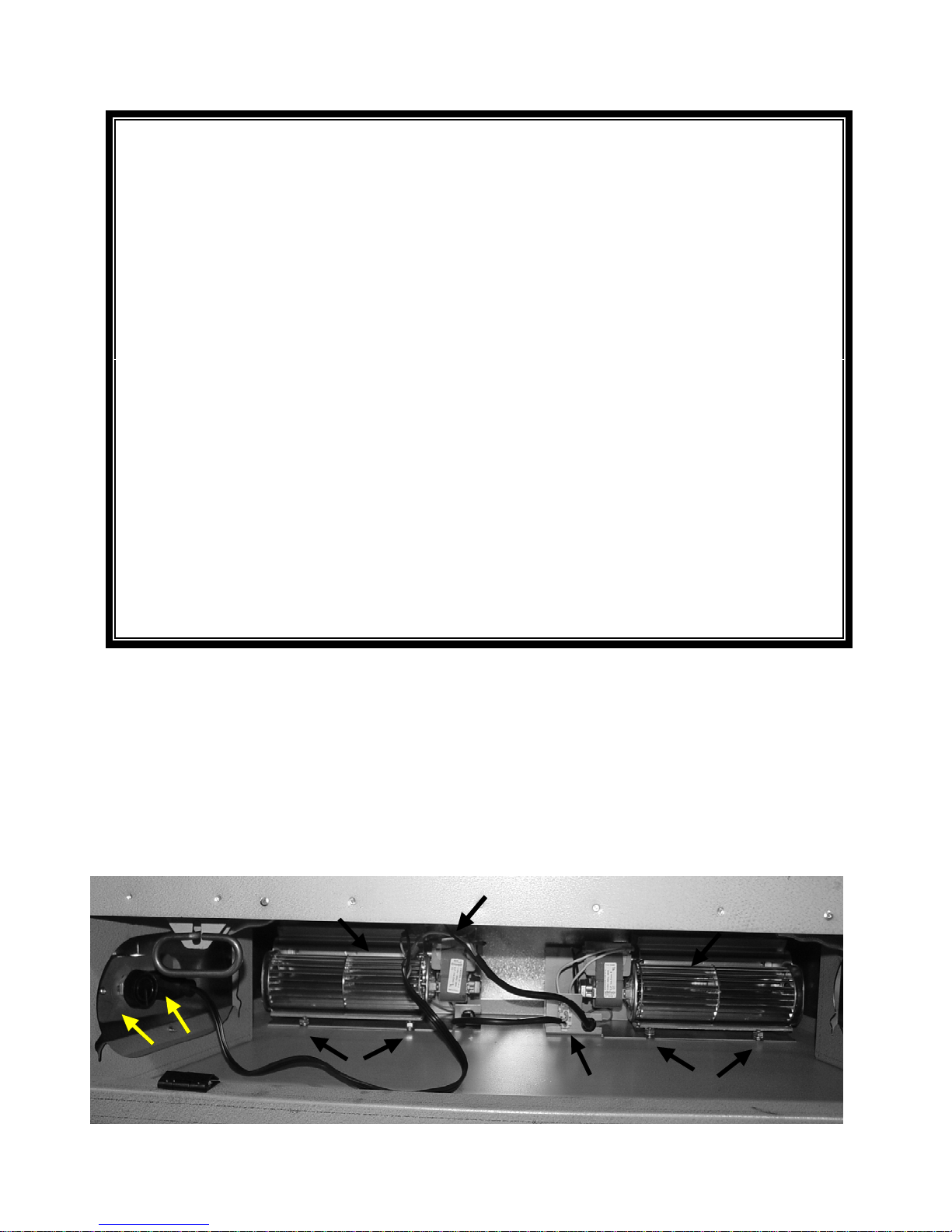

FANINSTALLATION...................................................... 12-13
GAS LINE SPECIFICATIONS ............................................... 14-15
SECURE THE MILLIVOLT BOARD .............................................15

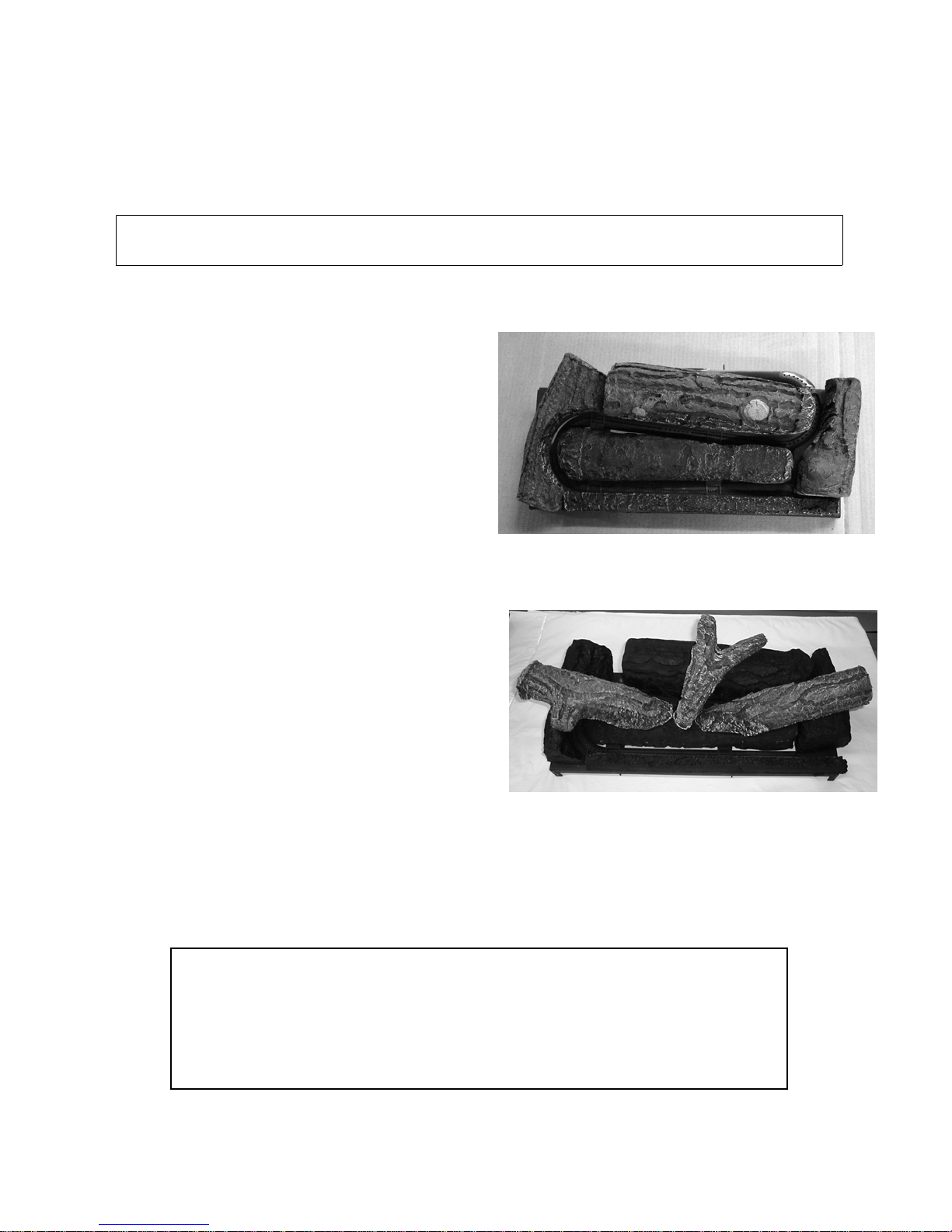

LOGINSTALLATION ........................................................16
WALLSWITCH-THERMOSTAT-REMOTECONTROLINSTALLATION ...............17
COMPLETETHEINSTALLATION ........................................... 18-19
LIGHTING&SHUTDOWN.................................................. 20-21
MANIFOLD & INCOMING PRESSURE CHECK PROCEDURES .......................22
CLEANING & MAINTENANCE REQUIREMENTS ..................................23
MILLIVOLT BOARD REMOVAL / INSTALLATION .............................. 24-25
TROUBLESHOOTING .................................................... 26-27
REPLACEMENTPARTSLISTS ................................................28
WARRANTY POLICY ..................................................... 29-30

Page 2
IMPORTANT:
READTHISMANUAL BEFORE INSTALLING ANDUSINGTHISFIREPLACE
MODEL SP-36 DV GAS FIREPLACE HEATER
INSTALLATION INSTRUCTIONS
This appliance has been tested to and complies with ANSI Z21.88-2002CSA 2.33-M02, “VENTEDGAS
FIREPLACE HEATER”. Installation must conform with local building codes, or, in the absence of local
building codes, with the national fuel gas code, ANSI Z223.1 NFPA 54, Current Edition, or the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes. This
appliance is only for use with the type(s) of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
Installation and/or repair of this fireplace should only
be done by a qualified installer.
COMMONWEALTH OF MASSACHUSETTS
INSTALLATIONS
WARNING: This Product Must Be Installed By a Licensed
Plumber Or Gas Fitter When Installed Within The
Commonwealth of Massachusetts.
IMPORTANT: Installation of a CO detector is required in the
fireplace room.
FOR YOUR SAFETY:
WHAT TO DO IF YOU SMELL GAS:
!Do not touch any electrical switches.
!Do not try to light any appliance.
!Do not use the phone in your building.
!Immediately call your gas supplier from
a neighbor’s phone.
!Follow the gas suppliers instructions.
!If you cannot reach your gas supplier,
call the fire department.
!Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult a
qualified installer, service agency, or the gas
supplier.
WARNING: Donotusethisheaterifanypart has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control
system and any gas control which has been under water.
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
UNIT SPECIFICATIONS -
Height : 32"
Front width: 36"
Back width: 27 7/8"
Depth: 15”
Flue size: 4" exhaust, 7" intake

Page 3
WARNING: DONOTREPLACETHEBURNERASSEMBLY WITHANYOTHERSIZEDBURNER. REPLACEMENT
WITH AN UNAUTHORIZED BURNER CAN RESULT IN TEMPERATURES EXCEEDING THE LIMITS FOR THIS
FIREPLACE, AND VOID YOUR WARRANTY.
IMPORTANT:NON-COMBUSTIBLEFACINGMATERIALMAYBEAPPLIEDOVERTHEFACE - DONOT
PLACECOMBUSTIBLEMATERIALOVERTHEFACEOFTHEFIREPLACE. TOPREVENTTHEFACING
MATERIALFROMCRACKINGANDFALLINGOFFDUETOEXPANSIONOFTHEFACEWHENHEATED,
DO NOT ATTACH FACING MATERIAL DIRECTLY TO THE FACE OF THE FIREPLACE. DO NOT
OBSTRUCT THE FLOW OF VENTILATION AIR.
CLEARANCES Mantel Projection
Minimum clearance to combustibles:
From fireplace sides & back: 0"
From fireplace top stand-off: 0"
To flooring: 0"
From flue vent: 1"
From fireplace glazing to adjacent sidewall: 8"
From heat outlet to mantel: 12"
VENTING REQUIREMENTS
APPROVED DIRECT VENT CHIMNEY SYSTEMS:
- #745 DIRECT VENT TERMINATION KIT - for
terminations 4' or less.
- #718 DIRECT VENT TERMINATION KIT - for
terminations greater than 4' but less than 8'.
-#746 DIRECT VENT EXTENSION KIT - used in
conjunction with #745 or #718. The extension kit is
expandable to 6'.
The above direct vent kits are typically used for
horizontal venting applications.
Refertopages #4-#6 for venting requirements and page
#11 for complete installation instructions on the above
kits.
- SIMPSON DURA-VENT DV-GS CHIMNEY SYSTEM*:
Size: 4” x 6 5/8”.
For horizontal & vertical terminations.
- AMERI-VENT DIRECT VENT CHIMNEY SYSTEM*:
Size: 4" X 6 5/8".
For horizontal & vertical terminations.
*Adaptor #923-C is required to adapt the fireplace
exhaust and intake collars to the Dura-Vent and Amer-
Vent chimney systems.
Refer to pages #4-#7 and page #10 for complete venting
requirements.
Followinstallationinstructionsincludedwiththe#923-C
adaptor & installation instructions provided with the
chimney system you are using.

Page 4

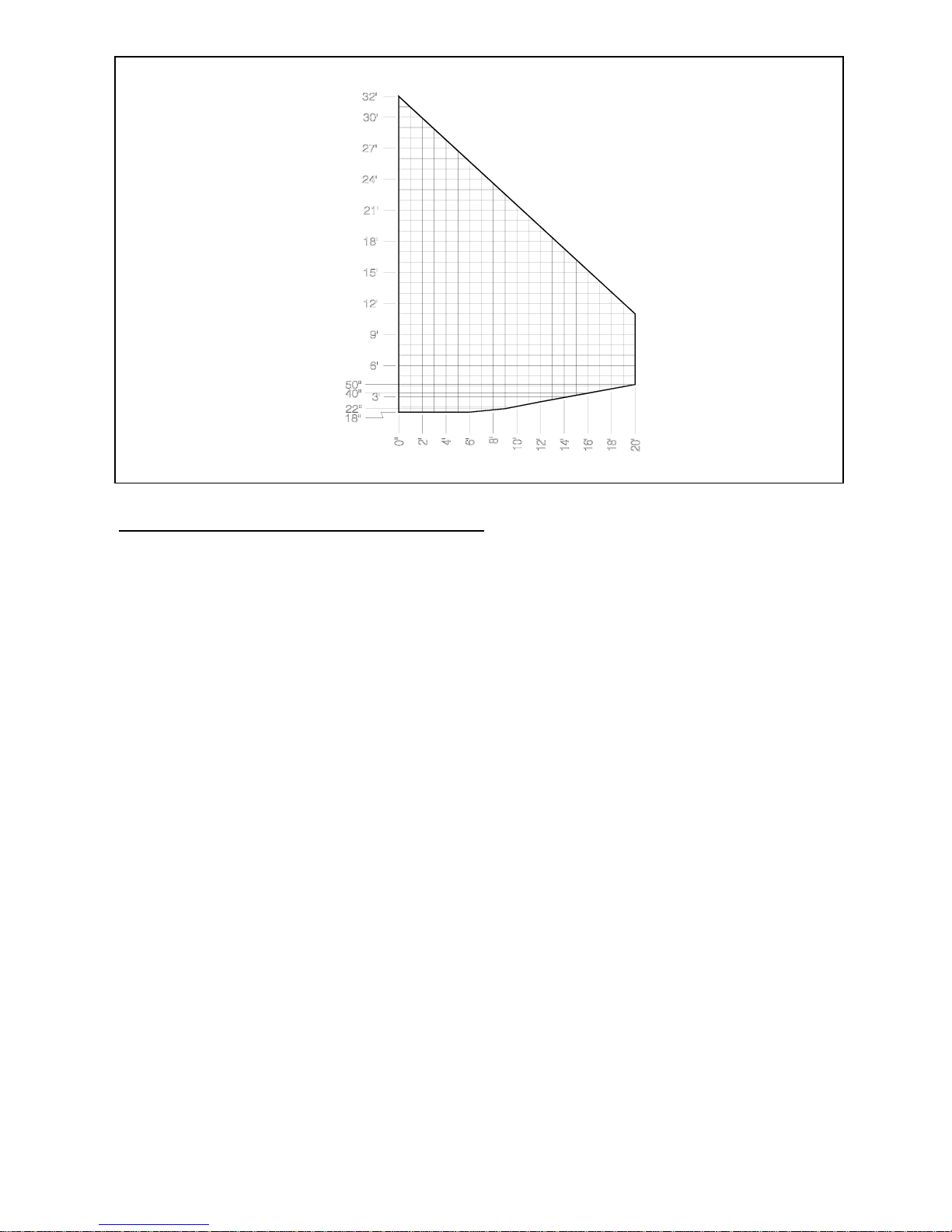

HORIZONTAL & VERTICAL VENTING CHART
Vertical Rise
Horizontal Run
HORIZONTAL VENTING REQUIREMENTS
The following are minimum venting configurations which may be used for direct thru-the-wall installations. This
generally will be determined by how the fireplace will be finished on the interior.
1. SIMPSON DURA-VENT PIPE ONLY MAY BE USED ON THE FOLLOWING CONFIGURATION:
#923-C adaptor, followed by a 90oelbow, then a minimum horizontal vent run of 6". A snorkel kit must then be used on the
outside of the house to ensure proper draft and compliance to the venting requirements as tested.
The maximum horizontal run for this configuration is 2' 6". See Figure 2A on page# 6.
2. SIMPSON DURA-VENT OR AMERI-VENT PIPE MAY BE USED ON THE FOLLOWING CONFIGURATIONS:
A. #923-C adaptor, followed by a 90oelbow, then a minimum/maximum horizontal vent run of 6". This is the only
accepted configuration that can be used without a snorkel kit. The vertical and horizontal runs cannot be increased.
Refer to Figure 2B, page #6.
B. MINIMUM VERTICAL RISE*: 17" (TO TOP OF INTAKE PIPE) - this is equivalent to (1) 6" chimney section followed by
(1) 90oelbow. See Figure 2C, page #6. NOTE: #923-C adaptor must be used.
MINIMUM HORIZONTAL RUN: 6 IN.
*MAXIMUM HORIZONTAL RUN: 6 FT. (Horizontal runs must maintain 1/4” rise per ft.)
TOTAL HORIZONTAL & VERTICAL RUN MUST NOT EXCEED 32 FT.
3. KOZY HEAT #700 SERIES FLEXIBLE DIRECT VENT CHIMNEY SYSTEM:
Refer to Figure 2D, page #6.
MINIMUM VERTICAL RISE*: 18" (TO TOP OF INTAKE PIPE)
MINIMUM HORIZONTAL RUN: 6 IN.
*MAXIMUM HORIZONTAL RUN: 6 FT. (Horizontal runs must maintain 1/4" rise per ft.)
*Determined by the length of horizontal run. Using the chart above, find the minimum vertical rise required directly off the top of the
fireplace for the length of horizontal you need. A 50" vertical rise will allow a 20 ft. horizontal run (w/ 1/4" rise per ft. incline) with no
elbows.

Page 5
4. For each additional elbow used after the first elbow, you must subtract 5 ft. from the maximum horizontal run
allowed. A maximum of 2 elbows are allowed.
For example: A vertical rise of 18” directly off the top of the fireplace with a 90oelbow would be allowed to run 6’ with 1/4” rise per ft.. If
an additional elbow is used within this vent run, the maximum horizontal run allowed would be 1’ with 1/4” rise per ft.. (6 ft - 5 ft. (for
additional elbow) = 1 ft.)
TERMINATION VENT CAP LOCATION:
This gas appliance must not be connected to a chimney flue serving another type of appliance.
GENERAL:
1. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
2. DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, etc.. If necessary,
extend framing so that termination kit will be exposed once building materials are installed.
3. Vent termination must not be located where it will become plugged by snow or other material. The flow of combustion and
ventilation air must be not obstructed.
LOCATION CLEARANCES:
SAbove grade, veranda, porch, deck, balcony - 12". (A)
SOperable window - 12". (B)
SPermanently closed window - 12" (recommended to prevent condensation on window. (C)
SVentilated soffit - 24". (D)
SUnventilated soffit - 12". (E)
SOutside / inside corner - 12". (F)
SMeter / Regulator: not to be installed above within 3 ft. horizontally from the center line of the regulator.
SService regulator vent outlet - 3 ft. radius.
SNon-mechanical air supply inlet to building - 12".
SCombustion air inlet to any other appliance - 12".
SMechanical air supply inlet - (G) US: 3 ft. above if within 10 ft. horizontally. NOTE: Massachusetts installations: 10 ft.
SAbove furnace exhaust or inlet - 12".
SAbove paved side-walk or paved driveway located on public property - 7 ft. * (H)
NOTE: A vent cannot be located directly above a sidewalk or paved driveway that is located between two single
family dwellings and serves both dwellings.
SUnder veranda, porch, deck, or balcony (must be fully opened on a min. of 2 sides) - 12". (I)
SBetween two horizontal terminations - 12".
SBetween two vertical terminations - 12". (J) - Note: May be the same height.
* Clearance must be in accordance with local installation codes and the requirements of the gas supplier.
Figure 1

Page 6
Minimum Horizontal Venting Configurations
Figure 2A Figure 2B
Figure 2C Figure 2D

Page 7

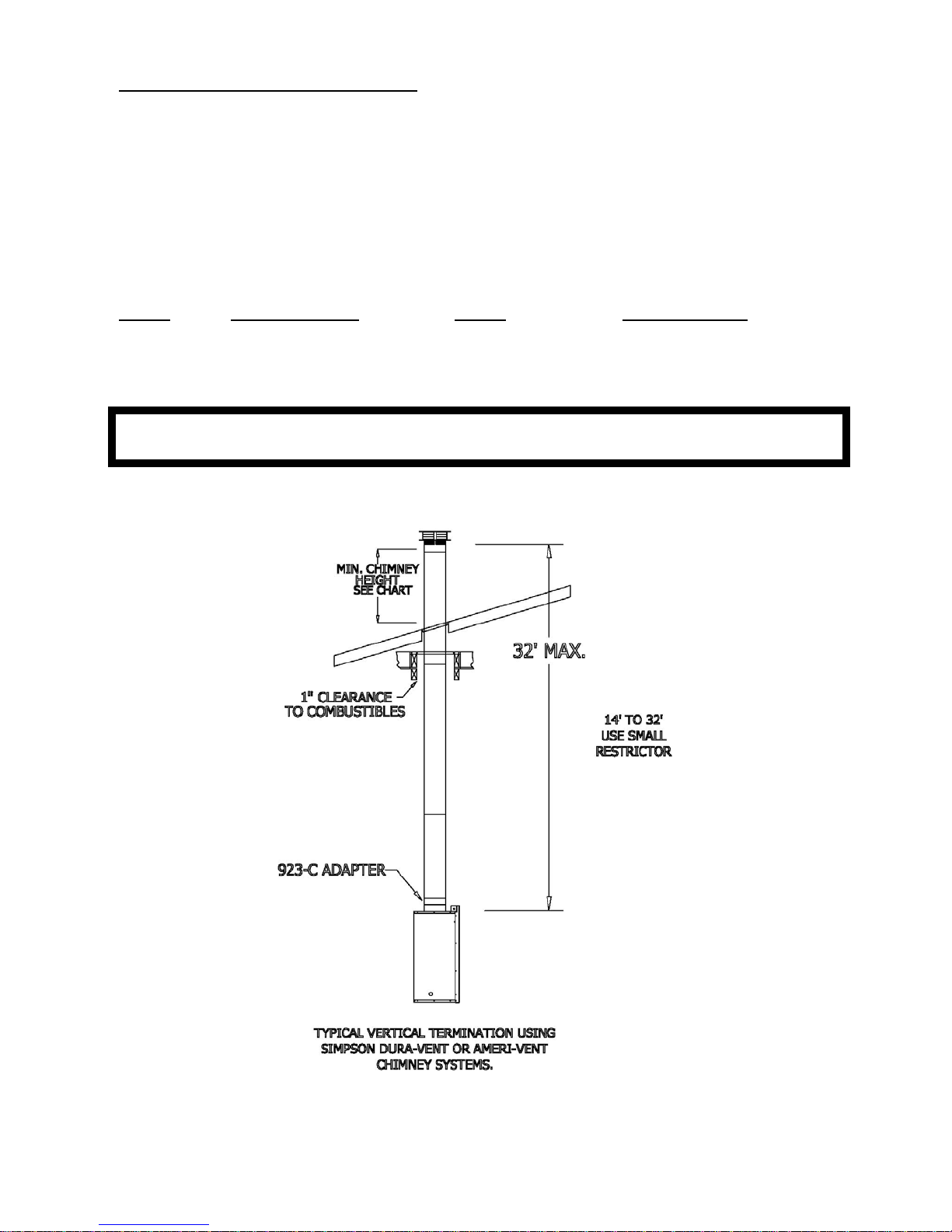

VERTICAL VENTING REQUIREMENTS
NOTE: MINIMUM VERTICAL RISE FROM TOP OF FIREPLACE BEFORE FIRST ELBOW: 18 IN.
MAXIMUM VERTICAL RISE FROM TOP OF FIREPLACE: 32 FT.
IMPORTANT: A RESTRICTOR IS REQUIRED FOR VERTICAL VENT RUNS OF 14' TO 32' FEET.
ELBOWS: 2 (Dura-Vent & Ameri-Vent chimney)
MINIMUM CLEARANCE TO COMBUSTIBLES: 1"
WHEN VERTICALLY TERMINATING, THE MINIMUM CHIMNEY HEIGHT ABOVE THE ROOF LINE IS DETERMINED BY
THE FOLLOWING CHART:
Roof Pitch Minimum Chimney Height Roof Pitch Minimum Chimney Height
Flat to 6/12 1 ft. 13/12 to 16/12 6 ft.
6/12 to 9/12 2 ft. 17/12 to 21/12 8 ft
10/12 to 12/12 4 ft.
CAUTION: This gas appliance must not be connected to or joined with any chimney flue serving
any other appliance.
Figure 3

Page 8
(A) POSITION THE FIREPLACE.
1. Determine the exact position of your
fireplace. If possible, place the fireplace in
such a manner that the piping will be placed
between two studs so additional framing is
not necessary. Determine the width, depth
and height of the (optional) hearth.
Refer to Figure 4 below for various
installation options.
Maintain proper clearance to combustible
requirements listed on page #3.
Maintain proper clearances of vent system on
the exterior when horizontally terminating as
outlined on page #5.
CAUTION: COLD AIR TRANSFER AREA. THE
SURROUNDING WOOD CHASE OF THE
OUTSIDE WALL MUST BE INSULATED TO
PREVENT COLD AIR FROM ENTERING THE
ROOM.
NOTE: Due to high temperatures, this
fireplace should be located out of traffic areas
and away from furniture and draperies.

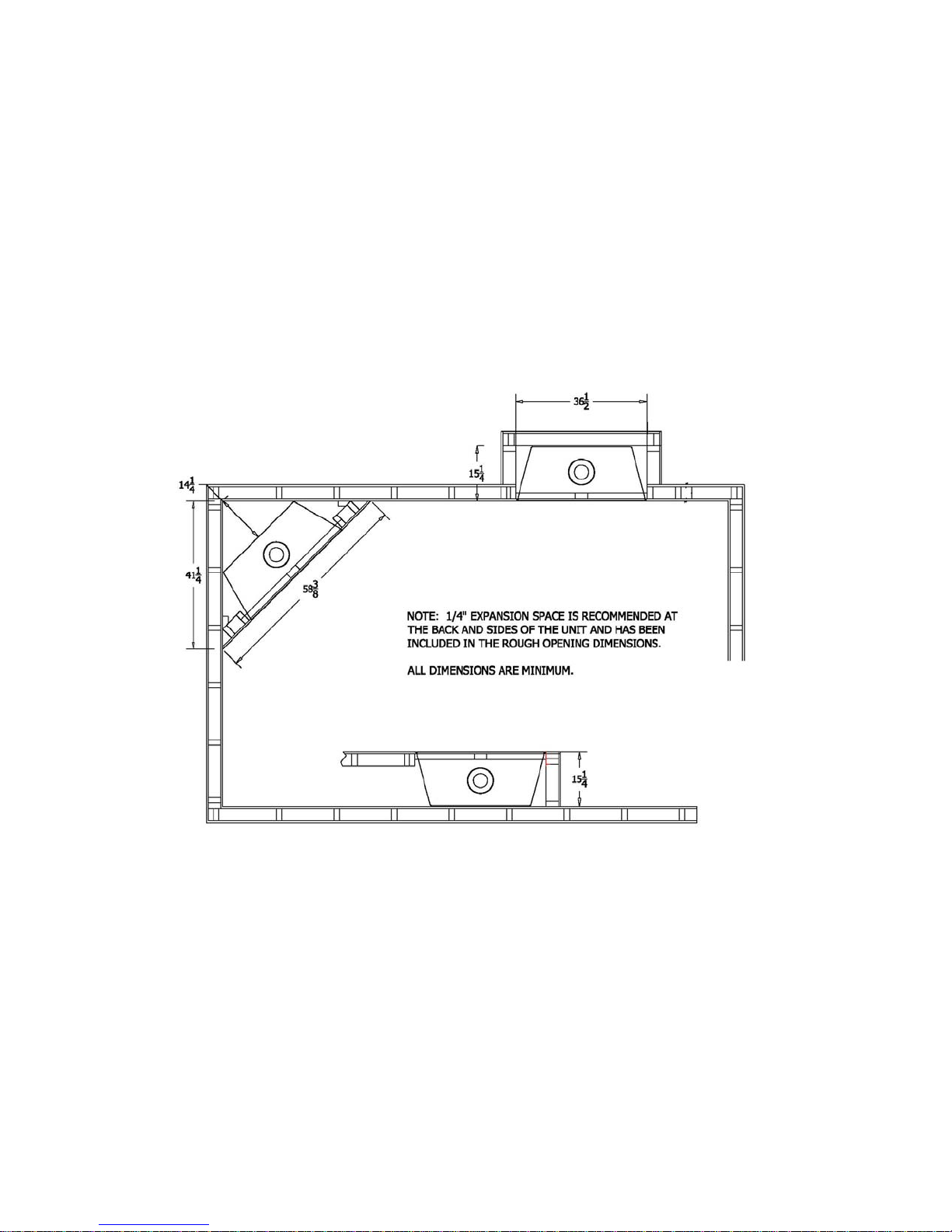

Figure 4
2. HORIZONTAL TERMINATIONS
Determine the height* & location of where the venting will exit on the exterior.
ATTENTION: #700SERIESDVSYSTEMS: THEHEIGHTTOTHETOPOFTHE FRAMEDOPENING
MUST BE A MINIMUM OF 49 ½" ABOVE THE HEIGHT OF THE FLOOR OR OPTIONAL HEARTH.
*Important: This measurement is determined by the vertical height and horizontal length of
the venting application desired. The measurement is to the top of the opening. Please refer
to pages #3- #6 of this installation manual for requirements and restrictions

Page 9
3. #700 SERIES VENT SYSTEMS: Cut a91/2"x 9 1/2"
hole for the firestop at the location determined . The
top of this hole must be a minimum of 49 ½" (A)
above the height of the floor or hearth.
Theflexibleterminationkitincludesaninteriorfirestop
assemblyshown inFigure 5, whichis installed on the
inside wall (over wall materials), around the flexible
pipe. Slide the firestop over the flex pipe with the
spacer legs toward the wall PRIOR to connecting to
the fireplace.
When the wall is complete, secure each corner with a
drywall screw. OPTIONAL: Apply a liberal bead of
sealant around the outside / wallside edge and place
over the 9 1/2” square opening.
Figure 5
SIMPSON DURA-VENT OR AMERI-VENT CHIMNEY SYSTEMS: REFER TO CHIMNEY
INSTALLATION INSTRUCTIONS FOR OPENING SIZE. MINIMUM CLEARANCE IS 1".
4. Build the hearth to the desired size and
height. See notes below.
5. Rough in the wall enclosure. The minimum
rough opening dimensions are:
32 1/4" high
36 1/2" wide
15 1/4" deep
Figure 6
NOTE: When the fireplace is installed directly on carpeting, tile, or other combustible materials other than wood flooring, it must be installed on
ametalorwoodpanelextendingthefullwidthanddepthofthefireplace. Theminimumforthesupportplatformunderthefireplaceis151/4"deep
by 36" wide. If masonry is to be used (optional), prepare the necessary foundation for the masonry load. When masonry construction is being
used, a lintel must be used over the top of the fireplace to support the added weight.
NOTE: A non-combustible hearth extension is not required. If a hearth extension is desired, combustible materials may be used.
NOTE: Provideforaminimumof6"ofclearanceinfrontofthelowergrill. Thiswillprovideadequatespace foropeningandclosingthelowergrill
toaccessthecontrols. Donotobstruct theupperandlower grill areastoallowproper ventilation air aroundthefireplace. Airenters the fireplace
at the lower grill, and exits at the upper grill. Blocking these passages may result in overheating the fireplace creating a potentially hazardous
situation.
6. Place the fireplace into position.

Page 10
(B) REMOVE THE GLASS ASSEMBLY.
See Figure 7.
1. Locate the spring-loaded handles securing
the glass assembly (under the firebox).
2. Pull the handles out, then down to release the
glass assembly.
3. Pull the bottom of the glass assembly out and
lift up off the tabs (at the top).
4. Set aside where it will not be broken.
5. Remove the log package from the firebox and
set aside.
Figure 7
(C) HORIZONTAL&VERTICALVENTINGAPPLICATIONSUSINGTHESIMPSON DURA-VENT
OR AMERI-VENT CHIMNEY SYSTEM:
1. INSTALL THE #923-C ADAPTOR FOLLOWING THE INSTRUCTIONS INCLUDED WITH THE ADAPTOR.
2. INSTALL THE CHIMNEY SYSTEM FOLLOWING THE CHIMNEY MANUFACTURERS’ INSTRUCTIONS
INCLUDED WITH THE CHIMNEY SYSTEM.
IMPORTANT:IFINSTALLINGTHESIMPSONDURA-VENTBRANDCHIMNEYSYSTEM,YOUMUSTSEALALL
JOINTS ON BOTH THE 4" AND 6 5/8" SECTIONS OF THE PIPE. YOU MAY USE THE SEALANT PROVIDED
WITH THE #923-C ADAPTOR OR THE EQUIVALENT.
3. WHENYOUHAVEFINISHEDINSTALLINGTHECHIMNEYSYSTEM,GOTOPAGE #12OFTHISMANUALAND
CONTINUE THE FIREPLACE INSTALLATION.
(D) HORIZONTAL VENTING APPLICATIONS USING #700 SERIES DIRECT VENT FLEXIBLE
CHIMNEY SYSTEMS.
1. PROCEED WITH THE INSTALLATION INSTRUCTIONS ON THE FOLLOWING PAGE.

Page 11
(E) INSTALLATION OF THE #700 SERIES HORIZONTAL DIRECT VENT TERMINATION KIT(S)
IMPORTANT: #700 Series vent kits must be supported every 3 ft. to maintain proper rise.
NOTE:THEFLEXPIPEISPERMANENTLYATTACHED
TO THE EXTERIOR WALL PLATE.DO NOT ATTACH THE
#745 OR #718 TERMINATION KIT TO THE FIREPLACE
(OR EXTENSION KIT)UNTIL IT HAS PASSED THROUGH
THEWALL.THETERMINATIONPLATESSHOULDALLBE
INSTALLED ON THE EXTERIOR OF THE OUTSIDE WALL.
1. If your chimney termination is 8' or less from the
stove top and doesn’t require an extension kit,
proceed to step number #6.
2. If your chimney termination will require one or
more extension kits (part #746), proceed with the
followingsteps. Each extensionkitcontainsenough
4" & 7" flexible aluminum pipe to extend the chimney
an additional 6'.
3. Using your extension kit pieces, place a bead of
sealant outside the 4" flex pipe collar (C) - the end
withtheEXTERNALnotches-andslideitinsidethe4"
pipe on top of the fireplace (D). Secure with 3 evenly
spaced screws.
NOTE: This connection is difficult to remove without
damaging the collars once installed.
4. Place a bead of sealant outside the 7" flex pipe
collar (E) - the end with the EXTERNAL notches - and
slide it inside the 7" pipe on top of the fireplace (F).
Secure with 3 evenly spaced screws.
5. Ifadditionalextensionkitsarebeingused,repeat
steps 3 and 4, placing the 4" & 7" pipes onto the
previous extension kit.
Referring to Figure 8:
6. Applyaliberalbeadofexteriorsealantaroundthe
outeredgeoftheterminationkitbox(A),and,fromthe
outside, place the exterior wall assembly through the
9 ½ " square hole. Place screws through the four
slots (B) securing it in place.
NOTE: Attachment brackets are included with the
termination kit. These optional brackets should be
screwed,ornailed(screwsnotprovided) onto thetop
andbottomofthe9½" squarehole,ontheexteriorof
the house. The termination plates then fit in between
thesebrackets,andusingthescrewsprovided,screw
thebracketsto the terminationkit box(A). Attachthe
vinyl siding protector.
7a. OPTIONAL: Place insulation between the 7" pipe
and the wall studs.
7b. The flexible termination kit includes an interior
firestop assembly shown in Figure 5, page #9, which
is installed on the inside wall (over wall materials),
around the flexible pipe. Slide the firestop over the
flex pipe with the spacer legs toward the wall.
OPTIONAL:Applyaliberalbeadofsealantaroundthe
outside / wallside edge and place over the 9 1/2”
square opening.
7c. Secure each corner with a drywall screw. ( see
Figure 5 - page #9.)
8. Gently pull the 4" & 7" flexible aluminum pipes
down to the top of the extension kit, or the top of the
fireplace if no extension kits were used.
9. Place a bead of sealant outside the 4" flex pipe
collar (C) and slide it inside the 4" pipe on top of the
fireplace (D). Secure with 3 evenly spaced screws.
NOTE: This connection is difficult to remove without
damaging the collars once installed.
10. Place a bead of sealant outside the 7" flex pipe
collar (E) and slide it inside the 7" pipe on top of the
fireplace (F). Secure with 3 evenly spaced screws.
Note: The 18" minimum vertical
rise measurement is to the
top of the 7” pipe.
Figure 8

Page 12
(F) FAN INSTALLATION
INSTALLATIONOFTHISFANSHOULDBEDONEONLYBYAQUALIFIEDINSTALLER.
IMPORTANT: THE FAN IS EASIEST TO INSTALLBEFORE THE MILLIVOLT BOARD IS CONNECTED TO THE
GAS LINE.
IMPORTANT: IF THE LOWER GRILL HAS BEEN INSTALLED, IT MUST BE BE REMOVED TO PROPERLY
INSTALL THIS FAN.
NOTE: The fan wiring must be done prior to enclosing the sides of the fireplace. An electrical
box & romex connector are pre-installed on a removable panel on the left side of the
fireplace. A receptacle speed control assembly and (3) wire nuts are included in the
fireplace components packet.
This optional fan kit, part #600-1* includes:
1. Right and left fan assemblies with magnetic limit switch already mounted.
2. Components package: (4) nuts, installation instructions.
NOTE: To wall-mount the speed control, you will need to purchase a speed control assembly & mounting
plate, an electrical box to mount the speed control and a cover / switch plate with screws.
*NOTE: Fan kit #TRF-028 is also available. Follow instructions included with the fan.
IMPORTANT: Code approved line voltage wiring 14 gauge or better must be used when wiring
this assembly. Refer to your local electrical codes for specific requirements in
your area.
WARNING: This appliance is equipped with a three-prong (grounding) plug for protection against
shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do
not cut or remove the grounding prong from this plug.

Page 13
INSTALLATION INSTRUCTIONS. REFER TO FIGURE 9 BELOW.
1. Remove the lower grill, if installed.
2. OPTIONAL: For easier installation, the fans may be separated by unplugging the three-prong plug from
the receptacle in the right fan assembly.
3. Slide the left fan (A) (without receptacle) through the lower grill opening (right side of the valve) and
place over the (2) left mounting studs (B) located towards the back of the fireplace.
4. Slide the right fan (with receptacle) (C) through the lower grill opening (right side of the valve) and
place over the (2) right side mounting studs (D) located towards the back of the fireplace.
5. Place nuts on mounting studs and tighten.
6. If the fans were separated in step #2 above, plug fans together by inserting the three-prong male end
on the short fan cord on the left fan assembly into the receptacle in the right fan assembly.
7. Remove the (2) screws securing the removable access panel (with electrical box & romex connector
installed) from the side of the fireplace.
8. Insert 115V wiring (with ground) through the romex connector and wire to the speed control /
receptacle assembly matching the black (hot), white (neutral) and green (ground) wires to the
corresponding wire on the speed control / receptacle assembly. NOTE: (3) wire nuts are included in
the fireplace components packet.
9. Secure the speed control / receptacle assembly (E) into the electrical box with the (2) screws provided.
10. Re-install the electrical access panel and secure with the (2) screws removed.
11. Place the temperature control switch (with magnet) on the bottom of the firebox.
12. Plug the fan cord (F) into the receptacle in the electrical box.
13. Turn on/off speed control counter-clockwise until it ‘clicks’. This is the ‘OFF’ position.
14. Turn the speed control ‘ON’ by turning the knob clockwise past the ‘click’ - this is the highest setting.
15. Re-install lower grill, if removed in step #1 above.
NOTE: The fan will not operate unless the speed control has been turned ‘ON’. The fan will not turn ‘ON’ until sufficient heat is
applied to the thermostatic control switch . The fan will turn ‘ON’ and ‘OFF’ automatically when the fireplace heats and cools.
Adjust fan to desired speed while it is running.
TEMPERATURE CONTROL SWITCH POSITION: Prior to adjusting the temperature control switch, unplug the 3-prong plug on the
fan cord from the receptacle. Adjust the position of the temperature control switch to a warmer location under the firebox to turn
the fan ‘ON’ sooner or move it to a cooler location under the firebox to turn the fan ‘ON’ later. The fan will turn on when the
sensor in the temperature control switch reaches 110oF and will turn ‘OFF’ when the sensors reach 90oF. After adjustment, plug
the 3-prong plug on the fan cord into the receptacle.
Temperature
Control Switch
A
C
E F
B
D
White 3-prong receptacle
Figure 9

Page 14
(G) RUN THE GAS LINE.
CAUTION: Installation of the gas line must only be done by a qualified person in
accordance with local building codes.
GAS CONVERSIONS
If a gas conversion is necessary, one of the following conversions kits must be used:
Natural Gas ConversIon Kit #OCK-H32N- used to convert an LP millivolt board to natural gas.
LP Gas Conversion Kit OCK-H52L - used to convert a Natural Gas millivolt board to LP Gas.
The conversion shall be carried out in accordance with the requirements of the provincial authorities having
jurisdiction and in accordance with the requirements of the ANSI Z223.1 installation code.
NOTE: This fireplace is equipped with a 3/8" x 18” long flexible gas connector and manual shut off valve.
NOTE: The gas line should be run to the point of connection where the shut-off valve and flexible gas line
will connect.
CAUTION: The manual shut-off valve or flexible gas tubing must not extend outside of the fireplace cavity.
See the WARNING label affixed to the flexible tubing for additional installation instructions and
warnings.
NATURAL GAS:
The minimum inlet gas supply pressure: 7.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 10.5 inches W.C.
Manifold pressure: 3.5 inches W.C.
Manifold pressure (lo setting): 1.7 inches W.C.
Orifice size: 32 Input: 32,000 BTU’s Efficiency: 74% AFUE: 67%
LP GAS:
The minimum inlet gas supply pressure: 11.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 13.0 inches W.C.
Manifold Pressure: 10.0 inches W.C.
Manifold Pressure (lo setting): 6.5 inches W.C.
Orifice size: 52 Input: 30,000 BTU'S Efficiency: 73% AFUE: 68%
The efficiency rating of this appliance is a product thermal efficiency rating determined under continuous
operating conditions and was determined independently of any installed system.
NOTE: For high altitude installations consult the local gas distributor or the authority having
jurisdiction for proper rating methods.

Page 15
1. Run the gas line. An accessible shut off valve must be installed up stream from the regulator.
NOTE: Do not run the incoming gas line in a manner that would obstruct the operation of the fan.
2 . This fireplace is designed to accept either a 3/8" or 1/2" gas line approved for gas appliances.
Consult local building codes to properly size the gas supply line leading to a 3/8" reduction.
3. A gas line knockout is positioned on either side of the fireplace for gas line connection.
4. Connect the gas line to the manual shut-off valve.
5. Connect the flexible gas line (installed on the millivolt board valve) to the manual shut off
valve.
IMPORTANT:
ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE MUST BE
CHECKED FOR LEAKS!
NOTE:Theapplianceanditsindividualshutoffvalvemustbedisconnectedfromthegassupplypipingsystemduringany
pressure testing of that system at test pressures in excess of ½ psi.
NOTE: The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi.
Pressure check taps for both the manifold (outgoing) & inlet (incoming) pressures are located in front of the gas valve.
Thetoppressuretapisthe manifold pressure and thebottompressuretapistheincomingpressure. Followinstructions
on page #22 for checking these pressures.
(H) SECURE THE MILLVOLT BOARD:
Thisfireplaceisequippedwiththemillivoltboard&burner/coverassemblyalreadyinstalled. Referringtothe
‘INSTALLINGTHEMILLIVOLTBOARD’sectiononpages#24-#25,checktoensurethatall(7)nutssecuringthe
millivolt board are in place and properly tightened. Re-install the burner / cover assembly, securing it tothe
millivolt board bottom with the (2) nuts provided and ensuring the burner tube is properly positioned over the
burner orifice.

Page 16
(I) LOG INSTALLATION
This log set includes: (1) JA-Log (1) N-Log (1) HB-Log
(1) LA1-Log (1) BL-Log (1) AP-Log
(1) C-Log (1) JC-Log (1) Platinum embers pkg.
(1) Rock wool embers pkg.
NOTE:
THE‘JA’ LOGISNOTCHED ANDSHOULDBE POSITIONED ONTOTHEBURNERCOVERPLACING THE NOTCHED OUTSECTIONSIN THELOGTO THE
BRACKETS IN THE CENTER OF THE BURNER COVER.
1. Positionthe‘JA’logontothecenteroftheburner
cover aligning the notches in the bottom of the
log to the brackets in the burner cover. Figure
10.
2. Placethe‘N’,‘LA1’and‘HB’ logsintopositionon
the burner cover as shown in Figure 10. To
secure in place once positioned, press the logs
down slightly onto the pins in the burner cover.
Note: Do not allow any portion of the logs to
cover the burner ports.
3. Place the ‘JC’ log into position in front of the
burner as shown in Figure 10.
Carefully place the platinum embers & rock wool
embers as desired onto the logs and burner
tube to create additional glow. Do not plug
burner port holes or use excessively.
Note: You will not use all the embers
included in the packet at this time. Save for
future use.
4. Align the hole in the bottom of the ‘AP’ log to the
alignment knob* protruding from the ‘HB’ log.
Refer to Figures 10 & 11.
5. Position remaining top logs ‘BL’ & ‘C’ onto the
previously positioned logs as shown in Figure
11.
LA1 N
’JA HB
*
JC
Figure 10
C
BL AP
Figure 11
INITIAL BURN PERIOD
Due to the makeup of the logs, the curing process may take up to 4 hours of burn time. During this
period, the logs will discolor but will return to their true color once the curing process is complete.
Do not burn this fireplace without the glass properly in place.
***MAKE SURE THE HOMEOWNER IS AWARE OF THIS***

Page 17
(J) THERMOSTAT - WALL SWITCH - REMOTE INSTALLATION
CAUTION: DO NOT CONNECT HIGH VOLTAGE (115V) WIRE TO THE GAS VALVE!
NOTE: INSTALLATION OF A THERMOSTAT OR WALL SWITCH
SHOULD ONLY BE DONE BY A QUALIFIED INSTALLER.
If desired, a thermostat (wireless style available),
wall switch, or remote control assembly may be
used to turn the fireplace ‘OFF’ and ‘ON’. ONLY
one of these may be installed. Follow
instructions included with each assembly.
NOTE: OPEN THE VALVE COVER TO EXPOSE
THE GAS VALVE AND WIRE CONNECTIONS ON
THE VALVE TERMINALS.
Disconnect the on/off rocker switch wires from
the top & bottom terminals on the gas valve.
REMOTE CONTROL USERS:
Follow instructions included with the remote
control.
IMPORTANT: The insulated cover included with
the remote control must be placed over the
remote receiver to protect it from overheating.
Remote Control Wiring Diagram
Figure 13
Figure 12
Thermostat Wiring Diagram
WALL SWITCH / THERMOSTAT USERS:
Run low-voltage (thermostat) wires from the
terminals on the gas valve to the desired location
of the wall switch or thermostat.
Attach the appropriate connector to each wall
switch / thermostat wire and connect to the top
and bottom terminals on the gas valve marked
‘TH’.

Page 18
(K) COMPLETE THE INSTALLATION
1. Complete the fireplace walls, and the fireplace facing.
CAUTION: THE SURROUNDING WOOD CHASE OF THE OUTSIDE WALL MUSTBE INSULATED TO PREVENT COLD AIR FROM
ENTERING THE ROOM.
2. Seasonal Heat Dump: This fireplace has been designed with an adjustable heat dump outlet located
inside the fireplace (at the top). This will allow infinite control over the amount of heat emitted into
the living area without affecting the flame height.
INSTALLER: PLEASE INSTALL THIS FIREPLACE WITH THE ADJUSTABLE HEAT OUTLET DUMP IN ITS
CLOSED POSITION.
HEAT OUTLET SHOWN HEAT OUTLET SHOWN
IN CLOSED POSITION. IN PARTIAL OPENED POSITION.
CAUTION: IF THE FIREPLACE HAS BEEN IN OPERATION, ALLOW AMPLE TIME FOR IT TO COOL BEFORE
ADJUSTING THE HEAT OUTLET OPENING OR USE THE APPROPRIATE PROTECTION TO PREVENT
SERIOUS BURNS.
To adjust the heat outlet opening: 1. Remove the upper grill and glass assembly.
2. Open or close the outlet to desired position.
3. Replace the glass assembly and upper grill.
3. THIS STEP SHOULD ONLY BE DONE BY A QUALIFIED INSTALLER OR SERVICE TECHNICIAN:
A) Perform lighting and shutdown procedures as described on pages #20-#21 . This should be done
prior to replacing the glass so that any necessary adjustments can be madeand proper operation
verified.
4. Replace the glass. Refer also to Figure 7, page #10.
A) Align the slots in the top of the glass assembly over the tabs on the fireplace.
B) Place the glass assembly so it is flush with the front of the fireplace front.
C) Secure the glass assembly to the fireplace by pulling the spring loaded handles down & out, then
up over the latch brackets. Release, locking the latches into position.
WARNING: DO NOT OPERATE THIS FIREPLACE WITH THE GLASS ASSEMBLY REMOVED, CRACKED
OR BROKEN. Replacement of the glass assembly should be done by a licensed or qualified service
person.

Page 19
GRILL INSTALLATION: The following instructions apply to the ‘louvered-style’ upper & lower
grill. If decorative grills are desired, follow the instructions included
with the decorative grill set.
5. Upper Grill - Install:
A) Line the rods of the grill up with the upper holes.
B) Place the rods in the holes and push up until the bottoms of the rods clear the glass frame.
C) Place the bottom of the rods into the lower holes and release. The grill will set down into place.
Remove:
A) Lift the upper grill up far enough to clear the bottom holes and pull bottom of grill out.

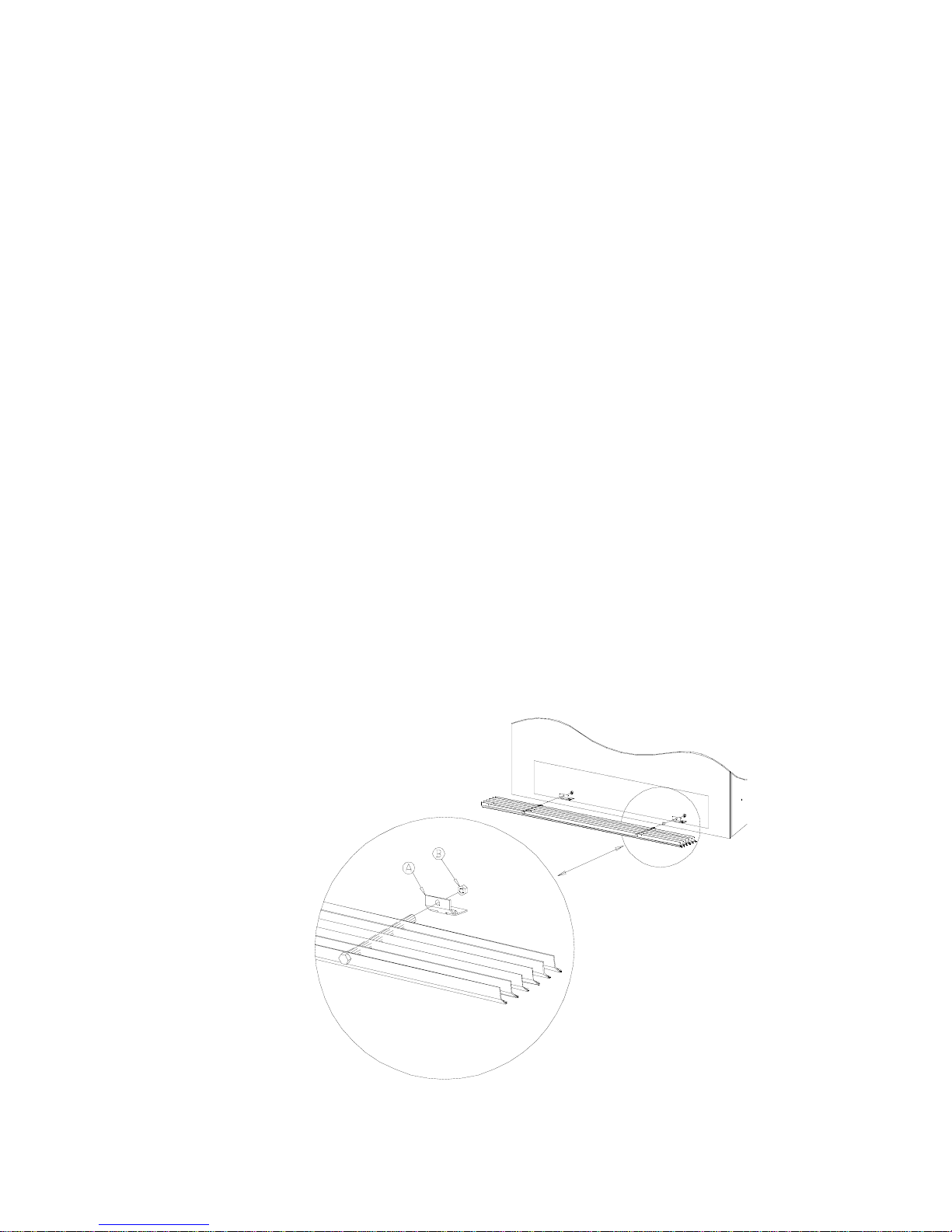

6. Lower grill - See Figure 14
Install:
A) Remove the 1/4" nuts (B) from the lower grill assembly.
B) Slip the bolt through the hinge (A).
C) Re-attach the 1/4" nut (B).
D) Repeat “A” through “C” for the remaining hinge.
The grill is now in place. The grill may be lowered for lighting purposes, etc.
Remove:
A) Remove the 1/4" nuts (B) from the lower grill assembly.
B) Pull the entire grill assembly out of the hinges.
C) Re-attach the 1/4" nuts (B).
Figure 14
