Kramer Rtbus-27xl User manual

P/N: 2900-301349 Rev 1 www.kramerAV.com

USER MANUAL

MODEL:

RTBUS-27xl

Round Table Connection Bus

Kramer Electronics Ltd.

RTBUS-27xl –Contents

Contents

Introduction 1

Getting Started 1

Overview 2

Defining RTBUS-27xl Round Table Connection Bus 3

The RTBUS-27xl Connecting Surface 4

Power Socket Options 5

Installing the RTBUS-27xl 6

Drilling a Hole in the Table 6

Installing the Power Socket 6

Connecting the Cables 7

Mounting the RTBUS-27xl in the Table 9

Using the RTBUS-27xl 10

Technical Specifications 11

Kramer Electronics Ltd.

RTBUS-27xl –Introduction

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world

of unique, creative, and affordable solutions to the vast range of problems that confront the

video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we

have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging materials for

possible future shipment.

•Review the contents of this user manual.

Go to www.kramerav.com/downloads/RTBUS-27xl to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

Achieving Best Performance

•Use only good quality connection cables (we recommend Kramer high-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (often associated with low quality cables).

•Do not secure the cables in tight bundles or roll the slack into tight coils.

•Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

•Position your Kramer RTBUS-27xl away from moisture, excessive sunlight and dust.

Safety Instructions

Caution:

•This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

•For products with relay terminals and GPI\O ports, please refer to the permitted rating

for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified

personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which located on the bottom of the unit.

Kramer Electronics Ltd.

RTBUS-27xl –Introduction

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce

the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected

and recycled. To comply with the WEEE Directive, Kramer Electronics has made

arrangements with the European Advanced Recycling Network (EARN) and will cover any

costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recycling pages at www.kramerav.com/support/recycling.

Overview

Congratulations on purchasing your Kramer RTBUS-27xl Round Table Connection Bus.

The RTBUS-27xl is an elegant furniture-mounted, round connection bus. The RTBUS-27xl

features a mechanism for pneumatic lifting and smooth closing of its lid. It is easily installed

into a table or podium top, and its interface enables you to connect any equipment to systems

installed in a room:

•C14 power socket opening, suitable for any of the following power sockets: for the USA,

the UK, Germany (the Europlug), Belgium-France, Switzerland, Italy, Australia, Brazil,

Israel, South Africa or “Universal” for use anywhere (see Power Socket Options

on page 5).

Power sockets are ordered separately.

•Two pass-through openings for cables, located on the lower surface, enabling closing of

the lid while keeping the cables hidden and protected under the surface.

Kramer Electronics Ltd.

RTBUS-27xl –Defining RTBUS-27xl Round Table Connection Bus

Defining RTBUS-27xl Round

Table Connection Bus

This section defines RTBUS-27xl.

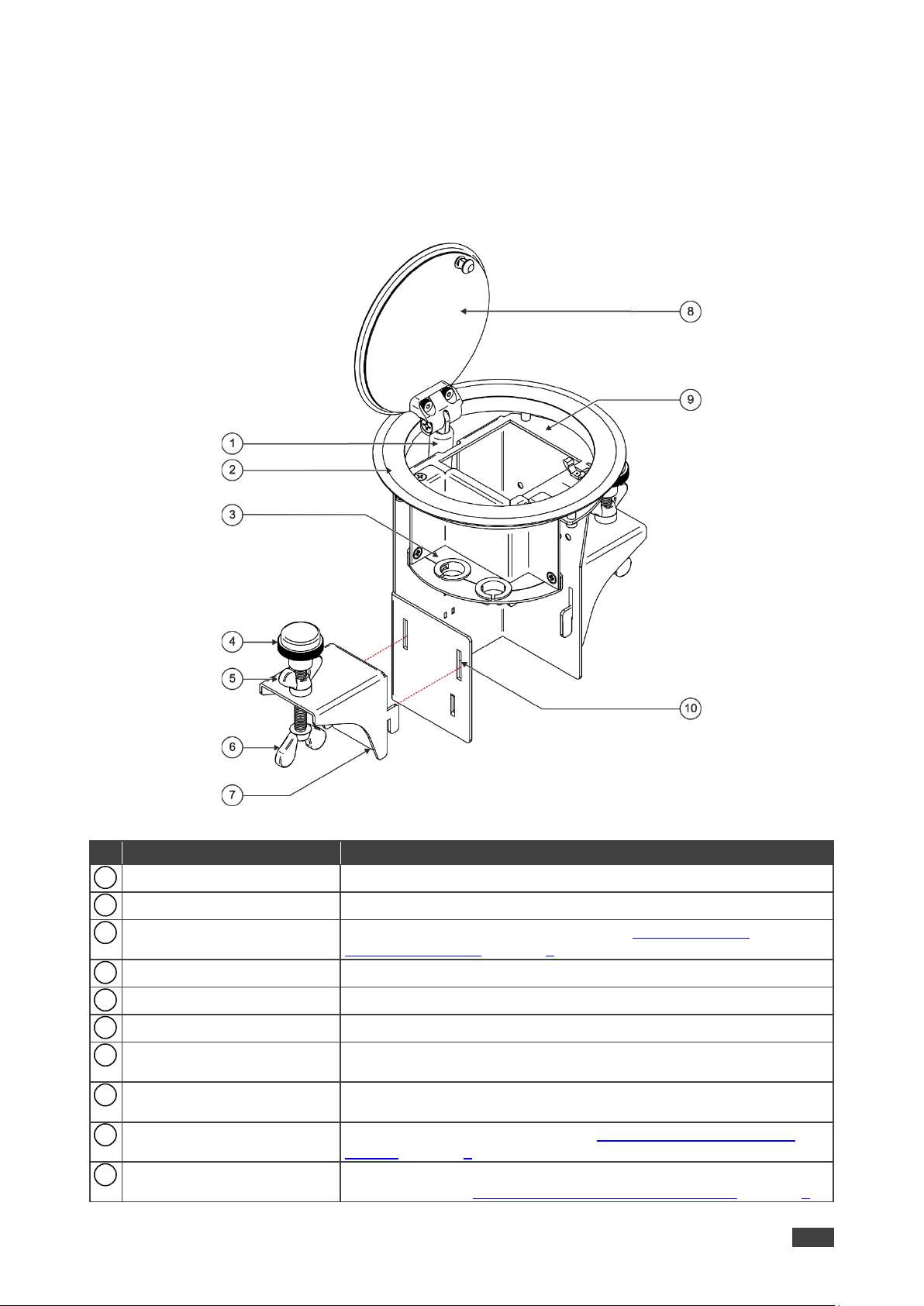

Figure 1: RTBUS-27xl Round Table Connection Bus Front Panel

Feature

Function

Pneumatic Mechanism

Enables automatic lifting and smooth closing of the lid.

Outer Rim

Fits over the table surface.

Lower Surface

Includes two pass-through openings (see The RTBUS-27xl

Connecting Surface on page 4).

Mounting Screws (x2)

For securing the RTBUS-27xl to the table.

Locking Butterfly Nuts (x2)

Tighten to lock the mounting butterfly screw.

Mounting Butterfly Nuts (x2)

Tighten to secure the unit to the table surface.

Mounting Brackets (x2)

Place in the bracket slits after inserting the enclosure into the table –

for securing the unit to the table surface.

Black anodized or brushed

aluminum semi-automatic lid

Covers the connecting surface, leaving the table surface neat and tidy.

Upper Surface

Includes power socket opening (see The RTBUS-27xlConnecting

Surface on page 4).

Mounting Bracket Slits (x2)

Insert the mounting brackets to the slits when installing the

RTBUS-27xl (see Mounting the RTBUS-27xlin the Table on page 9).

Kramer Electronics Ltd.

RTBUS-27xl –Defining RTBUS-27xl Round Table Connection Bus

The RTBUS-27xl Connecting Surface

Figure 2 defines the connecting surface.

Figure 2: RTBUS-27xl Connecting Surface

Feature

Function

Detachable Pass-through Bracket

Remove and re-install to insert cables.

Pass-Through Opening and

Bushing (x2)

Insert a cable through the opening and the bushing.

5A MAX. Power Socket

Connects to 90-240V AC power consuming device (see Power

Socket Options on page 5).

Lid Latch

For safely closing the lid.

Kramer Electronics Ltd.

RTBUS-27xl –Defining RTBUS-27xl Round Table Connection Bus

Power Socket Options

A choice of power sockets is available for purchase in several versions, including power sockets

for the USA, Brazil, Germany (the Europlug), UK, Switzerland, Belgium-France, Italy, South

Africa, Israel and Australia. A “Universal” socket for general use is also available (see the

compatibility restrictions in the table below). Note that the photos below are for illustration

purposes only.

Power Socket Type

Power Specs

Description

Universal:

TS-201U (80-000043)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Fully compatible with power plugs in the UK, India,

Italy and Denmark, as well as with the 2-prong

Europlug.

Partially compatible (if the polarity is reversed) with

plugs in China, Switzerland, Israel and the USA. The

universal socket does not supply grounding to plugs in

Central Europe and France and so you should order

country specific sockets instead.

Not compatible with South African plugs.

Power Socket Type

Power Specs

Power Socket Type

Power Specs

USA:

TS-201US (80-000046)

100-125V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Italy:

TS-201IT (80-000047)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Germany and EU:

TS-201DE (80-000044)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Australia:

TS-201AU (80-000050)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Belgium and France:

TS-201FR (80-000045)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Israel:

TS-201IL (80-000053)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

South Africa

TS-201ZA (80-000052)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Brazil

TS-201BR (80-000051)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Switzerland

TS-201CH (80-000049)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

England

TS-21GB (91-000131)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Kramer Electronics Ltd.

RTBUS-27xl –Installing the RTBUS-27xl

Installing the RTBUS-27xl

To install the RTBUS-27xl perform the following steps:

1. Drill a hole in the table (see Drilling a Hole in the Table on page 6).

2. Install the power socket (see Installing the Power Socket on page 6).

3. Connect the cables (see Connecting the Cables on page 7).

4. Secure the unit to the table (see Mounting the RTBUS-27xl in the Table on page 9).

Drilling a Hole in the Table

To drill an opening in the table:

1. Using any standard cup bit drill with a diameter ranging from 111mm to 114mm (4.37in to

4.49in), drill a hole in the table in the desired location.

The thickness of the table should be 3in (76mm) or less.

2. Clean the table surface.

Take care not to damage the table. Kramer AV is not responsible for any damage caused to

the table.

Installing the Power Socket

Figure 3 shows an example of the Universal power socket housing which is one of the

optional power sockets for the RTBUS-27xl, see Power Socket Options on page 5.

To install the power socket (purchased separately):

1. Close the RTBUS-27xl lid.

2. Carefully insert the power socket housing so that

the power socket fits into the power socket

opening on the connecting surface and the four

standoffs fit the four screw holes on the

RTBUS-27xl.

When positioned correctly, the IEC socket faces

forward.

3. Screw the four screws included in the power

socket kit into the designated holes to fix the

power socket housing in place.

4. Unscrew the power connector lock.

5. Connect the IEC power cord to the IEC socket.

Figure 3: RTBUS-27xl Universal Power Socket

Housing

Kramer Electronics Ltd.

RTBUS-27xl –Installing the RTBUS-27xl

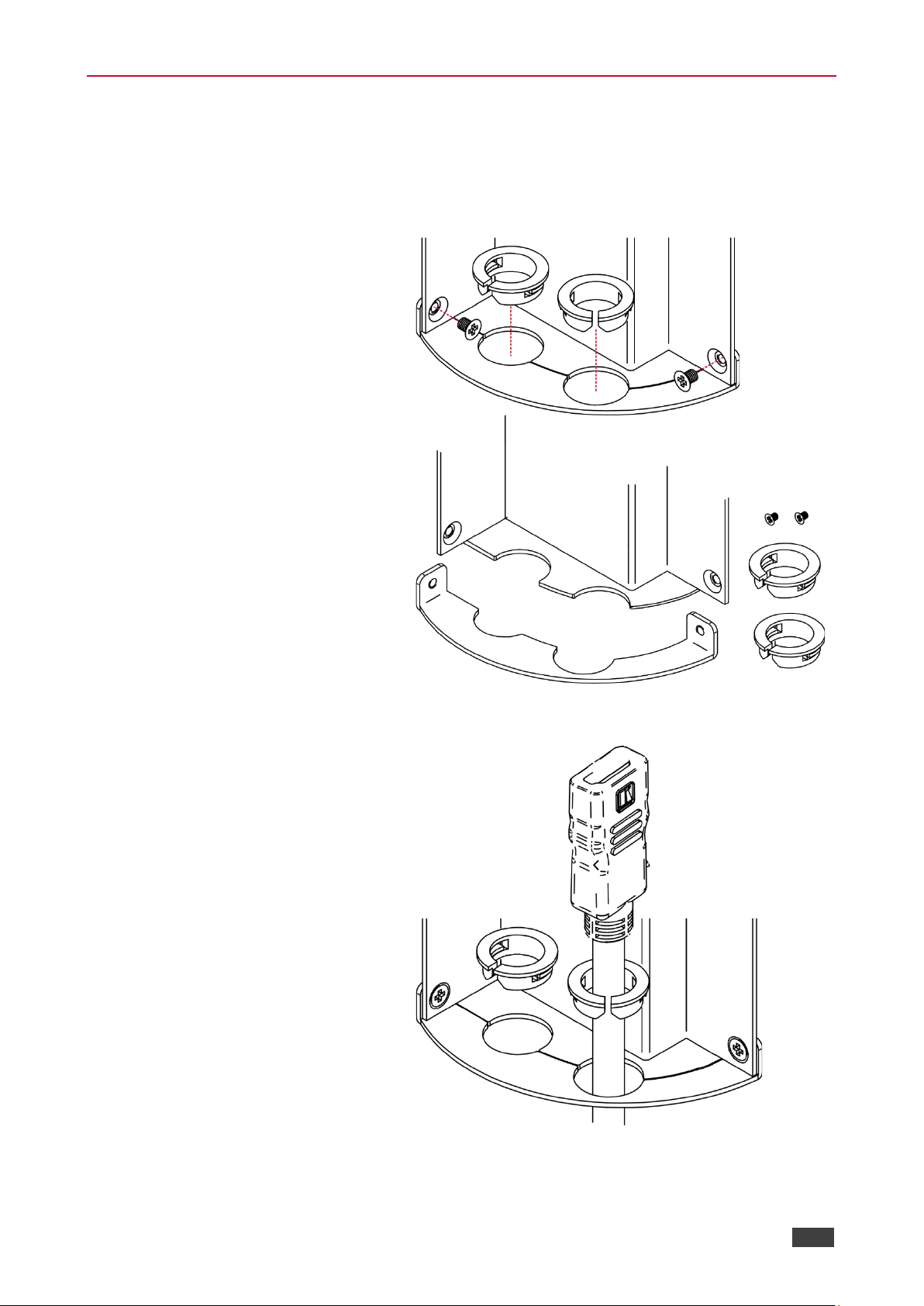

Connecting the Cables

You can install the cables either before mounting the RTBUS-27xl on a table, or after it is

mounted (usually if the RTBUS-27xl is mounted and you need to replace the cables).

To connect the cables:

1. Unscrew the two detachable

bracket screws to remove it from

the lower surface.

Keep the bushing/s and screws

on the side for later.

2. Insert a cable into an opening

and place the bushing around

the cable.

Kramer Electronics Ltd.

RTBUS-27xl –Installing the RTBUS-27xl

3. Replace the detachable bracket

and fix using the two screws and

push the bushing into the pass-

through opening.

We recommend that you use the Kramer C-AC AC Power Cord series to power the unit.

Kramer Electronics Ltd.

RTBUS-27xl –Installing the RTBUS-27xl

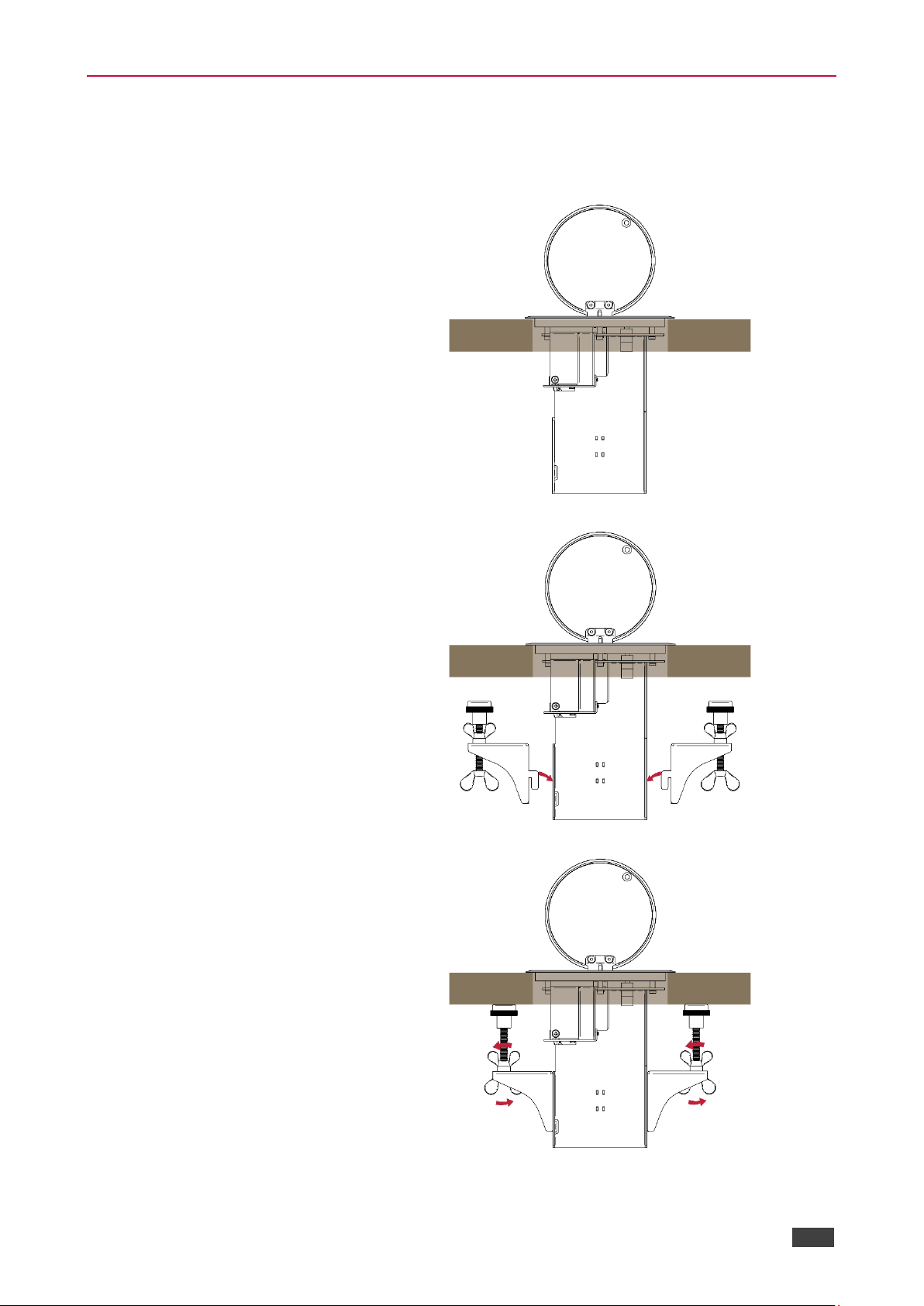

Mounting the RTBUS-27xl in the Table

To mount the unit:

1. Insert the RTBUS-27xl into the hole

cut into the table making sure the

outer rim is firm against the surface of

the table.

2. From underneath the table, slide the

mounting brackets into the

appropriate slots.

3. Step 3: Tighten the butterfly mounting

screws securely upward against the

table.

4. Lock the mounting screws into

position with the locking butterfly

screws.

Kramer Electronics Ltd.

RTBUS-27xl –Using the RTBUS-27xl

Using the RTBUS-27xl

Once the RTBUS-27xl is installed, you can easily customize it to your own needs by directly

plugging in the required AV equipment, as illustrated in the example in Figure 4.

Figure 4: RTBUS‑25xl Boardroom Installation

Kramer Electronics Ltd.

RTBUS-27xl –Technical Specifications

Technical Specifications

Ports

2 pass-through openings

In lower surface

Power

Power socket

assemblies:

Universal, 100–240V AC, 50/60Hz, 5A; maximum 5A per

power outlet

Fully compatible with power plugs in the UK, India, Italy

and Denmark, as well as with the 2–prong Europlug

Partially compatible (if the polarity is reversed) with

plugs in China, Switzerland, Israel and the USA. The

universal socket does not supply grounding to plugs in

Central Europe and France (you should order country

specific sockets instead). Not compatible with South

African plugs

USA —100–240V AC, 50/60Hz, 5A, maximum 5A per

power outlet

Germany and EU —100–240V AC, 50/60Hz, 5A,

maximum 5A per power outlet

Belgium and France —100–240V AC, 50/60Hz, 5A,

maximum 5A per power outlet

Italy —100–240V AC, 50/60Hz, 5A, maximum 5A per

power outlet

Australia —100–240V AC, 50/60Hz, 5A, maximum 5A

per power outlet

Israel —220V AC, 50/60Hz, 5A, maximum 5A per

power outlet

South Africa —220V AC, 50/60Hz, 5A, maximum 5A

per power outlet

Switzerland —220V AC, 50/60Hz, 5A, maximum 5A per

power outlet

England —220V AC, 50/60Hz, 5A, maximum 5A per

power outlet

Brazil —220V AC, 50/60Hz, 5A, maximum 5A per

power outlet

Fuse Rating

T 6.3A 250V

Options

TBUS AC Power Cord

(C–AC/POWERCORD)

power socket kits

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory

Compliance

Safety

CE, UL

Environmental

RoHs, WEEE

General

Net Dimensions

(W, D, H)

13cm x 16cm x 15.4cm

(6.18" x 5.04" x 6.04")

Shipping Dimensions

(W, D, H)

36.5cm x 17cm x 17cm

(14.4" x 6.7" x 6.7")

Net Weight

0.85kg (1.9lbs) approx.

Shipping Weight

1.3 kg (2.9lbs) approx. with mounting brackets

Specifications are subject to change without notice at www.kramerav.com

The warranty obligations of Kramer Electronics Inc. (“Kramer Electronics”) for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use

or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to

the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting

from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone

unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship

of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the

technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other

product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year

warranty for firmware and software updates; all Kramer VIA accessories, adapters, tags, and dongles are covered by a standard one (1) year

warranty.

2. Kramer fiber optic cables, adapter-size fiber optic extenders, pluggable optical modules, active cables, cable retractors, ring mounted

adapters, portable power chargers, Kramer speakers, and Kramer touch panels are all covered by a standard one (1) year warranty.

3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all

streaming, and all wireless products are covered by a standard three (3) year warranty.

4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.

5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for

three (3) years).

6. K-Touch software is covered by a standard one (1) year warranty for software updates.

7. All Kramer passive cables are covered by a ten (10) year warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or

owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper

claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and

labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs

necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same

function as the original product. If a direct or similar replacement product is supplied, the original product’s end warranty date remains

unchanged and is transferred to the replacement product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought

under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer

Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned

uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-

installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any

adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this

product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service

providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer

Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be

required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original

carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE

PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR

DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR

UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental,

consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND

IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE

MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,

INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER

ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED

WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.

IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT” UNDER THE MAGNUSON-MOSS WARRANTY

ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT

APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by

Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an

authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this

document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the

online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of

satisfaction.

www.KramerAV.com

info@KramerAV.com

P/N:

2900-301349

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening andservicing

For the latest information on our products and a list of Kramer distributors, visit our website where

updates to this user manual may be found.

We welcome your questions, comments, and feedback.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
