KRATOS 29Y-056 User manual
Kratos Electric Convection Ovens User Manual
1
USER MANUAL-INSTALLATION GUIDE
29Y-056, 29Y-057, 29Y-060, 29Y-061
GAS COUNTER SERIES
HOT PLATES
This manual contains important information regarding your Kratosunit. Please read
the manual thoroughly prior to equipment set-up and operation maintenance.
Failure to comply with regular maintenance guidelines outlined in the manual may
void the warranty. Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read this manual
thoroughly before installing or servicing this equipment.
Kratos Electric Convection Ovens User Manual
2
Model: 29-056/-057/-060/-061
Name: Electric Convection Oven
Congratulations! Electric
Convection Oven. Every Kratos product is manufactured with the customer in mind by
providing the best value without sacrificing the quality.
You will find that your new equipment has been designed and manufactured to meet the
toughest standards in the industry. Each piece of the equipment is carefully engineered,
and designs are verified through laboratory tests and field installations. With proper care
and field maintenance, you will experience years of reliable, trouble-free operation. For
best results, read this manual carefully. Whatever your need is presently or in the future,
look to Kratos as your full-service solution.
The manufacturer declines any responsibility in the event users do not follow the
instructions or guidelines stated here.
Kratos Electric Convection Ovens User Manual
3
Warning
◆Any self-modification, wrong installation, adjustment or maintenance can lead to property loss or
casualty. Please contact the manufacturer for any adjustment or maintenance, and have the work
done by a trained & qualified person.
◆For your safety sake, please keep the machine away from any liquid, gas or other object, which is
flammable or explosive.
◆This appliance should not be operated by those who have physiological, perceptual or mental
disabilities or those who have insufficient experience or knowledge (including children). Only in
conditions of being given sufficient supervise & guarantee of personal safety, as well as proper
instructions & guidance, those who were mentioned above can make some particular operation of
this device.
◆Keep children away from the device.
◆Preserve this manual safely. When passing on/sellingthe device to a thirdparty,the manuals must
manual and related safety guidelines.
◆Do not store or use gas, liquid or object that is flammable or explosive in vicinity of the mounting
position.
◆If the appliance is placed near walls, partitions or kitchen furniture and the like, it is advisable to
make these facilities with non-combustible material, otherwise cover them with non-combustible
heat-resistant material, and pay attention to fire prevention regulations.
Kratos Electric Convection Ovens User Manual
4
Contents
1．
2．Specifications
3．
4．
5．
6．
7．
8．
9．
Kratos Electric Convection Ovens User Manual
1
1. Functional Introduction
High-efficiency oven with high-efficiency heating tube, direct forced hot-air system, 208V/220-240V，
60Hz，one or three phases.
Electronic temperature controller.
Double layer heat-resistant glass doors and windows with chamber light.
60 minutes continuous bell timer, also can be manually cut off.
Temperature range: 150℉（65℃）-550℉（288℃）.
1/2-1/10HP two-speed air cooling fan & motor.
Cooling fan code.
With electric heating indicator light and power stand-by indicator light.
Stainless steel chamber with arc angles.
11 removable grid rail, space 1 5/8 ", 3 chrome net frames.
The top & front part are made by stainless steel.
Black coating steel feet are adjustable.
Independent stainless steel door, double-layerheat-resistant glass window,with separate doorhandles.
Stainless steel door seal.
Double equipment, superposition device.
Hinged control panel installed in the front, easy to disassemble & repair.
The top, side, back of the oven & the internal are made by industrial durable insulation materials.
2. Specifications
Full size electrothermal forced convection oven, single or double layer free combination, monolayer &
two-layer for free combination.
Standard specification: high-efficiency heating tube, two-speed fan with cooling function, driven by the
efficient 1/2-1/10HP air-cooling fan & motor.
The door interlocking switch have the function to turn off the motor &heating tubes automaticallywhen
the door opened. In the air-cooling code, the fan is started when the door is opened for rapid cooling.
60 minute timer with a continuous ring alarm, can cut off the alarm manually. When the electric heating
tube works, the indicator light is illuminated.
Oven internal size: 29"×20"×22 1/4", detachable 11 shelf guides, 1 5/8" spacing, with 3 adjustable
chrome shelves
Note: food cannot be placed directly on the grid when cooking food.
The external size of the oven is: length: 38.1 "; width: 37.8" without handle, 41.5 " with handle, high:
29.2 " without leg, its front, top and decorative strips are made of stainless steel.
Independent of the open type stainless steel door, two doors can be opened separately, with 2-layer
heat-resistant glass, stainless steel seals and cool-touch handles for each door. The inside and
outside of the furnace is with 2 "industrial material for complete insulation. Standard bore lamp.
Kratos Electric Convection Ovens User Manual
2

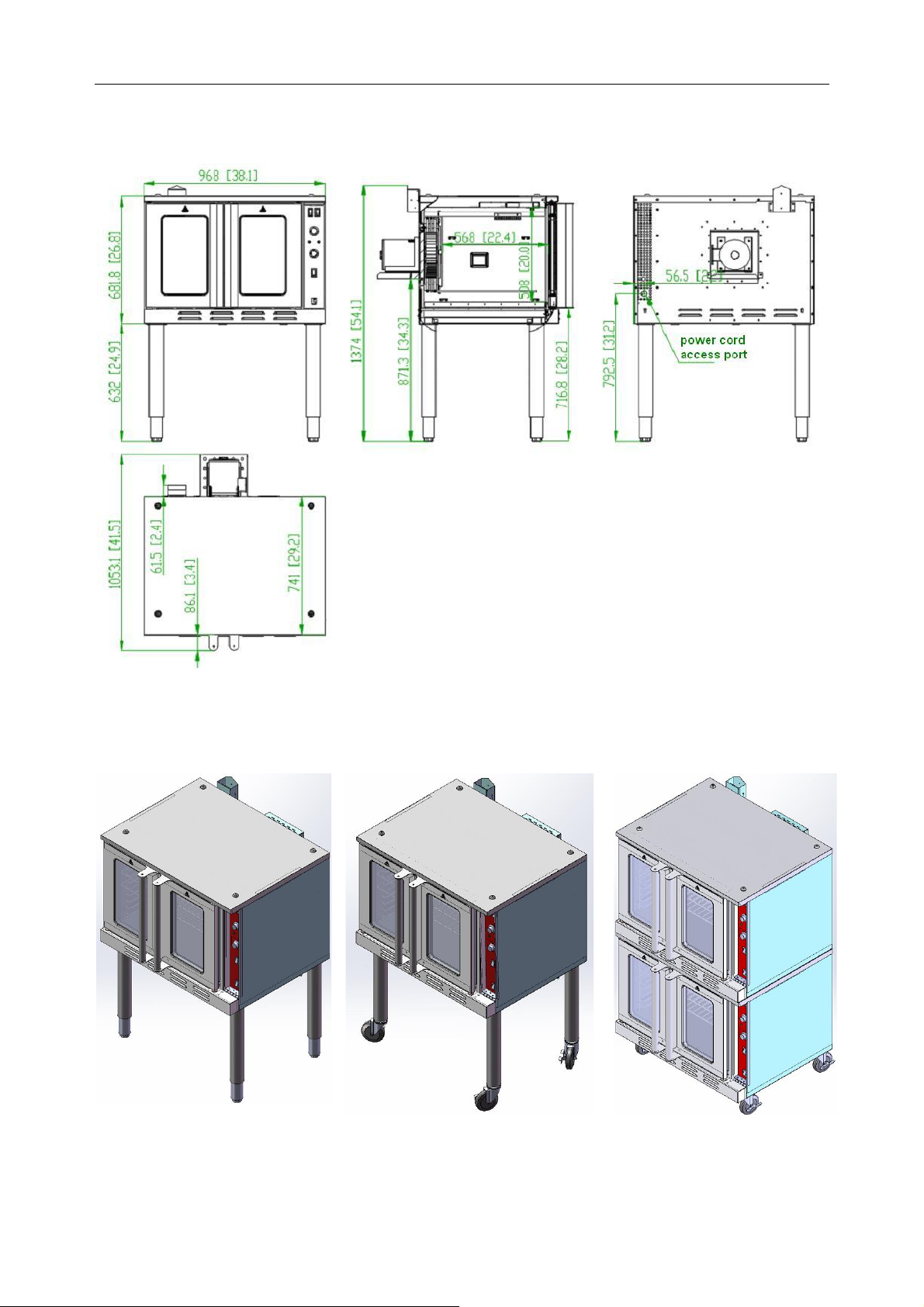

3. Structure Schematic Diagram
Stainless Steel Feet Version Caster Version Double Stacked Version
Kratos Electric Convection Ovens User Manual
3
4. Basic Features & Parameters
Electric Convection Oven
Dimension（in）
Net Weight
Packing Dimension (in)
Gross Weight
Oven Capacity:(L)
Temperature Range (℉):(℃)
℉℉
Power Parameters
Model
Total
power
（kW）
Voltage
Phases
Amps
Fan-50HZ
Fan-60HZ
L1
L2
L3
High
Speed
Low
Speed
High
Speed
Low
Speed
5. Precautions & Recommendations
5.1 Installation
1. Before beginning the installation, remove the packaging. A few parts are protected with an
adhesive film, which should be removed carefully. Remove any glue residual with the proper
substances, such as petrol; never use abrasive substances。
2. Mount the unit legs; the unit must be leveled; smalldifferences of height can be solved by adjusting
the feet.
3. We recommend placing the unit under a ventilation hood so that vapor can quickly evacuate.
4. Install the unit at least from the wall if the wall does not bear a minimum temperature of 300F
(see Fig.1). If the unit is placed very close to the wall, partition walls, kitchen cabinets, decorative
walls, etc., we recommend that they are made with a non-combustible material with a proper
thermal insulation. Pay close attention to regulations concerning fire prevention.
Kratos Electric Convection Ovens User Manual
4
℉
5. Law provisions, technical regulations and directives:
The manufacturer declares that the appliances comply with the EEC directives and the particular
reference regulations. The manufacturer requires the installation to be performed according to the
regulations in force. Before installing, check that the following provisions are met:
⚫Building regulations and local fire prevention measures
⚫Accident prevention regulations in force
⚫Local Gas Board regulations
⚫Local electric energy supply Board regulations
6. Notes for the installer:
⚫Explain and demonstrate how the appliance works to the user according to the instructions, and
⚫Remind the user that, in the event of any structural alterations or modifications to the room that
houses the appliance, the appliance functions must be rechecked.
7. Room ventilation:
⚫The room where the appliance is installed must be fitted with air intakes to guarantee the correct
operation of the unit and air exchange
⚫Do not install the appliance close to other units that can reach high temperature: the electrical
components might be damaged.
⚫During installation, make sure the air suction and evacuation ways are free from any obstacles.
5.2 Electric Connection
1. Before connecting the appliance to the network, check the following:
⚫Network voltage corresponds to the data written in the plate.
⚫Grounding is efficient.
⚫The connection cable is suitable to the power absorbed by the appliance.
2. isconnection from the mains circuit
in an omnipolar way; this device must have an opening ofcontactsof at least 3mm. safety switches
can be used. The omnipolar switch must be close to the appliance, be approved and have a
section suitable to the appliance.
Kratos Electric Convection Ovens User Manual
5
3. The cable must be the Oil resistant type. The YELLOW-GREEN ground cable must be longer than
the others in the event that, if the cable stopper breaks, the cable will disconnect after the tension
cables. The YELLOW-GREEN cable must never be broken. The yellow-green cable must be
connected to the terminal firstly and then connected to the outer layer. The grounding element
must be attached to the machine enclosure.
5.3 Adjustable Foot And Caster Installation
⚫When install the adjustable foot, make the mounting screws into correct position and tighten up.
According to the machine balance , could adjust the screw on the feet to make stable.
⚫Caster installation：
1. The casters with the brakes are installed in the front, and the casters without the brakes are
installed in the rear.
2. The electric convection oven equipped with caster must be installed the limit devices at the same
time. To limit the pulling power cord or connector (below D), this device can soft connect oven
back and the wall or floor.
3. The chain or wire rope are available to use for connection material(below E). One end is fixed on
the wall or the ground (below C), another end is fixed at the back of the oven (back strip gaps, the
following figure location B); The fixed length is no more than 4/5 of the power cord (figure D).
Kratos does not provide the required connection materials and joints.
A Oven Back
B Limiting Position (the another end is fixed to the wall or ground)
C Fixed on the wall
D Power cord
E Chain
Kratos Electric Convection Ovens User Manual
6
5.4 Usage Considerations For Double Stacking
1.
2.
Fig.3
3.
Fig.4
4.
：
Install the connecting panel.
Kratos Electric Convection Ovens User Manual
7
5.5 Warnings
1. Always supervise the appliance while being used and never let it run while empty.
2. The appliances do not require special adjustment assistance from specialized personnel if the
adjustments are carried out by the user during the use of the appliance.
3. Use only the accessories recommended by the manufacturer.
4. During the initial uses of the appliance, an acid or burning smell may be detected. This will
disappear after two or three uses.
5. After use, the areas are hot for a certain amount of time (residual heat). Avoid resting your hands
on them and allowing children to get too close.
6. These are very important regulations; if they are neglected, the appliance may not perform properly
or the user may be placed at risk.
7. The appliance is strictly for professional use and must be used by qualified personnel.
8. The installation, start-up and maintenance of the appliance must be carried out by qualified
personnel.
9. All installation works must be carried out according to the law in force. The manufacturer is not
responsible for damages due to an incorrect installation, bad maintenance or incorrect use.
6. Working Instructions & Operation Flow
6.1 Operating the Controls
Kratos Electric Convection Ovens User Manual
8
6.2 Operations
，
，.
。
Kratos Electric Convection Ovens User Manual
9
To cook, do the following:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Kratos Electric Convection Ovens User Manual
10

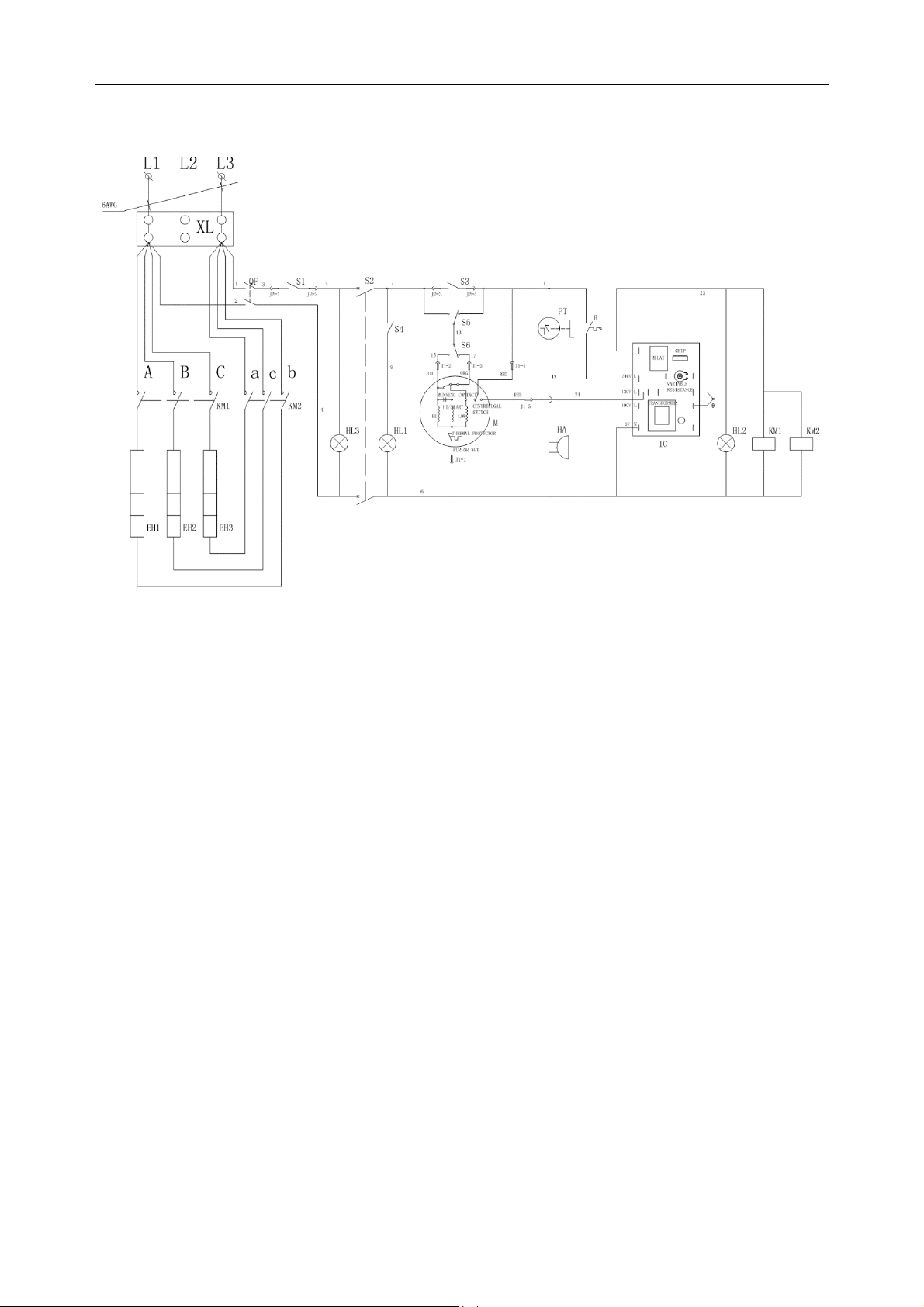

7. Electrical Diagram
3PH
1/KM2
Kratos Electric Convection Ovens User Manual
11

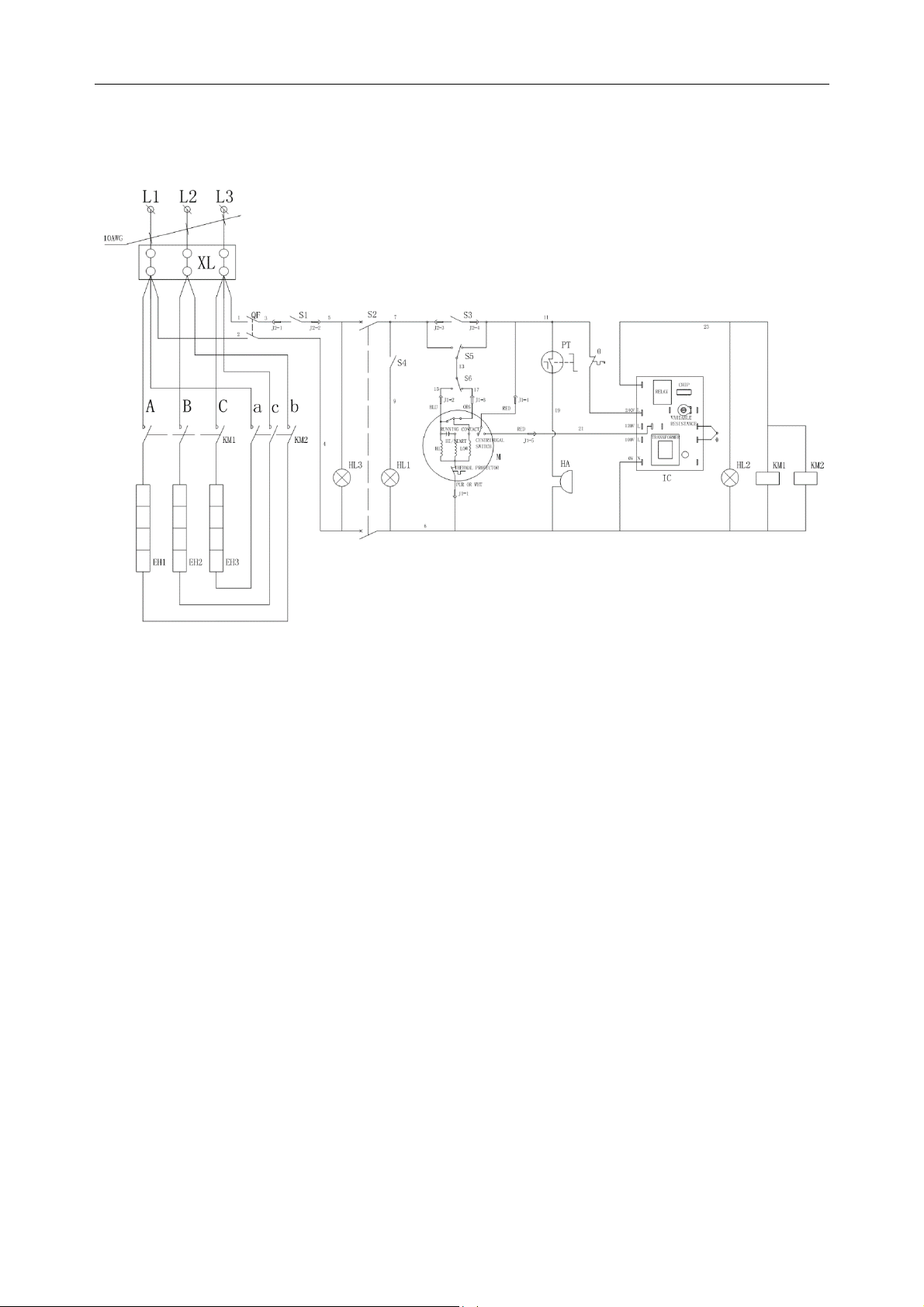

1PH
XL---connecting terminal
S6---fan switch(HI or LOW)
KM1/KM2---AC contactor
HL1---interior light
EH1 EH2 EH3--- electric heating tubes
HL2/HL3---indicator light
QF---air switch
M---motor
S1---protection switch of Electrical box
PT---timer
S2---power switch
HA---buzzer
S3---Door control
IC---electronic thermostat
S4---interior light switch
---temperature limiter
S5---cooling switch
Kratos Electric Convection Ovens User Manual
12
8. Cleaning & Maintenance
1. Before cleaning, switch off the unit and let it cool down.
2. Carefully clean daily the appliance to guarantee its proper operation and long life.
3. Steel surfaces must be cleaned with a dish washer detergent diluted in very hot water by using a
soft cloth; for the toughest dirt, use ethylic alcohol, acetone or another non-halogenated solvent;
do notuse abrasive powder detergentsor corrosive substances such ashydrochloric acid,muriatic
steel cottons or abrasive disks made with other metals or alloys that might cause rust stains due
to contamination. For the same reason, avoid contact with iron objects. Do not use steel cottons
or stainless steel brushes because whilst they will not contaminate surfaces, they can cause
damaging scratches.
4. Metal powder, metal shavings from working and iron material in general, when in contact with
stainless steel surfaces, can cause rust stains. Superficial rust stain might be present on new
appliances and they can be removed with a detergent diluted in water and a Scotch Brite sponge.
If dirt is tough, do not use sandpaper or rough paper, but use synthetic sponges (for example
Scotchbrite sponges).
5. Do not use substances for cleaning silver and be careful with hydrochloric or sulphuric vapors
coming from floor washing products, for example. Do not aim water jets directly on the appliance,
it might be damaged. After cleaning, rinse properly with clean water and dry carefully with a cloth.
6. The appliances are made in a way that little maintenance is necessary. Despite this, we
recommend that the user subscribes to a maintenance agreement to have the appliance checked
at least once a year by the specialized personnel of our assistance service or by a specialized
technician.
7. Before carrying out any maintenance or repair, disconnect the appliance from the gas
network or cut off the mains. Use only original spare parts supplied by the manufacturer.
8. If the appliance is not used forlong period of time, please clean the equipment and the surrounding
areas properly. Pour a small quantity of cooking oil on the stainless steel surfaces. Carry out all
maintenance operations. Cover all appliances with a suitable material and leave a few openings
to allow air to circulate.
Kratos Electric Convection Ovens User Manual
13
1 year Equipment Limited Warranty
Kratos offers a 1 year warranty to the original purchaser of new equipment, the model of
equipment will be free of defects in material and workmanship for a period of 1 year from the
date of delivery. Warranty is not transferrable. Kratos, at its own discretion, will provide
replacement components, replace the entire unit or refund the purchase price to satisfy the
warranty obligation.
Kratos makes no other warranties, express or implied, statutory or otherwise, and hereby
disclaims all implied warranties, including the implied warranties of merchantability and of fitness
for a particular purpose.
The year limited warranty does not cover:
•Failure to install and/or use equipment within proper operating conditions as specified by
Kratos.
•Outdoor use will void the warranty. The finish is not guaranteed in mobile applications
where the table can be damaged due to not being secured to the floor.
•Products that have been modified, abused, or misused. Any products that have been
exposed to corrosive or other cleaners not intended for use on stainless steel will void
the warranty.
•Any products sold outside the contiguous United States.
•Any products where the original sale cannot be determined. No order #, invoice or
receipt to provide proof of purchase will result in no warranty coverage.
•Labor or service not authorized by Kratos is not covered under this warranty.
•Freight damage must be made at time of delivery and addressed with the carrier for
compensation.
•Kratos will not be liable for any parties that experience loss of product, consequential
damage, lost business, or any other expenses.
•Defects or damage due to improper maintenance, wear and tear, abuse, misuse,
vandalism, or Act of God
For Warranty Inquiries
To obtain warranty information or make a claim against this warranty, please contact the location
where you purchased the product.
If purchased on www.centralrestaurant.com, call 800-215-9293 or email
This manual suits for next models
7
Table of contents
Other KRATOS Commercial Food Equipment manuals
