Kremlin-Rexson PU 3000 User manual

INSTRUCTION MANUAL
ELECTRONIC MIXING MACHINE PU 3000
Manual : 1110 573.199.112
Date : 10/10/11 - Cancels : 14/12/10
Modif. : Update
TRANSLATION OF THE ORIGINAL MANUAL
IMPORTANT :Before assembly and start-up, please read and clearly understand all the
documents relating to this equipment (professional use only).
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT
PRIOR NOTICE.
KREMLIN REXSON
150, avenue de Stalingrad
93 245 - STAINS CEDEX – France
Téléphone : 33 (0)1 49 40 25 25 Fax : [phone]
www.kremlin-rexson.com

KREMLIN REXSON Page 1 Manual : 573.199.112
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS ........................................................................................................................... 4
GENERAL SAFETY INSTRUCTIONS.........................................................................................4
SPECIFIC SAFETY INSTRUCTIONS .........................................................................................4
ENVIRONMENT...........................................................................................................................5
2. DESCRIPTION............................................................................................................................................. 6
3. OPERATING DESCRIPTION....................................................................................................................... 8
4. FEATURES .................................................................................................................................................. 8
5. INSTALLATION ........................................................................................................................................... 9
HANDLING...................................................................................................................................9
STORAGE....................................................................................................................................9
ENVIRONMENT ON THE AREA.................................................................................................9
DESCRIPTION OF THE LABEL MARKINGS............................................................................10
INSTALLATION DIAGRAM........................................................................................................11
INSTALLATION .........................................................................................................................12
CONNECTION OF THE CONTROL BOX AND OF THE FLUID FRAME.................................13
6. OPERATING .............................................................................................................................................. 13
DRIVING FROM THE MACHINE...............................................................................................13
SWITCHING ON THE MACHINE..............................................................................................13
7. FIRST SWITCHING ON............................................................................................................................. 15
8. FIRST PLACING INTO OPERATION........................................................................................................ 16
BEFORE SWITCHING ON........................................................................................................16
FLUSHING OF THE PUMPS AND OF THE MACHINE IN SOLVENT......................................16
START UP OF THE MACHINE .................................................................................................17
MIXING RATIO CHECKING......................................................................................................17
9. APPLICATION PROGRAMMING (F3) ...................................................................................................... 18
PASSWORD..............................................................................................................................18
PARAMETERS ..........................................................................................................................19
VALIDATION OF THE INITIALIZATION MODE........................................................................20
PRODUCTION (F1)...................................................................................................................21
FLUSHING (F2) .........................................................................................................................22
CONSUMPTIONS / PRINT (F4)................................................................................................22
10. INDICATIONS OF OPERATION GIVEN BY THE MACHINE.................................................................... 24
INDICATIONS GIVEN BY THE LEDS .......................................................................................24
MESSAGES GIVEN BY THE DISPLAY UNIT...........................................................................24
11. MAINTENANCE ......................................................................................................................................... 25

KREMLIN REXSON Page 2 Manual : 573.199.112
SYNOPTIC.................................................................................................................................25
MAINTENANCE PLAN...............................................................................................................26
TROUBLESHOOTING...............................................................................................................27
DIAGNOSTICS ..........................................................................................................................27
12. PROPORTION AND OUTPUT ACCORDING TO THE RATIO................................................................. 28
13. MIXING RATIO........................................................................................................................................... 29
14. PNEUMATIC AND ELECTRIC DIAGRAMS.............................................................................................. 29
15. FEATURES - PU 3000 PNEUMATIC......................................................................................................... 31
COMPOSITION .........................................................................................................................31
TECHNICAL FEATURES ..........................................................................................................31
SPECIFIC PARAMETERS.........................................................................................................31
16. FEATURES - PU 3000 AIRMIX............................................................................................................... 32
COMPOSITION .........................................................................................................................32
TECHNICAL FEATURES ..........................................................................................................32
SPECIFIC PARAMETERS.........................................................................................................32
17. DISASSEMBLY & REASSEMBLY - PU 3000 PNEUMATIC, PU 3000 AIRMIX.................................... 33
MIXER........................................................................................................................................33
PILOTED VALVES.....................................................................................................................33
FLUID SECTION, MODEL 50 (BASE) (REFER TO DOC. 573.080.050)..................................34
FLUID SECTION, MODEL 50 F (CATALYST) (REFER TO DOC. 573.114.050)......................36
18. FEATURES - PU 3000 AIRLESS............................................................................................................... 39
COMPOSITION .........................................................................................................................39
TECHNICAL FEATURES ..........................................................................................................39
SPECIFIC PARAMETERS.........................................................................................................39
19. DISASSEMBLY & REASSEMBLY - PU 3000 AIRLESS .......................................................................... 40
MIXER........................................................................................................................................40
ASI 40 VALVES (REFER TO DOC. 573.062.050).....................................................................40
FLUID SECTION, MODEL ALTO 50CC (BASE) (REFER TO DOC. 573.395.050) ..................41

KREMLIN REXSON Page 3 Manual : 573.199.112
ADDITIONAL DOCUMENTATIONS :
Incorporation declaration and EC declaration of
conformity 578.013.130-UK
PU 3000 PNEUMATIC
PU 3000 Pneumatic Pump - Assembly Doc. 573.404.050
Pneumatic motor, model 1500 (only for PU3000) Doc. 578.009.110
BASE fluid section, model 50 Doc. 573.080.050
CATA fluid section, model 50F Doc. 573.114.050
Color changer and valve Doc. 573.187.050 + Doc. 573.188.050
LP fluid regulator (Spring operated) Doc. 573.215.110 + Doc. 573.415.050
HP fluid regulator, model 3/8 (260 bar / 3771 psi) Doc.573.299.050
PU 3000 AIRMIX 
PU 3000 Airmix Pump - Assembly Doc. 573.386.050
Pneumatic motor, model 3000 Doc. 573.387.050
BASE fluid section, model 50 Doc. 573.080.050
CATA fluid section, model 50F Doc. 573.114.050
Color changer and valve Doc. 573.187.050 + Doc. 573.188.050
Filter, model HP 3/8 (260 bar / 3770.8 psi) Doc.573.299.050
PU 3000 AIRLESS
PU 3000 Airless Pump - Assembly Doc. 573.389.050
Pneumatic motor, model 5000 Doc. 573.390.050
BASE & CATA fluid section, model 50cc Doc. 573.395.050
ASI40 valve Doc. 573.062.050
Filter, model HP 3/4 (360 bar / 5222 psi) Doc. 573.327.050
DIAGRAMS
Pneumatic and electric diagrams 055.680.031

KREMLIN REXSON Page 4 Manual : 573.199.112
Dear Customer, You are the owner of our new PU 3000 mixing system and we would like to take this
opportunity to thank you.
Special care has been taken during all designing and manufacturing process to make sure your
investment will provide full satisfaction. Non-compliance with instructions and precautions stated in
this manual could reduce the equipment working life, resulting in operating problems and create
unsafe conditions.
1. SAFETY INSTRUCTIONS
GENERAL SAFETY INSTRUCTIONS
CAUTION : The equipment can be dangerous if you do not follow our
instructions concerning installation and servicing descri
bed in this
manual and in accordance with applicable European standards and local
national safety regulations.
Please carefully read all the instruction literature before operating your
equipment.
Only trained operators can use the equipment (To acquire an essential training, please contact the
"KREMLIN REXSON University" training center - Stains).
The foreman must ensure that the operator has understood the safety instructions for this equipment as
well as the instructions in the manuals for the different parts and accessories.
Read carefully all instruction manuals, label markings before operating the equipment.
Incorrect use may result in injury. This equipment is for professional use only. It must be used only for
what it has been designed for. Never modify the equipment. The parts and accessories supplied must be
regularly inspected. Defective or worn parts must be replaced.
Never exceed the equipment components' maximum working pressure.
Comply with regulations concerning safety, fire risks, electrical regulations in force in the country of final
destination of the material. Use only products or solvent compatible with the parts in contact with the
material (refer to data sheet of the material manufacturer).
Refer to 'Installation and safety instructions' document
(doc. 578.001.130)
SPECIFIC SAFETY INSTRUCTIONS
The control box of the PU 3000 mixing machine shall be installed outside the
explosive area. It shall be installed in a safe area (non-explosive area
according to the ATEX directive - refer § 7).
P
Do not install the paint drums underneath the pumps or the electric equipments. Place
them in front of the frame. Install a cover on the drums to reduce the diffusion of gas
and vapours in the booth.
Connect the control box to the mains supply fitted with a ground.
The fluid module is fitted with a ground. Connect the ground cable to earth.
L
Do not use any product or solvent incompatible with the machine components.
Use the appropriate solvent for the material being sprayed to increase the equipment
working life.
Wear protective glasses to protect the operator from possible discharges during the
handling of the machine.

KREMLIN REXSON Page 5 Manual : 573.199.112
P
CAUTION : To prevent from any formation of gas and inflammable vapours,
use paint whose flash point is the highest possible (refer to materials' safety
instructions).
Before cleaning or removing components of the equipment, it is compulsory :
1 - to shut off the air supply,
2 - to open the gun fluid circuit and depressurize the hoses,
3 - to switch off the machine electrical supply.
ENVIRONMENT
This equipment consists of a label plate with the name of the manufacturer, the
equipment part number, the interesting informations to use correctly the
equipment (pressure, voltage…) and the above pictogram.
The equipment is designed with and consists of high quality materials and
components which can be re-used.
The 2002/96/EC European Directive covers all equipments with a crossed-out bin
pictogram. Please inform yourself about the collection systems for electric and
electronic equipments.
Please act in accordance with local rules and do not dispose of old equipment with household
wastes. A correct disposal of old equipment will help prevent negative consequences for the
environment and health.

KREMLIN REXSON Page 6 Manual : 573.199.112
B
2. DESCRIPTION
The PU 3000 proportioning system is designed for applying two component solvent or water-based paints
and lacquers.
There are three versions available :
- a pneumatic version (maximum pressure : 0-6 bar / 0-87 psi or 6-40 bar / 87-580 psi)
- an AIRMIXversion (maximum pressure : 180 bar / 2610 psi),
- an AIRLESS version (maximum pressure : 350 bar / 5076 psi),
It is under an independant form only supplied with compressed air (maximum 6 bar / 87 psi) and an
electric supply (115V / 230V).
It consists of :
- a control box with PLC and electromagnetic control components,
- a frame supporting a BASE pump, a CATALYST pump, the automatic valves for the materials and the
solvent, and electropneumatic control components.
A : Electronic control box with display unit
B : Air equipment
C : Mixing unit
HB : BASE fluid section
HC : CATALYST fluid section
MP : Pneumatic motor
30 : Mixer
Option : Flushing pump
Nota : drawing of a pump, model PU 3000 Airmix
A
MP MP
C
HB 30 HC

KREMLIN REXSON Page 7 Manual : 573.199.112
FRONT VIEW OF THE CONTROL BOX
Ind. Description Fonction
13 Red LED Fault
14 Orange LED Working (other than production)
15 Green LED Production
The machine is totally programmable via a man/machine interface. The screen indicates continously, by a
simple identification, the status of the machine and it enables the operator to have access to the essential
functionalities : ON / OFF - FLUSHING / PRODUCTION.
The information relating to the operating of the machine (real time display of the ratio, of the
consumption…) can be read on the LCD screen.
The PU 3000 continously saves data on the consumptions of base, catalyst and solvent as well as the
total consumptions and the emissions of Volatile Organic Compounds (VOC) during the operation of the
machine.
On the box of the machine, a seal gland enables an electrical supply to the machine with electricity via a
safety isolating switch (115V / 230V).
The pictograms located under the screen allow the user to remember easily the various functions
managed by the PU 3000.
Pictogram Mode
Production
Flushing
Parameters
Consumptions / Print
Feeding of the pumps
14
15
13

KREMLIN REXSON Page 8 Manual : 573.199.112
3. OPERATING DESCRIPTION
The 2 BASE and CATALYST materials are sent to the mixing machine from 2 pumps.
In production, as well as in regeneration, the machine injects a small volume of catalyst (P-6) in the base
continuous flow.
The PLC continuously checks the mixing ratio and if it notices a fault that it cannot correct, an alarm is
activated. The machine goes into safety mode.
The capacity of the pumps is configured (for the BASE pump : P4 parameter, for the CATA pump : P5
parameter) depending upon the equipment versions.
4. FEATURES
Number of colors : 1
Number of catalyst : 1
Solvent and water-based paints compatibility
Control via a magnet in the control box
Continuous mixing check
Adjustable threshold alarm
Adjustable pot-life indicator
Automatic flushing cycle (time)
VOC display
Consumptions' total indicator : base, cata, solvent,
VOC
Printing (connection to a printer)
Voltage : 230V / 115V - 10W
Air pressure: Mini 4 bar / 58 psi - Maxi 6 bar / 87 psi
Operating pressure :
from 0-6 bar / 0-87 psi or from 6-40 bar / 87-580 psi
for the pneumatic version
from 30 to 180 bar / from 436 to 2610 psi for the
Airmixversion
from 60 to 350 bar / from 870 to 5076 psi for the
Airless version
Adjustable mixing ratio : from 0.6/1 to 20/1 (BASE
volume / CATALYST volume) (from 160% to 5%)
Mixing precision : 1 %
Répeatability : 1 %
Mixed fluid output : refer to § 14 & 15
Maximum operating temperature : 50° C / 122° F
Weight : 115 kg / 253.5 lb (Pneumatic version)
187 kg / 412 lb (Airmixversion)
217 kg /478 lb (Airless version)
Dimensions :
- Control box : 355 mm x 275 mm x 135 mm
- Fluid frame : 855 mm x 670 mm x 1270 mm
(Airmixversion)
960 mm x 670 mm x 1400 mm (Airless version)
Connections :
Air inlet : F 3/4 BSP (air inlet valve)
Fluid outlet (mixer) :
F 3/4 JIC or assembly of a fitting (M 1/2 JIC)

KREMLIN REXSON Page 9 Manual : 573.199.112
5. INSTALLATION
HANDLING
The PU 3000 system with relevant weight and dimensions
must be handled by appropriate means.
Nota : The handling of the machine must be carried out by a
qualified staff, in an appropriate space, correctly cleared to
avoid any risks of fall or of crushing of people.
Nota : The ring located above the cover is for the
hoisting of the pump and shall not be used for the
handling of the complete machine.
The frame has 4 holes (9) to be fixed on a bracket or on
the floor.
STORAGE
Storage before installation :
- Storage ambient temperature : 0 / + 50 °C. / 32 / +122° F
- Protect the equipment against dust, running water, dampness and shocks.
Storage after installation :
- Operating temperature : + 15 / + 35 °C. / + 52 / + 95° F
- Protect the equipment against dust, running water, dampness and shocks.
ENVIRONMENT ON THE AREA
The pump must be installed on a horizontal stable floor (eg : flagstone).
Ensure the machine is stable.
The working area must be correctly ventilated.

KREMLIN REXSON Page 10 Manual : 573.199.112
DESCRIPTION OF THE LABEL MARKINGS
The PU 3000 machine is fitted with 2 label markings : a plate on the control box and another one on
the fluid equipment.
Marking label on the control box
(box located outside the spray booth) Marking label on the frame (frame assembly located inside the spray booth 
marking in accordance with the ATEX directive)
Marking according to the ATEX Directive
KREMLIN REXSON
STAINS FRANCE Name and address of the manufacturer
CE II 2 G II : group II 2: class 2
Surface equipment meant to area where explosive atmospheres due to gas,
vapours, mists are liable to appear from time to time in usual operating
G: gas
P air : 6 bar / 87 psi Maximum air pressure
P prod : Maximum fluid pressure
Série / Serial Number given by KREMLIN REXSON. The two first numbers indicate the
manufacturing year.
Ref Part number of the PU 3000 machine
Phase Single phase
Fréquence 50-60Hz / Mains frequency
Ampérage Maximum current used

KREMLIN REXSON Page 11 Manual : 573.199.112
INSTALLATION DIAGRAM
A Potentially explosive area : area 1 (Z1) or area
2 (Z2) (spray booth) 6 PTFE HP fluid hose
B Non explosive area (safe area) 7 Automatic valves
1 PU 3000 control box 8 Mixer
2 BASE pump 9 Electrovalves
3 CATALYST pump 10 HP Fluid hose (not supplied)
4 Flushing pump (option) 11 Gun (not supplied)
5 HP fluid hose 12 Gun spraying air from the machine
The 1 m / 39.37" distance indicated in these diagrams is given for information only and
holds harmless KREMLIN REXSON. The user is liable for the exact delimitation of the
areas which depends on the material used, the material environment and on the use
conditions (refer to EN 60079-10 standard). The 1 m / 39.37" distance could be
modified if analysis carried out by the user deems it necessary.
2
10
B
AZ1
Z2
HC
1m
B
1
34
7
556
8
9
11
12

KREMLIN REXSON Page 12 Manual : 573.199.112
P
The control box must be connected to a supply fitted with a ground.
The bracket of the pumps is fitted with a ground cable. That must be grounded.
Do not install the paint drums underneath the pumps or the electric equipment.
Place them in front of the frame. Install a cover on the drums to reduce the diffusion
of gas and vapours in the booth.
The electrical cable connecting the chassis mounted electric components to the
control box must be installed so that at no time is any risk from mechanical damage,
chemical corrosion or excessive heat. Please ensure that the wiring loom is kept
separate from any other electrical cables that are not intrinsically safe.
INSTALLATION
There are different ways to install the PU 3000 to answer to the majority of the installations.
The control box of the PU 3000 mixing machine must be installed outside the
spray booth in a safe area.
Assembly for piloting outside the booth :
The machine is in two parts to enable the control
box to be fitted outside the booth (cable of 8 m /
26.2 ft between the 2 elements).
Nota : Drawing of a pump,
model PU 3000 Airmix 
Assembly for machine control in the booth :
There is a booth mounting control kit (available
in option).
That kit enables the user to fix the control box
on the booth by means of a glass panel and to
control the machine inside the spraybooth..
The control is carried out thanks to a magnet
provided with the machine. The distance
between the control box and the fluid frame is
of 8 m / 26.2 ft (cable supplied with the
machine).

KREMLIN REXSON Page 13 Manual : 573.199.112
CONNECTION OF THE CONTROL BOX AND OF THE FLUID FRAME
The PU 3000 must be connected to a dry
and clean compressed air network (minimum
4 bar / 58 psi) and to a single phase electric
supply (115 V / 230V) connected to an
isolating switch. The network ground will be
connected in the control box on a connect
provided.
Before connecting the PU 3000, be
certain the mains voltage is the same as
the one of the machine (230 V).

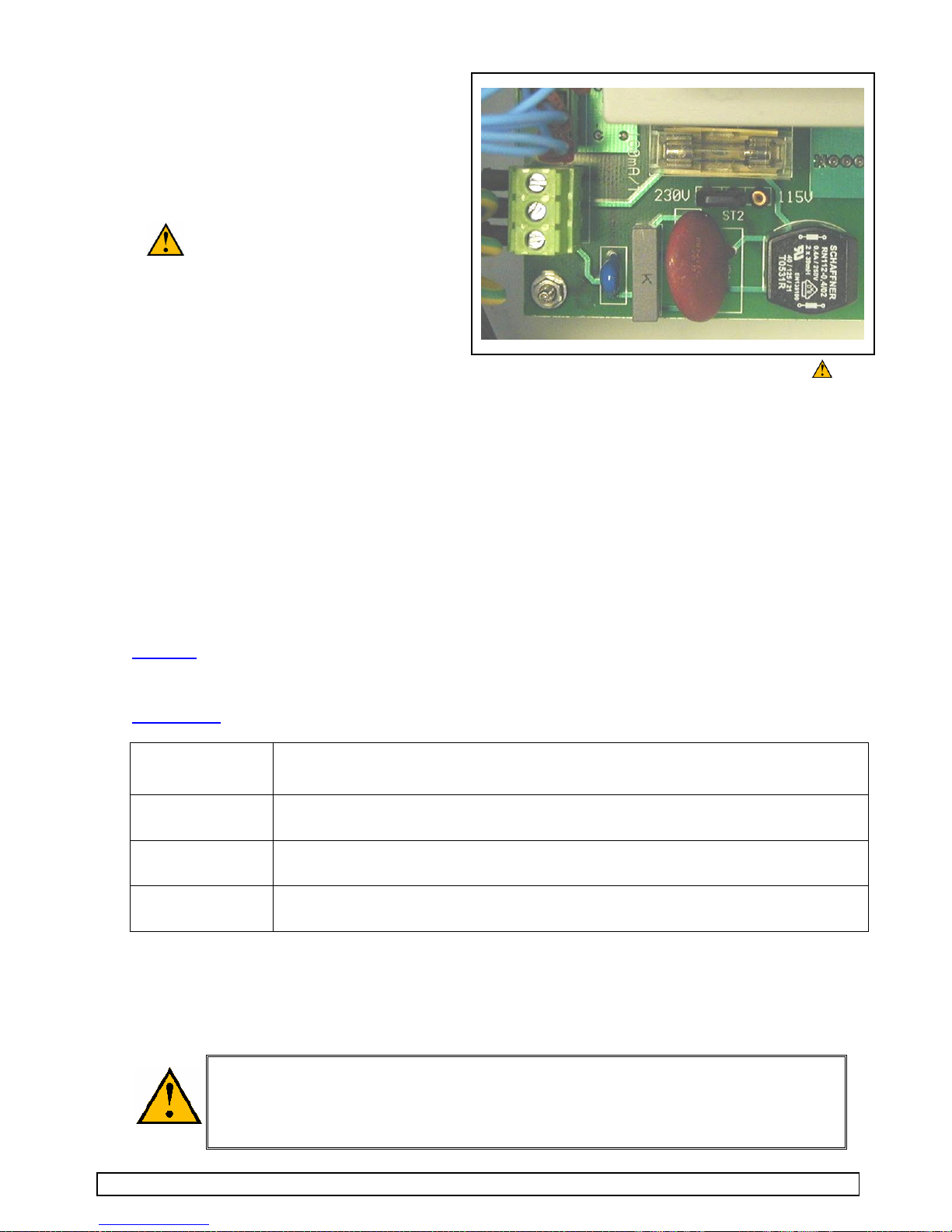

If no, open the electric box removing the
protective housing and move the jumper
(230V 115V).
Install a fluid hose, model HP (high pressure) between the mixer outlet and the spray gun ( act
according to the pressures the pumps supply).
Connect the air equipment of the PU 3000 to the pneumatic network with a conductive hose (minimum
16 mm / 5/8 dia).
Nota : these hoses are not supplied in the standard version.
The air connection of the machine is Female 3/4 BSP (air inlet valve).
The connection between the control box and the electrovalves located on the frame, is carried out via
cable, length : 8 m / 26.2".
6. OPERATING
DRIVING FROM THE MACHINE
SCREEN
Different menus and information relating to the machine are displayed on the alphanumeric screen.
KEYBOARD
ESC That key enables the user to quit the menus or the different modes (production,
flushing, parameters).
OK That key enables the user to enter in the different menus or to validate a value of
parameter.
▲ That key enables the user to shift from a menu to another and to increase the value
of a parameter during modifications of value.
▼ That key enables the user to shift from a menu to another and to decrease the value
of a parameter during modifications of value.
The keyboard is controlled thanks to a magnet provided with the machine. That control mode enables the
user to drive the machine inside the booth if the box is installed behind the booth glass panel. This
technology enables the operator to save time and to carry out his work from the place application.
SWITCHING ON THE MACHINE
The placing of the system into operation requires that the BASE, CATALYST and
SOLVENT drums are full enough to ensure the production.
Connect the gun before placing the system into operation.

KREMLIN REXSON Page 14 Manual : 573.199.112
Unscrew the 3 air regulators before supplying air to the installation.
Supply air to the PU 3000 (minimum 4 bar / 58 psi).
Switch on the control box (switch located on the side of the box).
When switching on the control box, a menu is displayed on the screen.
Nota : Parameters have been set up in the factory before the delivery of the machine. You must adapt the
parameters to the use. They must be modified by an authorized person (refer to list of parameters).

KREMLIN REXSON Page 15 Manual : 573.199.112



7. FIRST SWITCHING ON
STANDARD MENU
When switching on, the machine is waiting. The 'F1' menu corresponds to the shift to the production mode.
There are five different menus : they enable to control the PU 3000.
- F1 : production
- F2 : flushing
- F3 : parameters
- F4 : consumptions
- F5 : normal operating of the pumps
To surf from a menu to another, you must move placing the magnet on the sensors indicated with '▲/▼'.
The menus scroll as follows :
Arborescence of the menus :
Production Flushing Parameters Consumptions Pumps
Countdown on fluid life time.
(countdown from 9 to 0; 9 represents 90% of
the remaining time before the regeneration).
A line is visible when the PU 3000 is flushed.
▲▼
▲▼
▲▼
▲▼
▲▼
▲▼
ESC
▲▼
▲▼
▲▼





ESC
ESC
ESC
ESC
▲▼


































































▲▼














▲▼

KREMLIN REXSON Page 16 Manual : 573.199.112
8. FIRST PLACING INTO OPERATION
BEFORE SWITCHING ON
Before switching on, half fill the cups with T lubricant or with the appropriate solvent (only for standard fluid
sections, not for Flowmax® fluid sections).
Nota : the cup nut must be slightly tightened with the wrench provided. Too much tightening may damage
the cup seals.
Tightening of the wetting cup :
- Fill the cup with T lubricant,
- Start the pump, then tighten the cup after 10 minutes, then 1 hour, then 1 day of operating,
- If you notice any leakage, the cup must be tightened.
Nota : Stop the machine and depressurize the air and fluid networks to tighten the cup.
FLUSHING OF THE PUMPS AND OF THE MACHINE IN SOLVENT
During that first placing into operation, it is compulsory to have all the pumps
into solvent as well as the machine to ensure the good quality of the fluid get by
the PU 3000.
The fluid pressure must not exceed 1 bar / 14.5 psi on the gauges.
Carry out the connections indicated at § 7 (INSTALLATION),
Immerse the suction rod of the BASE pump in the solvent container,
Close the gun air supply valve,
On the page of the display main menu, enter 'NORMAL OPERATING' (F5 then OK), then select
the A pump (or ,and OK),
Trigger the gun to start the A pump with solvent and increase the fluid pressure to at least 1 bar /
14.5 psi (reading on the gauge) or go through the drain valves,
Release the gun trigger when there are no more air bubbles in the solvent at the gun nozzle,
Immerse the suction rod of the CATALYST pump in a solvent container,
On the page of the display main menu, enter 'NORMAL OPERATING' (F5 then OK), then select
the B pump (or ,and OK),
Trigger the gun to start the B pump with solvent and increase the fluid pressure to at least 1 bar /
14.5 psi (reading on the gauge) or go through the drain valve,
Release the gun trigger when there are no more air bubbles in the solvent at the gun nozzle,
Turn the air valve that supplies air to the flushing pump,
On the page of the display main menu, enter 'FLUSHING MODE' (F2 then OK),
Trigger the gun to prime the SA pump with solvent and increase the fluid pressure to at least 1 bar
/ 14.5 psi (reading on the gauge),
Release the gun trigger when there are no more air bubbles in the solvent at the gun nozzle,
Do not modify the factory parameters for the moment.
LK
Caution : Do not supply gun with atomising air to prevent any
atomisation and point the solvent fan into a container.
We advise you to wear protective glasses and gloves.
Go out from the 'NORMAL OPERATING' mode passing to ESC.
Close the air supply valve of the flushing pump.

KREMLIN REXSON Page 17 Manual : 573.199.112
START UP OF THE MACHINE
Take off the BASE and CATALYST suction rods from the solvent containers and introduce them
in their respective container.
Caution : never invert the suction rods.
Open the drain valves located at the outlet of the fluid sections. Start up the pumps. Prime the
pumps, then close the drain valves.
Pass to production mode and let the fluid flow until it flows clean. In case of alarm, disable then go
to production mode.
CAUTION : do not supply atomising air to the gun.
Carry out a flushing to clean the mixed circuit. As soon as the solvent is clean, pass to ESC.
The parameters are preset up in the factory. You can change them (refer to § 11).
MIXING RATIO CHECKING
Remove the 'mixed fluid' hose located on the outlet of the
mixing unit. Install, instead of it, the fitting (25) and the
needle-valve assembly (19) supplied with the machine.
Take off the control air hose on the VP2A BASE valve.
Connect that hose to the VP3 valve. The VP3 valve is
originally supplied with a needle valve assembly (19).
Pass in F 5 mode to adjust the opening of the needle-
valves. Prime the A pump and adjust the
opening of the needle-valve.
Prime the B pump and adjust the
opening of the needle-valve.
Place the beakers underneath the valves. Start up the PU
3000 pump, then open the valves.
Input
The PU 3000 passes in test mode and displays
Caution : the fluid pressure must be lower than
200 bar / 2900.6 psi.
The BASE and CATA materials are dispensed into the
beakers. After a while, close the needles' valves and check
the ratio.
Activate ESC to stop the test and only after that you can
removing the test outlet.
Nota : During that stage, you can not use the spray gun. Nota : design of a pump,
model PU 3000 Airmix 
When the mixing ratio checking is over, switch off the PU 3000 machine.
Disconnect the air hose from the VP3 valve and connect it to the BASE valve.
Remove the needle-valve assembly (19) and the fitting (25). Screw again the fluid hose on the fitting
(M 3/4 JIC) at the outlet of the mixer unit.Start up the machine.
Wear protective glasses to protect the eyes from possible discharges during the handling
of the valves.
Flush the needle valve assembly that has been removed and do not leave the catalyst
crystallize : - Flush the CATA test outlet : input F2 to carry out the flushing. When it is
clean, activate ESC.
- Flush the BASE test outlet : invert the test outlets and carry out a flushing
until it is clean.








VP1
VP2A VP2B
VP3
19
19
25








KREMLIN REXSON Page 18 Manual : 573.199.112
9. APPLICATION PROGRAMMING (F3)
To alter the parameters of the PU 3000, go to F3, then validate. To shift from a parameter to another, use
the arrows or .
Select the parameter to alter. Depress the key OK , then the arrows or to increase or decrease the
value. Activate OK to validate the new value or ESC to cancel.
To quit a parameter, activate ESC.
To quit the PARAMETERS menu, activate ESC.
The parameters are pre-set up in the factory. They must be adjusted (by an authorized person) to suit the
material to be processed.
The calibration of the stroke length is carried out in the factory. When removing the movement
sensors or when disassembling the fluid section from the motor, it is important to initialize the pumps
(refer to P10).
PASSWORD
When you start the machine for the first time the access code of the menu `Parameters' is
deactivated, everyone is able to modify the machine’s parameters.
To activate this access code you have to :
- enter in the parameter 0 of the menu F3 : « key » « key ».
The code ‘’appears, it’s the code present by default in the machine.
- change the code by using the arrows or and the «key » for each digit which compose this
code.
Once the access code was validated, the access is protected by the password. Only the people who
know this password and those which know the administrator code ‘’will be able to reach the
menu `Parameters'.
Each time a user wants to enter in the menu 'Parameters' the password will be required: .
The user shall enter the password by using the arrows or and the «key » for each digit
which compose this code :
- If the entered code is correct, the following fonts appear.
- If the entered code is incorrect, the word ‘appears and the machine allows you to enter the
password again (Press 'Esc' to return to the principal menu).
If you want to desactivate the password, you just have to parameterise the code ‘’again as
access code.

KREMLIN REXSON Page 19 Manual : 573.199.112
PARAMETERS
Parameters Description Factory adjustment Your
adjustments
Parameter of the password 
Mixing ratio parameter. Percentage of catalyst
in the base, from 0,1% to 160% 50 %
Parameters of the mixed fluid life time
Minimum value : 1min
Maximum value : 999 min
30 min
Regeneration volume parameter in cubic
centimetre
Minimum value : 1 c.c
Maximum value : 9 999 cc
200 cc
Section of the A piston
Minimum value: 1 mm2
Maximum value : 99 999 mm2
For fluid section - 50cc :
465 (airmix® version),
485 (pneumatic version)
For fluid section -124cc :
555 (airless version)
Section of the B piston
Minimum value: 1 mm2
Maximum value : 99 999 mm2
For fluid section - 50F :
470 (airmix® version),
490 (pneumatic version)
For fluid section - 124cc :
555 (airless version)
Injection volume
Minimum value : 0,1 cc
Maximum value : 999,9 cc 4,8 cc
Mixing tolerance
Minimum value : 0,1 %
Maximum value : 100 % 3 %
Alarm volume for the A pump
Minimum value : 1 L
Maximum value : 40 000 L
0 : parameter not taken into account
OK : reset of low level pump shut off –A-
0
Alarm volume for the B pump
Minimum value : 1 L
Maximum value : 40 000 L
0 : parameter not taken into account
OK : reset of low level pump shut off –B-
0
Initialization mode (values of the high and low
thresholds of the movement sensors)
OK : to activate that mode
Flushing time
Minimum value : 10 seconds
Maximum value : 500 seconds 120 s
Flushing volume
Minimum value : 10 cc
Maximum value : 5000 cc 500 cc






































