kronings A2000-50/EU Assembly instructions

A2000-50/EU
Aircondition
INSTALLATION GUIDE AND USER MANUAL
Please read all instructions carefully before using the unit and keep instructions for future reference.

1
1. Introduction
2. Installation guide
3. Operation instructions
4. Specifications parameters
5. Product maintenance
6. Troubleshooting guide
7. Warranty
GB

2

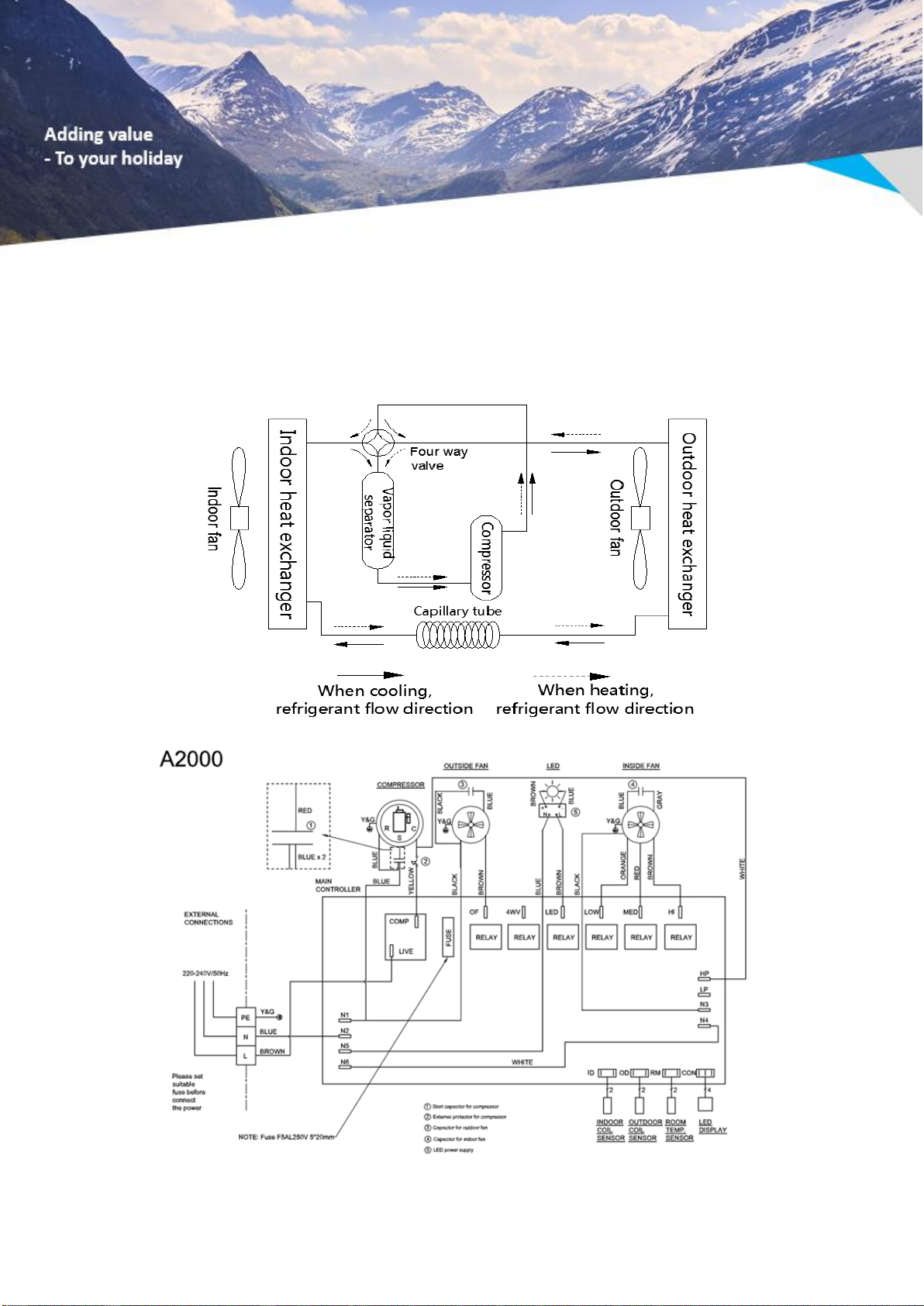

Introduction
Introduction

3

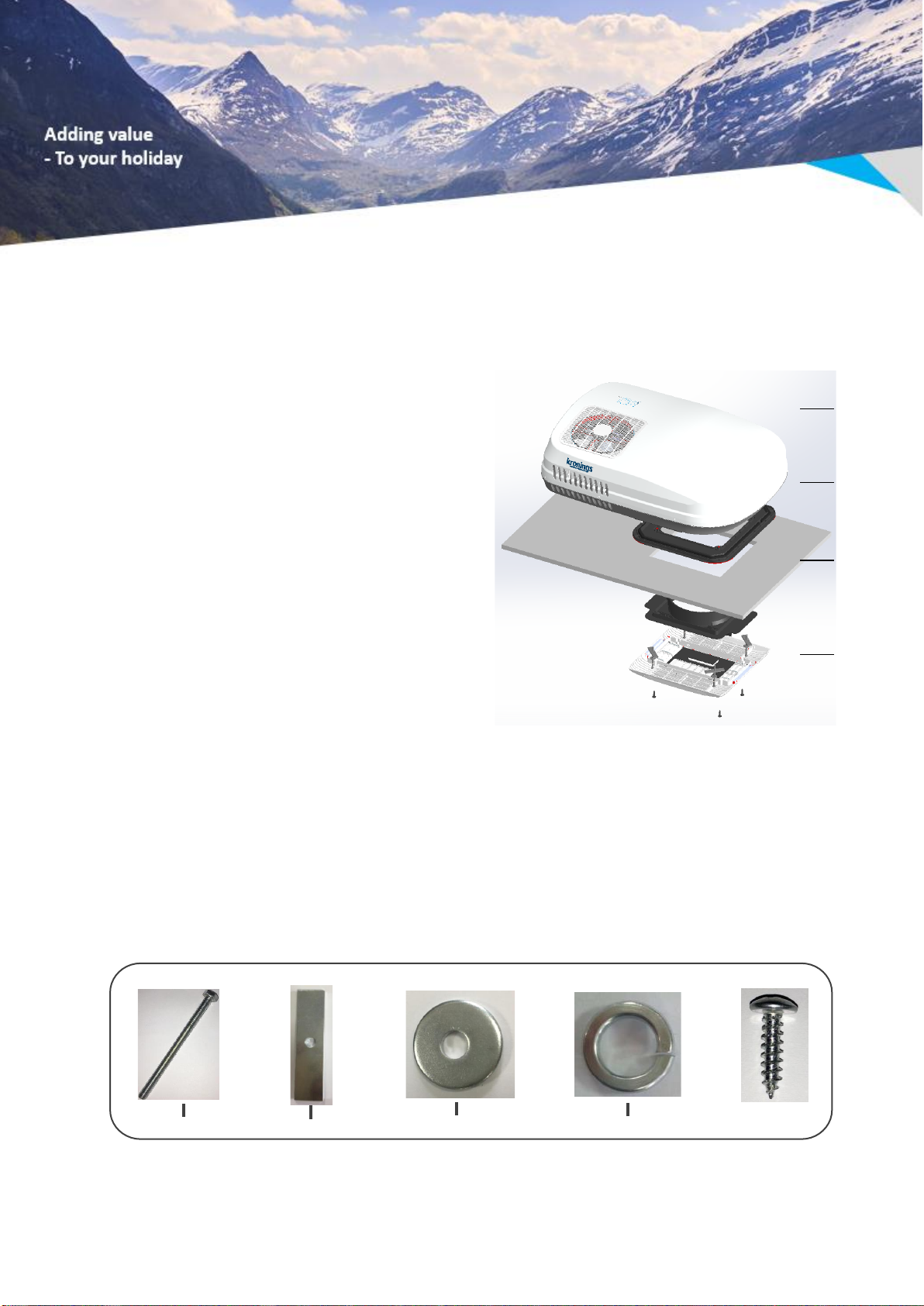

Exploded Parts List
Key components:
1. Air-conditioner main unit ×1
2. Reinforced roof support ×1
3. Mounting frame ×1
4. Plenum unit ×1
Fastener components:
5. M8 x 110 mm bolts ×4
6. Fixing washers ×4
7. Round washers ×4
8. Spring washers x4
9. Screws for plenum ×4
1
2
4
3
5
6
7
8
9
Introduction

4
Operations
A2000-50 creates a comfortable environment for a recreational vehicle or
caravan.
It is recommended the user should consult caravan manufacturer to
understand total heat-load, as well to choose a suitable air-conditioner,
some tips to reduce heat-load and improve performance:
•Park the caravan at a shaded place to avoid direct sunshine
exposure, close all the doors, skylights and windows, draw
the curtains and open the sunshade.
•Turn off any unnecessary electrical appliances to reduce the
heat-load.
•Turn on the air-conditioner in advance if exceptionally high
temperatures are expected.
•Set suitable temperature by remote control to avoid frequent
start and stop.
Introduction

5
Condensation
Condensation usually happens in areas where the air humidity is
comparatively high and when warm moist air within the caravan meets
with the cold air from the outlet. In this case, please pay attention to the
following measures:
•Close all the doors, skylights, windows and draw the curtains
to decrease any warm moist air from entering.
•In the operation of the air-conditioner, condensate (water) will
be produced on the roof. Please select High Fan mode to
increase circulation to decrease condensation degree.
Please note that damage caused by the condensate
water is not covered by warranty.
Introduction

6
Choosing 230V power and using generator
A2000-50 requires a stabile 230V AC power source, and may require a
generator in some remote circumstance.
Requirements for inverter generator include: efficient power source;
stable current; output sine wave, which shall meet the requirements of the
compressor. The user should consult with the generator supplier for their
recommendations.
Please note that damage caused by using a generator is
not covered by warranty.
Introduction

7
Installation requirements
•The RV or caravan roof and cutout needs to be able to support the
air-conditioners weight (29kg).
•Minimum thickness of roof: ≥23mm; maximum thickness of roof:
≤55mm.
Installation instructions
•Read and understand this manual thoroughly before installation.
•Abide by the wiring rules in theinstallation.
•Do not add other parts or restructure the product during the
installation.
•The installers shall be qualified refrigeration technicians.
•Consult with dealer in the case of unusual applications or
installation conditions that are not specifically covered by this
manual.
Installation guide

8
Preparation

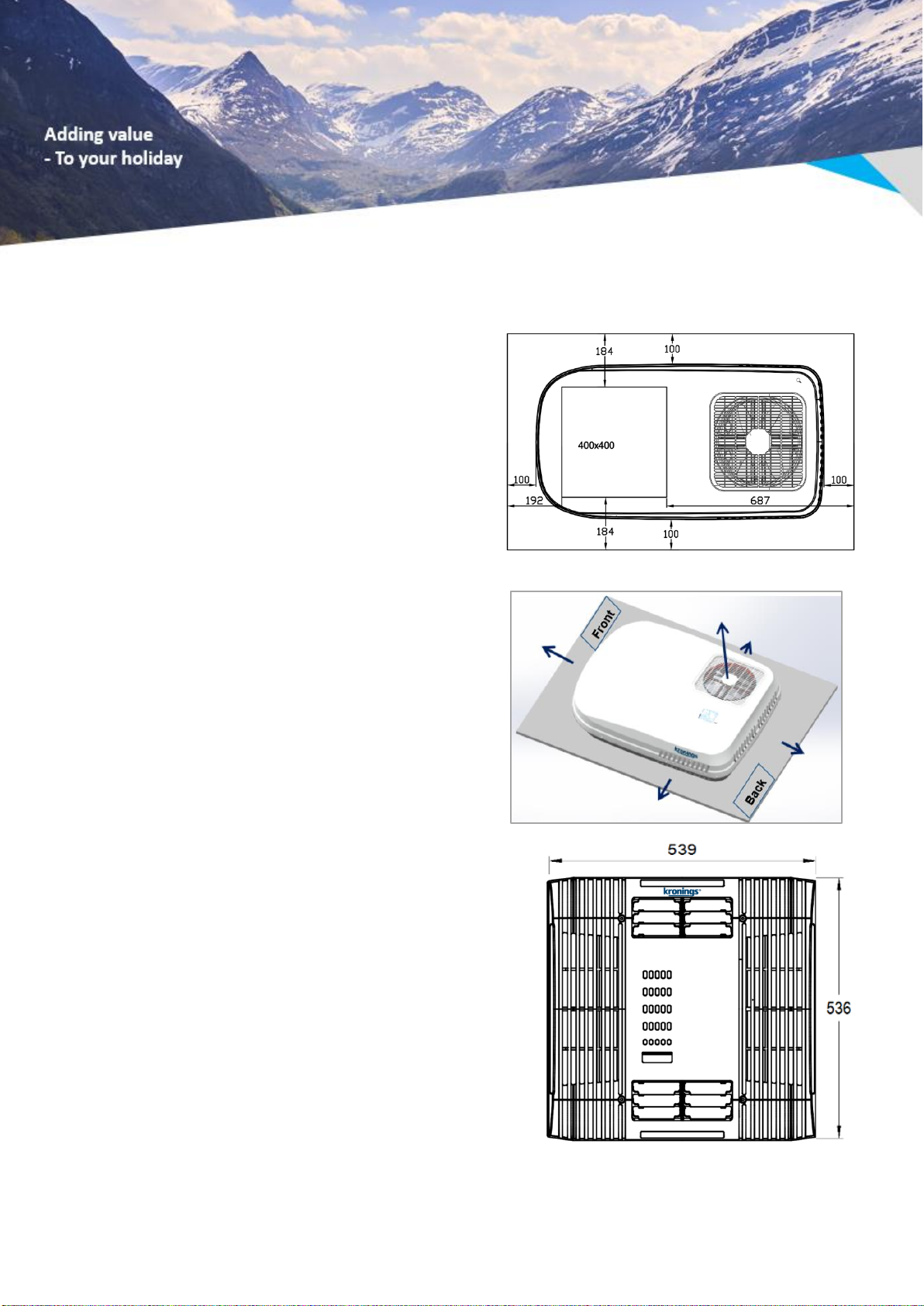

•The main unit should be
installed in the center of roof,
it is recommended to have a
min 100mm space around the
top unit.
•Before installing please verify
there is suitable space in the
ceiling to accept the plenum.
•The installation position
(400x400mm) should avoid
skylight, solar panels, roof
vents, heaters, lights and all
electrical connections.
Installation guide

9
Preparation (continued)
•Please check with your caravan manufacturer to confirm the
roof can bear the weight of the air-conditioner and maintain a
level surface to avoid accumulating condensate/water.
•Please consult with your caravan manufacturer for the best
solution if there is a requirement to cut a mounting hole if
provision has not been made for an air conditioner.

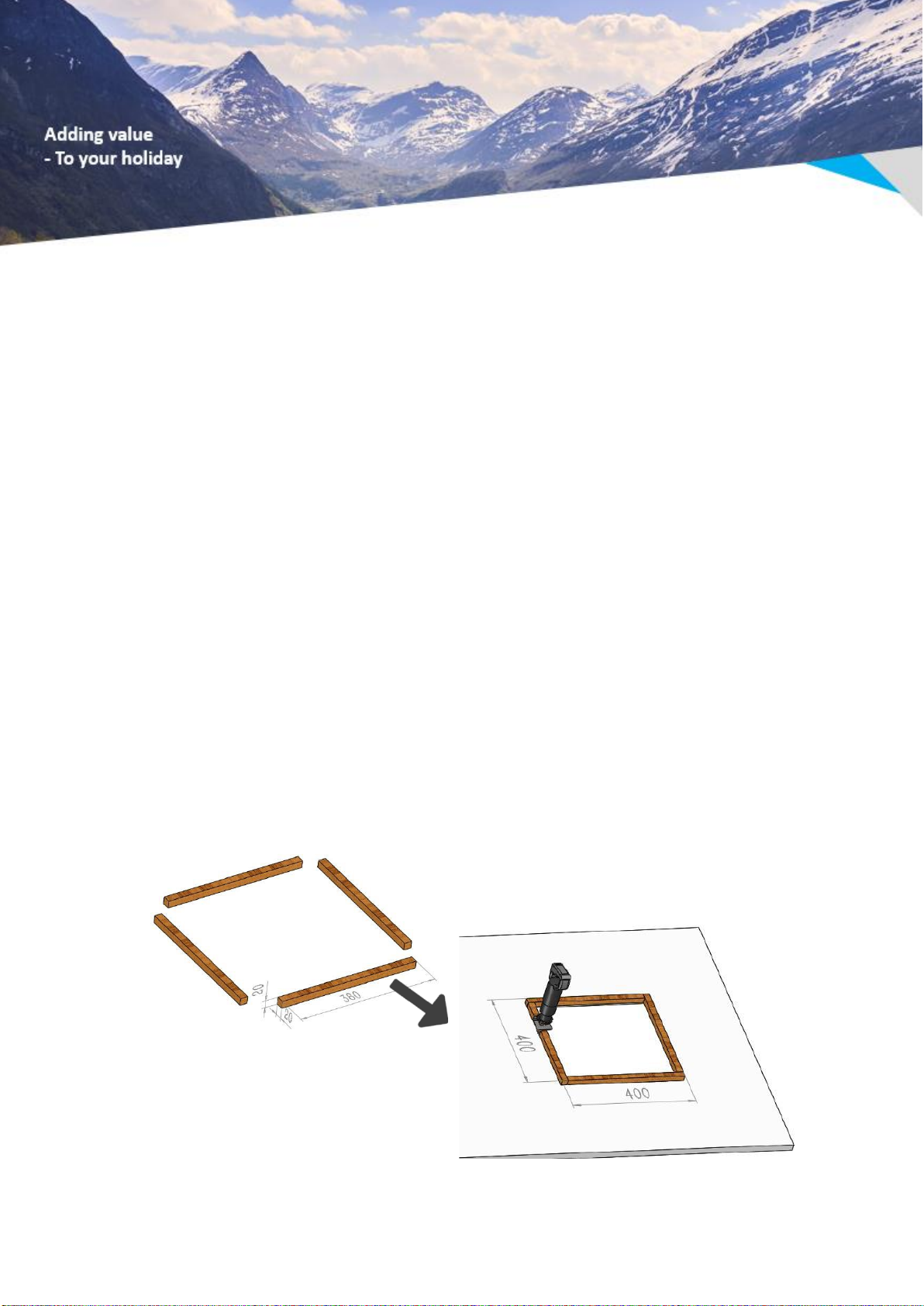

•Cut a 400 x 400 hole and reinforce with the appropriate sized
timber frame (see pic). This is to ensure the roof will not crush
on installation and air does not enter the ceiling space.
•In some instances a separate metal frame may be required to
reinforce the roof structure. Consult with your caravan
manufacturer/installer to reach a suitable solution.
Installation guide

10
Installation
•Remove the roof support from
carton and make sure it is aligned
correctly.
•Add a continuous line of sealant
on the back of the support and fit
into the cut out ensuring that it is
aligned correctly.
•Install main unit carefully on
roof support.
Glue width
10-12mm
Installation guide

11
Installation (continued)

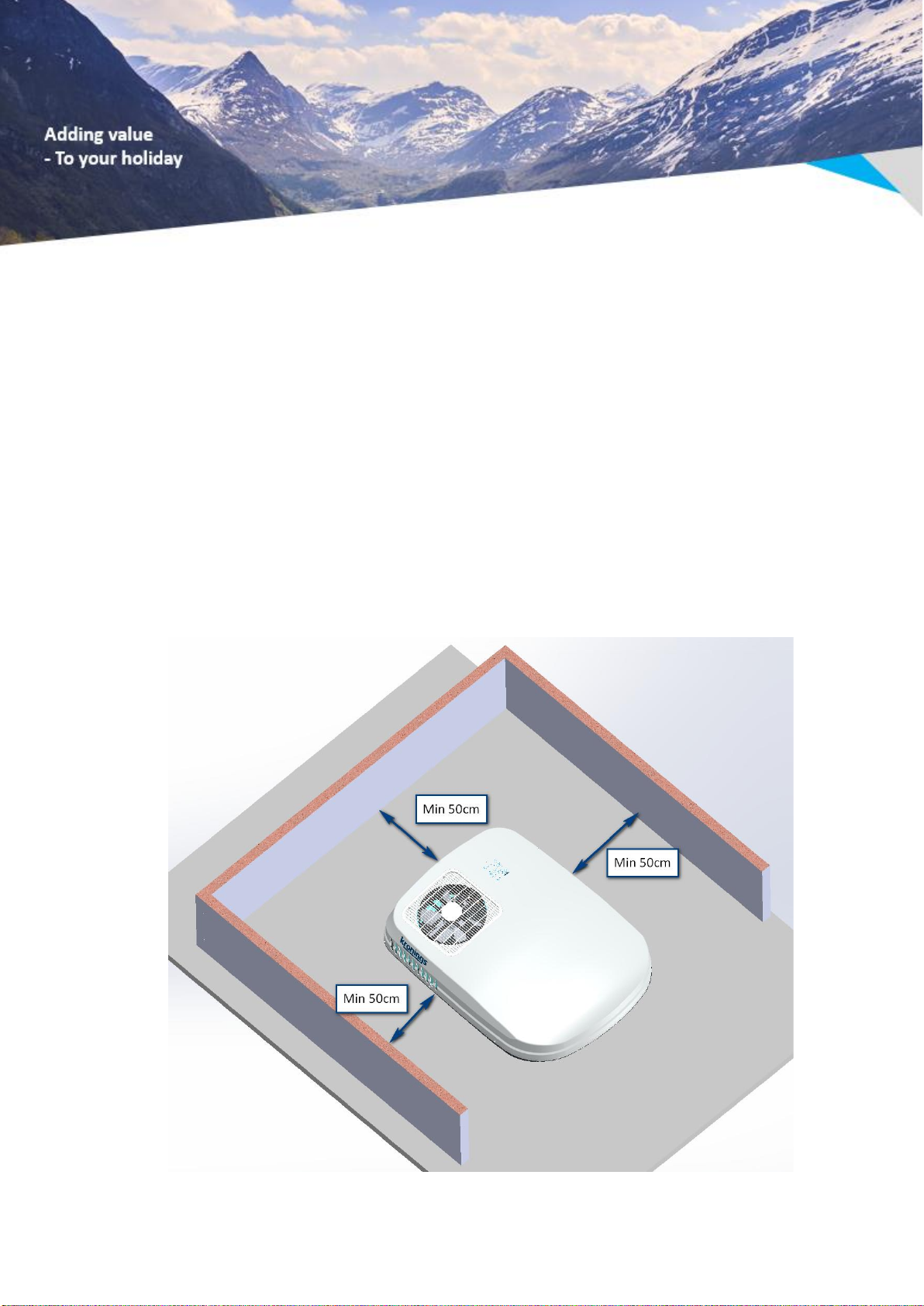

Installation and placement instructions:
•For best use of ventilation and airflow, make sure to install the A/C
product in such a way that in all directions there are at least 50 cm
distance to cabinets, walls, etc.
See drawing below.
Installation guide

12
Installation (continued)

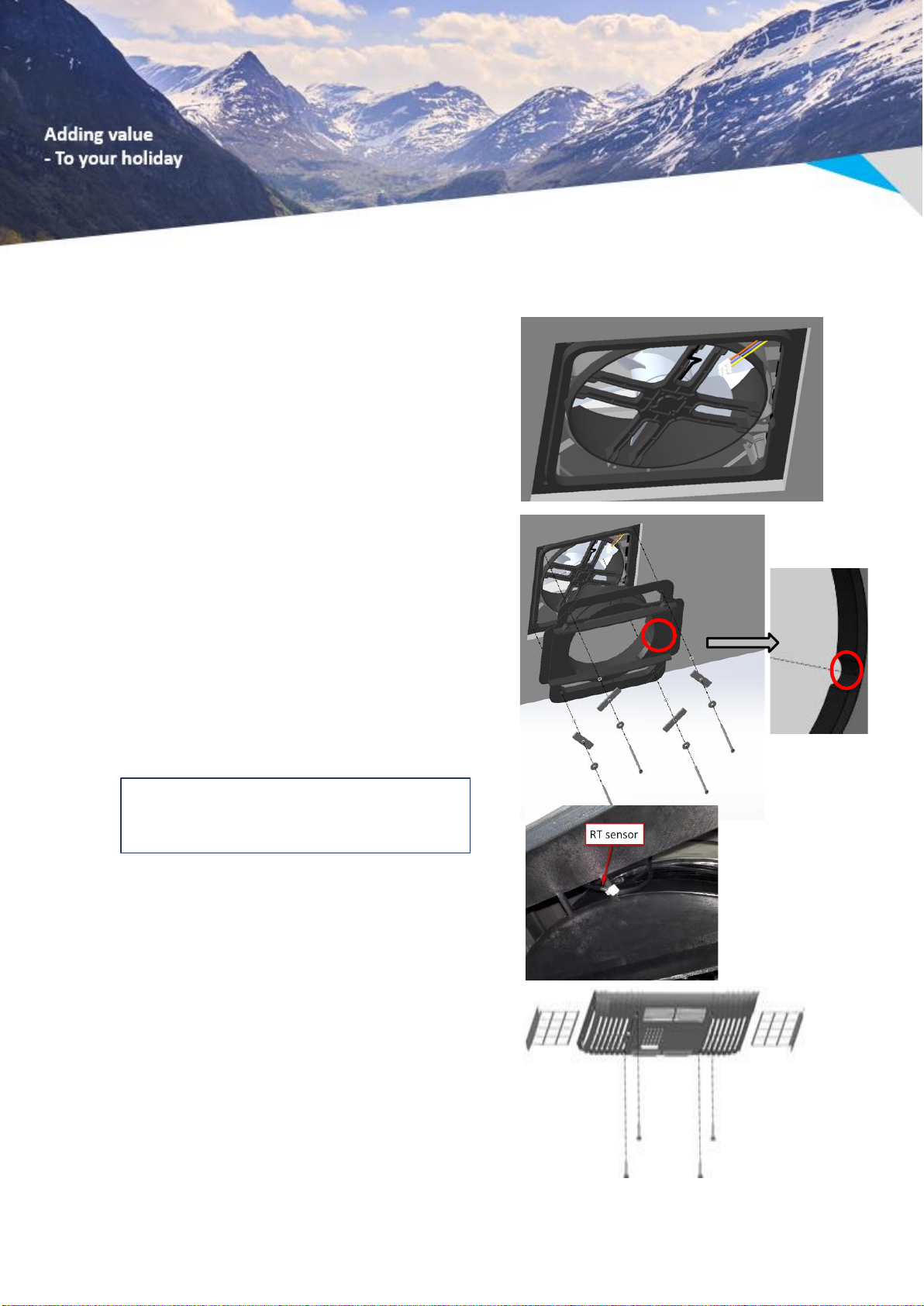

•Match the corresponding active
(brown), neutral (blue) and ground
wire (yellow-green) and tighten up
screws to make sure power is
properly connected.
•Insert plenum mounting bracket
through the ceiling to
base. Pay attention as the “C” hook
must match the corresponding “C”
area on the base. Finally fasten.
•Insert 4xM8 bolts, washers, spring
washer and metal plate via
mounting frame to the base.
•Tie the room temperature sensor
onto the rib of mounting bracket.
•Plug the connectors on the plenum
to the base.
Push plenum into outlet duct and
fasten 4xM4 screw on the bottom.
Finally add the filters to the sides of
the plenum.
Important: ensure the tightening
torque from 12 to 14 N.m
Installation guide

13
Tips
1. Be careful when installing the unit on the roof of the caravan,
crawl boards may be required.
2. There may be wires between the roof and the ceiling. When
cutting into the roof, make sure the power is isolated to
prevent the risk of electric shock.
3. Installation and maintenance of the air-conditioner must only
be performed by personnel with appropriate trade
qualifications and holding current licenses for such work.
4. Ensure the air-conditioner has been installed in compliance
with the instructions of this manual. Incorrect installation
methods or alteration of the product may cause damage to
the product or personal injuries to the user.
5. Make sure the external electric supply socket of the caravan
air- conditioner is effectively grounded in accordance with
appropriate electrical standards. Failure to ground the unit
correctly may cause electric shock or fire.
6. Ensure that your electrical supply and wiring is correctly sized
for the power and meets appropriate electrical standards.
7. Switch on the power to the air-conditioner at the isolation
breaker.
8. The caravan air-conditioner must be switched on for electric
leakage detection after installation.
9. Use the remote control to operate the air-conditioner.
Operation instruction

14
Tips (continued)
10. To select the COOL mode, adjust the set point temperature to three
degrees lower than the room temperature, the unit will start to blow
cold air after the compressor starts –approximately 3 minutes.
11. If you are not to use the air-conditioner for an extended period, please
isolate the power supply.
12. This appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they are under supervision.
13. The system is set automatically to monitor freezing of the evaporator,
If this happens the system will automatically start ”Defrosting”process.
At first it will display “DF”on the display, then the 4-way valve will
change its flow direction for 1 minute and compressor will run 10
minutes, until the system detects there is no more frosting on the
evaporator. After this process is finished, the “DF”will disappear from
the display, and the unit will continue running.
Note: After selecting the COOL mode, the
compressor will have a delay start for three minutes.
Operation instruction

15
Remote control
Fan Speed Display
Low/Medium/High/Auto
Setting Temperature Display
Timer ON/OFF Display
Real Time Clock
Mode Display
AUTO/COOL/DRY/FAN/HEAT
Led On/Off Display
Sleep Function Display
POWER Key
Power On And Off
Up Key
(Set Temperature and time)
Down Key
(Set Temperature and time)
FAN Key
Circular Select
Low/Medium/High Speed/AUTO
Switch Temperature Between
Celsius And Fahrenheit
Spare Key
MODE Key
Circular Select AUTO
/COOL/DRY/FAN/HEAT Mode
SLEEP Key
Only Available In COOL and
HEAT Modes
TIMER ON Key
Setting Timer Of The
Unit Turn On
SET Key
Settle the timer setting
LED Key
Turn On And Turn Off LED
TIMER OFF Key
Setting Timer Of The
Unit Turn Off
CANCEL Key
Turn Off Clean Filter Display
CLOCK Key
DISPLAY Key
Control Plenum Display
On And Off
Operation instruction

16
Plenum display
Operation of the remote control
TURN ON
Press the “Power ” key, the unit turns on, the buzzer in the plenum beeps
one time and the running mode and the temperature will be displayed.
TURN OFF
Press the “Power ” key again, unit turns off and the plenum will display
nothing.
AUTO mode
Press the “MODE” key, select the “ ” mode, Fan volume will set
automatically, and it is adjustable. Press “FAN” button to get expected volume.
Press the up or down arrow key to set desired temperature. Depending upon
the difference between the set temperature and the ambient temperature the
air-conditioner will automatically decide cooling or heating.
COOL Display
HEAT Display
LED Display
Temperature Display
Fan Display
Clean Filter Display
AUTO Display
Operation instruction

17
Operation of the remote control (Continued)
COOL mode
Press the “MODE” key, select the “ ” mode, and Press the down arrow key
to set the temperature lower than the room temperature. Press the “FAN ” key
to select different speed and the plenum will display “ ” and the set
temperature.
DRY mode
Press the “MODE” key, select the DRY mode, the air volume is un- adjustable
to stay at minimum level, and the plenum will display “ ” and the set
temperature. Make sure to adjust the setting temperature at least 1 ℃ lower
than room temperature to make the dry mode working.
FAN mode
Press the “MODE” key, select the FAN mode, Press the “FAN” key. Select
Low/Medium/High/AUTO. The plenum will display “ ” and the indoor
environment temperature.
Operation instruction

18
Operation of the remote control (Continued)
Celsius and Fahrenheit degree change
In any mode, press the“℃/℉”key, you can vary temperature between Celsius
and Fahrenheit.
LED turn on and turn off
Press the LED key, the LED light turn on, Press the LED key again, the LED
light turn off.
TIMER ON
Press the “TIMER ON” key, the “ON TIME” will flash. Press up or down arrow
key to set desired time for “TIMER ON”. Press the “SET” key to confirm setup
is done. Press up or down arrow key for 2 seconds will enter into fast setting.
TIMER OFF
Press the “TIMER OFF” key, the “ON TIME” will flash. Press up or down arrow
key to set desired time for “TIMER OFF”. Press the “SET” key to confirm setup
is done. Press up or down arrow key for 2 seconds will enter into fast setting.
Operation instruction

19
CLOCK set
Press “CLOCK” button to set the time. Press up or down arrow key to set
desired time. Press up or down arrow key for 2 seconds will enter into fast
setting.
SLEEP
Press the “SLEEP” key to display sleep icon on the remote screen, when in
cooling mode under this function after 1 hour the temperature will automatically
increase 1 degree, and after 2 hours it will raise 2 degrees, then it will maintain
the same temperature until it automatically turns off 8 hours after setting.
Operation instruction
