KT&C KPT-SPDN120HD User manual

1 30X Mini PTZ
Issue: 1.1
User’s Manual
Model: KPT-SPDN120HD

2 30X Mini PTZ
Issue: 1.1
REVISED HISTORY
D TE ISSUE CONTENTS OF CH NGES S/W VERSION
20
11/05/25 Issue 1.0 Initial draft
-

3 30X Mini PTZ
Issue: 1.1
Contents
Warnings and Cautions ..........................................................................................................................................4
CC Compliance statement ....................................................................................................................................7
CE Compliance statement ......................................................................................................................................7
1. Overview .............................................................................................................................................................8
1.1 eatures ............................................................................................................................................................8
1.2 System Configuration ........................................................................................................................................9
1.3 Termination Settings .........................................................................................................................................9
2. Installation and Connection .................................................................................................................................9
2.1 Package Contents.............................................................................................................................................9
2.2 Base Installation ..............................................................................................................................................10
2.3 Connection Interface and Wiring cables .........................................................................................................11
2.4 Setting Dome Camera ....................................................................................................................................13
3. Program and Operation ....................................................................................................................................14
3.1 Getting Started ................................................................................................................................................16
3.2 Main Menu ......................................................................................................................................................17
3.3 System Setup Menu ........................................................................................................................................17
3.4 Display Setup Menu ........................................................................................................................................20
3.5 Camera Setup Menu .......................................................................................................................................23
3.6 Dome Motion Menu .........................................................................................................................................26
3.7 Preset Menu ....................................................................................................................................................29
3.8 Pattern Menu ..................................................................................................................................................30
3.9 Tour Menu .......................................................................................................................................................31
3.10 Auto Scan Menu ...........................................................................................................................................32
3.11 Alarm Menu ...................................................................................................................................................33
4. Troubleshooting ................................................................................................................................................34
5 Specifications .....................................................................................................................................................36
5.1 General Specifications ....................................................................................................................................36
5.2 Dimensions .....................................................................................................................................................37
A.1 Appendix. Pelco Protocol unction List ..........................................................................................................38

4 30X Mini PTZ
Issue: 1.1
Warning and Caution
If you fail to read this information and handle the product incorrectly, death or serious injury may occur.
*Precaution
Safety -----------------------------------------------------------------------------------------------------------------
Should any liquid or soil object fall into the dome, unplug the dome and have it checked by the qualified
personnel before operating it any further.
Unplug the dome from the wall outlet if it is not going to be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.
Allow adequate air circulation to prevent internal heat build-up. Do not place the dome on surfaces (rugs,
blanket, etc.) or near other materials (curtains, draperies) that may block the ventilation holes, may block the
ventilation holes.
Height and vertical linearity controls located at the rear panel are for special adjustments by qualified personnel
only.
Install -----------------------------------------------------------------------------------------------------------------
Do not install the dome in an extremely hot or humid place or in a place subject to excessive dust, mechanical
vibration.
The dome was designed to be waterproof. Exposure to rain or water may damage the unit.
Cleaning --------------------------------------------------------------------------------------------------------------
Clean the dome with a slightly damp soft cloth. Use a mild household detergent. Never use strong solvents
such as thinner or benzene as they might damage the finish of the unit.
Retain the original carton and packing materials for safe transport of this unit in the future.

5 30X Mini PTZ
Issue: 1.1
Important Safeguards
Read this manual carefully.
Keep these instructions.
Heed all warnings.
ollow all instructions.
Do not use this dome near water or much moisture.
Clean only with dry cloth.
Do not block any ventilation opening. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat. A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third plug is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord form being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this dome during lightning storms or when unused for long periods of time
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
CAUTION – These servicing instructions are for use by qualified service personnel only. To reduce the risk
of electric shock, do not perform any servicing other than what contained in the operating instructions unless
you are qualified to do so.
Use certified/listed power supply transformer only.
Do not defeat the safety purpose of the polarized or grounding-type plug.
Never move Pan/Tilt by hands. It may causes serious damage to the camera.
The unit should be installed by the trained
Always stop using when the product emits smoke or abnormal heat.
Never install the product in area exposed to water, oil or gas.
Never install the product on a ceiling that cannot hold its weight.
Never touch the power cord with wet hands.
Clean only with dry cloth.
Never install the product in extreme high or low temperature.
Never drop hit strongly nor vibrate the product.
Never expose the product to direct sunlight or severe ray.
Never touch the front glass of the product.
Never install the product in areas exposed to rain or water

6 30X Mini PTZ
Issue: 1.1
This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance
CC Compliance statement------------------------------------------------------------------------------------------
This Equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part
15 of the CC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his expense.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE A EST CON ORME A LA NORME NMB-003 DU CANADA.
CE Compliance statement--------------------------------------------------------------------------------------------
Warning: This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.

7 30X Mini PTZ
Issue: 1.1
1. Overview
1.1 Feature
The PTZ Dome shall be quickly to install and be able to offer the services described in this document by way of
an interface unit.
Its mechanical architecture is designed to ensure adequate mechanical attachment to the wall of a dwelling.
Details shall be provided as to how the PTZ Dome is to be installed.
A building block for any surveillance/security system is composed of PTZ domes and Controllers. Extensible
and flexible configuration promotes remote control functions for various external switching devices such as
multiplexers and DVRs
- Autofocus, High Resolution Integrated Color Camera
- 120X Zoom (12X Optical, 10X Digital )
- WDR(Wide Dynamic Range)
- BLC/HSBLC
- DNR(Digital Noise Reduction)
- Day & Night (Auto/BW/Color)
- Pan 360°Endless Rotation
- Tilt 180°Vector scan available
- 210 Preset Positions (except Short-cut command)
- 8 Auto Scan
- 8 Pattern
- 8 Tours consist of Presets, Patterns and Scans
- 4 Alarm Input(Off/NC/NO) and 1 Alarm Output(Off/NC/NO)
- User programmable setting(Preset, Auto scan, Pattern, Tour, Home unction, Alarm Action, etc)
- Programmable PTZ Speed: Proportional to Zoom
- Multi-language OSD Support
- Private Mask Zone Support
- Standard protocol including Pelco-D/P
- Up to 99 Camera ID
- RS-485 Receiver
- AC 24V Only

8 30X Mini PTZ
Issue: 1.1

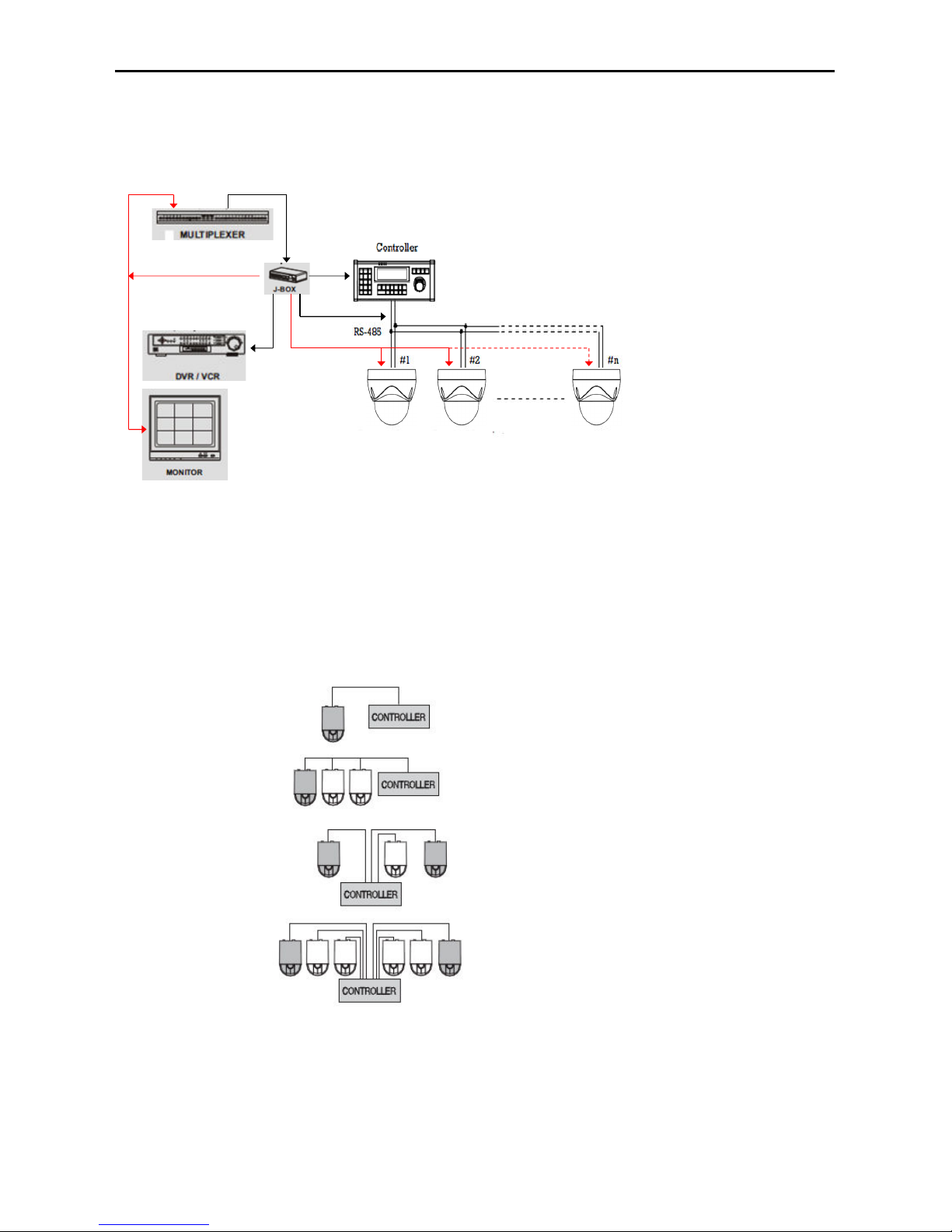

1.2 System Configuration
Video
VideoVideo
Video
Video
VideoVideo
Video
Video
VideoVideo
Video
1.3 Termination Settings [SW303: Refer to 2.4 Dome Camera Settings]
To prevent mal-function or the attenuation of communication signals between the camera and controller, the
items (marked with gray color) at the end of line must be set up with the termination settings.

9 30X Mini PTZ
Issue: 1.1
2. Installation and Connection
2.1 Package Contents

10 30X Mini PTZ
Issue: 1.1
2.2 Base Installation
- Make holes for mounting and cable hole in the ceiling place to which the dome camera is installed using the
template sheet.
- Extract the cable through the (cable) hole and connect the connector of terminal block .in the dome
- ix the dome base firmly with supplied mounting screws (4)
- Lock the housing cover with torx screws (4)

11 30X Mini PTZ
Issue: 1.1
2.3 Connection Interface and Wiring cables
*Caution
Do not connect the power cable until all other connections have been completed.
After removing the protection sheet (PE form), supply the power to the dome camera.
2.3.1 Connecting the RS-485 lines
The dome camera can be controlled remotely by an external device or control system such as a controller
using RS-485 half duplexer (RS-485 Connection). A repeater is recommended to extend over 1 Km.
2.3.2 Connecting Video Jack
Connect the video Jack (BNC connector) to the monitor or video input of the DVR. (Video for HDcctv)
Connect the video Jack (Yellow BNC connector) to the monitor or video input of the DVR for checking only.
(Video for nalog composite)
2.3.3 Connecting larms
Alarm In: You can use external devices to trigger the dome camera to react to events
Mechanical or electrical switches can be wired to the AI and Ground pins
Alarm Out: The dome camera can activate external devices such as buzzer. Connect the device to NO (or
NC) and COM pins.
2.3.4 Connecting the power
Connect the power jack of AC24V adaptor to the dome camera.
2.4 Setting Dome Camera
The device can communicate with external switching device such as multiplexer or DVRs by setting the Rotary
switch and Dip switch. Refer to tables below for setting the dome camera ID and protocol selection. Total length
of the cable for communication should not exceed 1km.
2.4.1 Setting the address (ID) of dome camera

12 30X Mini PTZ
Issue: 1.1
To prevent wrong operation and malfunction, each dome camera has a unique address (ID).
The default setting is 0[ID001].
Dome Camera ID Setting (Rotary Switch, SW301, SW302)
X10 X1
SW301 SW302
2.4.2 Setting the protocol of dome camera
Analog Composite Video (Dip Switch, SW303)
No1 Baud Rate(bps)
Off NTSC
ON PAL
Dome Camera Protocol Setting (Dip Switch, SW303)
No2 Protocol
Off Pelco D/P
ON Others(Pelco P/ Others)
Dome Camera Baud Rate Setting (Dip Switch, SW303)
No3 No4 Baud Rate(bps)
Off Off 2400
Off On 4800
On Off 9600
On On 38400
Dome Camera Termination Setting Off/ON (NO5, Dip Switch, SW303)
SW302 SW301
SW303
J302

13 30X Mini PTZ
Issue: 1.1
3. Program and Operation

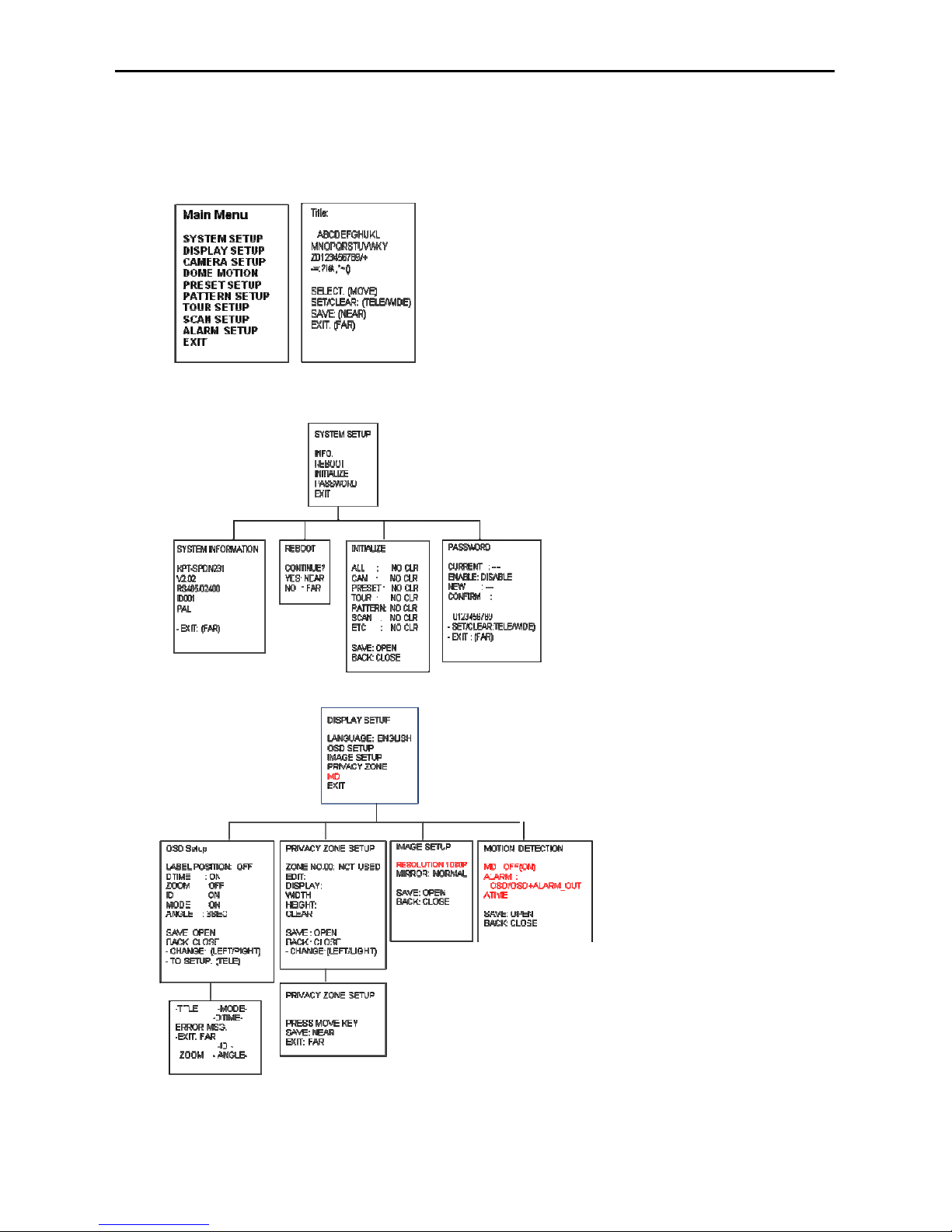

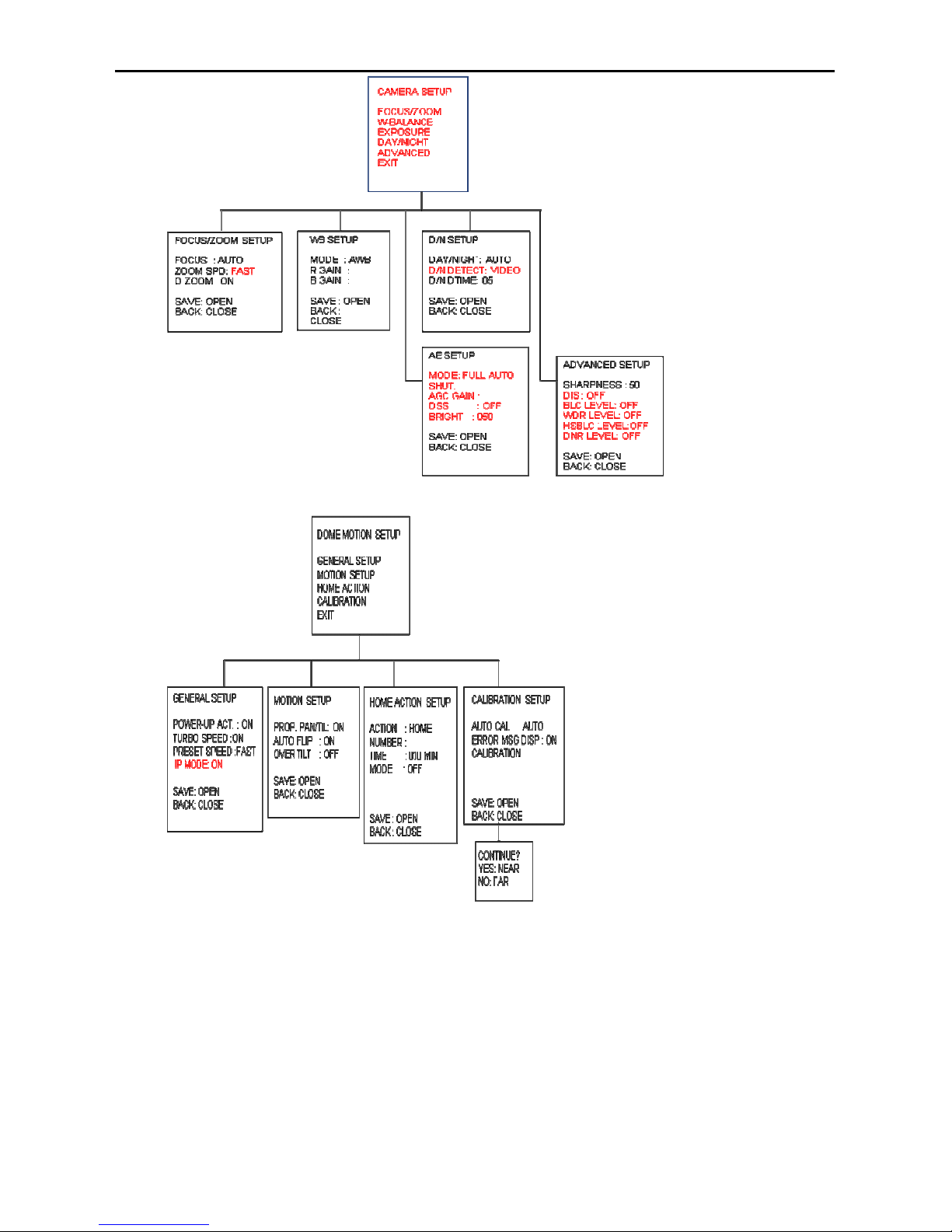

[OSD Menu Structure]
- Main Menu/Title
- Operation Menu
-Next Page Continue-

14 30X Mini PTZ
Issue: 1.1
-Next Page Continue-

15 30X Mini PTZ
Issue: 1.1
This manual is designed to be a reference for the programming and operation of the system. You can see
information about features of the dome and commands as well as an operation method.
The symbols below mean some action of the joystick controller.
▲/▼: move joystick up and down
◀/▶: move joystick left and right direction
▶: select or change settings
[Tele/Wide]: move joystick clockwise or counter-clockwise for zooming
[KEY]: press the defined key.
3.1 Getting Started
You should install and connect the dome to an interface device before using this operating guide. Refer to {2.
Installation and connection of this manual}.
Once installed, apply power to the dome and the start-up screen is displayed on the monitor.
Before installing and operating the dome camera, please read this user’s manual carefully. This dome camera
can be operated using two methods:
- Use hot keys [Refer to Appendix].
- Use OSD Menu on the monitor [Read this operation manual].
*Notice: You shall check the saving state of each step at sub menu or edit menu, after editing functions
or changing settings. You may save setting one function twice. or example, after {the position or title of

16 30X Mini PTZ
Issue: 1.1
Preset} is saved at ‘Sub Menu’, {the status of Preset Setup} has to be saved at ‘Preset Setup Menu’ again.
*Notice: To stop an action, press [ESC] button or [96+Preset]. In that case, the dome goes to manual
mode or is to be paused temporarily (about 10sec in larm mode)
3.1.1 ccessing to M IN MENU [95] + [Preset]/ [Menu]*
When you use Pelco-D and Pelco-P protocol with your controller, you can access to the main menu on your
monitor by pressing the key [95] + [Preset] or pressing and holding the [Menu] key for 2 seconds.
3.1.2 Editing a TITLE
The title edit menu can be used in the setup for Preset/Pattern/Tour/Scan commonly.
- Move the joystick right in Main Menu. The screen appears on the monitor:
- Move the joystick right, left, up or down to select a character.
- Press [Tele] button to input a character and [Wide] button to cancel the character.
- When the label is completed, use [Near] or move the joystick to save the selected title.
- If you want to cancel the selected title, return to the previous menu using [ ar] button.
3.2 Main Menu
▲/▼: move joystick up and down for selecting an item.
◀/▶: move joystick left and right for moving an item.
▶/ [Open]/ [Near]: move joystick right to select or save settings or go to edit pages.

17 30X Mini PTZ
Issue: 1.1
▶/ [Close]/ [ ar]: move joystick to cancel or to exit current menu. (Back to previous menu without saving)
3.3 System Setup Menu
▲/▼: move joystick up and down for selecting an item.
◀/▶: move joystick left and right for moving an item.
▶/ [Open]/ [Near]: move joystick right to select, save settings or go to the edit page.
▶/ [Close]/ [ ar]: move joystick to cancel or to exit current menu (Back).
3.3.1 System Information
The system Information displays model name/Running Version/Protocol/Communication Type/Camera ID
No./System. It is read only for reference. Use the following steps to display the System Information screen:
Camera ID changes with respect to ID switching setting.
- Enter into {Main MENU}
- Select {System} using the joystick [ ▶ ].
- Move the joystick right [ ▶ ] for selecting {Info} in the sub menu of {System}.
- Press [ ar] button or use joystick [ ▶ ] to return to previous menu (Back).
3.3.2 Reboot
Reboot the system if there are some anomalous problems to control or operate the domes. Rebooting the
system will recycle power of dome and camera without changing settings of dome.

18 30X Mini PTZ
Issue: 1.1
- Enter into {Main Menu} - Select {System) using joystick and move to {Reboot} in the sub menu of {System}
- To {Reboot} the system, Press [Near] key.
- To cancel Reboot, Press [ ar] key.
3.3.3 Initialize
Use this function to initialize all or specific parameters of dome to factory default parameters.
- Enter into {Main Menu}
- Select {System} using joystick [ ▶ ] and move to {Initialize} in the sub menu of {System}
- Select items to be initialized.
- Press [Near] button or use joystick [ ▶ ] to select {Clear}
- Press [ ar] button or use joystick [ ▶ ] to return to previous menu (Back).
[ALL]: Clear All saved items (CAM/PRESET/TOUR/PATTERN/SCAN)
[CAM]: Clear Camera related settings.
[PRESET]: Clear saved presets. (To clear each preset, refer to PRESET Menu)
[TOUR]: Clear saved Tours.
[PATTERN]: Clear saved Patterns.
[SCAN]: Clear saved Scan items.
[ETC]: Clear other setting value except items of Camera & PTZs (CAM status and saved data of PRESET,
TOUR, PATTERN and SCAN)
3.3.4 Entering a Password
To prevent unauthorized changes to the dome settings, the dome have the feature of password protection. An
unauthorized operator cannot access to any of the dome settings menus. The password must be entered before

19 30X Mini PTZ
Issue: 1.1
programming. The valid password with four characters must be entered to continue programming.
- Enter into {Main Menu} (refer to Accessing Main Menu)
- Select {System} and move to {Password} in the sub menu of {System} using joystick [ ▶ ].
- Select numbers using joystick left/right and press [Tele] key.
- To lock the password, set Enable: Enable
Note*:
0000 is the default password.
3.4 Display Setup Menu
▲/▼: move joystick up and down for selecting an item.
◀/▶: move joystick left and right for moving an item.
▶/ [Open]/ [Near]: move joystick right to select or save settings or go to edit pages.
▶/ [Close]/ [ ar]: move joystick to cancel or to exit current menu (Back).
3.4.1 Language
- Select {Display Setup} and move to {Language} using joystick [ ▶ ].
- If you want to use another language, select one
from English/Chinese/Russian/Spanish/German/Italian/ rench/Netherlandish.
3.4.2 OSD Setup

20 30X Mini PTZ
Issue: 1.1
You can see only video or some character with video. Each element is able to handle.
OSD setup allows you to program how labels are displayed on the monitor.
Labels are such as Title, Dwell Time, Zoom ratio, Camera ID, Operation Mode and PTZ Angle
Label position can be set where you want to place on the monitor.
- Enter into {Main Menu}
- Select {Display} and move to {Setup} using joystick [ ▶ ]
- Use the joystick to move the label up, down, left, and/or right.
- Press [Tele] button to edit the position of labels.
- Move the joystick right [ ▶ ] to change the status of labels
- Other labels can be set with same method.
- Press [ ar] button to return the previous menu (OSD setup).
- Press [Open] button or use joystick to save the status.
- Press [Close] button or use joystick to return to previous menu (Back).
3.4.3 Privacy zone (TBD)
A Private mask zone allows an administrator to program one four-sided, user defined zone which cannot be
viewed by operators. The mask can be changed with pan angle and tilt angle using joystick and be adjusted in
size according to zoom ratio [Tele/Wide]. Maximum 15 positions can be displayed on the monitor screen. The
speed of displaying masks is proportional to the number of masks on the screen. It is recommended that you
set the size to at least twice the size of the object (height and width).
- Enter into {Main Menu}
- Select Display and Privacy Zone using joystick [ ▶ ].
- Move the joystick left or right to select zone ID[00~14].
- To program a Privacy Zone, select Edit Mask, move to a Target (Pan/Tilt) and adjust a Mask size (Zoom).
- Press [Near] button or use joystick to save it.
- After editing a mask, you can re-size width & height using joystick [
▶ ]. (e.g. ~5X)
- Set display On to display saved mask.
